How to Choose Fire Truck Pump Accessories? A Practical Reference

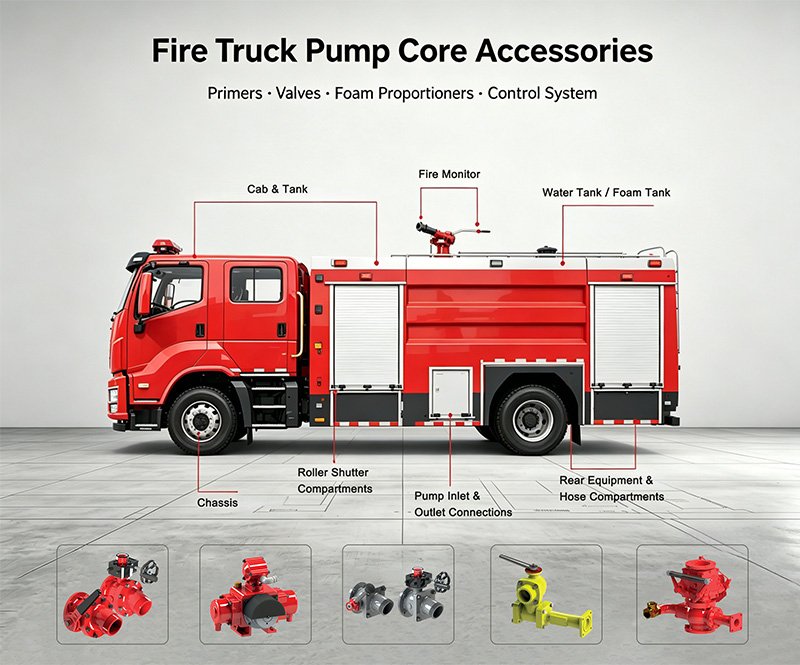

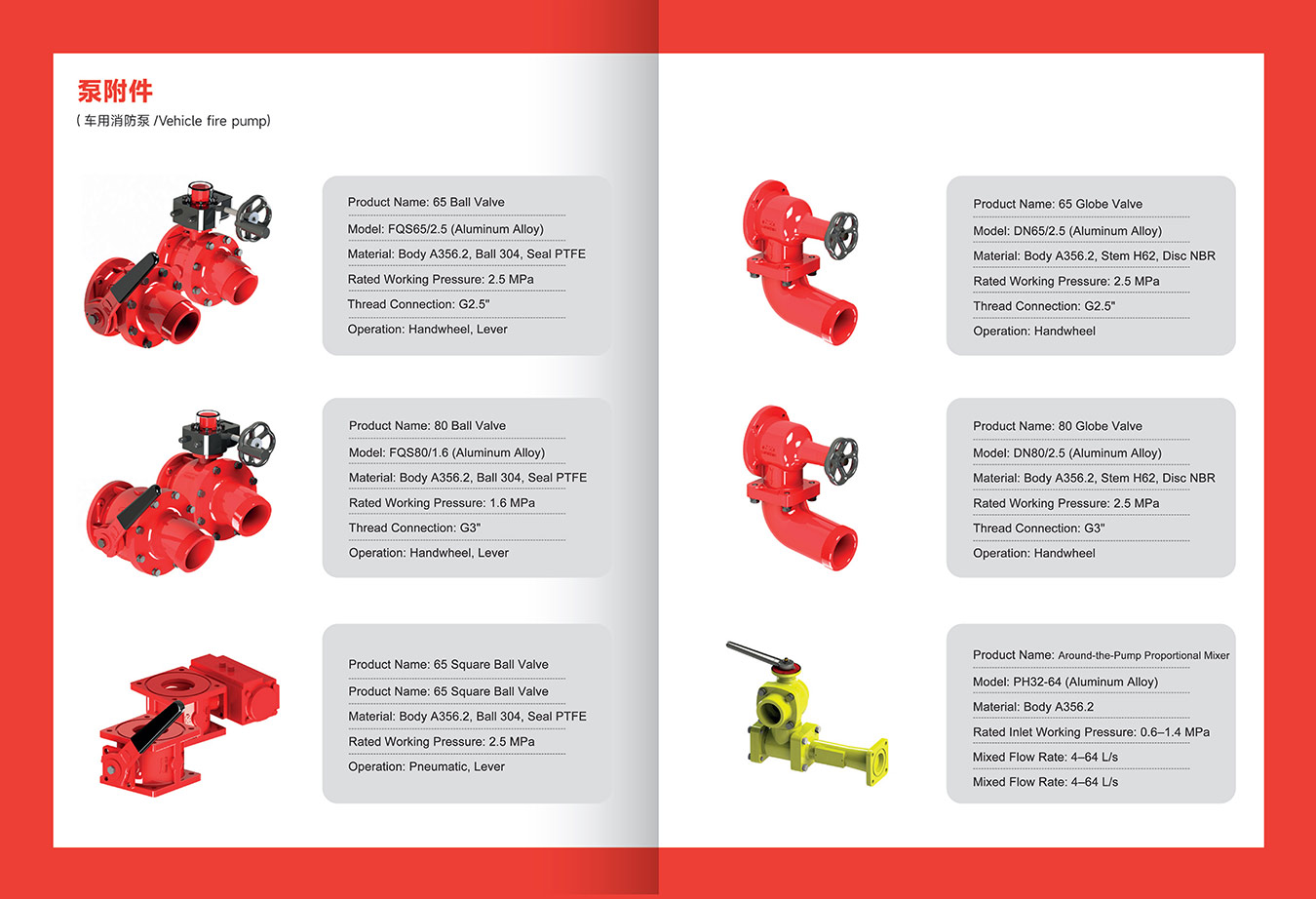

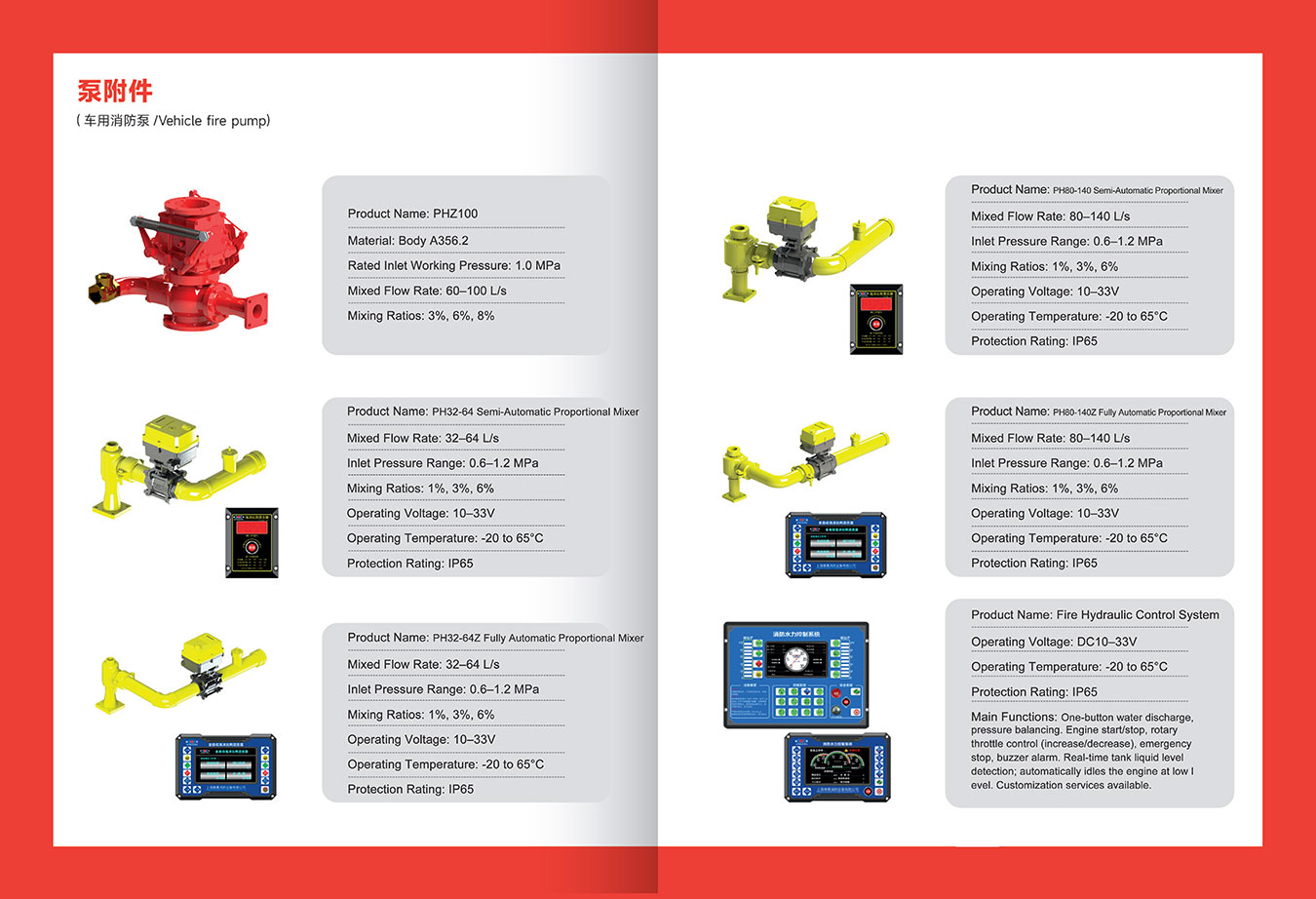

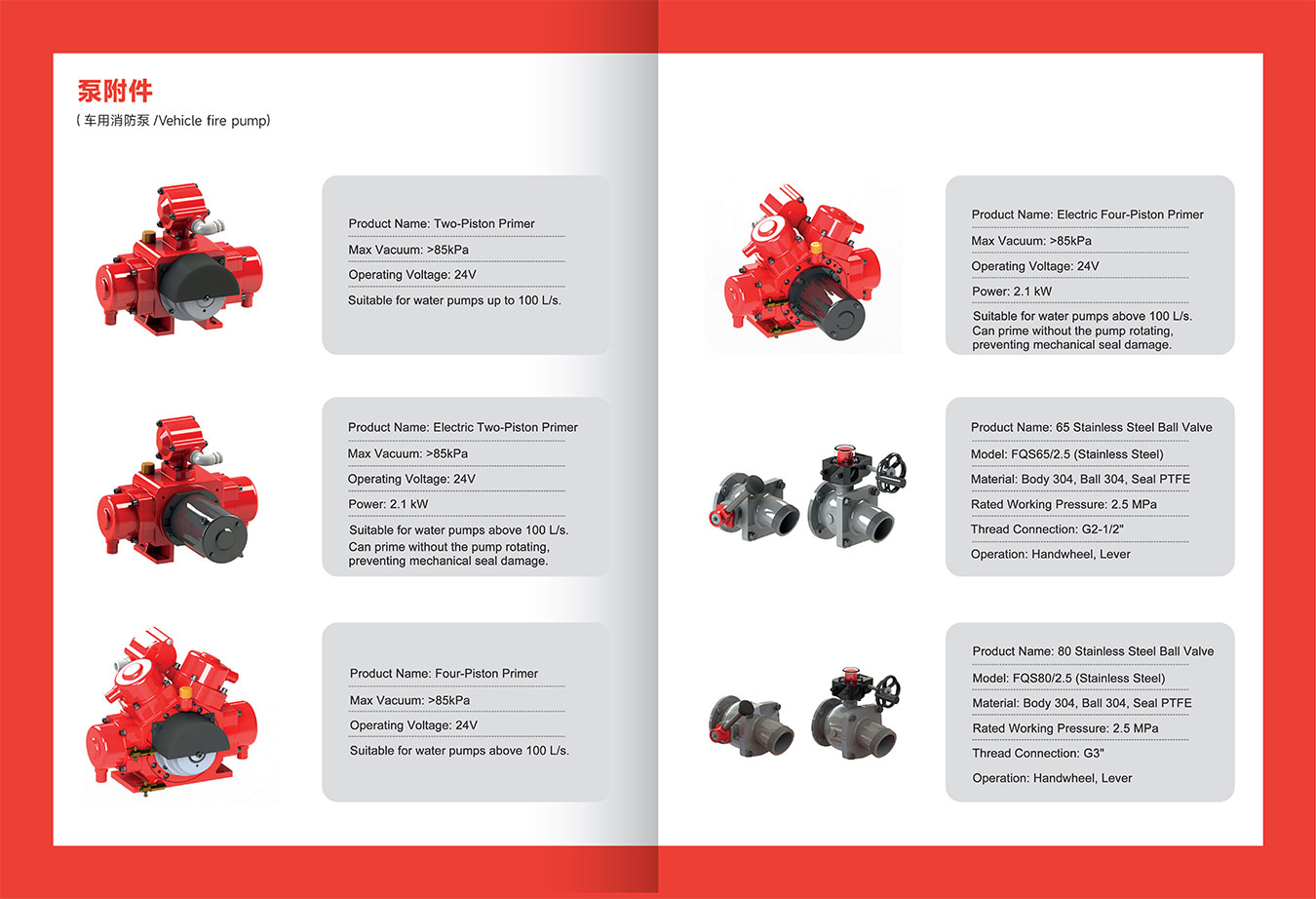

A fire truck pump system is only as reliable as its components. From drawing water from a source to discharging it at high pressure, every accessory plays a critical role. This guide covers fire truck five key accessory categories: primers, ball valves, globe valves, foam proportioners, and hydraulic control systems. Understanding these components helps firefighters maintain their equipment and choose the right accessories for specific applications. I. Primer Series (Vacuum Priming Devices) Primers are essential for drawing water from lakes, rivers, or other static sources when a hydrant is not available. They remove air from the pump and suction hose, allowing atmospheric pressure to push water into the pump. Product Overview   Product Max Vacuum Voltage Power Suitable Pump Size 2-piston primer >85kPa 24V - Below 100 L/s Electric 2-piston primer >85kPa 24V 2.1KW Below 100 L/s 4-piston primer >85kPa 24V - Above 100 L/s Electric 4-piston primer >85kPa 24V 2.1KW Above 100 L/s     Key Feature: Electric Primers Electric primers offer a significant advantage — they can prime the pump without the pump rotating. This protects the mechanical seal from dry running damage. When a standard primer requires the pump to spin, the electric version works independently, extending seal life. II. Ball Valve Series (Flow Control) Ball valves control water flow through hoses and discharge outlets. They are designed for quick on/off operation with a simple 90° turn. Stainless Steel Ball Valves   Model Material Rated Pressure Thread Operation FQS65/2.5 Body & ball: 304 stainless steel; Seal: PTFE 2.5 MPa G2-1/2" Handwheel / Lever FQS80/2.5 Body & ball: 304 stainless steel; Seal: PTFE 2.5 MPa G3" Handwheel / Lever     Aluminum Alloy Ball Valves (Lighter weight)   Model Material Rated Pressure Thread Operation FQS65/2.5 Body: A356.2; Ball: 304; Seal: PTFE 2.5 MPa G2.5" Handwheel / Lever FQS80/1.6 Body: A356.2; Ball: 304; Seal: PTFE 1.6 MPa G3" Handwheel / Lever FQS65/2.5 Square Body: A356.2; Ball: 304; Seal: PTFE 2.5 MPa - Pneumatic / Lever     Ⅲ. Globe Valve Series (Pressure & Flow Regulation) Unlike ball valves that are designed for on/off operation, globe valves allow precise control of flow rate and pressure. They are ideal for situations where gradual adjustment is needed.   Model Material Rated Pressure Thread Operation DN65/2.5 Body: A356.2; Stem: H62; Seal: NBR 2.5 MPa G2.5" Handwheel DN80/2.5 Body: A356.2; Stem: H62; Seal: NBR 2.5 MPa G3" Handwheel     When to Use a Globe Valve Use globe valves at discharge points where fine pressure control is required, such as when filling another vehicle's tank or supplying a hose line at a specific pressure. IV. Foam Proportioner Series (Foam Mixing Equipment) Foam proportioners mix foam concentrate with water at precise ratios. This is essential for fighting Class B (flammable liquid) fires where water alone is ineffective. Ma...
