CB10/140 foam fire fighting pump

A fire truck pump system is only as reliable as its components. From drawing water from a source to discharging it at high pressure, every accessory plays a critical role. This guide covers fire truck five key accessory categories: primers, ball valves, globe valves, foam proportioners, and hydraulic control systems. Understanding these components helps firefighters maintain their equipment and choose the right accessories for specific applications. I. Primer Series (Vacuum Priming Devices) Primers are essential for drawing water from lakes, rivers, or other static sources when a hydrant is not available. They remove air from the pump and suction hose, allowing atmospheric pressure to push water into the pump. Product Overview   Product Max Vacuum Voltage Power Suitable Pump Size 2-piston primer >85kPa 24V - Below 100 L/s Electric 2-piston primer >85kPa 24V 2.1KW Below 100 L/s 4-piston primer >85kPa 24V - Above 100 L/s Electric 4-piston primer >85kPa 24V 2.1KW Above 100 L/s     Key Feature: Electric Primers Electric primers offer a significant advantage — they can prime the pump without the pump rotating. This protects the mechanical seal from dry running damage. When a standard primer requires the pump to spin, the electric version works independently, extending seal life. II. Ball Valve Series (Flow Control) Ball valves control water flow through hoses and discharge outlets. They are designed for quick on/off operation with a simple 90° turn. Stainless Steel Ball Valves   Model Material Rated Pressure Thread Operation FQS65/2.5 Body & ball: 304 stainless steel; Seal: PTFE 2.5 MPa G2-1/2" Handwheel / Lever FQS80/2.5 Body & ball: 304 stainless steel; Seal: PTFE 2.5 MPa G3" Handwheel / Lever     Aluminum Alloy Ball Valves (Lighter weight)   Model Material Rated Pressure Thread Operation FQS65/2.5 Body: A356.2; Ball: 304; Seal: PTFE 2.5 MPa G2.5" Handwheel / Lever FQS80/1.6 Body: A356.2; Ball: 304; Seal: PTFE 1.6 MPa G3" Handwheel / Lever FQS65/2.5 Square Body: A356.2; Ball: 304; Seal: PTFE 2.5 MPa - Pneumatic / Lever     Ⅲ. Globe Valve Series (Pressure & Flow Regulation) Unlike ball valves that are designed for on/off operation, globe valves allow precise control of flow rate and pressure. They are ideal for situations where gradual adjustment is needed.   Model Material Rated Pressure Thread Operation DN65/2.5 Body: A356.2; Stem: H62; Seal: NBR 2.5 MPa G2.5" Handwheel DN80/2.5 Body: A356.2; Stem: H62; Seal: NBR 2.5 MPa G3" Handwheel     When to Use a Globe Valve Use globe valves at discharge points where fine pressure control is required, such as when filling another vehicle's tank or supplying a hose line at a specific pressure. IV. Foam Proportioner Series (Foam Mixing Equipment) Foam proportioners mix foam concentrate with water at precise ratios. This is essential for fighting Class B (flammable liquid) fires where water alone is ineffective. Ma...

As a professional xiongzhen fire pump manufacturer in china, Powerstar Trucks owns its own brand "Xiongzhen" series of products, including low-pressure fire pump, medium-low-pressure fire pump, and high-low-pressure vehicle-mounted fire pumps, as well as supporting equipment such as fire monitors and foam proportioners. Its fire pumps utilize new materials such as aluminum alloy and stainless steel, and are equipped with an electromagnetic clutch automatic disengagement device and a check valve, featuring excellent performance, simple operation, and convenient maintenance. The company's products have passed type testing by the National Fire Equipment Quality Supervision and Inspection Center, CCC certification, and ISO9001 quality management system certification.   Xiongzhen fire pumps mainly include the following models: CB10/20-XZ, CB10/30-XZ, CB10/40-XZ, CB10/60-XZ, CB10/80-XZ, CB10/100-XZ, CB20.10/15.30-XZ, CB20.10/20.40-XZ, CB20.10/30.60-XZ, etc.   FIRE PUMP CB10/20-XZ for fire trucks   FIRE PUMPS CB10/30-XZ for fire trucks   Fire pumps Model CB10/40-XZ for fire engine China     Fire pumps Model CB10-60 for fire rescue trucks   Emergency Fire Pumps CB10/80-XZ for fire engine trucks   fire fighting Pumps CB10/100-XZ for fire vehicle   xiongzhen Fire Pump System CB10/100-XZ Specification   xiongzhen CB series Fire Pump Manufacturers    Fire Pumps Sets CB10/150 Specifications   Fire Fighting Pump System CB10/160-XZ xiongzhen factory     Emergency Fire Pumps CB10/170-XZ specifications   Powerstar trucks boasts strong technical capabilities, holding four patents, and utilizes advanced production equipment such as CAD drafting and CNC machine tools to ensure high product qualification rates and customer satisfaction. Its products are primarily targeted at fire truck modification plants and fire brigades.   CB20.10 20.40 fire pump details specificaiton   Fire Pump CB20.10 30.60-XZ by xiongzhen factory   Fire pump CB20/15-XZ series   emergency fire pump CB20/20-XZ series   Fire Pump Installation CB20 25 details     Here's a maintenance schedule for your XIONGZHEN fire pumps, categorized by week, month, quarter, and year for easy reference: 01, Powersar Fire pump Daily Inspection: Check the start-stop pressure and frequency of the pressure-stabilizing pump. Check the starting battery power of the diesel engine fire pump. Check the appearance of the water source control valves and alarm valve assemblies for damage.   02, Powersar Fire pump Weekly Inspection: Test run the automatic start motor fire pump. Check the fuel level of the diesel engine fire pump.   03, Powersar Fire pump Monthly Inspection: Test run the manual start motor fire pump and diesel engine fire pump. Check the water level of the fire water tank and elevated fire water tank. Check the air pressure, water level, and effective volume of the pressure tank. Check t...

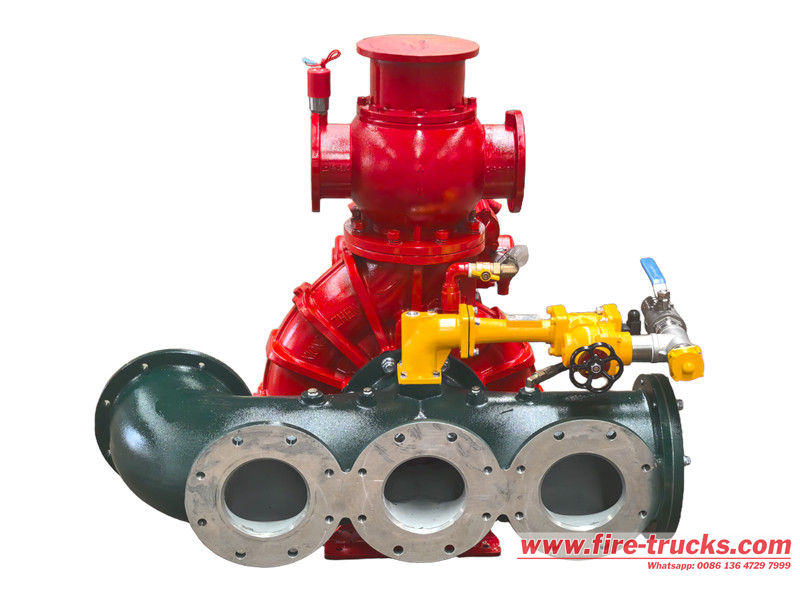

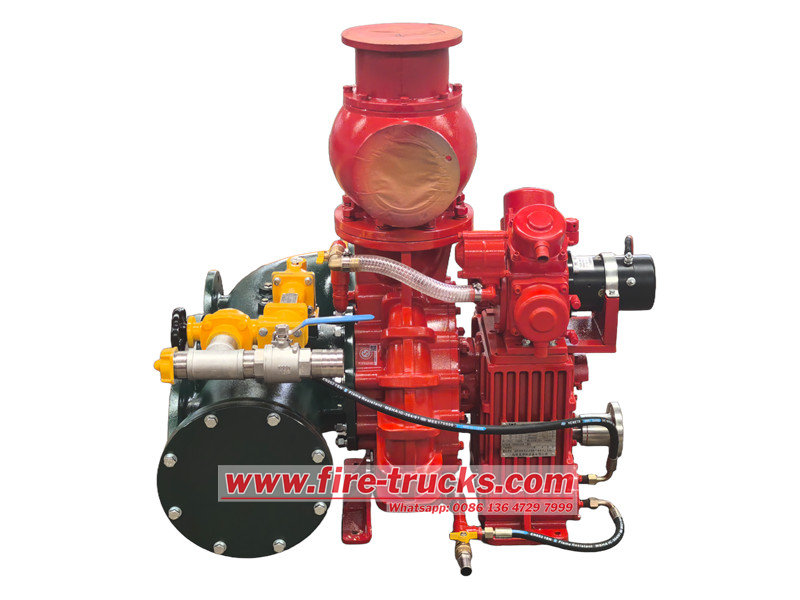

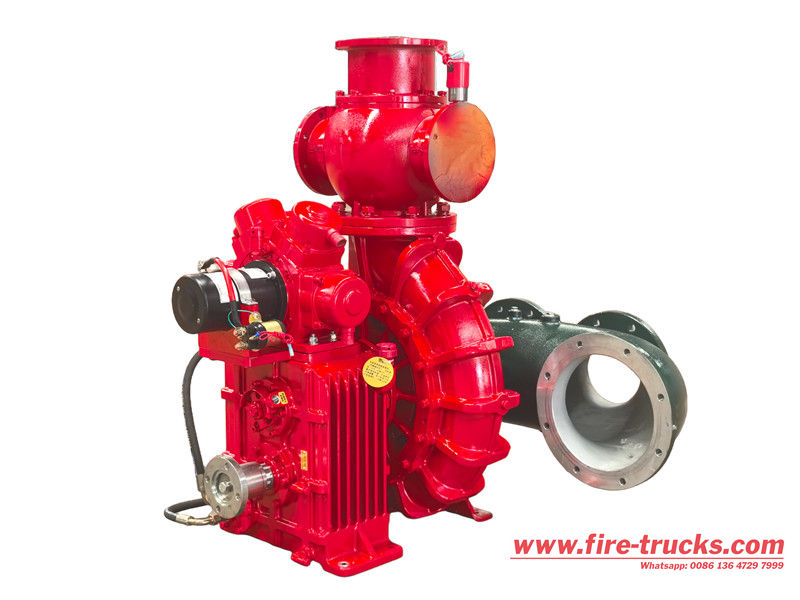

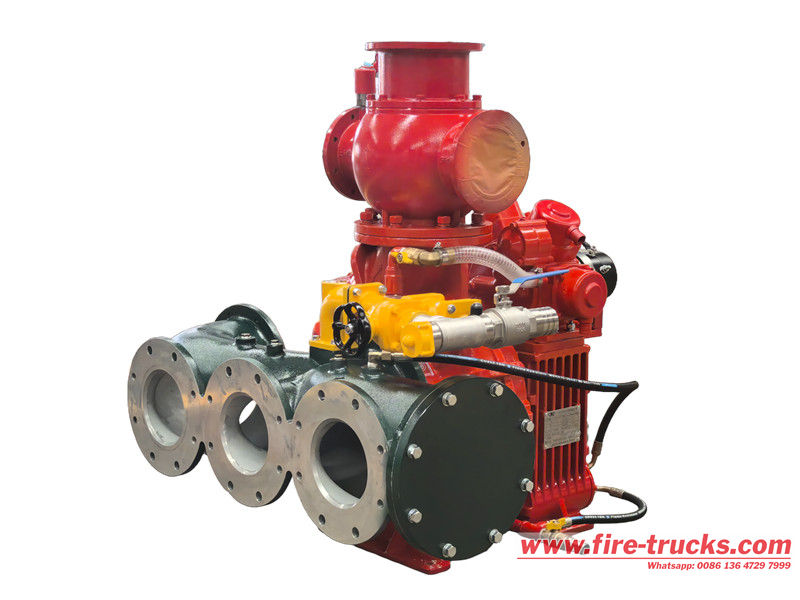

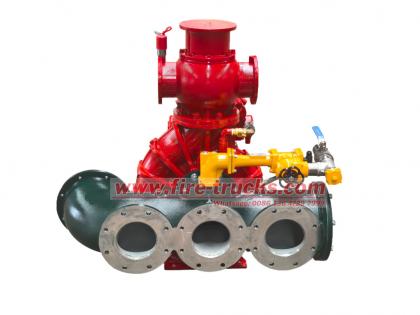

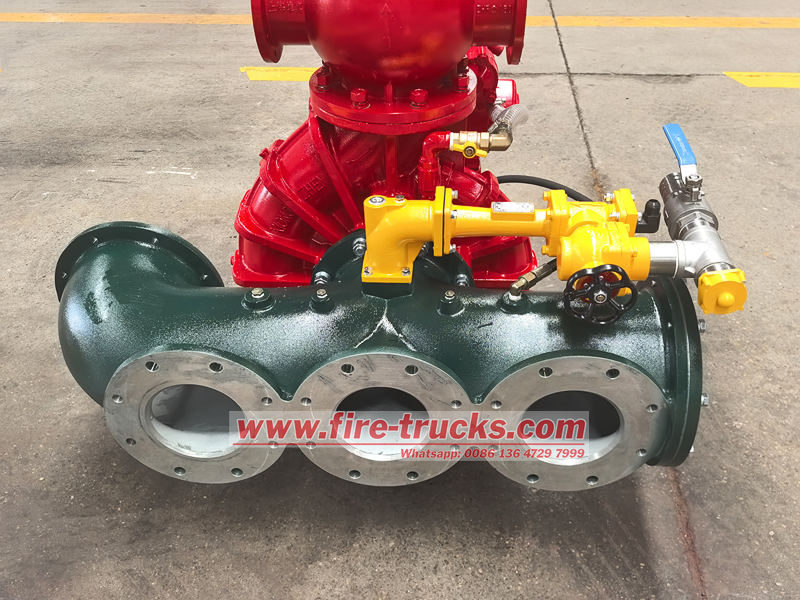

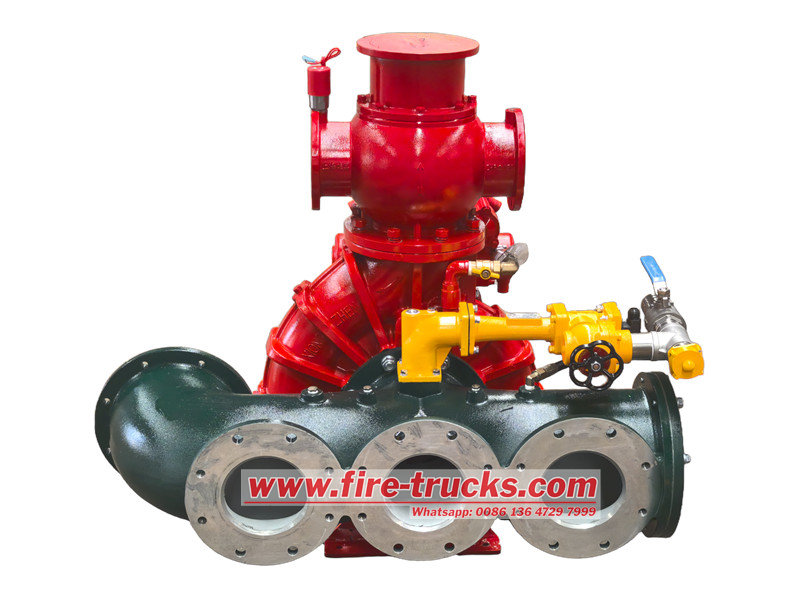

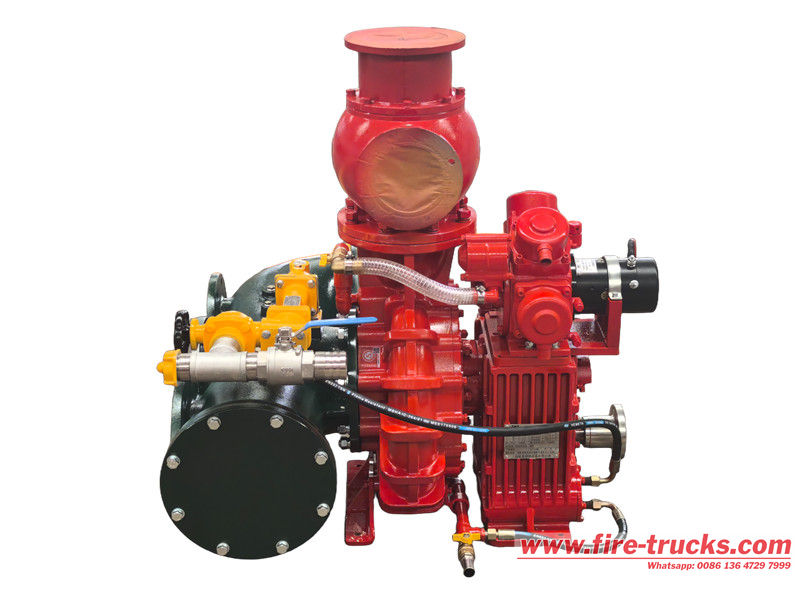

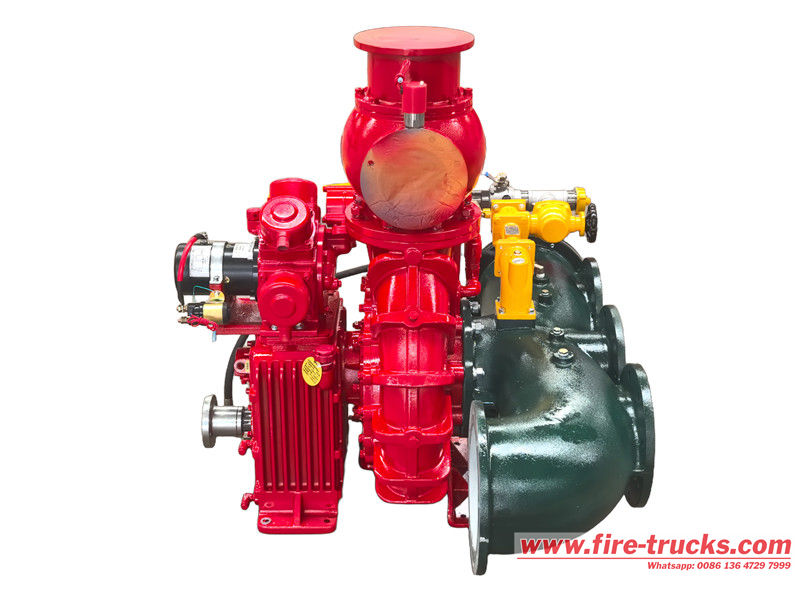

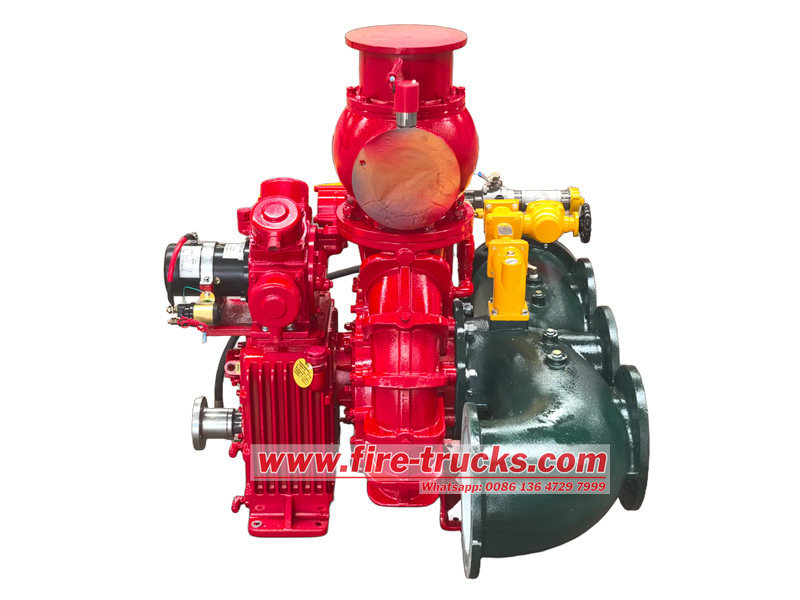

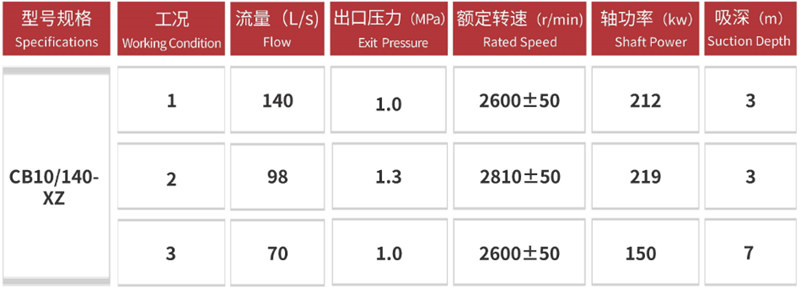

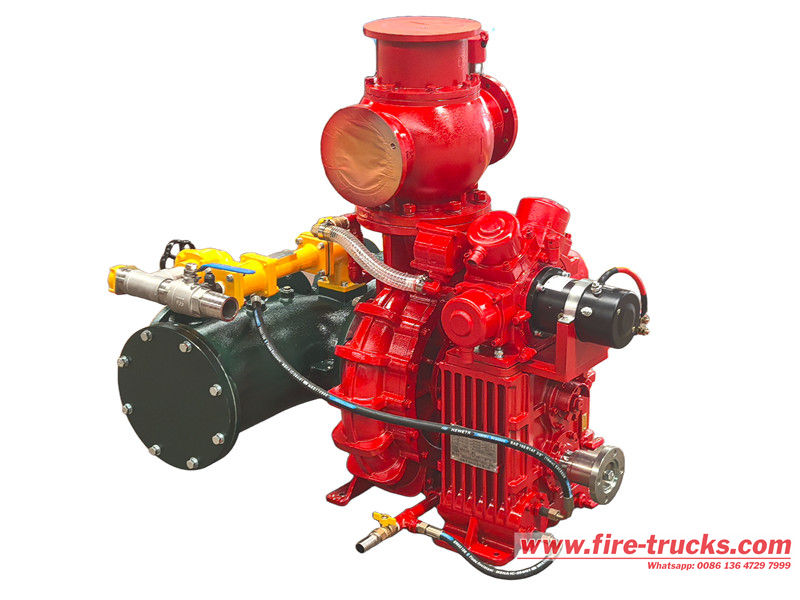

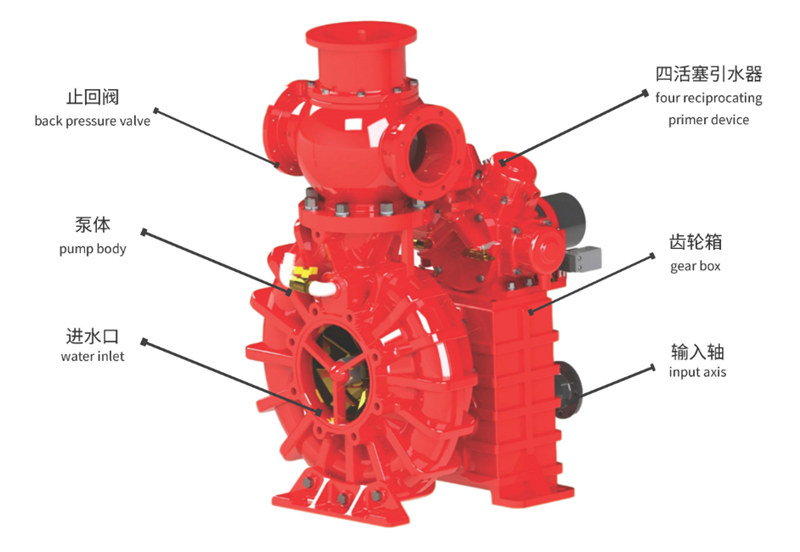

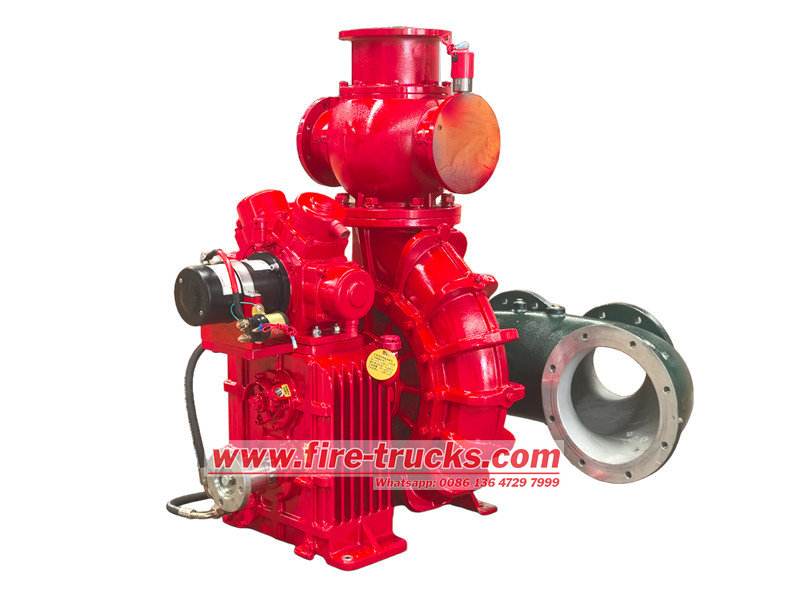

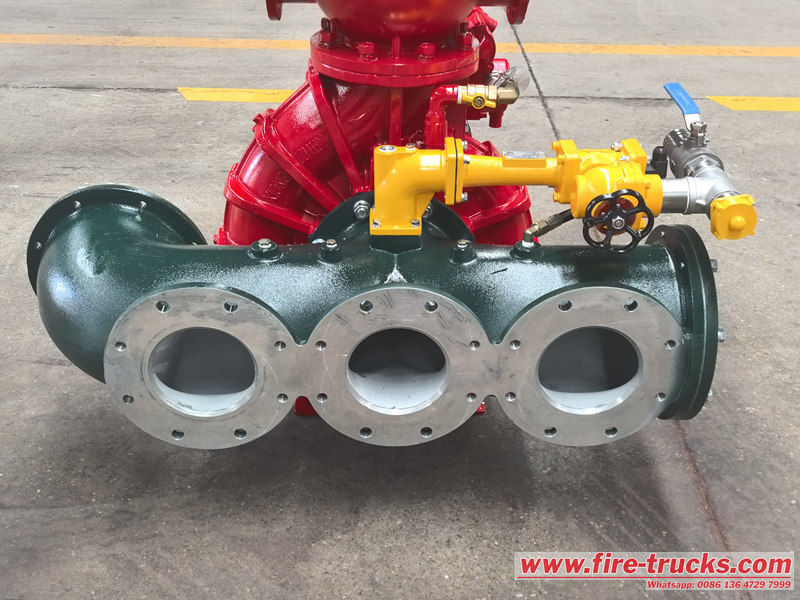

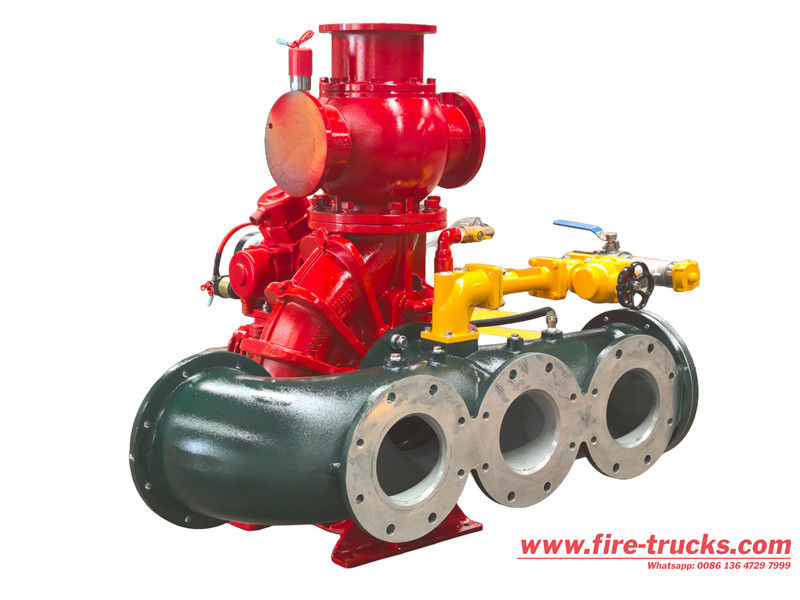

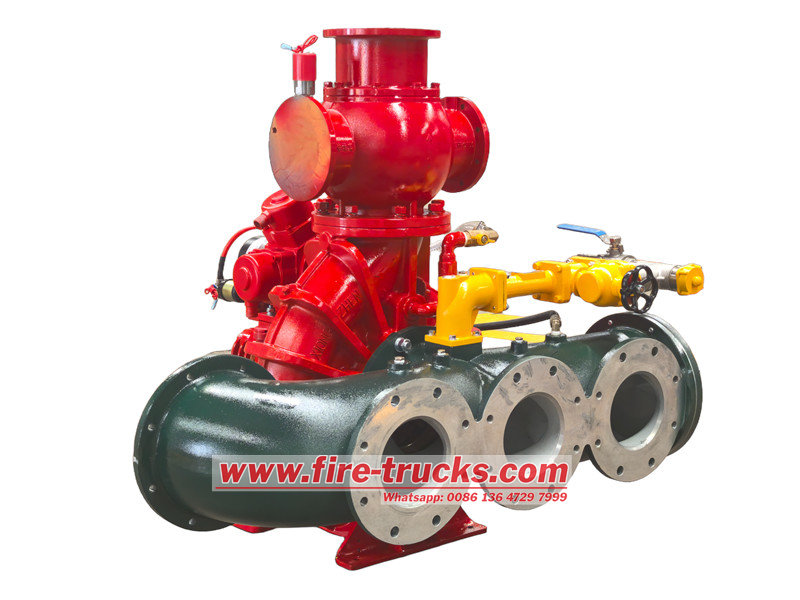

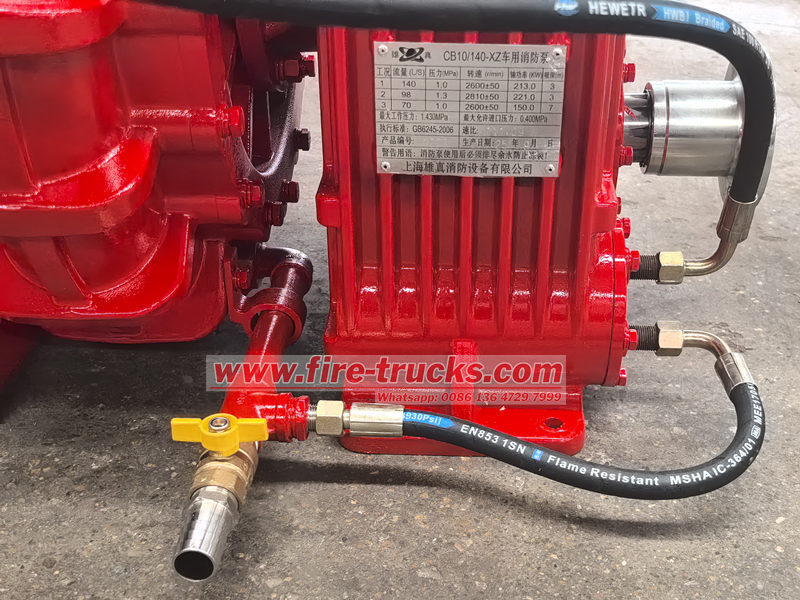

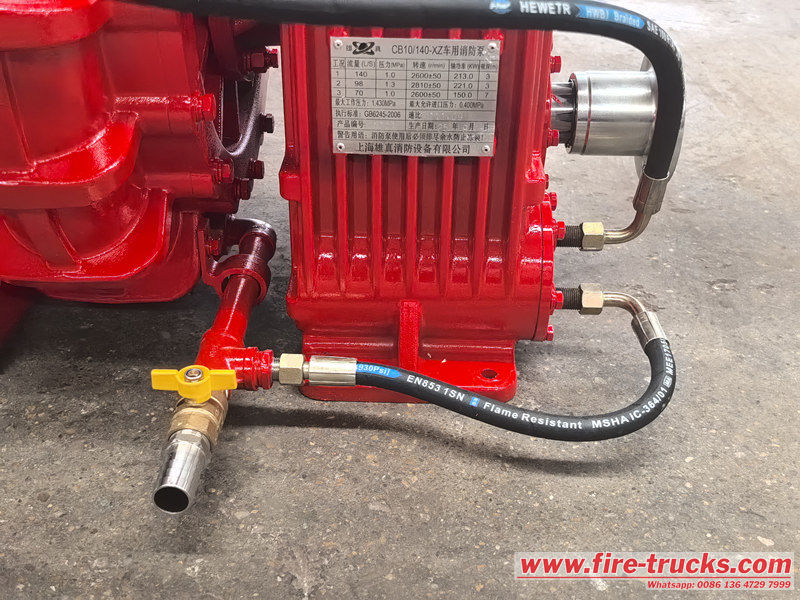

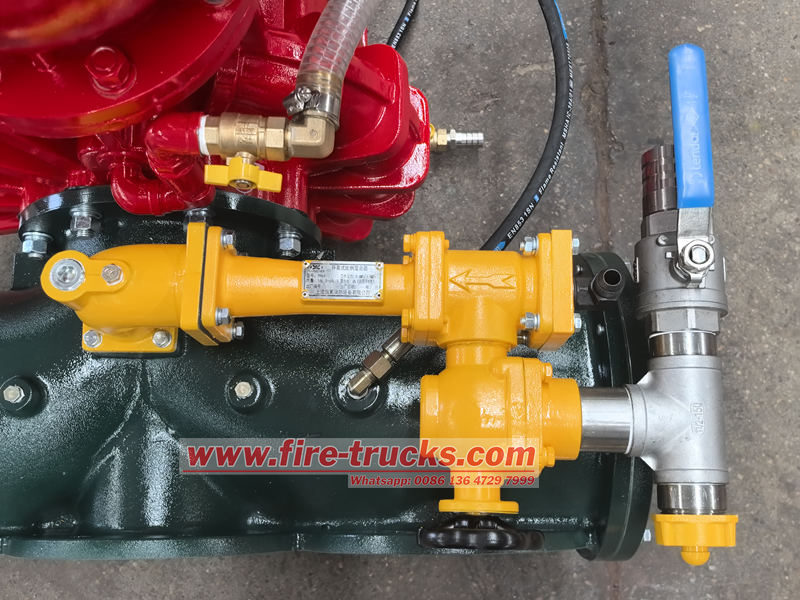

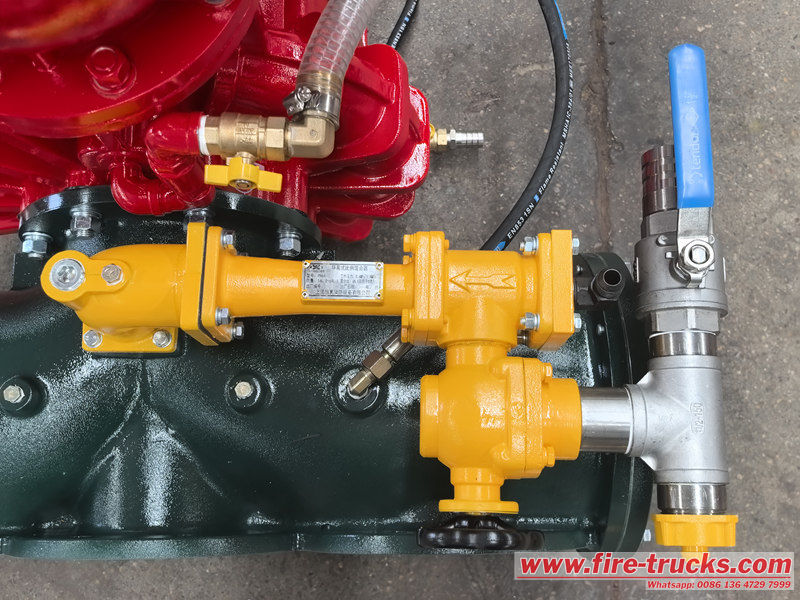

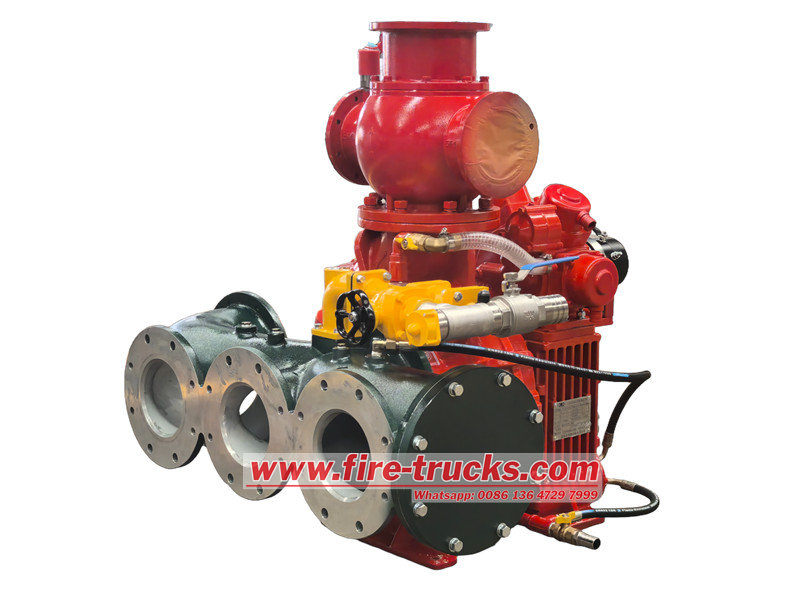

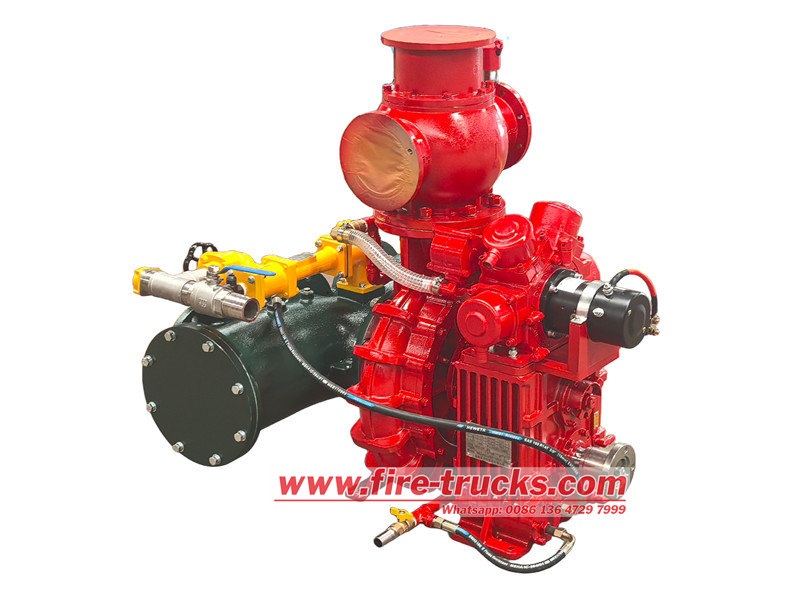

The CB10/140 foam fire fighting pump is a commonly used vehicle-mounted or stationary fire water supply system with a rated pressure of 1.0 MPa and a rated flow rate of 140 L/s, meeting the core water supply needs of firefighting systems. The pump body and impeller are constructed of high-quality, wear-resistant materials, offering corrosion resistance and high-pressure resistance. It features a dual-inlet design for rapid water source switching and is driven by a high-efficiency motor or diesel engine, achieving a startup response time of 30 seconds or less. With its compact design, easy maintenance, and reliable operation, the CB10/140 foam fire fighting pump is a vital piece of equipment for ensuring efficient water supply for firefighting operations. The CB10/140-XZ low-pressure truck-mounted fire pump features a single-stage centrifugal structure with an aluminum alloy pump casing and a brass impeller. It utilizes an electric four-piston water priming system with electric switching. The optional CB10/20 foam pump utilizes a pneumatic separation mechanism. This product offers excellent performance, a compact structure, simple operation, and easy maintenance.     The CB10/140-XZ fire pump is a single-stage centrifugal water pump used in fire trucks, characterized by its two-piston priming device that automatically engages and disengages. It is designed for high performance with a compact structure, easy operation, and convenient maintenance. Key specifications include a flow rate of \(140\) L/s and an outlet pressure of \(1.0\) MPa at a rated speed of \(2600) r/min.    ». Working principle of CB10/140 foam fire fighting pump ●Water and foam concentrate intake: Water is drawn from a supply, and foam concentrate is drawn from its storage tank.  ●Proportioning: The proportioner mixes the foam concentrate with the water at a predetermined ratio.  ●Pressurization: The pump pressurizes the mixture, increasing its velocity and pressure.  ●Discharge: The pressurized foam solution is pushed through the discharge hose to the nozzle, where it is discharged onto the fire.  ●Fire suppression: The foam blankets the fuel source, separating it from oxygen and extinguishing the fire.  ». Detailed introduction of CB10/140 foam fire fighting pump 1. Superior Structural Design, Stable and Reliable Performance: ●The CB10/140 fire pump features a single-stage centrifugal design and is constructed from high-strength aluminum alloy, offering advantages such as light weight, corrosion resistance, and high-temperature resistance. ●The pump's internal structure is precision-machined, ensuring smooth flow and excellent hydraulic performance. A mechanical seal prevents leaks and ensures long-term operational reliability. ●This fire pump boasts powerful suction and discharge capacities, making it suitable for a variety of medium- and large-sized firefighting vehicles and emergency firefighting equipment. 2. Easy Oper...
