Dongfeng 4x4 RHD pickup fire truck

Dongfeng 4x4 RHD pickup fire truck

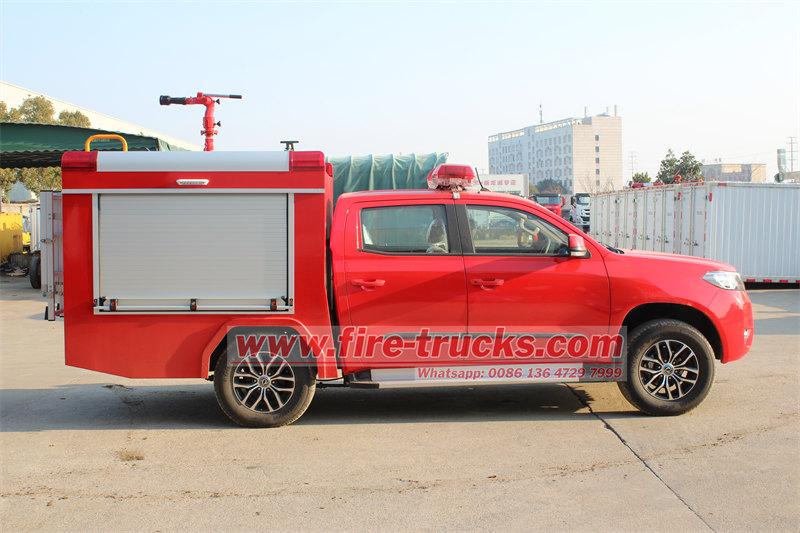

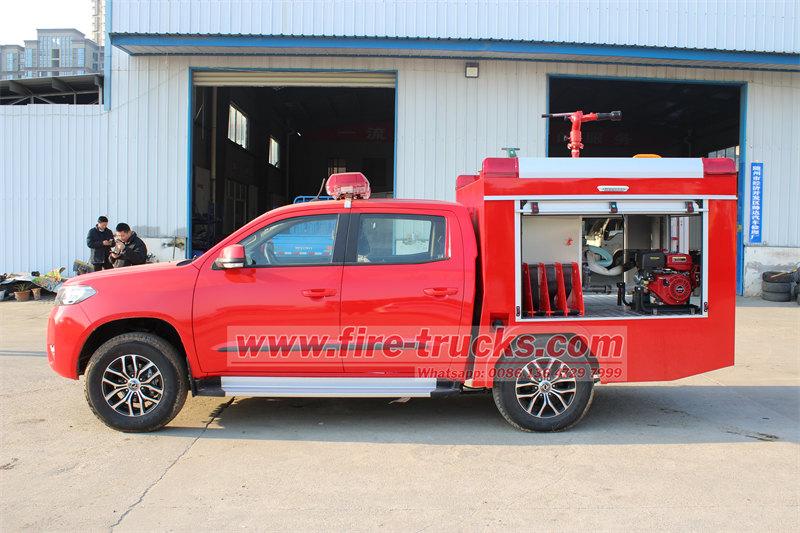

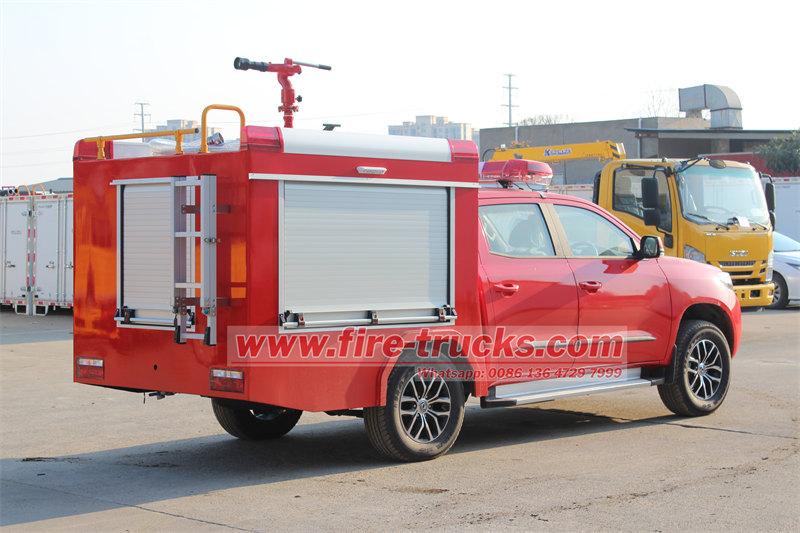

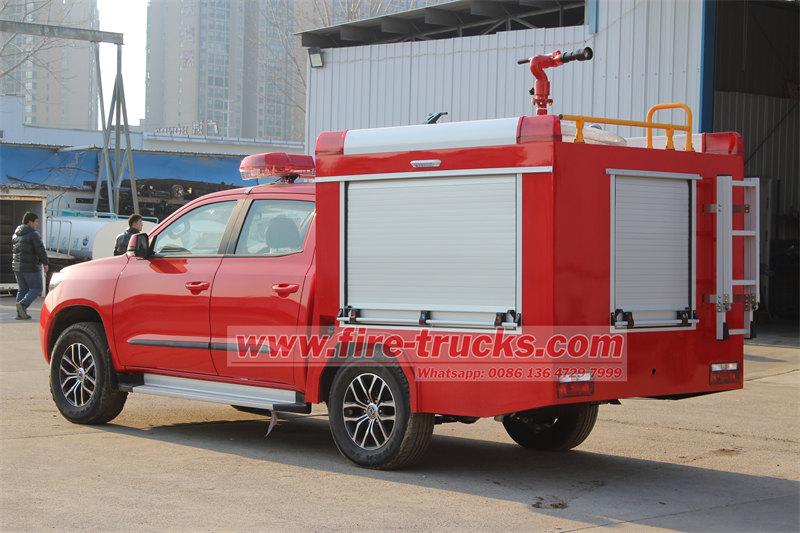

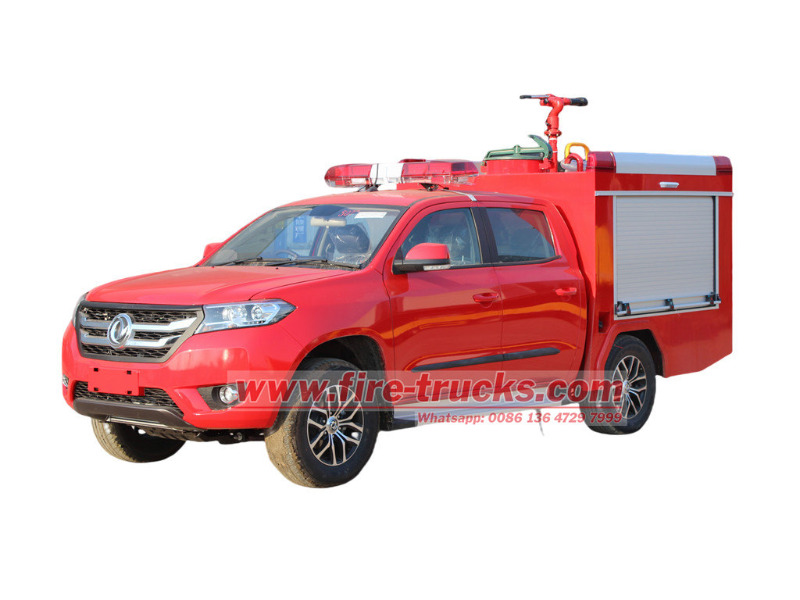

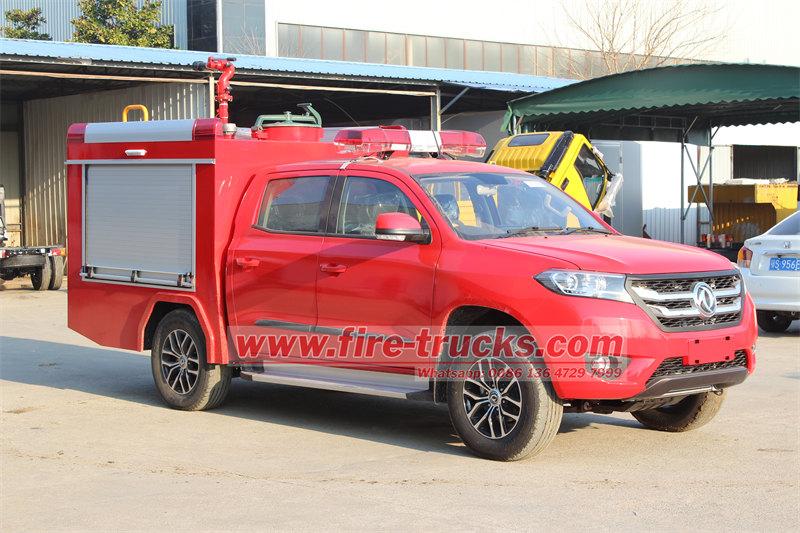

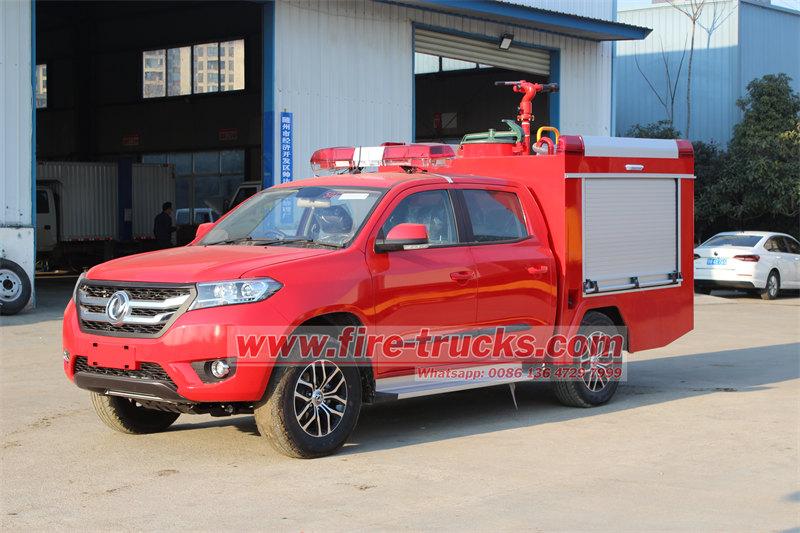

The Dongfeng 4×4 Right-Hand Drive Pickup Fire Truck is a lightweight, multi-functional fire truck built on the Dongfeng pickup chassis. The overall dimensions of the vehicle are 5650×1910×2640 mm, with a curb weight of 2200 kg. It is equipped with a 78 kW diesel engine and has a maximum speed of 145 km/h. The truck is fitted with a 500-liter water tank and a 100-liter foam tank, both made of stainless steel. The fire pump has a flow rate of 600 L/min and a priming time of ≤10 s. The fire monitor has a range of ≥35m for water and ≥25m for foam, and supports full 360-degree rotation. It is suitable for small-scale fire fighting in cities, villages, and industrial areas, offering maneuverability and rapid response.

  • Truck Model:

    PT5030GXFPK
  • Tanker Structure:

    Stainless steel
  • Work capacity :

    600 liters
  • Wheelbase:

    3100 mm
  • Axle drive:

    4×4
  • Engine Power:

    78 KW
  • Engine Model:

    JE493ZLQ4CA
  • Fire Pump:

    JBQ4.5/9
  • Fire Monitor:

    PL24, flow rate 24L/S
  • Remark:

    500 liters water tank and 100 liters foam tank
Facebook Linkedin Youtube Twitter Pinterest

The Dongfeng 4×4 RHD pickup fire truck is a lightweight, multifunctional firefighting vehicle designed for small-scale fire scenarios, suitable for rapid firefighting operations in urban streets, rural roads, and narrow areas. Built on the Dongfeng pickup chassis, the vehicle measures 5650×1910×2640 mm (L×W×H), with a curb weight of 2200 kg and a gross vehicle weight of 2700 kg, offering excellent mobility and flexibility. The 4×4 all-wheel-drive system and right-hand drive design make it ideal for regions with right-hand traffic regulations. The crew cabin accommodates 2+3 personnel and is equipped with air conditioning to ensure comfort for firefighters in high-temperature or harsh environments.



Dongfeng 4×4 AWD pickup fire truck

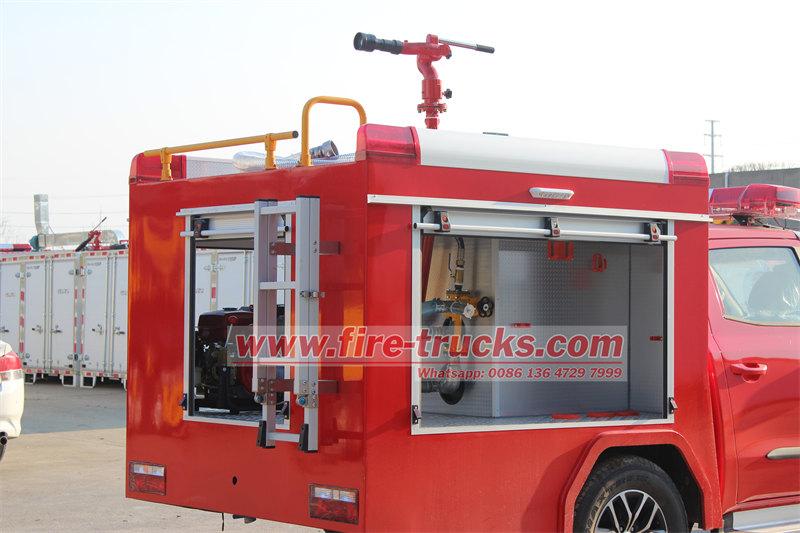

The Dongfeng 4×4 AWD pickup fire engine features a 500-liter water tank and a 100-liter foam tank, both made of stainless steel for excellent corrosion resistance and sealing properties, ensuring long-term storage of water and foam extinguishing agents. The design of the tanks balances the need for sufficient firefighting media with the vehicle's compact size and lightweight structure. The water tank is suitable for extinguishing small fires, while the foam tank is ideal for oil or chemical fires, meeting the demands of various fire scenarios.

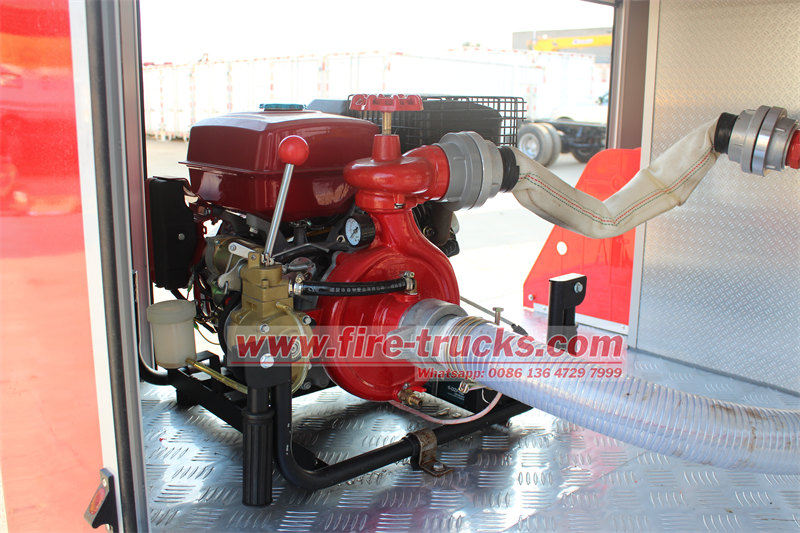

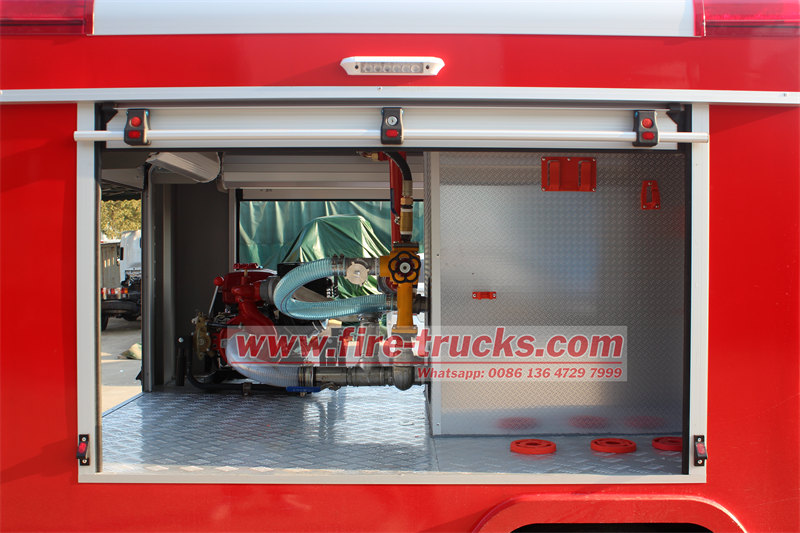

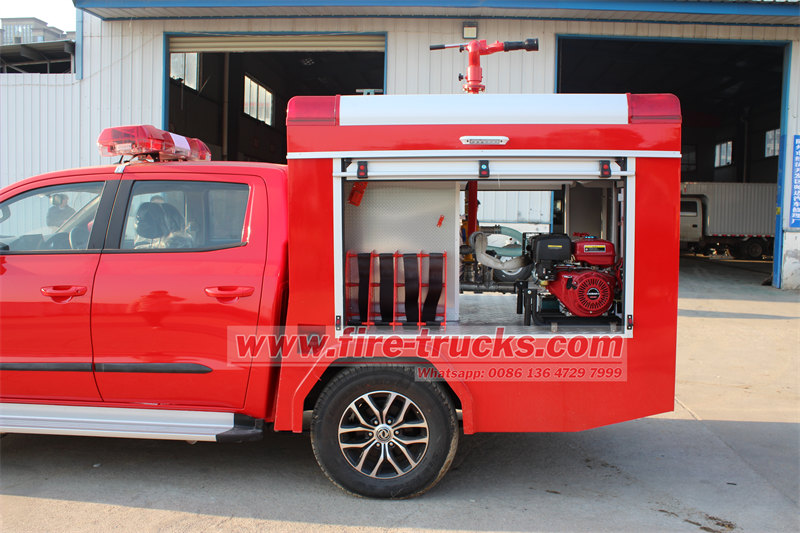

The Dongfeng 4×4 pickup firefighting truck is equipped with a portable fire pump, model JBQ4.5/9, with a maximum flow rate of 600 L/min and a maximum power of 9.6 kW (13 HP). The pump's priming time is no more than 10 seconds, enabling rapid water suction from external sources (such as hydrants or natural water bodies) and pressurization to ensure quick water supply at fire scenes. The pump supports both normal and low-pressure modes, allowing flexible adjustment of water pressure and flow based on fire type and on-site requirements.

The fire monitor, model PL24, has a range of over 35 meters in water mode and over 25 meters in foam mode. It features a pitching rotation angle of -45° to +70° and a horizontal rotation angle of 0° to 360°, providing extensive coverage. The fire monitor's flexibility and long-range capabilities make it highly effective in extinguishing small fires, particularly in urban streets and confined areas.



● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements



Dongfeng 4WD pickup firefighting truck



Product Specifications



Main specification

Chassis brand

Dongfeng

Overall dimension

5650x1910x2640mm(L*W*H)

Gross Vehicle Weight

2700 kg

Curb Weight

2200 kg

Water tank volume

500 liters

Foam tank volume

100 liters

Truck chassis

Drive model

4x4 right hand drive

Cabin

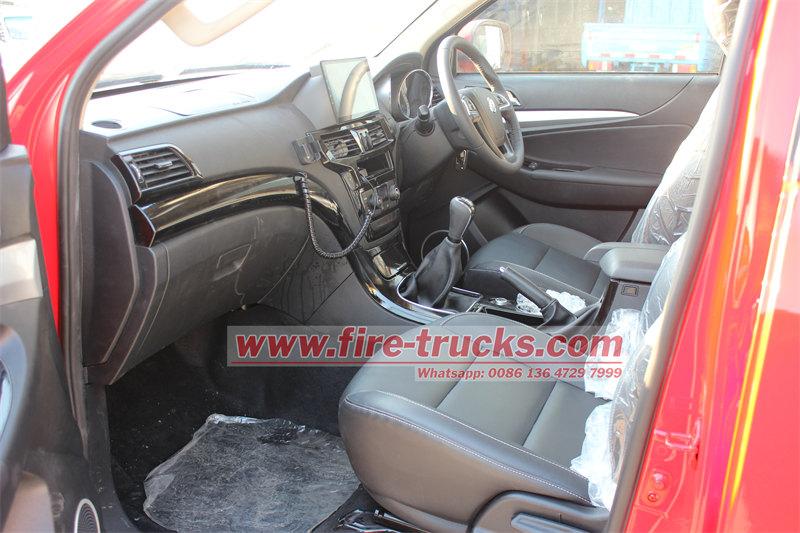

Crew cabin, 2+3 seats. With air conditioner

Wheel base

3100 mm

Transmission

Manual, 5 forwards and 1 reverse

Engine

JE493ZLQ4CA

Engine power

78 kW

Displacement

2.77 L

Emission standard

Euro 2

Tyre size

245/70R17, With one spare tyre

Max speed

145km/h

Tank

Water tank

500 liters

Foam tank

100 liters

Material

Stainless steel

Fire pump

Type

Portable fire pump

Model

JBQ4.5/9

Flow

600 L/min

Max. power

9.6 KW(13HP)

Priming time

10 S

Fire monitor

Model

PL24

Range

Water: ≥35; Foam ≥25

Pitching rotation

-45+70°

Horizontal rotation

0360°

Fire equipment

Fire Extinguisher

2 units

Fire hose

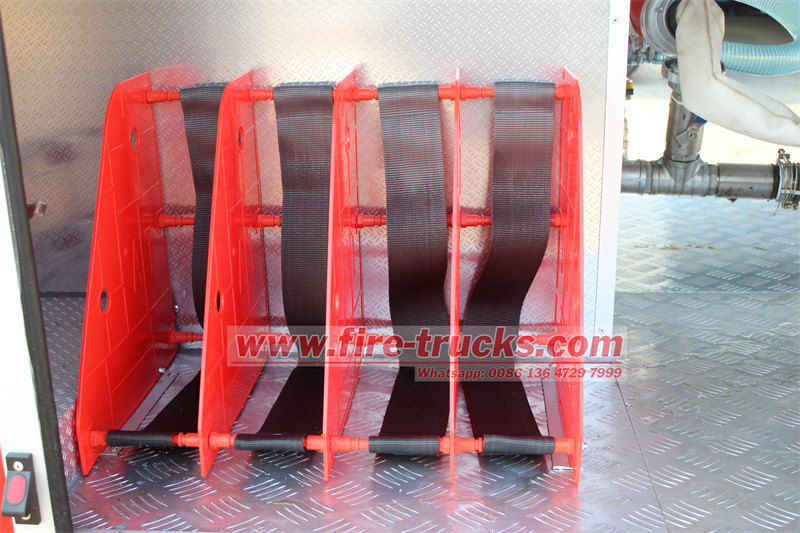

4 sets (φ65×20m)

Hose protector

1 set

Ground hydrant-wrench

1 unit

Underground hydrant-wrench

1 unit

Fire Barrel

1 unit

Fire shovel

1 unit

Fire axe

1 unit

DC switching gun

1 unit





Product Application



The Dongfeng 4×4 Pickup Fire Truck is a lightweight, multi-functional fire truck specifically designed for small-scale fire scenarios. With its compact body, agile maneuverability, and efficient fire-fighting capabilities, it is suitable for various fire situations and emergency rescue tasks.

1. Urban Street Fire Fighting: In urban environments, fires often occur in narrow streets, residential areas, or commercial districts where large fire trucks have difficulty quickly entering or operating. The Dongfeng 4×4 Pickup Fire Truck, with its small size and agile maneuverability, can quickly navigate through narrow city streets to reach the fire scene. Its 500-liter water tank and 100-liter foam tank can meet the needs of small-scale fire fighting, and the fire monitor's long range and 360-degree rotation capability allow it to operate efficiently in limited spaces.

2. Rural Area Fire Fighting: In rural or remote areas, fires may occur in farmland, forests, or villages where road conditions are poor and large fire trucks cannot pass. The Dongfeng 4×4 Pickup Fire Truck features a 4×4 all-wheel drive system with good off-road capabilities, enabling it to travel on muddy, sandy, or rugged terrain to quickly reach the fire scene. Its portable fire pump can quickly draw water from natural sources such as rivers and ponds, ensuring efficient fire fighting in areas lacking fire hydrants.

3. Industrial Park and Chemical Fire Fighting: Fires in industrial parks may involve chemicals, oils, or other flammable substances, requiring special fire-extinguishing media and equipment. The Dongfeng 4×4 Pickup Fire Engine Truck is equipped with a 100-liter foam tank that can store and discharge foam extinguishants, effectively putting out oil or chemical fires. Additionally, its fire monitor supports both water and foam spraying modes, allowing for flexible switching based on the type of fire and meeting the needs of industrial fire fighting.

4. Initial Fire Control and Rapid Response: In the early stages of a fire, rapid response and timely control of the fire are crucial. The Dongfeng 4×4 Pickup Firefighting Truck, with its high maneuverability and quick start-up capability, can reach the scene in the first moments after a fire breaks out, using onboard fire extinguishers and hoses for initial fire fighting to prevent the fire from spreading. Its fire pump's priming time of no more than 10 seconds ensures rapid water supply, buying valuable time for controlling the fire.
