Philippine ISUZU FTR powder tanker fire truck

Philippine ISUZU FTR powder tanker fire truck

The ISUZU FTR dry powder fire truck is a multi-functional firefighting vehicle built on an ISUZU 4×2 chassis, integrating three fire-extinguishing mediums (dry powder, foam, and water). It is particularly suitable for special fire scenarios such as chemical plants, oil depots, and airports. Powered by a 205HP 4HK1-TCG60 engine paired with a 6-speed manual transmission, it reaches a maximum speed of 105km/h to ensure rapid arrival at fire scenes. With overall dimensions of 8200×2500×3370mm and a double-row cabin design (2+4 seats), it features a 4000L carbon steel water tank, 1000L stainless steel foam tank, and 1000kg dry powder tank, achieving comprehensive firefighting capabilities for all types of fires.

  • Manufacturer Origin:

    PT5180GXFGL
  • Work capacity :

    4000L water+1000L foam +1000L dry powder
  • Upper Body material:

    Carbon steel and stainless steel
  • Wheelbase:

    4500 mm
  • Axle drive:

    4×2, left hand drive
  • Engine Power:

    205 HP
  • Engine Model:

    4HK1-TCG60
  • Fire Pump:

    CB10/40
  • Fire Monitor:

    PL32
  • Remark:

    Stainless steel water tank is optional
Facebook Linkedin Youtube Twitter Pinterest

In today's firefighting equipment sector, multi-functional combined fire trucks are becoming an industry trend. The ISUZU FTR powder-foam fire truck exemplifies this development as a practical solution integrating three extinguishing agents. It maintains the performance characteristics of professional firefighting vehicles while achieving excellent cost-effectiveness through rational configuration.



ISUZU FTR dry powder fire truck

The ISUZU FTR pumper fire truck is built on an ISUZU FTR chassis, equipped with a 4HK1-TCG60 diesel engine delivering 205HP of power output coupled with a 6-speed manual transmission, enabling a maximum speed of 105km/h. This powertrain configuration ensures sufficient mobility while maintaining good fuel economy. With compact overall dimensions of 8200×2500×3370mm and a 4500mm wheelbase, its small turning radius makes it particularly suitable for rapid transit in urban road conditions.

The fire suppression system forms the core of the ISUZU FTR fire tender truck. The 4000L water tank is constructed using standard carbon steel plate welding with internal transverse anti-sloshing baffles, ensuring both adequate capacity and driving stability. The 1000L foam tank utilizes stainless steel material for excellent corrosion resistance. Both tanks are equipped with standard manholes and level indicators for easy maintenance and inspection. The rear-mounted CB10/40 fire pump serves as a key component, featuring a proven three-cylinder plunger design with rated flow of 40L/s (at 1.0MPa working pressure). In actual tests, it achieves consistent water intake within 50 seconds at 7m suction depth, fully meeting firefighting operational requirements. The matching PL32 fire monitor allows manual operation with 360° horizontal rotation, delivering 65m water jet range and 50m foam range to cover most fire scenarios.

Particularly noteworthy of ISUZU FTR fire engine truck is the professional dry powder fire suppression system. The 1000kg dry powder tank works with six standard nitrogen cylinders to achieve 30kg/s discharge intensity through the PF5-15/30 dry powder monitor. The 30m long DN25 hose reel provides convenient close-range firefighting capability. This system proves especially effective for oil fires and electrical equipment fires.



● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu tanker fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements



ISUZU FTR tender fire truck



Product Specifications



ISUZU FTR dry powder fire truck parameters

Dimensions

Length (mm)

8200

Width (mm)

2500

Height (mm)

3370

Wheelbase (mm)

4500

Front/Rear wheel track (mm)

1960/1855

Approach/Departure Angle°

20/13

Front/Rear Overhang (mm)

1180/1715

Chassis

Brand

ISUZU

Driven Mode

4x2, Left Hand Drive Drive

Front Axle Loadkg

6500

Rear Axle Loadkg

11500

Braking System

Air Brake

Tyre

295/80R22.5, 6 pcs and one spare

Gear Box

MLD, 6 forwards and 1 reverse

Max Driving Speed (km/h)

105

Cab

ISUZU GIGA, 2+4 passengers

Engine

Model

4HK1-TCG60

Horsepower (HP)

205HP(151kw)

Displacement (L)

5.193

Max Torque

647 N·m

Speed at Max Torque rpm

2600

Fire Fighting System

Fire Pump

Model

CB10/40

Flow L/s

40

Pressure (MPa)

1.0

Water Suction Time (s)

Less than 50S (when depth is 7m)

Installation Mode

Rear-mounted

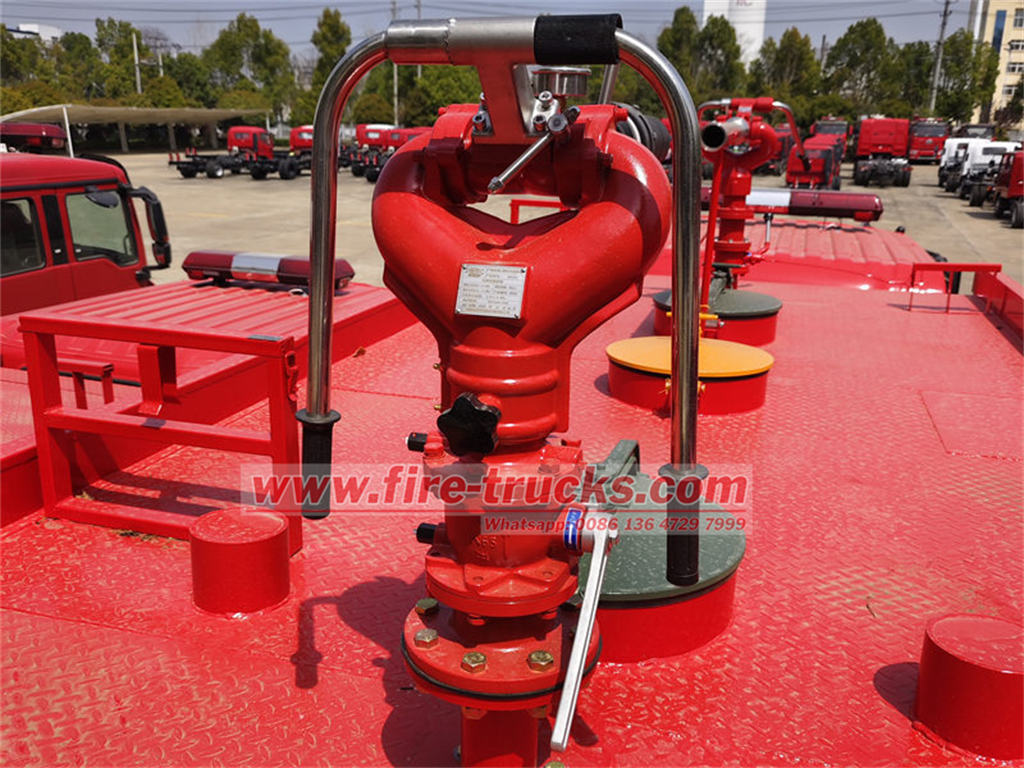

Fire Monitor

Model

PL32

Pressure (MPa)

1.0

FlowL/s

32

Range (m)

Water: More than 65

Foam: More than 50

Horizontal Rotating Angle°

360

Pitching Rotating Angle°

-30~70

Operation Mode

Manual

Pipeline Systems

Internal Inflow Pipe

One pc φ125mm pipe with one  pc φ125mm flygate

External Inflow Pipe

Installed behind the pump,   φ125mm, with 4 pcs 2m water suction pipes

Water Outlet Pipe

-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves
-One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve

Water Injection Pipe

-One pc φ50mm internal water injection pipe
-One pc φ65mm external water injection pipe

Cooling Water Pipe

Equipped with stainless steel ball valve

Drain Pipe

In the lowest position of the pipe

Water Tank

Capacity (L)

4000

Material

Carbon Steel Plate

Thickness

Baseboard and Endplate: 4mm
Side plate and top plate: 3mm

Structure

Welded Type, Anti-swing Plate Inside
-One Manhole, with fast lock & unlock device
-One Overflow Device
-One Level Indication Device
-One Drain Hole, controlled by manual valve

Foam Tank

Capacity (L)

1000

Material

Stainless steel

 Other Detail

-One Manhole, with fast lock & unlock and
pressure-release device
-One Overflow Device: DN50mm
-One Drain Hole with ball valve: DN40

Powder System

Powder tank capacity

1000 kg

Powder monitor model

PF515/30

Spray intensity

30kg/s

Working pressure

1.4Mpa

Hose reel

30m, DN25, with powder gun

Number of nitrogen cylinders

6

Electrical System

-Above the driving room are lightbar & 12V/60W fire scene light
-Above both sides of the vehicle are two flash lights
-100W alarm light
-Switches of all the lights, alarms and pumps on the control panel.



ISUZU FTR powder foam fire engine



Product Features



Key Features of ISUZU FTR Dry Powder Fire Truck:

1. Triple-Agent Fire Suppression System
Integrates dry powder (1000kg), foam (1000L), and water (4000L) extinguishing agents for individual or combined use. Dry powder rapidly suppresses initial flames, foam prevents re-ignition, and water provides continuous cooling - achieving 60% higher efficiency than single-agent systems.

2. Professional Firefighting Performance
Equipped with CB10/40 fire pump (40L/s flow rate) and PL32 monitor (65m water range/50m foam range). PF5 dry powder cannon delivers 30kg/s discharge rate with 30m hose reel, forming 3D firefighting network. ≤50 sec water suction time at 7m depth.

3. High-Efficiency Chassis
Built on ISUZU 4×2 chassis with 205HP engine + 6MT transmission. 105km/h max speed, 8.5m turning radius. 295/80R22.5 all-terrain tires ensure rapid response in complex road conditions.

4. Intelligent Control System
Features digital control panel with real-time pressure/flow/level monitoring. Electro-pneumatic valves reduce operation effort by 50%. Pump room includes emergency stop device for fail-safe operation.

5. High-Reliability Design
4mm carbon steel water tank with anti-slosh structure. Stainless steel foam tank. Dry powder system with 6 nitrogen cylinders ensures continuous discharge. 2000-hour maintenance interval for critical components. Operational in -30℃ to 60℃ environments.

ISUZU FTR fire pumper truck for sale



Product Pictures

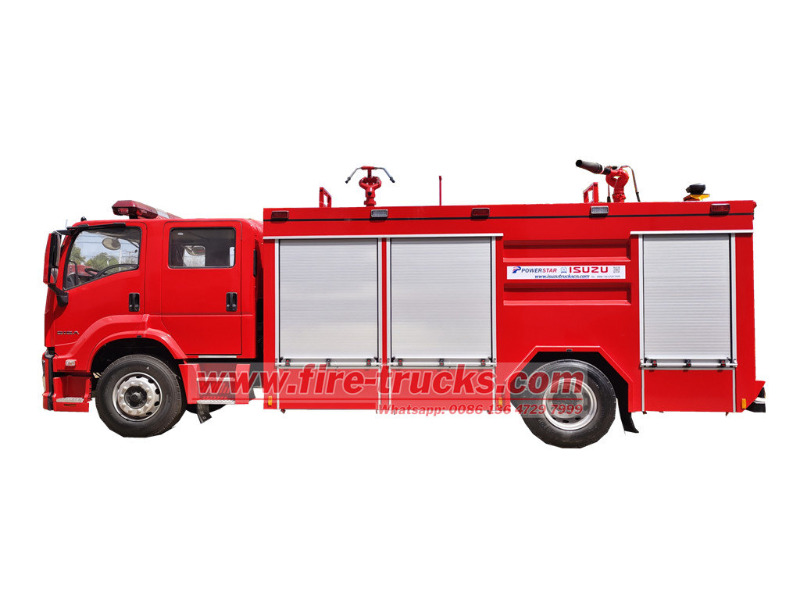

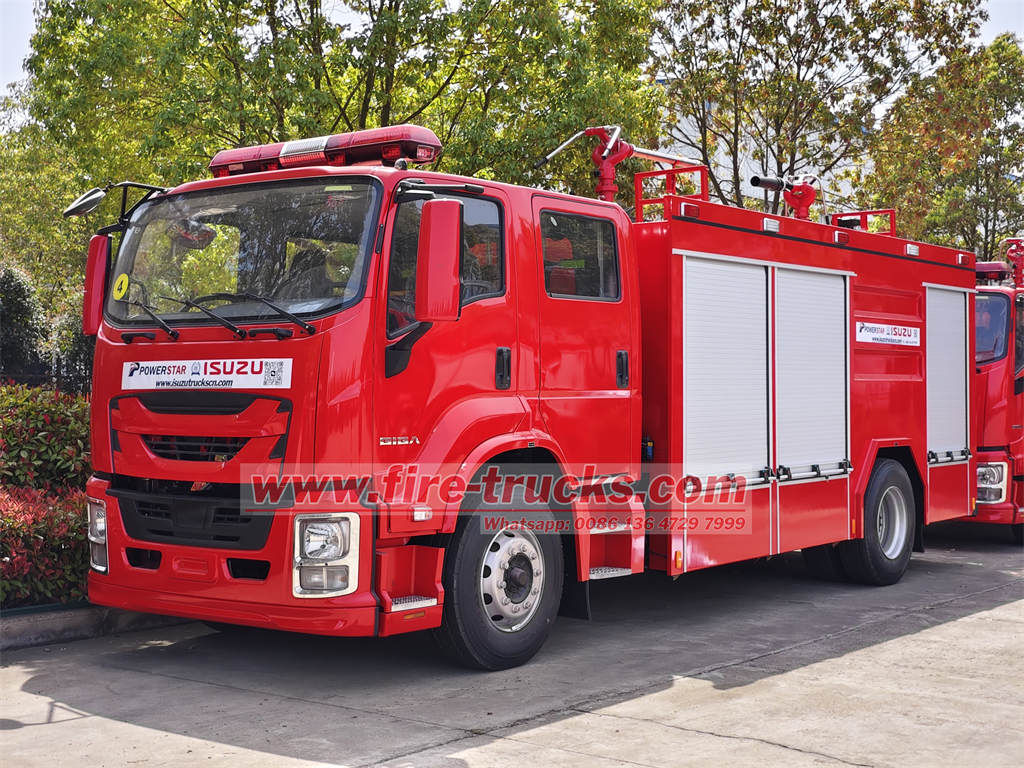

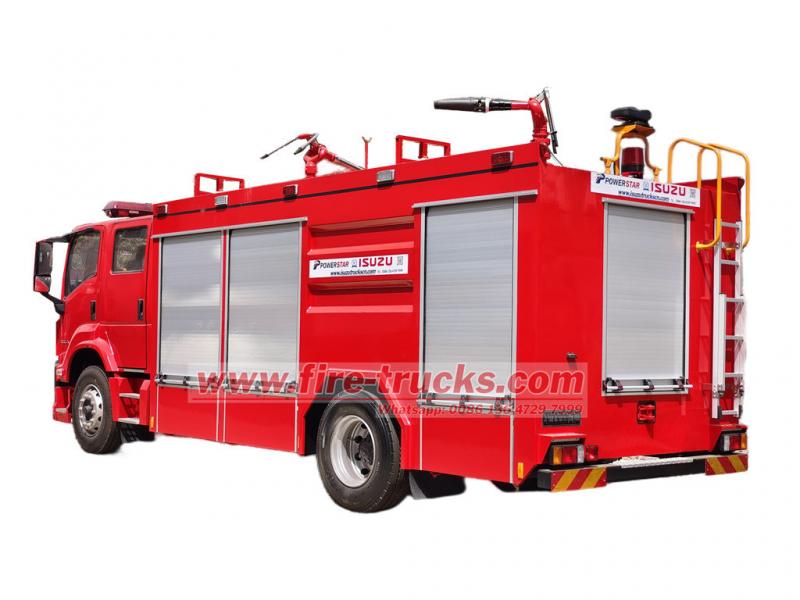

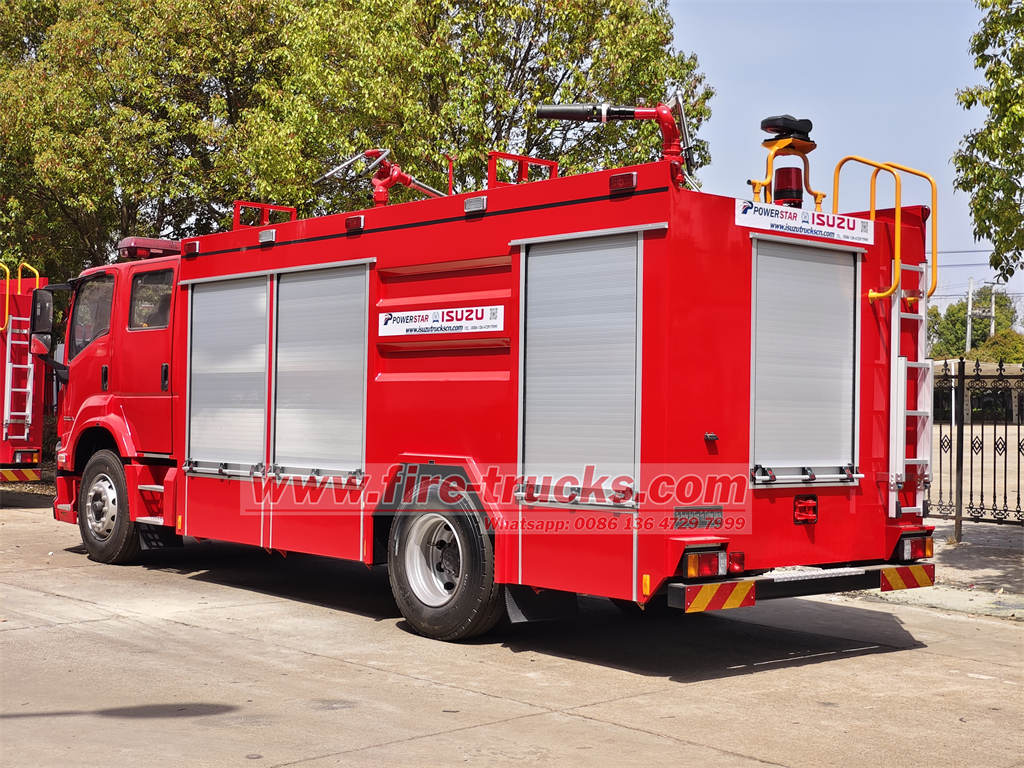

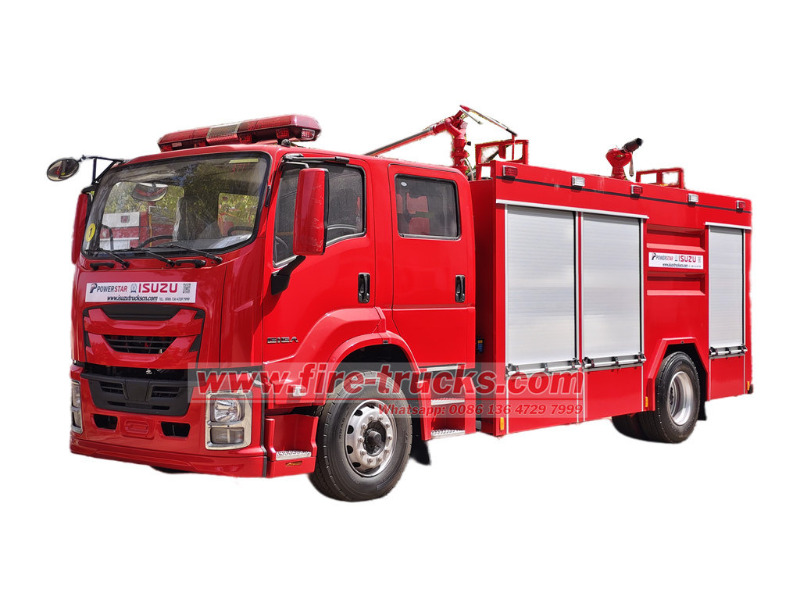

  • ISUZU FTR fire fighting truck
  • ISUZU FTR powder foam fire truck
  • ISUZU FTR pumper fire truck price
  • ISUZU FTR fire tender price
  • ISUZU FTR pumper tanker fire truck
  • ISUZU FTR utility fire truck
