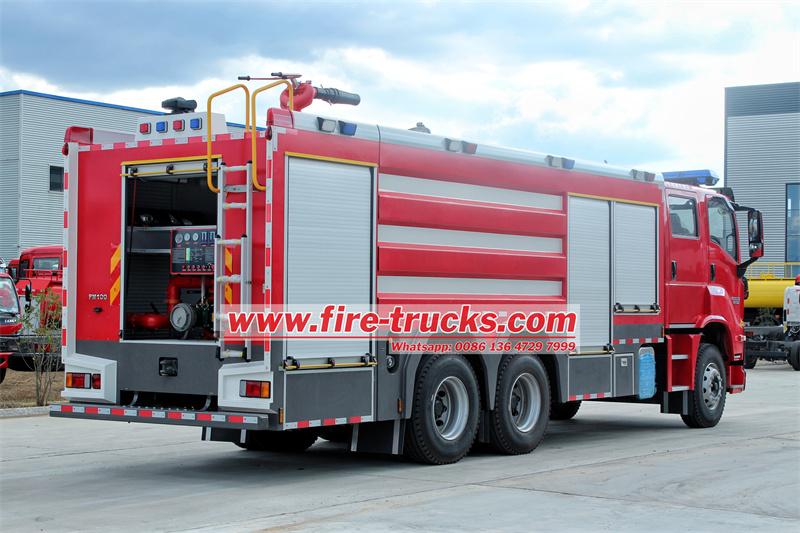

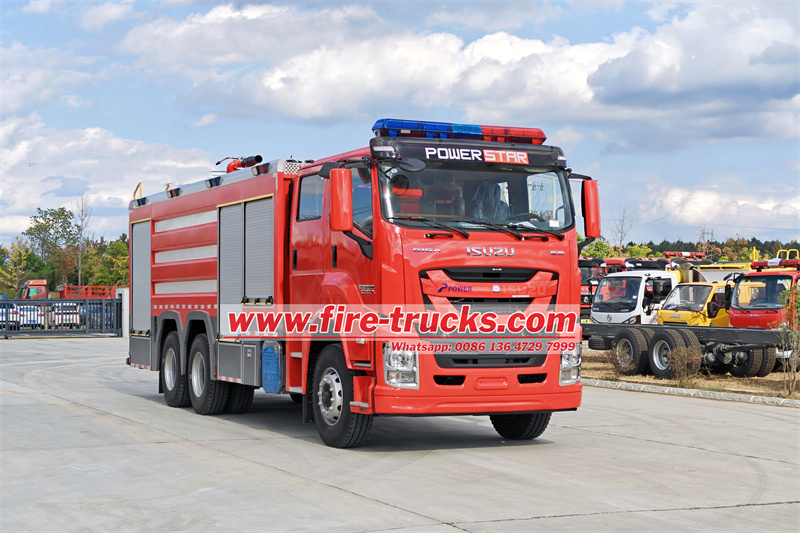

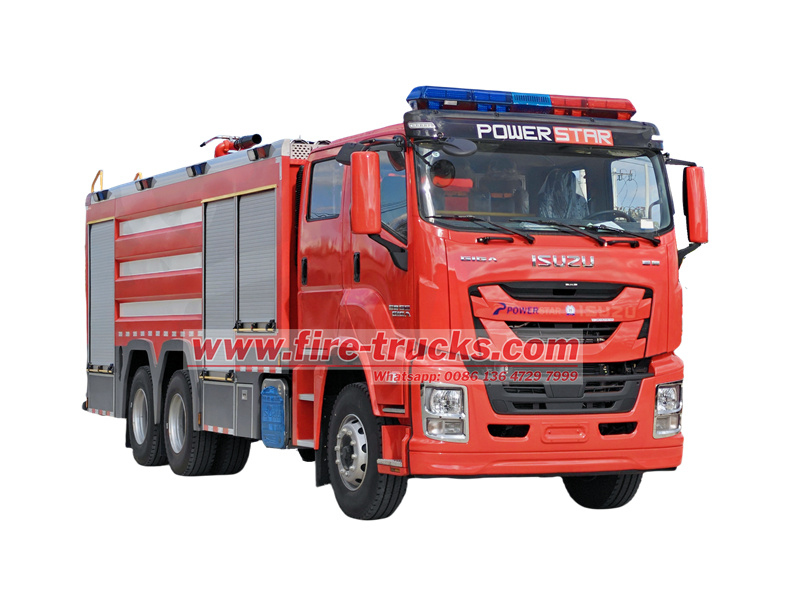

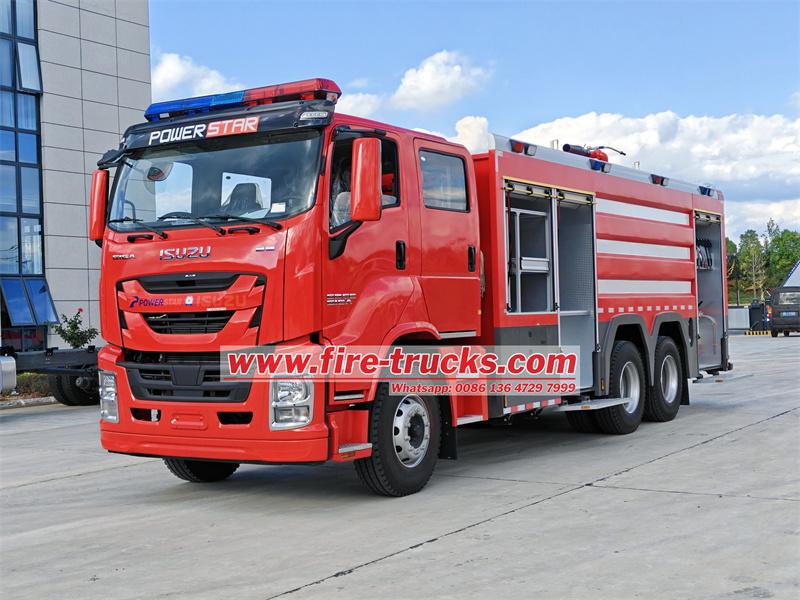

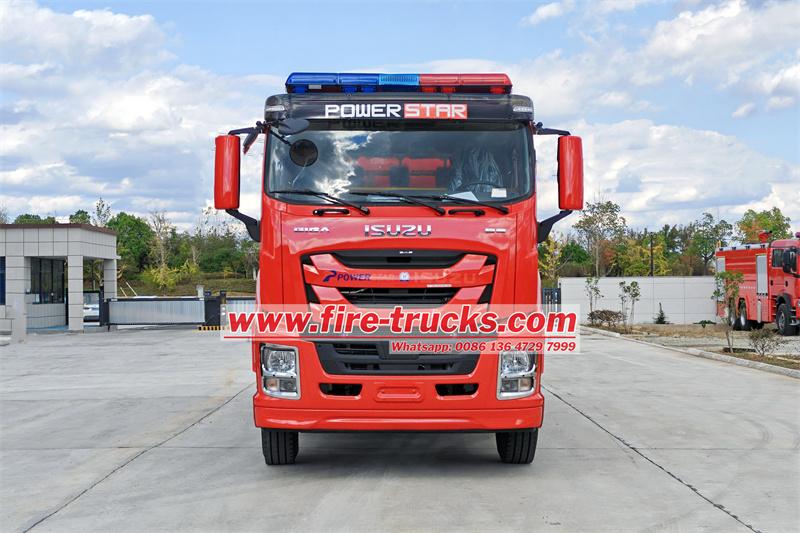

The Isuzu GIGA 6x4 water fire truck is built on the sturdy ISUZU GIGA 5x cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power 6UZ1, it can challenge all kinds of difficult roads. It’s equipped with a 8000-liters large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. The Isuzu GIGA fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions.
Truck Model:
PST53305GXFTanker Structure:
8000L water tankWork capacity :
8000LWheelbase:
4600+1370mmAxle drive:
6x4,LHDEngine Power:
380HPEngine Model:
Isuzu 6UZ1Fire Pump:
CB10/60, 60L/sFire Monitor:
PS50Remark:
Customized fire fighting rescue equipment
The Isuzu GIGA 6x4 water fire truck is built on the sturdy ISUZU GIGA 5x cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power 6UZ1, it can challenge all kinds of difficult roads. It’s equipped with a 8000-liters large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu GIGA fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.
● China best heavy-duty water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Specification:
|
Product Name |
ISUZU GIGA 6x4 water fire truck |
|
|
Chassis Series |
ISUZU GIGA Series |
|
|
Vehicle Model |
PST50703MXF |
|
|
Main specifications |
Manufactory |
Powerstar |
|
Overall dimension(L*W*H) |
10600×2480×3160mm |
|
|
GVW |
25000Kg |
|
|
Curb weight |
12500Kg |
|
|
Water tank volume |
8,000 liters |
|
|
Cabin |
double cabin, 2+3seats,with Air conditioner, electronic windows, USB |
|
|
Wheel base |
4600+1370 mm |
|
|
Driving type |
6*4 |
|
|
Chiassis model |
ISUZU GIGA |
|
|
Transmission |
Fast 12-speed forward, 2 reverse |
|
|
Number of axles |
3 |
|
|
Tire specification |
295/80R22.5 |
|
|
Number of Tires |
10pcs with 1 spare tire |
|
|
Passengers in cab |
3+3 |
|
|
Engine |
Engine model |
6UZ1 |
|
Type of fuel |
Diesel |
|
|
Displacement/power |
9.839L / 380 Ps |
|
|
Maximum torque |
1800N·m |
|
|
Max speed |
95 Km/h |
|
|
Emission standard(TAS) |
EURO 6 |
|
|
Fire performance |
Water tank capacity |
8000L |
|

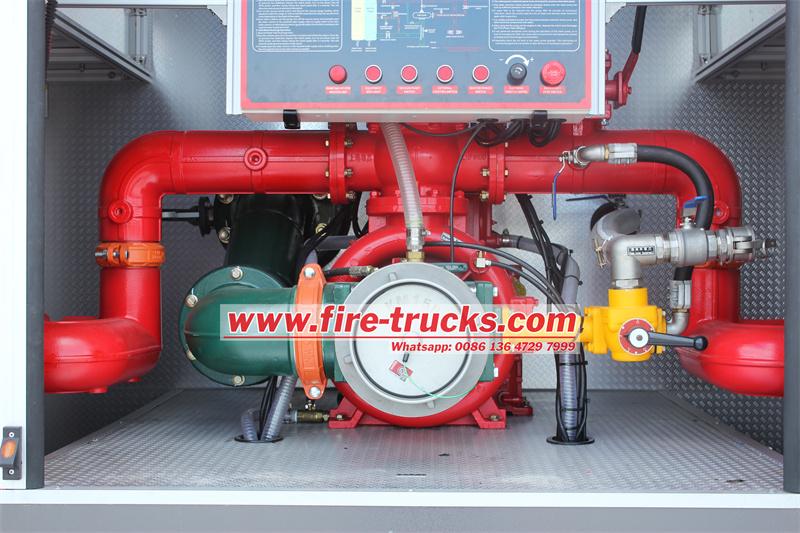

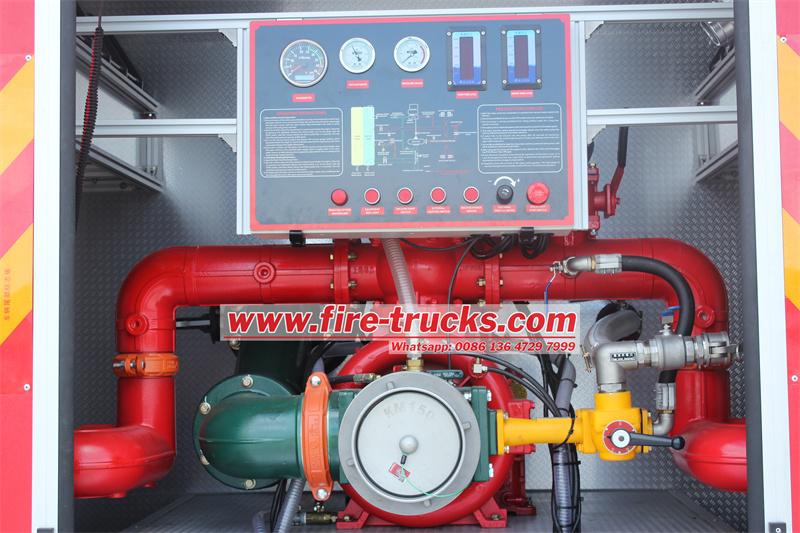

Fire pump |
China Top brand |
|
|
Model: CB10/60 |
||
|
Low-pressure:60L/S |
||
|
Medium-pressure:60L/S |
||
|

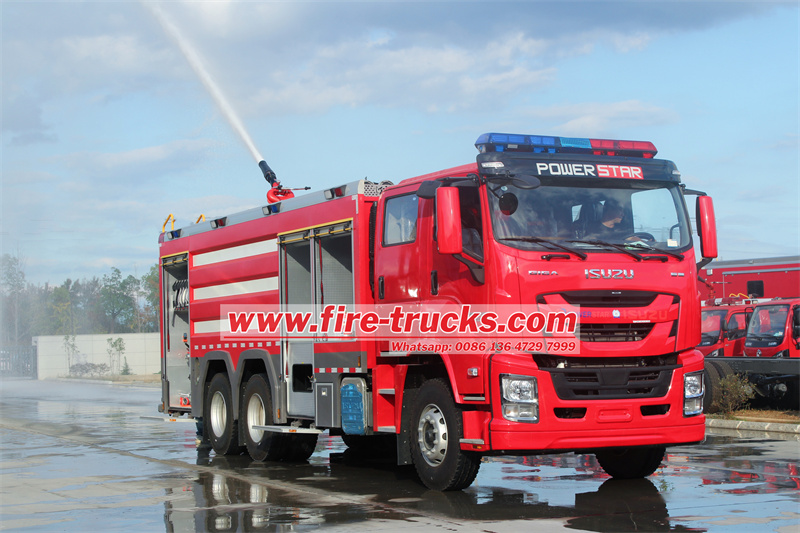

Fire monitor |
China top brand |
|
|
Model:PS50 |
||
|
Working pressure: 1.0MPa |
||
|
Flow:60L/S |
||
|
Water jet distance:≥65m |
||
|
Rotation angle: 360° horizontally, -45° to 70° in pitch |
||
|
Fire pump Input |
1 unit, diameter: 100mm |
|
|
Fire pump Outlet |
2 units, diameter: 65mm 2 units,diameter: 85mm |
|
|

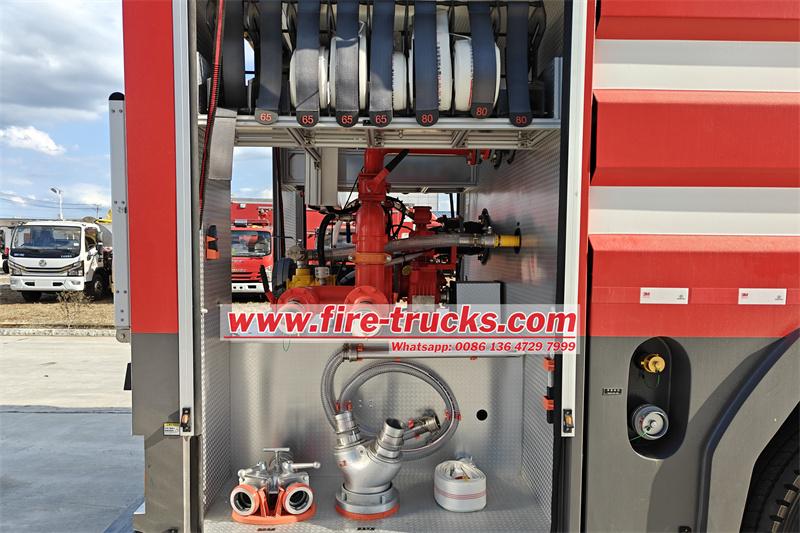

Standard configurations |

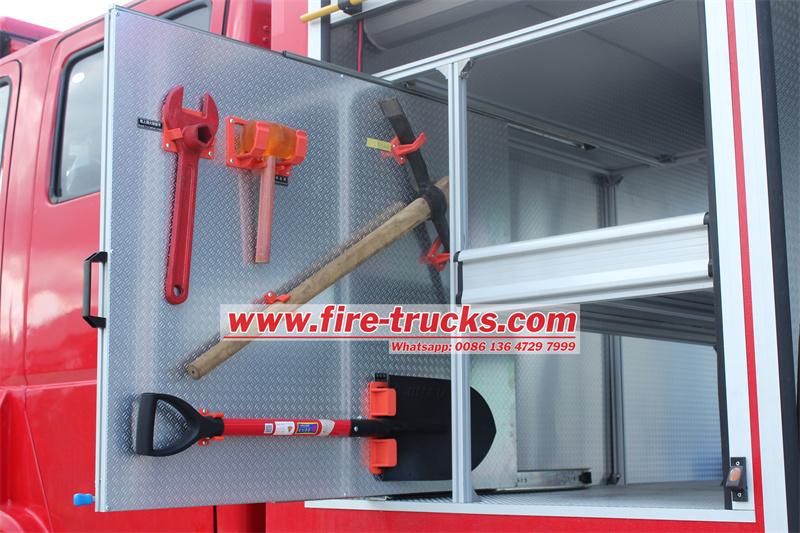

Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose |
|
How to use the ISUZU GIGA fire fighting truck correctly?
1. Preparation and inspection before operation
♦ Power system pre-inspection: Check the 6UZ1 engine before starting daily. The oil level must be kept at the center line of the dipstick (API CI-4 or above), the coolant level (ethylene glycol-based long-term antifreeze), and the air filter clogging indicator status (pressure difference > 25kPa requires replacement).
♦ Pre-inspection of water system: Inspect 8000L water tank，drain residual water to prevent freezing (in winter), monthly biofilm test on inner wall (ATP test <50RLU), accuracy of water injection filter device (≥200 mesh).
Fire pump verification: Confirm before starting, vacuum pump sealing (vacuum degree reaches -85kPa within 30 seconds), water outlet pressure sensor calibration (error <±0.2MPa), foam proportion mixer accuracy test (±1%).
2. Operational Specifications during Operation Phase
♦ Power system management: Engine running, idle preheating after cold start (water temperature ≥50℃ can be loaded), continuous working cycle ≤4 hours requires shutdown for cooling (intercooler temperature monitoring), overspeed is prohibited (≤2300rpm is the red line zone).
♦ Water system operation: When using the fire water pump, ensure that the pipeline valve opening is ≥30% before starting, and the working pressure is controlled in stages (normal pressure stage ≤1.0MPa, boost stage ≤1.8MPa). If the continuous operation time is ≤2 hours, the standby pump needs to be switched.
3. Key points of periodic maintenance
♦ Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).
♦ Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).
♦ Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
