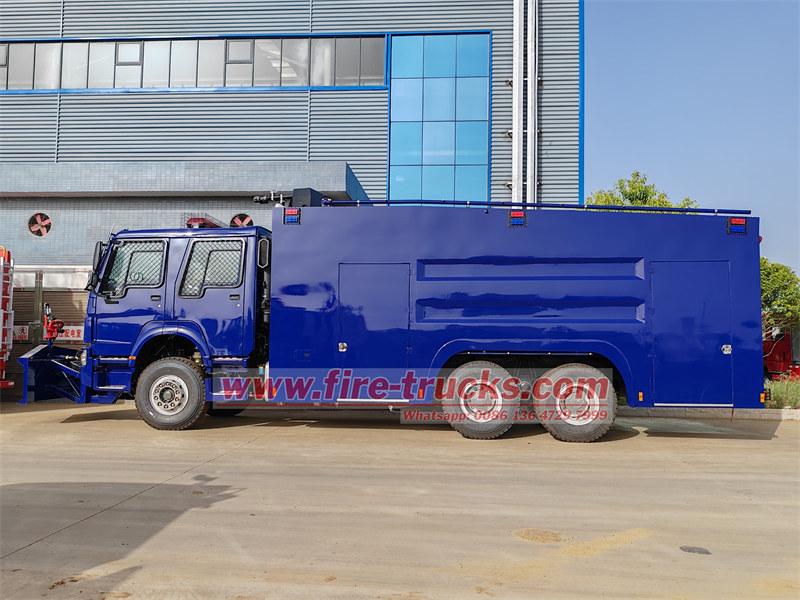

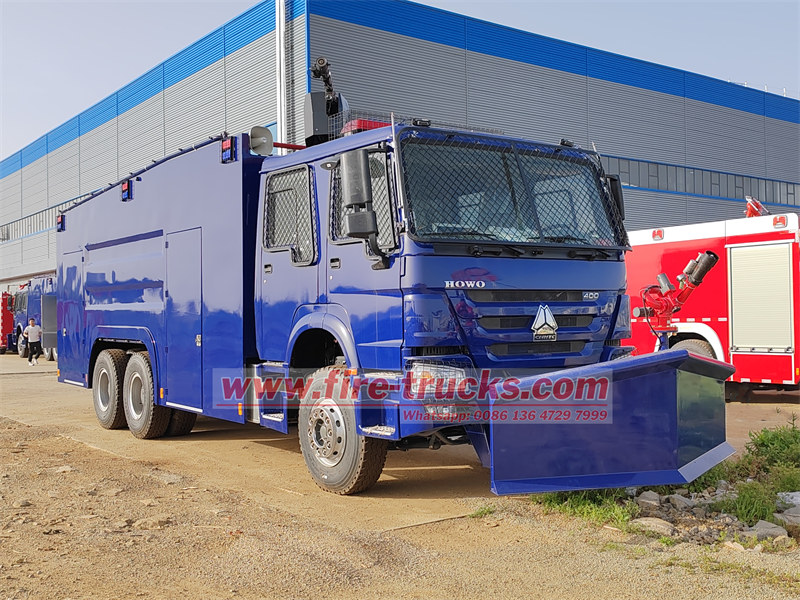

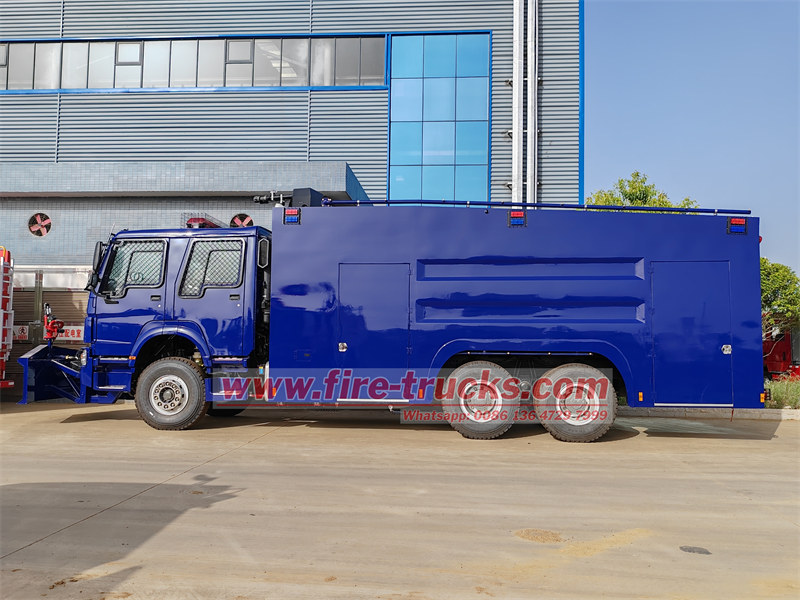

The HOWO Riot Water Cannon Vehicle is a specialized tactical vehicle designed for handling mass incidents. Built on a robust HOWO 6×4 heavy-duty chassis, it is powered by a 400-horsepower Weichai diesel engine and a 10-speed transmission, delivering outstanding mobility. Equipped with a 10,000-liter water tank, a dual high-pressure water cannon system (75-meter range), a hydraulic obstacle-clearing blade, and a 4-ton winch, it also features integrated armored protection, surveillance systems, and broadcasting equipment. Designed for comprehensive riot control, the vehicle effectively manages chaotic situations with capabilities including crowd dispersal, obstacle removal, and real-time monitoring, making it a modern law enforcement asset for public security and armed police forces in maintaining social stability.
Truck Model:
PT5250GXFFBZ6Tanker Structure:
Carbon steel water tankWork capacity :
10000 litersWheelbase:
4325+1350 mmAxle drive:
6×4Engine Power:
400HPEngine Model:
WP12.420E32Fire Pump:
CB10/60Fire Monitor:
PS40Remark:
6×6 drive is optionalThe HOWO Riot Water Cannon Vehicle is a professional anti-riot vehicle based on the SINOTRUK HOWO 6×4 chassis, integrating high-pressure water cannons, obstacle-clearing equipment, surveillance, and communication systems. As a modern law enforcement tool for public security and armed police, it provides reliable support in handling emergency mass incidents with its superior mobility, multifunctional capabilities, and robust protection.
The HOWO Riot Control Water Cannon is powered by the Weichai WP12.400E32 high-pressure common-rail diesel engine. This 11.6-liter six-cylinder turbocharged intercooled engine delivers 400 horsepower and a maximum torque of 1,780 N·m, fully meeting the power demands of heavy-duty riot control operations. Paired with an HW19710 10-speed manual transmission, it ensures excellent off-road performance in various complex terrains. The chassis features a long wheelbase of 4,325 + 1,350 mm, balancing stability and maneuverability. With a gross weight of 25 tons, the vehicle has a rational weight distribution—7 tons on the front axle and 18 tons on the rear axle—along with 12.00R20 large tires, ensuring strong load-bearing capacity and off-road performance.

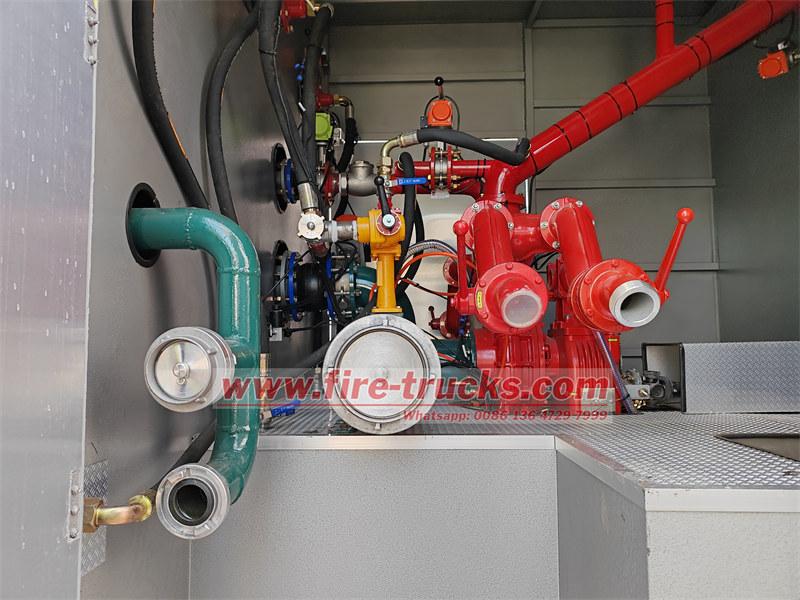

The core operational unit of HOWO Armored Anti-Riot Truck is the roof-mounted dual riot water cannon system, with each cannon capable of a 75-meter range. The cannons offer a horizontal rotation of ±170° and an elevation range of -10° to 45°, enabling wide-area coverage. An auxiliary front-mounted water cannon is designed for close-range targets, allowing effective control of situations at varying distances. The 10,000-liter water tank is equipped with an electronic level display and internal baffle structures to minimize water sloshing during movement. The CB10/60 fire pump provides a continuous flow rate of 60 L/s, with a working pressure of 1.082 MPa ensuring high-impact water jets.

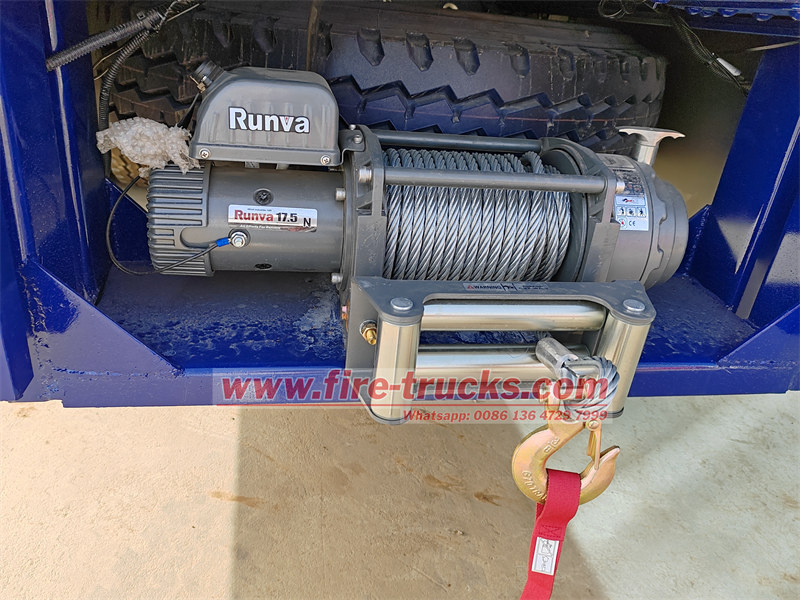

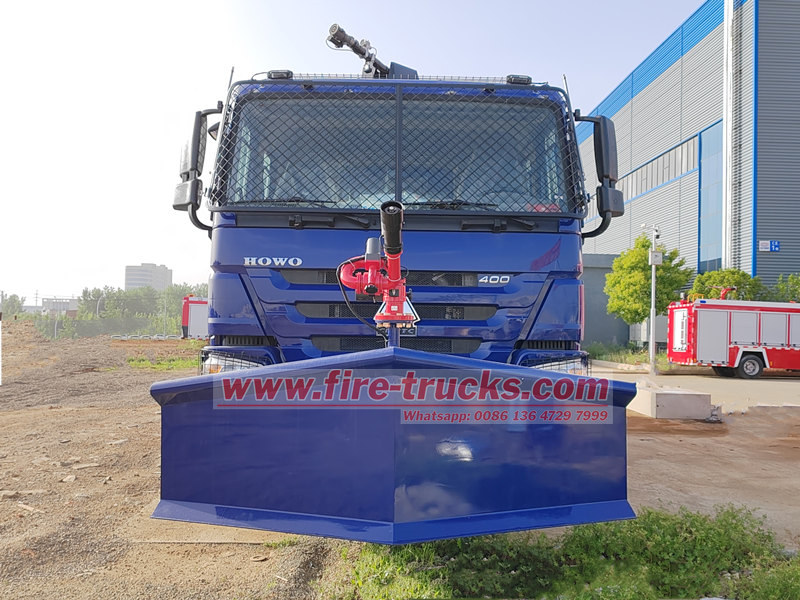

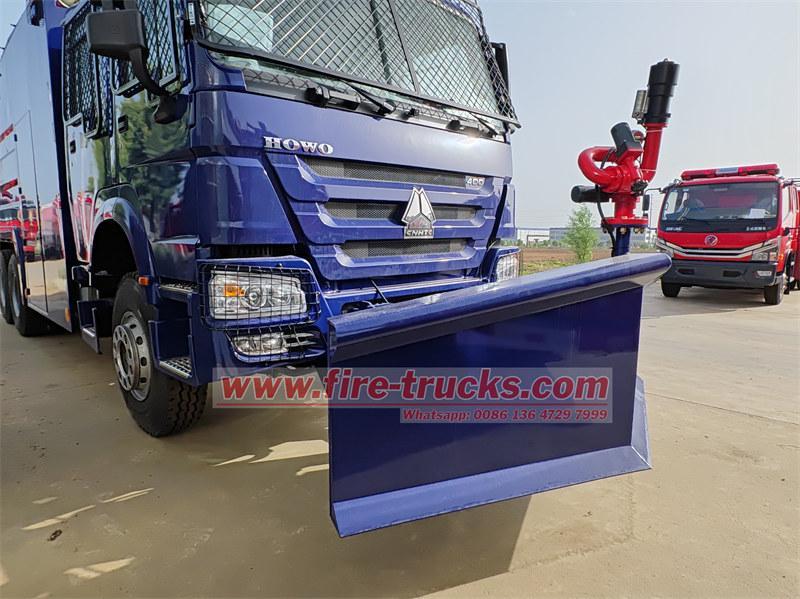

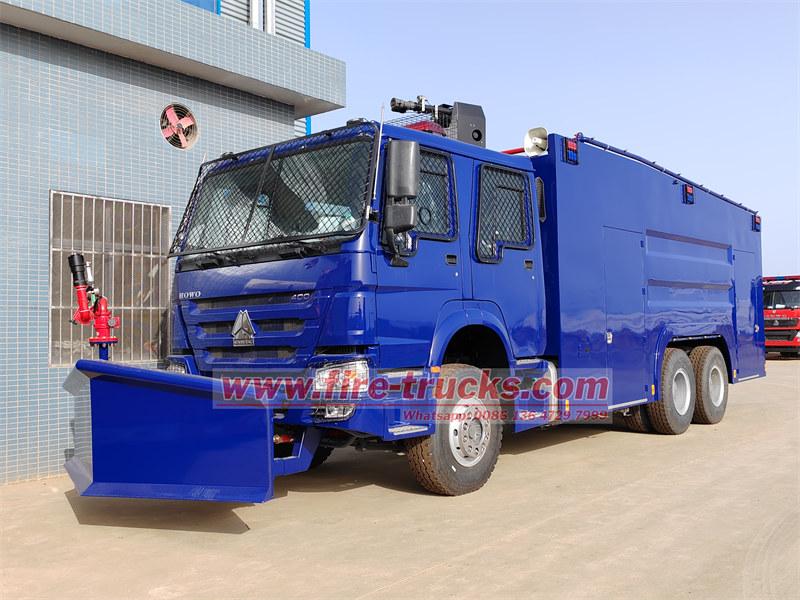

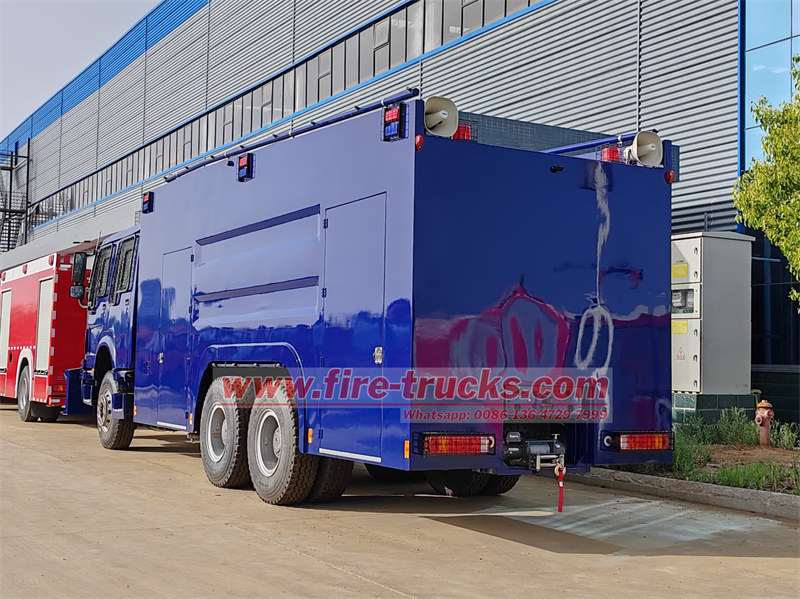

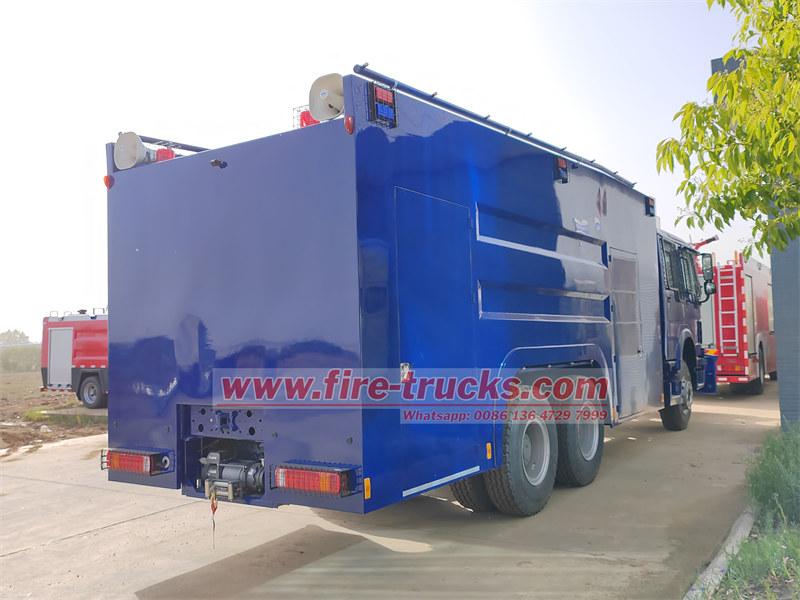

Additionally, the HOWO anti-riot water cannon truck features a 2-ton hydraulic obstacle-clearing blade at the front for rapid barricade removal, while a rear-mounted 4,000 kg winch with a 26-meter steel cable provides rescue capabilities. The vehicle is reinforced with protective mesh to withstand impacts from thrown objects. The integrated surveillance system includes panoramic cameras and infrared functionality, ensuring 24/7 operational readiness.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Specifications
Vehicle name |
HOWO armored anti-riot truck |
||
Main details |
Chassis |
SINOTRUK HOWO |
|
Weight in kg |
Gross vehicle weight |
25000 |
|
Curb weight |
14600 |
||
Front axle loading capacity |
7,000 |
||
Rear axle loading capacity |
18,000 |
||
Wheelbase |
4325+1350 mm |
||
Overall dimensions |
10300×2500×3650 mm |
||
Clutch |
Single- plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance |
||
Brakes |
Service brake: dual circuit compressed air brake. Parking brake: spring energy, compressed air operating on rear wheels |
||
Steering |
Hydraulic steering with power assistance |
||
Tires |
12.00R20, 10+1 pcs |
||
Transmission |
HW19710, manual, 10 forwards and 2 reverse |
||
Cabin |
Double-row cabin. It can accommodate 2+3 people, with air conditioner |
||
Engine |
Make |
WEICHAI |
|
Model |
WP12.400E32 |
||
Description |
4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbocharged & intercooling |
||
Displacement(ml) |
11596 ml |
||
Maximum output |
400HP(294Kw) |
||
Maximum torque |
1780Nm |
||
Rated speed |
2100 rpm |
||
Emission standard |
Euro 3 |
||
Upper Body & Equipment |
|||
Water tanker |
Volume |
10000 liters |
|
Liquid inlet |
Quantity (pcs) |
2 |
|
Size (mm) |
DN65 |
||
Remarks |
Equipped with buffers inside of the tanker. Equipped with access window for future inspection and after sales service. Equipped with overflow, exhaust vent. Equipped with electronic water level gauge. |
||
Fire pump |
Model |
CB10/60 |
|
Max. working pressure |
1.082 Mpa |
||
Flow |
60 L/s |
||
Anti-riot water cannon |
Number |
2 pcs |
|
Range (m) |
75 |
||
Horizontal rotating angle (°) |
±170° |
||
Pitching angle (°) |
-10~45 |
||
Hydraulic shovel |
Location |
Front-mounted |
|
Obstacle clearing ability |
2 ton |
||
Winch |
Location |
Rear-mounted |
|
Rated towing weight |
4000 kg |
||
Steel rope |
Ø9.2mm×26m |
Product Features
1. Dual High-Pressure Water Cannon System

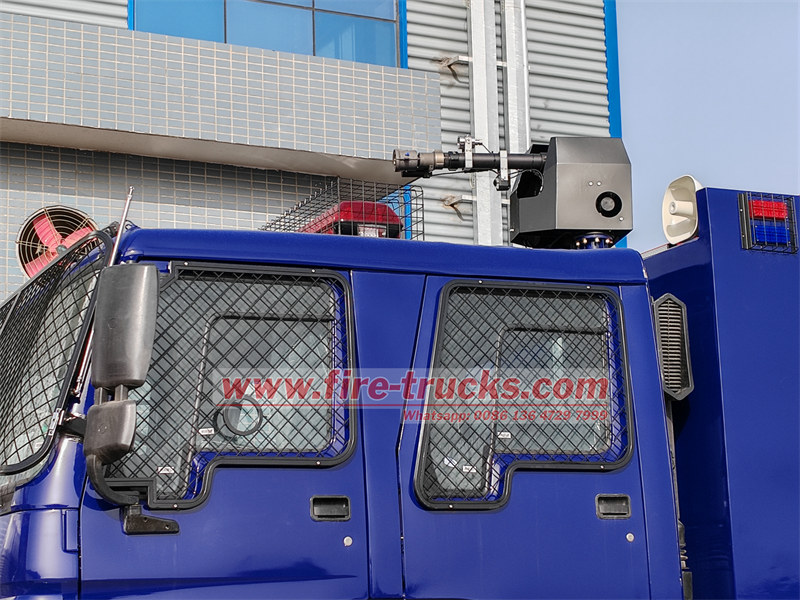

The roof is equipped with two professional riot water cannons, each with a range of 75 meters. The system supports ±170° horizontal rotation and -10° to 45° elevation adjustment, enabling full-coverage operation. The high-flow spray mode allows rapid dispersal of unlawful crowds while maintaining a safe law enforcement distance.
2. Multi-Functional Cab Design
The vehicle features a dual-row cab layout, accommodating up to five officers for team operations. The air-conditioned cabin ensures comfort during prolonged missions, enhancing operational efficiency.
3. Multi-Substance Spray System
The water cannons support three spray modes—water, pepper spray, and dye marker—allowing flexible switching based on different law enforcement scenarios. This enhances crowd control effectiveness and aids in post-incident evidence collection.
4. Full-Circumference Protective Structure
Critical components (lights, windows, etc.) are reinforced with stainless steel mesh. The windshield guard features an electric adjustment range of 0° to 70°, enabling operators to deploy protection without leaving the vehicle. Additional rear wheel guards prevent sabotage, improving survivability in chaotic environments.

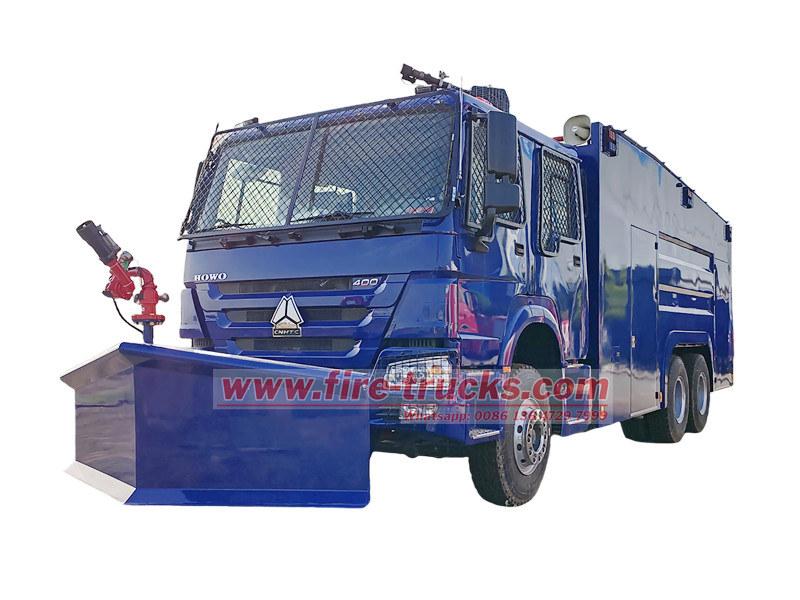

5. High Mobility & Obstacle-Clearing Capability
The HOWO Armored Anti-Riot Truck is powered by a 400-horsepower engine and a 10-speed transmission, supported by a 4-ton winch. Combined with a front-mounted hydraulic obstacle-clearing blade (2-ton capacity), it can swiftly break through barricades, ensuring operational freedom for law enforcement teams.
Product Pictures
