The HOWO 6×6 all-wheel-drive off-road fire truck is a professional firefighting equipment specially designed for complex terrains, built on SINOTRUK's heavy-duty off-road chassis. Powered by a 400HP Weichai engine, it features a 15,000L large-capacity water tank and CB10/60 fire pump with 60L/s flow rate. Equipped with full-time 6×6 drive system, 34° approach angle, and over 700mm wading depth, it demonstrates exceptional off-road capability. The PS60 fire monitor achieves 360° rotation and 55m range, meeting various special environment firefighting needs. Particularly suitable for forest firefighting, mining rescue and other complex terrain operations, it is an essential equipment in modern fire rescue systems.
Truck Model:
PT5240GXFSSTanker Structure:
Carbon steel water tankWork capacity :
15000 litersWheelbase:
3600+1400 mmAxle drive:
6×6Engine Power:
400HPEngine Model:
WP12.420Fire Pump:
CB10/60Fire Monitor:
PS60Remark:
Right hand drive is optionalIn the field of special firefighting equipment, the HOWO 6×6 off-road water tender stands out with its outstanding mobility and powerful fire-extinguishing capability. This professional fire vehicle, built on SINOTRUK HOWO 6×6 all-wheel-drive chassis, is specifically designed for complex terrain environments, perfectly integrating off-road mobility with professional firefighting functions, making it an ideal assistant for special scenarios like forest firefighting and mining rescue.
The HOWO 6×6 water tender fire truck's design fully considers field operation requirements. Its 9920mm body length combined with 3600+1400mm wheelbase ensures mobility in complex road conditions. The Weichai WP12.400 diesel engine delivers strong performance with 11.6L displacement and 400HP power, providing ample torque reserve for off-road climbing with 1780N·m maximum torque at low RPM. With 34° approach angle, 11° departure angle and 12.00R20 all-terrain tires, it can easily handle harsh terrains like mountains and deserts.

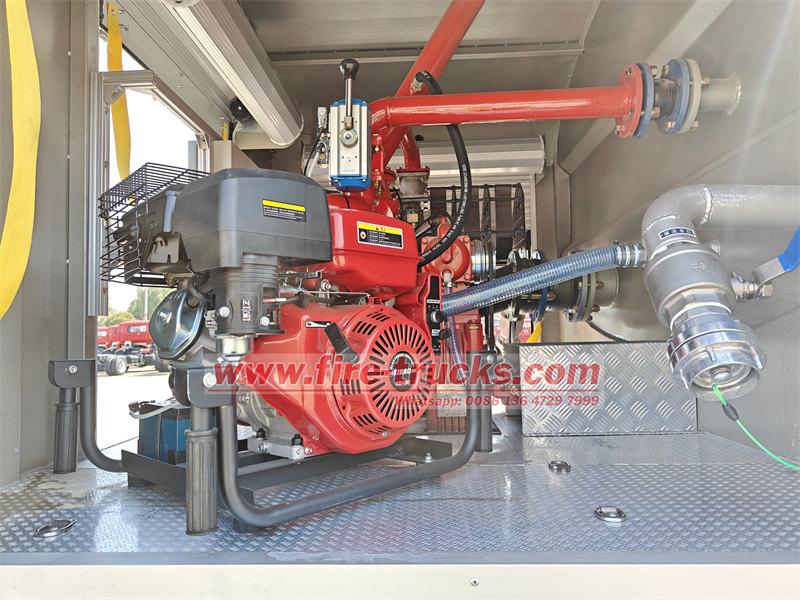

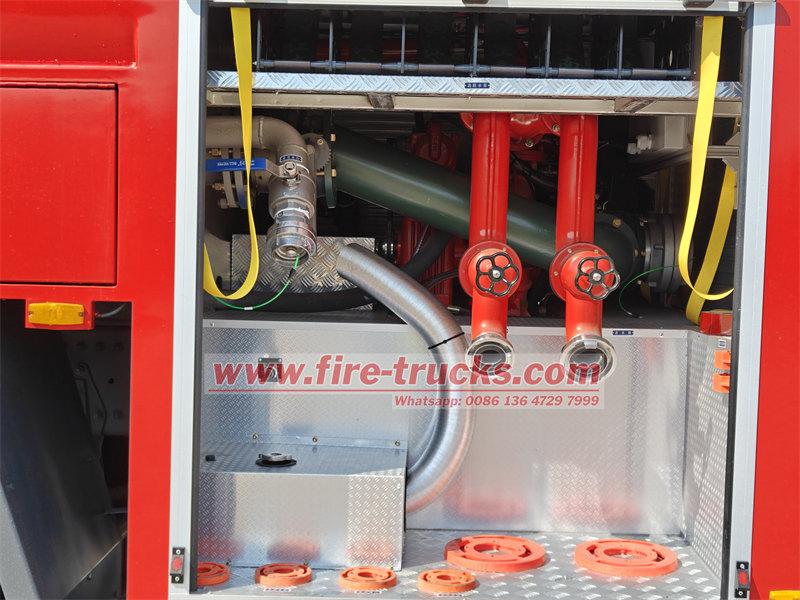

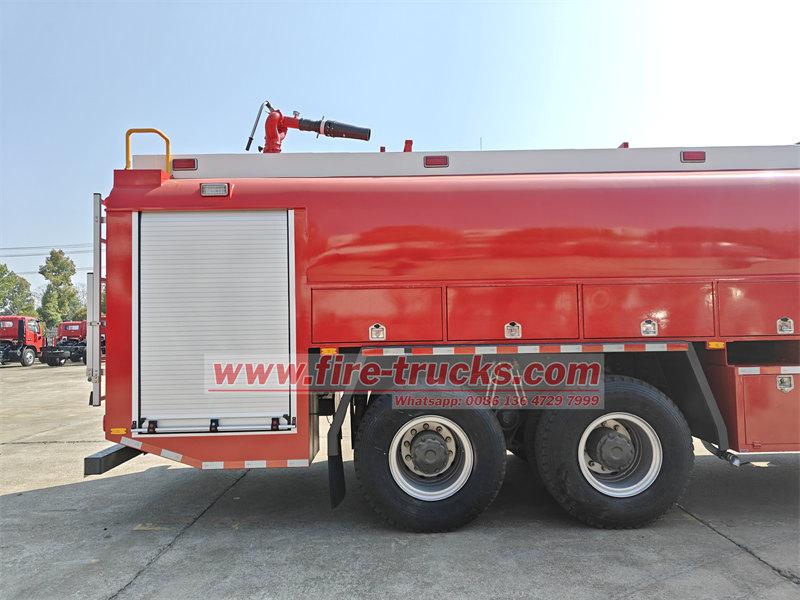

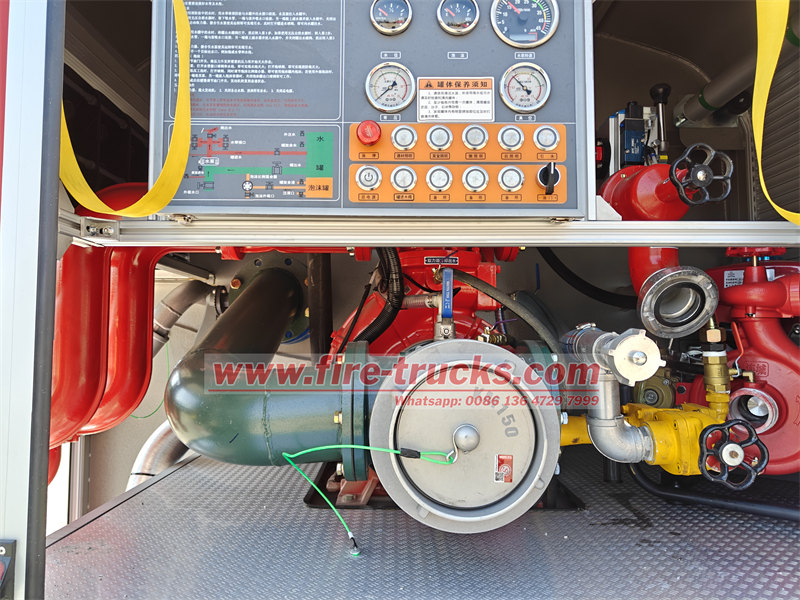

The professional firefighting system is the core value of this HOWO 6×6 fire water truck. The 15,000L carbon steel water tank adopts segmented anti-sloshing design to effectively suppress water movement during off-road driving. The rear-mounted CB10/60 fire pump features unique two-stage impeller design, maintaining stable 60L/s flow at 1.0MPa working pressure. Notably, the pump can complete water intake within just 45 seconds at 7m suction depth, an industry-leading indicator. The roof-mounted PS60 fire monitor, made of aviation aluminum alloy, achieves stepless elevation adjustment from -30° to 80° through electro-hydraulic proportional control. With 55m range and 360° rotation capability, it provides dead-angle-free fire coverage.
● OEM customized service, print your company logo
● China best firefighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome
Product Specifications
Vehicle name |
HOWO 6×6 off-road water tender |
|||
Chassis |
Brand |
SINOTRUK HOWO |
||
Drive type |
6×6, left hand drive |
|||
Gross vehicle weight |
24200 kg |
|||
Curb weight |
14500 |
|||
Wheelbase |
3600+1400 mm |
|||
Dimensions |
9920*2500*3620 mm |
|||
Overhang (front/rear) |
1600/2445 mm |
|||
Wheel track (front/rear) |
2020/1860/1860 mm |
|||
Approach/Departure angle |
34/11° |
|||
Axle Load(kg) |
6740/8730/8730 |
|||
Max. driving speed(km/h) |
89 km/h |
|||
Clutch |
Reinforced diaphragm clutch |
|||
Brakes |
Service brake: dual circuit compressed air brake; |
|||
Steering Gear |
Power steering, hydraulic steering with power assistance |
|||
Tire |
Number |
10pcs with one spare tire |
||
Specifications |
12.00R20 |
|||
Gear box |
HW13710, Manual type, 10 Forwards & 2 Reverses |
|||
Cabin |
Two doors, 2 seats and 1 sleeper bed. With Air conditioner |
|||
Engine |
Brand |
WEICHAI |
||
Model |
WP12.400 |
|||
Fuel type |
Diesel |
|||
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||
Displacement |
11596 ml |
|||
Power |
294kw |
|||
Horsepower |
400 HP |
|||
Emission standard |
Euro 3 |
|||
Max. Torque |
1780 N.m |
|||
Superstructure |
||||
Water tank |
Volume |
15000 liters |
||
Tank Material |
Q235 Carbon steel |
|||
Fire pump |
Type |
Centrifugal pump |
||
Model |
CB10/60 |
|||
Flow |
60 L/s |
|||
Pressure |
1.0 Mpa |
|||
Fire fighting pump Suction depth |
≥ 7 m |
|||
Fire fighting pump Suction Time |
≤45 s |
|||
Fire monitor |
Model |
PS60 |
||
Flow |
60 L/s |
|||
Water Range |
≥55 m |
|||
Rotation angle |
Horizontal |
360 ° |
||
Pitch angle |
-30°~80° |
Product Advantages
1. Excellent All-Terrain Performance
This HOWO off-road water tender features professional off-road chassis design with full-time 6×6 drive system and differential locks. It maintains outstanding mobility and stability in various complex road conditions including mountains, mud and deserts, ensuring rapid arrival at rescue scenes.
2. High-Efficiency Firefighting System
The 15,000L large-capacity water tank paired with high-performance fire pump delivers powerful fire-extinguishing capability. The fire monitor achieves omnidirectional rotation and long-range jetting, meeting different scenario requirements, especially suitable for rapid suppression of large-scale fires.
3. Reliable Power Performance
Equipped with high-power diesel engine and heavy-duty transmission, it provides strong and stable power output. Even in harsh environments, it ensures continuous and reliable power supply to complete rescue missions.
4. User-Friendly Operation Experience
The cab design emphasizes operational convenience with reasonable and intuitive function layout. The optimized control system makes driving easier, effectively reducing driver fatigue and improving comfort during prolonged operations.
5. Wide Application Scenarios
With excellent off-road capability and professional firefighting configuration, this HOWO off-road tender fire truck is not only suitable for conventional firefighting tasks, but also competent for special environment rescues in forests and mining areas, making it a reliable choice for various emergencies.

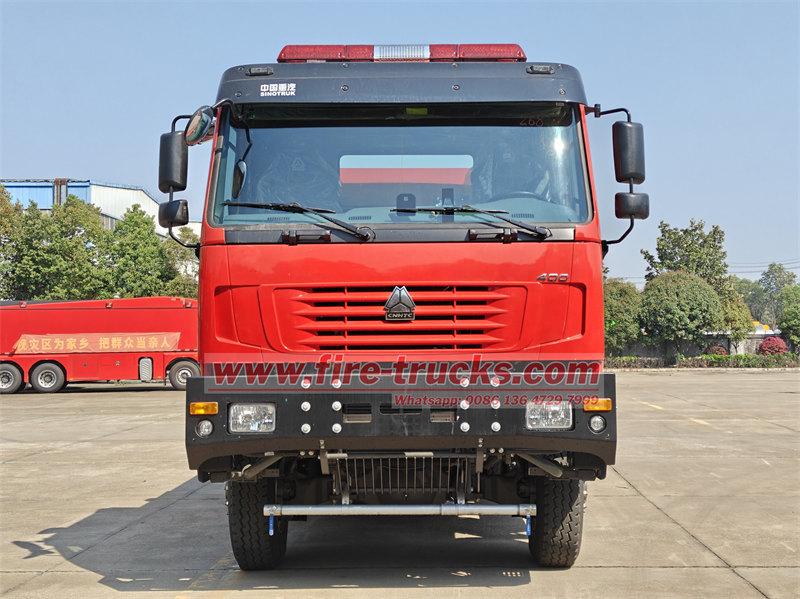

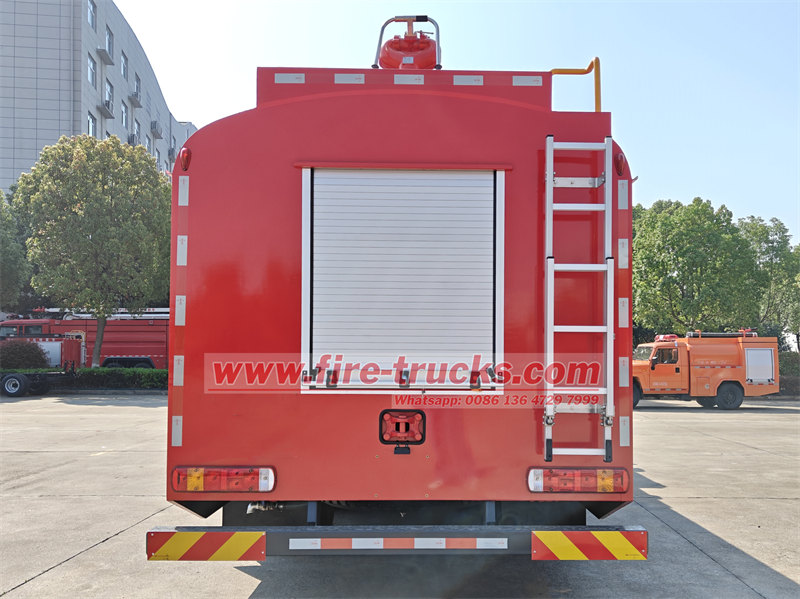

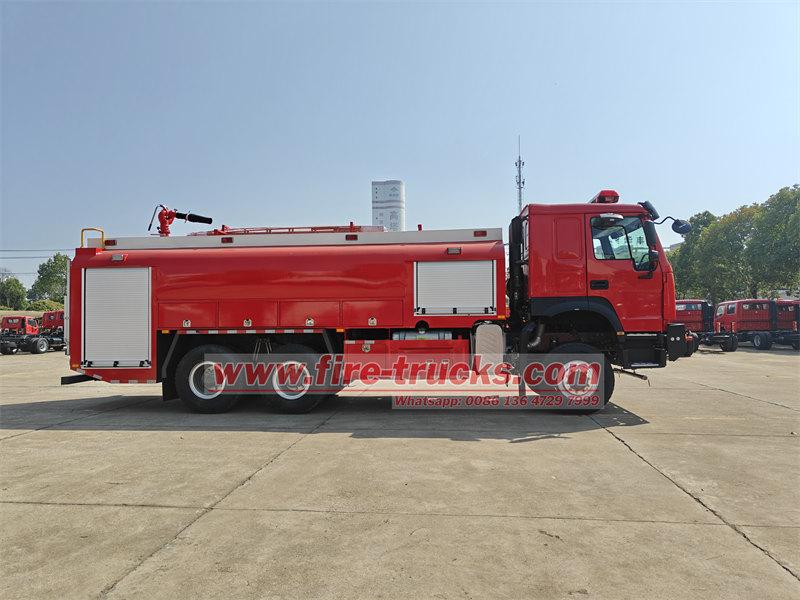

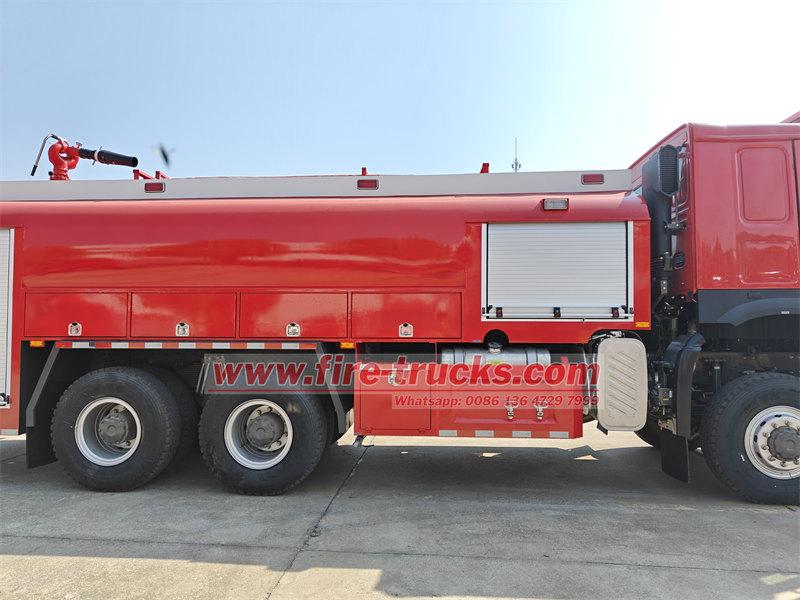

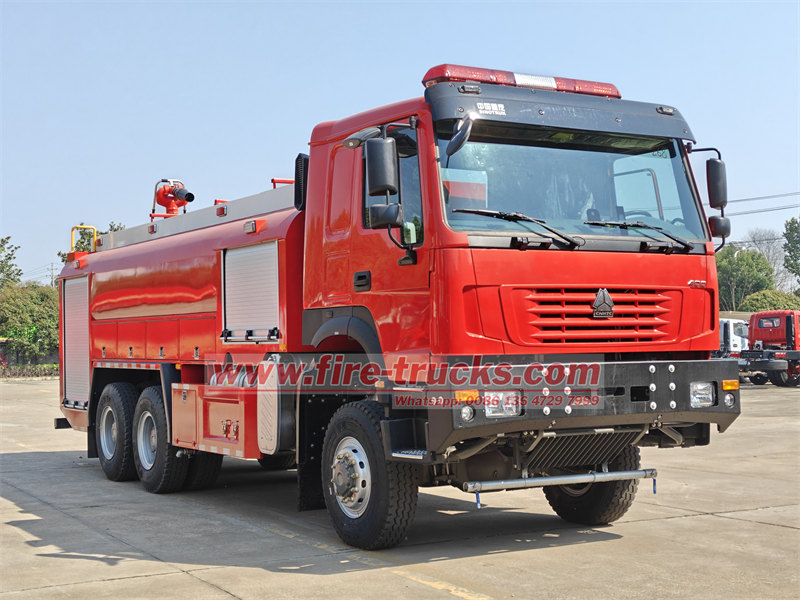

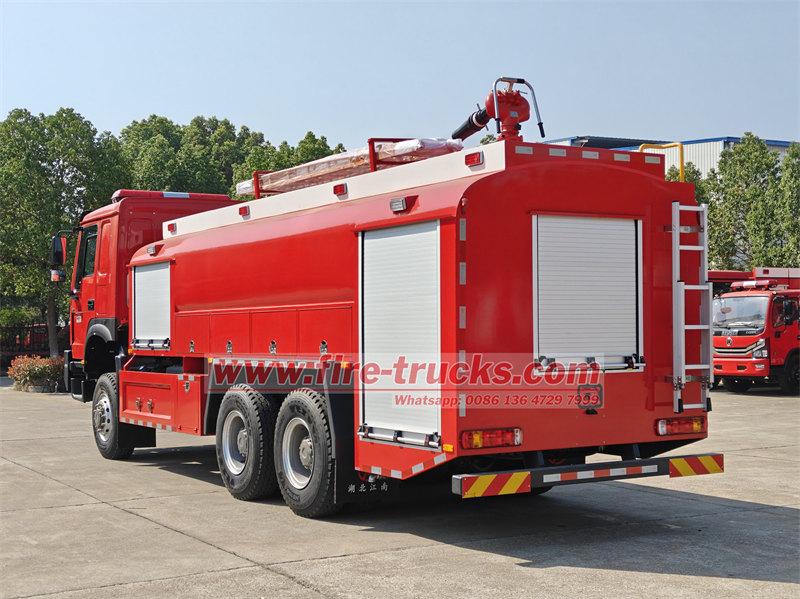

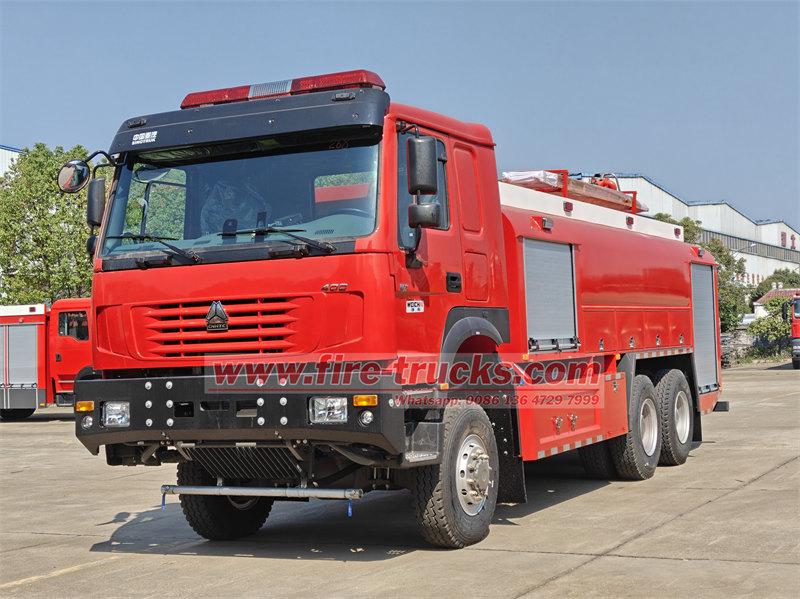

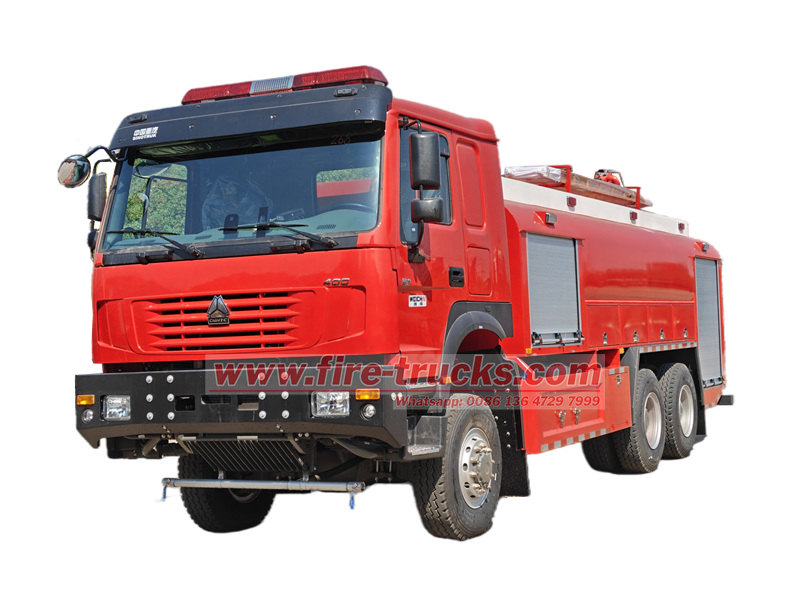

Product Pictures
