Volvo 65m Rescue Water Tower Fire Truck

Volvo 65m Rescue Water Tower Fire Truck

VOLVO 8X4 Drive 65 Meters Rescue Water Tower Fire Fighting Vehicle For High Building Rescue.65 meters water tower fire fighting vehicle is suitable for large fire disaster fighting including high rise construction, oil chemistry plant, large warehouse and public place.Before operation, it is necessary to confirm the ground bearing capacity, avoid parking on soft, sandy or sloped ground, the outriggers must be fully extended to the solid ground and the vehicle body must be leveled to prevent rollover.

  • Manufacturer Origin:

    PT5540GXF
  • Work capacity :

    65m height
  • Upper Body material:

    12,000L water
  • Wheelbase:

    1650+5800+1500
  • Axle drive:

    8x4
  • Engine Power:

    540hp
  • Engine Model:

    VOLVO D13
  • Fire Pump:

    HELL, DARLEY
  • Fire Monitor:

    Akron
  • Remark:

    Rescue fire equipment available
Facebook Linkedin Youtube Twitter Pinterest

Volvo 65m Resce Water Tower Fire Truck, also named Volvo high-rise jet fire truck is a type of high-rise fire truck, which is mainly used for fire fighting in high-rise buildings, large-span spaces and petrochemical enterprises. The vehicle has ultra-large span operation capabilities, realizing three-dimensional collaborative operations and ultra-close fixed-point fire extinguishing; Wide range of operation, strong obstacle crossing ability, flexible operation, excellent high, low-altitude rescue, fire extinguishing function, with high fire fighting height, large water spray flow and other advantages, is a collection of foam, water in one of the multi-functional fire fighting equipment: suitable for industrial and mining enterprises and petrochemical, oil tanks, warehouses and other large buildings fire fighting.The following is a comprehensive introduction:



● 30 years experience in water tower fire truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Be designed according to your requirements
● We can offer your a good after-sell service

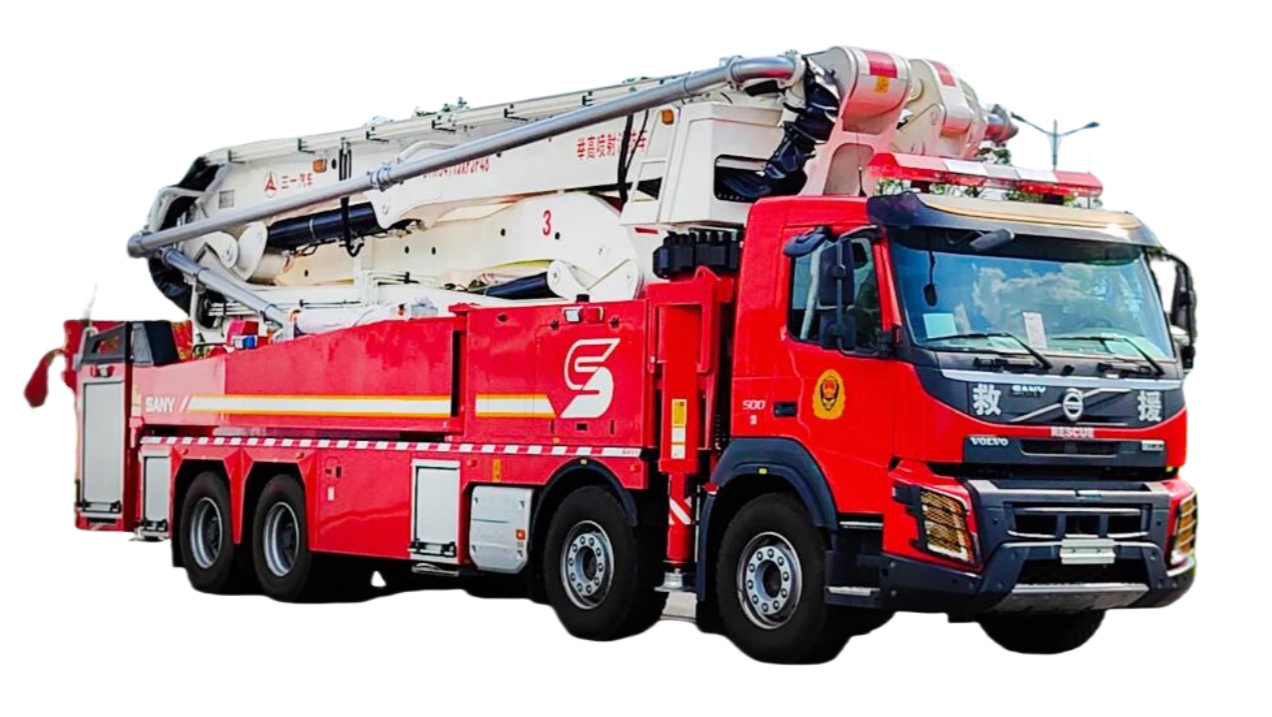

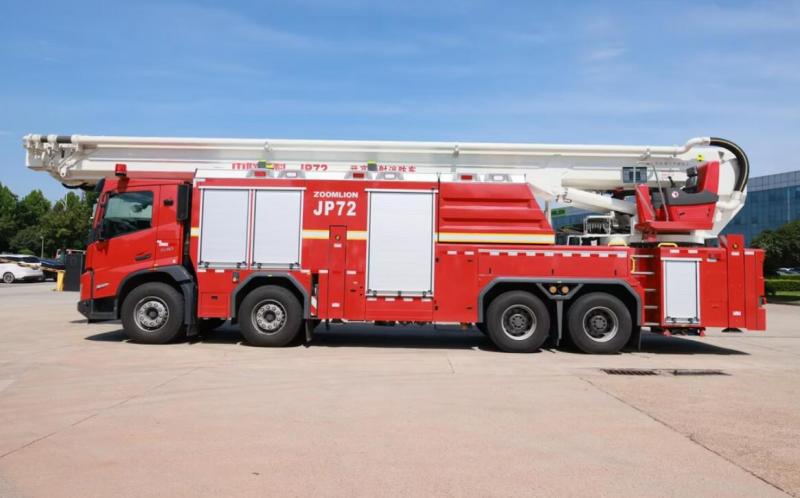

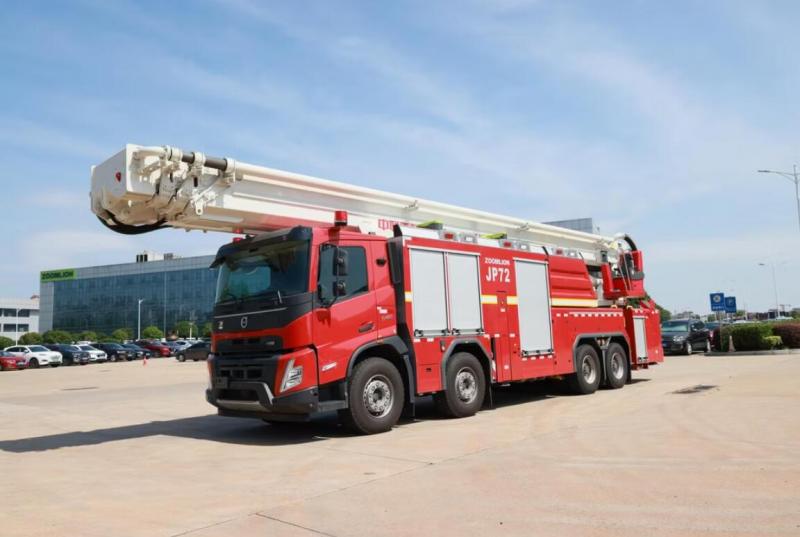

Volve 65m Resce Water Tower Fire Truck

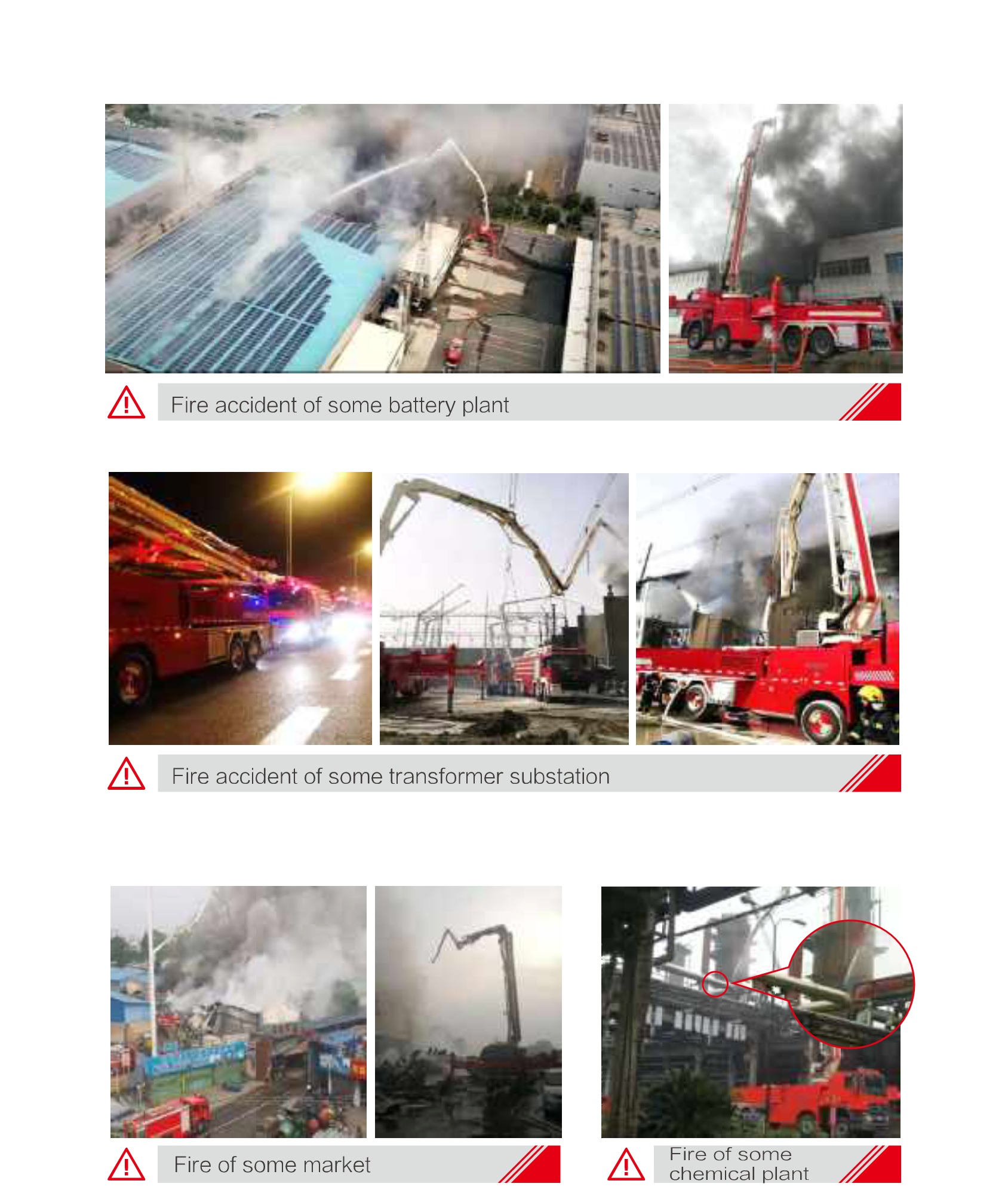

Volve 65m Resce Water Tower Fire Truck working pictures

1. Structural composition

Basic structure: It consists of a folding telescopic boom system (two to four sections of boom), an electric remote-controlled fire cannon, a tank (water tank and foam tank), a second-class chassis and a hydraulic control system.

Auxiliary system: It includes outriggers, a rotating disk, a fire pump, a foam proportioning mixer, an emergency gasoline engine, etc. Some models integrate water tanks and fire pumps to achieve independent fire fighting.



2. Functional characteristics

High-altitude firefighting capability

The maximum operating height can reach 42 meters (JP42 type), the boom can be retracted, folded and rotated 360°, and the top is equipped with an electric remote-controlled cannon, which supports DC, spray and foam spraying.

The water cannon has a range of more than 70 meters (water ≥ 75 meters, foam ≥ 65 meters), and a flow range of 30~80L/s, which has the advantages of long distance and large flow.

Operational flexibility ‌

By controlling the boom extension, rotation and water cannon angle through the turntable electric control handle or wireless remote control, firefighters can accurately extinguish fires without climbing. ‌

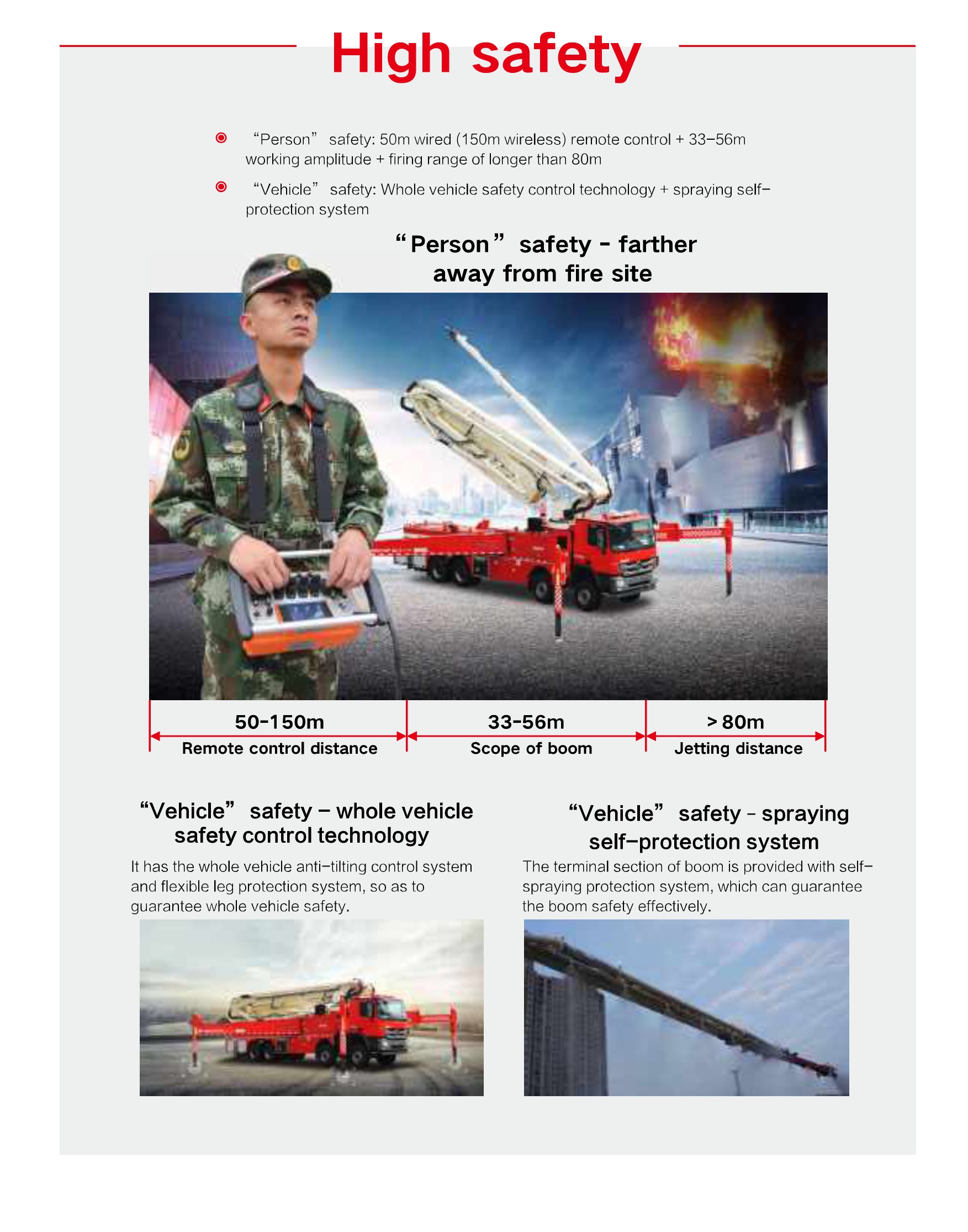

Safety design ‌

Equipped with interlocking devices for getting on and off the vehicle, soft leg alarm, boom limit deceleration and other devices to ensure operational stability; some models are equipped with emergency systems to maintain basic functions when the main power fails. ‌

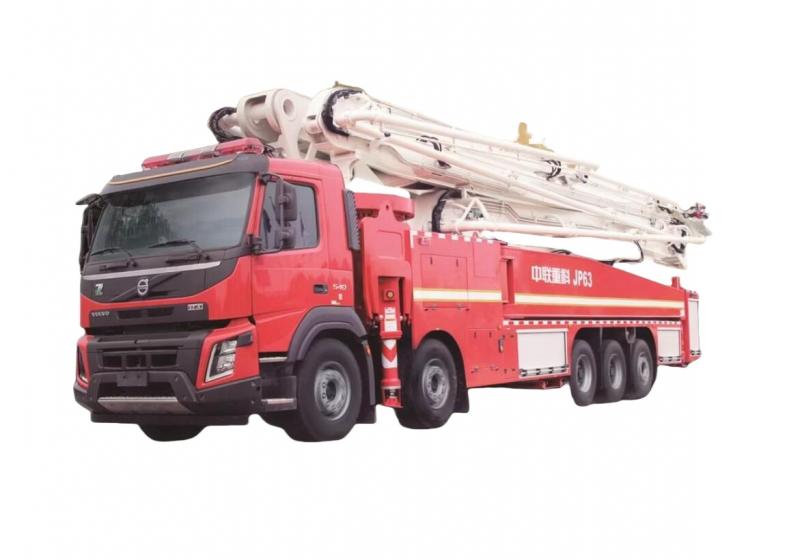

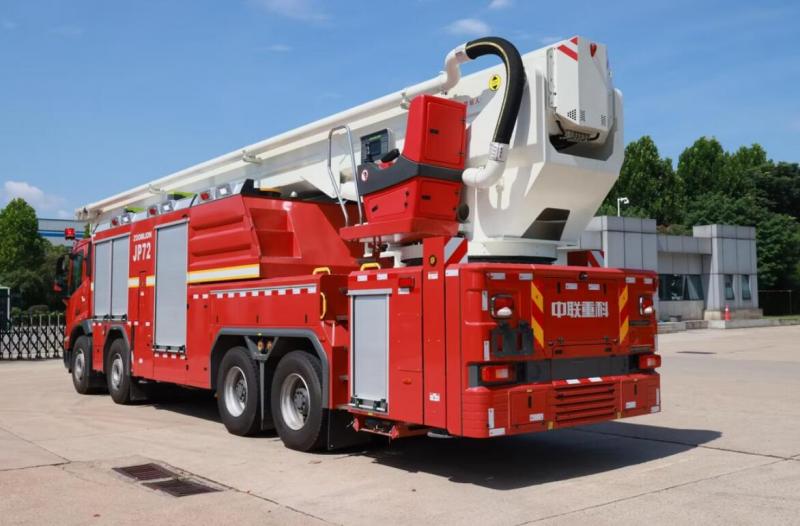

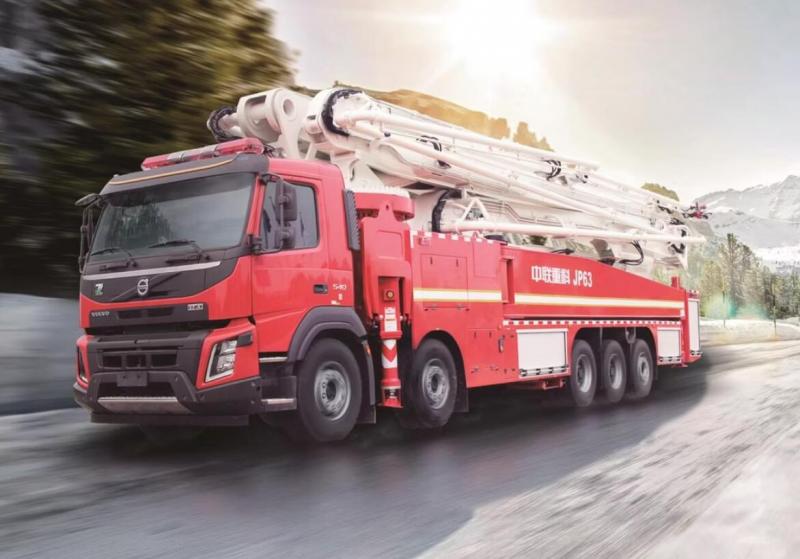

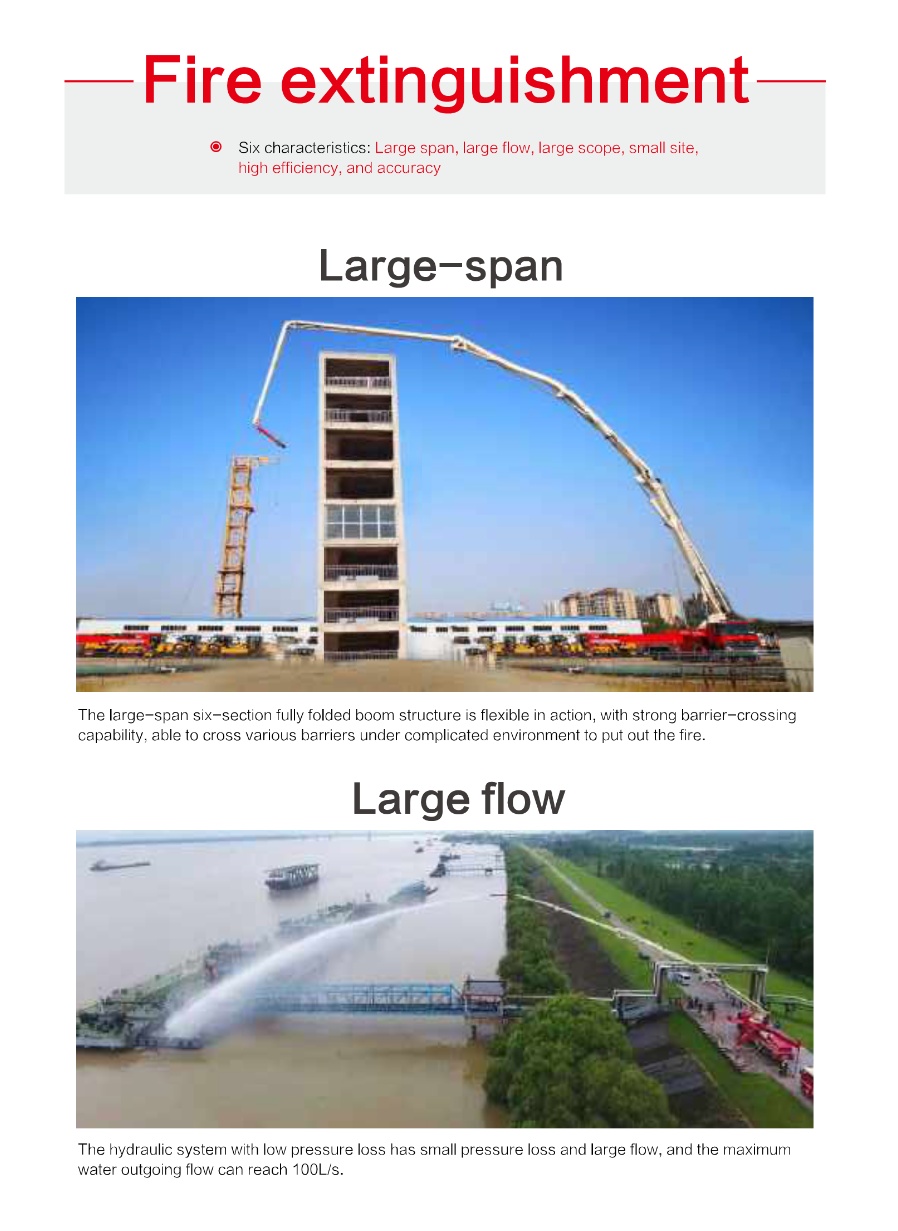

Volve 65m Resce Water Tower Fire Truck

Volve 65m Resce Water Tower Fire Truck





Volve 65m Resce Water Tower Fire Truck





Volve 65m Resce Water Tower Fire Truck



Volve 65m Resce Water Tower Fire Truck



3  Applicable scenarios ‌

Fire in high-rise buildings ‌: Use the boom to cross obstacles and directly extinguish high-rise fire sources ‌. ‌

Petrochemical facilities/large-span plant ‌: Control fires in flammable and explosive places such as oil tanks and warehouses through large-flow foam spraying ‌. ‌

Complex terrain rescue ‌: Strong span operation capability, can be deployed in narrow or obstacle areas, reducing the need for vehicle movement ‌. ‌



4. Technical parameter examples ‌

Typical model ‌: JP42 (Mercedes-Benz chassis), 4.8 tons of water, 2.7 tons of foam, leg deployment time ≤40 seconds, boom full extension time ≤190 seconds ‌. ‌ Chassis performance: Mostly adopt 6×4 drive form, with a maximum speed of ≥90km/h, which can meet the needs of quickly reaching the scene.



5. Comparison with other high-rise models

Compared with ladder fire trucks, high-rise spray trucks have higher fire extinguishing efficiency (large liquid carrying capacity and strong water cannon flow), but weaker rescue and manning capacity; compared with aerial platform vehicles, they focus more on high-altitude firefighting rather than personnel rescue, and have a lighter structure.



Through integrated design and advanced control technology, high-rise spray fire trucks have become one of the core equipment for modern urban and industrial fire fighting.



Water Tower Fire Fighting Truck
JP50
  • Maximum extinguishing ranget(m)
    >85
  • Maximum extinguishing radius(m)
    44.5
  • Chassis
    VOLVO FM540 84RB


PT50 Water Tower Fire Fighting Truck PRODUCT FEATURE

ZLF5401JXFJP50 lift jet fire truck
       Zoomlion brand ZLF5401JXFJP50 lift jet fire truck can effectively solve the problem that conventional fire trucks and firefighters cannot approach the fire scene such as explosive, easy radiation and high heat, and is especially suitable for fighting fires such as oil tanks, plants, warehouses, petroleum, chemical industry, etc.


PT50  Water Tower Fire Fighting Truck PRODUCT INTRODUCTION

Powerstar 65-meter long-span special lifting jet fire truck is integrated into the research and development of powerstar innovative design concept, with perfect functions and high degree of automation, and is a new type of lifting jet fire truck with strong practical performance. The vehicle has ultra-large span operation capabilities, realizing three-dimensional collaborative operations and ultra-close fixed-point fire extinguishing; Wide range of operation, strong obstacle crossing ability, flexible operation, excellent high, low-altitude rescue, fire extinguishing function, with high fire fighting height, large water spray flow and other advantages, is a collection of foam, water in one of the multi-functional fire fighting equipment: suitable for industrial and mining enterprises and petrochemical, oil tanks, warehouses and other large buildings fire fighting.



Product highlights

Intelligent control system
The boom is automatically unfolded and recycled; Equipped with a remote fire monitoring system, the operator can accurately grasp the fire situation and vehicle working conditions in a safe area away from the fire site; 12.1-inch TFTLCD high-resolution display, system information and fire scene video display at the same time, using anti-reflective glass screen, clear development under strong light.


Advanced waterway design, ultra-low pressure loss
Waterway pipeline system adopts special inner wall coating technology, full hard pipe low-loss flow channel design technology: small pipeline extension loss; The maximum firing range is up to 130m; Equipped with high-performance imported automatic foam ratio mixing system: foam ratio 0-10% automatic adjustment.


Boom spray protection, fire point precision strike
Boom equipped with spray protection system, spray flow up to 300L/min; Under the protective open state, the boom can operate stably in a high temperature environment of 150°; The cooling effect of the sprinkler protection system is more than 60%, which truly realizes the ultra-close fire extinguishing of the boom and ensures the precise strike on the fire point.
Excellent adaptability of the site
Outrigger one-key fast automatic leveling technology: unfolding, leveling time< 40s; Optional leg span support for deployment on most roads: compact and coordinated.


Fire-fighting PT50 Water Tower Fire Fighting Truck


Product parameters



performance unit parameter
Chassis model - Volvo FM540 84RB
Maximum engine power Kwylpham 20s
Number of passengers person 2
Maximum travel speed Kemm/Ha 90
Specific power Gram/t 9.9
Overall dimensions L×W×H governess 12000x2500x4000
Total mass gram 40450
Armband combination action time this ≤230
Tank volume gram 2000
Foam tank volume gram 1000
Fire pump flow Lee/min @mpa 10000@1.0
Fire cannon flow Benefit/People 5700
Fire cannon range Huh ≥85
Maximum operating range Huh 44.5
Number of boom sections section 6-section curved arm



JP25 is a new type of water tower fire fighting vehicle designed and developed by our company. The fire engine combination with different fire fighting equipment requirements of fire fighting industry, comprehensive application of new technology, new technology and new materials, and combined with our own technical advantages, in order to enrich the function configuration of high-pressure jet vehicle and improve its single vehicle combat capability.



Engine

Model IVECO CURSOR13 F3BE3681BR
Max. engine power 368Kw/500hp@1900
Max. torque 2300@1000
Fuel tank 300L steel fuel tank
Emission standard China IV
Urea tank 55L
Clutch Monolithic
Gearbox ZF 16S 2520 TO manual



Braking system

ABS function, front axle disc brake/rear axle drum brake

352CC air compressor



Tyre

Front axle 4× 385/65 R22.5 highway tires
Rear axle 8× 315/80 R22.5 traction tires
Rim 11.75×22.5/9.00×22.5
Spare wheel 1×315/80 R22.5 highway tire with rim



Boom structure

2 folding boom, welded with high-strength steel
Max. working height 25m
Max. working radius 10m
Rotation range 0-360°
Boom extending time ≤80s
Outrigger extending time ≤45s
Hydraulic system pressure 20MPa
Max. wind velocity 12.5m/s
Outrigger longitudinal and transverse 5950×2040mm
Upper boom change angle 0-80°
Lower boom change angle 0-160°
Allowed working range: Shown as pic1



PTO

Model ZF NMV221, Full power
Specification parameter

Anti-clockwise

Speed ratio1.5

Max. torque 1300N.m

120mm flange plate



Volve 65m Resce Water Tower Fire Truck specifications



Volve 65m Resce Water Tower Fire Truck specifications





Volve 65m Resce Water Tower Fire Truck specifications



Volve 65m Resce Water Tower Fire Truck specifications
