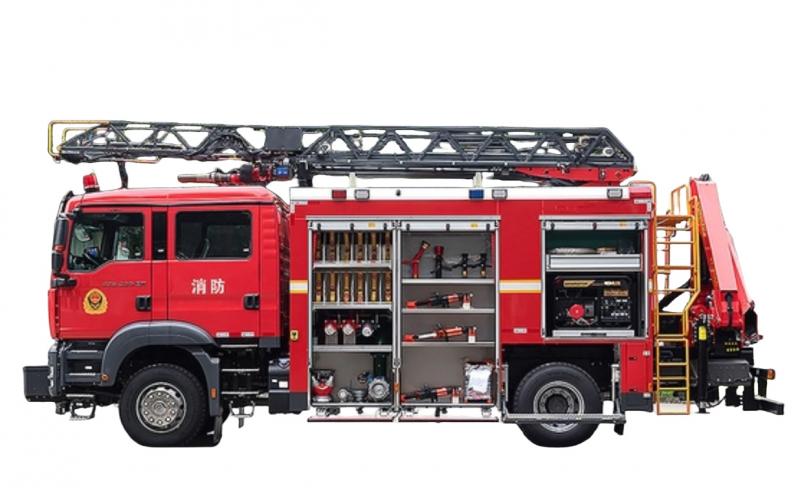

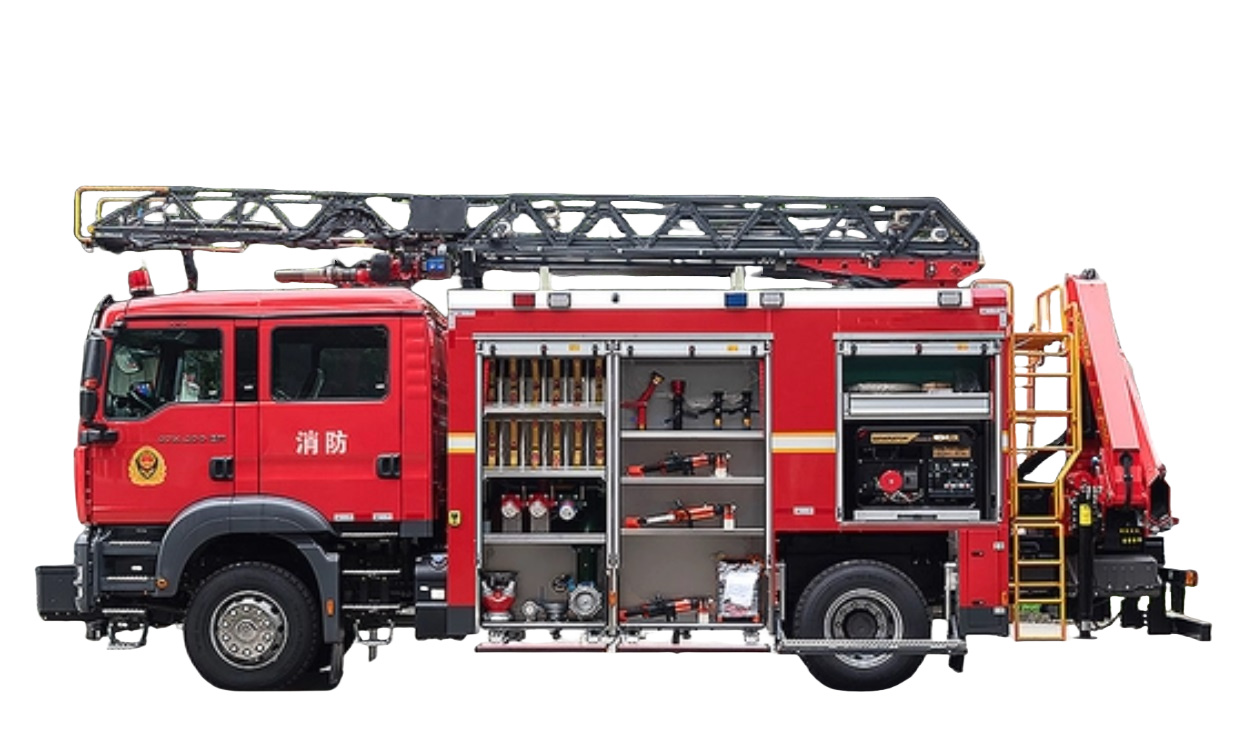

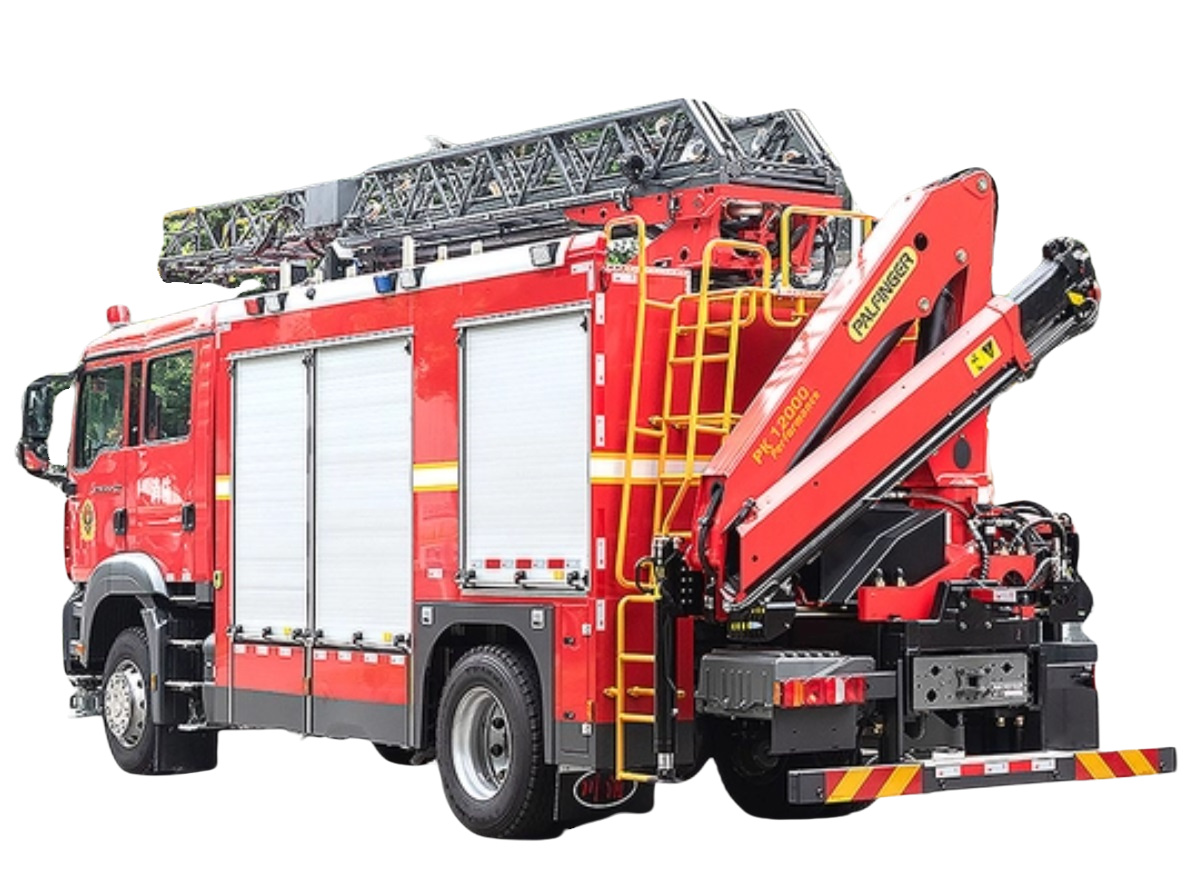

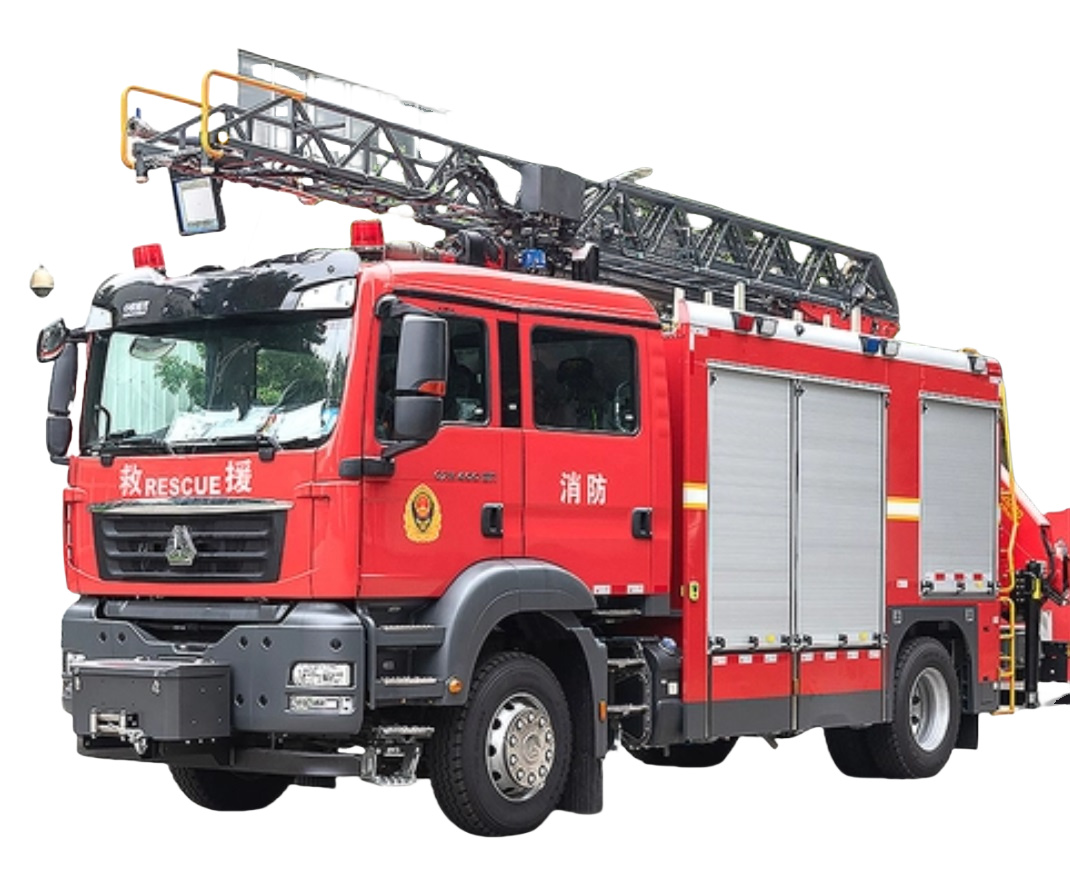

Howo sitrak 18 m Aerial Ladder Rescue Fire Truck

Howo sitrak 18 m Aerial Ladder Rescue Fire Truck

HOWO Sitrak 18m Aerial Ladder Rescue Fire Truck operates through a systematic process to ensure efficient emergency response. The four-section telescopic ladder, constructed from high-strength alloy steel, extends vertically and horizontally via an electro-hydraulic control system, achieving a maximum working height of 18 meters with ±90° rotational flexibility

  • Manufacturer Origin:

    PST5190GXF6
  • Work capacity :

    18 meter
  • Upper Body material:

    2500 L water +500L foam
  • Wheelbase:

    4500
  • Axle drive:

    4x2
  • Engine Power:

    240hp
  • Engine Model:

    Isuzu 6HK1
  • Fire Pump:

    CB10/60-G
  • Fire Monitor:

    PSKD10/50-C, 50L/s
  • Remark:

    Water ≥ 70m, Electric remote control
Facebook Linkedin Youtube Twitter Pinterest

HOWO Sitrak 18m Aerial Ladder Rescue Fire Truck is a specialized emergency response vehicle engineered for high-rise firefighting and technical rescues. The Howo sitrak 18 m aerial ladder rescue fire truck carries a 4000-liter water tank and a mid-mounted single-stage centrifugal pump rated at 60L/s at 1.0MPa. Additional fire suppression capabilities include a 300kg dry chemical tank and foam proportioning system

Its primary function revolves around deploying an extendable 18-meter aerial ladder, engineered to reach elevated structures such as multi-story buildings, industrial complexes, or confined urban spaces where conventional equipment falls short.In fire suppression scenarios, howo sitrak 18 m aerial ladder rescue truck integrates a high-capacity water pump and foam projection system, capable of delivering targeted streams to extinguish flames at significant heights



● 30 years professional manufacturer experience.
● Good after-sell service
●Professinal engineer department
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term
Howo sitrak 18 m Aerial Ladder Rescue Fire Truck



Manufacturer Powerstar Trucks
Product Name Howo sitrak 18 m Aerial Ladder Rescue Fire Truck
Vehicle Brand Series Howo
Vehicle Model PST5180 XFPM60
Chassis parameters Overall dimensions mm 8580*2500*376
Gross weight kg 18500
Curb weight 15560
Rated payload 3050
Suspension F/R mm 1335/2230
Wheel base 4,500
Driving type 4*2
Chiassis model QL1160AMFRY
Number of axles 2
Tire specification 10.00-20-16PR,10.00R20-16PR,11.00R20-16PR
Number of Tires 6+1
Passengers in cab 3+3
Engine Engine model MC07H.35-60  ( MAN Engine)
Type of fuel Diesel
Displacement/power ml 9856/257kw
Max speed Km/h 110
Emission standard(TAS) EURO 5
Fire performance  Tank capacity water tank capacity:2500kg    foam tank capacity:300kg
Fire pump Brand:Shanghai Rongshen
Model: CB10/60-G
Low-pressure:30L/S
Medium-pressure:60L/S
Fire monitor Brand:China famous
Model:CB10/60-G
Flow:50L/s
Water jet distance:≥60m
Foam jet distance:≥55m
Electronic alarm LY  CJB-100-C24
Alarm lamp LY TBD-XF-168LED

Primary Applications of HOWO Sitrak 18m Aerial Ladder Rescue Fire Truck

  1. High-Rise Rescue Operations
    The HOWO Sitrak 18m Aerial Ladder Rescue Fire Truck is engineered for rapid evacuation and rescue missions in multi-story buildings. Its extendable 18-meter aerial ladder, equipped with a stabilized platform, enables firefighters to safely access victims trapped at elevations equivalent to six-floor structures.

  2. Advanced Fire Suppression Capabilities
    This vehicle integrates a high-capacity water pump and foam projection system, delivering up to 4,000 liters per minute to combat intense blazes. The ladder-mounted monitor nozzle can direct water or fire-retardant foam vertically or horizontally, suppressing flames in hard-to-reach areas such as rooftop installations or industrial complexes.

  3. Multi-Functional Emergency Support
    Beyond firefighting, the truck serves as a mobile command hub with auxiliary lighting, power generation, and equipment storage. Its integrated hydraulic rescue tools (e.g., spreaders, cutters) and 360-degree rotating platform assist in technical rescues during vehicular accidents or structural breaches.

Howo sitrak 18 m Aerial Ladder Rescue Fire Truck









Howo sitrak 18 m Aerial Ladder Rescue Fire Truck



HOWO Sitrak 18m Aerial Ladder Rescue Fire Truck operates through a systematic process to ensure efficient emergency response. Upon arrival at the scene, the vehicle is stabilized using hydraulic outriggers, which extend laterally to create a secure base, preventing imbalance during aerial maneuvers. The three-section, foldable ladder, constructed from high-strength alloy steel, is then hydraulically elevated to a maximum working height of 18 meters, capable of rotating 360 degrees with ±90° vertical articulation for precise positioning.



Operators in the insulated control cabin utilize a dual-control system, combining manual joystick operations with automated angle sensors, to align the ladder platform with trapped individuals. The ladder's load-bearing capacity (≥300kg) allows simultaneous rescue of multiple victims, while integrated safety rails and non-slip surfaces prevent secondary accidents.



During firefighting operations, the water cannon mounted on the ladder head discharges up to 4,000L/min, powered by the onboard 8,000L water tank and auxiliary fire pump. The dual-mode nozzle adjusts between focused jet streams for flame penetration and water mist for heat radiation reduction.
