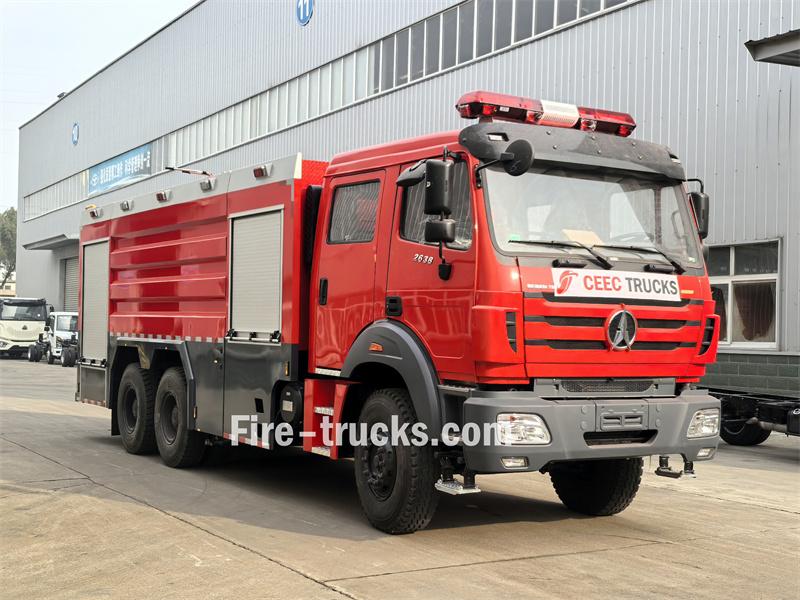

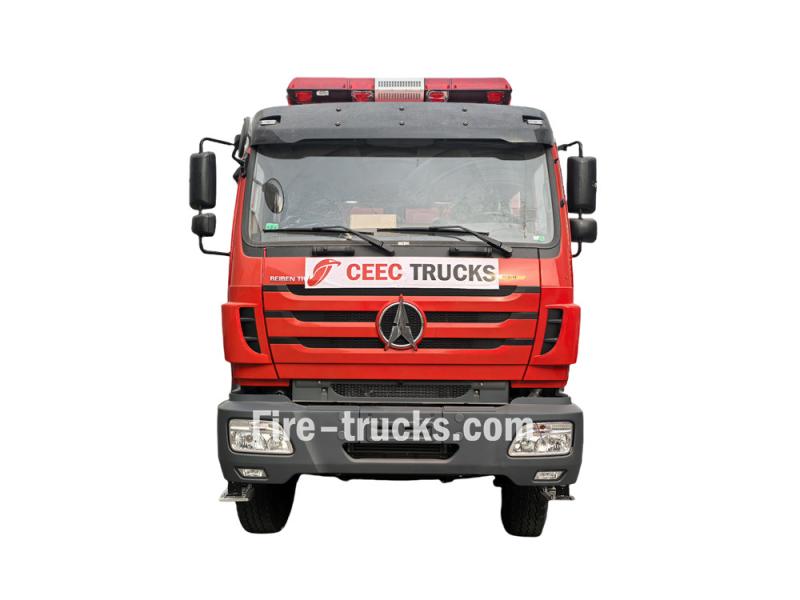

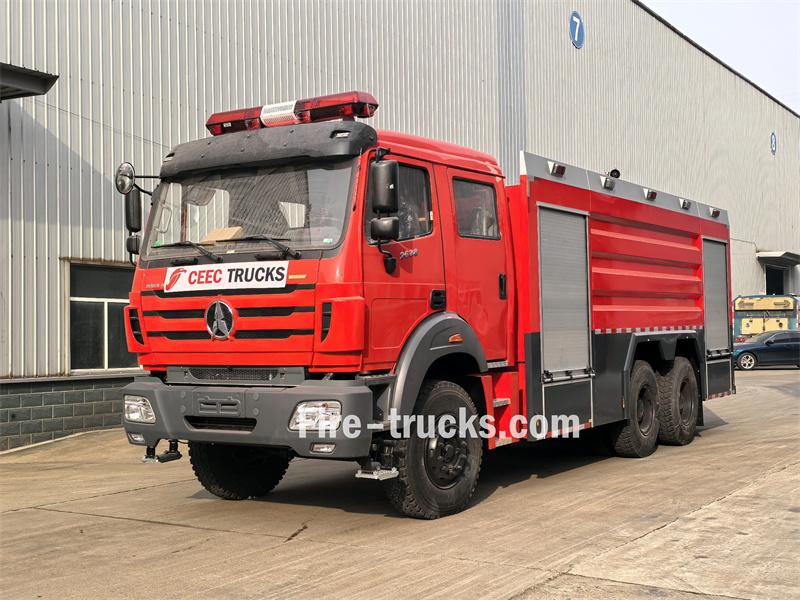

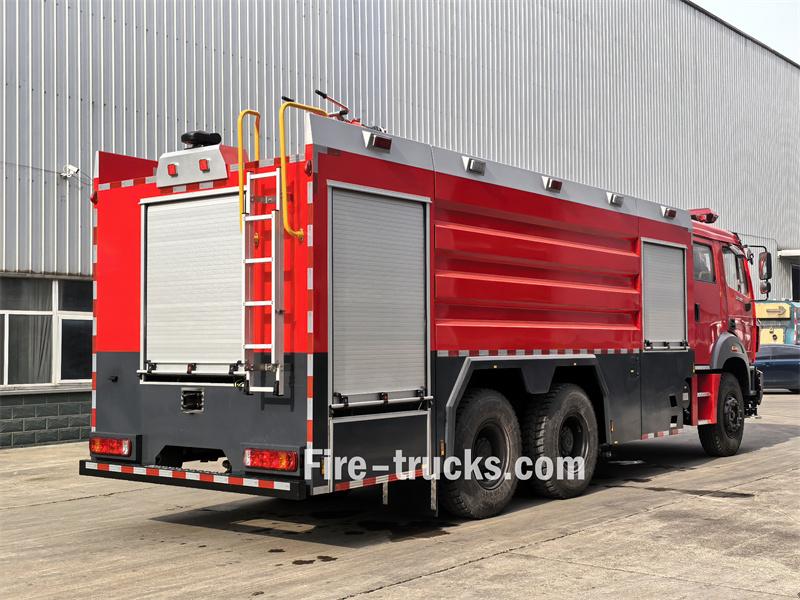

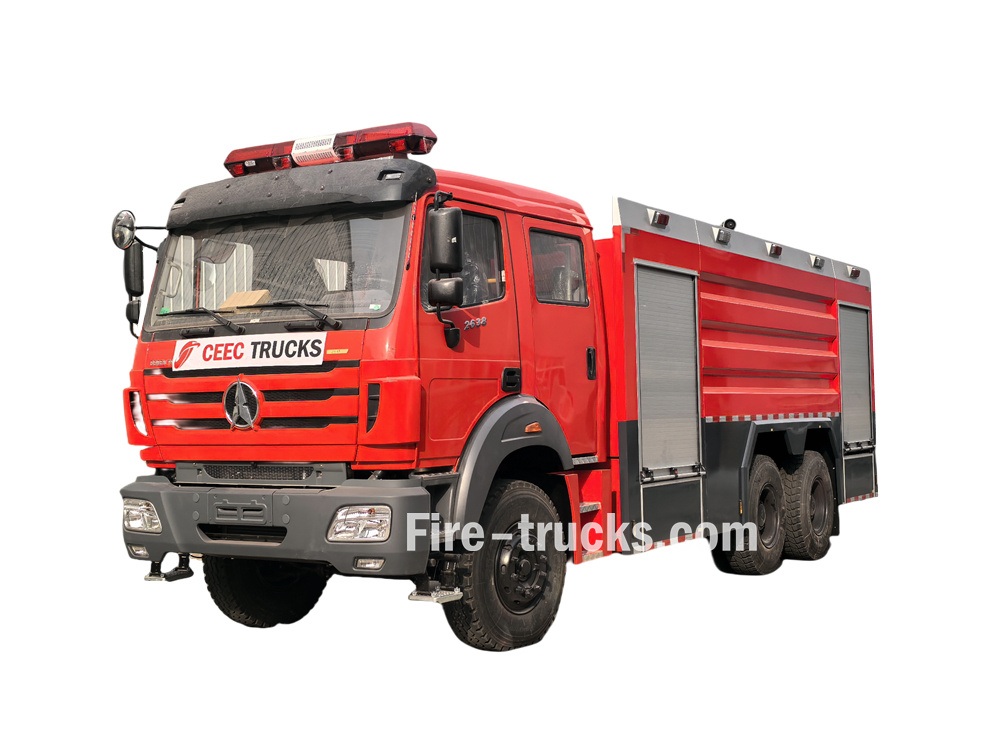

Beiben 2638 fire rescue truck with foam tank

Beiben 2638 fire rescue truck with foam tank

The Beiben 2638 6x4 fire truck has a 4450+1450mm wheelbase, a gross vehicle weight of 26 tons, and overall dimensions of 9830x2540x3630mm. The chassis is equipped with a Weichai WP10.380E32 engine and a FAST 12JS160T gearbox. The front of the truck bed is an equipment compartment with aluminum alloy anti-slip textured walls, storing various equipment. The middle section houses a 10-cubic-meter carbon steel water tank and a 2-cubic-meter foam tank. The rear pump room is equipped with a CB10/60-RS fire pump, control panel, fire hoses, and tools including a water collector, fire nozzles, and foam guns. A PL8/48 fire monitor is mounted on the roof of the truck bed.

  • Truck Chassis:

    BEIBEN 2638
  • Tanker Capacity:

    10000L water tank+2000L foam tank
  • Engine Power:

    380HP/WP10.380E32
  • Fire Pump:

    CB10/60-RS
  • Pump Flow:

    60L/s
  • Work Pressure:

    1.0MPa
  • Fire Monitor:

    PL8/48
  • Monitor Flow:

    48L/s
  • Monitor Range:

    water ≥70m, foam ≥60m
Facebook Linkedin Youtube Twitter Pinterest

The Beiben 2638 fire rescue truck with foam tank is a professional firefighting equipment modified from the Beiben 2638 6×4 heavy truck chassis. It is suitable for various fire fighting scenarios, including urban firefighting, industrial and mining enterprises, and road rescue. Equipped with a Weichai 380hp engine and a Fast 12-speed transmission, the vehicle integrates equipment, liquid tanks, and a pump room. Its 10-cubic-meter water tank and 2-cubic-meter foam tank, along with a CB10/60-RS fire pump and a PL8/48 fire monitor, combined with other firefighting equipment, enable precise targeting of fire sources and strong sustained combat capability.



   ♦ BEIBEN 2638 fire rescue truck with foam tank ♦



Beiben 2638 fire rescue truck with foam tank

»Ⅰ.Product Parameters

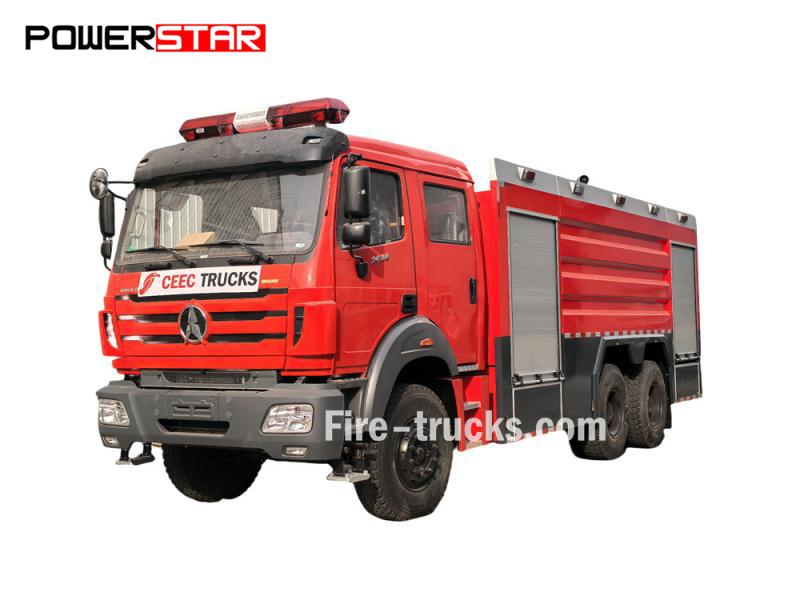

Beiben 6x4 12000L foam water fire truck

General

Work capacity

10000L water tank,2000L foam tank

Truck chassis

BEIBEN 2638 6X4

Overall Dimensions

9830x2540x3630mm

Engine Power

380 HP/ WP10.380E32

Fire pump

CB10/60-RS

Chassis

Cabin

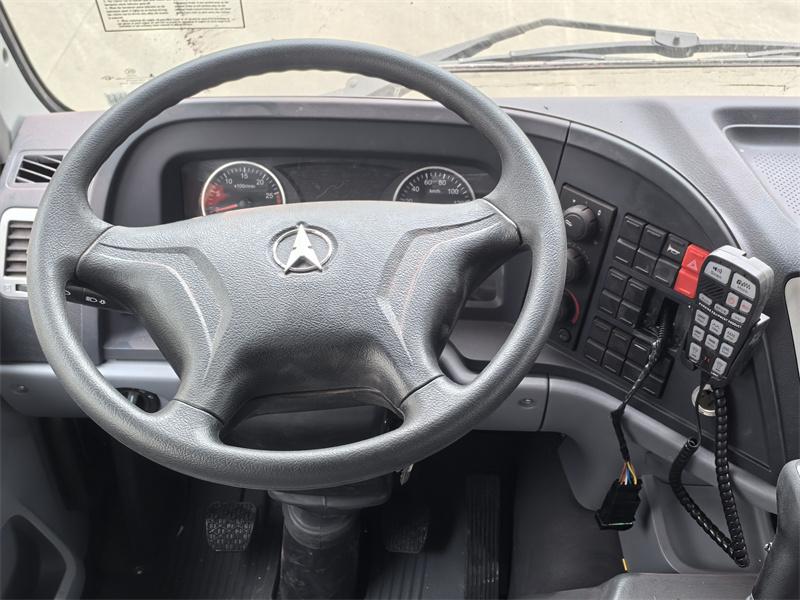

BEIBEN NG80B Long Cabin/ Flat roof/Left drive

Wheelbase

4450+1450mm

Drive Type

6X4

Engine

WP10.380E32, Euro 3; 9.726L, 1600N.m

Transmission

FAST, 12JS160T, 12 forwards & 2 reverse

Tire

12.00R20 ,10+1wheel

GVW/ Curb Weight

26000/ 14500kg

Fuel tank

400L

Clutch

Reinforced diaphragm clutch





Fire pump

Model

CB10/60-RS

Pressure

1.0MPa

Max working pressure

1.082MPa

Max allowable inlet pressure

0.4MPa

Flux

60L/s

Max suction height

7m

Rated speed

3200±50r/min

Speed ratio

1:1.103

Water diversion time

50s

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/48

Flow

48L/s

Rated working pressure

0.8MPa

Max working pressure

1.0MPa

Range

Water

70m

Foam

60m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

Suction tube

125*2m,4pic

 Standard  configuration

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



 » Ⅱ.Key Features:



★ WEICHAI 380HP powerful engine+ FAST 12JS160T gearbox, 100,000 Km without prblem.

★ BEIBEN 2638 6x4 crew cabin,  Europen design

★ China famous CB10/60 fire pump, super reliable

★ Tank capacity can be customized



 POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

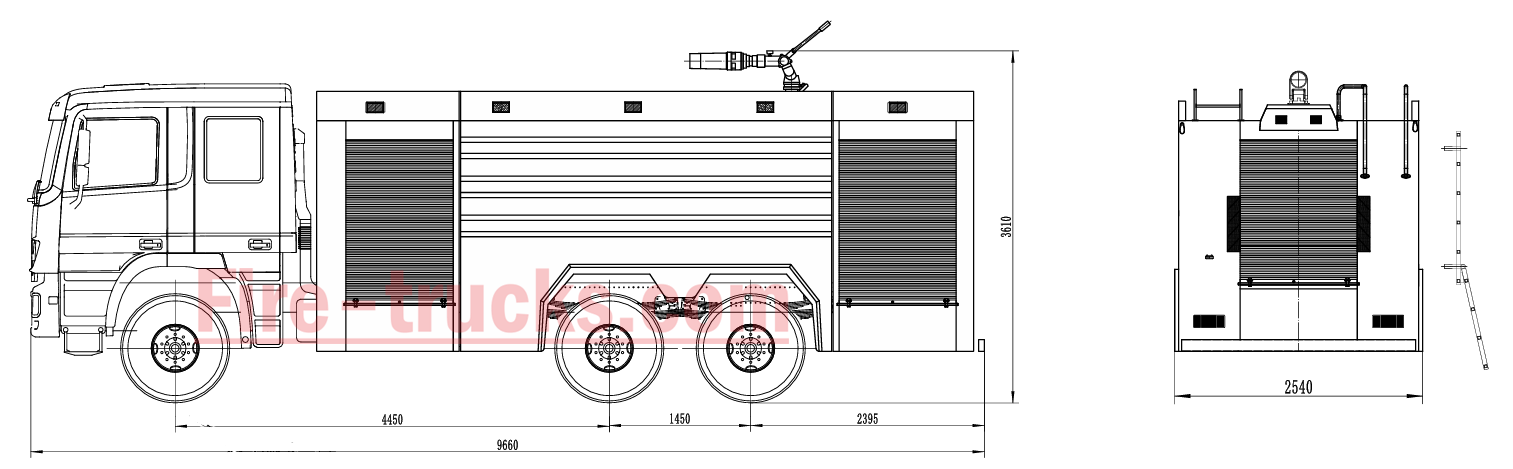

Technical drawing of BEIBEN 6x4 foam fire truck





» Ⅲ. Chassis system:

• Chassis Model: Beiben NG80B 2638



• Drive Type: 6×4 (Dual Rear Axle Drive)



• Wheelbase: 4450+1450mm



• Gross Vehicle Weight: 26 tons, Curb Weight: 14500kg



• Overall Dimensions: 9830×2540×3630mm



• Tires: 12.00R20, 10+1 wheel

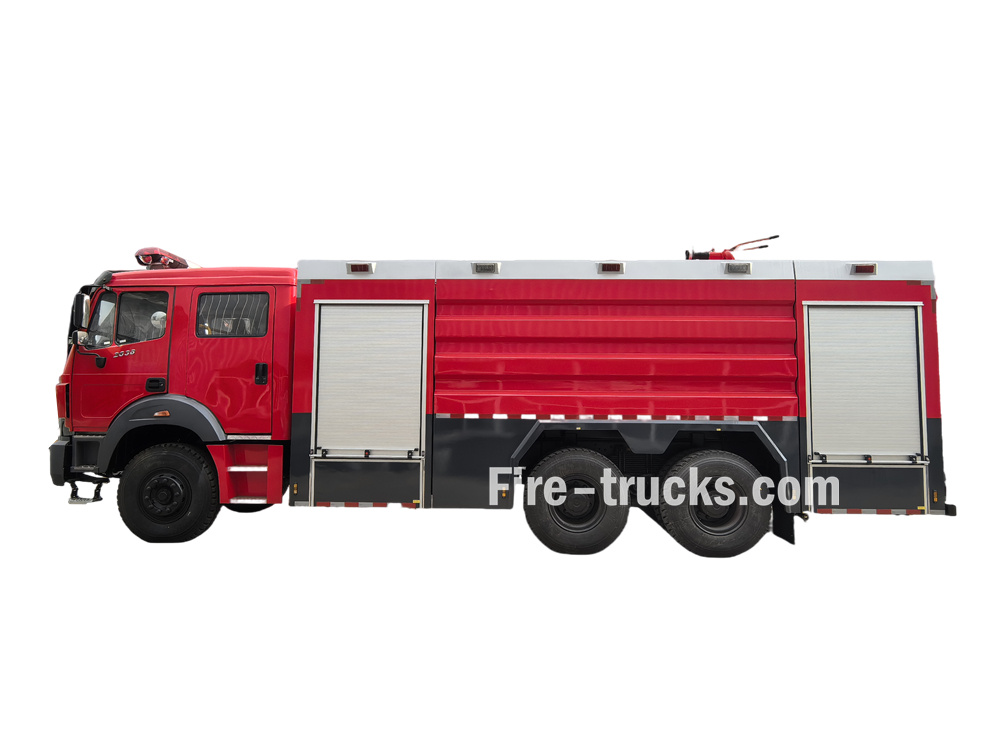

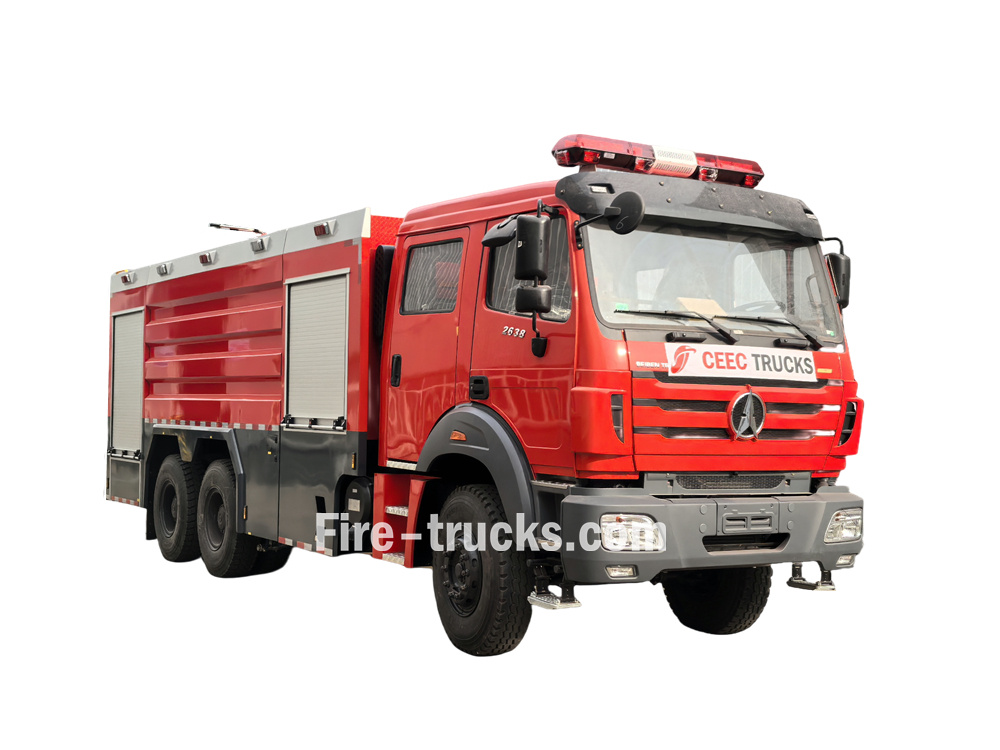

  • BEIBEN 2638 12cbm water foam fire tender truck
  • BEIBEN 12cbm water foam fire tender truck

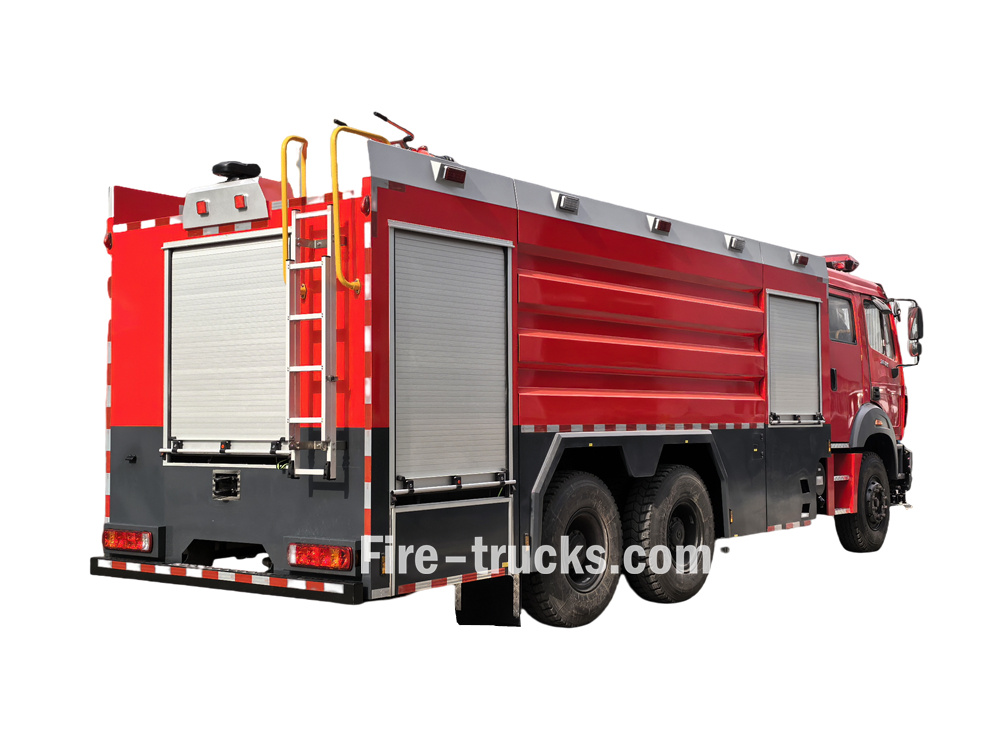

  • BEIBEN 6x4 12000L foam fire pumper truck



• Engine: Weichai WP10.380E32

  Inline six-cylinder diesel engine, displacement 9.726L

  Rated Power: 280kW (approximately 380 hp)

  Meets China III emission standards, peak torque 1600 N.m, ample torque reserve, adaptable to complex road conditions



• Transmission: FAST 12JS160T

  12-speed manual transmission, high first gear ratio, strong climbing and heavy-load starting ability

  Smooth operation, high reliability

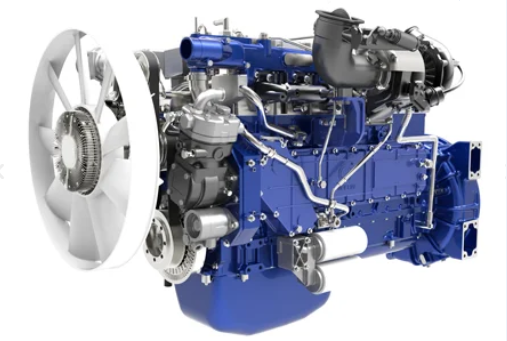

WP10.380E32 engineFAST 12JS160T gearbox

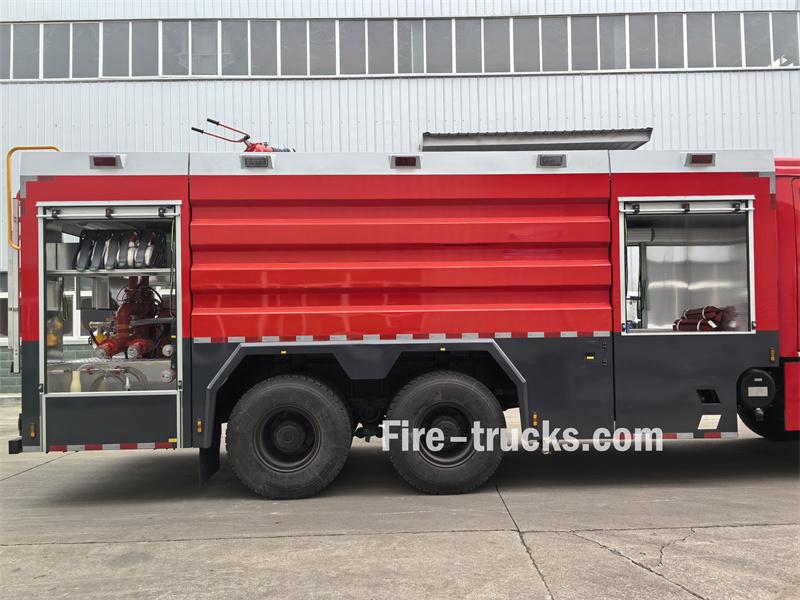

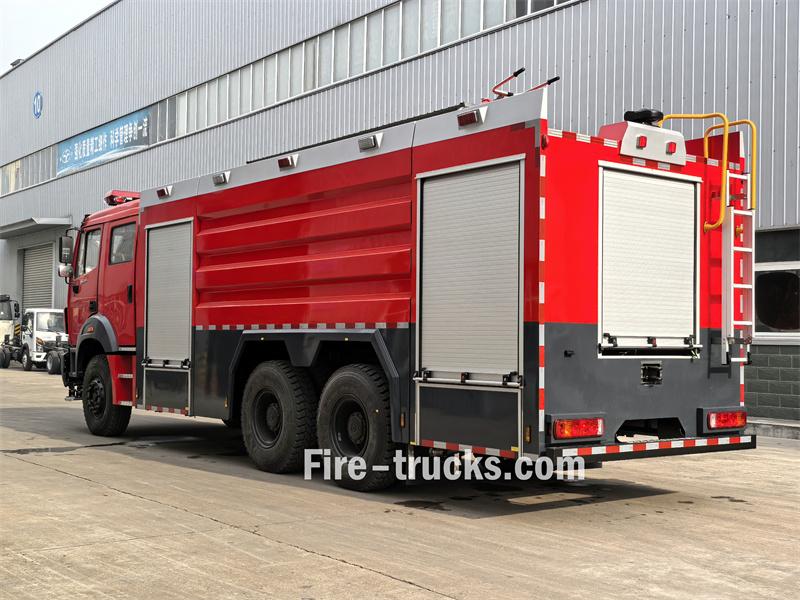

» Upper Structure and Functional Layout:

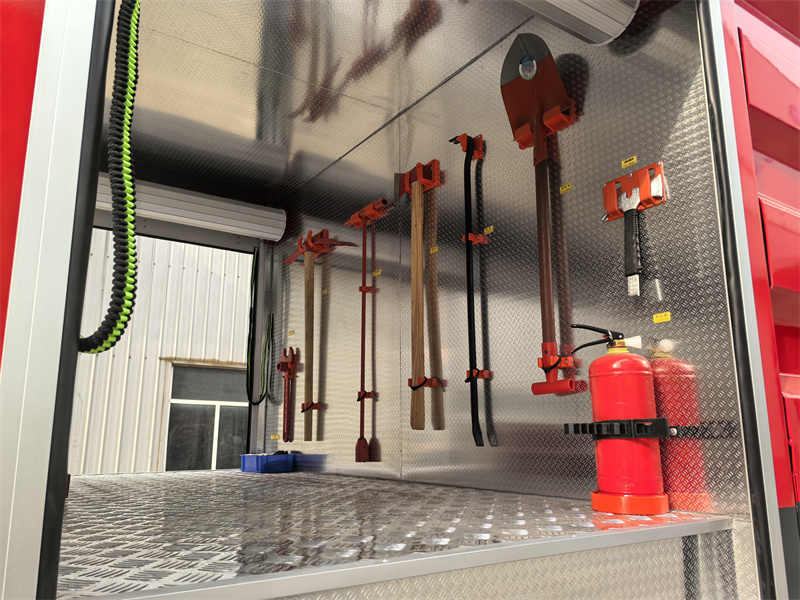

Front Equipment Room

• Material: Four walls made of aluminum alloy anti-slip patterned plate, lightweight and corrosion-resistant



• Storage Equipment:

o Demolition Tools: Fire axe, hammer, pickaxe, shovel; ground/underground fire wrench, iron crowbar, etc.

o Protective Equipment: Fire suit, hose cover, fire bridge, first aid kit, etc.

o Fire Extinguishing Equipment: Dry powder fire extinguisher



Front Equipment Room

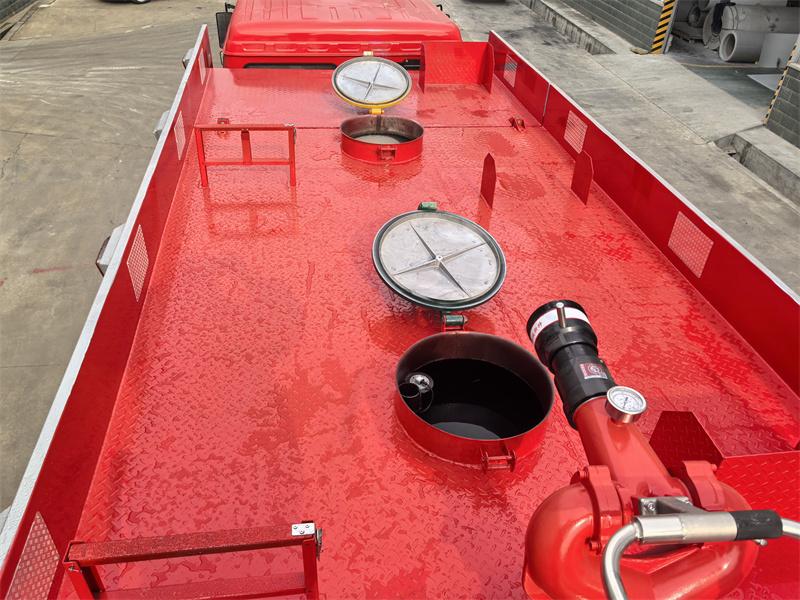

Middle Liquid Tank System

• Water Tank: 10 cubic meter capacity, carbon steel, corrosion-resistant, with baffles

 Foam Tank: 2 cubic meter capacity, independent piping, can be used to prepare foam mixture

• Inlet: Quick-connect interface, supports fire hydrant or water supply



Beiben 6x4 WP10.380E32 engine fire truck

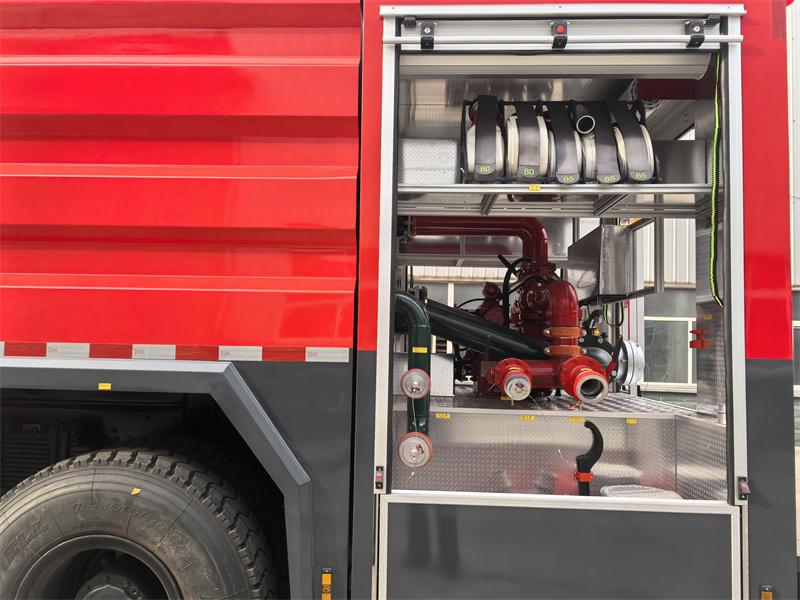

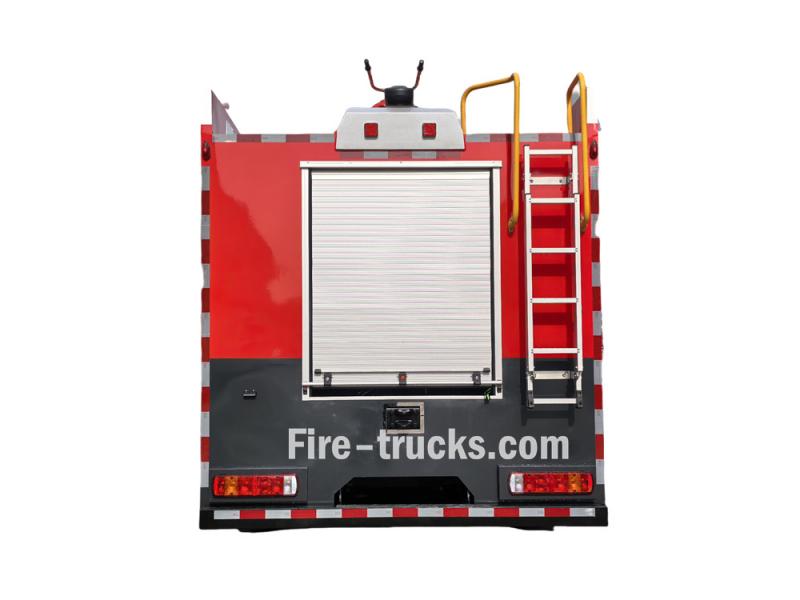

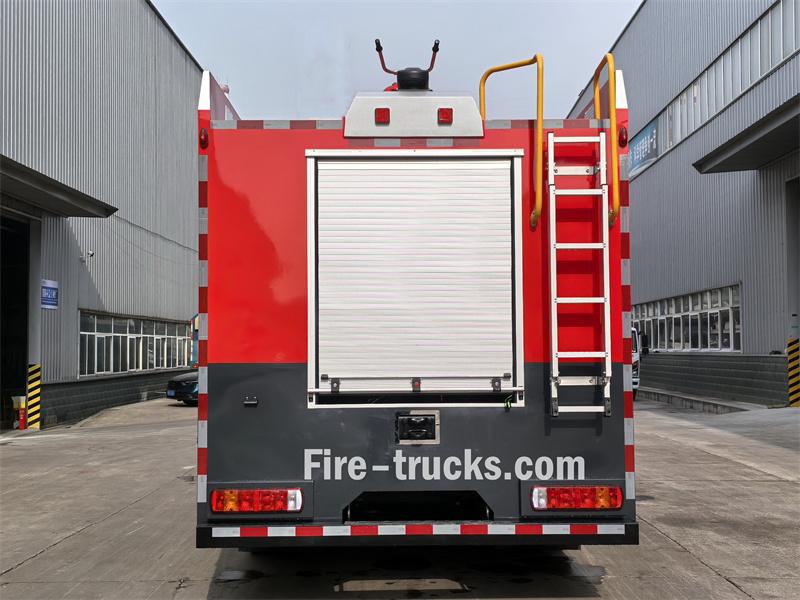

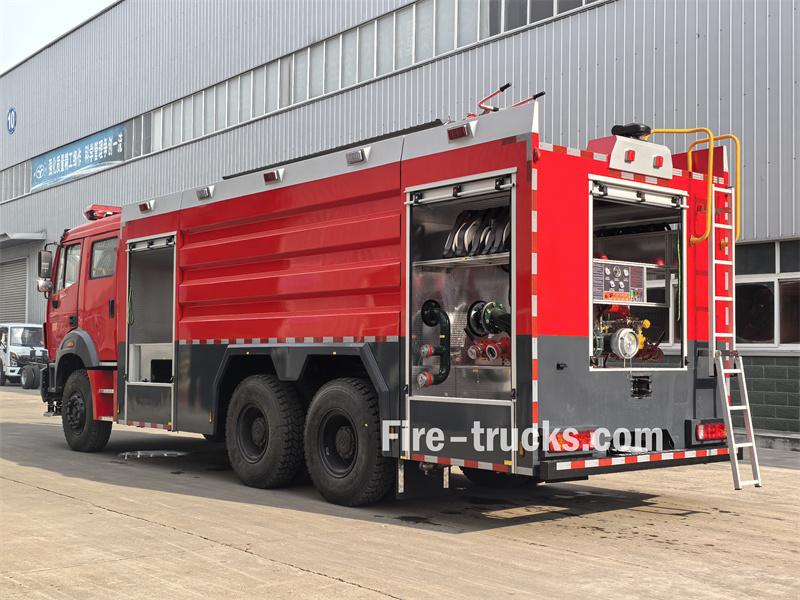

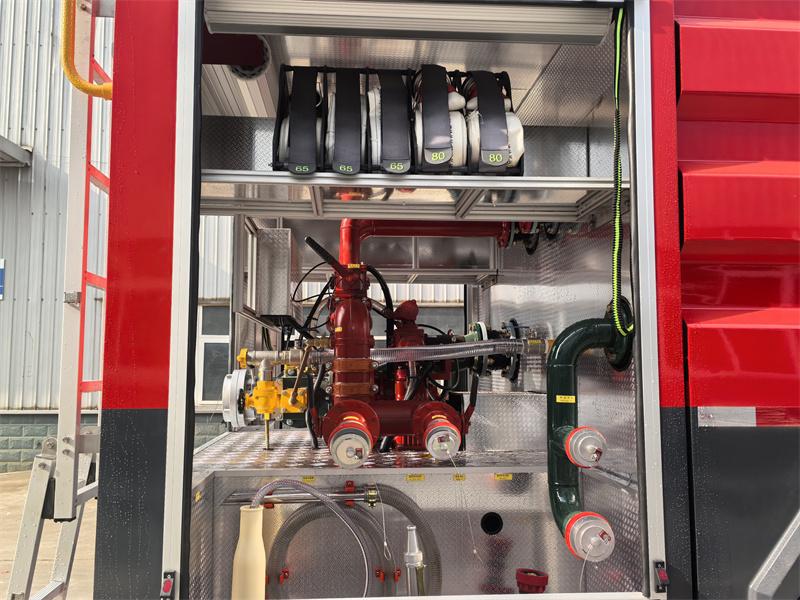

Rear Pump Room

• Fire Pump: CB10/60-RS type medium and low pressure fire pump

o Flow rate: 60L/s@1.0MPa

o Pump shaft speed: 3200±50r/min, power: 99.71kw

o Priming time ≤50 seconds, with built-in vacuum device



• Control Panel: Integrated pressure gauge, tachometer, water level gauge, foam level gauge, etc.



• Equipment Storage:

o Fire Hose: Multiple fire hoses (including quick-connect couplings)

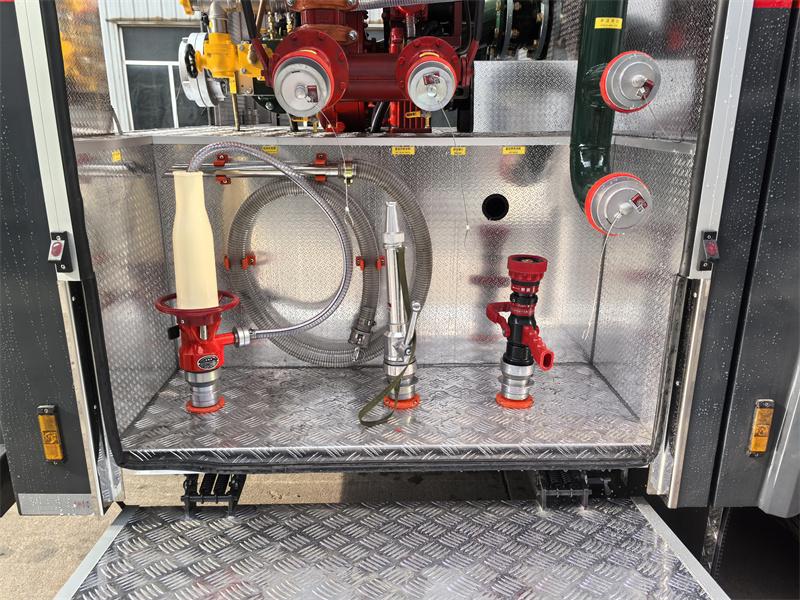

• Supporting Tools: Water collector, water filter, water distributor, fire nozzle, foam nozzle, foam suction hose, suction hose wrench, reducer, etc.



Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/60-RS

60L/s

1.0MPa

1.082MPa

0.4MPa



CB10/60-RS Fire pump

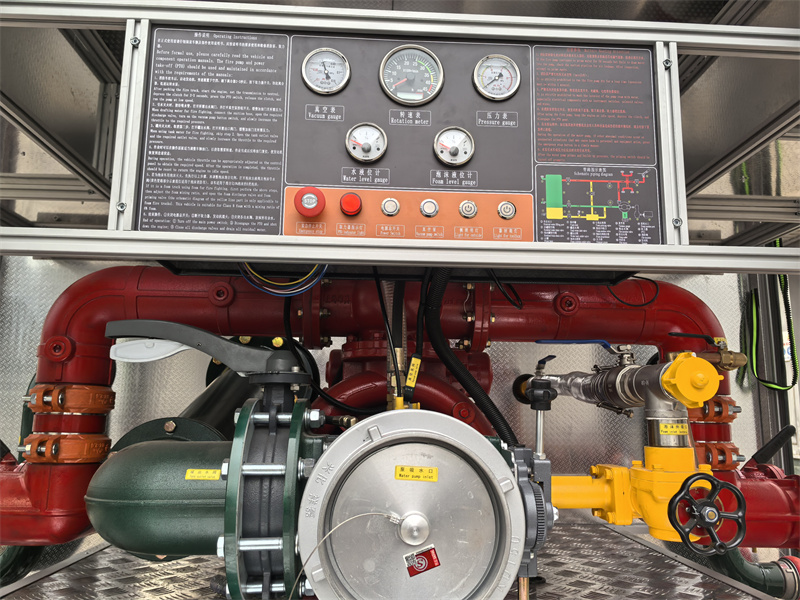

Control panel: Includes operating instructions, precautions, tank piping diagram, vacuum gauge, tachometer, pressure gauge, water level gauge, foam level gauge, emergency stop switch, PTO indicator light, main power switch, vacuum pump switch, side lighting, equipment room light, and other buttons.



Control panel



» Fire Monitor system:



• Model: PL8/48 foam-water dual-purpose fire monitor, flow rate 48L/s, range ≥70m (water), ≥60m (foam), 360° rotation, elevation angle -45° to +75°.



• Control method: Can spray water or foam liquid; the foaming cylinder can be removed for use as a water cannon; also features burst and direct current functions; can quickly locate the fire source, suitable for high-rise building facade fires or large-area fire coverage.

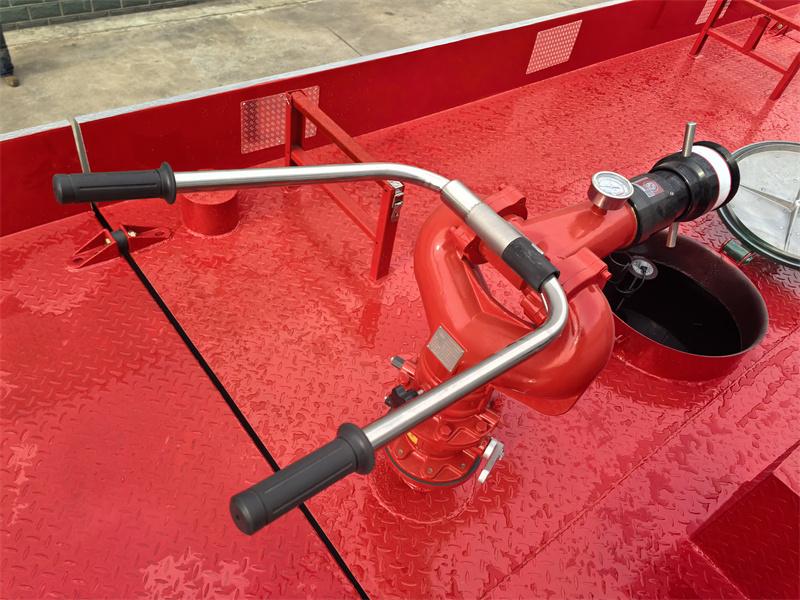

PL8/48 fire monitor

PL8/32 fire monitor

Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/48 48L/s

Water ≥70m,

foam ≥60m

0.80MPa -45°~+70°
0~360° 27kg

  • PL8/48 fire monitor
  • PL8/48 fire monitor

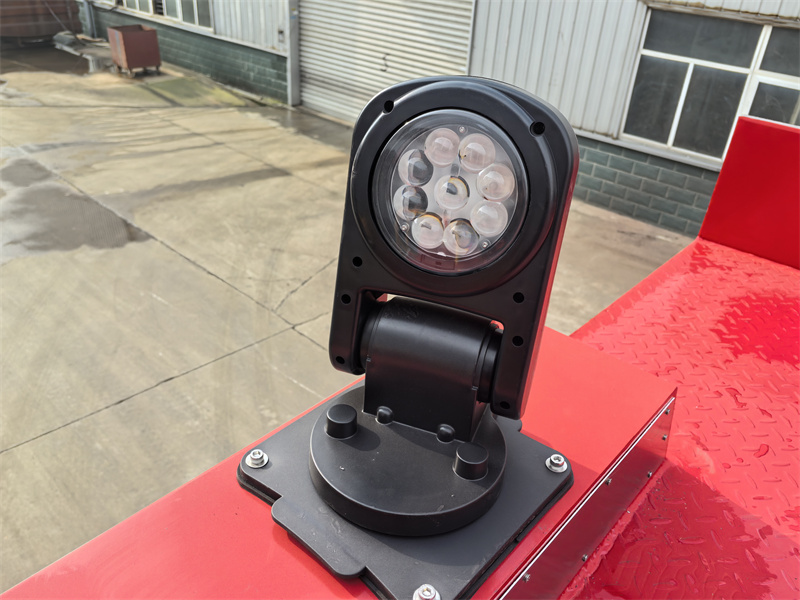

  • Rotating floodlight



» .Preshippment Test:

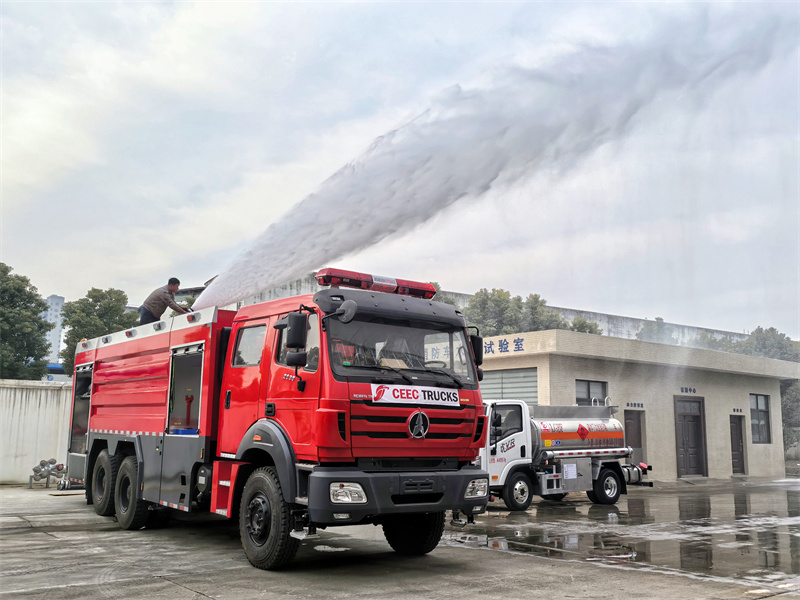

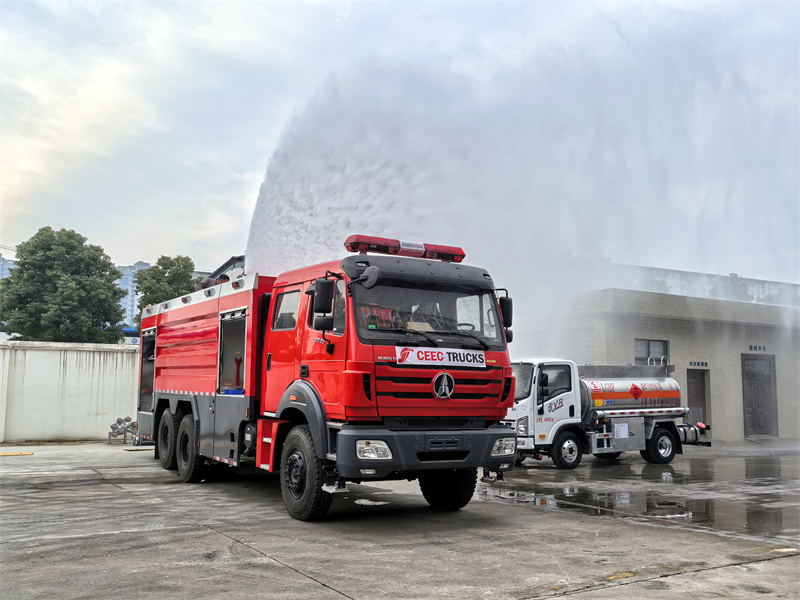

Before delivering the Beiben 6x4 WP10.380E32 engine fire truck from our factory, we conducted a factory inspection of the fire truck, including rainwater testing, performance testing of the fire pump and fire monitor, and a final inspection of the welding process, paint, and other aspects.

  • BEIBEN 6X4 2638 12CBM heavy rescue fire truck
  • BEIBEN 6X4 2638 12CBM heavy rescue fire truck
  • BEIBEN 6X4 2638 12CBM heavy rescue fire truck
