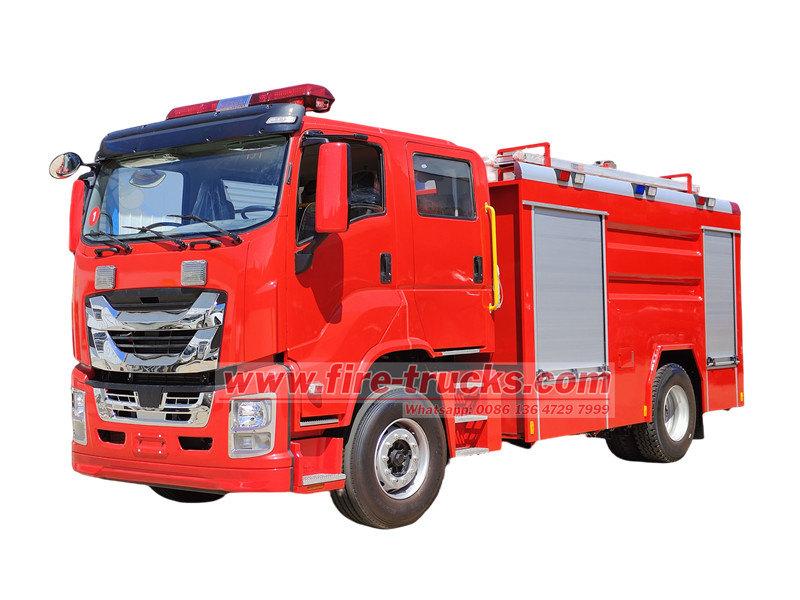

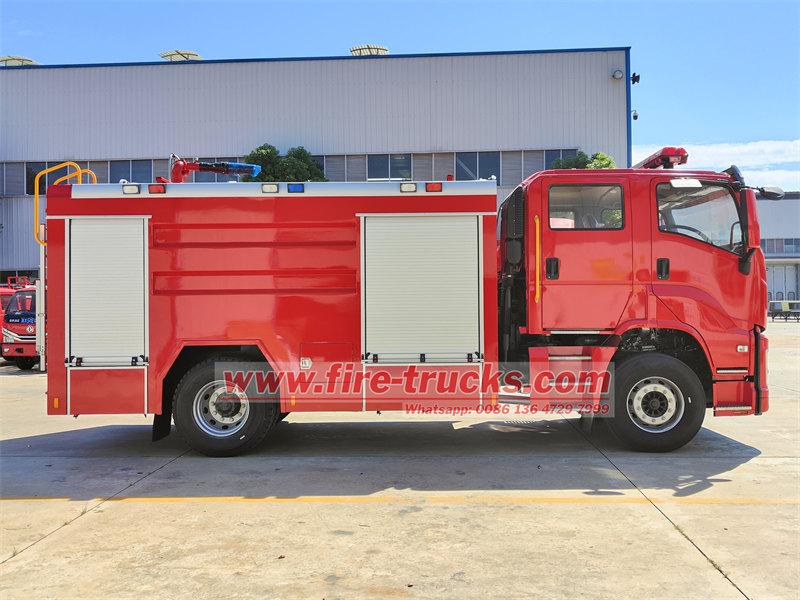

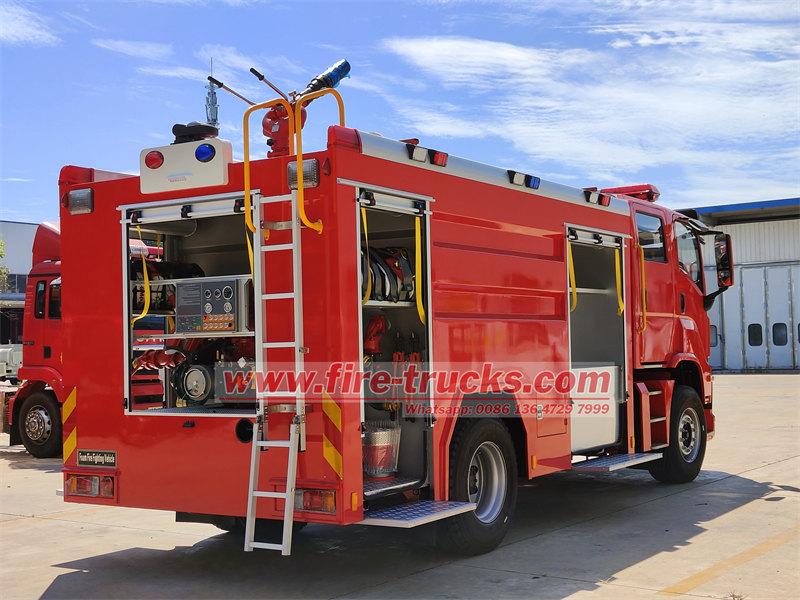

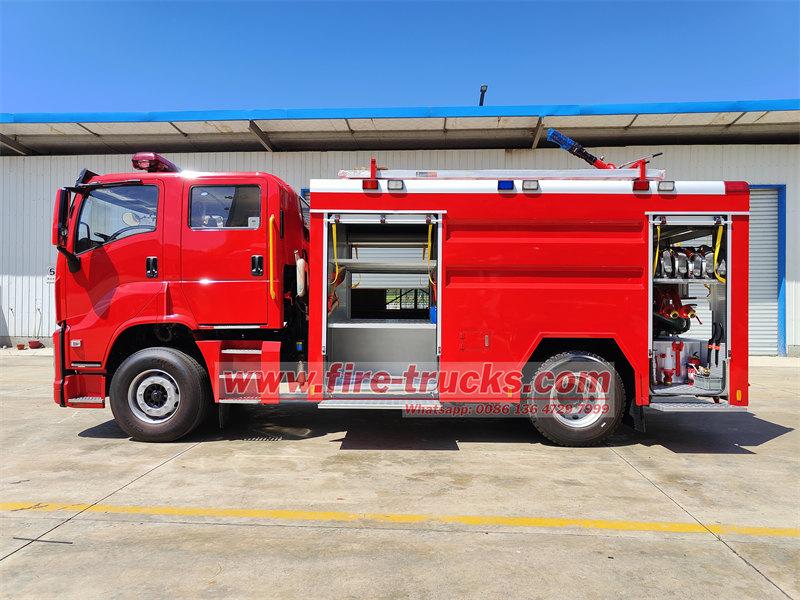

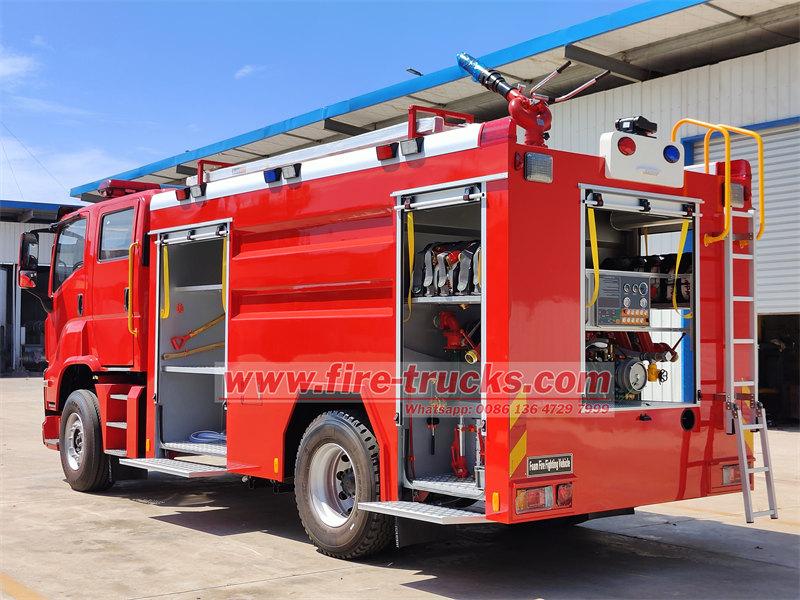

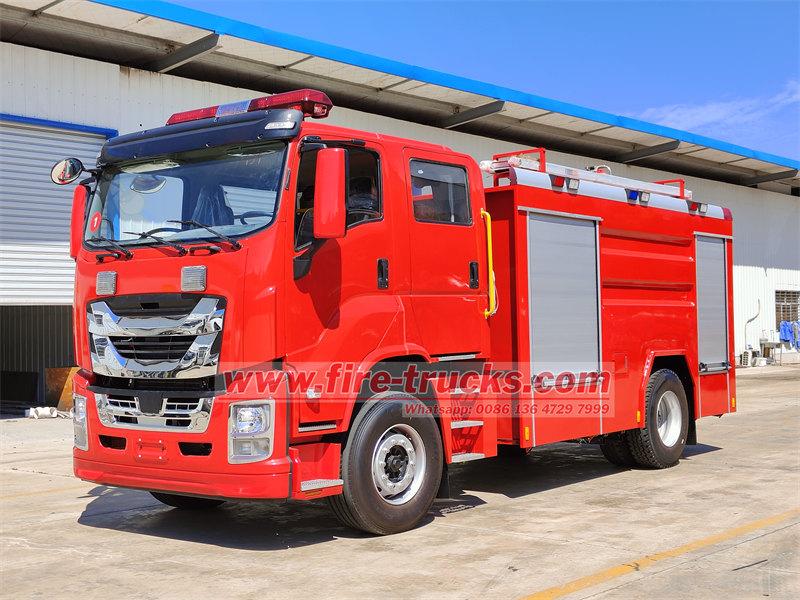

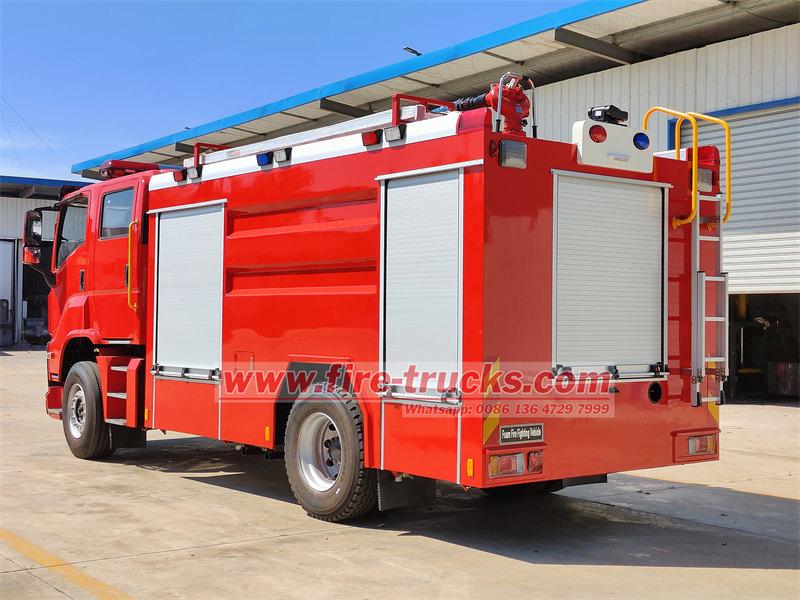

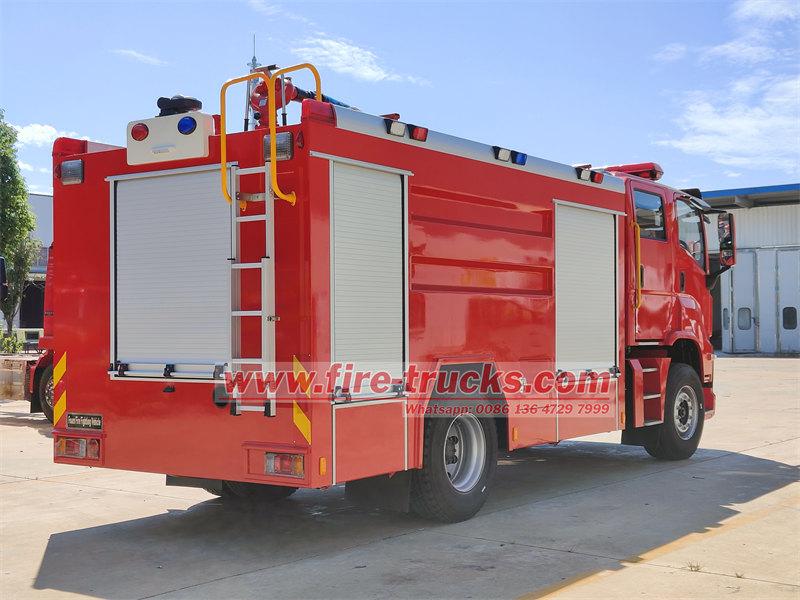

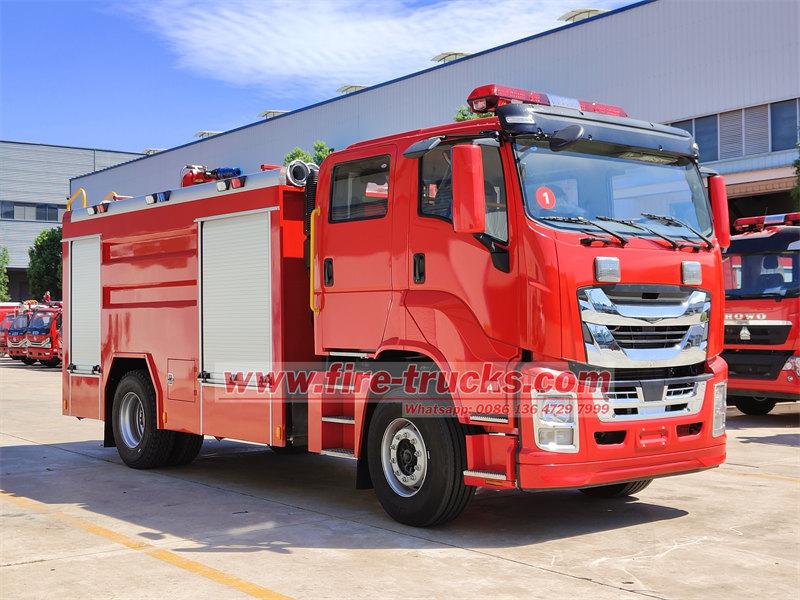

The ISUZU GIGA Water-Foam Fire Truck is a professional firefighting vehicle built on an ISUZU 4×2 chassis, powered by a 380-horsepower diesel engine. It is equipped with a 4000L stainless steel water tank and a 1000L foam tank. Core features include a CB10/60 fire pump with a flow rate of 60L/s and a PS8/48W fire monitor, capable of projecting water up to 70 meters and foam up to 60 meters. With overall dimensions of 7800×2550×3500mm and a wheelbase of 4500mm, it offers excellent urban maneuverability. The double-row cabin accommodates six personnel and includes air conditioning and electronic devices, balancing firefighting efficiency with operational comfort, making it an ideal choice for tackling various urban fire scenarios.
Truck Model:
PT5220GXFPMTanker Structure:
Stainless steel, weldedWork capacity :
4000L water +2000L foamWheelbase:
4500 mmAxle drive:
4×2, left hand driveEngine Power:
380HPEngine Model:
6UZ1-TCG61Fire Pump:
CB10/60Fire Monitor:
PL8/48Remark:
PP tank is optionalThe ISUZU GIGA Water-Foam Fire Truck is a professional fire and rescue vehicle based on the ISUZU GIGA 4×2 chassis, integrating both water and foam tanks for efficient response to diverse urban fire emergencies. This fire truck features a dual-tank system with a 4000L stainless steel water tank and a 2000L stainless steel foam tank, ensuring ample water supply while providing specialized foam firefighting capabilities. The vehicle measures 7800×2550×3500mm, and its 4500mm wheelbase ensures excellent mobility. With an 18° approach angle and a 9° departure angle, it navigates urban streets with ease.

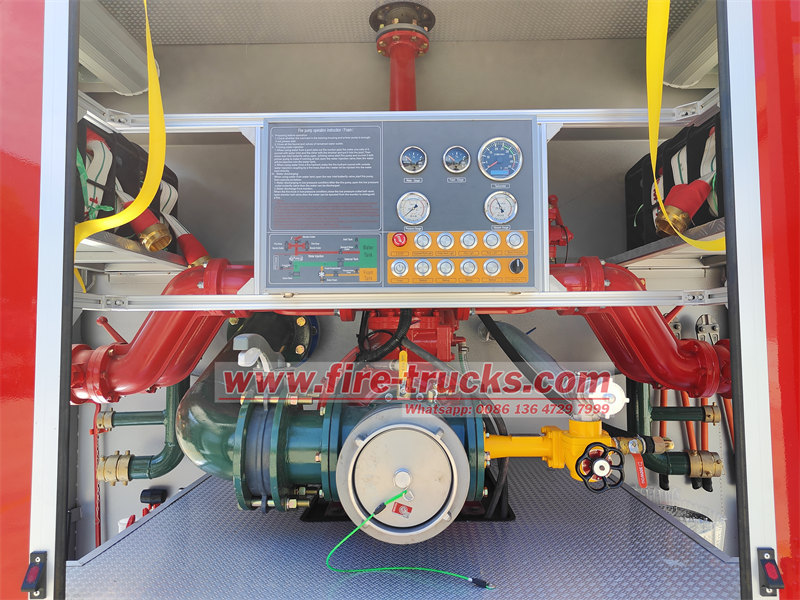

The ISUZU GIGA Foam Tender Fire Truck meets professional firefighting standards with its core fire suppression system. It is equipped with a CB10/60 centrifugal fire pump, delivering a high flow rate of 60L/s at 1.0Mpa working pressure. Its 7-meter suction capability and rapid 50-second priming enable quick water intake from various sources. The PS8/48W fire monitor allows 360° horizontal rotation and -45° to 75° vertical tilt, projecting water over 70 meters and foam beyond 60 meters, allowing firefighters to control blazes safely from a distance.
The ISUZU GIGA Fire Pumper Truck is designed with urban firefighting needs in mind, incorporating highly ergonomic features. The spacious double-row cabin provides a comfortable environment for firefighters, while strategically placed controls ensure easy access to critical functions. The dashboard displays clear, real-time vehicle status updates, enhancing operational efficiency and reducing fatigue during emergencies.
As a medium-sized fire truck, the ISUZU GIGA foam firefighting vehicle holds a significant position in the urban firefighting equipment market. It strikes an ideal balance between mobility and firefighting capability—neither constrained by road limitations like larger fire trucks nor limited in firepower like smaller units. This model is particularly suited for urban fire departments and industrial fire stations. The 4000L water tank supports initial fire suppression, while the 2000L foam tank specializes in handling oil-based and other specialized fires. Its compact size allows rapid access to fire scenes, and its dual-agent firefighting system significantly enhances operational effectiveness.
● China best Isuzu fire engine truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Specifications
ISUZU GIGA 6000 liters water foam fire truck |
||
Main specifications |
Chassis brand |
ISUZU |
Chassis model |
ISUZU GIGA |
|
Overall dimension(L*W*H) |
7800x2550x3500mm |
|
Water tank volume |
4000 liters |
|
Foam tank volume |
1000 liters |
|
Cabin |
Double row crew cabin, 2+4 seats, with air conditioner, electronic windows, USB, |
|
Gross vehicle weight |
22,000 kg |
|
Curb weight |
11650 kg |
|
Chassis |
Drive mode |
4×2 leftt hand drive |
Wheelbase |
4500 mm |
|
Front axle loading |
6500 kg |
|
Rear axle loading |
11500 kg |
|
Brake |
Air brake |
|
Front/rear suspension |
1370/2450 mm |
|
Approach/departure angle |
18/9 (°) |
|
Number of leaf springs |
7/6+8 |
|
Front/rear wheel track |
2140/1855 mm |
|
Tyre size & number |
295/80R22.5, 6+1 pcs |
|
Max speed |
95km/h |
|
Gear box |
FAST, Manual type, 9 Forwards & 1 Reverses |
|
Engine |
Brand |
ISUZU |
Model |
6UZ1-TCG61 |
|
Fuel type |
Diesel |
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Displacement |
9839 ml |
|
Power |
279 kw |
|
Horsepower |
380 HP |
|
Emission standard |
Euro 6 |
|
Max. torque |
1800 N.m |
|
Superstructure specifications |
||
Water tank |
Volume |
4000 liters |
Tank Material |
Stainless steel |
|
Foam tank |
Volume |
2000 liters |
Tank Material |
Stainless steel |
|

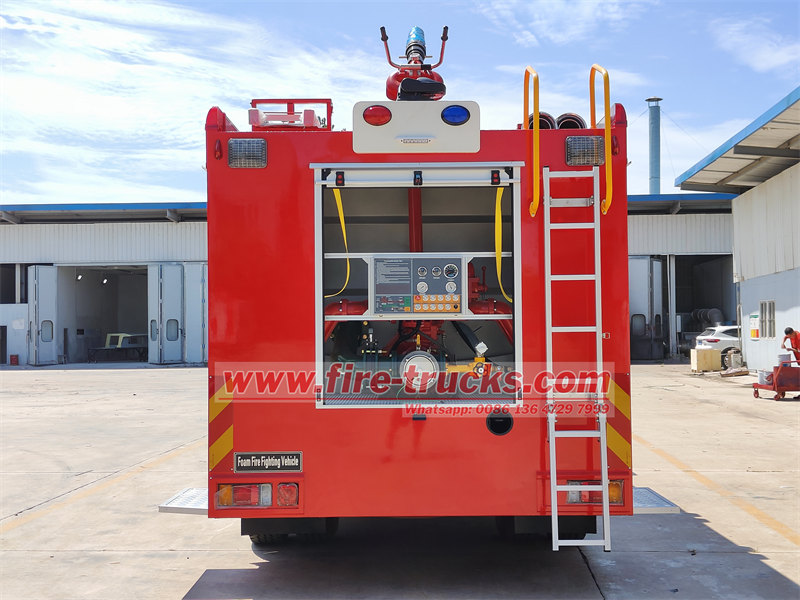

Fire pump |
Type |
Centrifugal pump |
Model |
CB10/60 |
|
Flow rate |
60 L/s |
|
Working Pressure |
1.0 Mpa |
|
Fire pump Suction depth |
≥ 7 m |
|
Fire pump Suction Time |
≤50 s |
|

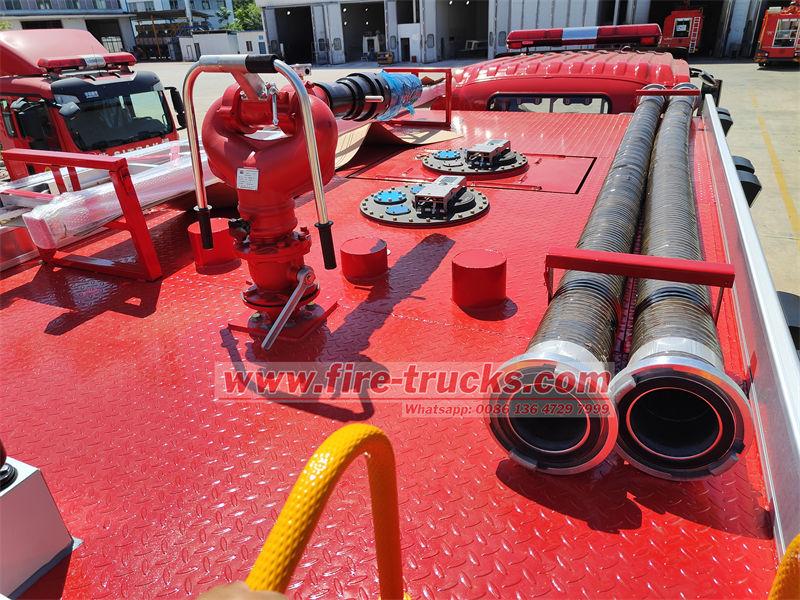

Fire monitor |
Model |
PS8/48W |
Rated Flow |
48 L/s |
|
Rated working pressure |
0.8 Mpa |
|
Max. working pressure |
1.0 Mpa |
|
Water Range(m) |
≥70 m |
|
Foam Range(m) |
≥60 m |
|
Rotation angle |
Horizontal: 0~360° |
|
Pitch angle: -45~+75° |

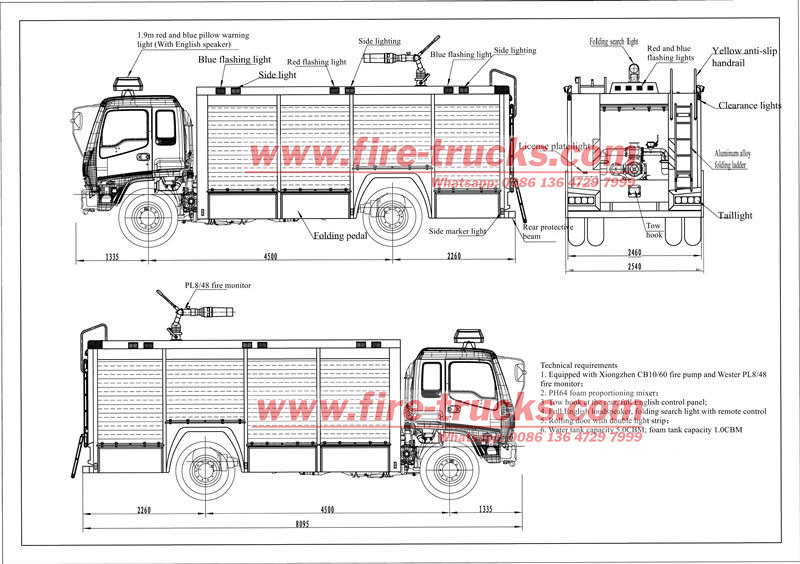

Technical Drawing

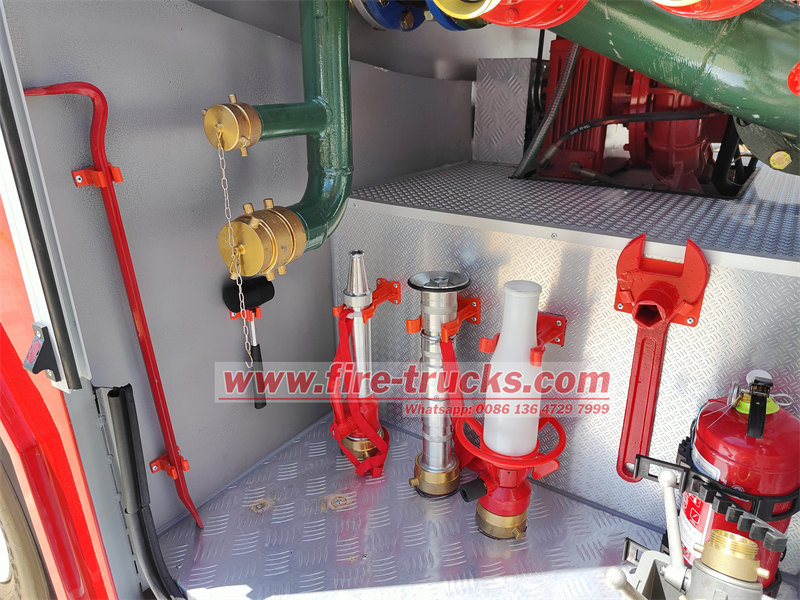

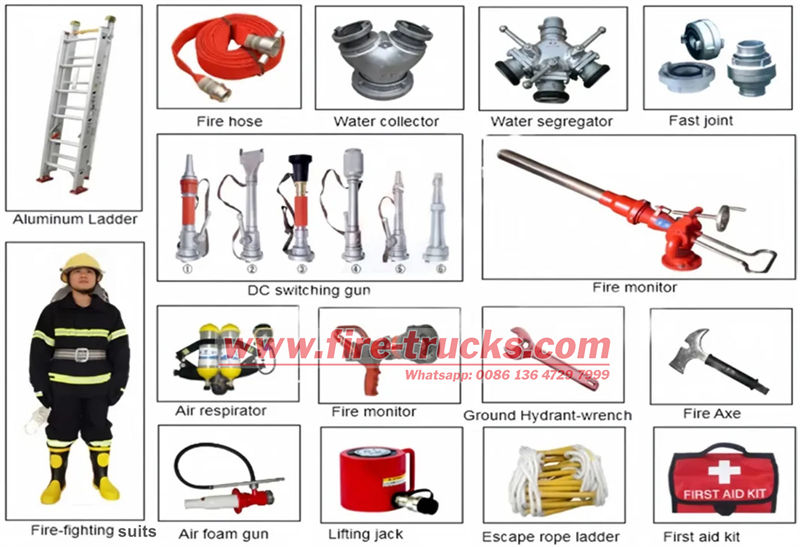

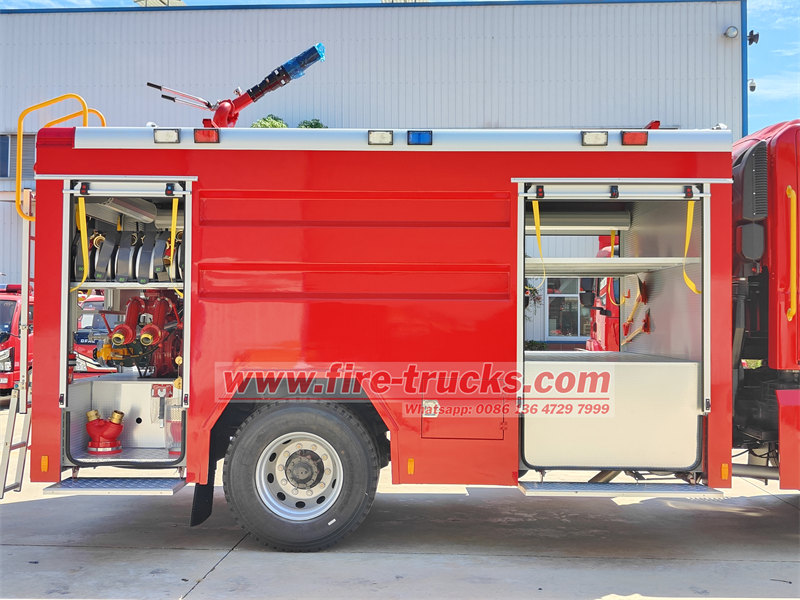

Firefighting Equipment
