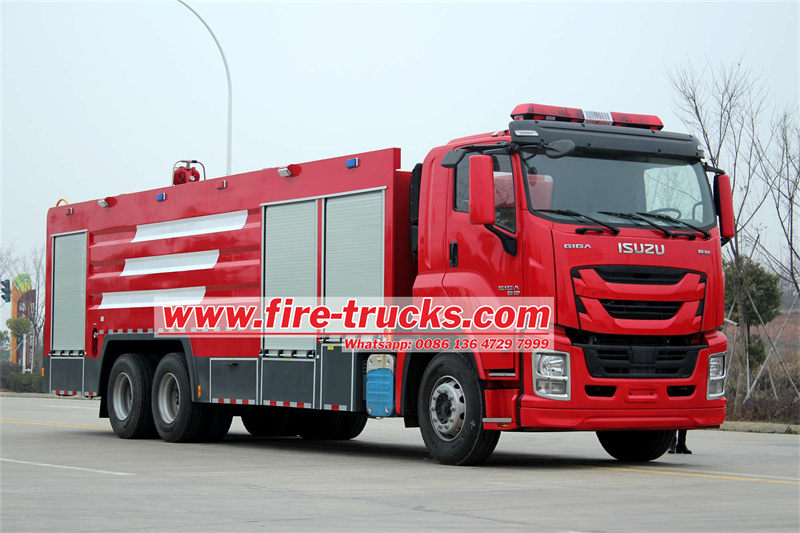

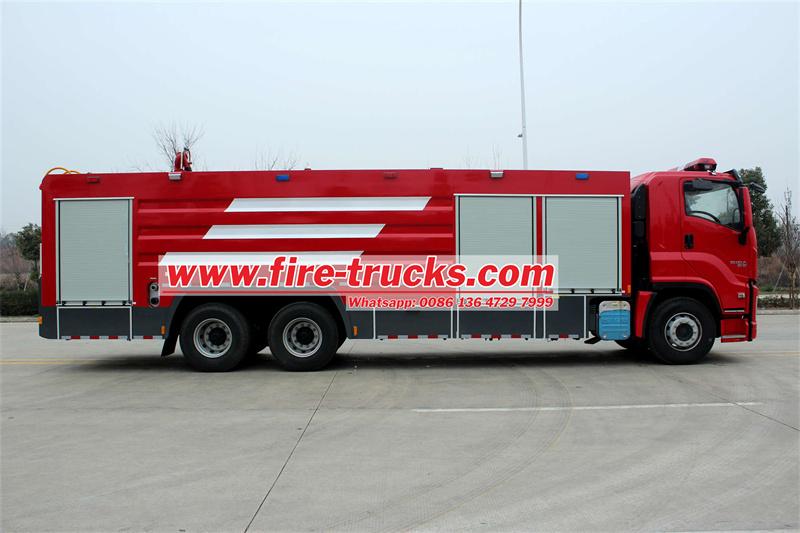

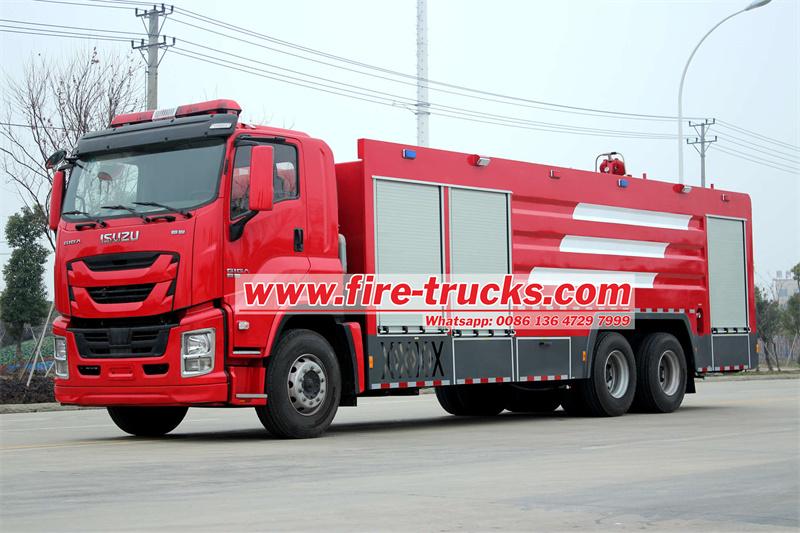

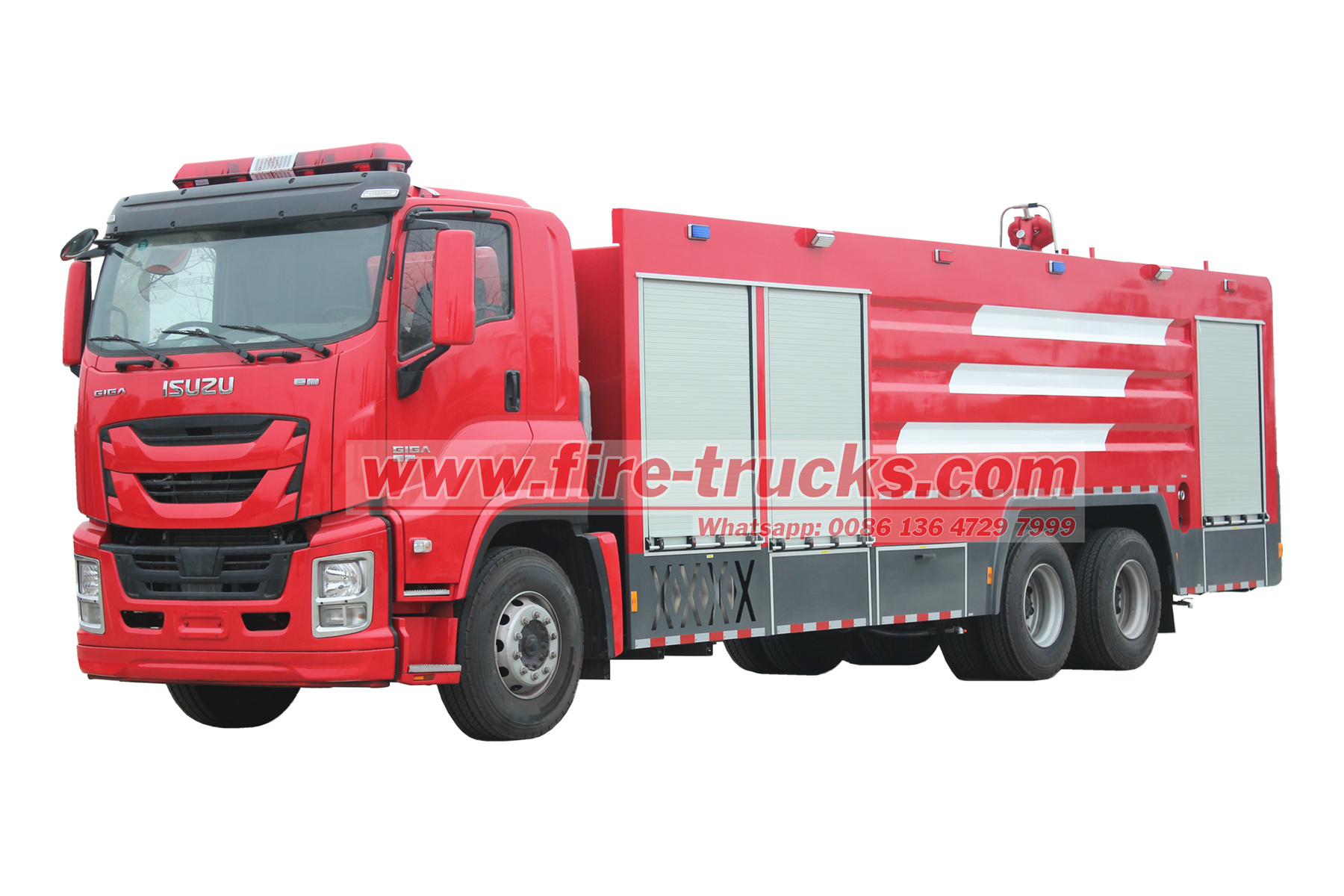

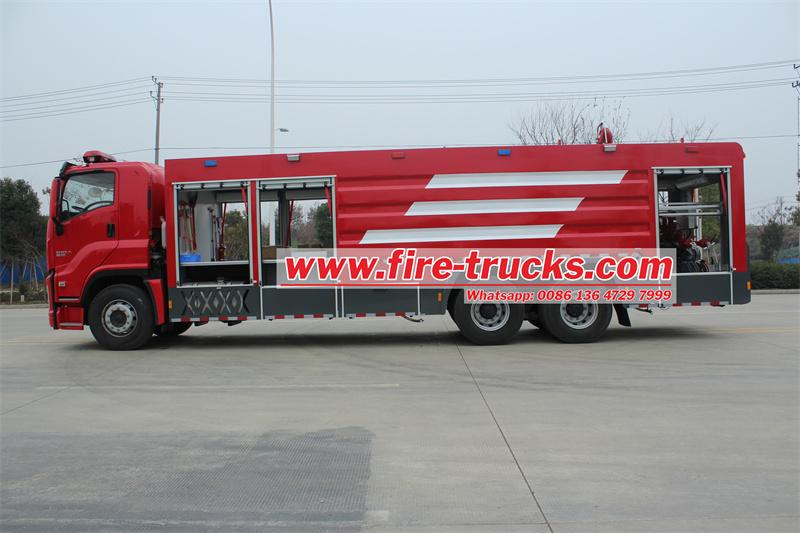

Isuzu Giga 6x4 fire protection tender

This Isuzu Giga 6x4 fire protection tender is a fully functional firefighting equipment. It adopts Isuzu heavy-duty chassis, equipped with a powerful engine and manual transmission, and has stable driving. The vehicle is equipped with a 10 cubic meter water tank and a 2 cubic meter foam tank to meet the needs of firefighting. The fire pump has excellent performance and can quickly mix water and foam into molded foam, effectively covering the fire source, isolating the air and cooling the fire. The fire cannon is flexible to operate and adapt to a variety of fire scenes. The equipment box in the car is fully equipped for firefighters to use. The vehicle integrates water firefighting and foam firefighting, with high firefighting efficiency and easy operation. Whether in the city or the countryside, it can quickly respond to the fire scene and effectively put out the fire. It is an indispensable firefighting tool for the fire department and provides a strong guarantee for public safety.● More than 30 years professional Water Foam Fire truck manufacturer experience.
● We have strong professional design team

● Be designed according to your requirements
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term

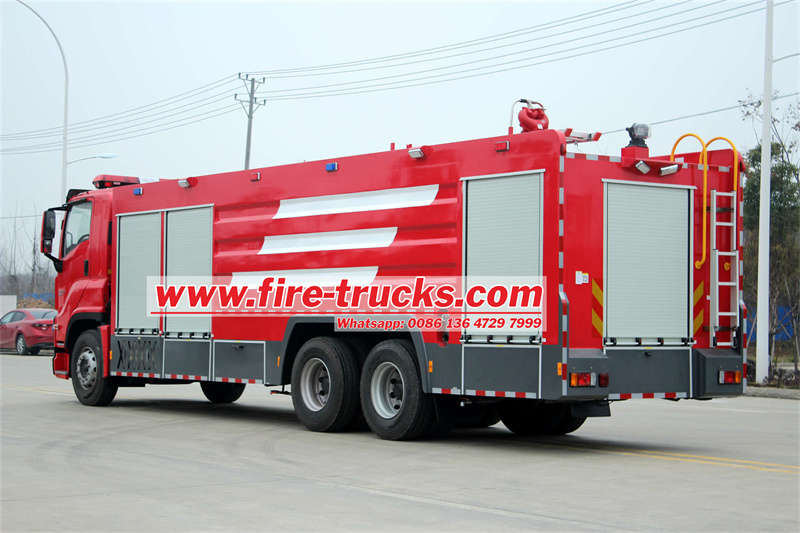

The Isuzu 6x4 12,000-liter foam water fire truck is a specialized firefighting equipment modified based on the Isuzu heavy-duty truck chassis. It is suitable for extinguishing Class A (solid) and Class B (liquid) fires, as well as emergency rescue operations in complex environments. Its "6x4" drive configuration (three axles, dual rear-wheel drive) provides strong off-road capability and load-bearing performance. The total capacity of the water tank and foam tank is 12,000 liters (10,000 liters for water + 2,000 liters for foam), meeting the demands of prolonged firefighting operations.

1. Chassis System

★ Power Unit:

    Engine: Isuzu 6WG1-TCG60 inline 6-cylinder diesel engine, with a maximum power of 420 HP (309 kW) and a maximum torque of 2250 N·m, compliant with China      VI emission standards.

    Transmission: FAST 12-speed manual transmission, with a wide gear ratio range, suitable for high-speed cruising and off-road conditions.

     Drive Configuration: 6x4 three-axle layout, dual rear-wheel drive, equipped with a differential lock for excellent off-road capability.

★ Suspension/Braking:

     Front axle: Few-leaf spring suspension; rear axle: reinforced multi-leaf spring suspension, enhancing load capacity.

     ABS + exhaust brake + engine brake, providing high redundancy for braking safety.

________________________________________

2. Superstructure System

★ Tank Configuration:

    Water Tank: 10,000-liter carbon steel tank, equipped with a low-level sensor and self-priming water inlet.

    Foam Tank: 2,000-liter stainless steel tank, independently storing Class A/B foam concentrate, supporting precise proportioning with a foam proportioning system.

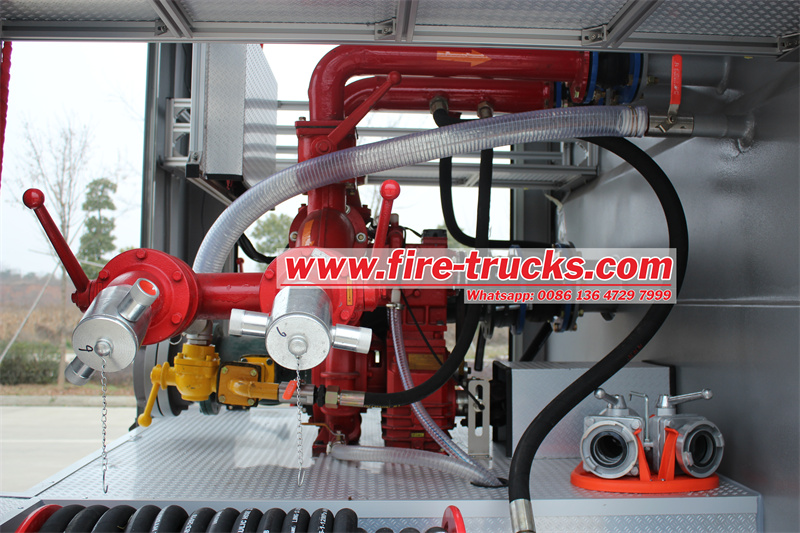

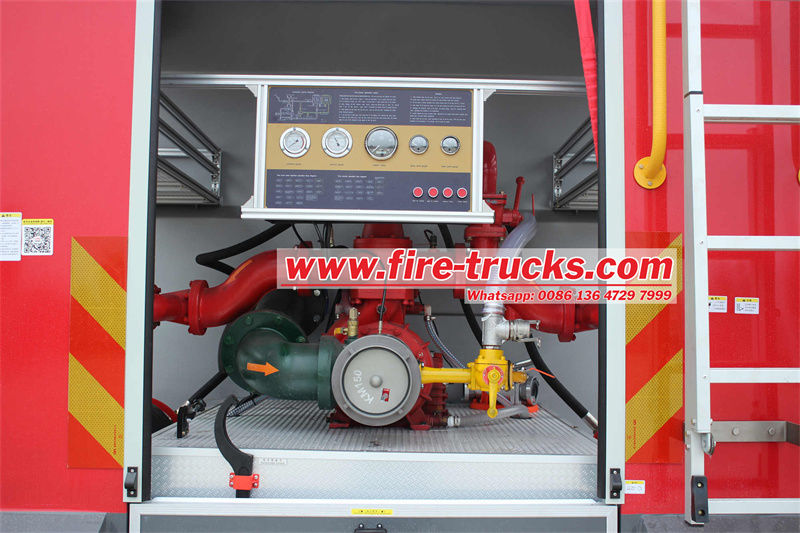

★ Pump System:

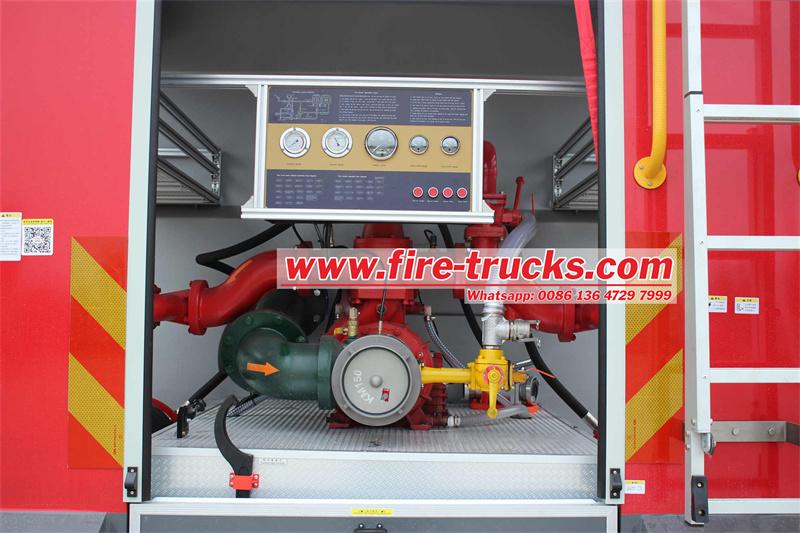

    CB10/60 Fire Pump: Rated pressure of 1.0 MPa, flow rate of 60 L/s (low pressure) / 30 L/s (high pressure) (combined medium and low pressure), equipped with           foam proportioning functionality.

     Equipped with suction piping, reel interfaces, and emergency shut-off valves.

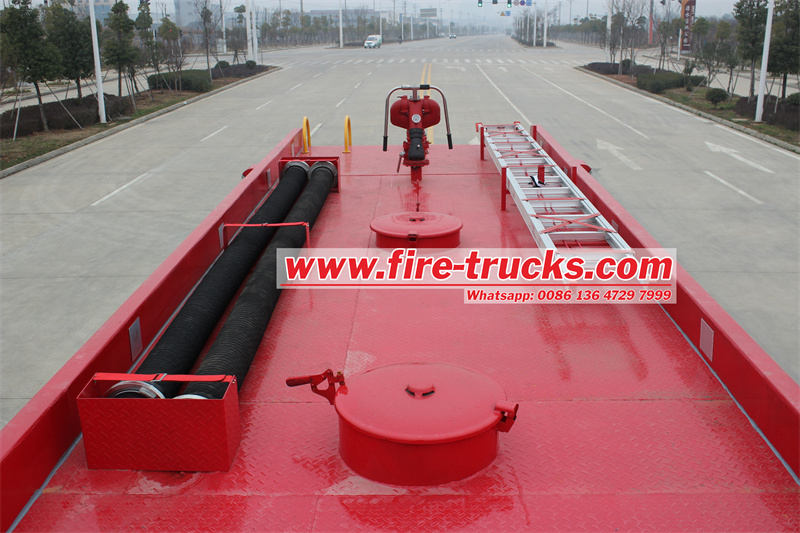

★ Spray System:

     PL8/48 Foam-Water Dual-Purpose Cannon: Range ≥ 70 m (water) / 60 m (foam), supporting straight stream/spray/flush adjustments, with wide coverage.

     The turret can rotate 360°, with pitch rotation from -30° to +70°, supporting both manual and electric control modes.

________________________________________

3. Intelligent Control System

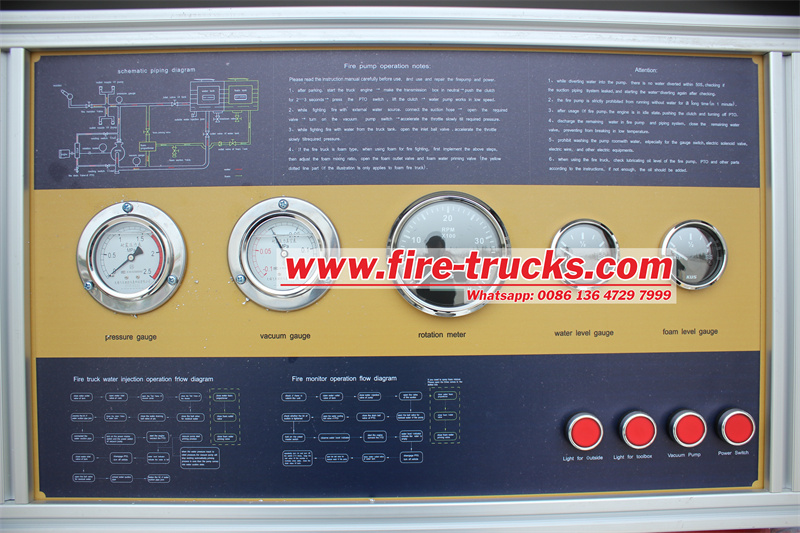

★  Control Panel: Integrated LCD touchscreen, displaying real-time data such as liquid level, pressure, and RPM.

★  PLC Control System: Supports one-click start, fault self-diagnosis, and automatic foam proportioning, simplifying operational procedures.

★  Safety Features: Low water level alarm, pump overheating protection, and emergency stop button.

______________________________________

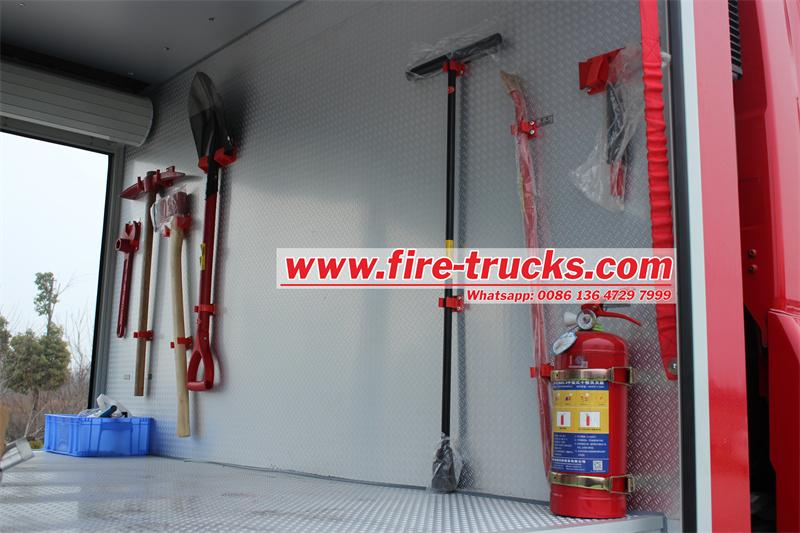

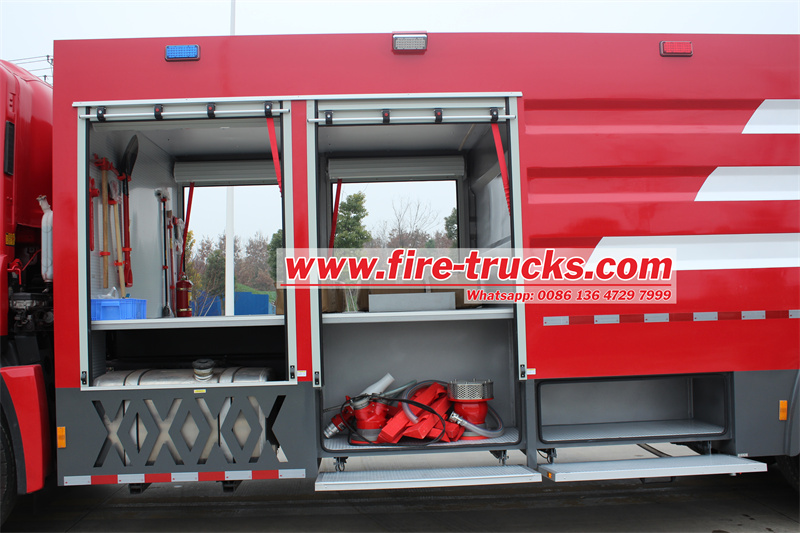

4. Equipment Compartment Configuration

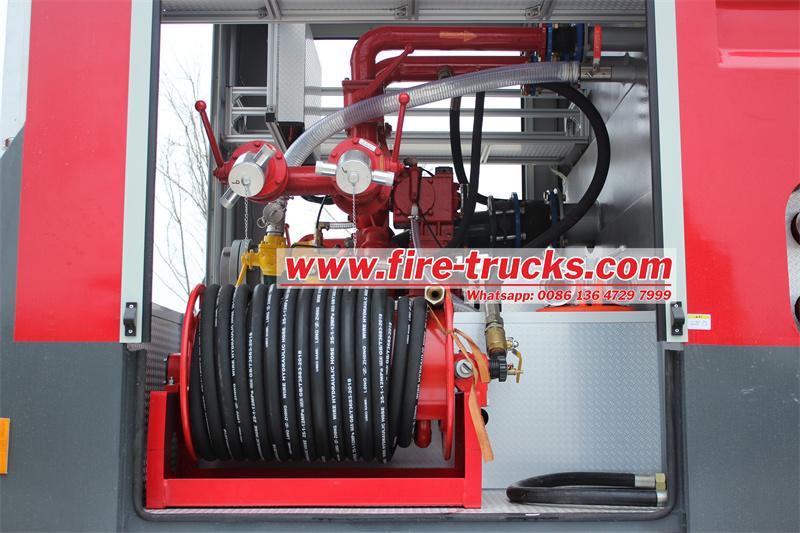

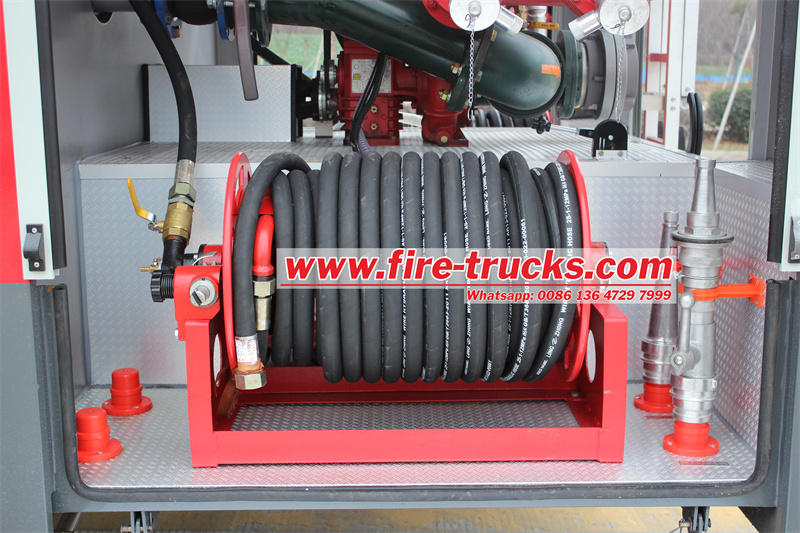

★  Firefighting Equipment: 65mm/80mm fire hoses, multi-purpose water guns, foam tubes, 2 fire reels, fire extinguishers, water collectors, water filters, water distributors, hose bridges, etc.

★  Rescue Tools: Fire axes, shovels, picks, fire wrenches, iron ingots, etc.

★  Protective Gear: Firefighting suits, medical first aid kits.

________________________________________

Working Principle of the Isuzu 6x4 12,000-liter Foam-Water Fire Truck

The foam fire truck operates by transferring power from the vehicle chassis engine through a power take-off (PTO) device, which drives the fire pump via a transmission system. The fire pump and foam proportioning system mix water and foam in a specific ratio, which is then ejected through the fire cannon or foam nozzles to extinguish fires. Below is the detailed firefighting process:

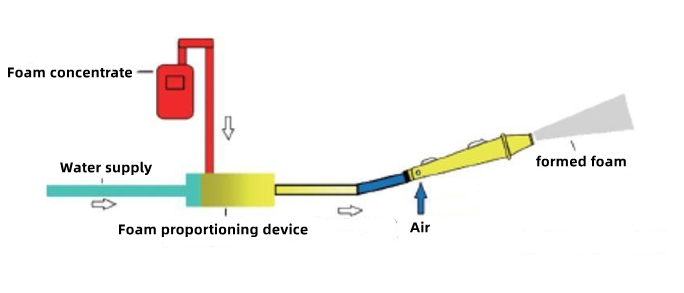

★  Mixing Foam Solution:

     Upon arrival at the fire scene, the fire pump starts operating. The pump draws water from the water tank, while the foam proportioning system mixes water and foam concentrate in a specific ratio (typically 6%).

     The foam concentrate is drawn into the water flow through the foam proportioning system, forming a uniform foam solution.

★  Ejecting Foam Solution:

     The mixed foam solution is delivered to the fire cannon (PL8/48 fire cannon) or fire hoses.

     Firefighters operate the fire cannon, adjusting the ejection angle and mode to spray the foam solution onto the fire source.

★  Foam Coverage and Smothering Effect:

     Upon contact with the burning surface, the foam solution rapidly expands and forms a continuous foam layer.

     For liquid fires such as oil fires, this foam layer effectively isolates the burning material from the surrounding air. Since combustion requires oxygen, the foam layer cuts off the air supply, causing the fire to gradually extinguish due to lack of oxygen.

★  Cooling Effect:

     The foam solution contains a significant amount of water. When the foam covers the burning material, the water in the foam absorbs the heat generated by the fire.

     According to the principles of heat transfer, heat is transferred from the high-temperature burning material to the low-temperature water. The water absorbs heat and evaporates, a process that consumes a large amount of heat (due to water's high heat of vaporization). In this way, the temperature of the burning material continuously decreases, and when it falls below the ignition point, the fire is extinguished.
