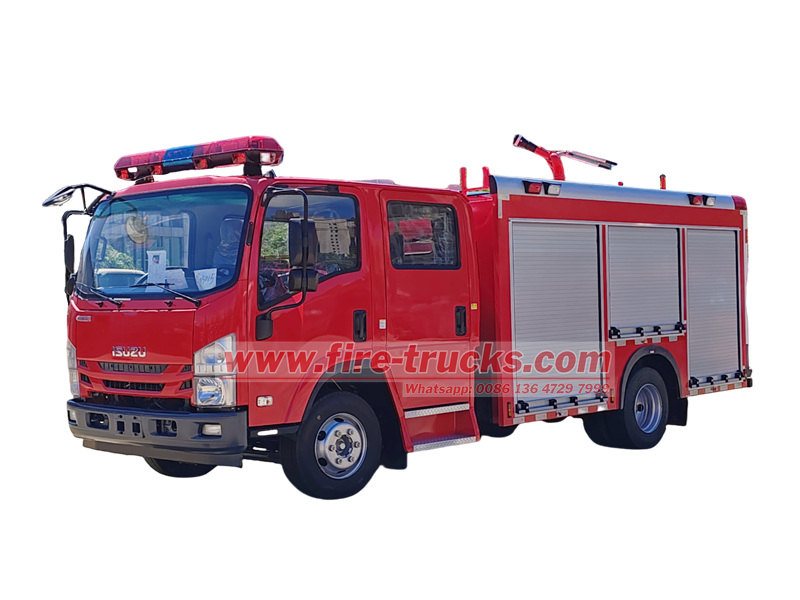

The Isuzu NPR 4000L Water Fire Truck is a professional fire rescue vehicle modified based on the Isuzu NPR chassis. It is primarily used for rapid firefighting operations in urban narrow streets, rural emergency response, industrial parks, and similar scenarios. Its advantage lies in the combination of a compact and agile body with a medium-capacity water tank, enabling it to adapt to complex terrain while providing sustained water supply capabilities.
Manufacturer Origin:
Powerstar TrucksWork capacity :
4000LUpper Body material:
Carbone steelProduction time:
60 daysWheelbase:
3815 mmAxle drive:
4×2Engine Power:
190 HPEngine Model:
Isuzu 4HK1-TCG61Fire Pump:
CB10/40, 40L/sFire Monitor:
PL8/30 for waterRemark:
tanker material stainless steel, PP, 4X4, 6X6 drive, RHD drive is optionalPOWERSTAR water tank fire truck is a type of firefighting vehicle that uses water as the primary extinguishing medium. It is equipped with functions such as water storage, water transfer, and fire suppression, making it widely applicable to various firefighting scenarios. The POWERSTAR 4000L Water Fire Tender ISUZU is a professional firefighting vehicle modified on the basis of the Isuzu 700P medium-duty truck chassis, integrating firefighting, water supply, and rescue functions. Its core configuration includes a 4000L large-capacity water tank, a CB10/40 normal-pressure fire pump, a PS8/30 fire monitor, and a fire hose system, enabling rapid response to solid material fires.
The ISUZU fire tanker truck features a steel frame and corrosion-resistant water tank structure, complying with the GB7956 fire truck technical standards. It is powered by the Isuzu 4HK1-TCG61 turbocharged diesel engine (approximately 190HP), offering excellent mobility and load-bearing performance. Standard equipment includes emergency lighting, alarm systems, and basic rescue tools. Optional features such as a foam mixing device or remote control system can be added. It is suitable for urban and industrial zone firefighting tasks of medium and short distances, balancing efficiency and cost-effectiveness.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU ELF 700P (NPR) truck chassis, 4x2 and 4x4 drive
4HK1 model with 190HP or 205HP is optional, with displacement 5193 ml
2. Tank material: high quality carbon steel with 4-6mm thickness
stainless steel, aluminum alloy or PP material for option
3. Tanker body: Tank body volume can be customized as required, equipped with DN470 manhole cover

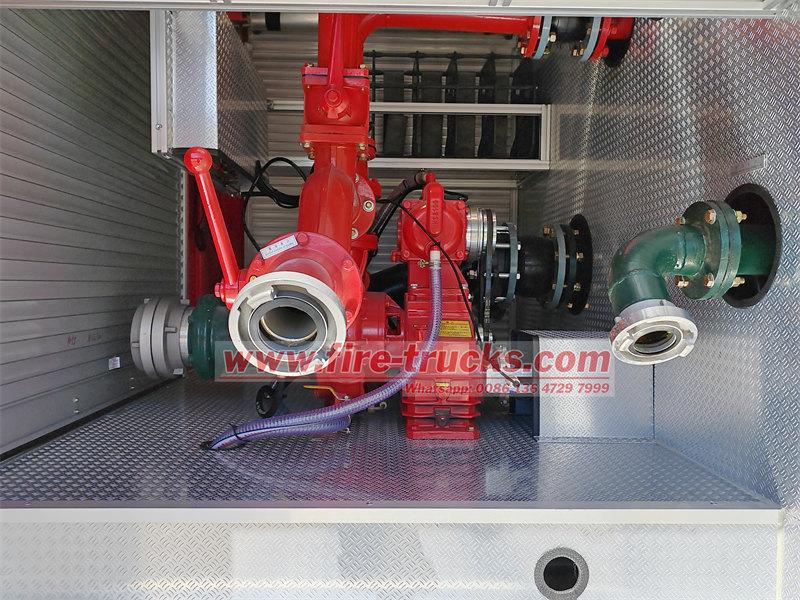

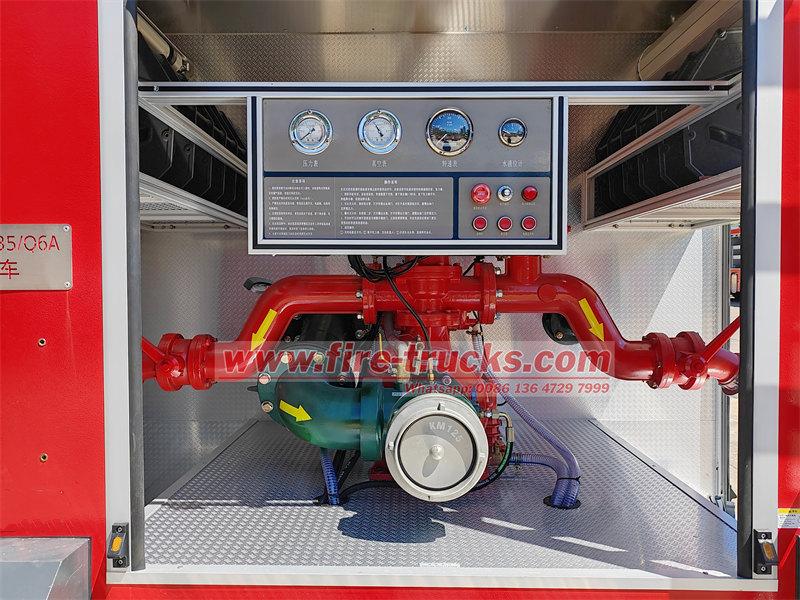

4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, rated pressure 1.0Mpa
Optional CB10/30, CB10/60 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
CAFS foam system and Dry Powder system can be customized
Full sets fire fighting and rescue equippment for convenient working, fire extinguishing and people rescue
Fire Truck, also known as a fire engine, firefighting truck, fire rescue vehicle, refers to a specialized vehicle designed for firefighting, emergency rescue, and disaster response. It is typically equipped with a fire pump, water tank, extinguishing agent spraying device, rescue tools, and lighting systems, used to extinguish various types of fires, save lives, evacuate materials, and respond to emergencies such as floods and traffic accidents. Depending on their functions, fire trucks can be categorized into water tank fire trucks, foam fire trucks, ladder fire trucks, rescue vehicles, and other types. They serve as the core equipment for fire rescue teams and are widely used in urban, forest, industrial, and other scenarios.
» Ⅱ.Product Parameter for Isuzu 4000L water tender fire truck:
ISUZU 4000L Water Tender Fire Truck Specifications |
|
Vehicle model |
PT1110GXFSG |
Chassis brand |
ISUZU |
Driving type |
4*2 |
GVW (kg) |
10550 |
Curb weight(kg) |
6200 |
Rated Load(kg) |
4350 |
Overall dimensions (mm) |
6900*2300*2950 |
Wheelbase (mm) |
3815 |

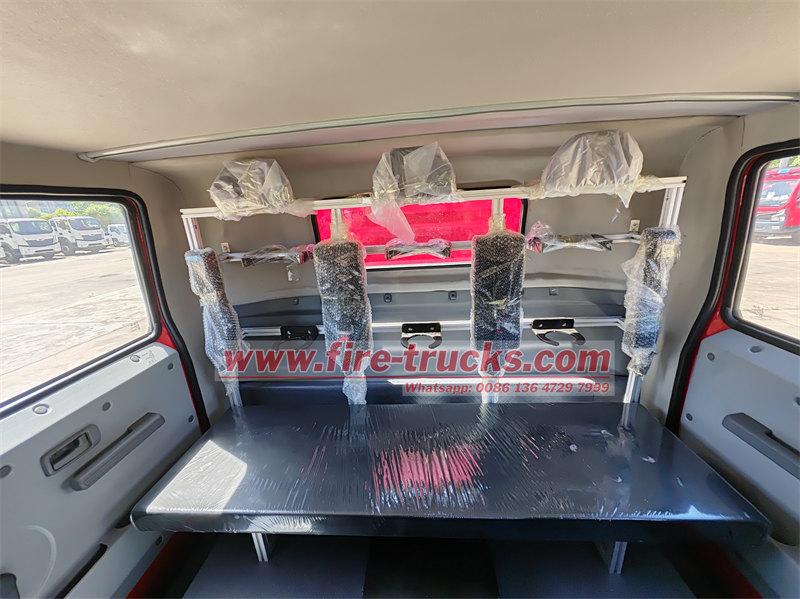

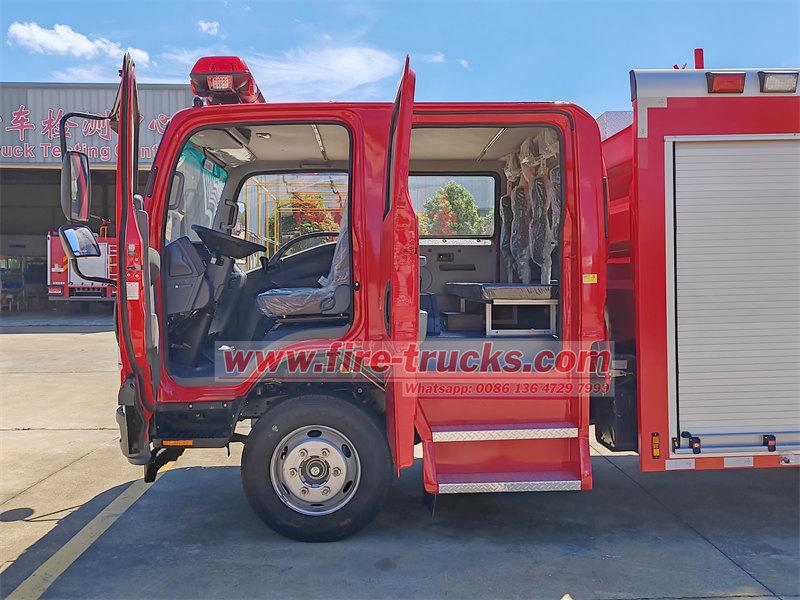

Allowable passengers in cab |
3+3 |

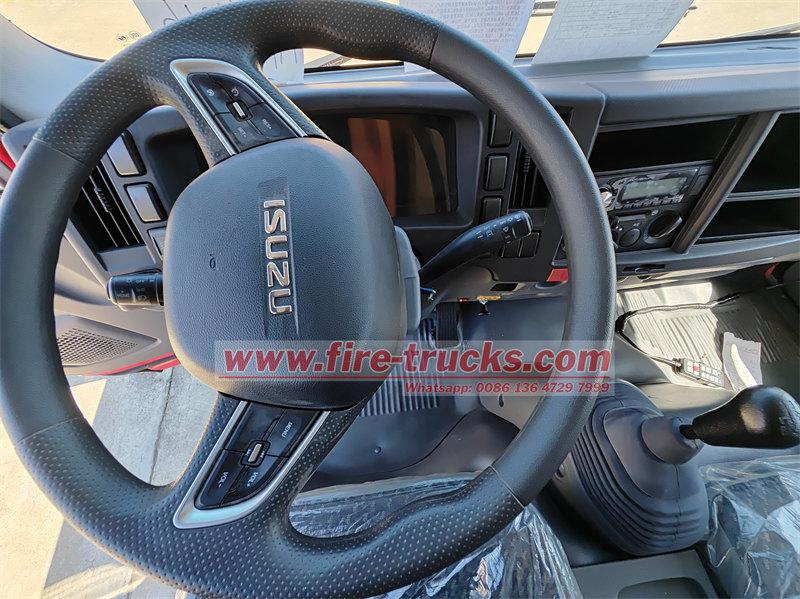

Steering wheel |
LHD |
Approach/Departure angle (°) |
17/13 |
Max speed (km/h) |
110 |
Electric system |
24Volts |
Gearbox |
ISUZU MLD, 6-speed, manual |
Tires |
235/75R17.5, 6+1 pcs |
ENGINE |
|
Engine model |
4HK1-TCG61 |
Engine Power (HP/KW) |
189HP/139KW |
Emission standard |
Euro 6 |
Displacement (ml) |
5193 |
Engine type |
4-cylinder, water cooling, direct Injection turbo supercharged, inter cooled |
Rated speed (rpm) |
2600 |
Max. torque (N.m) |
507 |
Speed at max. torque (rpm) |
1600-2600 |
WATER TANK |
|
Capacity |
4000L |
Material |
Carbon steel (stainless steel is optional) |
Standard configuration |
DN470 manhole with fast locking/opening, automatic pressure relieving device . |
FIRE PUMP |
|
Type |
Normal pressure fire pump |
Model |
CB10/40 |
Pressure |
1.0 Mpa |
Flow Rate |
40 L/S |
Max Suction Depth |
≥7m |
Water Suction Time |
≤50S |
FIRE MONITOR |
|
Model |
PS8/30 |
Rotary Angle |
360°horizontal rotation |
Elevation Angle |
≥+70° |
Depression Angle |
≤-30° |
Flow Rate |
30L/S |
Range |
Water ≥60m |
» Ⅲ.Factory Testing:

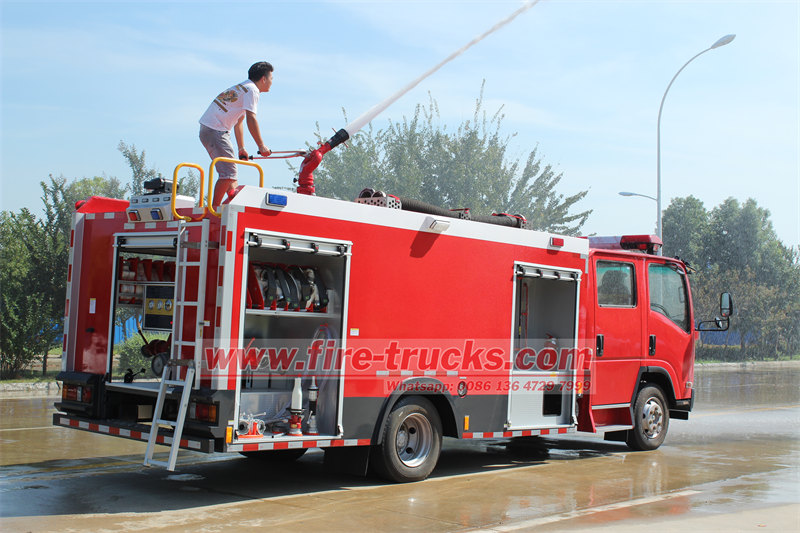

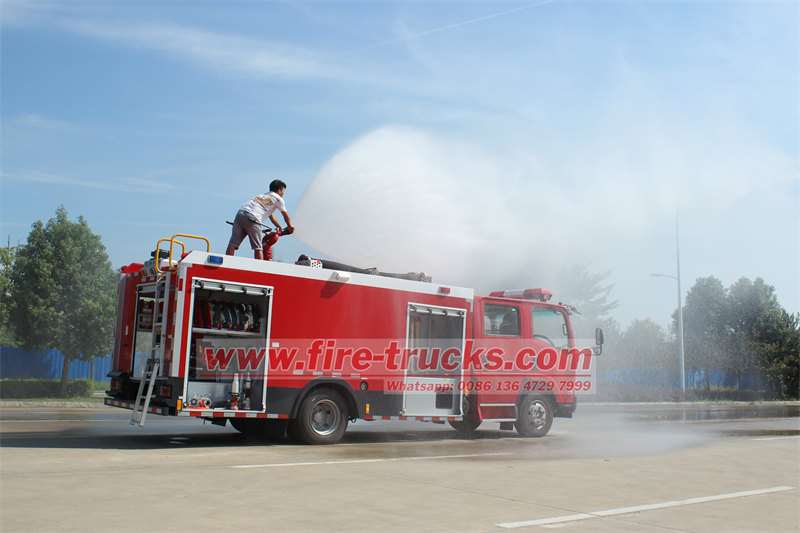

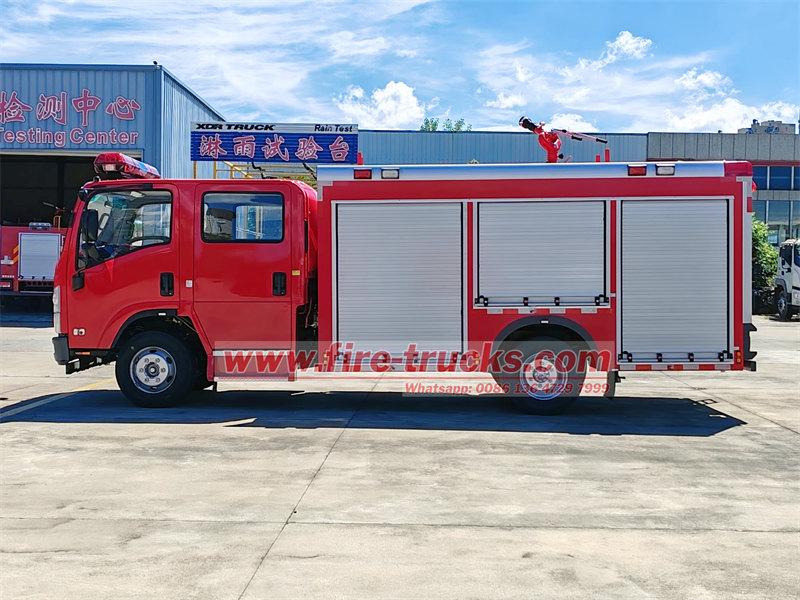

ISUZU water firefighting truck testing at POWERSTAR factory

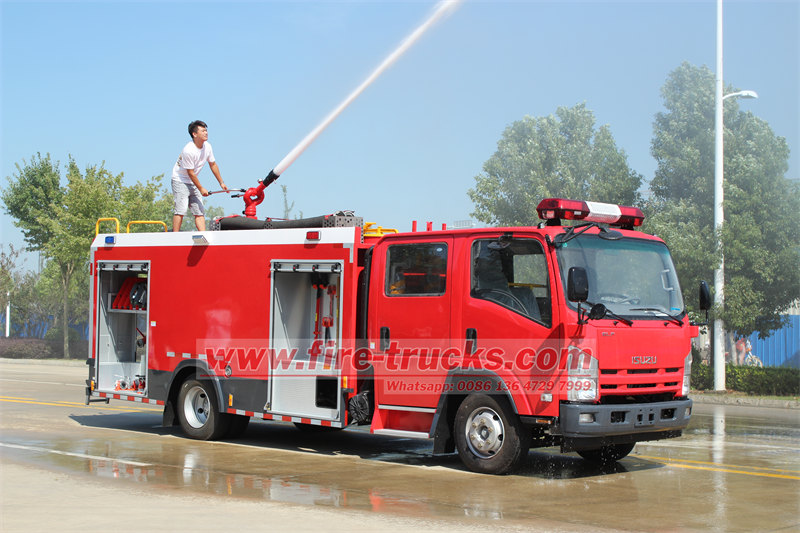

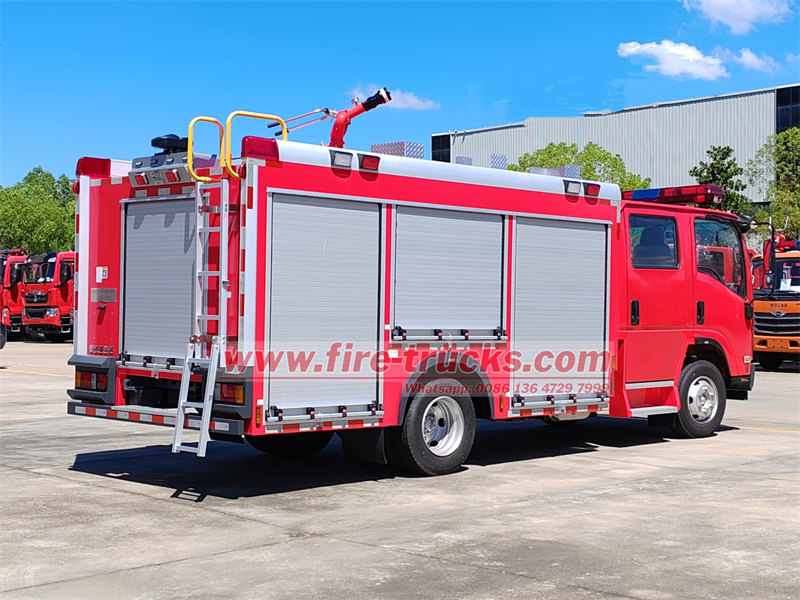

Isuzu water tender fire truck factory testing before shipment

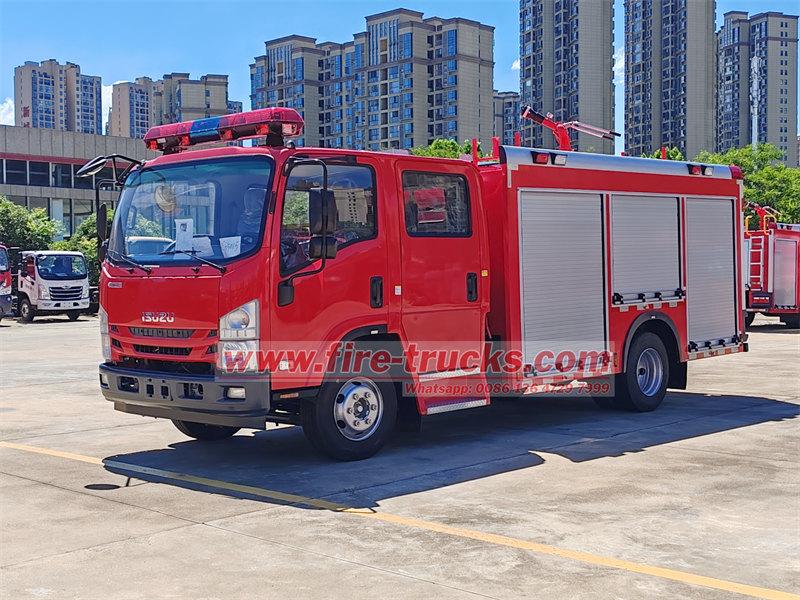

Isuzu 4000L fire tanker truck tested before delivery

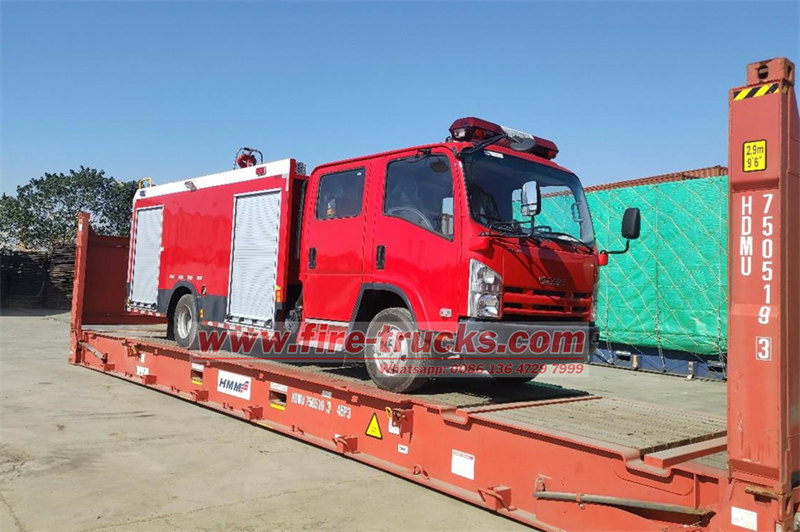

ISUZU water tanker fire truck loaded on container at Shanghai port
