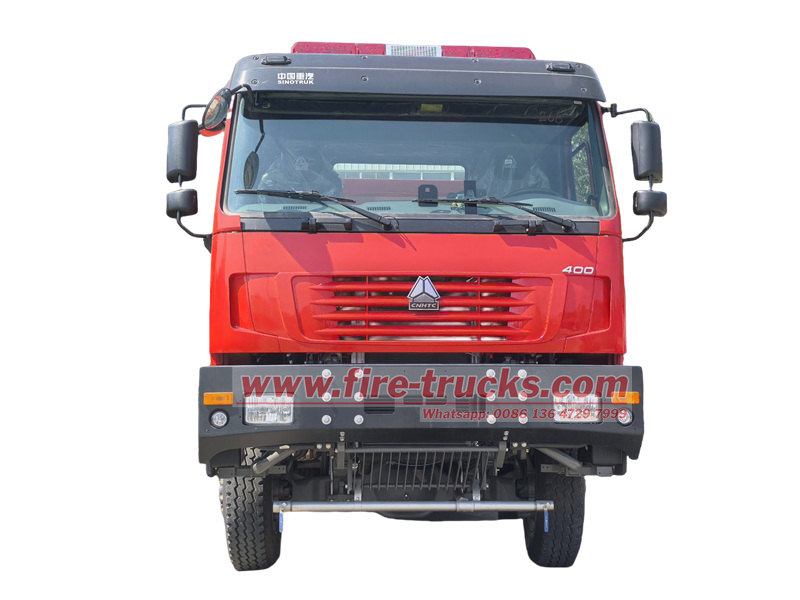

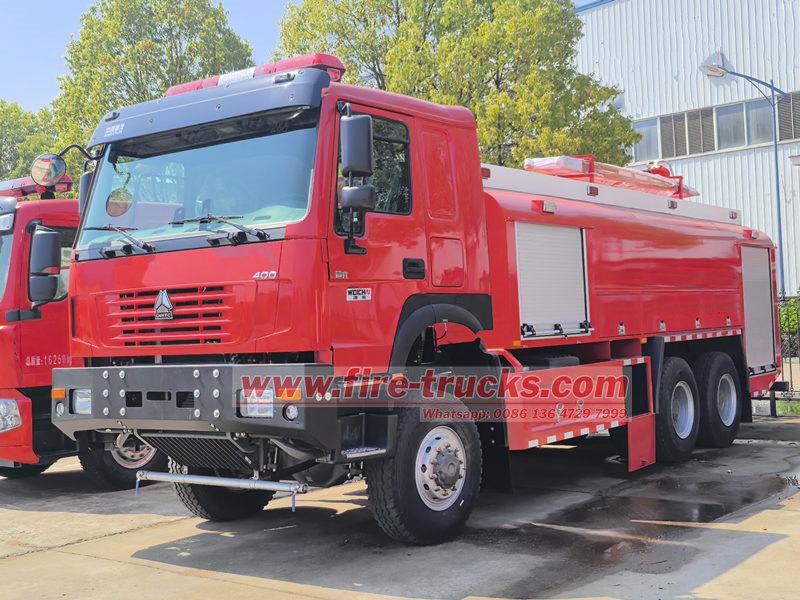

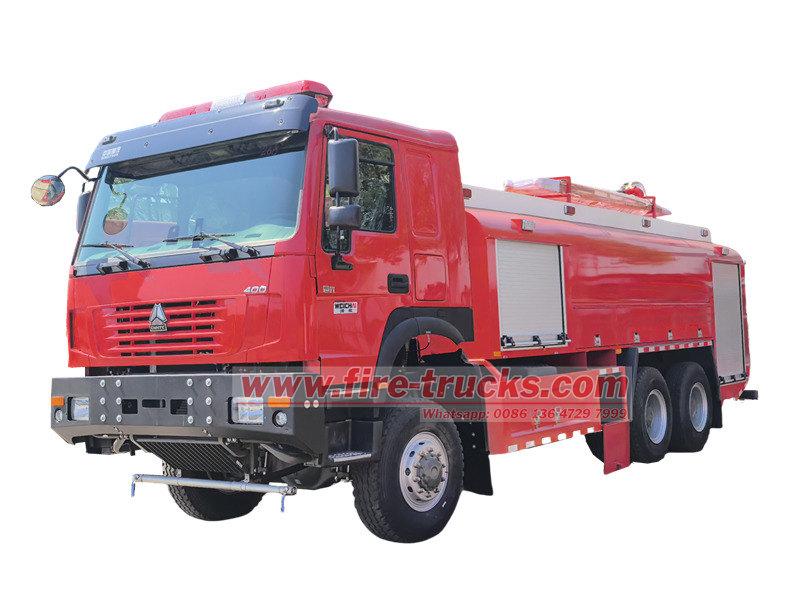

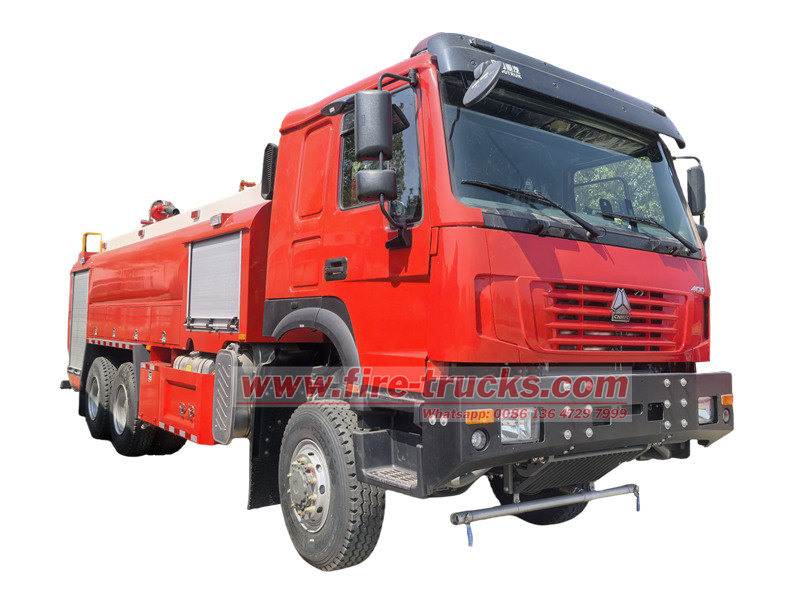

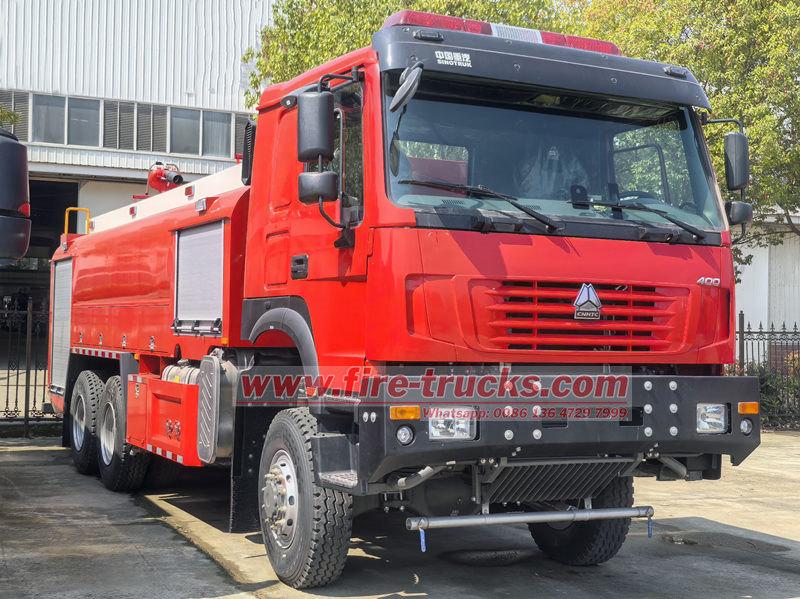

The HOWO 6×6 Water/Foam Fire Truck is a high-performance off-road firefighting vehicle built on Sinotruk’s 6×6 all-wheel-drive chassis, designed for rugged terrain. It carries 7,000L of water and 2,000L of foam, equipped with a CB10/60 fire pump and a PL8/48 dual-purpose fire monitor with long-range projection and 360° rotation. The rationally arranged equipment compartments and user-friendly control system ensure efficiency and ease of maintenance. With its large liquid capacity, excellent mobility, and reliability, it is ideal for combating oil fires and general fires, making it suitable for police fire brigades, industrial plants, communities, and ports.
Manufacturer Origin:
Powerstar TrucksWork capacity :
7000L +2000LUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
3600+1400 mmAxle drive:
6×6Engine Power:
400 HPEngine Model:
WP10H400E62Fire Pump:
CB10/60, 60L/sFire Monitor:
PL8/48 for water and foamRemark:

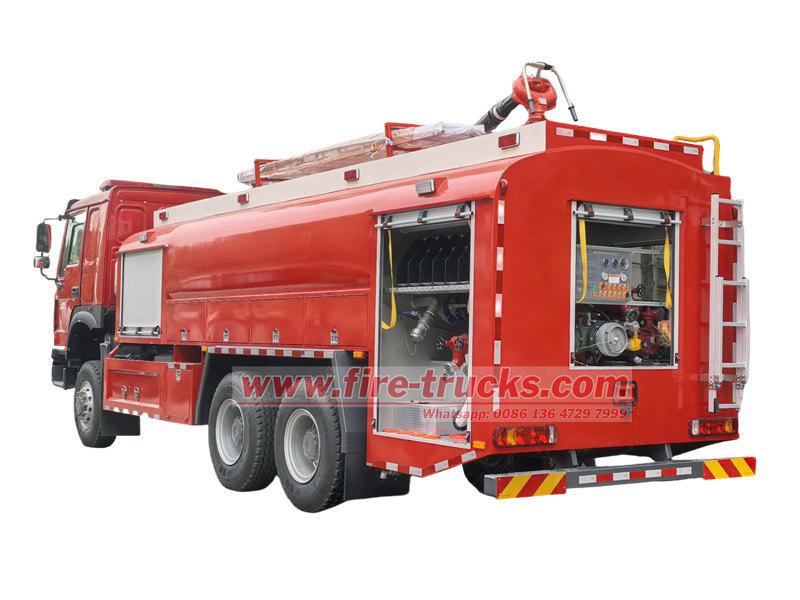

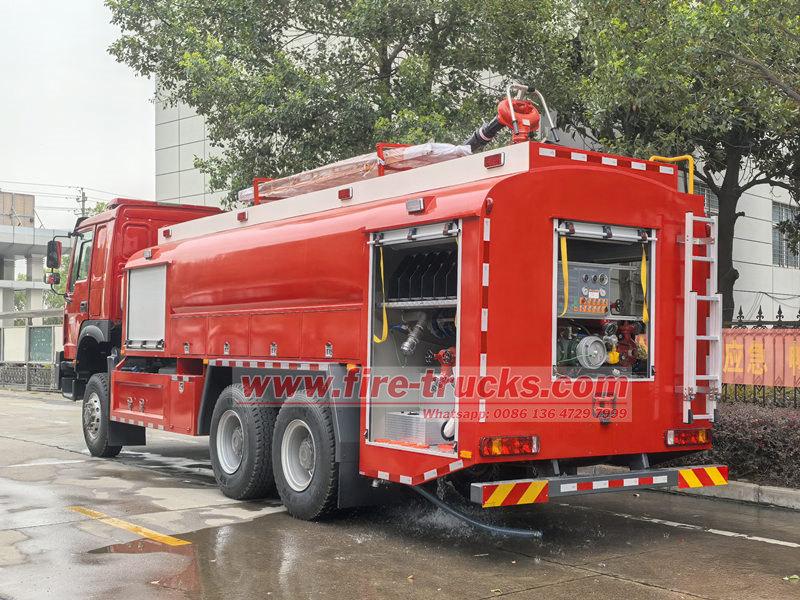

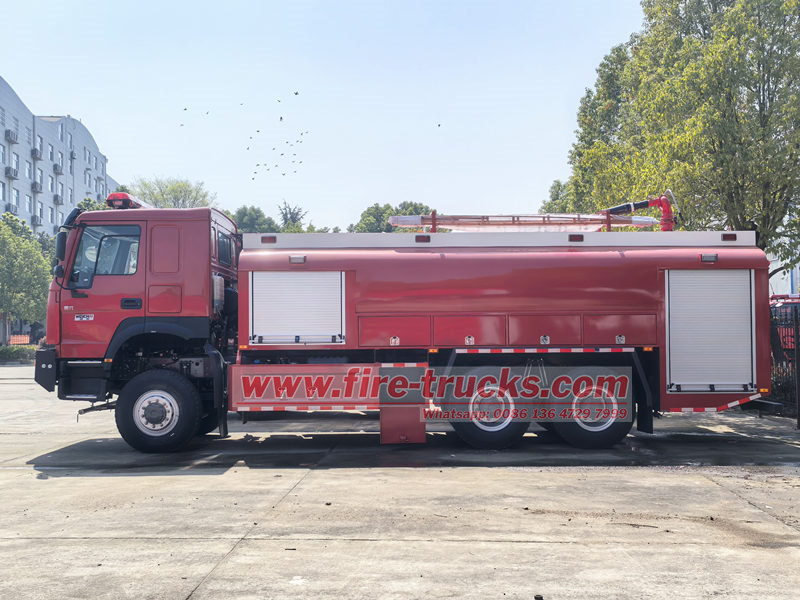

PP tank is optionalThe POWERSTAR 6×6 Foam Fire Truck, also known as the Off-Road All-Wheel-Drive Fire Engine, is built on Sinotruk HOWO 6×6 off-road chassis. The vehicle consists of two main sections: the chassis with crew cabin and the body, which includes a front equipment compartment, a middle water&foam tank, and a rear pump room.
• The water tank is made of high-quality carbon steel (4mm thickness), internally coated with epoxy primer and coal tar epoxy for corrosion resistance, with a 7,000L capacity.
• The foam tank is constructed from stainless steel, holding 2,000L.
• It features a CB10/60 fire pump (rated flow: 60L/s) and a PL8/48 roof-mounted fire monitor, capable of 360° horizontal and vertical rotation for superior firefighting coverage.
The POWERSTAR HOWO 6×6 Fire Truck stands out for its large liquid capacity, excellent maneuverability, and easy maintenance, making it widely applicable for municipal firefighting, industrial facilities, communities, and ports to combat large-scale oil fires and general material fires.
POWERSTAR is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. HOWO 6×6 Chassis: Built on a Sinotruk 6×6 all-wheel-drive off-road chassis, ensuring adaptability to various terrains.
2. Tank: Water tank: High-quality carbon steel (4mm thick), multi-process anti-rust treatment for durability.
Foam tank: Made of stainless steel for corrosion resistance.
3. Fire Pump: Features a reliable Chinese-brand pump, known for high efficiency, compact design, and easy operation & maintenance.
4. Fire Monitor: Equipped with a dual-purpose (water/foam) fire monitor, offering long-range projection, concentrated water stream, and flexible operation with 360° rotation.
5. Control System: High-quality control panel—user-friendly, aesthetically designed, and easy to maintain.
6. Equipmemt Compartment: Stores various firefighting tools with optimized layout for quick access.
Interior lined with aluminum alloy tread plate for durability and visual appeal.
» Ⅱ.Product Parameter for HOWO 6×6 wildland firefighting truck:
BASIC SPECIFICATIONS |
|
Product name |
HOWO 6×6 Water Foam Fire Truck |
Chassis brand |
SINOTRUK HOWO |
Chassis model |
ZZ2252V4 |
Cabin |
HOWO single row cab, with A/C |
Allowable passengers in cab |
2 |
Traction system |
6*6 |
Steering wheel |
LHD |
GVW (kg) |
24200 |
Curb weight (kg) |
14950 |
Rated Load (kg) |
9100 |
Overall dimensions (mm) |
9920*2545*3620 |
Wheelbase (mm) |
3600+1400 |
Approach/departure angle (°) |
34/11 |
Front/rear overhang (mm) |
1600/2445 |
Load of axles (kg) |
6740/8730/8730 |
Tires |
12.00R20, 10+1pcs |
Front/rear wheel track (mm) |
2020; 1860/1860 |
Max driving speed (km/h) |
89 |
ENGINE SPECIFICATIONS |
|
Engine MODEL |
WP10H400E62 |
Engine Power (HP) |
400 |
Emission standard |
Euro 6 |
Displacement (ml) |
9480 |
Engine type |
6-cylinder, water cooling, direct Injection turbocharged, inter cooled |
Gearbox Model |
HW19710 |
TRANSMISSIION MODEL |
10-speed front gears and 2 reverse gears , synchronized |
TANKER SPECIFICATIONS |
|
Water tanker |
7000 L, carbon steel |
Foam tanker |
2000 L, stainless steel |
Standard configuration |
DN430 manhole with fast locking/opening, automatic pressure relieving device . |
FIRE PUMP SPECIFICATIONS |
|
Type |
Normal pressure fire pump |
Model |
CB10/60 |
Pressure |
1.0 Mpa |
Flow Rate |
60 L/S |
Max Section Depth |
≥7m |
Max Section Time |
≤45S |
FIRE MONITOR SPECIFICATIONS |
|
Model |
PSL8/48 |
Rotary Angle |
360°horizontal rotation |
Elevation Angle |
≥+80° |
Depression Angle |
≤-30° |
Flow Rate |
48L/S |
Range |
Water ≥70m ; Foam ≥60m |
» Ⅲ.Product Details & Advantages:
1. Specialized Components
The special section consists of liquid tanks, pump room, equipment compartment, power take-off and transmission system, piping system, and electrical system.
2. Vehicle Structure
The HOWO 6×6 tanker fire truck adopts an integrated structure with excellent visibility, accommodating up to 2+4 personnel. It supports mobile firefighting operations with long-range projection and strong fire suppression capabilities.
3. Body Construction
The body is constructed using high-quality steel and high-strength aluminum alloy profiles, with both inner and outer panels made of corrugated aluminum sheets. The tank interior incorporates multiple anti-slosh baffles for stability.
4. Equipment Compartment Design
Frame: Outer structure made of high-quality carbon steel plates, inner framework built with high-strength aluminum alloy profiles.
Interior: Lined with patterned aluminum panels (anodized surface treatment) for durability.
Layout: Optimized for easy access to equipment, featuring custom clamping fixtures for secure storage.
5. Roll-up Doors
The equipment compartment features high-quality aluminum alloy roll-up doors, ensuring smooth operation, low noise, excellent sealing, and an aesthetically pleasing appearance.

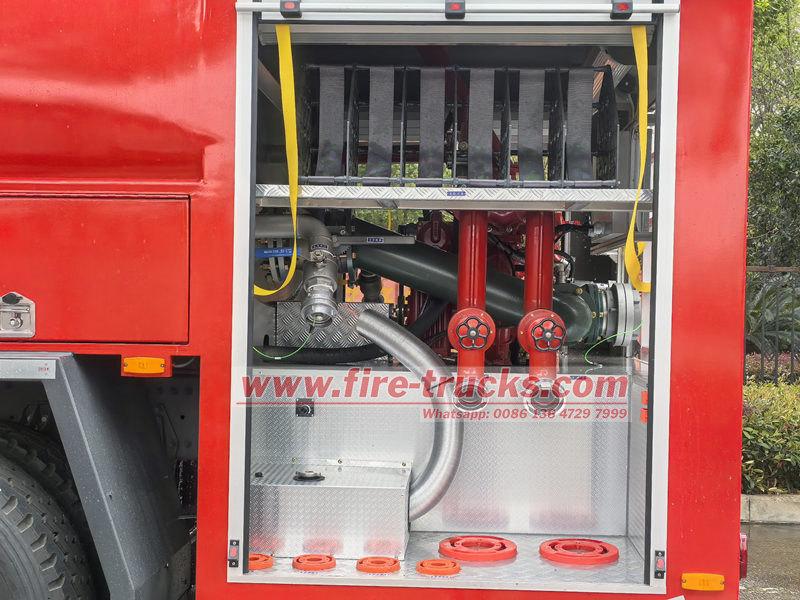

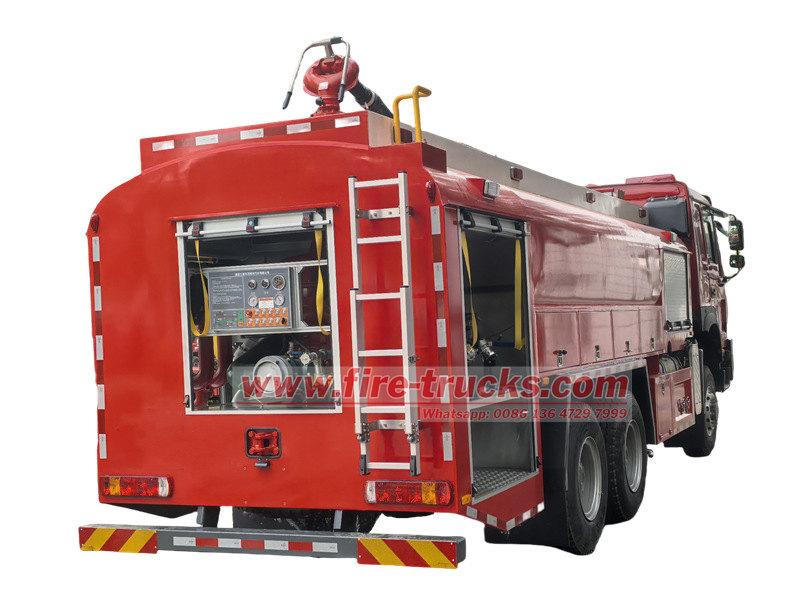

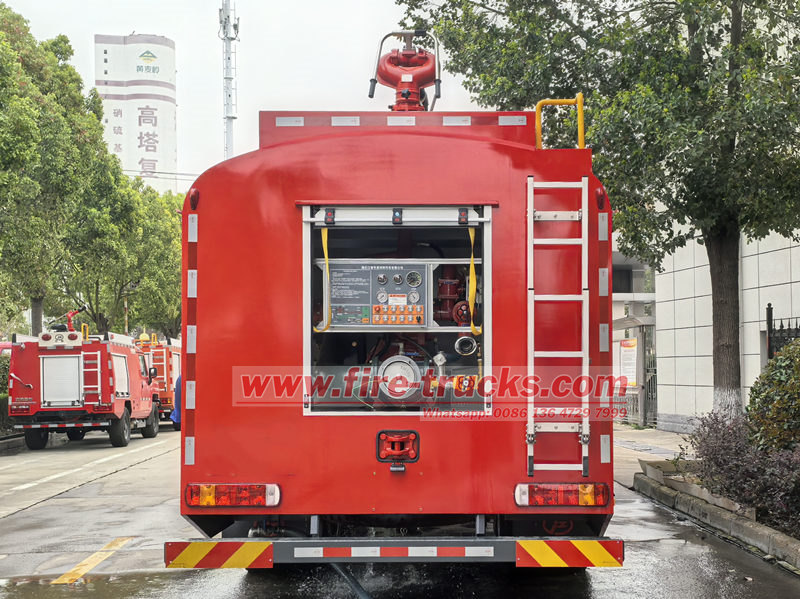

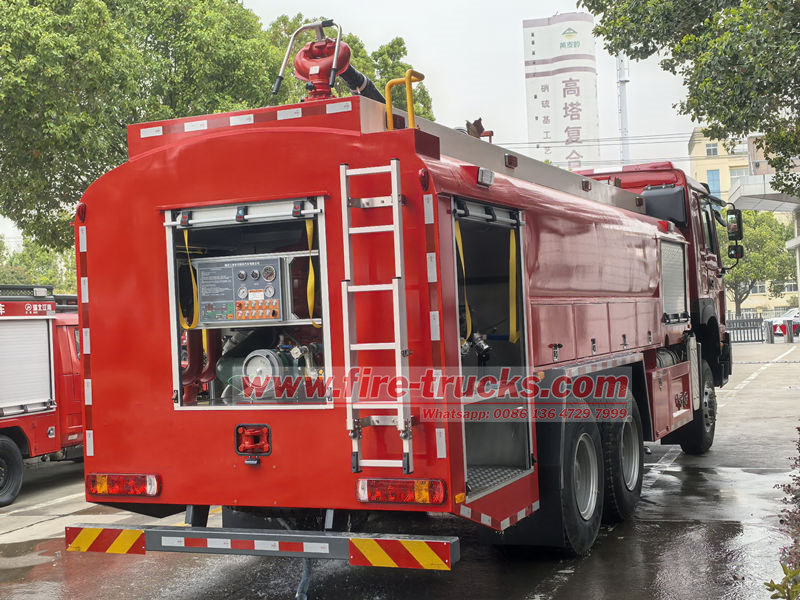

6. Pump Room Configuration
The pump room houses the water pump system, along with various gauges, indicator lights, level meters, pressure gauges, and vacuum meters for operational monitoring.
