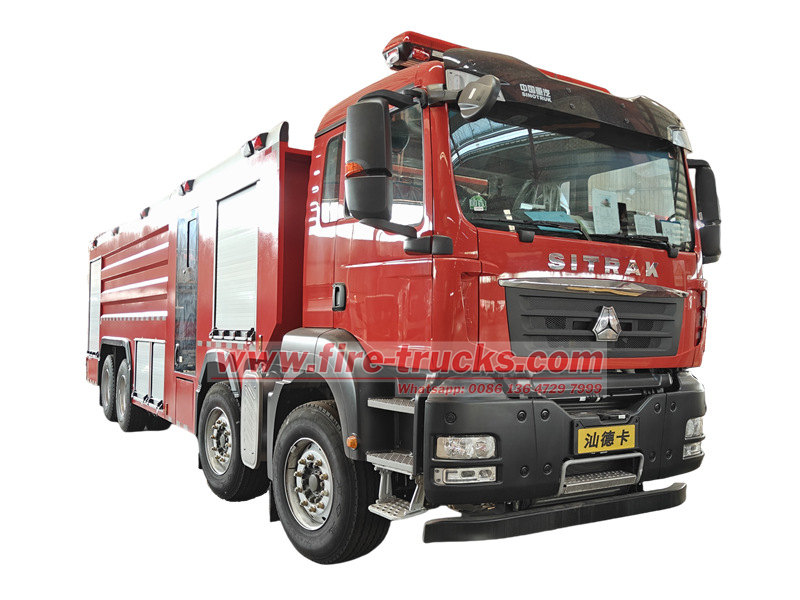

The SINOTRUK SITRAK heavy-duty fire truck is modified based on the SITRAK 8×4 chassis. The superstructure includes a modified independent crew compartment with seating for six personnel and adjustable air breathing brackets. It is equipped with a 12,000L carbon steel water tank and a 6,000L stainless steel foam tank, a CB10/100 fire pump, and a PLKD8/80 remote-controlled fire monitor.
Manufacturer Origin:
Powerstar TrucksWork capacity :
12000L +6000LUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
1950+4600+1400 mmAxle drive:
8×4Engine Power:
544 HPEngine Model:
MC13.54-61Fire Pump:
CB10/100, 80L/sFire Monitor:
PLKD8/80 for water and foamRemark:

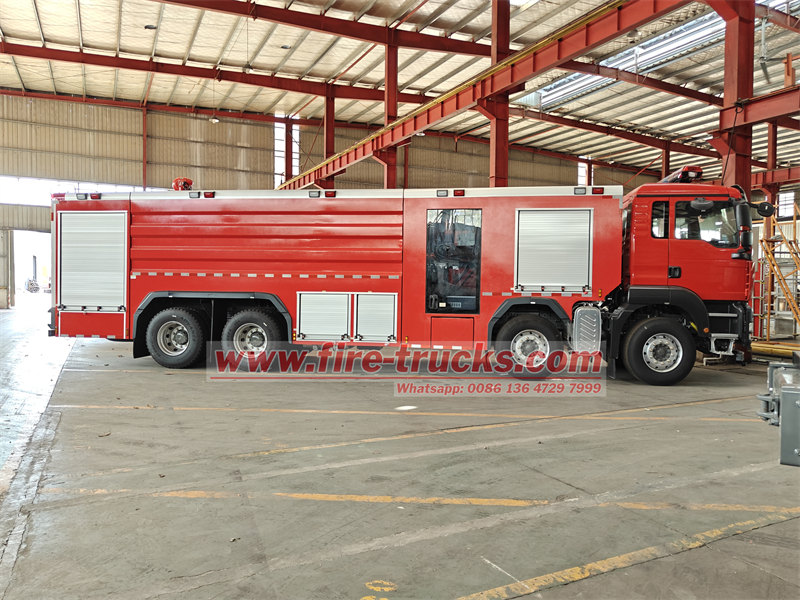

tanker material PP, 4X4, 6X6 drive, RHD drive is optionalPOWERSTAR 8×4 fire tanker truck consists of a SITRAK 8×4 chassis, tank body, water pump, piping system, instrument circuit system, and other components. The vehicle is equipped with a detachable aluminum rear ladder, a rear-mounted pump compartment, and a welded steel tank body. It carries 12 cubic meters of water and 2 cubic meters of foam. The water tank is made of high-quality carbon steel with internal anti-corrosion treatment, while the foam tank is constructed of stainless steel. The truck is equipped with a CB10/100 normal-pressure fire pump and a PL8/80 dual-purpose fire monitor.
This SINOTRUK foam fire truck is characterized by its large liquid capacity, excellent maneuverability, and easy maintenance, making it suitable for oil refineries, chemical plants, industrial facilities, communities, ports, and other locations to combat large-scale oil fires or general material fires.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: SINOTRUK SITRAK heavy duty chassis, 6x4 and 8x4 model
MC13.54 diesel engine with 540HP and displacement 12419 ml
MC11.44 model with 440HP and displacment 10518 ml is optional
2. Tank material: 4mm thick carbon steel water tank truck and stainless steel foam tank
stainless steel, aluminum alloy or PP material can be choose
3. Tanker body: 12000 liters water tank and 6000 liters foam tank, dry powder tank is optional
4. Fire Pump: CB10/100 centrifugal fire pump, flow rate 100L/s, working distance over 70m
Optional CB10/80 pump. American Darley fire pump for option
5. Special design: Fuel heater installed in pump room
Pump room pipes are insulated
Electric heating device added to outlet pipe valve
A foam fire truck is a primary firefighting vehicle equipped with a fire pump, water tank, foam liquid tank, foam proportioning system, fire nozzles, and monitors. Driven by an engine, it powers the fire pump to discharge water or foam mixture onto the fire scene through nozzles or monitors. Capable of operating independently in fire suppression, it is one of the most widely used and fundamental firefighting vehicles in fire departments.
» Ⅱ.Product Parameter for SITRAK foam tender fire truck:
Vehicle basic specifications |
|
Overall Dimension |
11850x2540x3510mm |
Tank Capacity |
Water 12000L, foam 6000L |
Engine Output |
544Hp |
Max Speed |
90km/h |
Front / Rear Axle Load |
6550/6270/12200/12200 |
Approach / Departure Angle |
18/ 12° |
Allowable Cab Passengers |
2+4+2 |
Chassis Specification |
|
Model |
SINOTRUK SITRAK |
Manufacture |
SINOTRUK |
Engine Model |
MC13.54-61 |
Engine Output |
400KW/544HP |
Displacement |
12419 ml |
Emission |
Euro 6 |
Wheelbase |
1950+4600+1400 mm |
GVW |
37220kg |
Transmission |
Manual,12 forward and 2 reverse |
Driving Cab |
|
Form |
2 door crew cab |
Passenger |
2 |
Steering Wheel |
Left Hand Drive |
Equipment |
Control box for alarm and alarm lamp PTO switch and indicator Additional power source and air course indicator Jacklight and strong flashing light indicator |
Body |
|
Equipment Room |
Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate. |
Crew room |
Crew room is in the middle of truck, seats for 6 people |
Equipment room |
Aluminum alloy structure |
Pedal |
Every shutter door has an overturn pedal. |
Ladder |
on the backside body |
Water and foam Tank |
|
Tank capacity |
Water: 12000L, foam: 6000L |
Material |
Water tank: Carbon steel with 4mm thickness, bottom is 5mm. Foam tank: Stainless steel 304 material. |
Tank fixing |
Fixed on chassis frame |
Manhole |
One manhole with diameter of 500 mm, with quick locking/opening device |
Fire Pump |
|
Fire pump model |
CB10/100 |
Water flow rate |
100L/S, 1.0MPa |
Maximum suction depth |
7m |
Diversion device |
Self-contained slide pump |
Diversion time |
Maximum depth of suction < 80s |

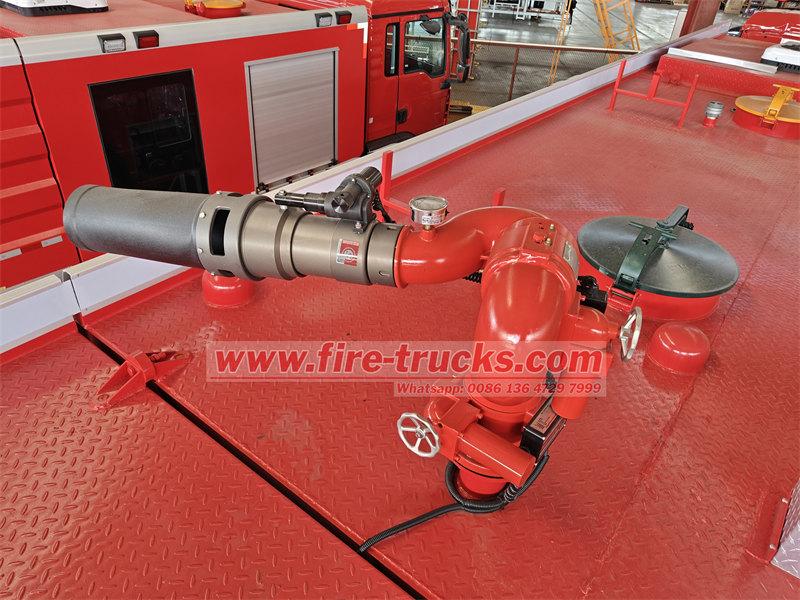

Fire Monitor (water & foam) |
|
Type |
Electric remote control monitor |
Fire monitor model |
PLKD8/80 |
Flow rate |
80L/s, 1MPa |
Covering range |
water≥75m, foam≥70m |
Rotating Angle |
360°Horizontal Rotation |
Max. Pitch / dip angle |
pitch angle≤-30° dip angle≥+70° |
» Ⅲ.Product Details & Advantages:

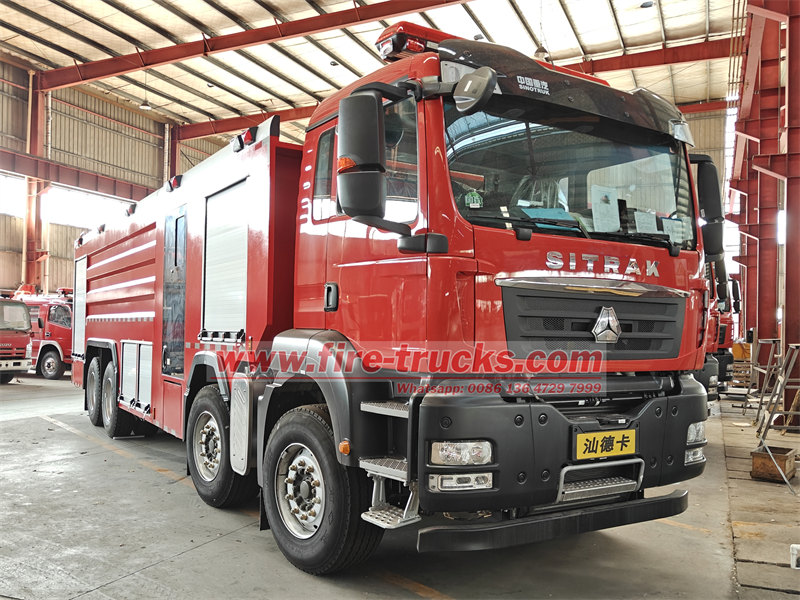

1. SINOTRUK SITRAK Chassis

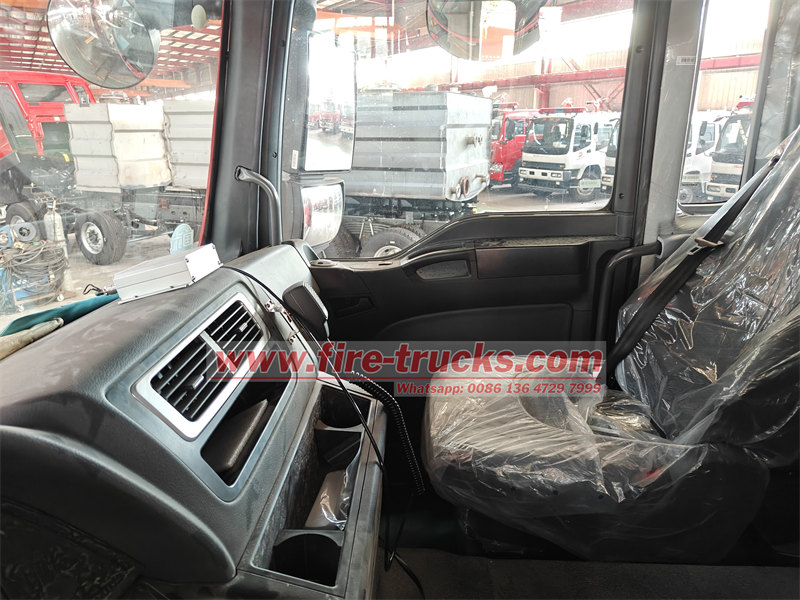

China top brand SINOTRUK SITRAK chassis, comfortable and spacious cabin, with air conditioner, Siren controller, air suspension seat, etc.

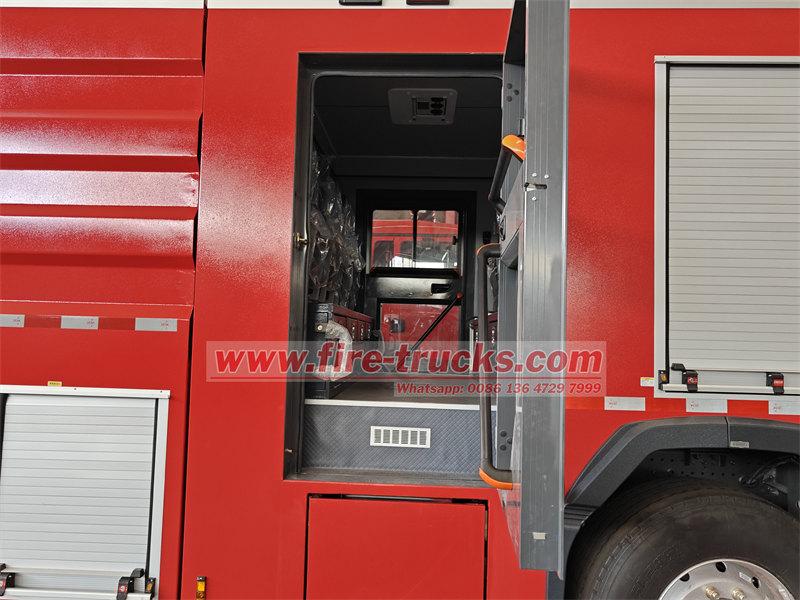

2. Modified independent crew

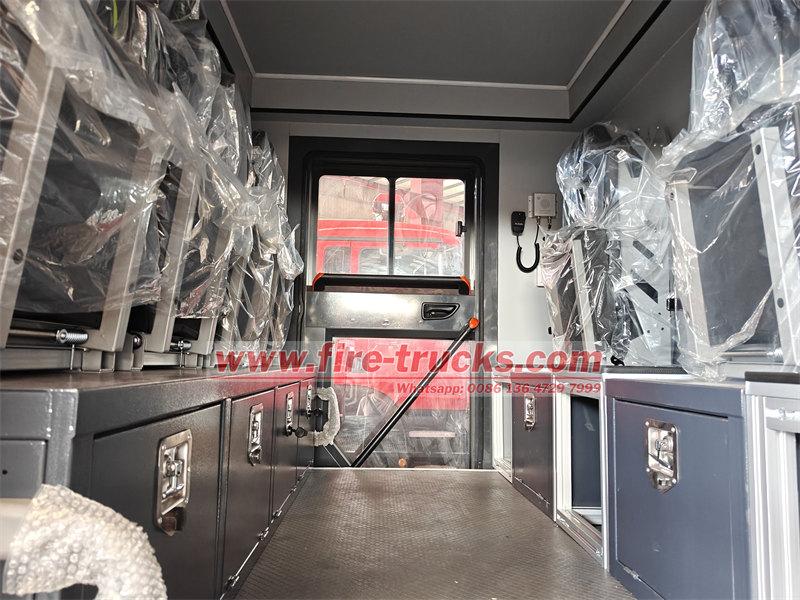

Modified independent crew compartment with seating for six personnel and adjustable air breathing brackets.
3. Rear SCBA seat
SINOTRUK firefighting truck cabin rear 6 seats are all equipped with SCBA seats, suitable for air apparatus storage and convenient usage, all with safety belt.

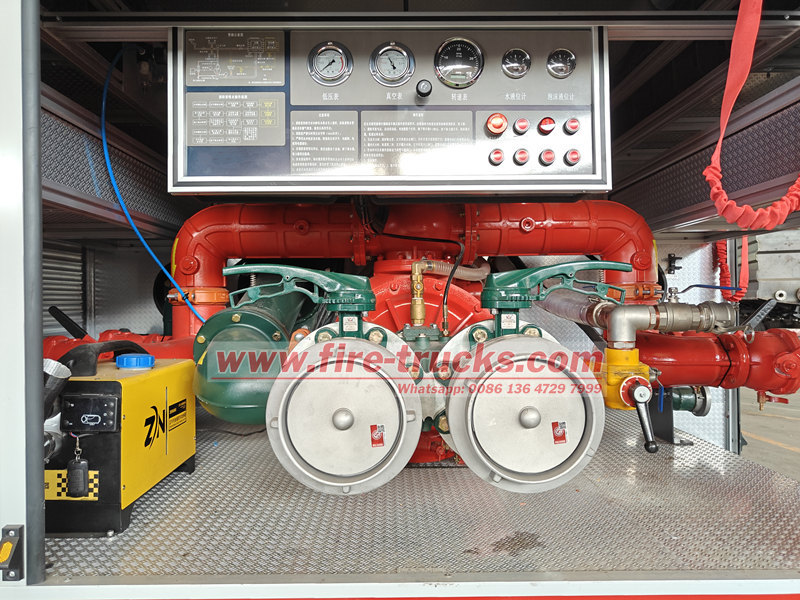

4. Pump room with control panel

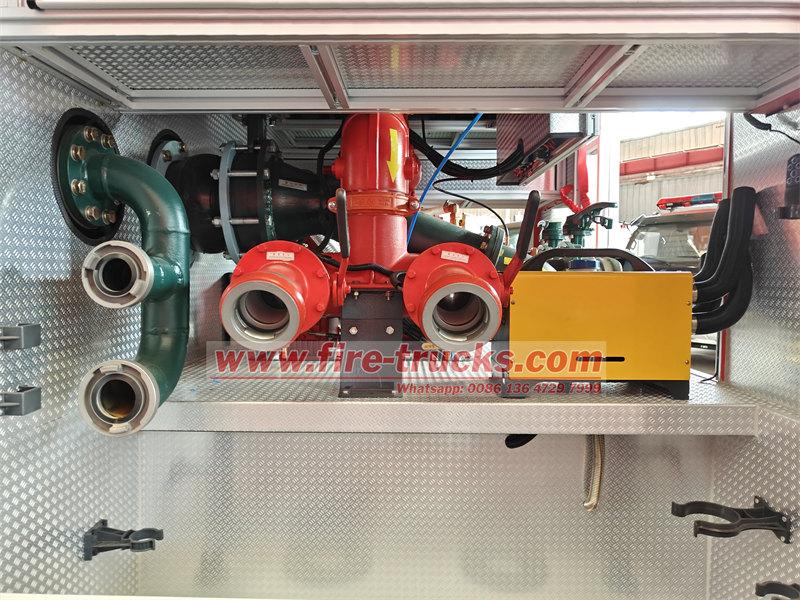

Rear mounted, separately and water proof, with fuel heater, pump in and pump out valve, English version control panel for convenient usage

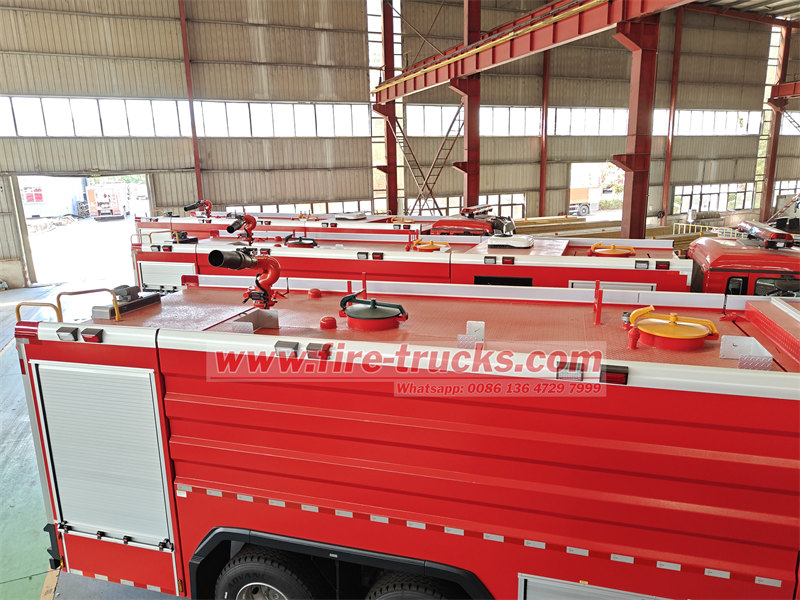

5. Top view of Foam Tender Fire Truck
DN500 manhole cover, 2 units 4m DN125 pipeline, electric remote control fire monitor for water and, rear searching light

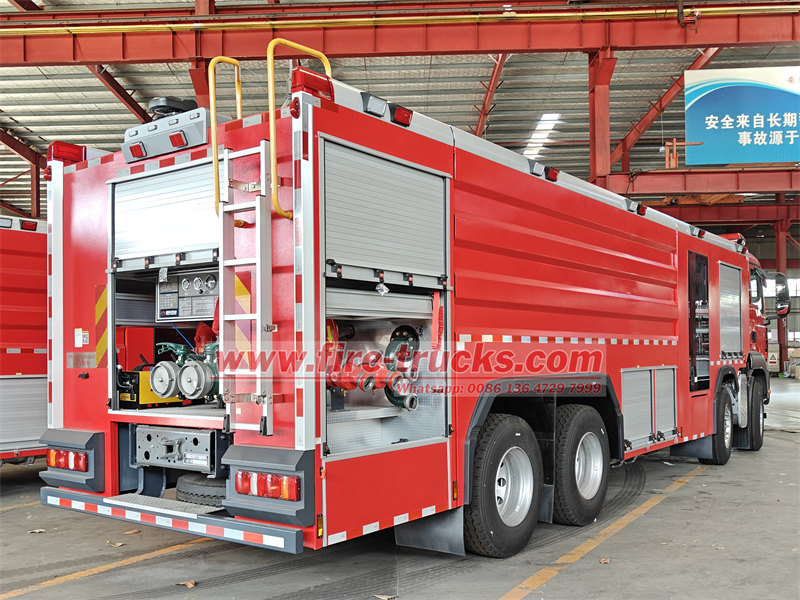

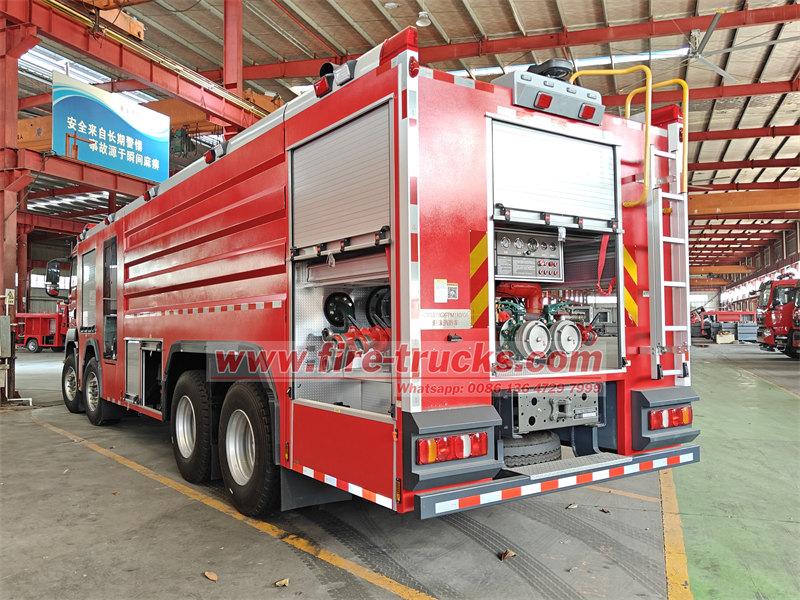

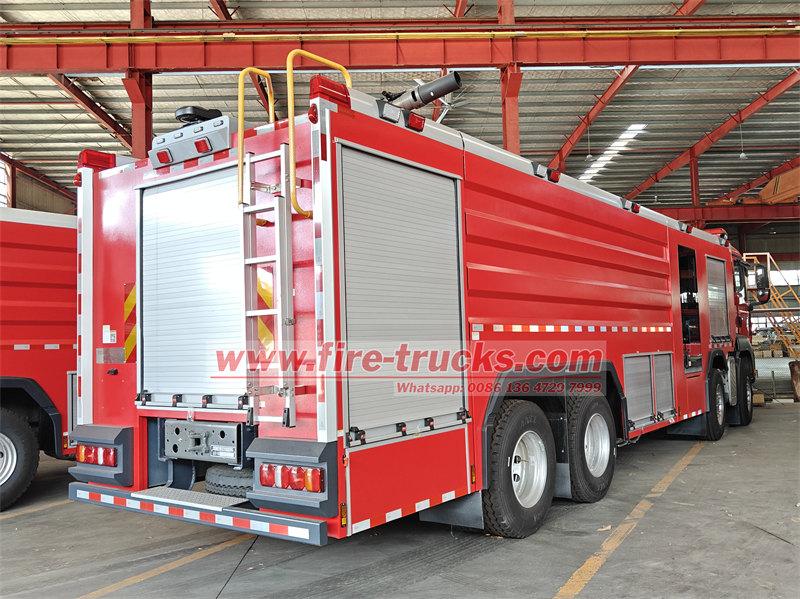

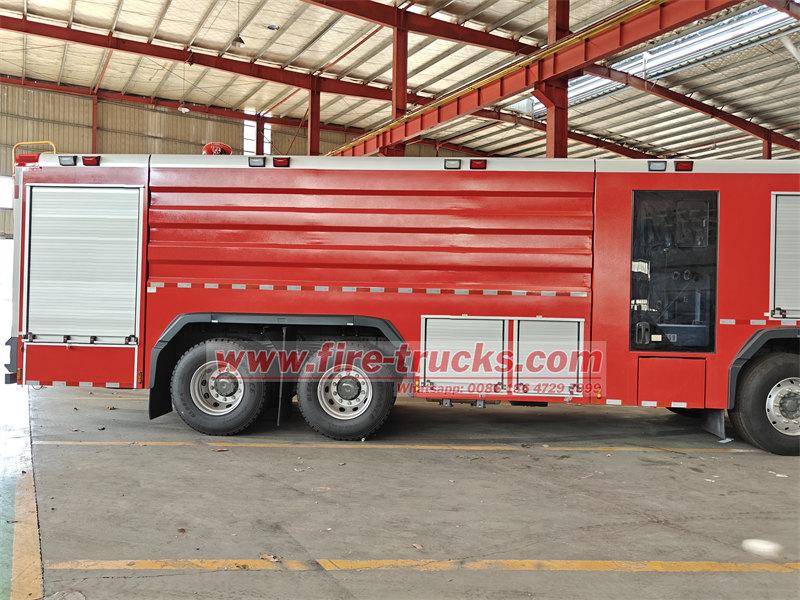

6. Fire truck tanker body with full sets fire fighting tools
R03 RAL3000 painting, aluminium alloy equippment compartment for fire fighting tools convenient storage, LED light with red and white color
