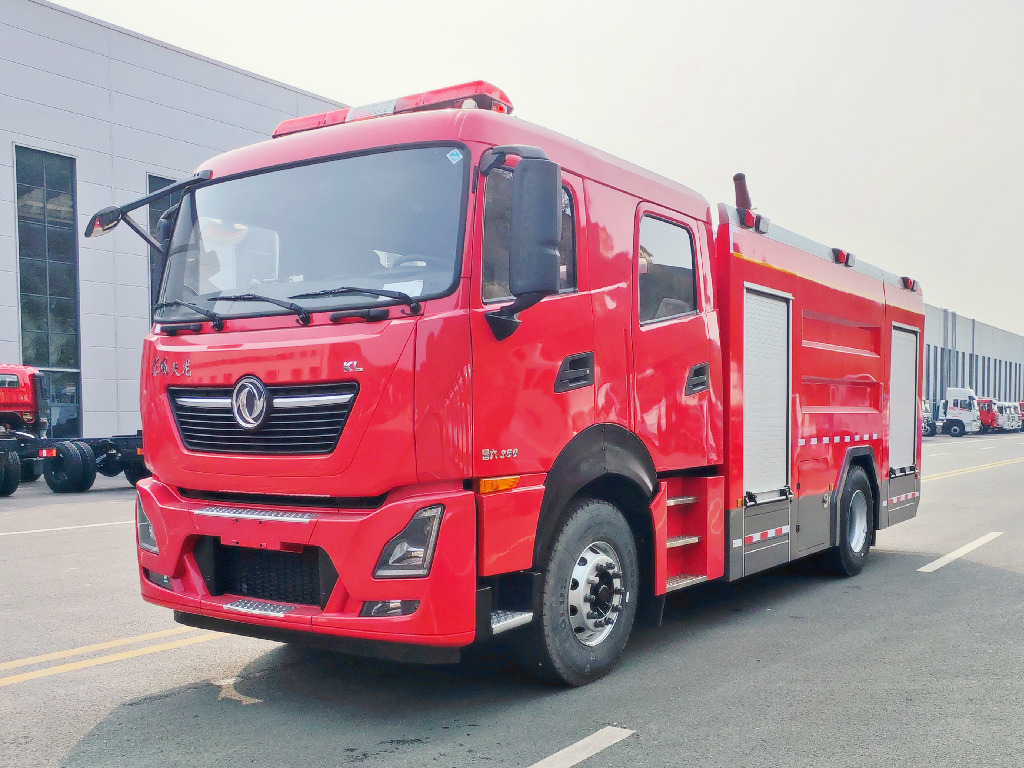

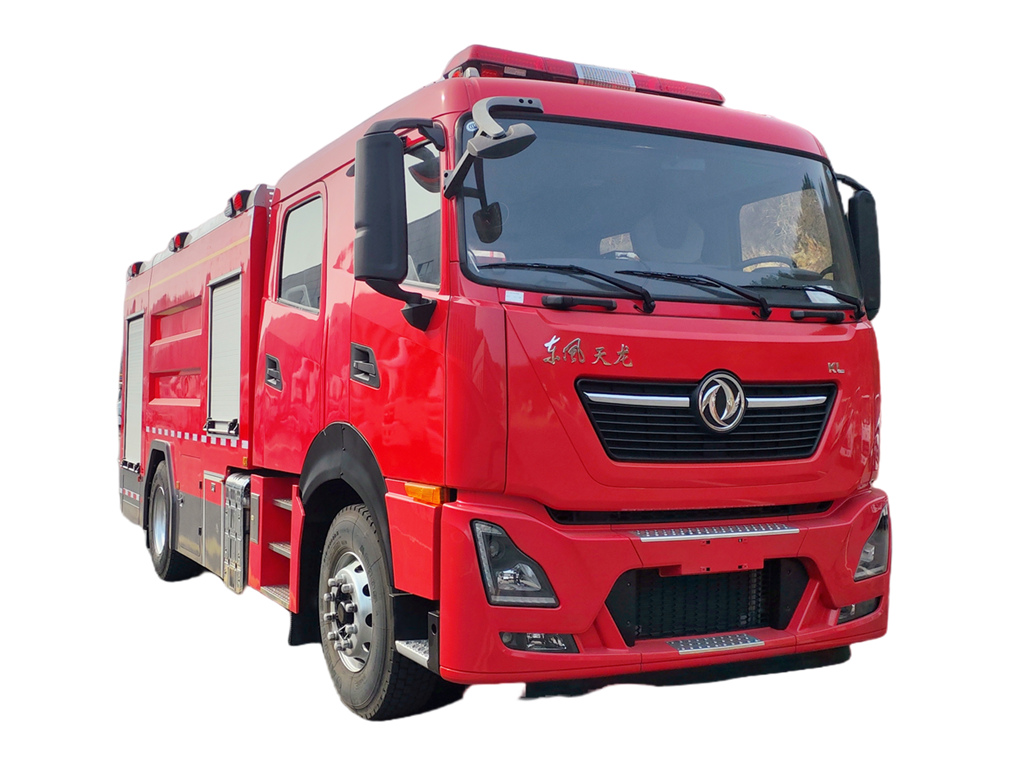

Brand newly designed DONGFENG Pumper Fire Truck is a versatile firefighting vehicle, which based on classical DONGFENG 4x2 truck chassis, equipped with American technology CUMMINS B190 model diesel engine, with 190HP and 5900cc displacement, meet Africa market emission requirement, combining 6000L water tanker and 2000L foam truck, all stainless steel material. Powerful fire pump CB10/40 fire pump with flow rate 40L/s and a durable PL8/32 water foam fire monitor, with efficient water jetting distance over 55m. Ideal for industrial and city fire extinguishing work. Fire tanker body with reinforced Aluminium alloy construction structure, safety design and never rust, it offers reliable performance for urban, industrial, and emergency firefighting operations.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000L +2000LUpper Body material:
Stainless steelProduction time:
60 daysWheelbase:
4500 mmAxle drive:
4×2Engine Power:
190 HPEngine Model:
CUMMINS B190Fire Pump:
CB10/40, 40L/sFire Monitor:
PL8/32 for water and foamRemark:
Customized DONGFENG 4x4 offroad and RHD modelPOWERSTAR water foam fire tender is build based on classical DONGFENG truck chassis, mounted with America CUMMINS diesel engine, with 140KW and 5.9L emission. The truck cabin is modify to be double row with rear 4 SCBA seats, suitable for air apparatus storage and usage. According to the actual firefighting requires and operation procedures, the DONGFENG foam tanker fire truck with a humanized design, anti-corrosion processing, anti-vibration, anti-falling, anti-scratch, anti- rotation, push-pull or pull-out special fixtures to fix all vehicle-mounted equipment, equipment layout is reasonable and compact. The clamping is solid and fixed, the English markings are eye-catching, and any fire fighting rescue equipment can be used in the two actions, which can realize nearby pick-and-put, multi-person operation without interference.
To maximum extend the service time, all POWERSTAR pumper fire engine are used Aluminium alloy material as frame and decoration, with inner-connecting technique to improve space utilization efficiency and changeability. According to the necessary of firefighting man oeuvre and operating procedure, all the accessory equipment’s are anti-corrosion, shockproof, anti-drop, anti-scratch with push or pull special fixture and in reasonable space arrangement, compact, solid fixture, bold marks, convenient access.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: DONGFENG foam fire tender chassis, 4×2 drive model
original double row cabin, with a seating capacity of 2+4 crew members. Rear SCBA seats for air apparatus
power-adjustable mirrors, electric windows, central locking system, and four-point full-floating cab suspension.
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: 6000 liters Water + 2000 liters foam tank
4. Fire Pump: Top Chinese model CB10/40, with a displacement of 40Liters per second; suction depth exceeding 7 meters; priming time
under 40 seconds; equipped with an advanced computer-controlled automatic pressure stabilization device.
5. Special design: PL8/32 dual-purpose fire monitor (water/foam), jetting distance 55m, featuring an aluminum alloy nozzle, cast iron body
Customized DONGFENG Fire Truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, dry powder tanker and nitrogen system, matched with pipeline hose reel, English version control box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, and all necessary firefighting equipment. Customized Double-row cabin with 2+4 seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project. As for the foam system, which usually called water foam proportioner, fitted on the fire pump, composed of water pipe system, ball valve, inlet pipe, adjust valve, Y-branch, outlet soft pipe. All to make water foam mixed before jetting out from top fire monitor. Also truck can be equipped with CAFS system, It is widely applicable for urban public fire brigades, petroleum and chemical industries, factories, mines, communities, forests, ports, docks, and other sectors, enabling rapid approach to fire scenes and efficient fire suppression. It is an ideal piece of firefighting equipment.
» Ⅱ.Product Parameter for DONGFENG tanker fire engine:
Product model and name |
PT5180GXFPM40 Foam Tanker Fire Truck |
|
Gross weight(Kg) |
Payload(Kg) |
Curb weight(Kg) |
18000 |
8000 |
8900 |
Overall dimension(mm) |
Cab seats |
Drive type |
8430×2500×3660 |
2+4 |
4x2 |
Wheelbase(mm) |
Max speed(Km/h) |
Axle No. |
4500 |
95 |
2 |
Chassis model |
Tyre specification |
Tyre No. |
DONGFENG |
10.00R20 |
6 |
Fuel type |
Emission standard |
Transmission |
Diesel |
Euro 3 |
FAST 8 forward gear, 1 reverse |
Engine model |
Displacement(ml) |
Horsepower(HP) |
CUMMINS B190 33 |
5900 |
190 |
Cab |
Double row. cab can be tippable forwardly with power steering, Air condition and central locking, electric Windows and USB sound with radio, rear seats are SCBA type suitable for Air apparatus usage |
|
Foam and powder fire truck performance |
||
Water tank volume |
Foam tank volume |
Fire monitor |
6000L |
2000L |
Model:PL8/32. |
water and foam tank dual purpose fire monitor. |
Foam range:≥50m/1.0MPa |
Water range:≥55m/1.0MPa |
Fire pump |
Model: CB10/40. Flow rate:40L/S. Pressure: 1.0MPa. Water pump drive type: sandwich type power take-off Water and powder tank combination fire truck can spray water and powder at the same time.Adopted the independent passengers room and has 6 seats.Both dry powder and valves are made by stainless steel.This truck can be used to put out all kinds of fire,especially applied to save the liquid and gas fire etc.It is the indispensable fire extinguishing equipment for the fire department. |
» Ⅲ.Product Details & Advantages:

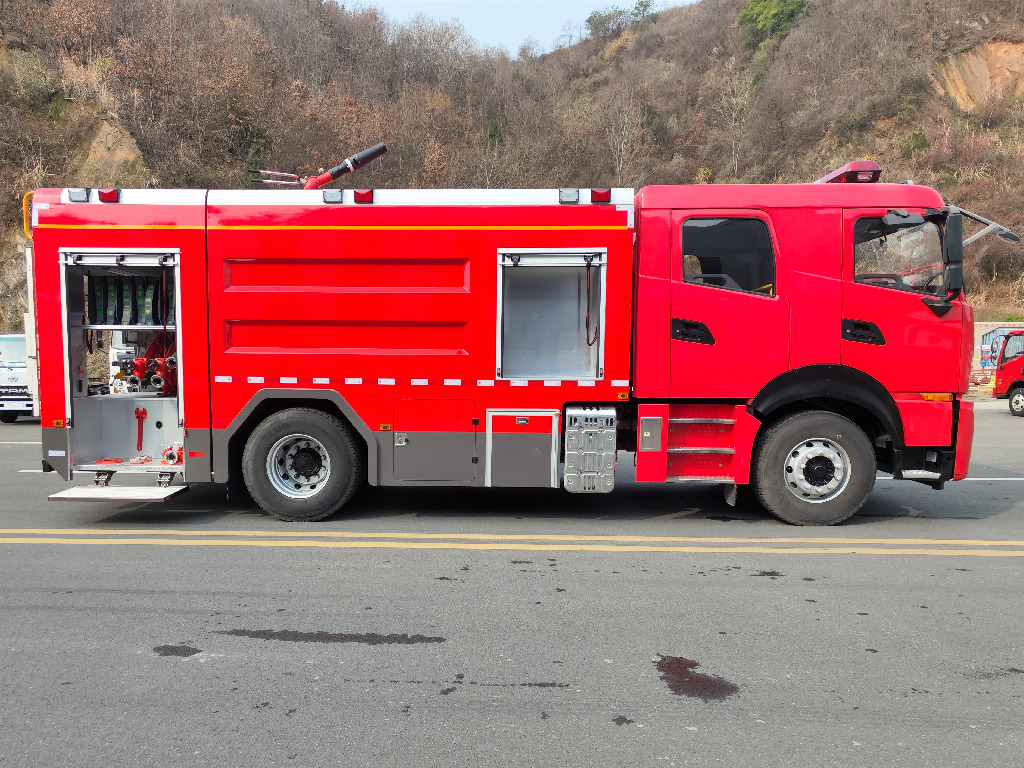

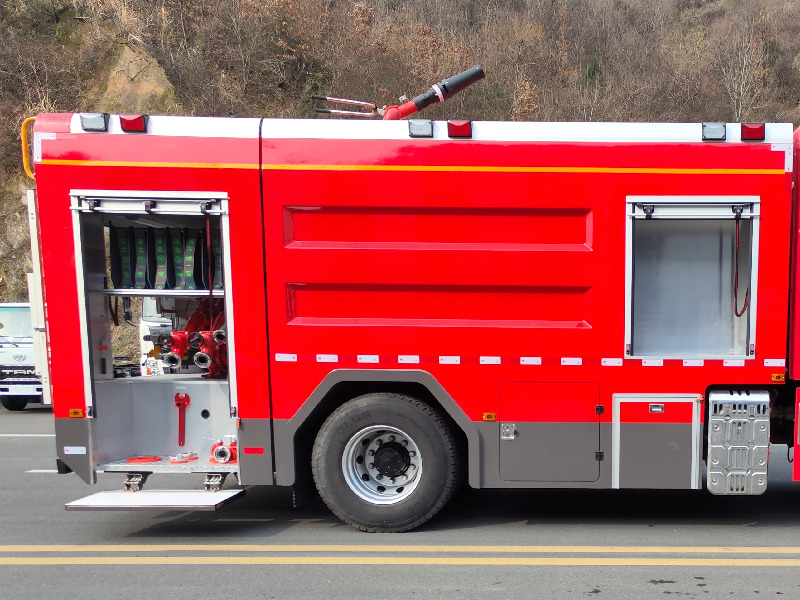

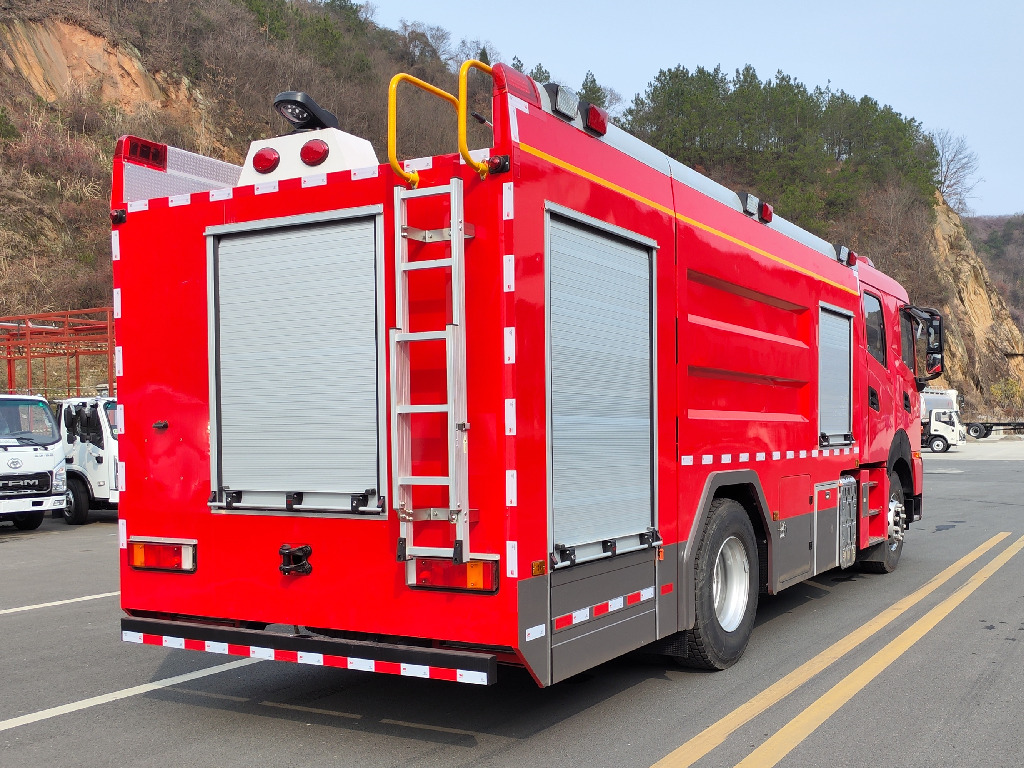

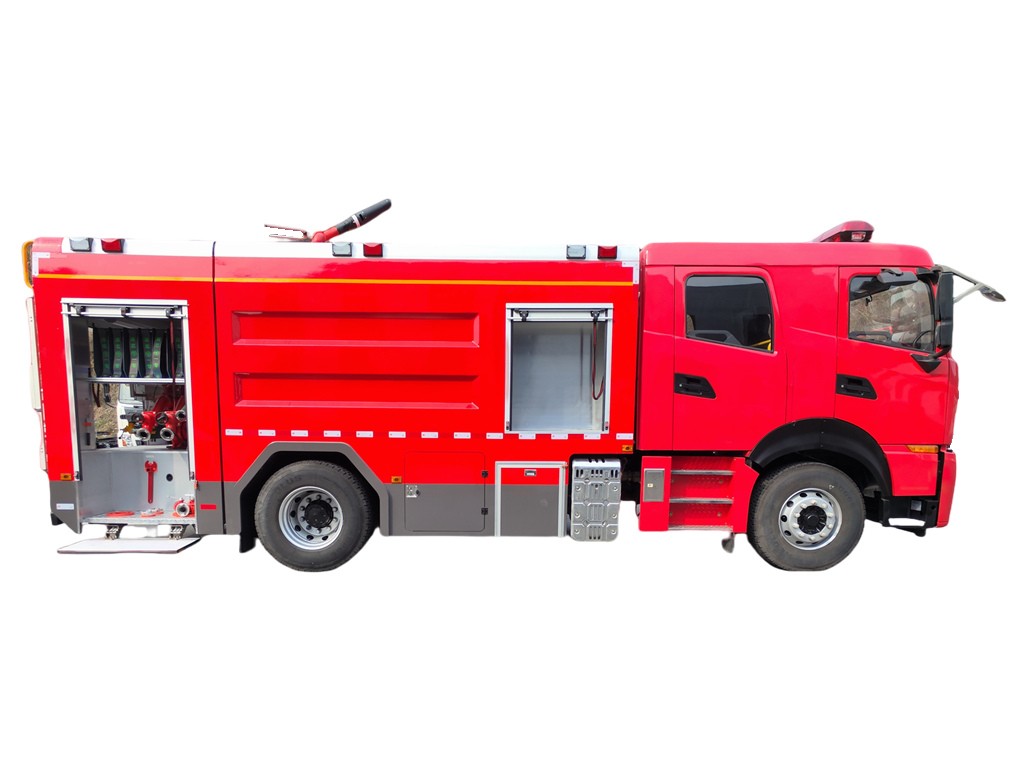

1. Fire fighting truck tanker body kit
The DFAC water foam pumper tanker fire truck with rear pump room, side mounted with red and white shining LED light.

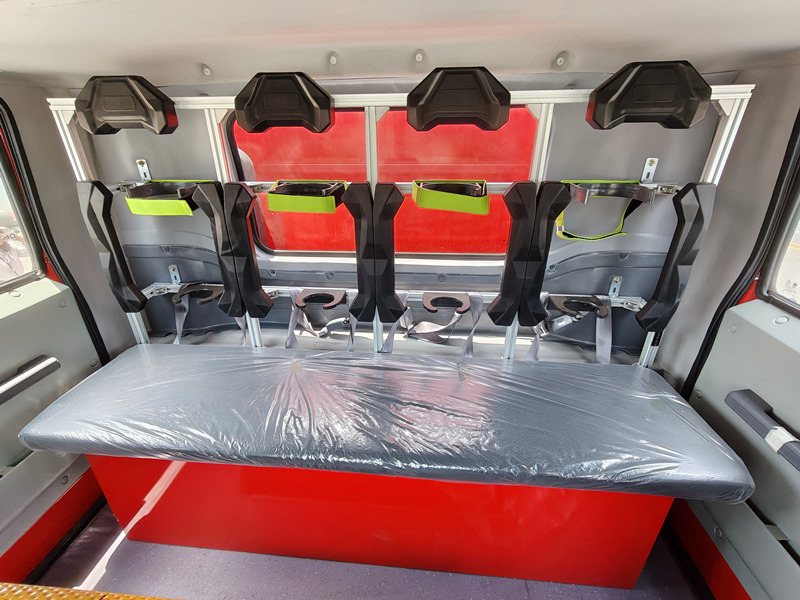

2. Fire engine with SCBA seats
Water foam fire truck with double cabin row, designed with advanced technology and ensures high-quality safety and reliability, SCBA seats suitable for Air apparatus storage and convenient usage

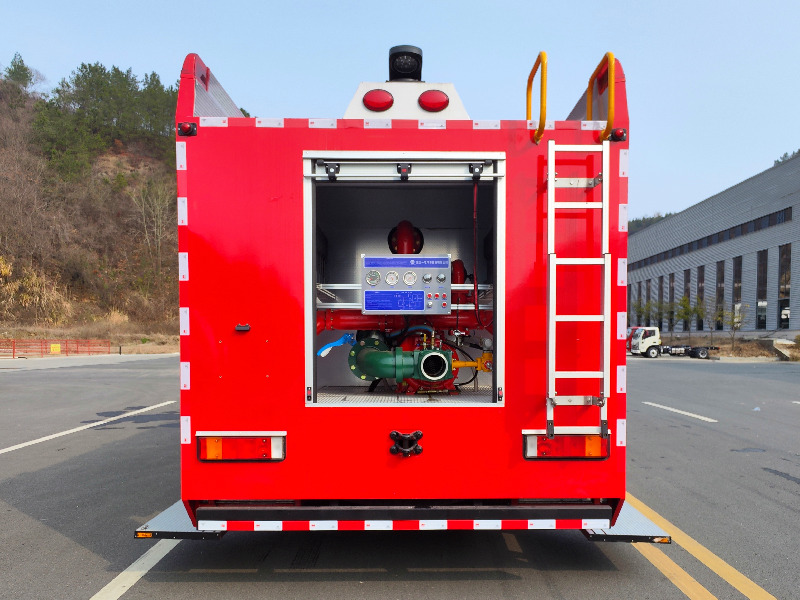

3. Rear pump room
Rear pump room mounted CB10/40 pump, matched with DN50, DN65, DN80 and DN100 valve and joint, convenient for fire extinguishing and working

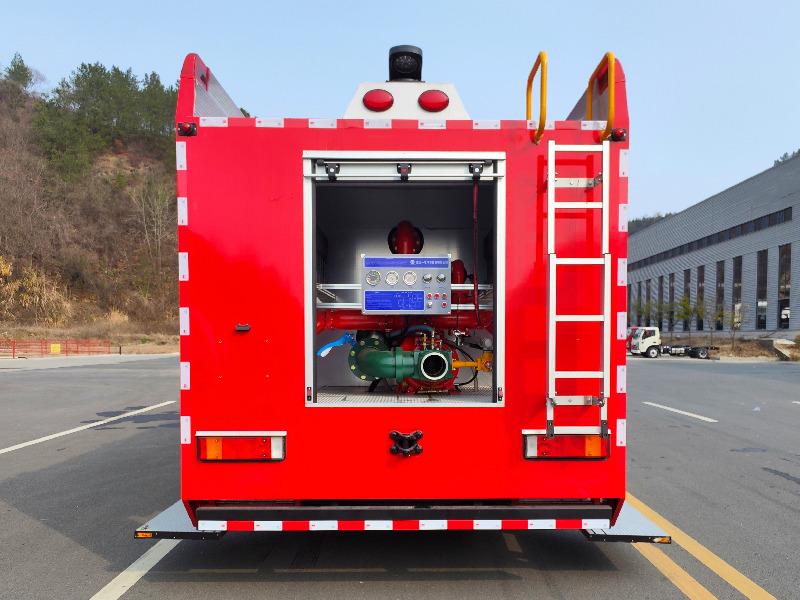

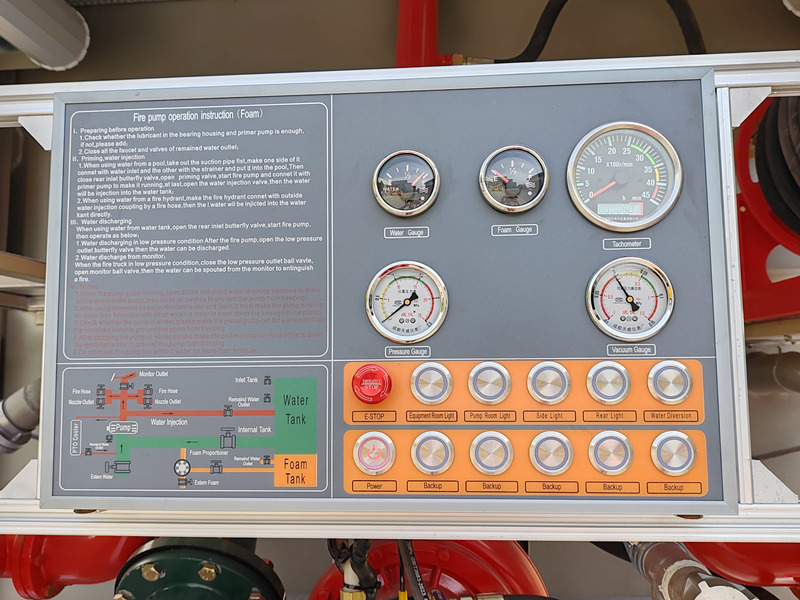

4. English rear control panel
Germany SIMENS technology control panel, withh all function controlled by button, English language operation instruction and working principle guidance. Optional as Arabic, French, Spanish, Russia, etc.
5. Fire extinguishing equipment and tools

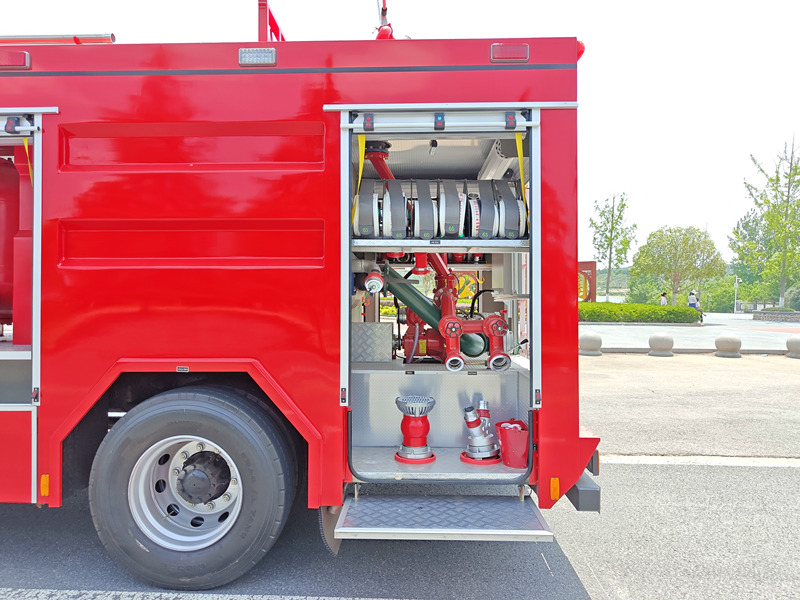

Fire fighting truck equipped with full sets fire extinguishing equipment and people rescue tools, which alocated on two sides of the rear pump room, safety storage and convenient usage

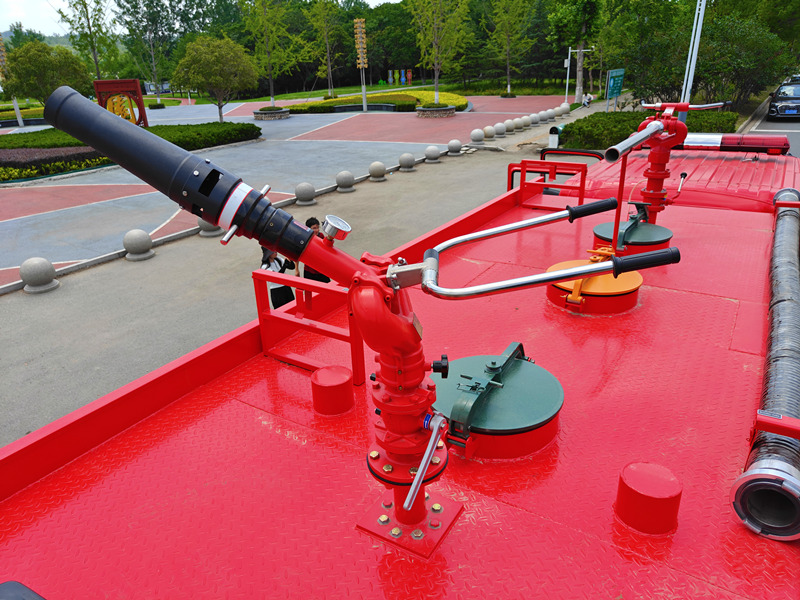

6. Fire tender top view
Fire truck top mounted with all necessary equipment, fire monitor for water foam jetting and fire extinguishing, DN125 pipeline for water inlet suction, also DN500 manhole for regular maintenance and checking.
