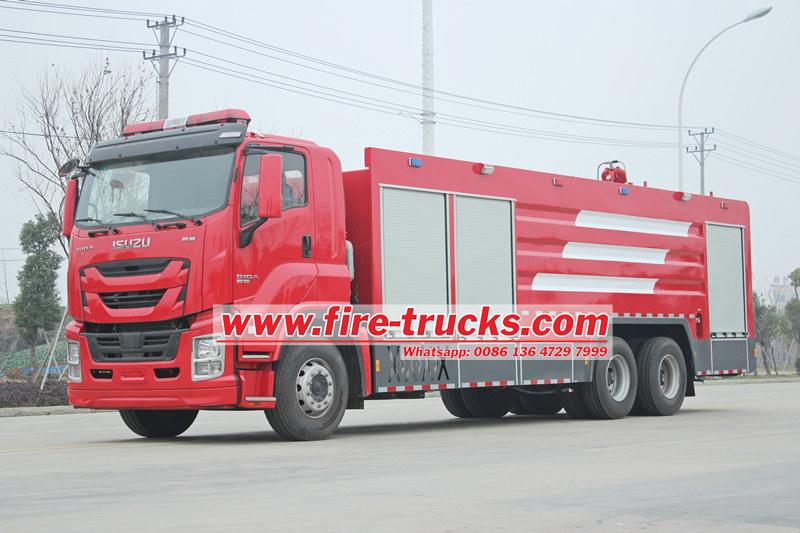

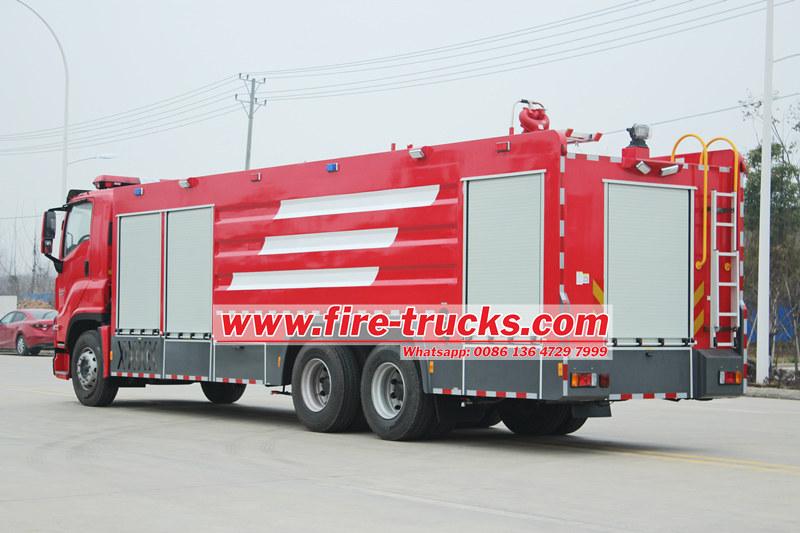

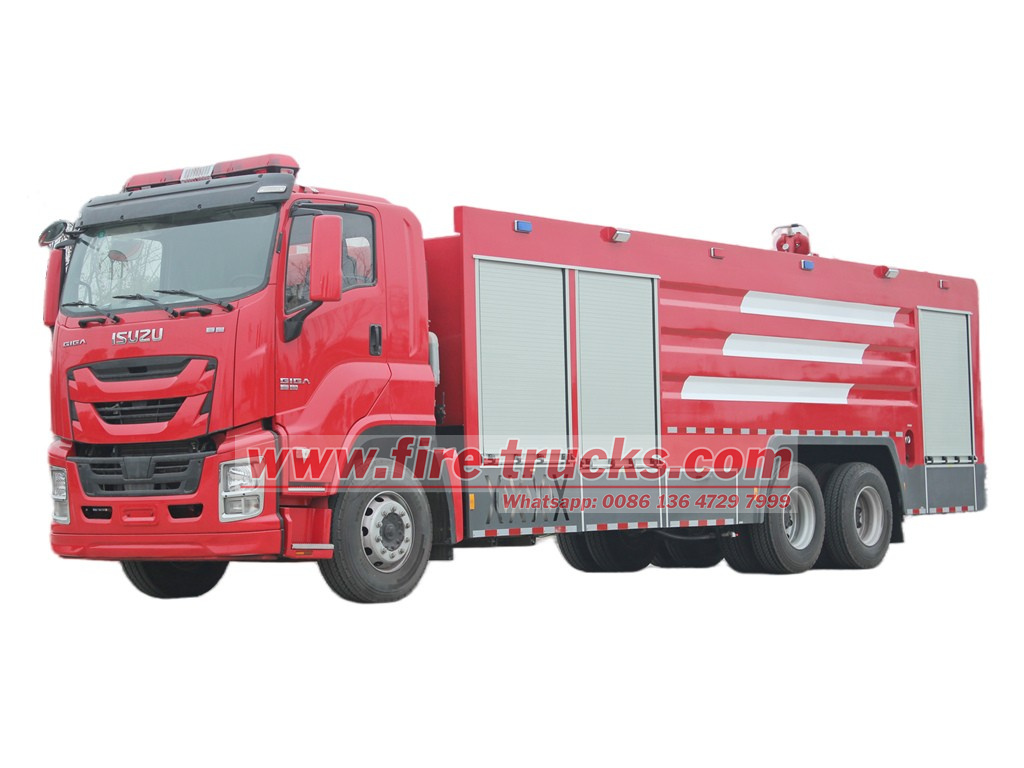

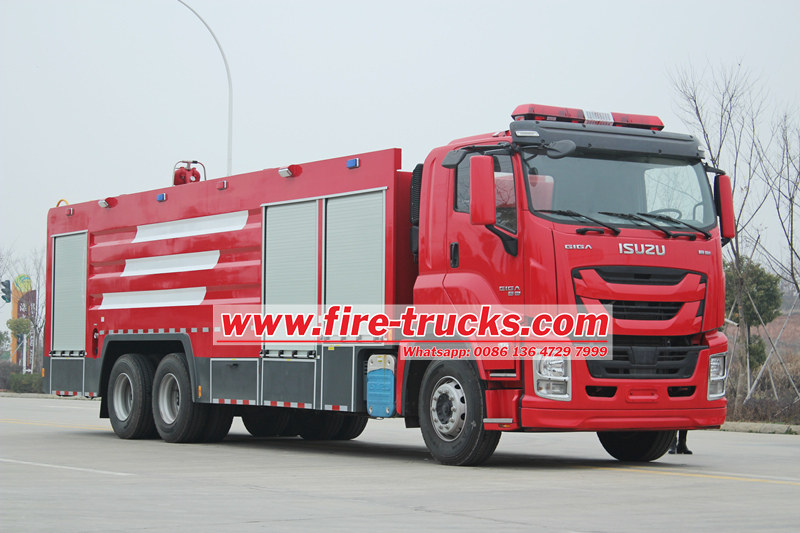

Isuzu GIGA 14Tons water foam fire truck

Isuzu GIGA 14Tons water foam fire truck

Isuzu rescue firefighting truck is altered from Japanese ISUZU GIGA truck chassis applied with water and foam tanker body made of stainless steel 304 with loading capacity of 12+2m³. It’s powered by engine 6WG1-TCG61 with 460 horsepower and emission can be 15681cc. The exhaust gas treatment technology applied in the truck makes it comply with the Euro 4 compliant. And the equipped FAST brand manual transmission has 12 forward gears and 2 backward gear, painting and logos as required.

  • Truck Model:

    PT5350GXW
  • Tanker Structure:

    12cbm water tank and 2cbm foam tank
  • Work capacity :

    14CBM
  • Wheelbase:

    4600+1370mm
  • Axle drive:

    6x4,LHD
  • Engine Power:

    460HP
  • Engine Model:

    Isuzu 6WG1-TCG61
  • Fire Pump:

    CB10/60, 60L/s

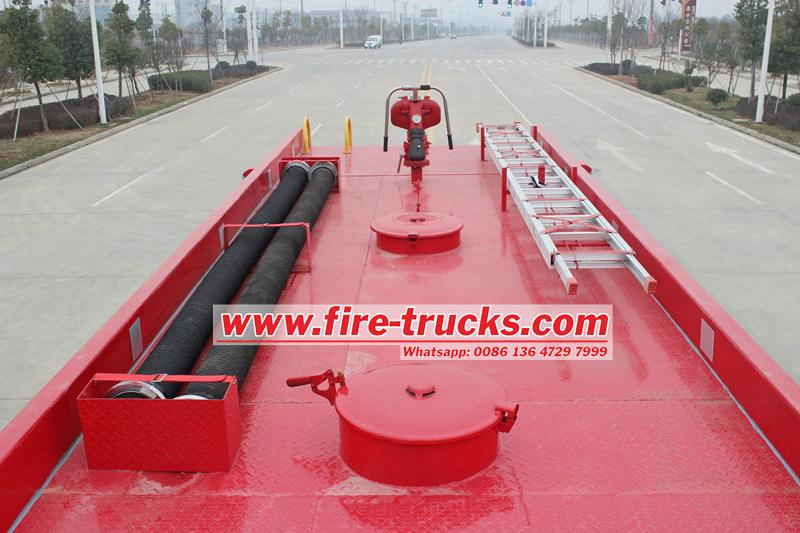

  • Fire Monitor:

    PL32
  • Remark:

    Customized fire fighting rescue equipment
Facebook Linkedin Youtube Twitter Pinterest

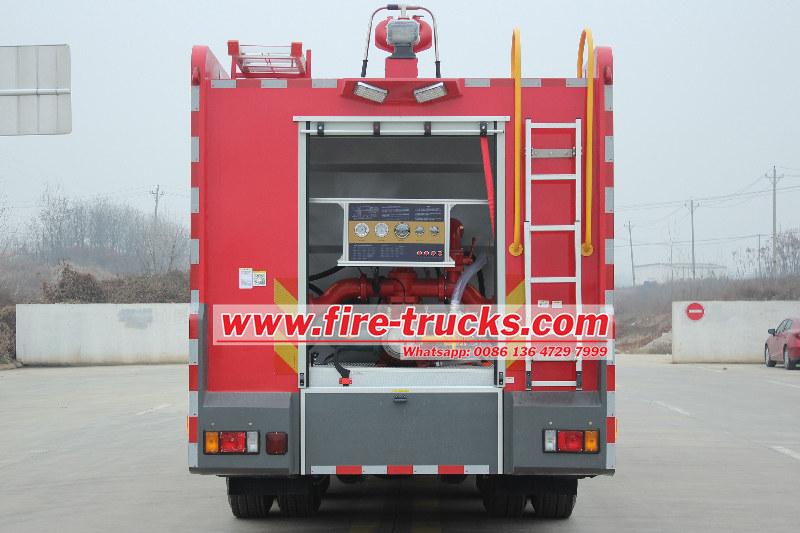

Isuzu GIGA foam fire truck is mainly composed of ISUZU GIGA VC66 cab, fire fighting tanker system, fire pump, fire monitor and PTO Sandich transmission system, also equipped with foam proportioning device. Can independently jetting water for fire extinguisher. Isuzu fire truck is also called Isuzu fire engine,Isuzu fire tender,Isuzu fire fighting truck and Isuzu rescue vehicle. It is widely used in petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments. It can quickly approach the fire scene to start fire fighting and put out various fires. ISUZU GIGA heavy duty fire fighting truck is an ideal fire-fighting equipment for fire fighting and rescue. It is especially suitable for extinguishing oil fires such as petroleum and its products. It can also supply water and foam mixture to the fire scene. It is an essential fire-fighting vehicle for petrochemical enterprises, oil terminals, airports and urban professional fire brigades.

Powered by Japanese Isuzu efficient 6WG1-TCG61 diesel engine, with 338KW/460HP and emission can be 15681cc, the Isuzu fire engine delivers dependable performance with low emissions, complying with international environmental standards. Including CB10/60 fire pump capable of discharging up to 3,600 liters per minute and a water tank with a capacity of 12,000liters, and a foam tank with a capacity 2,000liters, depending on configuration. Isuzu GIGA Heavy Duty Fire Fighting Truck is equipped with a roof-mounted water cannon and multiple hose reels for targeted fire suppression. Additional firefighting tools, such as foam-proportioning systems, enhance its versatility in tackling chemical or electrical fires.

● China best Isuzu VC66 foam water fire truck factory

● More than 500 workers, large and advanced production

● ISUZU Classic GIGA truck chassis

● Promptly delivery. any order is welcome

● 24 month quality guarantee term



This Isuzu GIGA 14000L fire fighting truck not only has powerful power and excellent driving performance, but is also specially designed to handle various fire and emergency rescue tasks. It is equipped with large-capacity water tanks and foam tanks, as well as high-efficiency fire pumps and fire cannons, allowing firefighters to quickly launch fire extinguishing and rescue operations at the first time. Whether it is a complex situation such as urban fire, forest fire or chemical leakage, the Isuzu GIGA fire water truck can provide comprehensive and professional firefighting support to protect people's lives and property to the greatest extent. Therefore, this Isuzu GIGA fire water tank truck is an indispensable and important equipment for the fire department and a key force in ensuring social security and stability.

Fire Truck Specification

Chassis model

Isuzu GIGA

Cab

extended double cab, single berth, up/down and front/back adjustable steering wheel, with air conditioning.

Driving Type

4X2 Left hand driving (LHD)

Max Speed (km/h)

95

Overall dimension (mm)

8980*2500*3700

GVW (kg)

22000

Curb Weight (kg)

8000

Wheelbase (mm)

4600

Tire

315/80R22.5 16PR

Steering

Hydraulic steering with power assistance

Gear box

FAST 12 speed forward & 2 reverse manual

Bridge

Front axle

 7500kg

Rear axle

15000kg







Engine





Model

6UZ1-TCG61

Brand

ISUZU

Emission Standard

EURO 6

Fuel Type

Diesel

Horsepower (hp)

380

Exhaust (ml)

9839

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Electric system

24v

Fire Fighting Tanker System Upper-Body Specification

Liquid tanker

Volume

12,000Liter Water Tank

Material

Carbon steel plate, anti-rust treatment inside.

Volume

2000 Liter Foam Tank

Material

Stainless steel plate

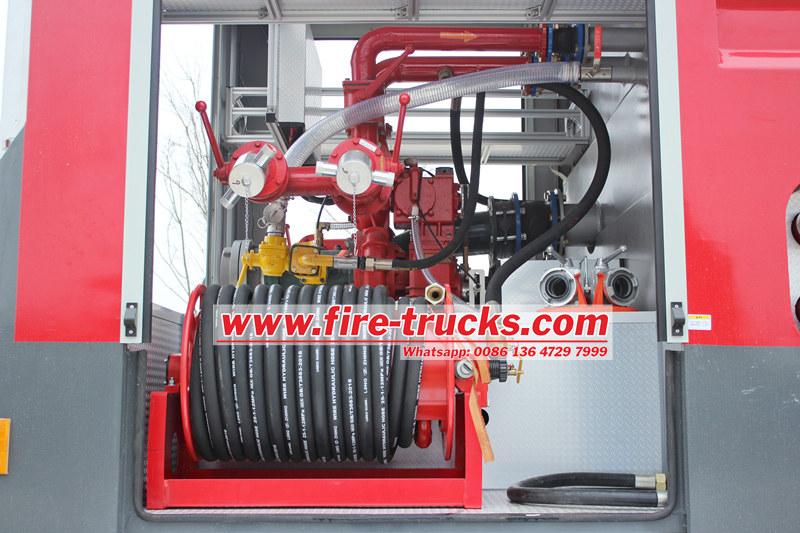

Fire fighting pump

Model

CB10/60

Pressure:

1.0Mpa

Flux:

Water 60L/S Foam 30L/S

Suction depth

:≥ 7m

Suction time

≤35s

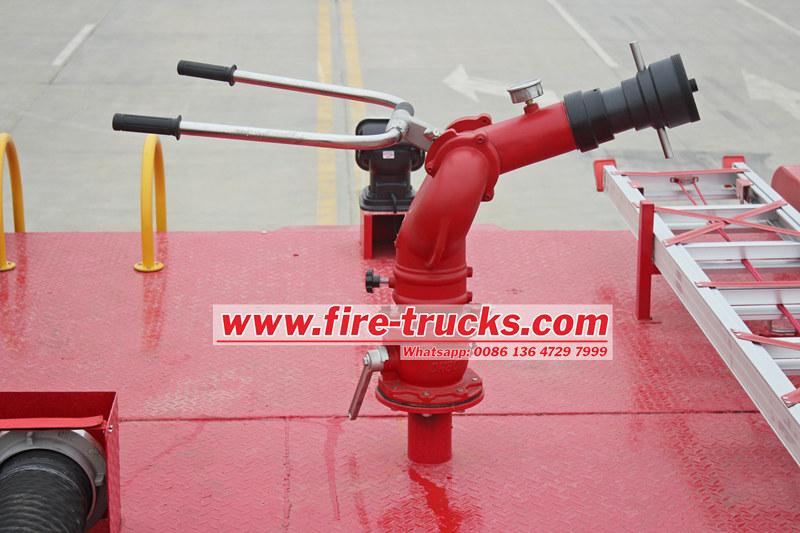

Fire fighting nozzle



Model:

PL32

Range:

Water ≥ 48m  Foam ≥ 55m

working pressure

≤1.0(Mpa)

Horizontal rotation angle

360 º

color

According to customer wish






Here are five notable features of this Isuzu GIGA 14000L fire pumper truck:

1. High-efficiency power and environmental protection coexist: Equipped with the ISUZU brand 6WG1-TCG61 diesel engine, it not only provides strong power of up to 460 horsepower, but also complies with EURO 6 emission standards, achieving the perfect combination of power and environmental protection.

2. Excellent driving and controllability: Using a 6X4 left-hand drive layout and a FAST 12-speed forward and 2-speed reverse manual transmission, and equipped with a hydraulic steering assist system, the fire truck can show superiority on urban roads or complex terrains driving and handling performance.

3. Large-capacity and multi-functional firefighting equipment: The large-capacity design of 12000-liter water tank and 2000-liter foam tank, combined with CB10/60 high-efficiency fire pump and PL48 fire cannon, enables the vehicle to respond to various types of fires and achieve rapid firefighting , effective fire fighting and rescue.

4. Advanced safety braking system: It adopts multiple braking systems such as compressed air braking, spring energy storage parking brake and engine exhaust auxiliary braking to ensure safe and reliable parking in various emergency situations.

5. Eye-catching appearance and practical design: The entire vehicle is painted in red frosted fire-fighting paint, which not only complies with fire protection regulations, but is also easy to identify at a fire scene. At the same time, the extended double cab design and comfortable internal configuration provide a good working environment for firefighters and embody the practical and humanized design concepts.

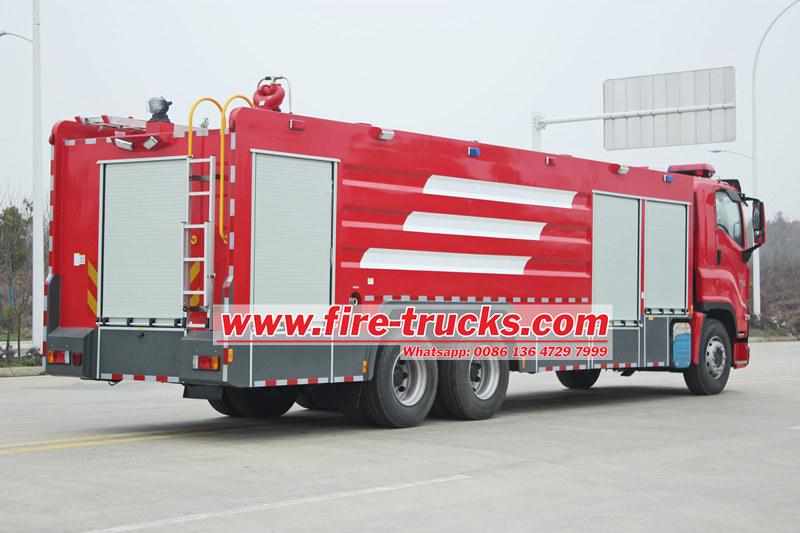

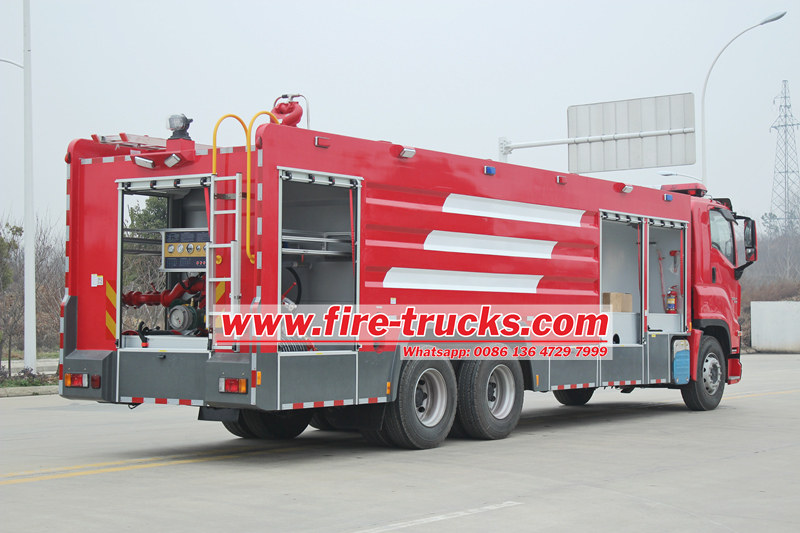

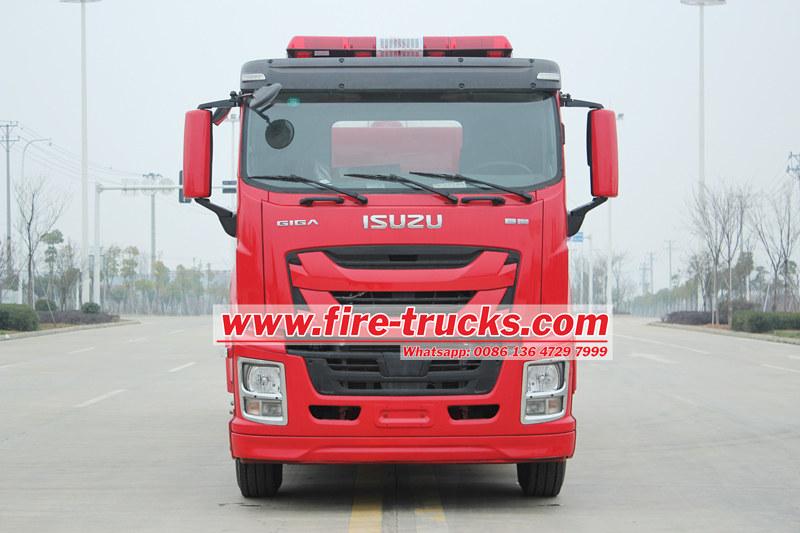

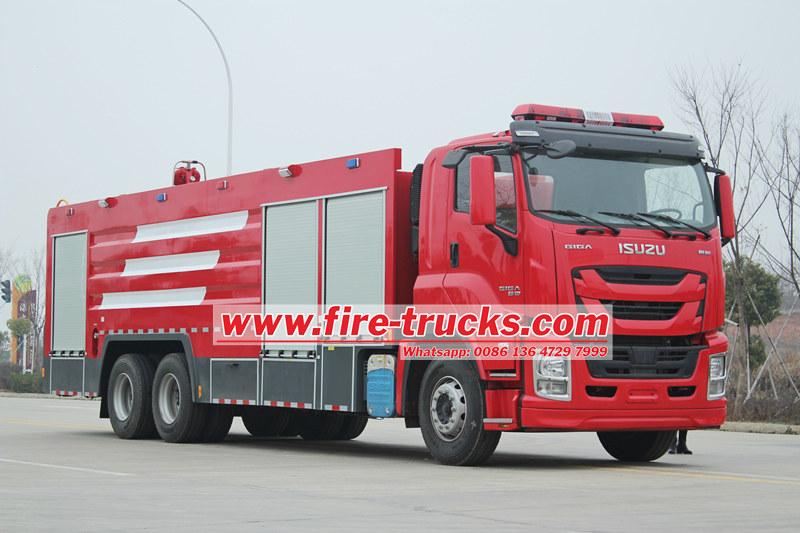

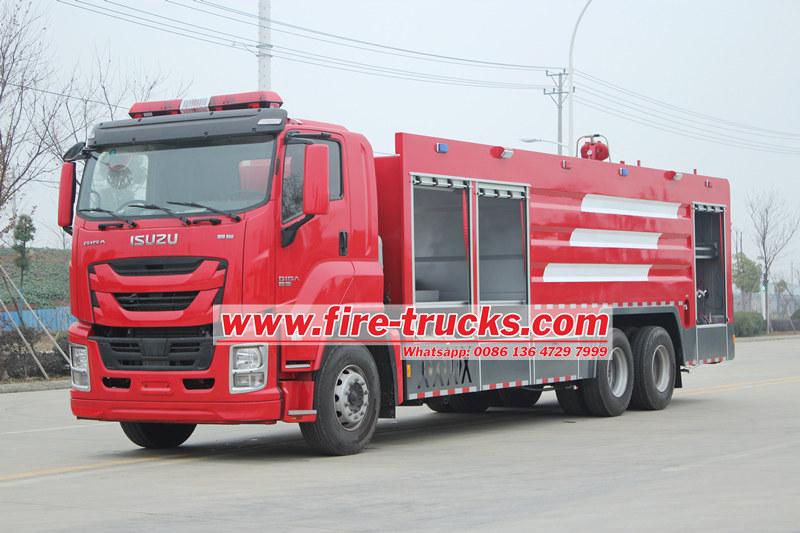

Isuzu GIGA fire fighting truck




Isuzu GIGA 14Ton foam fire truck has a complete range of vehicle configurations and various specifications to meet various operational requirements. Able to quickly approach the fire scene to start a fire-fighting battle and extinguish various fires. Because foam fire trucks have natural advantages in fire extinguishing, they have strong adhesion, long durability, excellent heat insulation and heat radiation, and can effectively control the re-ignition of solid combustibles. Its special performance determines that most of the working environments of this kind of fire truck are particularly dangerous fire scenes such as petrochemical industry.
Isuzu GIGA fire engine have equipped top 1 Chinese brand XIONGZHEN fire pump CB10/60-XZ model, details as below:
