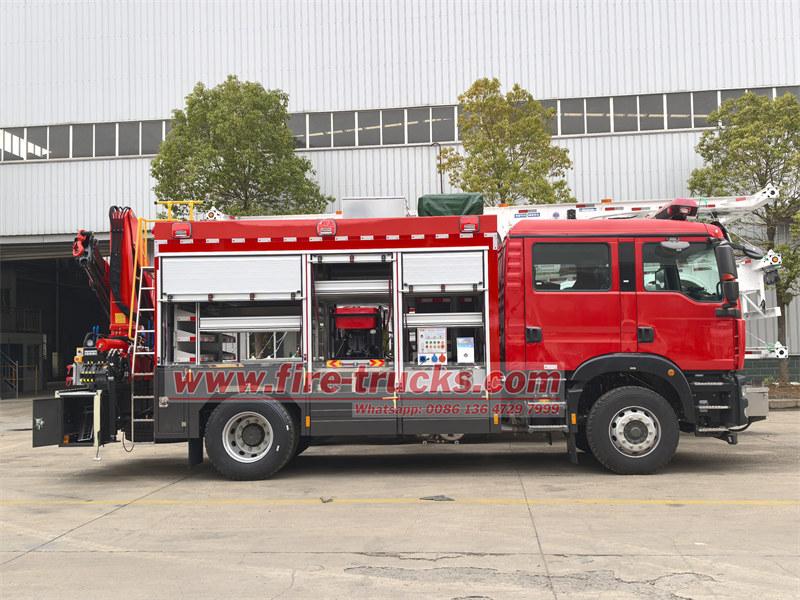

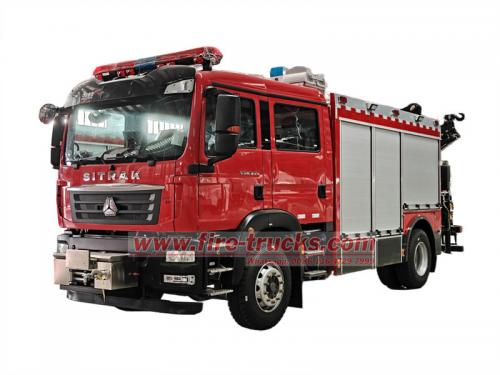

The HOWO SITARK 4×2 rescue fire truck is a professional rescue vehicle integrating crane lifting, towing, lighting, and other functions. Built on a SINOTRUK special chassis, it is powered by a 330-horsepower diesel engine with a top speed of 95 km/h. Key features include a Palfinger knuckle boom crane with a 6.79-ton lifting capacity, an electric winch with 70KN towing force, a 4KW lifting lighting system, and an 11.5KVA onboard generator. With overall dimensions of 8730×2500×3550 mm, a gross weight of 20 tons, and a 4500 mm wheelbase, the vehicle balances mobility and stability, making it ideal for complex rescue scenarios such as highway accidents and building collapses. It serves as a modern firefighting force's primary rescue equipment.
Truck Model:
PT5200TXFJYTanker Structure:
No tankWork capacity :
6790 kgWheelbase:
4500 mmAxle drive:
4×2, left hand driveEngine Power:
330HPEngine Model:
MC07H.33Fire Pump:
No pumpFire Monitor:
No monitorRemark:
6×6 drive is optionalIn the field of fire and rescue, a high-performance, multi-functional emergency rescue fire truck is a critical asset for safeguarding lives and property. The HOWO 4×2 heavy-duty rescue truck stands out as an outstanding representative, combining advanced technology with robust capabilities. With its superior chassis performance, specialized superstructure, and reliable equipment configuration, it serves as a powerful assistant in handling various emergency rescue missions.

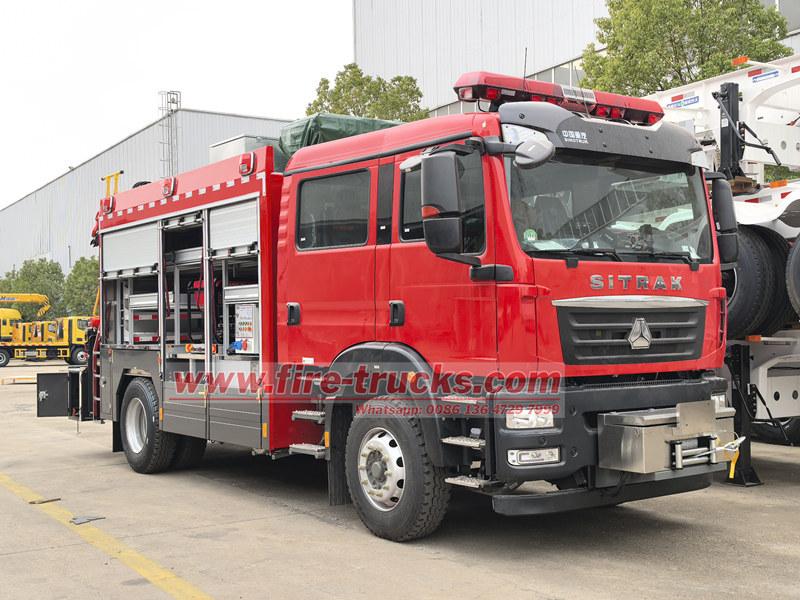

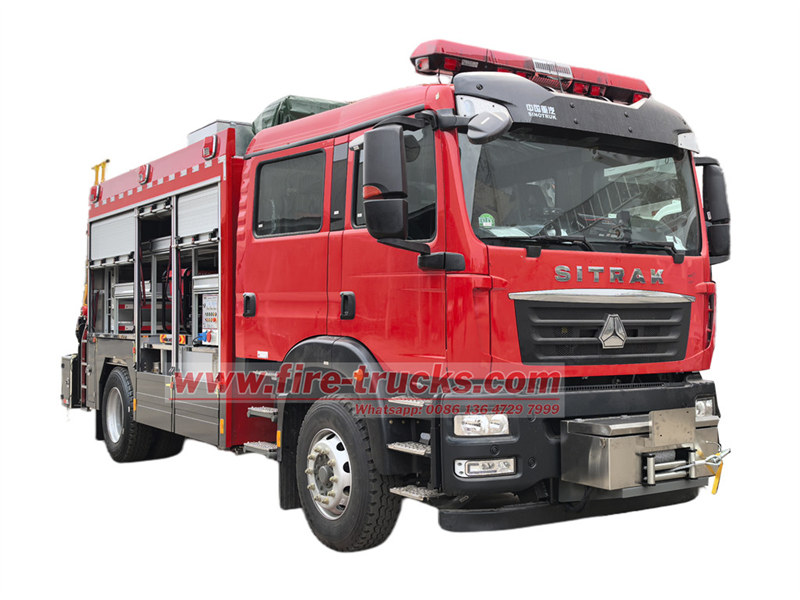

The vehicle is built on a SINOTRUK SITARK chassis, featuring a double-row cab equipped with power steering, an electronic shutdown device, and an air conditioning system, providing drivers with a comfortable and convenient operating environment.

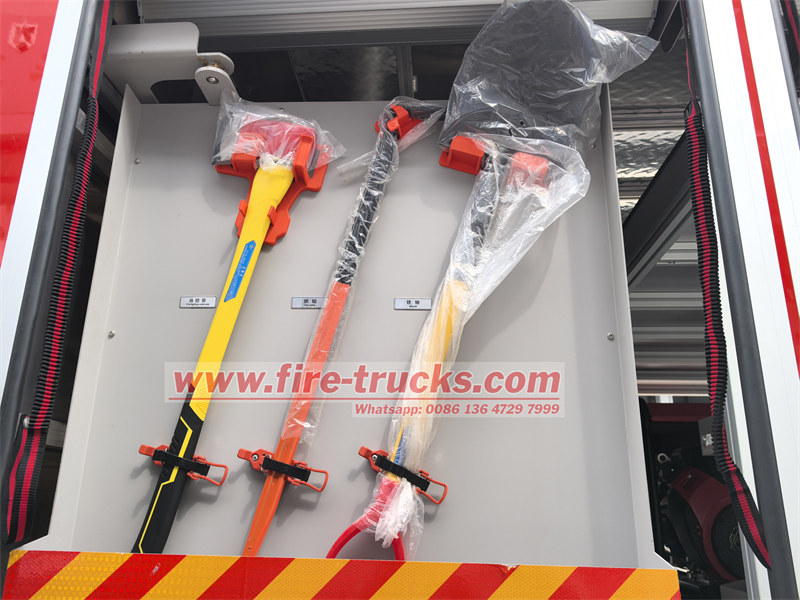

The superstructure is one of the core highlights of the HOWO heavy rescue fire truck. Its crane, towing winch, power generation and lighting system, and multi-functional equipment compartments offer comprehensive support for rescue operations.

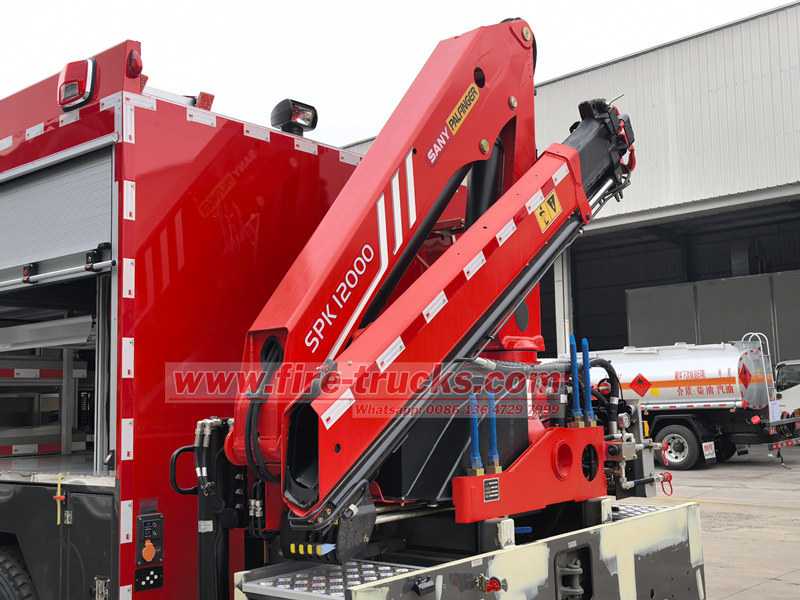

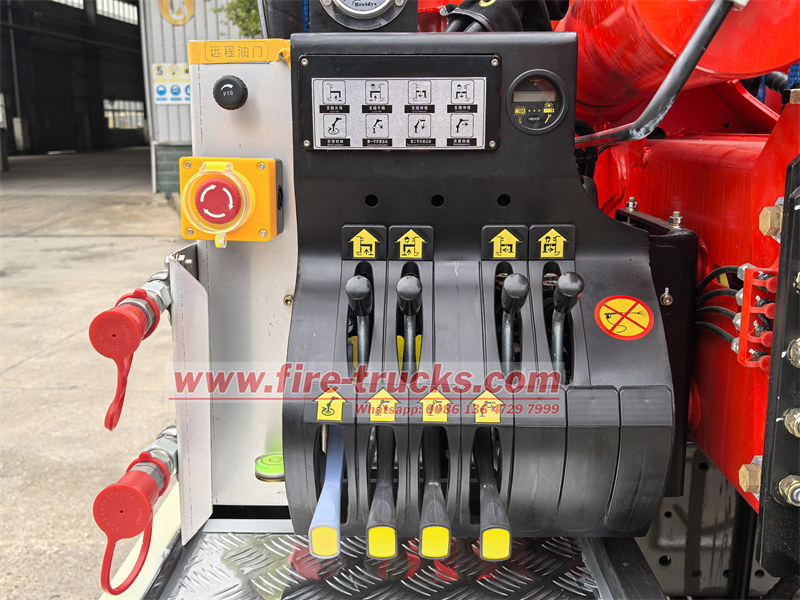

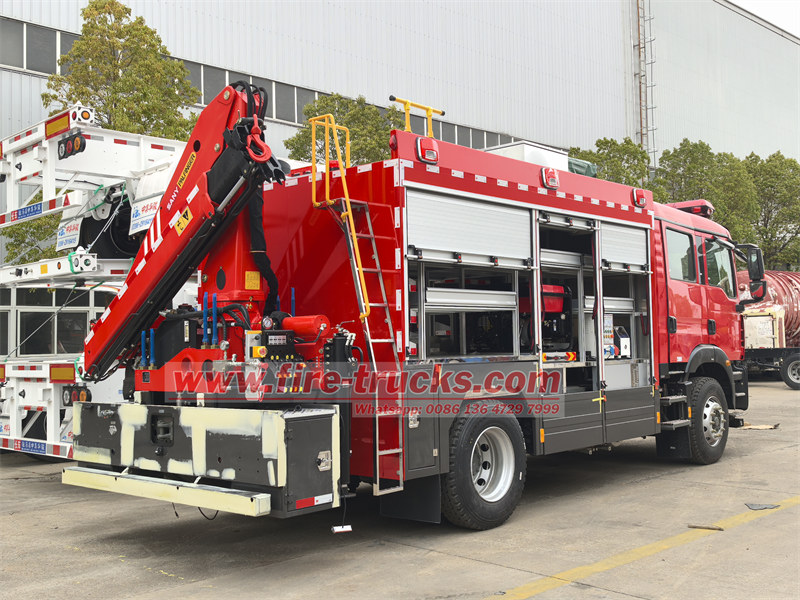

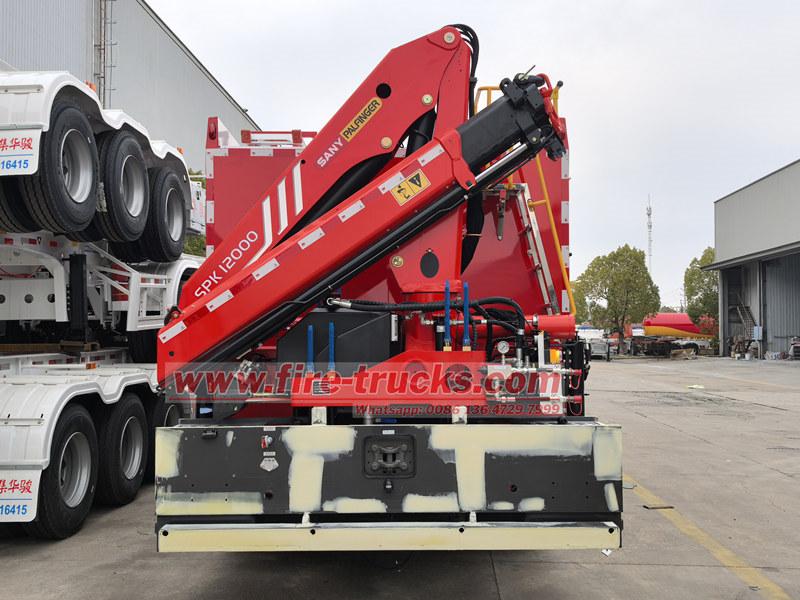

The HOWO fire rescue vehicle is equipped with a Palfinger SPK12000 truck-mounted crane. This crane boasts a maximum lifting capacity of 6,790 kg, a maximum lifting moment of 11.6 T.M, a horizontal maximum lifting distance of 14.6 m, 4 telescopic sections, a 420° rotation angle, and a maximum outrigger span of 5,600 mm. Its hydraulic system operates at 30 MPa pressure with a 30 L/min flow rate and a 90 L hydraulic oil tank capacity, ensuring stable and efficient performance in complex working conditions. Whether lifting rescue equipment or relocating heavy objects at accident scenes, this crane delivers exceptional lifting power.

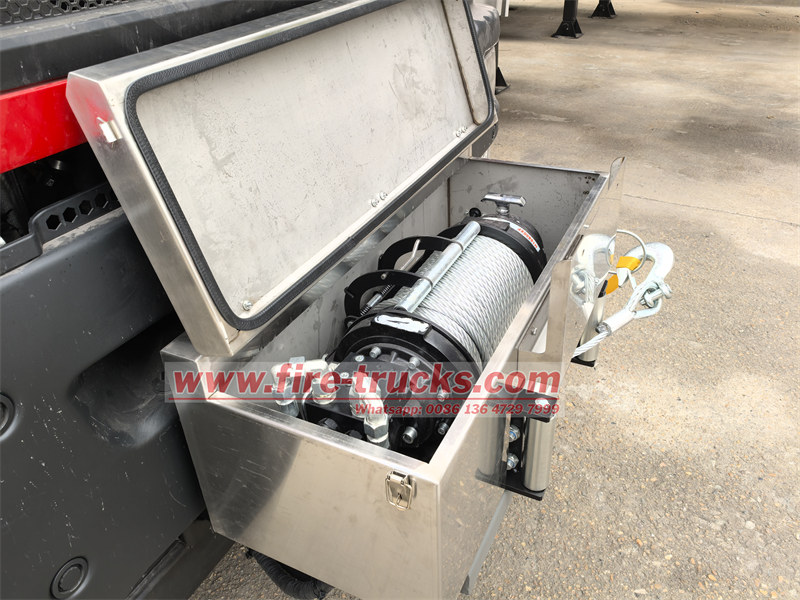

The towing winch is equally impressive. The HOWO rescue fire truck features an H16800XF electric towing winch with a maximum pulling force of 70 KN, a 10 mm diameter steel cable, and a maximum towing length of 35.2 m, mounted at the front of the vehicle. In rescue scenarios where vehicles are stuck or equipment needs to be towed, this winch plays a crucial role in enhancing operational efficiency.

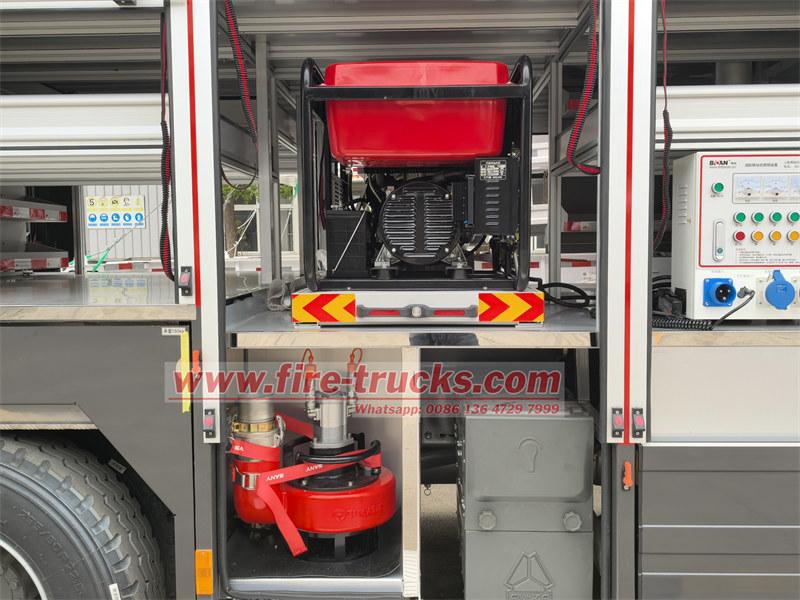

The power generation and lighting system ensures effective rescue operations at night or in low-light conditions. The vehicle adopts a pneumatic lifting lighting system with four 1000W halogen lamps, totaling 4 KW in power. The lighting mast extends to 8.49 m above ground, with a 360° horizontal rotation angle and 406° total tilt angle, enabling full-range illumination. The system supports manual or remote control and features an auto-reset function, ensuring user-friendly and intelligent operation. Additionally, the HOWO emergency rescue fire truck is equipped with a generator rated at 11.5 KVA, 50 Hz, and 230V/400V, providing stable power supply for various rescue equipment.
● 30 years experience on firefighting truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● Be designed according to your requirements
Product Specifications
HOWO SITARK 4×2 Heavy Fire Rescue Vehicle Specifications |
||
Chassis model |
SINOTRUK SITARK |
|
Cab |
HOWO double row cab, with power steering. Electronic flameout, with a/c |
|
Driving Type |
4*2 Left hand driving |
|
Max Speed (km/h) |
95 |
|
Overall dimension(mm) |
8730×2500×3550mm |
|
GVW (kg) |
20000 |
|
Curb weight (kg) |
19500 |
|
Wheelbase(mm) |
4500 |
|
Approach/departure angle (°) |
16/12 (°) |
|
Front/rear overhang (mm) |
1450/2360(mm) |
|
Tire |
295/80R22.5, 6+1 pcs |
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
Steering |
Hydraulic steering with power assistance |
|
Gear box |
10-speed |
|
Axle load |
Front axle |
7000 kg |
Rear axle |
13000 kg |
|
Engine |
Model |
MC07H.33 |
Fuel Type |
Diesel fuel |
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
|
Displacement (ml) |
7360 ml |
|
Max output power |
330HP/240kW |
|
Rated speed (rpm) |
2200 rpm |
|
Max. torque (N.m) |
1400 N.m |
|
Braking system |
Service Brake |
Compressed air brake |
Park Brake |
Spring energy |
|
Auxiliary brake |
engine exhaust brake |
|
Superstructure Specifications |
||
Crane |
Brand |
Palfinger |
Model |
SPK12000 (knuckle boom crane) |
|
Max. lifting capacity |
6790kg |
|
Max. lifting moment |
11.6 T.M |
|
Horizontal max. lifting distance |
14.6 m |
|
Number of sections |
4 |
|
Rotation angle |
420° |
|
Max. outrigger span |
5600 mm |
|
Hydraulic system pressure |
30 Mpa |
|
Hydraulic system flow |
30 L/min |
|
Hydraulic oil tank capacity |
90 L |
|
Traction winch |
Model |
H16800XF |
Max. traction force |
70KN |
|
Drive type |
Electric |
|
Steel rope diameter |
10mm |
|
Max. traction length |
35.2 m |
|
Installation position |
Front-mounted |
|
Lighting system |
Type |
Pneumatic lifting type |
Lighting power |
4×1000W (4KW) |
|
Lighting |
Halogen lamp |
|
Height from ground |
8.49 m |
|
Rotation angle |
Horizontal 360°, pitch angle total 406° |
|
Control method |
Can be controlled manually or remotely, with automatic reset function |
|
Generator |
Rated power |
11.5 KVA |
Rated frequency |
50 HZ |
|
Rated voltage |
230V/400V |
|
Rated current |
13.3A |
|
Starting method |
electric start/manual start |
