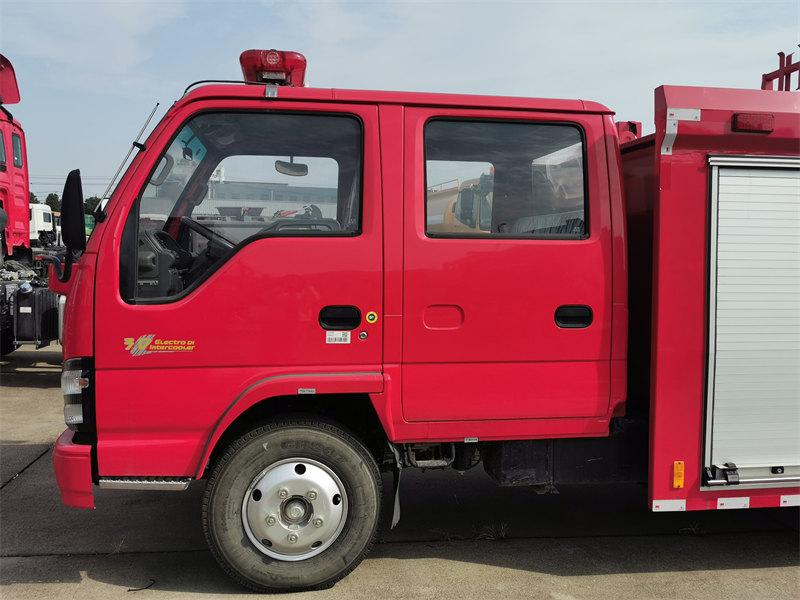

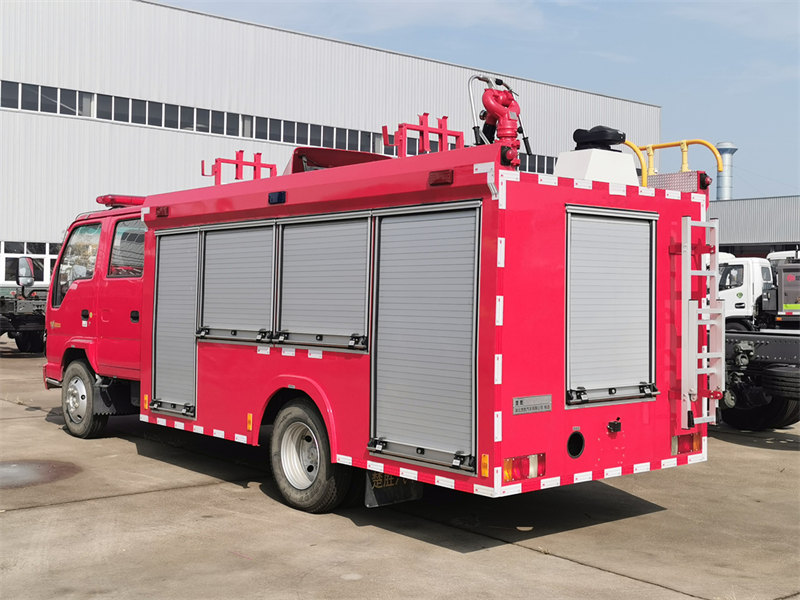

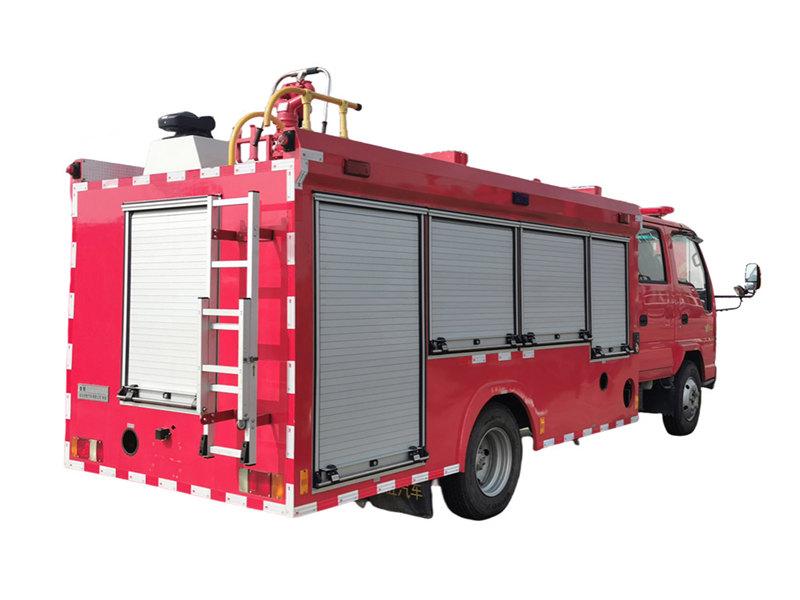

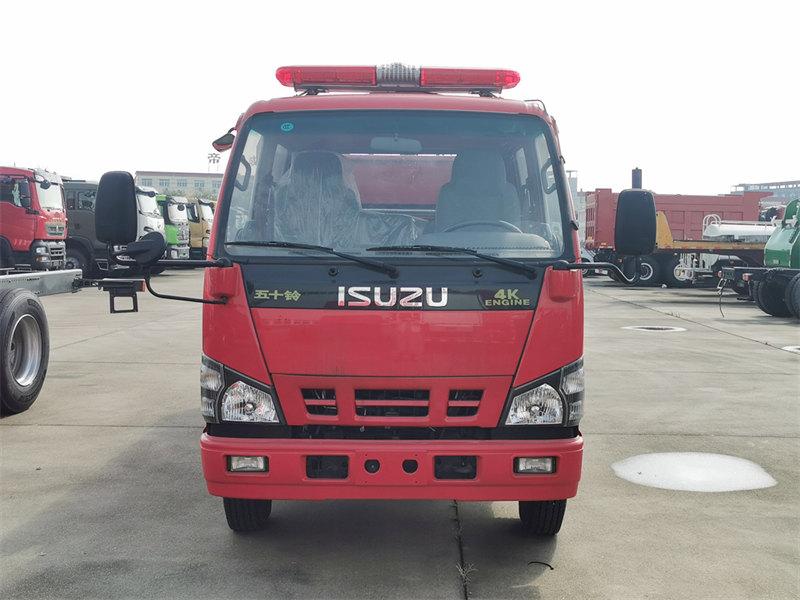

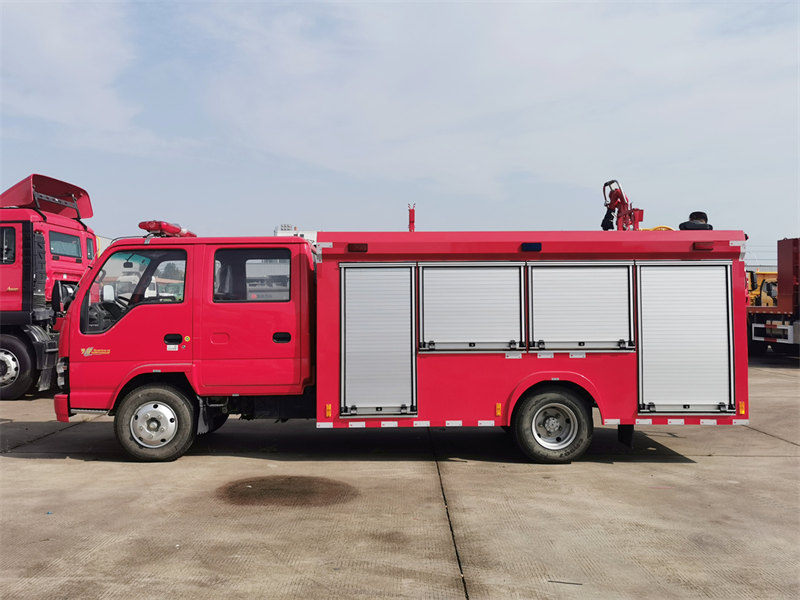

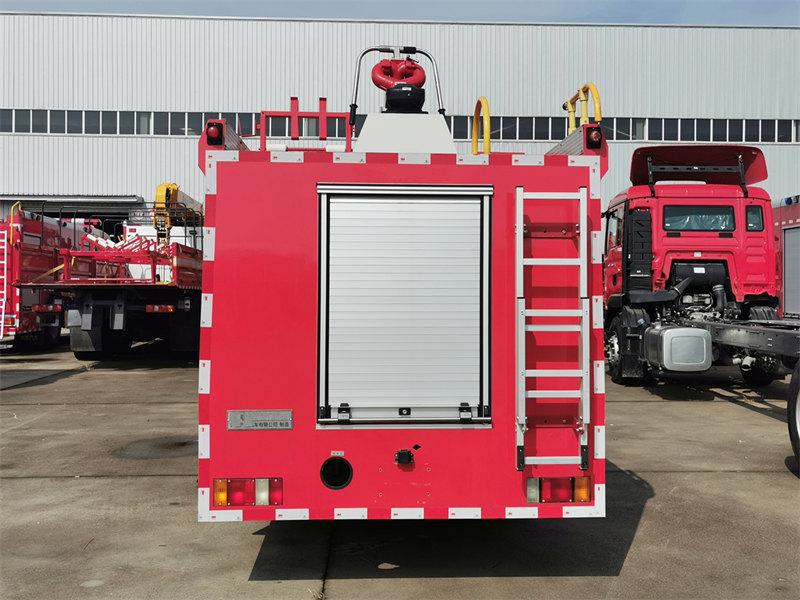

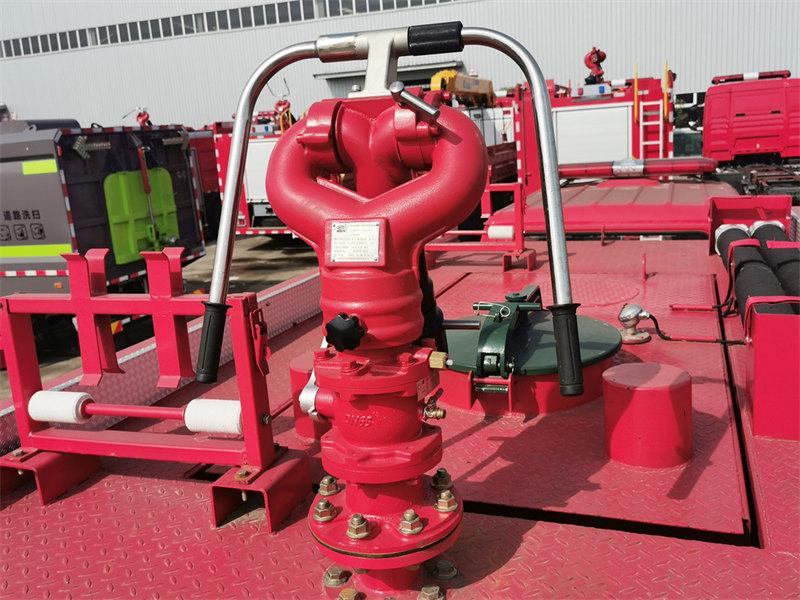

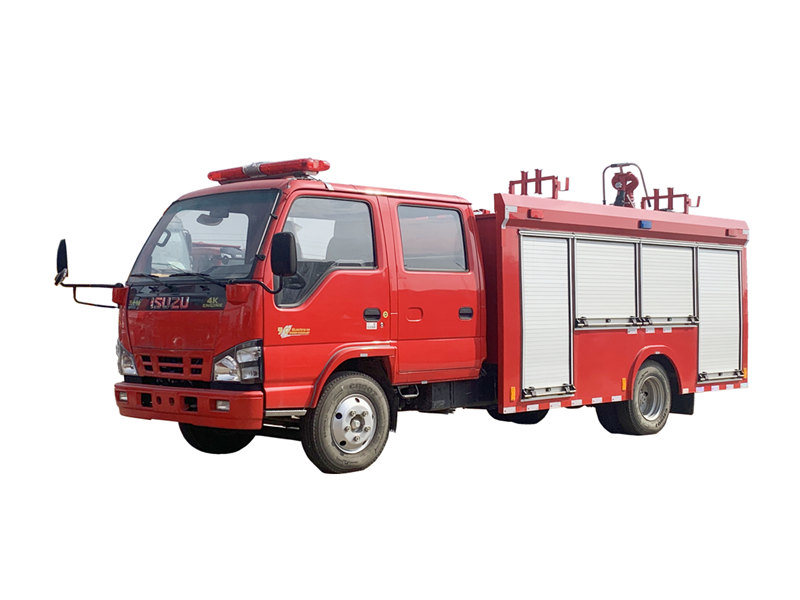

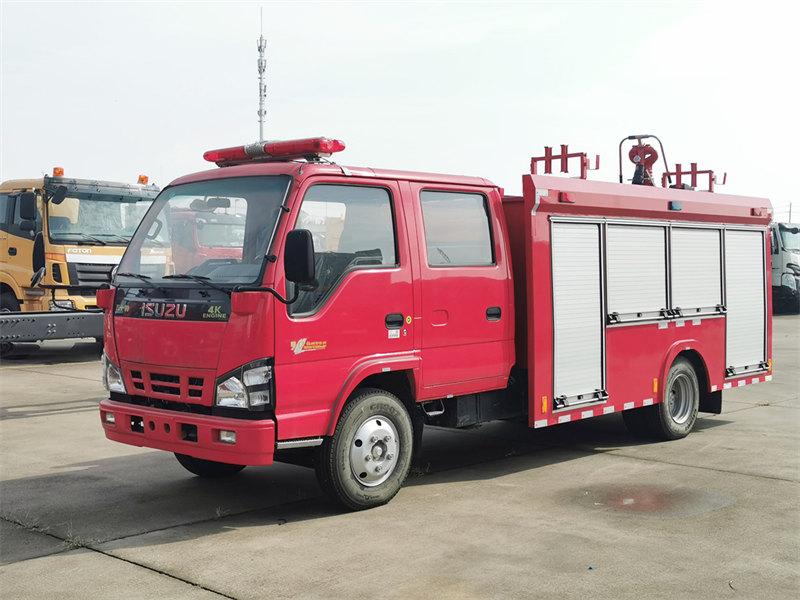

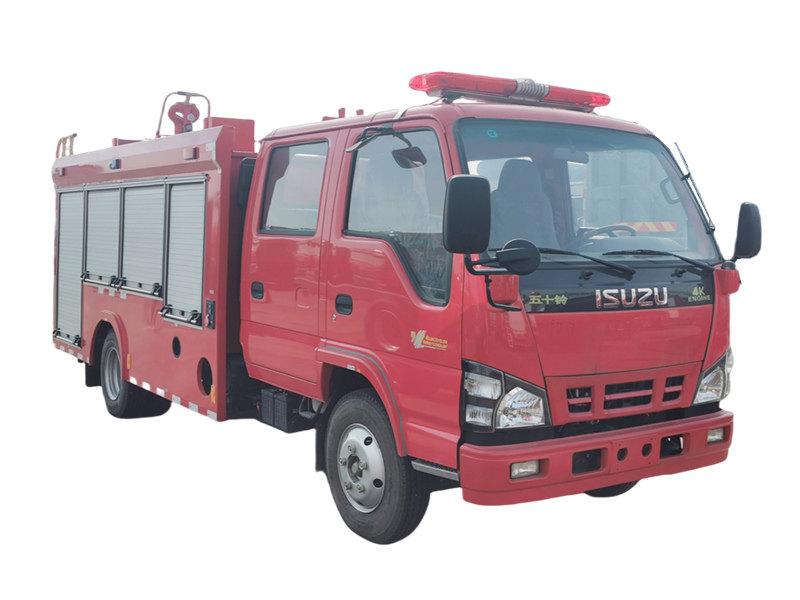

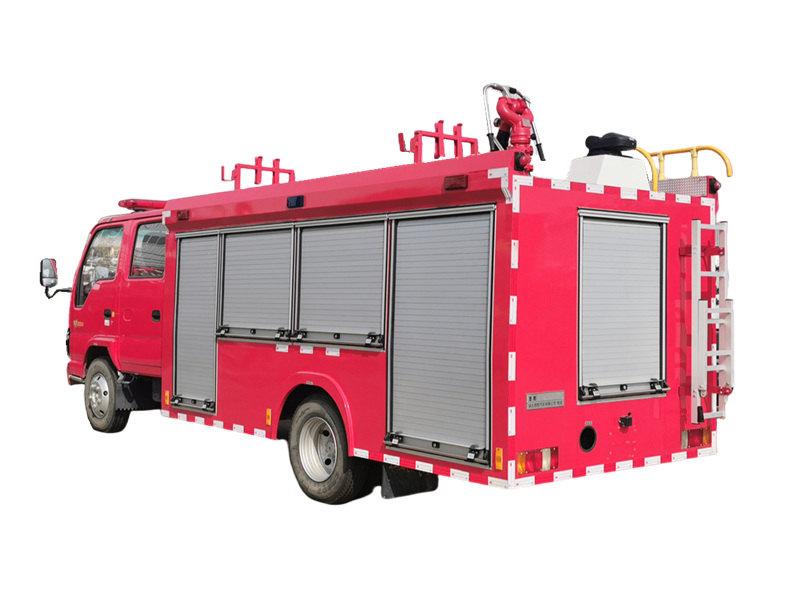

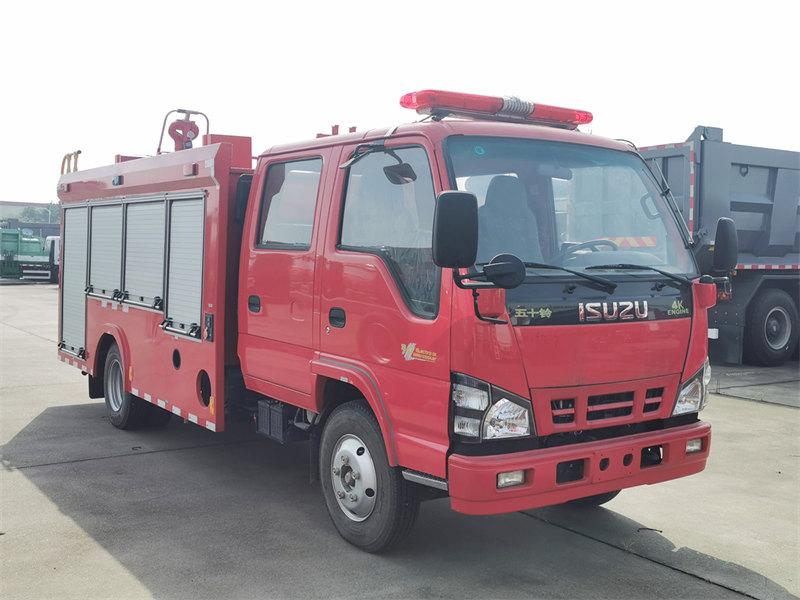

The POWERSTAR 2-ton water tank fire truck is built on an ISUZU NKR light-duty vehicle chassis, featuring an original double-row cab with a seating capacity of 2+3. Equipped with a 2000L carbon steel water tank, the vehicle houses a rear-mounted CB10/30 normal-pressure fire pump in the pump compartment. The roof is fitted with a PS8/30W fire monitor, delivering a flow rate of 30L/s and a range of 60m, capable of 360° rotation. This fire truck boasts a short wheelbase, strong off-road capability, comprehensive performance, and centralized, user-friendly controls.
Manufacturer Origin:
Powerstar TrucksWork capacity :
2000LUpper Body material:
Carbon steelProduction time:
60 daysWheelbase:
3815 mmAxle drive:
4×2Engine Power:
120 HPEngine Model:
Isuzu 4KH1CN6LBFire Pump:
CB10/30, 30L/sFire Monitor:
PS8/30 for water, 60m rangeRemark:
tanker material stainless steel, PP, 4X4, RHD driveThe ISUZU mini water tank fire truck is a specialized rescue vehicle developed by POWERSTAR based on the ISUZU NKR light-duty chassis, primarily designed for firefighting and emergency rescue operations. With a 2000L water tank capacity and a curb weight of 6800kg, it is powered by a 4K H1CN6LB diesel engine, reaching a top speed of 110km/h. The vehicle is equipped with a normal-pressure or medium-low-pressure fire pump and a PS8/30W fire monitor with a range of ≥60m, enabling firefighting operations while on the move. Compact in structure yet fully equipped, this ISUZU mini fire tender can swiftly respond to fire emergencies in enterprises, communities, or rural areas, forming immediate small-scale firefighting capabilities for initial fire suppression and evacuation. It is widely applicable for fire rescue stations, rural professional fire brigades, and enterprise firefighting teams.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU NKR truck chassis, 4x2, 4x4 and right hand drive model
4KH1 model with 120HP and displacment 2999cc
2. Tank material: 4mm thickness carbon steel water tank with anti-corrosion coating inside
stainless steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized water or foam tank capacity
4. Fire Pump: CB10/30 centrifugal fire pump, flow rate 30L/s, rated working pressure 1.0Mpa
Optional CB10/20 fire pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

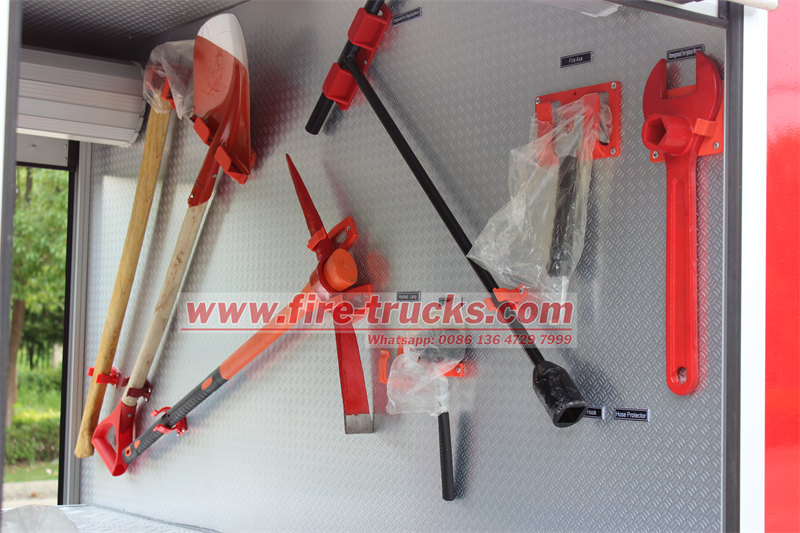

Full sets of fire fighting and rescue tools equipped for convenient working, fire extinguishing and people rescue
A water tank fire truck, also known as a fire tanker truck, water tender fire truck, is equipped not only with a fire pump and related gear but also features a large-capacity water storage tank, water guns, monitors, and other firefighting tools. It can transport water and firefighters to the scene for independent firefighting operations. The vehicle can directly draw water from a source for fire suppression or supply water to other fire trucks and firefighting equipment. In water-scarce areas, it can also serve as a water supply and transport vehicle. Suitable for tackling general fires, it is a staple in both public security fire brigades and enterprise firefighting units.
» Ⅱ.Product Parameter for Isuzu 2000L mini fire pumper truck:
Vehicle description |
||
Overall dimension |
6680*1980*2880mm |
|
GVW |
6800kg |
|
Curb weight |
4050kg |
|
Chassis brand |
ISUZU |
|
Traction type |
4*2, left hand drive |
|
Approach/departure angle |
24°/14° |
|
Chassis description |
||
Chassis model |
QL1070BUKWY |
|
Cab |
Double row , 2+ 3 seats with AC |
|
Wheelbase |
3815mm |
|
Tire specification |
7.00R16 |
|
Tire quantity |
6+1 units |
|
Engine |
Engine model |
4KH1CN6LB |
Emission level |
Euro 6 |
|
Displacement/output |
2999ml/88kw |
|
Horse power |
120hp |
|
Gear box |
Number of gears |
5 |
Brake system |
Full air brake, power steering, spring brake, exhaust brake |
|
Axle |
Front |
2.1T |
Rear |
4.7T |
|
Suspension |
Front |
Leaf spring |
Rear |
Leaf spring |
|
Superstructure description |
||
Tanker capacity |
Water tanker |
2000 liters |
Foam tanker |
Optional |
|
Tank material |
Carbon steel (stainless steel is optional) |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/30, normal pressure pump |
Flow |
30L/S |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Fire monitor |
Model |
PS8/30W |
Pressure |
0.8Mpa |
|
Range |
Water ≥60 m |
|
Rotation angle |
Horizontal 360° |
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.
2. Skilled workers for production:

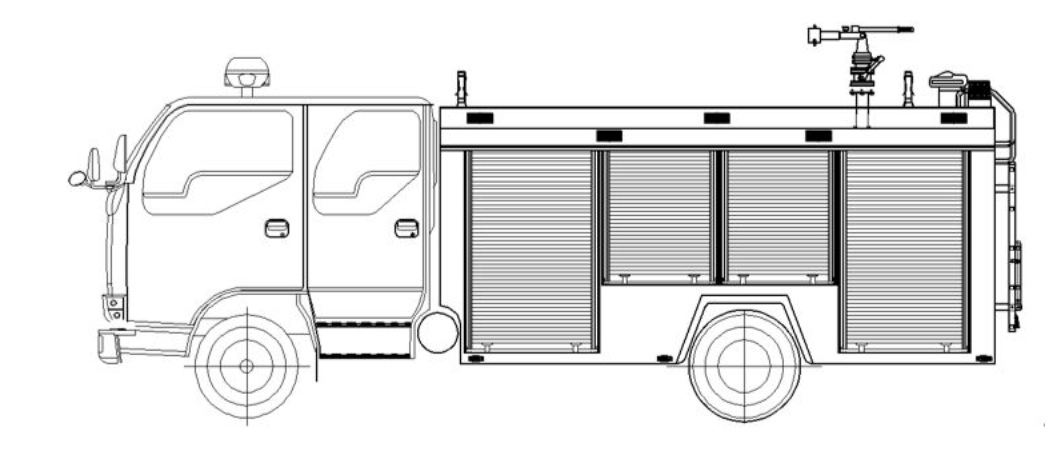

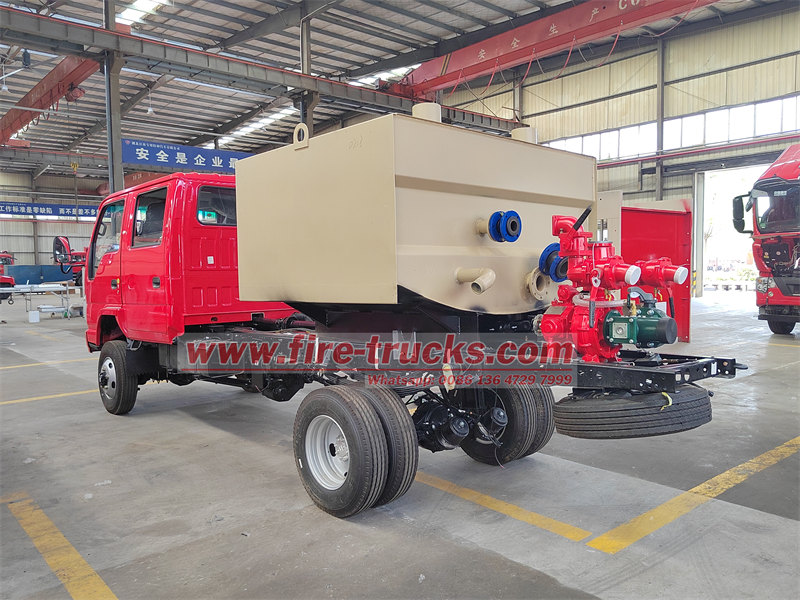

Isuzu fire engine technical drawing helps for producing guidance, skilled workers make the tank, install the Sandwich PTO, CB10/30 fire pump, PS8/30 fire monitor, Pump in and Pump out valves, lighting system, also full Aluminium alloy decoration.
3. Prepare full fire fighting equipment:
Fire truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
