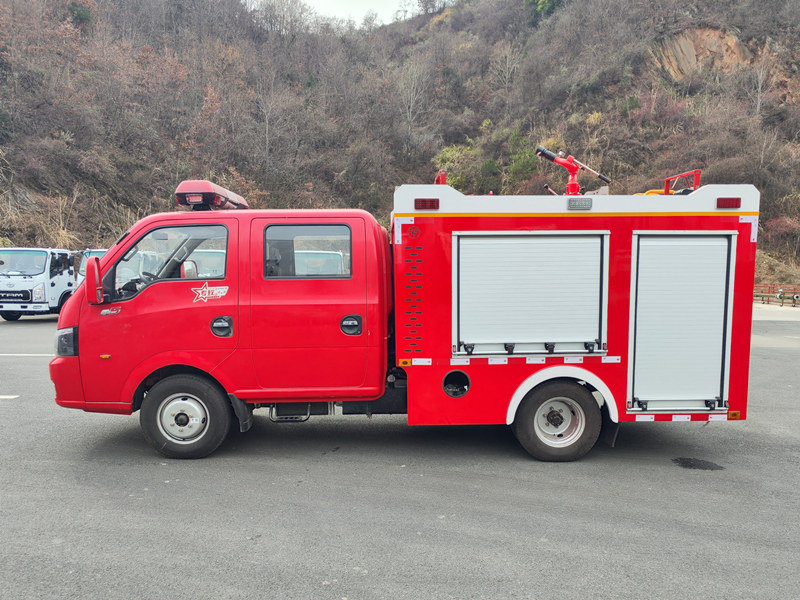

The Dongfeng Water Tank Fire Truck features a 1000L water tank constructed from high-quality carbon steel. It is equipped with a CB10/20-BL low-pressure fire pump with a flow rate of 20L/s and a PS8/20W fire cannon, also with a flow rate of 20L/s and a range exceeding 50 meters. This vehicle is widely applicable for fire rescue stations, rural firefighting, industrial firefighting, as well as fire protection in schools and communities.
Manufacturer Origin:
Powerstar TrucksWork capacity :
1000LUpper Body material:
Carbone steelProduction time:
50 daysWheelbase:
3000 mmAxle drive:
4×2Engine Power:
95 HPEngine Model:
Q23-95E60Fire Pump:
CB10/20, 20L/sFire Monitor:
PS8/20 for waterRemark:

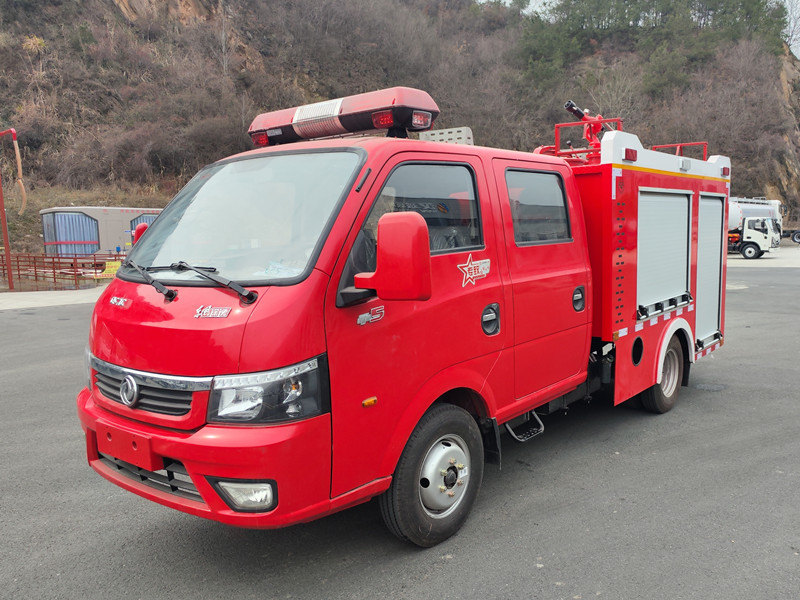

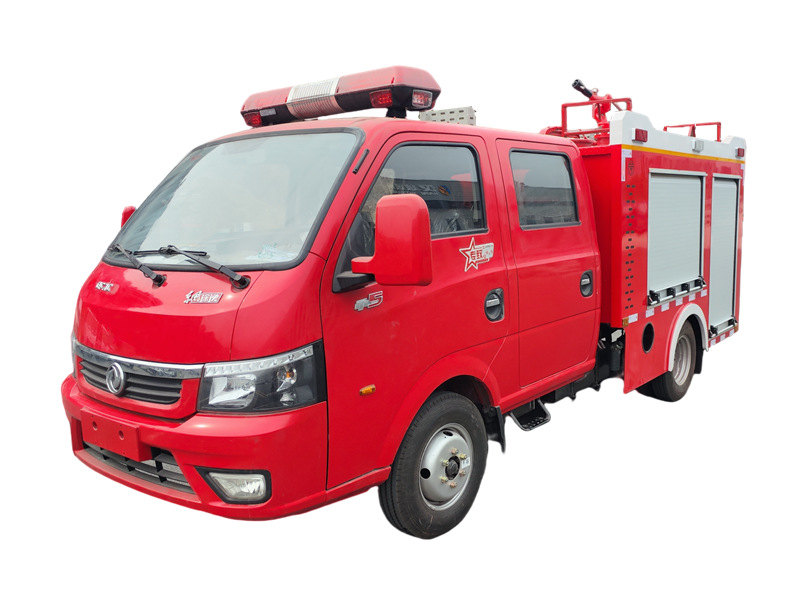

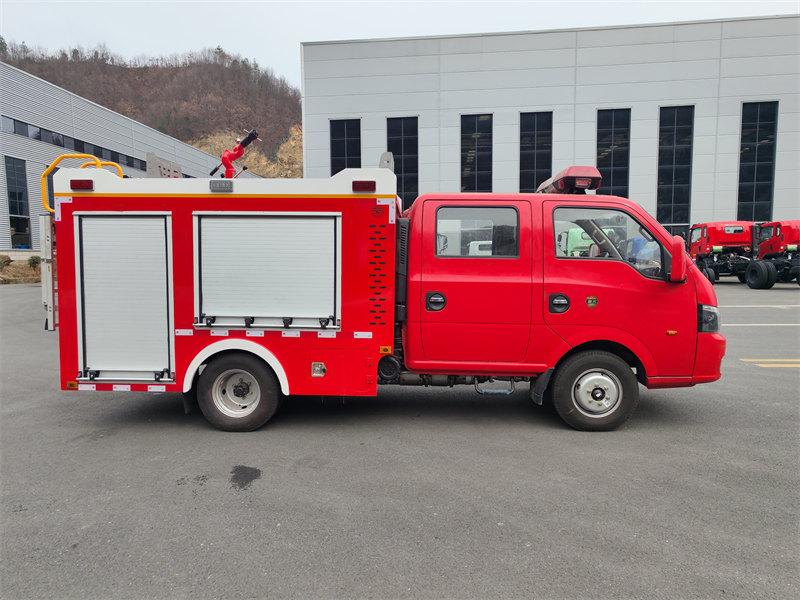

tanker material stainless steel, PP, RHD drive is optionalPOWERSTAR Mini Water Tank Fire Truck is modified on the Dongfeng EQ1040D16 chassis. Its front section is designed with a double-row crew cabin, accommodating 2+3 firefighters. The mid-section of the vehicle carries a high-quality carbon steel liquid tank, treated with an internal epoxy primer and epoxy asphalt coating, with a water capacity of up to 1000kg. Additionally, the vehicle is equipped with a CB10/20-type standard-pressure fire pump from a renowned Chinese brand, delivering a rated flow of 20L/s, and a roof-mounted PS20 fire cannon with a range exceeding 50 meters. The Dongfeng Mini Tanker Fire Truck is known for its compact size, high mobility, superior handling, and ease of maintenance, allowing it to navigate streets and alleys effortlessly. It is an ideal choice for emergency fire rescue operations in community micro fire stations, rural areas, markets, factories, and similar settings.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: Dongfeng mini truck chassis, 4x2, left and right hand drive
Q23-95 model diesel engine with 95HP and displacement 2300cc
DAM16KLQ model gasoline engine with 122HP, and displacement 1597cc.
2. Tank material: High quality carbon steel, treated with an internal epoxy primer and epoxy asphalt coating
stainless steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized capacity for water, foam tank is optional

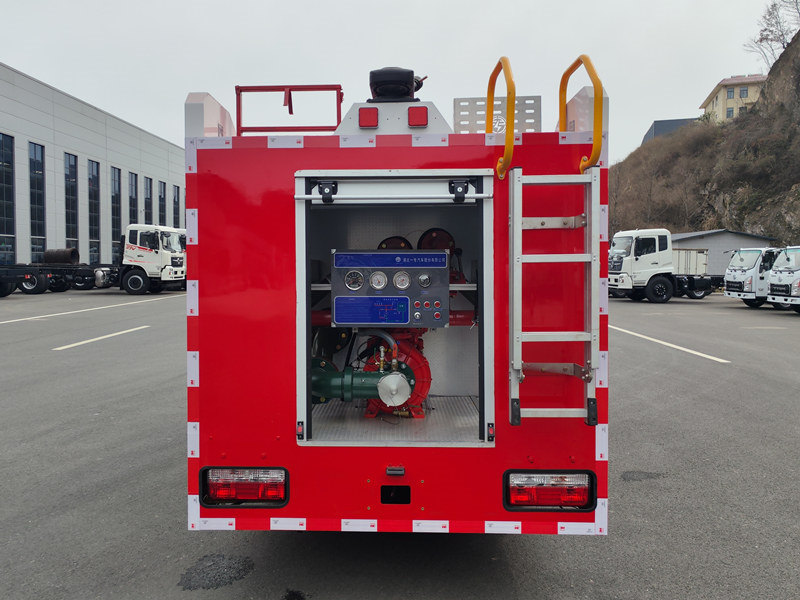

4. Fire Pump: CB10/20 centrifugal fire pump, normal pressure, flow rate 20L/s
Optional CB10/30 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped with foam system

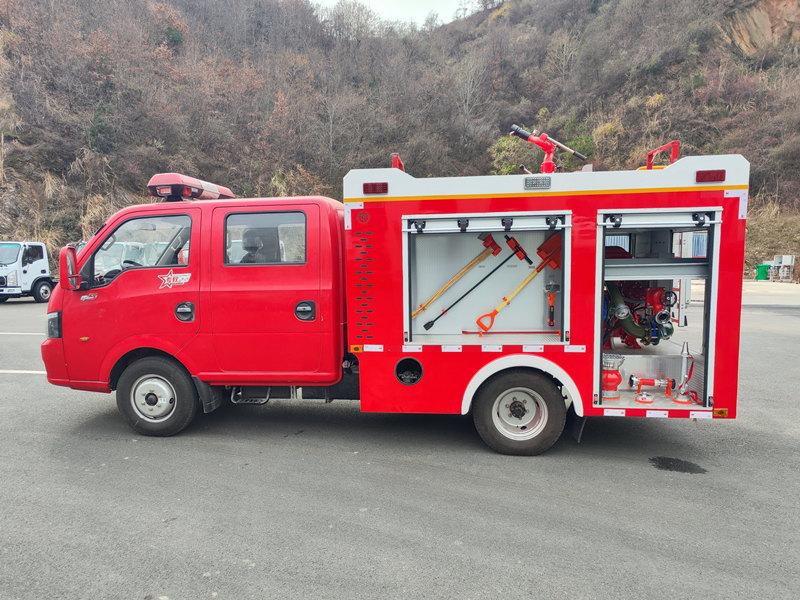

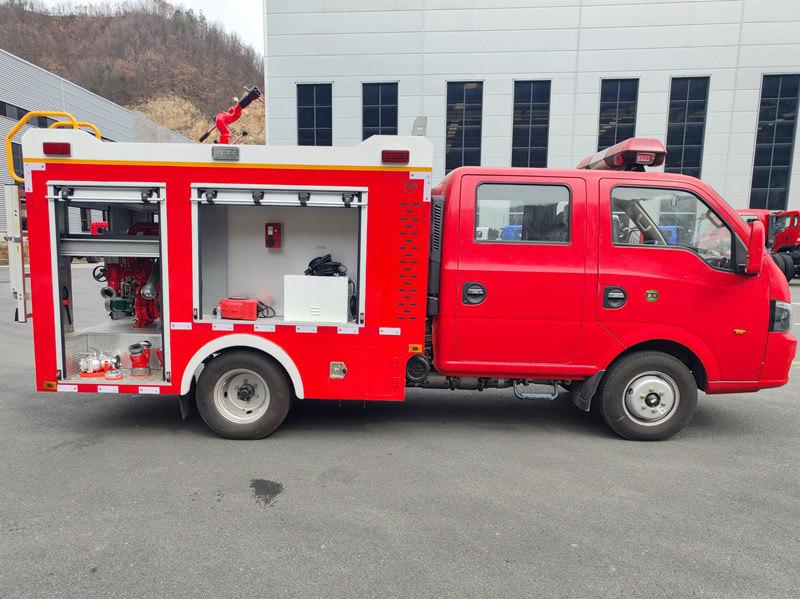

Full sets fire fighting and rescue tools equipped for convenient working, fire extinguishing and people rescue
A mini fire truck is a compact and agile firefighting apparatus, typically equipped with basic fire suppression systems (such as water tanks or foam systems) and rescue tools. It is well-suited for narrow streets, old neighborhoods, scenic areas, warehouses, and other locations where large fire trucks struggle to access. Capable of rapid deployment to initial fire sources, it helps control fire spread. Its compact design allows easy navigation through complex environments, making it an efficient supplement to traditional firefighting forces.
» Ⅱ.Product Parameter for Dongfeng 1000L mini fire tanker truck:
Vehicle description |
||
Overall dimension |
5890*1800*2350 (mm) |
|
GVW |
4350 kg |
|
Curb weight |
2975 kg |
|
Chassis brand |
Dongfeng |
|
Traction type |
4*2, left hand drive |
|
Chassis description |
||
Chassis model |
EQ1040D16 |
|
Cab |
Structure: flat-head, original double-row,four-door cabin. |
|
Wheelbase |
3000mm |
|
Tire specification |
6.00R15 10PR |
|
Tire quantity |
6+1 |
|
Engine |
Engine model |
Q23-95E60 |
Emission level |
Euro 6 |
|
Displacement/output |
2300ml/70kw |
|
Horsepower |
95hp |
|
Rated speed |
3000 rpm |
|
Max. torque |
240 N.m |
|
Gear box |
Type |
Manual |
Number of gears |
5 forward gears& 1 reverse |
|
Brake system |
Type |
Drum |
Service brake |
Dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting on rear wheel |
|
Auxiliary brake |
WEVB |
|
Axle |
Front |
1560 kg |
Rear |
2790 kg |
|
Suspension |
Front |
3- Leaf spring with shock absorber |
Rear |
5-Leaf spring |
|
Fuel tanker |
Type |
Steel fuel tanker |
Capacity |
68L |
|
Upper-body description |
||
Tanker |
Water tanker |
1000kg |
Material |
Carbon steel |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/20, normal pressure pump |
Flow |
20L/s |
|
Pressure |
1.0Mpa |
|
Suction depth |
≥7m |
|
Fire monitor |
Model |
PS8/20 |
Flow |
20 L/s |
|
Working pressure range |
0.8~1.0MPa |
|
Range |
≥50m |
|
Rotation angle |
Horizontal 360° |
|
Other configurations |
Equipped with sandwich PTO, pipeline system; |
» Ⅲ.Factory Testing:

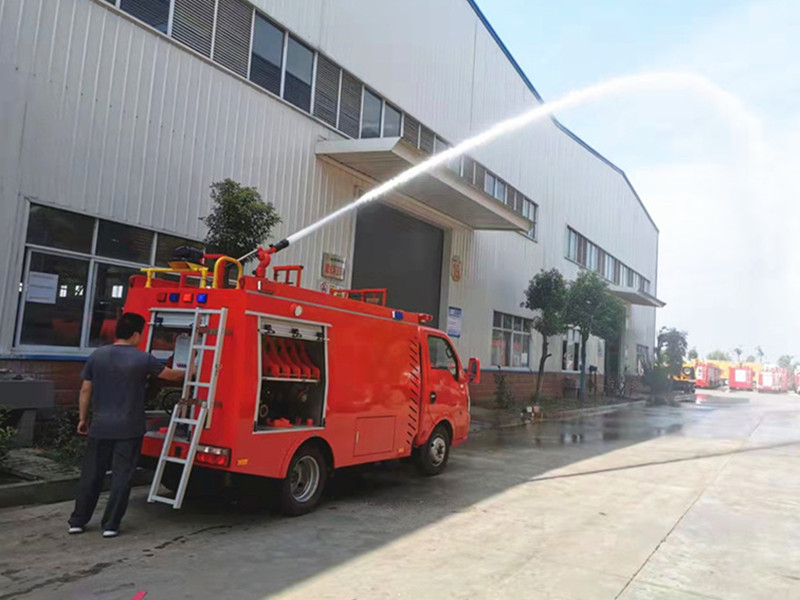

POWERSTAR Engineer testing Dongfeng mini water fire truck
POWERSTAR minni water tanker fire truck factory testing before shipment
Dongfeng mini fire tanker truck ready for delivery
