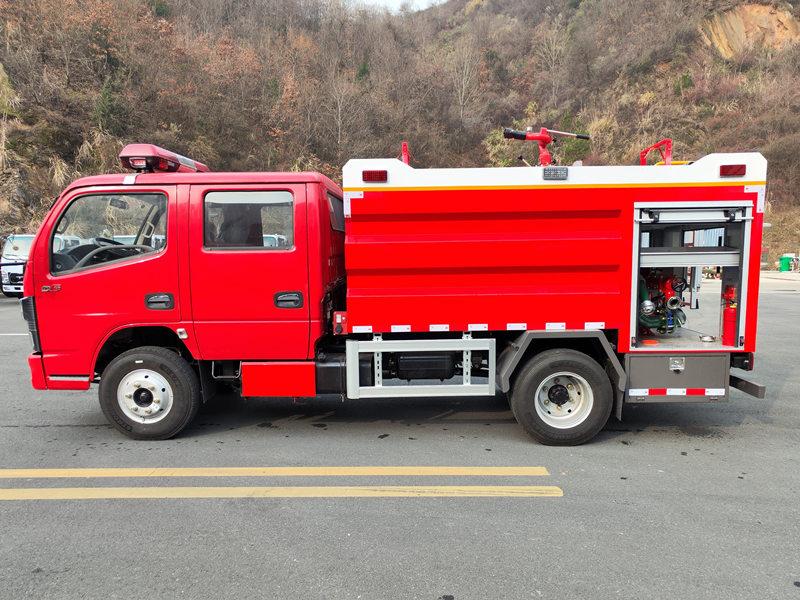

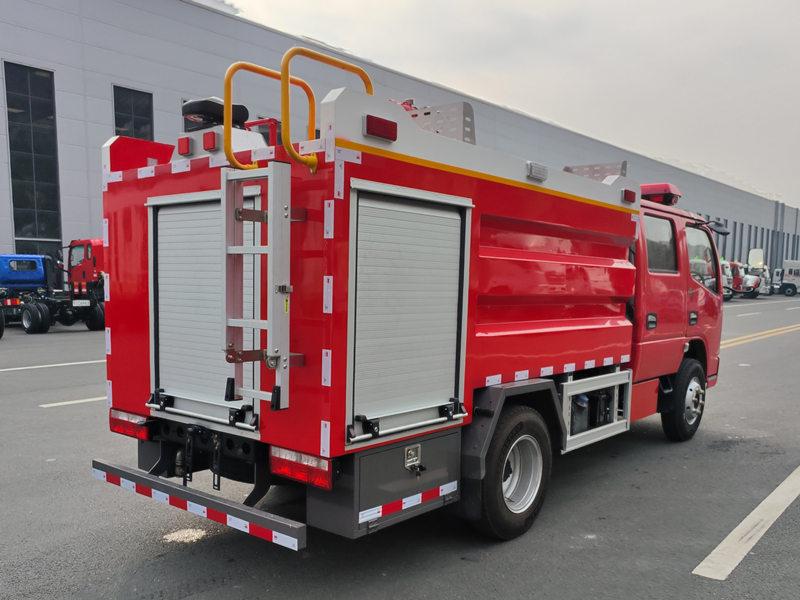

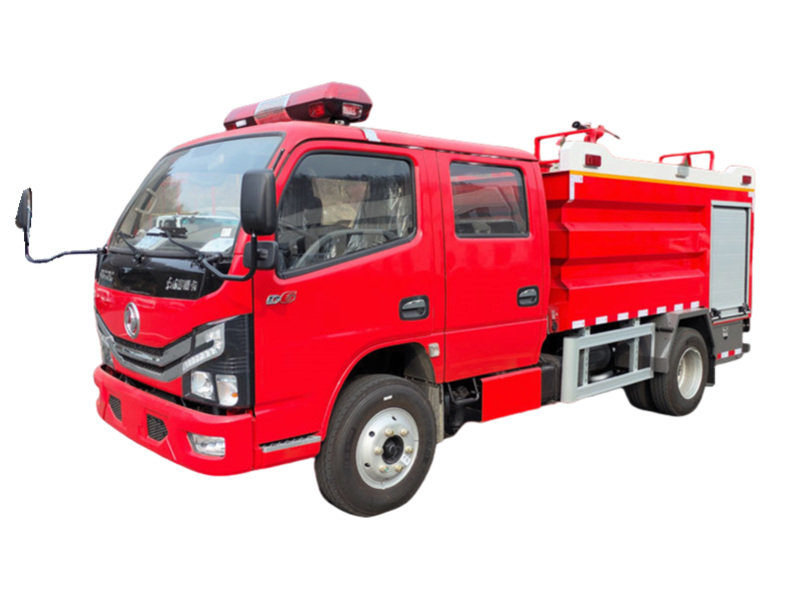

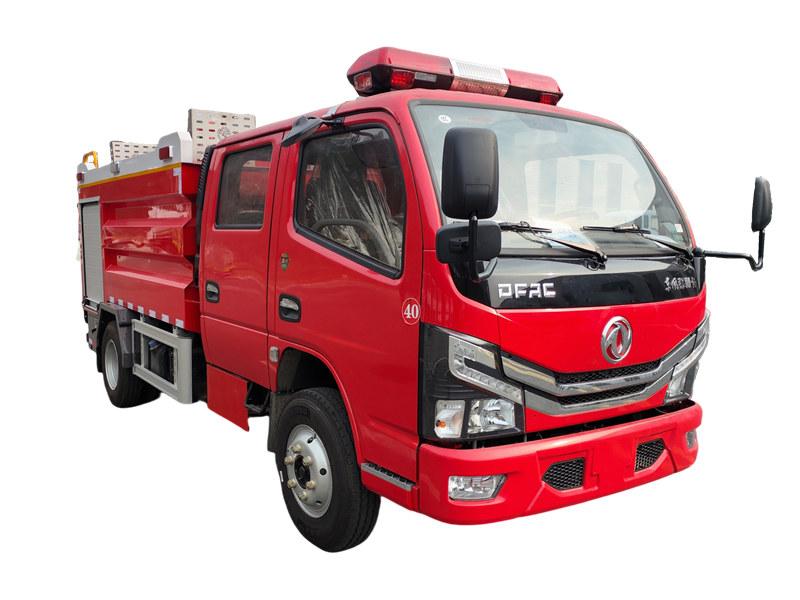

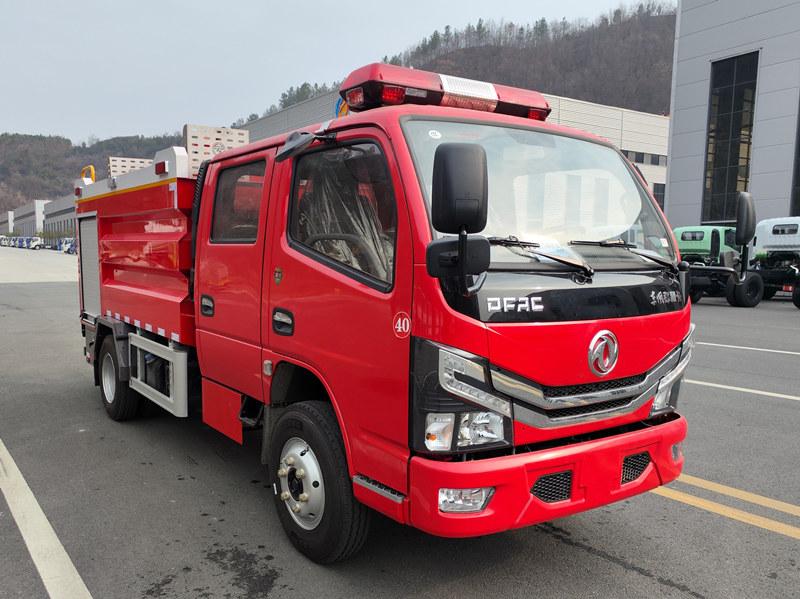

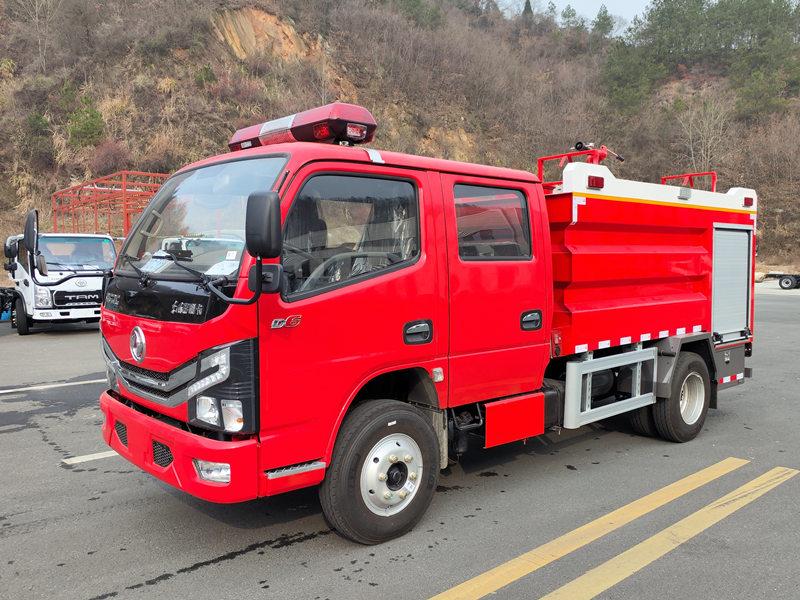

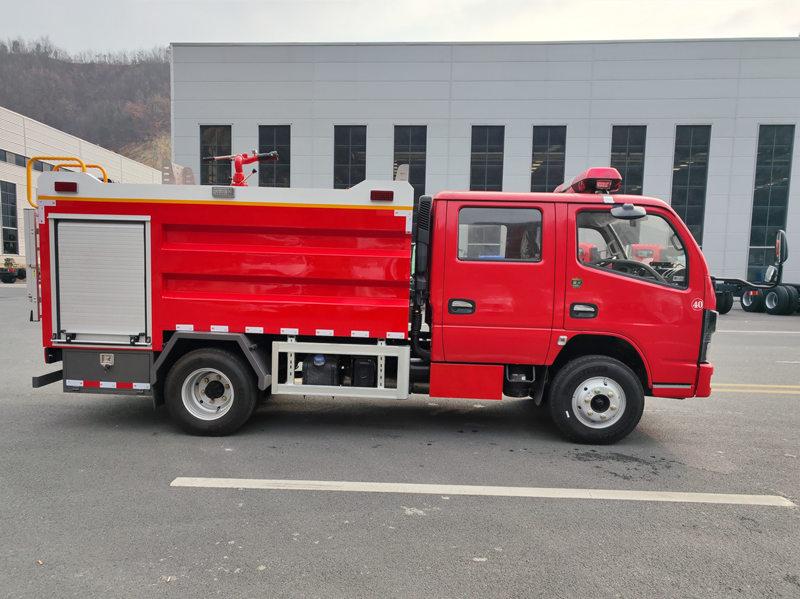

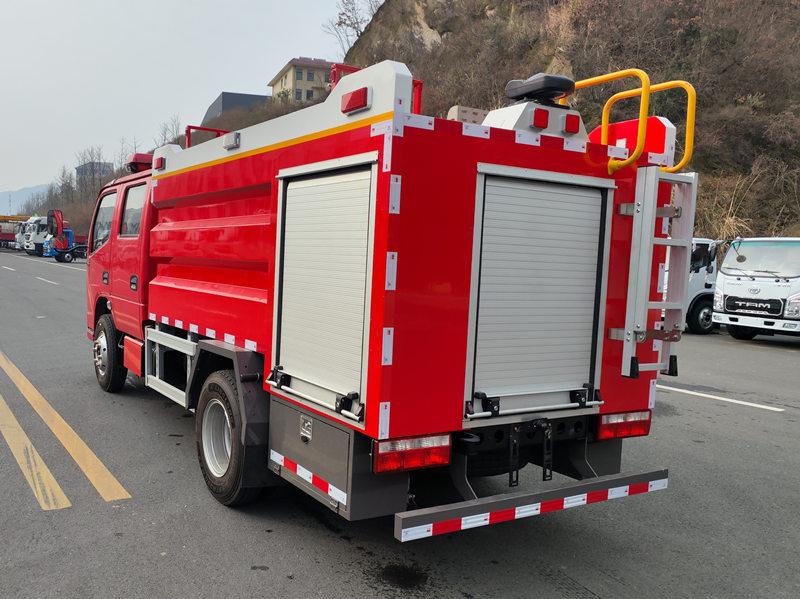

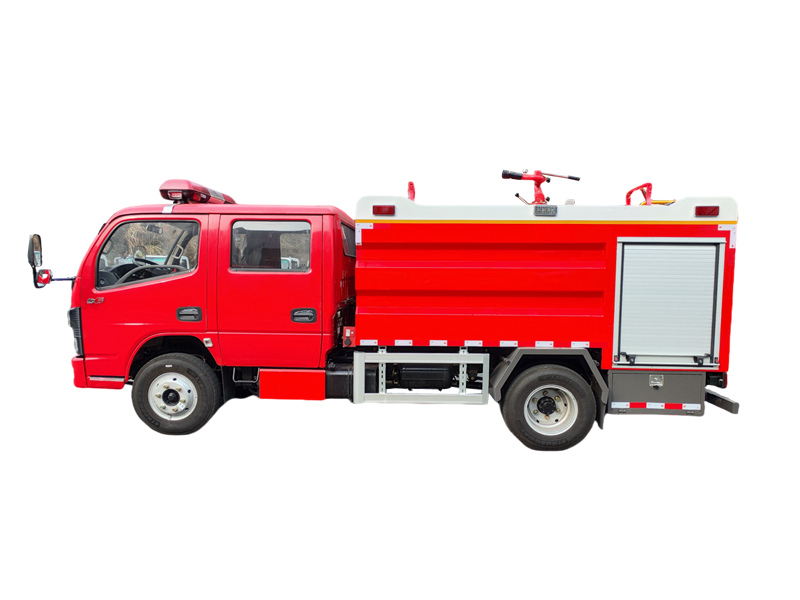

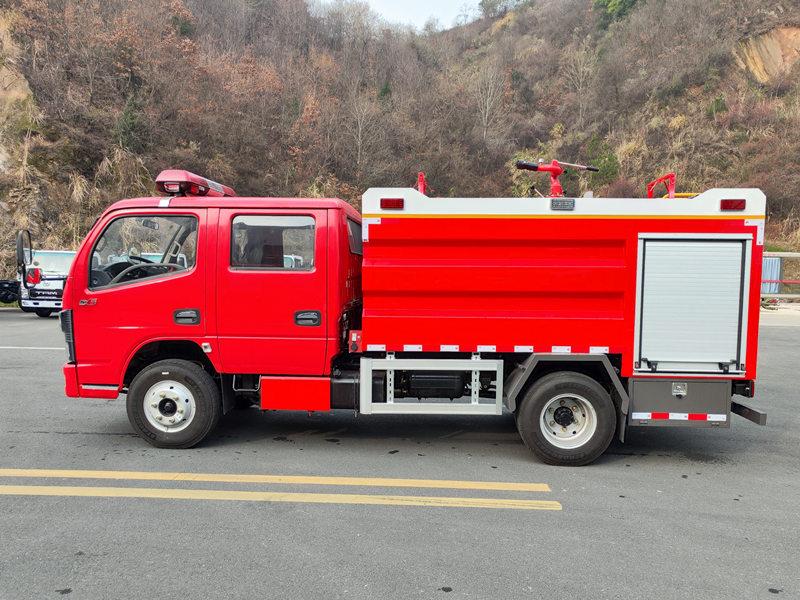

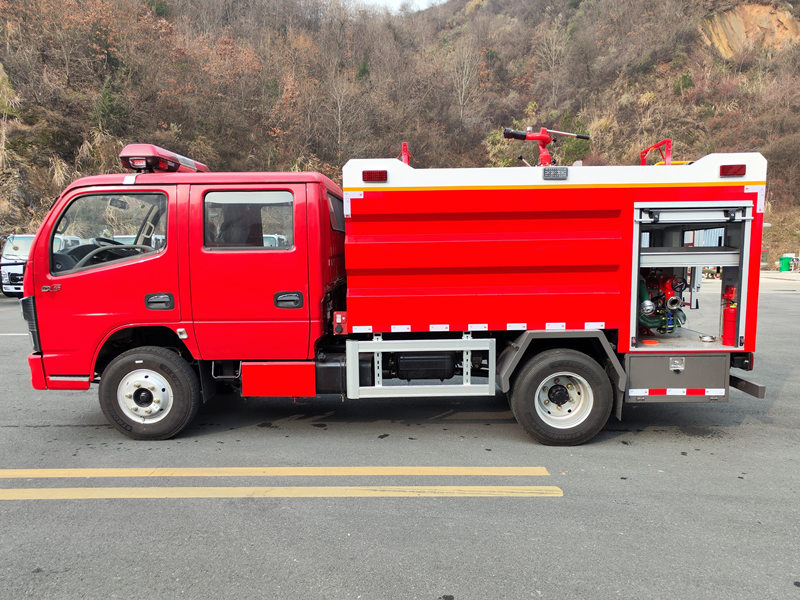

POWERSTAR Mini Water Tender is modified on a Dongfeng 4×2 light-duty chassis with a water tank of 3m³. Equipped with standard firefighting equipment, it features excellent mobility, user-friendly operation, and a long-range water jet. It is suitable for fire brigades, professional rescue teams, large enterprises, ports, industrial parks, scenic spots, and other locations.
Manufacturer Origin:
POWERSTARWork capacity :
3000 litersUpper Body material:
Carbone steelProduction time:
40 daysWheelbase:
3308 mmAxle drive:
4×2, left hand driveEngine Power:
132 HPEngine Model:
Q23-132Fire Pump:
CB10/20Fire Monitor:
PS8/20Remark:
4×4, RHD is optionalThe POWERSTAR Water Fire Truck is a specialized vehicle designed for emergency firefighting. Built on a Dongfeng light-duty 4×2 chassis, it is equipped with a fire pump, firefighting gear, a large-capacity water tank, water guns, water cannons, and more. It can transport water and firefighters to the scene to independently combat fires. This Dongfeng water tender fire truck can also draw water directly from a source for firefighting or supply water to other fire trucks and fire suppression systems. In water-scarce areas, it can serve as a water supply and delivery vehicle. Ideal for tackling general fires, it is an essential unit for fire departments.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: Dongfeng light-duty truck chassis, 4x2, left hand drive model, right hand drive is optional
132HP diesel engine, with 2.3L displacement
Manual gearbox, 5-forward speeds and 1-reverse speed

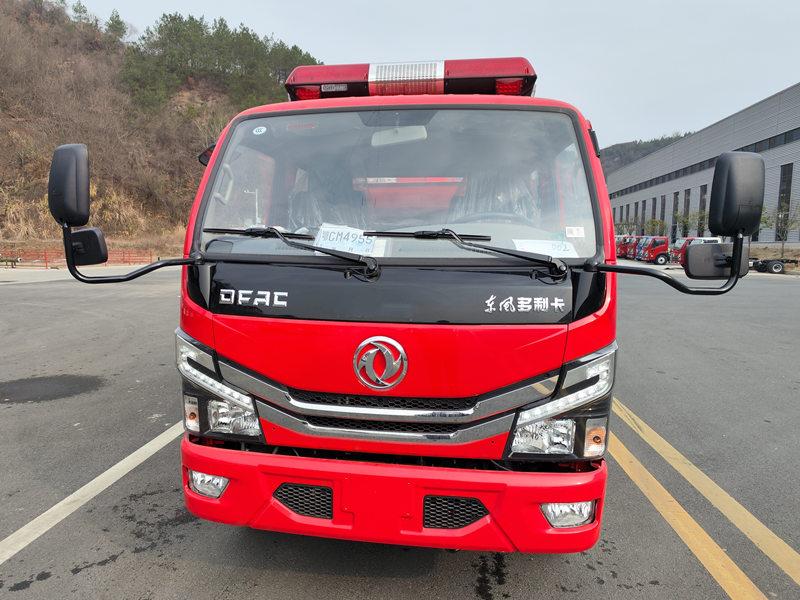

2. Cabin: Four-door, flat-front, all-metal enclosed cab with a double-row seating design
panoramic curved windshield, front bumper, integrated front lighting, power windows
3. Tanker body: Constructed with high-quality carbon steel in a welded structure, equipped with longitudinal and transverse anti-sloshing baffles.

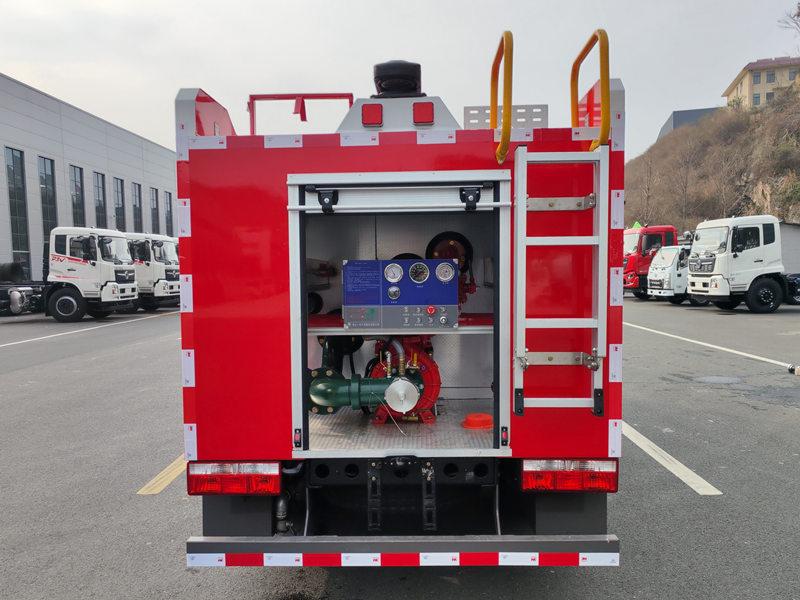

4. Fire pump: CB10/20 centrifugal fire pump, flow rate 20L/s, rear-mounted
CB10/30 fire pump is optional
5. Lighting system: Equipped with a 100W long-range siren and rotating beacon
Fitted with a 24V/60W scene light for fireground illumination
Red and blue LED strobe lights
Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.
» Ⅱ.Product Parameter for Dongfeng 3000L tanker fire truck:
Vehicle description |
||
Overall dimension |
5970*1890*2670mm |
|
GVW |
7130kg |
|
Curb weight |
3755kg |
|
Rated payload |
3000kg |
|
Chassis brand |
DONGFENG |
|
Traction type |
4*2, left hand drive |
|
Chassis description |
||
Chassis model |
EQ1075D |
|
Cab |
Double row, 2+ 3 seats with AC |
|
Wheelbase |
3308 mm |
|
Tire specification |
7.00R16 |
|
Tire quantity |
6+1 units |
|
Engine |
Engine model |
Q23-132 |
Max. power |
97 kW (132 HP) |
|
Max. torque |
320 N.m |
|
Rated speed |
3000 rpm |
|
Displacement |
2.3 L |
|
Emission standard |
Euro 2 3 4 5 is optional |
|
Gear box |
Number of gears |
5 |
Brake system |
Full air brake, power steering, spring brake, exhaust brake |
|
Axle |
Front |
2600 kg |
Rear |
4530 kg |
|
Suspension |
Front |
Leaf spring |
Rear |
Leaf spring |
|
Superstructure description |
||
Tanker capacity |
Water tanker |
3000 liters |
Foam tanker |
Optional |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/20, normal pressure pump |
Flow |
20L/S |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Fire monitor |
Model |
PS8/20 |
Pressure |
0.8Mpa |
|
Range |
Water ≥55M |
|
Rotation angle |
Horizontal 360° |
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
The fire truck's exterior design can be fully customized to meet specific requirements. POWERSTAR offer flexible configurations for the water, foam, and dry powder tank capacities, along with customizable storage compartments for firefighting equipment. Additionally, the overall vehicle dimensions can be designed to suit operational needs.
2. Skilled workers for production:

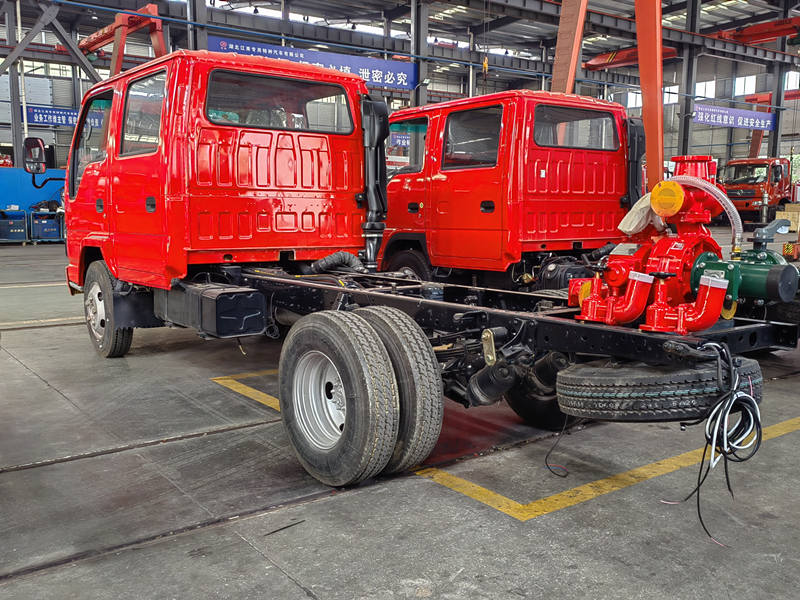

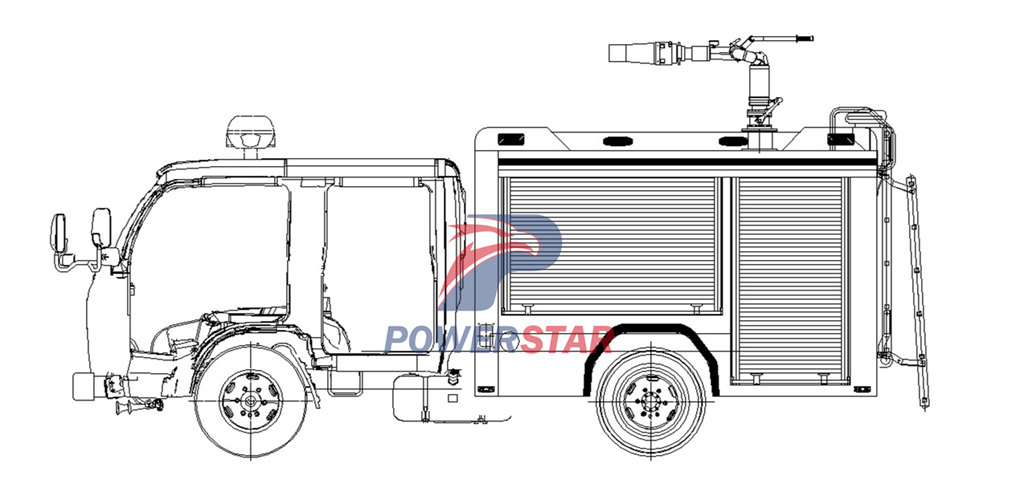

Technical drawing assistance for POWERSTAR fire truck production, enabling skilled technicians to customize a dual-cabin design, integrate a Sandwich PTO system, equip with CB10/20 fire pump and PS8/20 fire monitor, incorporate inlet/outlet valves, install a comprehensive lighting system, and apply full aluminum alloy interior trim.

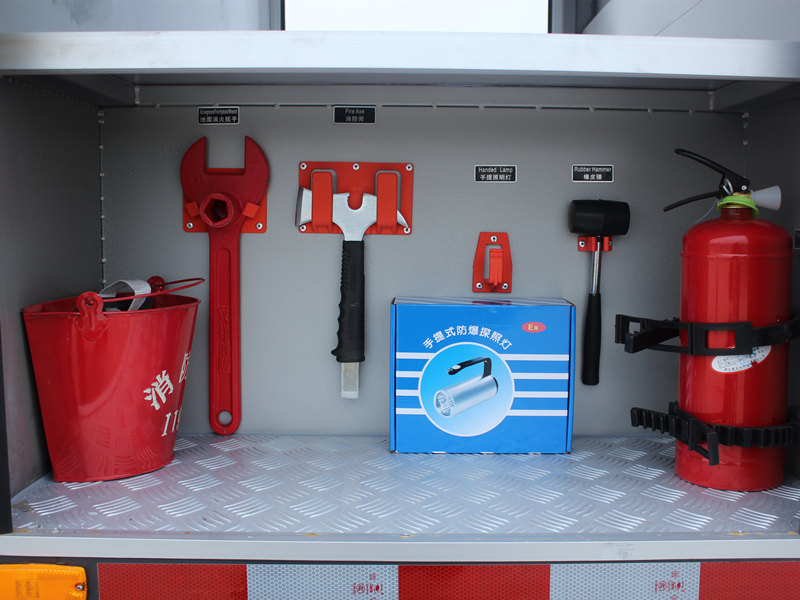

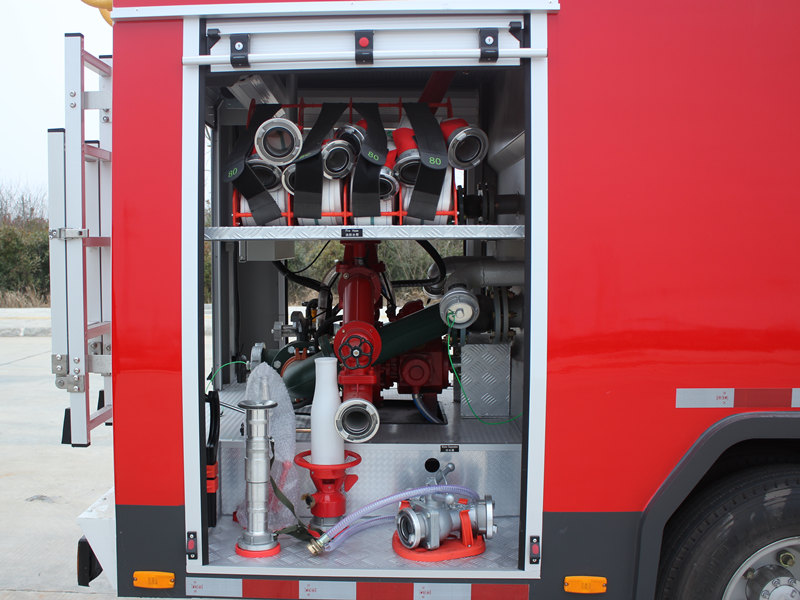

3. Prepare full fire fighting equipment:
Fire truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
