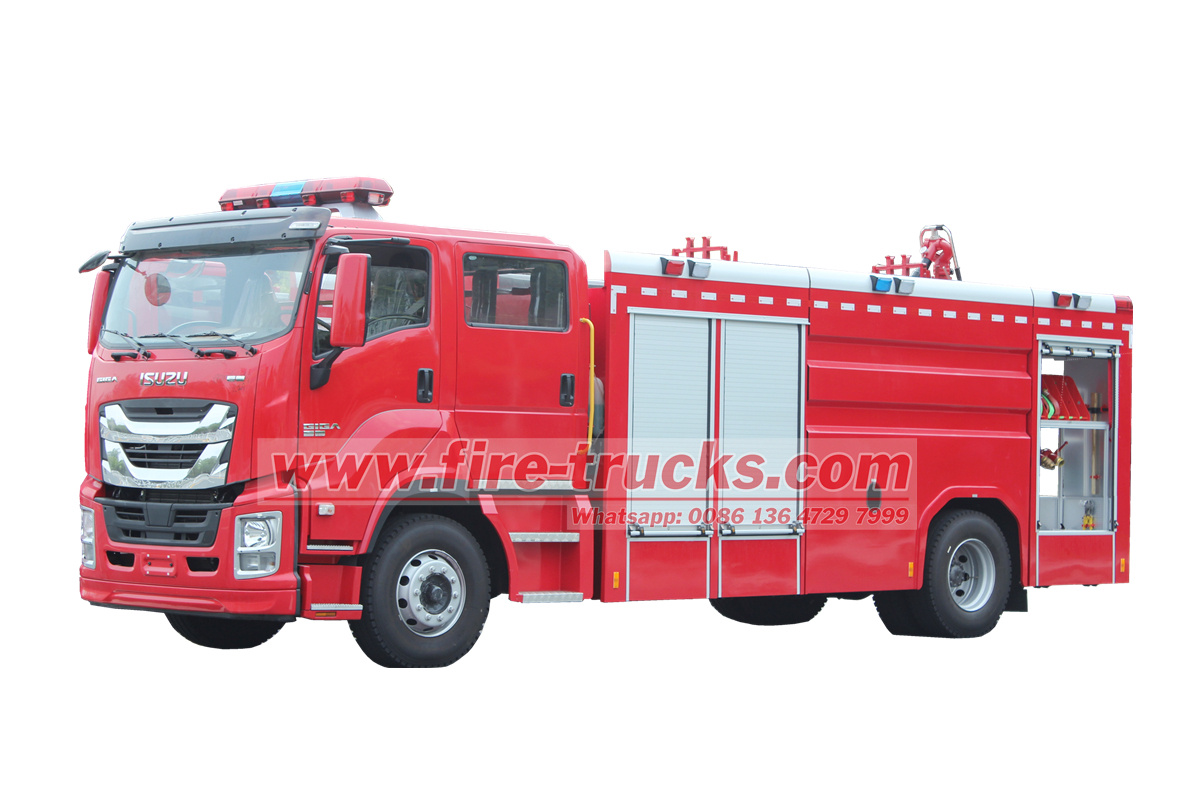

Philippine Isuzu police water fire truck

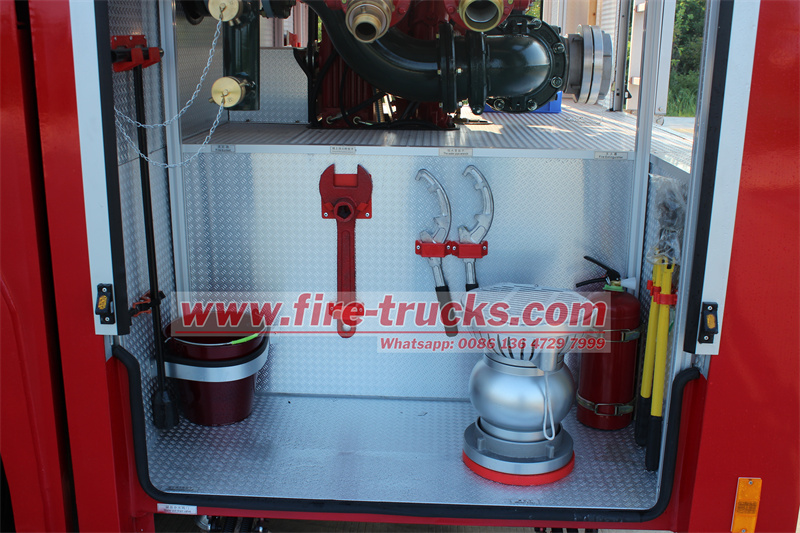

The Philippine Isuzu police water fire truck is a high-performance specialized vehicle designed specifically for responding to various types of fires and emergency rescue missions. It perfectly combines the reliability and durability of the Isuzu chassis with the professional requirements of fire-fighting operations, providing strong support for fire departments. It is featured with a powerful 420-horsepower engine and a Fast gearbox with 12 speeds, offering ample power and smooth shifting to ensure the vehicle can arrive at the scene quickly and accurately under various road conditions. The upper is equipped with a 10cbm carbon steel water tank, a CB10/60 fire pump, and a PS8/40W fire monitor, which can meet the needs of long-term operations and carry out fire extinguishment quickly and effectively. In addition, the vehicle is also equipped with a variety of auxiliary fire-fighting equipment and tools, providing comprehensive support for fire-fighting operations.

● China best Isuzu water fire truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term

Philippine Isuzu Police Water Fire Truck: A Powerful Guardian of Urban Safety

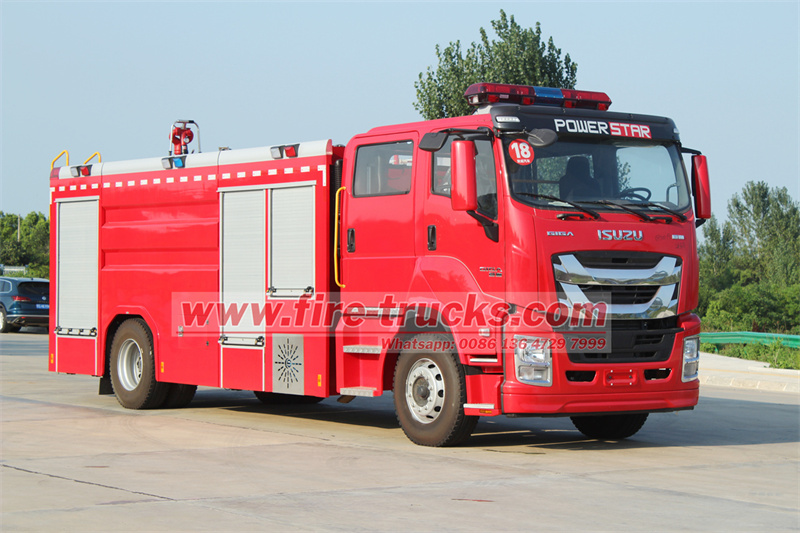

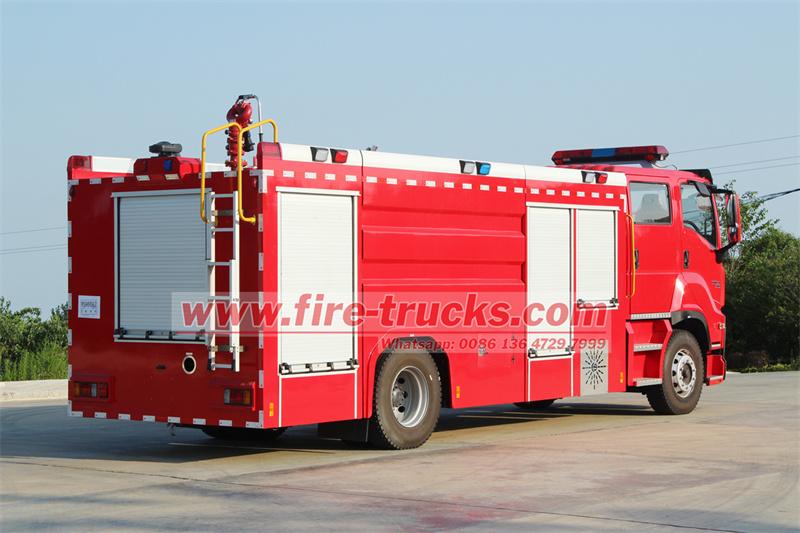

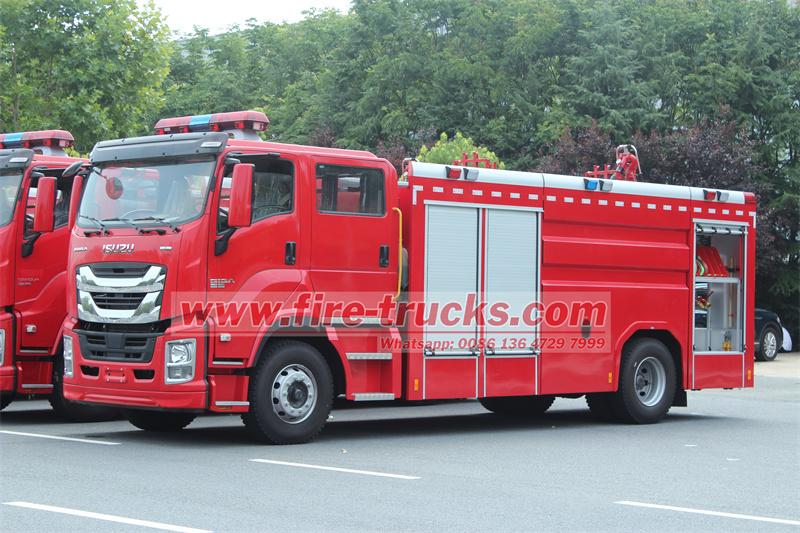

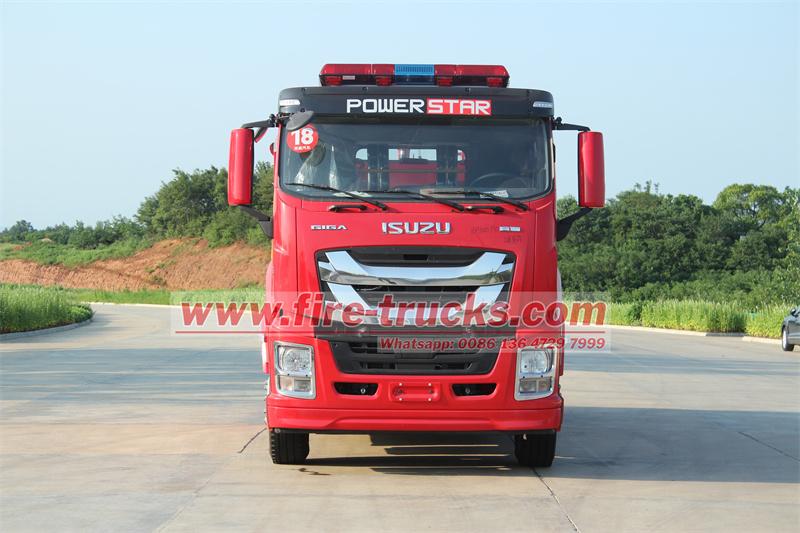

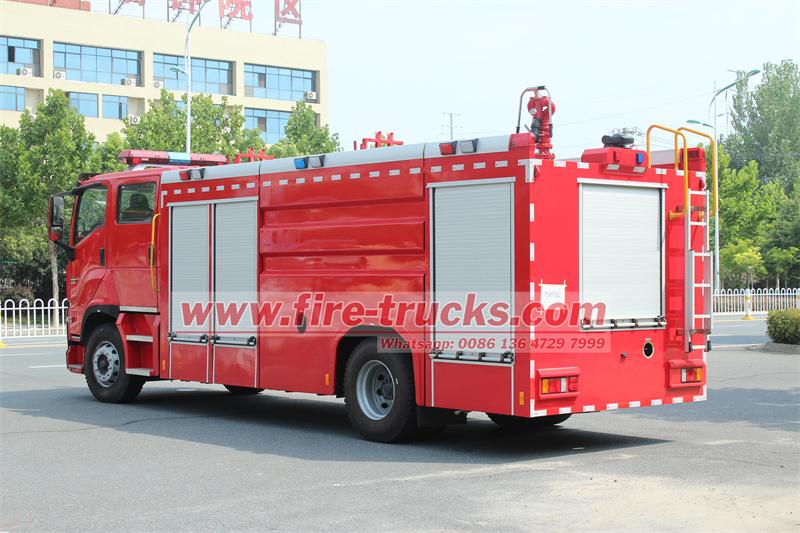

On the streets and alleys of the Philippines, there is a fire-fighting water truck specially designed for police use that has become an important guarantee for urban safety with its excellent performance and comprehensive equipment - this is the Philippine Isuzu Police Water Fire Truck, modified based on the Isuzu Giga 4x2 chassis.

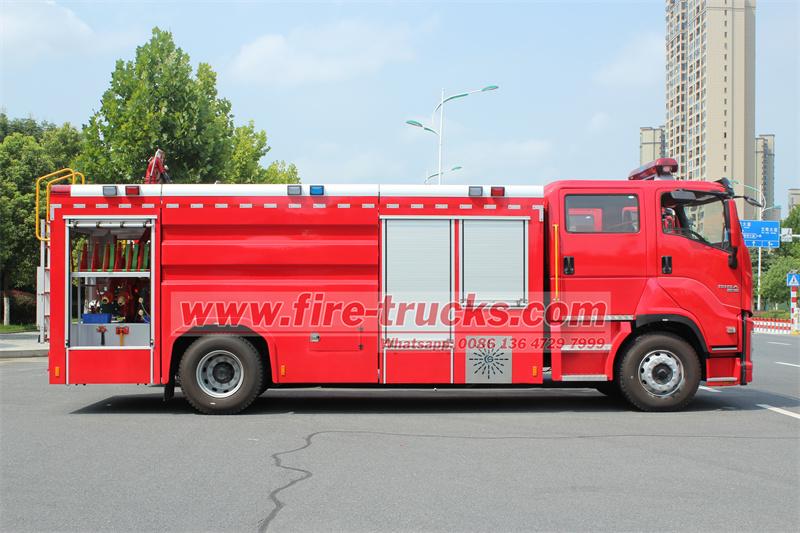

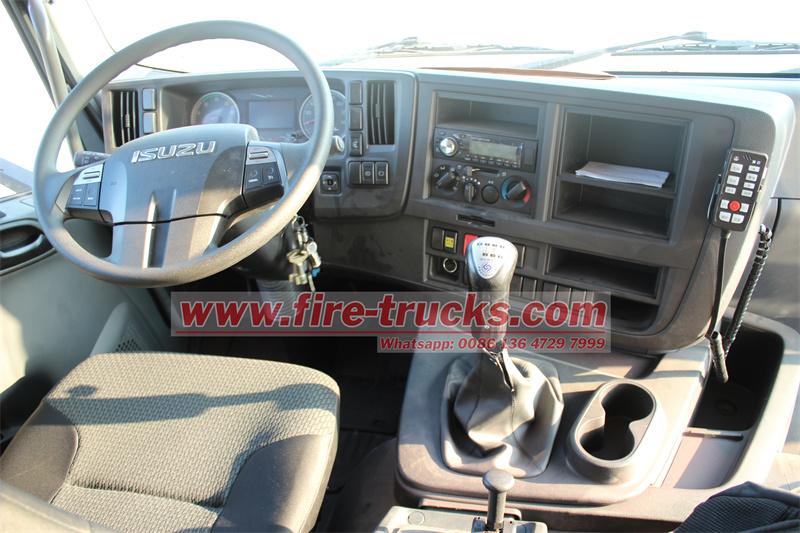

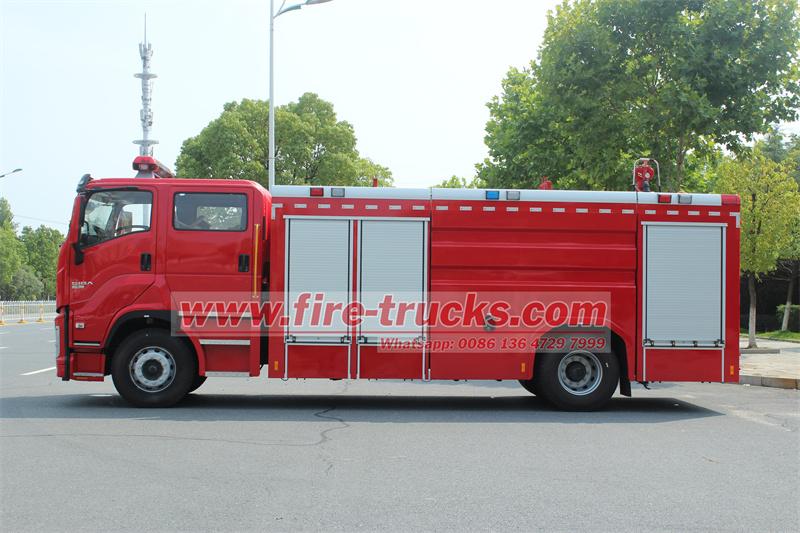

This fire-fighting water truck is built on the sturdy Isuzu Giga 4x2 chassis with a wheelbase of 4600mm, ensuring stability and handling performance in complex road conditions. In terms of power, it is equipped with a 6WG1-TCG60 420-horsepower engine, which is powerful and stable, with a displacement of 15681ml, meeting both power demands and environmental standards. The transmission system is equipped with a Fast 12-speed gearbox, providing smooth shifting and high transmission efficiency, allowing drivers to easily control the vehicle.

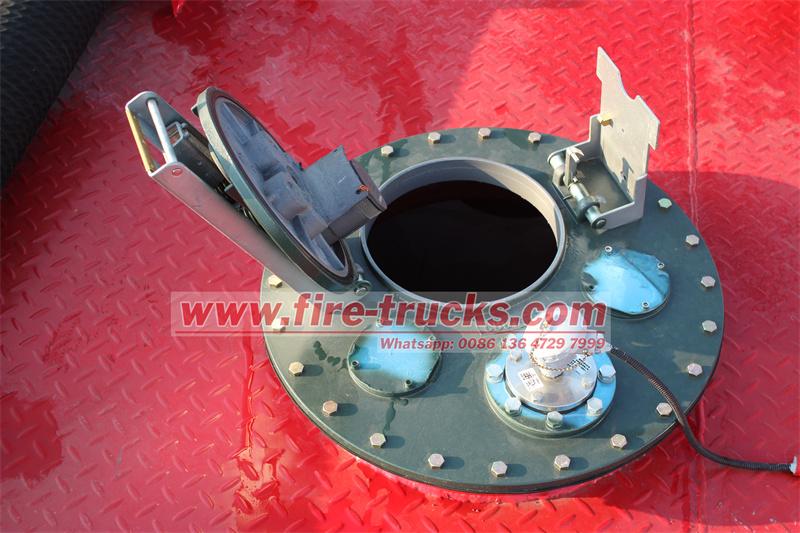

For the upper structure, this fire-fighting water truck is equipped with a 10-cubic-meter carbon steel water tank, providing sufficient capacity for long-term operations. At the same time, the vehicle adopts the CB10/60 fire pump and PS8/40W fire monitor, and the perfect combination of the two enables the vehicle to quickly and effectively carry out fire extinguishment operations in the face of fires, protecting people's lives and property.

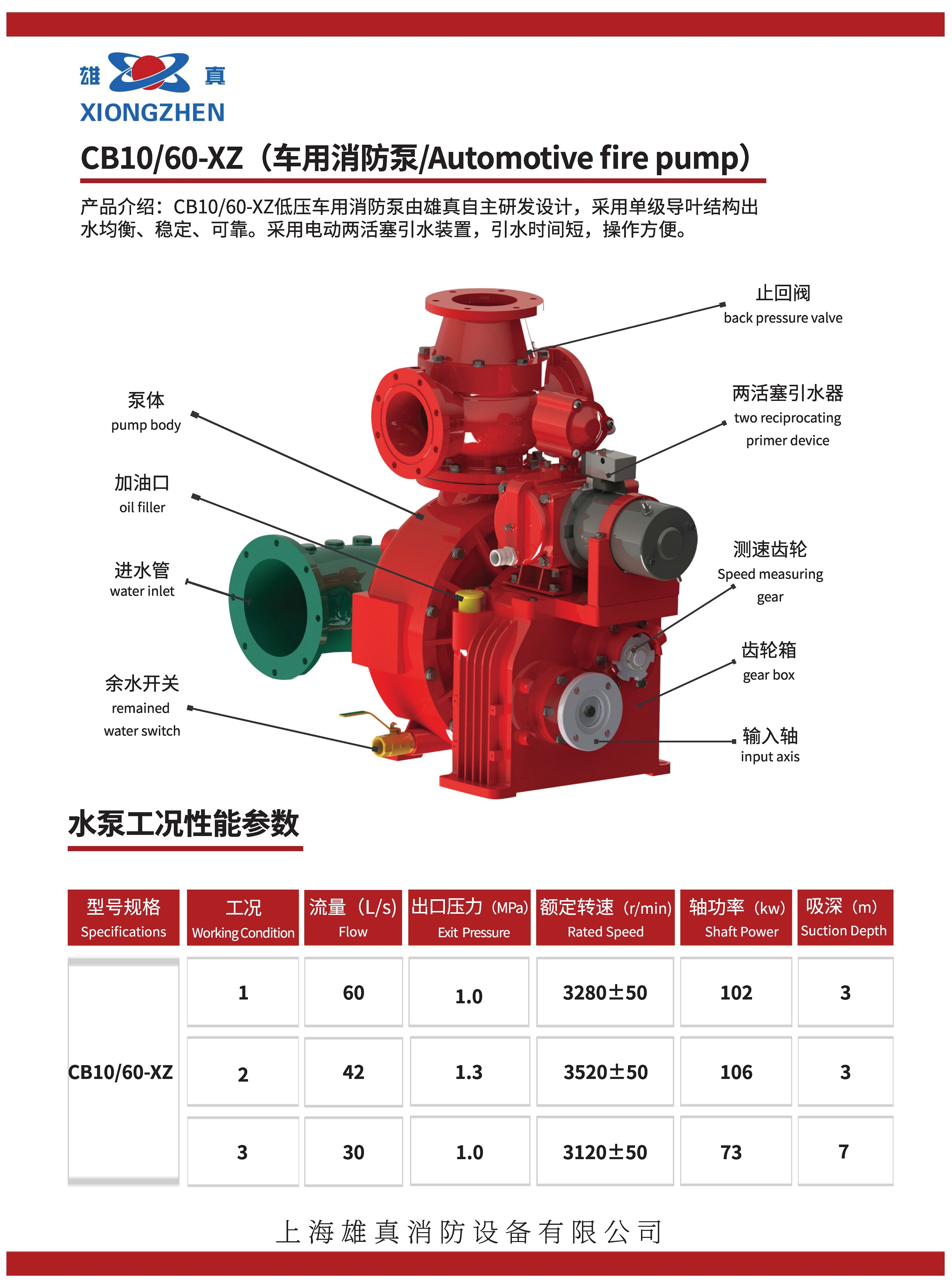

Fire Pump: CB10/60 Model

1.   Basic Parameters and Performance
The CB10/60 fire pump is a medium-high pressure fire pump with excellent water flow output capacity and stable operational performance. It has a rated flow of 60 liters per second and a rated pressure of 1.0 MPa (10 bar), capable of delivering a large amount of water in a short period to meet the emergency needs at fire scenes. This high flow and high pressure design enable the fire pump to quickly control the fire, especially performing well in large-scale or high-rise building fires.

2.   Structural Features
The CB10/60 fire pump adopts a centrifugal design, featuring a compact structure and stable operation. Centrifugal pumps are characterized by providing stable water flow output at high speeds and requiring low maintenance. The pump body is usually made of high-strength corrosion-resistant materials, capable of adapting to long-term high-load operation and ensuring no failures in emergency situations.

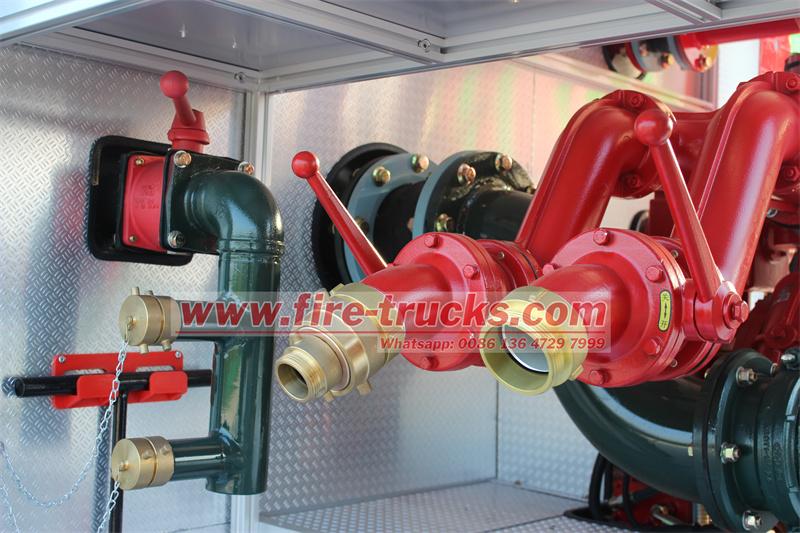

3.   Operation and Control

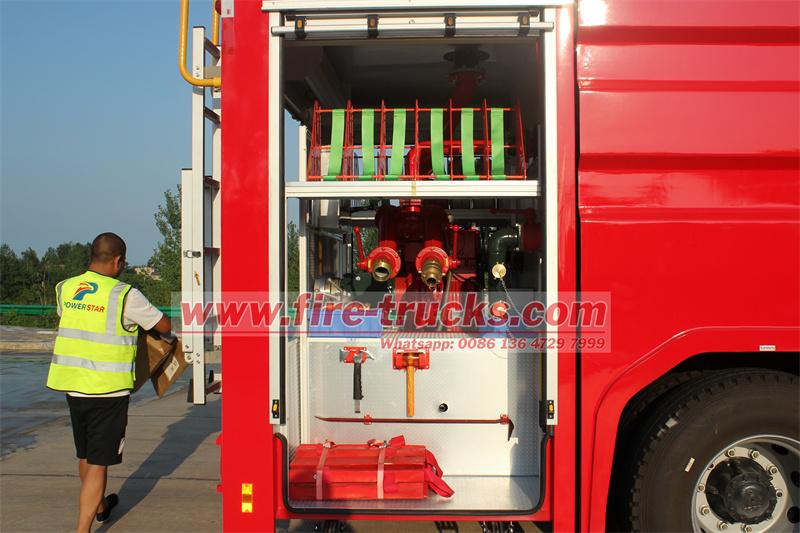

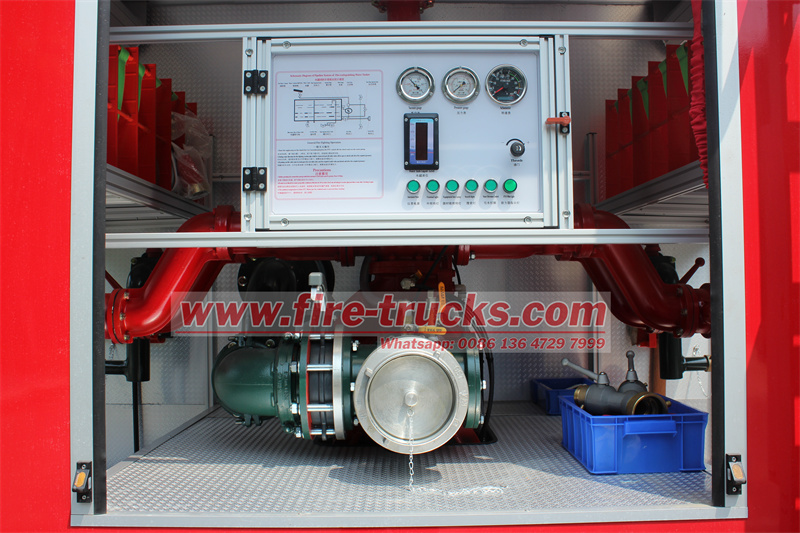

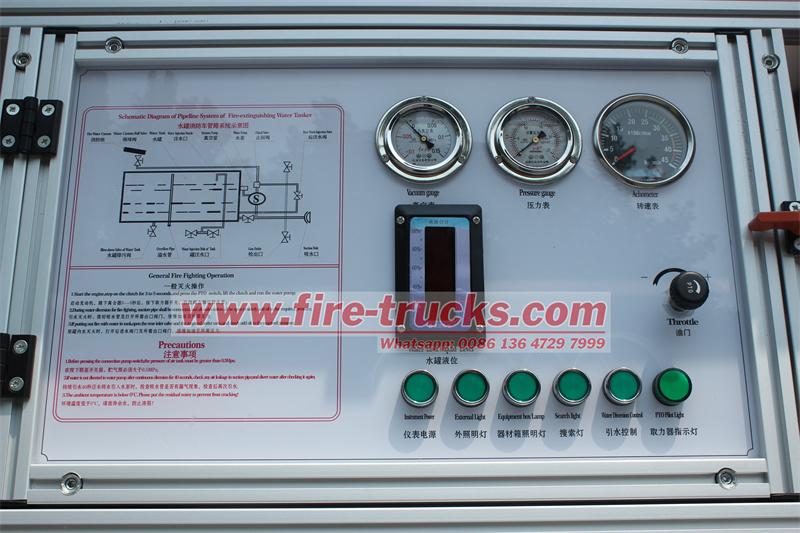

The operation design of the fire pump is simple, typically located at the rear or side of the vehicle for firefighters to quickly start and adjust. The CB10/60 fire pump is also equipped with a pressure gauge, tachometer, and flowmeter on the rear control panel, enabling real-time monitoring of the water flow output status to ensure the precision and efficiency of firefighting operations.

4.   Water Source Adaptability
The CB10/60 fire pump can not only draw water from the vehicle's built-in water tank but also quickly suck water from external sources (such as fire hydrants, rivers, or lakes) through a water collector. This multi-source adaptability allows the vehicle to flexibly respond to different water source conditions at fire scenes, especially in remote areas or environments with scarce water sources, where it can replenish the water tank through external sources to extend firefighting operation time.

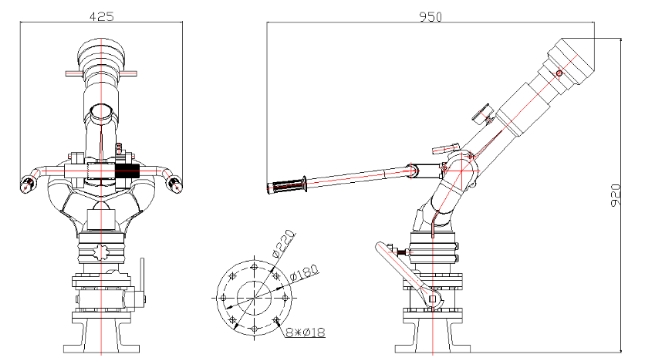

Fire Monitor: PS8/40W Model

1.   Basic Parameters and Performance
The PS8/40W fire monitor is a high-performance long-range spraying device with a rated flow of 40 liters per second, a rated pressure of 0.8 MPa (8 bar), and a maximum range of ≥65 meters. This high flow and long-range design enable the monitor to cover large fire areas, particularly suitable for high-rise building fires, industrial area fires, and forest fires.

2.   Structural Features
The PS8/40W fire monitor is made of aluminum alloy or stainless steel, featuring lightweight, corrosion resistance, and high strength. The nozzle design of the monitor is optimized to provide multiple spraying modes, including straight stream and spray. The straight stream mode is suitable for precise firefighting at long distances, while the spray mode is suitable for large-area coverage and cooling operations.

3.   Operation and Control

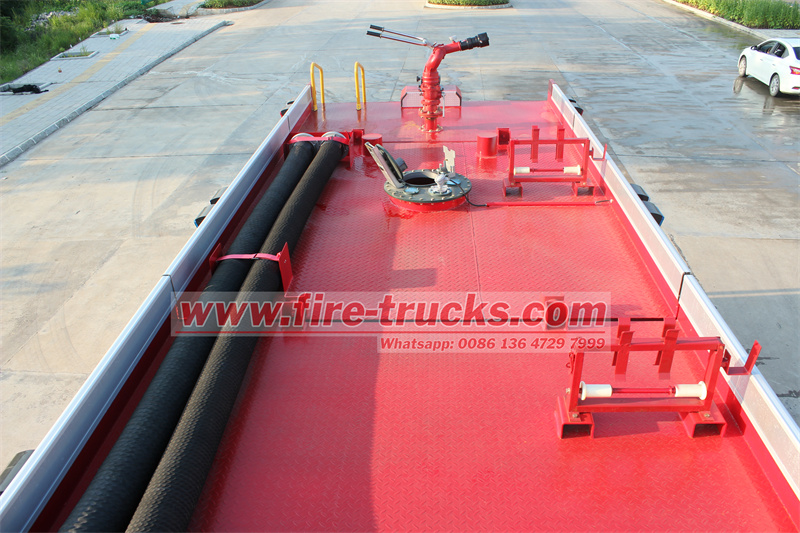

The fire monitor is usually installed on the top or side of the vehicle and can be adjusted in angle through hydraulic or manual control. The PS8/40W monitor supports horizontal rotation and vertical tilt adjustment, with a horizontal rotation angle of up to 345 degrees and a vertical tilt angle typically ranging from -30～+70°. This flexible angle adjustment capability allows the monitor to cover a wider fire area, enabling firefighters to quickly adjust the spraying direction according to the fire source location.

4.   Spraying Modes and Functions
The PS8/40W fire monitor supports multiple spraying modes, including:

• Straight Stream: Concentrated water flow with a long range, suitable for precise firefighting at long distances.

• Spray: Dispersed water flow with a large coverage area, suitable for large-area cooling or controlling the spread of fire.

• Combined Stream: Combining the characteristics of straight stream and spray, suitable for complex fire scenarios.
