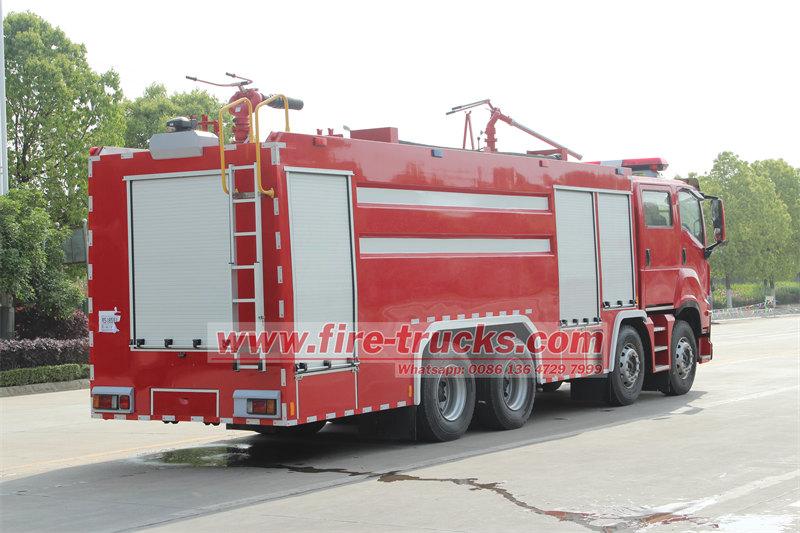

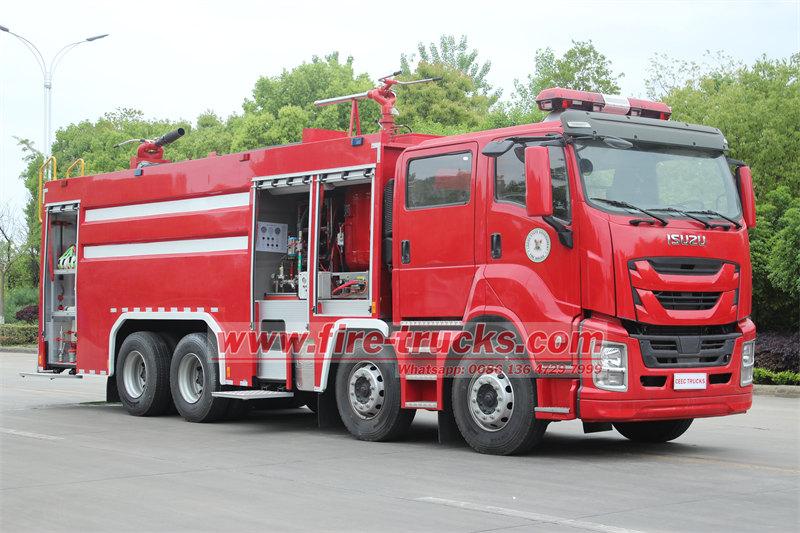

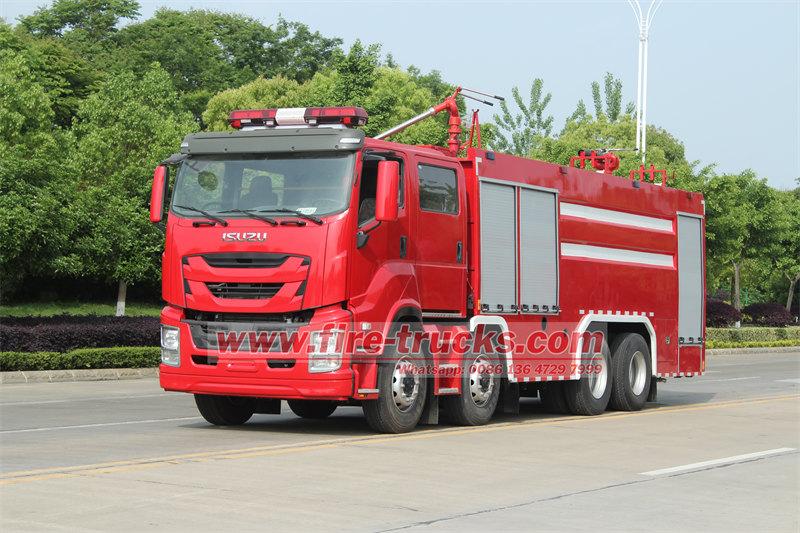

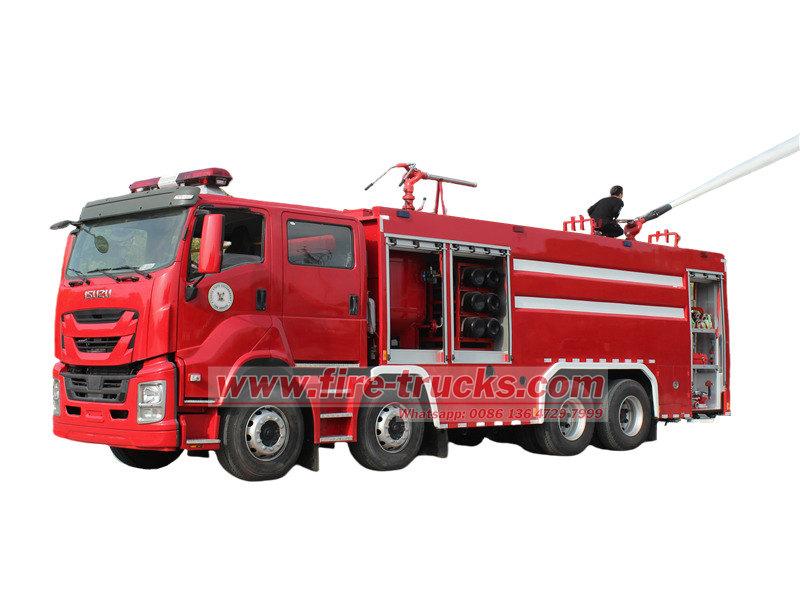

ISUZU GIGA Dry Powder Fire Truck is built on ISUZU GIGA 8×4 heavy-duty chassis, equipped with an ISUZU 6WG1 series engine and a FAST 12-speed manual transmission. The vehicle features a modified double-row crew cabin with seating for 2+4 personnel. It carries 12,000L of water, 2,000L of foam, and 1,000kg of dry powder. The truck is installed with a CB10/60 fire monitor, a PL48 dual-purpose water/foam monitor, and a PF40 dry powder cannon, integrating dry powder, water, and foam firefighting capabilities for versatile use.
Manufacturer Origin:
Powerstar TrucksWork capacity :
12000L +2000L+1000KGUpper Body material:
Carbon steel+Stainless steelProduction time:
60 daysWheelbase:
1850+4575+1370 mmAxle drive:
8×4Engine Power:
420 HPEngine Model:
Isuzu 6WG1-TCG60Fire Pump:
CB10/60, 60L/sFire Monitor:
PL48 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR Dry Powder and Foam Fire Truck is a specialized vehicle that integrates water, foam, and dry powder firefighting functions, making it highly effective in tackling various fire scenarios. Based on the ISUZU GIGA 8×4 chassis, the truck measures 11,995 × 2,550 × 3,800 mm, is painted in fire-engine red, and has a standard seating capacity of six. This ISUZU GIGA powder fire engine is equipped with a 12,000L water tank, a 2,000L foam tank, and a 1,000kg dry powder system, enabling rapid switching between different fire-extinguishing agents. Compared to conventional water/foam fire trucks, this model adds a dry powder system, including a PF40 dry powder cannon with a discharge rate of ≥40kg/s, allowing for quick fire suppression and preventing re-ignition.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU GIGA truck chassis, 4x2, 6x4 and 8x4 model
6UZ1 model with 350HP or 380HP and emission 9839cc
6WG1 model with 420HP, 460HP or 520HP with emission 15681cc.
2. Tank material: 4mm thick carbon steel water tank, stainless steel foam tank
Q345R steel powder tank, PP tank is optional
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

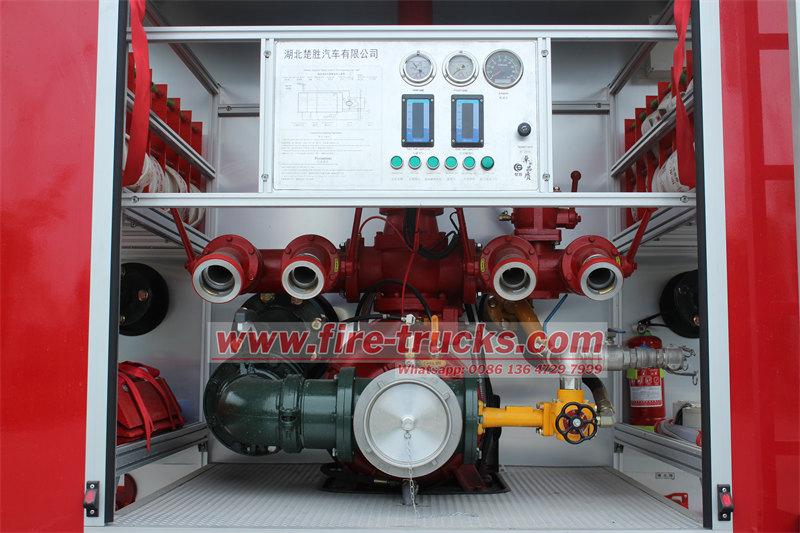

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, normal pressure pump, low pressure pump is optional
Optional CB10/40, CB10/80 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system

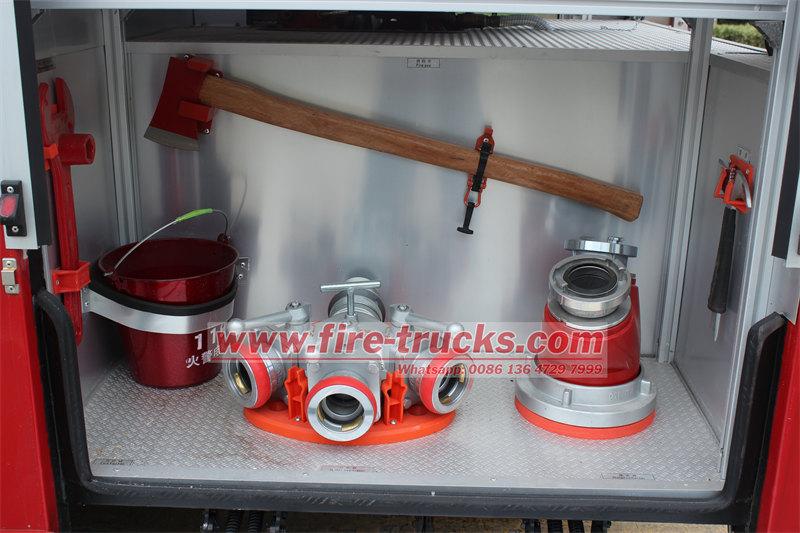

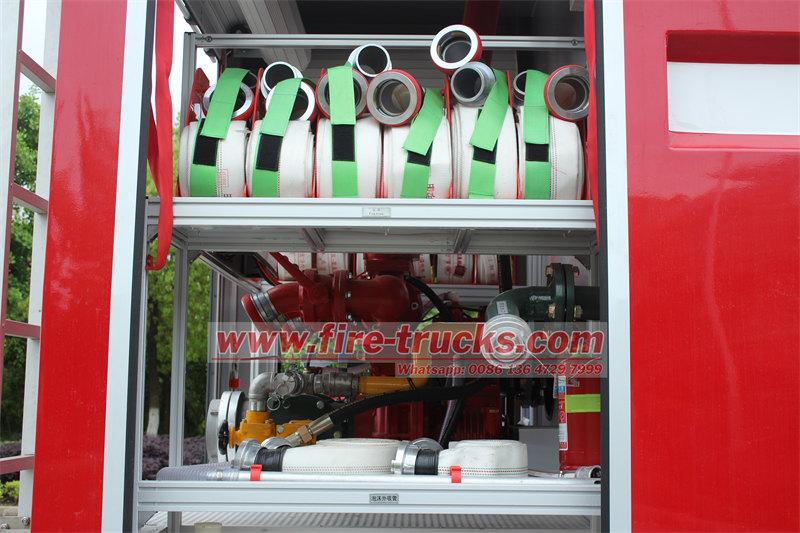

Full sets fire fighting rescue tools equipped for convenient working, fire extinguishing and people rescue
POWERSTAR dry powder fire truck, also known as powder foam fire truck, dry powder fire engine, is innovatively designed by integrating advanced domestic and international design concepts with practical firefighting needs. Equipped with multiple safety protection measures, the vehicle's technology and performance parameters rank among the leading standards in China. It can be deployed to extinguish fires involving combustible and flammable liquids, gases, live electrical equipment, as well as petrochemical storage facilities. Additionally, it is suitable for tackling Class A fires in industrial and civil buildings, making it a primary vehicle for urban fire rescue and petrochemical firefighting operations.
» Ⅱ.Product Parameter for Isuzu GIGA dry powder fire truck:
Vehicle basic specifications |
|
Overall Dimension |
11995x2550x3800mm |
Tank Capacity |
Water 12000L, foam 2000L, dry powder 1000KG |
Engine Output |
420Hp |
Max Speed |
98km/h |
Front / Rear Axle Load |
8T / 26T |
Approach / Departure Angle |
17/ 13° |
Allowable Cab Passengers |
2+4 |
Chassis Specification |
|
Model |
ISUZU GIGA |
Manufacture |
lSUZU |
Engine Model |
6WG1-TCG60 |
Engine Output |
420Hp |
Displacement |
15681ml |
Emission |
Euro 6 |
Wheel base |
1850+4575+1370mm |
GVW |
31000kg |
Transmission |
FAST,12 forward and 2 reverse |
Driving Cab |
|
Form |
2 door crew cab |
Passenger |
2 |
Steering Wheel |
Left Hand Drive |
Equipment |
Control box for alarm and alarm lamp PTO switch and indicator Additional power source and air course indicator Jacklight and strong flashing light indicator |
Body |
|
Equipment Room |
Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate. |
Crew room |
Crew person room is in the middle of truck |
Equipment room |
Aluminum alloy structure |
Pedal |
Every shutter door has an overturn pedal. |
Ladder |
on the backside body |
Water and foam Tank |
|
Tank capacity |
Water: 12000L, foam: 2000L |
Material |
Water tank: Carbon steel with 4mm thickness, bottom is 5mm. Foam tank: Stainless steel 304 material. |
Tank fixing |
Fixed on chassis frame |
Manhole |
One manhole with diameter of 500 mm, with quick locking/opening device |
Dry Powder tank |
|
Tank capacity |
1000 kg |
Material |
Q345R |
Designed pressure |
1.6MPa |
Working pressure |
1.4MPa |
Blasting pressure of safety valve |
1.5MPa |
Fire Pump |
|
Fire pump model |
CB10/60 |
Water flow rate |
60L/S, 1.0MPa |
Maximum suction depth |
7m |
Diversion device |
Self-contained slide pump |
Diversion time |
< 50s at maximum depth of suction |

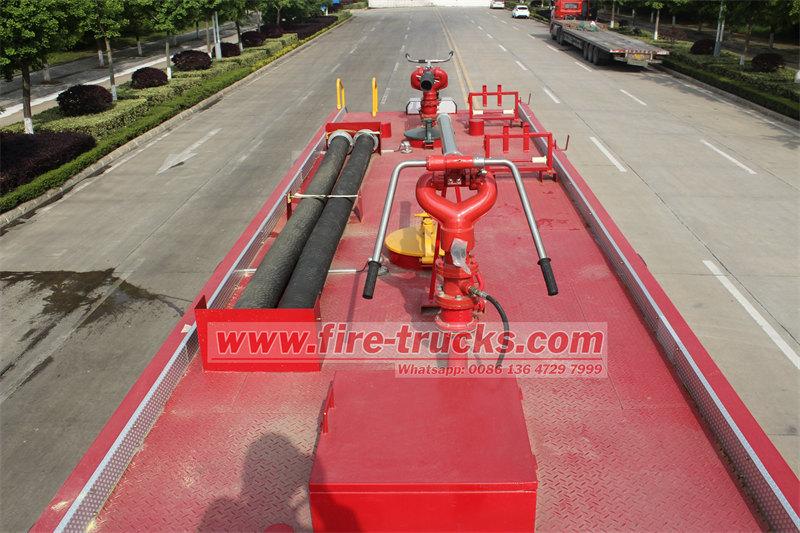

Fire Monitor (water & foam) |
|
Fire monitor model |
PL48 |
Flow rate |
48L/s, 1MPa |
Covering range |
water≥70m, foam≥60m |
Rotating Angle |
360°Horizontal Rotation |
Max. Pitch / dip angle |
pitch angle≤-45° dip angle≥+70° |
Fire monitor (dry powder) |
|
Fire monitor model |
PF40 |
Rated working pressure |
1.5 MPa |
Flow rate |
40kg/s |
Range |
≥42 |
Horizontal rotation |
360° |
Pitch rotation |
-30~+70° |
» Ⅲ.Factory Testing:

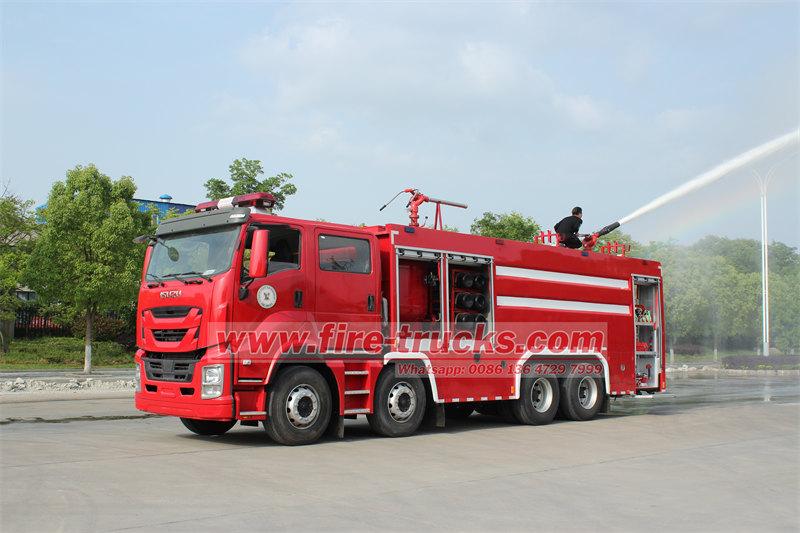

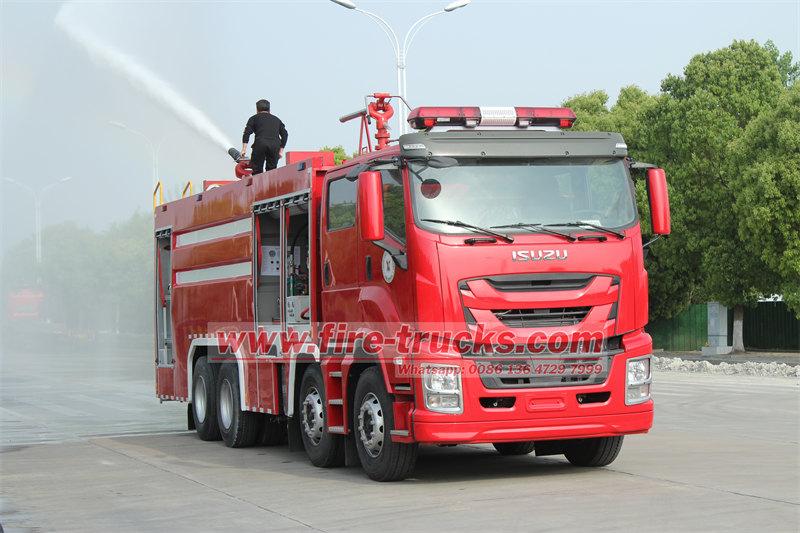

Isuzu GIGA fire fighting truck tested before delivery
Isuzu GIGA powder and foam fire truck testing before shipment

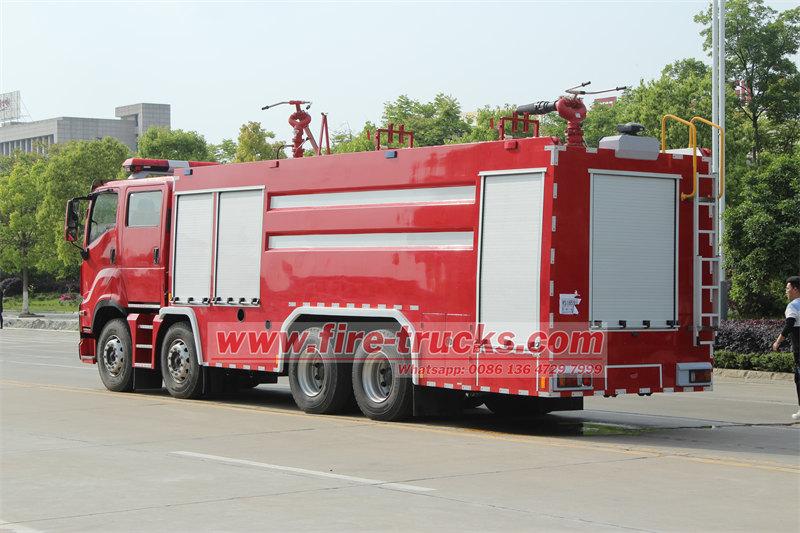

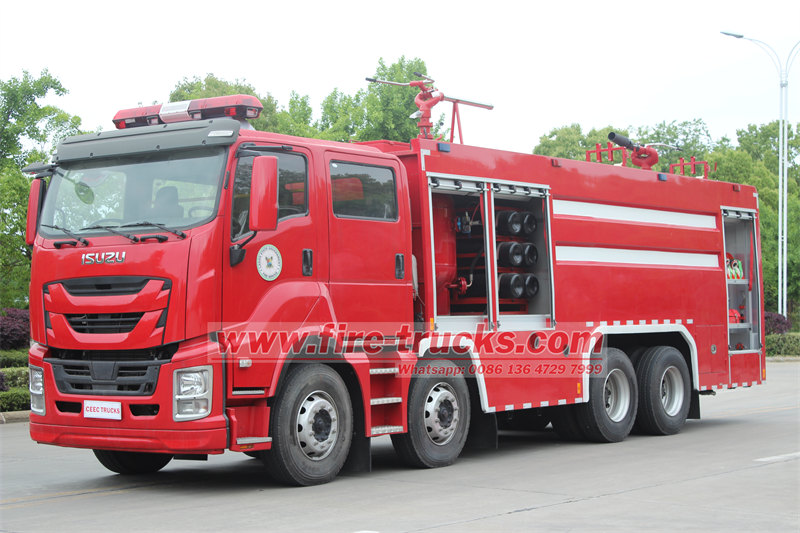

Isuzu GIGA heavy duty fire truck ready for delivery
