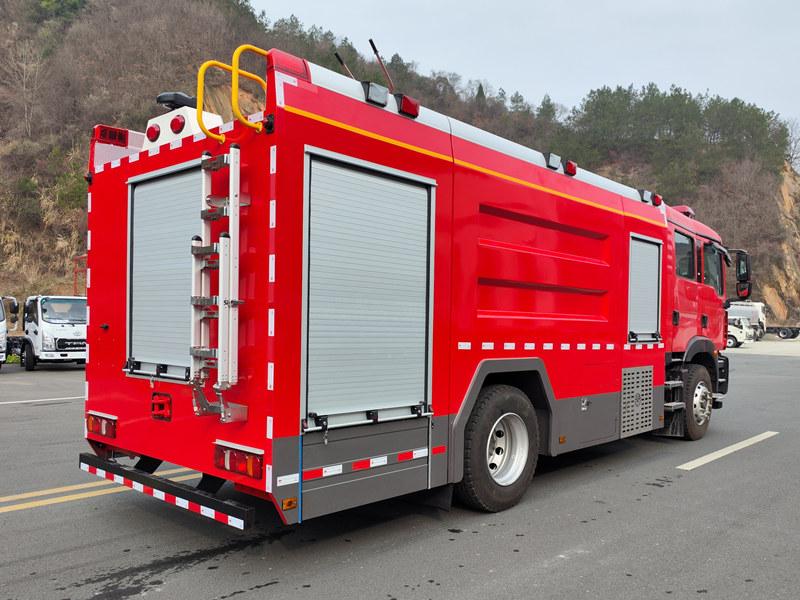

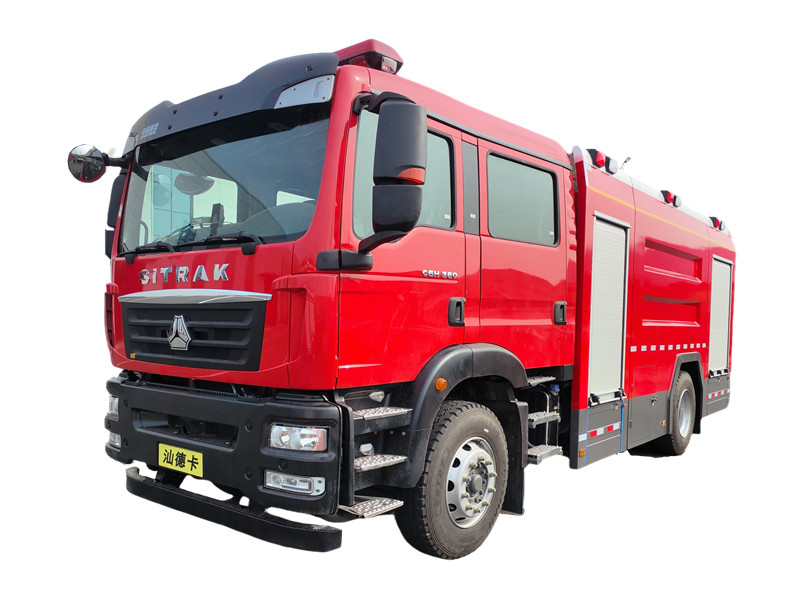

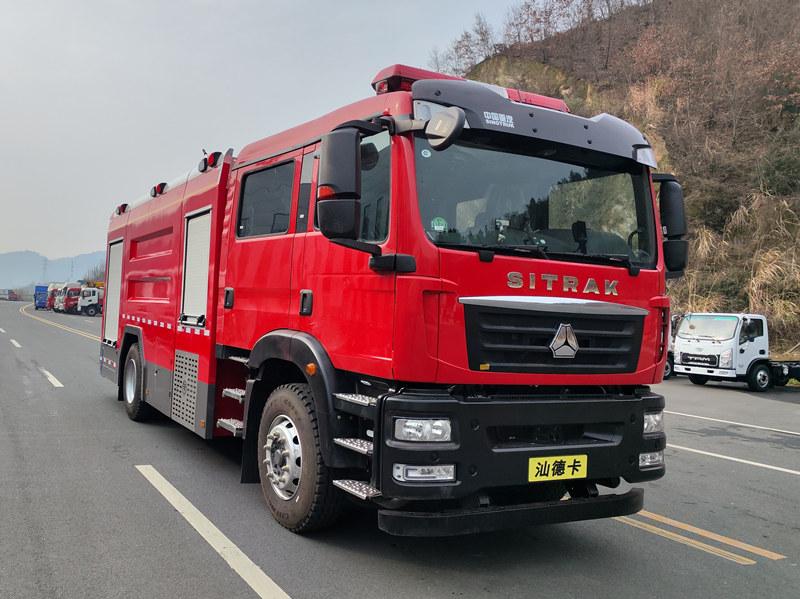

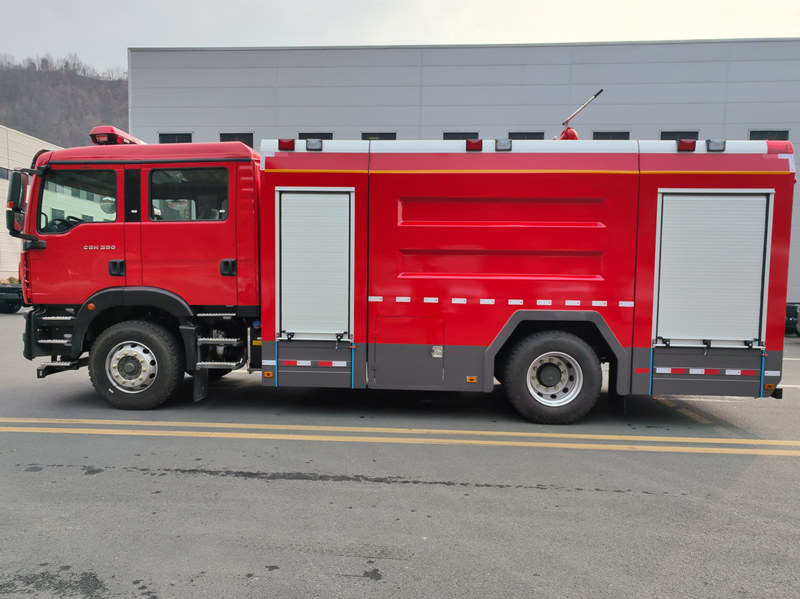

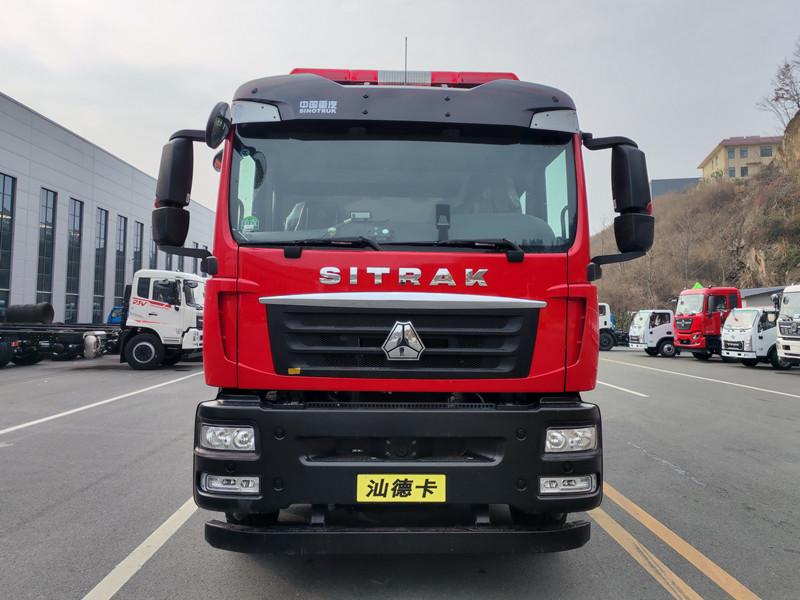

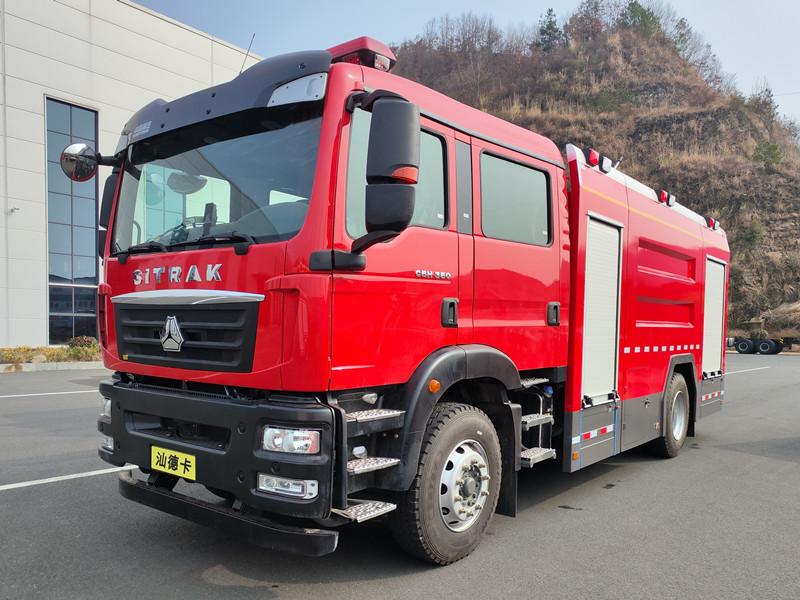

SINOTRUK SITRAK foam fire truck is built on the ZZ5206N471GF5 chassis, featuring a double-row cab design that accommodates six personnel. It is powered by a 350-horsepower MC07H.35-60 Euro VI engine paired with a 10-speed transmission, achieving a top speed of 105 km/h. The vehicle measures 8,540 × 2,550 × 3,450 mm and has a load capacity of 8,200 kg. It is equipped with a 6,000-liter carbon steel water tank and a 2,000-liter stainless steel foam tank. The fire pump delivers a flow rate of 60 liters per second at a pressure of 1.0 MPa. The PL48 fire monitor has a range of 70 meters (water) / 60 meters (foam), with 360° horizontal rotation and +80° to -30° elevation adjustment. Suitable for urban and industrial fire rescue operations, it combines high-efficiency power with versatile firefighting capabilities.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000L +2000LUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
4700 mmAxle drive:
4×2Engine Power:
350 HPEngine Model:
MC07H.35-60Fire Pump:
CB10/60, 60L/sFire Monitor:
PL48 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR foam fire truck is modified on a SINOTRUK SITARK chassis, featuring an original German MAN-technology double-row cab with hydraulic tilting. It is powered by a German MAN MC07H.35-60 engine with 350 horsepower. The truck adopts an exposed tank structure with an 8-cubic-meter tank capacity. Compact and agile, it offers excellent dynamic performance and high speed while retaining the full functionality of a large fire truck. The superstructure frame is constructed with European-standard aluminum alloy profiles, reducing overall weight while enhancing mobility and load capacity.

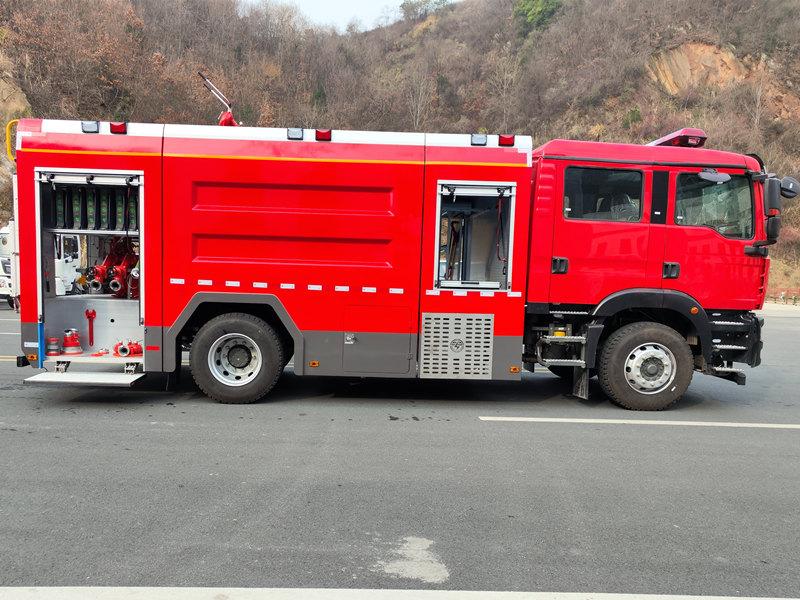

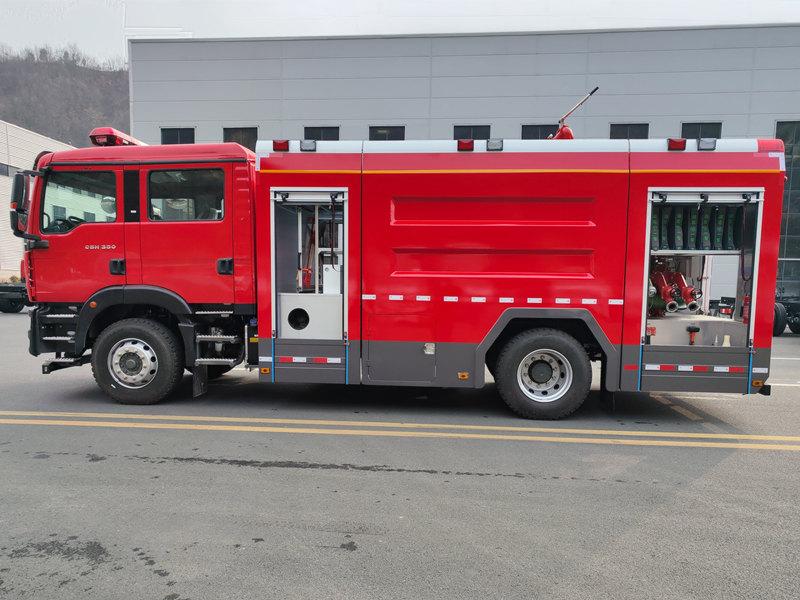

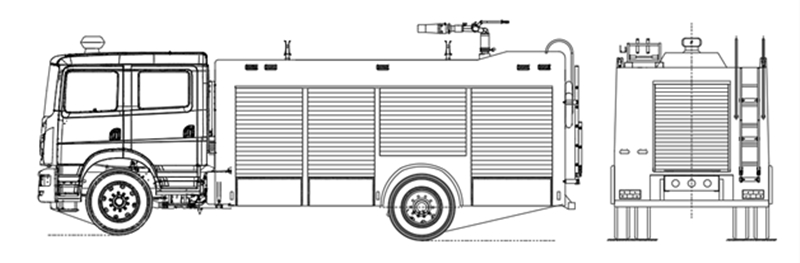

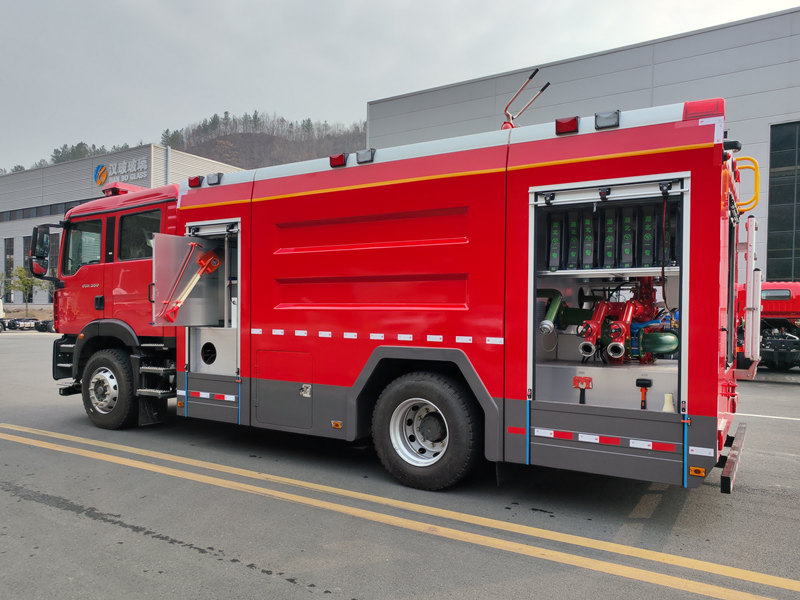

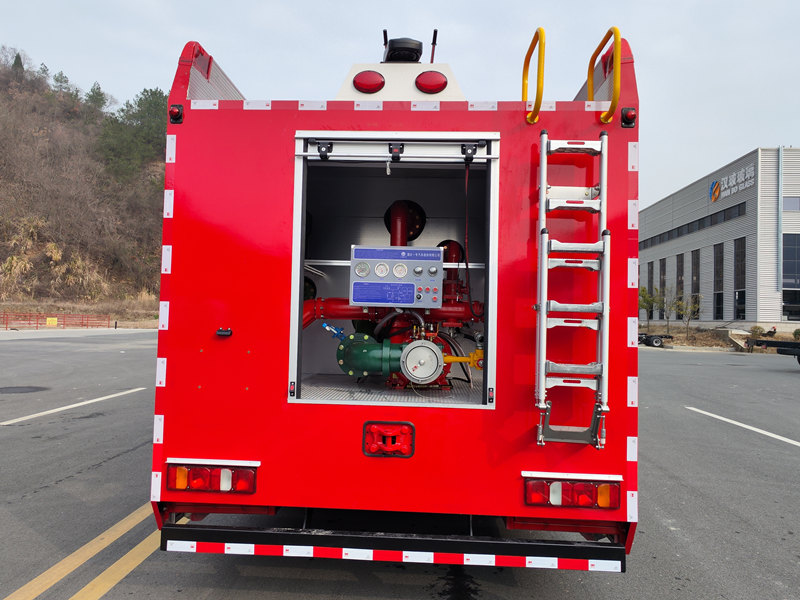

The SINOTRUK foam tender fire truck is designed with an equipment compartment at the front, a tank in the middle, and a pump house at the rear. It is equipped with a CB10/.60 normal-pressure fire pump rated at 60 L/s and a PL48 fire monitor mounted on the roof. This truck is characterized by its large liquid-carrying capacity, excellent controllability, and easy maintenance. It is widely applicable for firefighting tasks in public fire brigades, industrial plants, oil terminals, and other settings, capable of tackling large-scale oil fires as well as general material fires.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: SINOTRUK SITRAK truck chassis, 4x2, 6x4 and 8x4 model
MAN MC07H engine with 350HP and 7360cc displacement
2. Tank material: water tank made of high quality carbon steel, stainless steel is optional
foam tank made of stainless steel, aluminum alloy or PP material for option
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/60 centrifugal fire pump, normal pressure, flow rate 60L/s@1.0Mpa
Optional CB10/40, CB10/80 pump or America Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting and rescue tools equipped for convenient working, fire extinguishing and people rescue
POWERSTAR foam/water tank fire truck delivers strong power, a compact structure, and high mobility. It carries a large volume of fire suppressants, features high-flow pumps and monitors, and boasts a high level of system automation. The pipeline layout is optimized, with inlet/outlet positions and firefighting equipment placement designed for practical efficiency. It provides high firefighting effectiveness, suitable for extinguishing Class A fires in industrial and civil buildings, as well as Class B fires in petrochemical, coal chemical, and oil storage facilities. Additionally, it supports long-distance, high-rise firefighting and relay water supply operations.
» Ⅱ.Product Parameter for SINOTRUK 8000L water&foam fire truck:
VEHICLE SPECIFICATION |
|
Vehicle model |
Water tanker Fire Truck |
Model brand |
SINOTRUK SITRAK |
Chassis model |
ZZ5206N471GF5 |
Traction system |
4*2 |
GVW (kg) |
19450 |
Curb weight(kg) |
10800 |
Rated Load(kg) |
8200 |
Overall dimensions (mm) |
8540*2550*3450 |
Wheelbase (mm) |
4700 |
Approach/departure angle (°) |
16/11 |
Front/rear overhang (mm) |
1450/2390 |
Allowable passengers in cab |
2+4 |
Steering wheel |
LHD |
Cabin |
Double rows |
Max speed(km/h) |
105 |
Electric system |
24Volts |
CHASSIS SPECIFICATION |
|
Engine Model |
MC07H.35-60 |
Engine Power(HP) |
350HP/257KW |
Emission standard |
Euro 6 |
Displacement (ml) |
7360 |
Engine type |
6-cylinder, water cooling, direct Injection turbocharged inter cooled |
Gearbox Model |
10JS118TC-B |
Transmission |
10-speed front gears and 2 reverse gears, synchronized |
Air conditioner (Y/N) |
Yes |
TIRES |
295/80R22.5 6tires + 1spare |
TANKER SPECIFICATION |
|
Water tanker |
6000L (carbon steel) |
Foam tanker |
2000L (Stainless steel) |
Standard configuration |
DN430 manhole with fast locking/opening, automatic pressure relieving device. |
FIRE PUMP SPECIFICATION |
|
Type |
Normal pressure fire pump |
Model |
CB10/60 |
Pressure |
1.0 Mpa |
Flow Rate |
60 L/S |
Max Suction Depth |
≥7m |
Water Suction Time |
≤45S |
FIRE MONITOR SPECIFICATION |
|
Model |
PL48 |
Rotary Angle |
360°horizontal rotation |
Elevation Angle |
≥+80° |
Depression Angle |
≤-30° |
Flow Rate |
48L/S |
Range distances |
Water ≥70m; Foam≥60m |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.
2. Skilled workers for production:

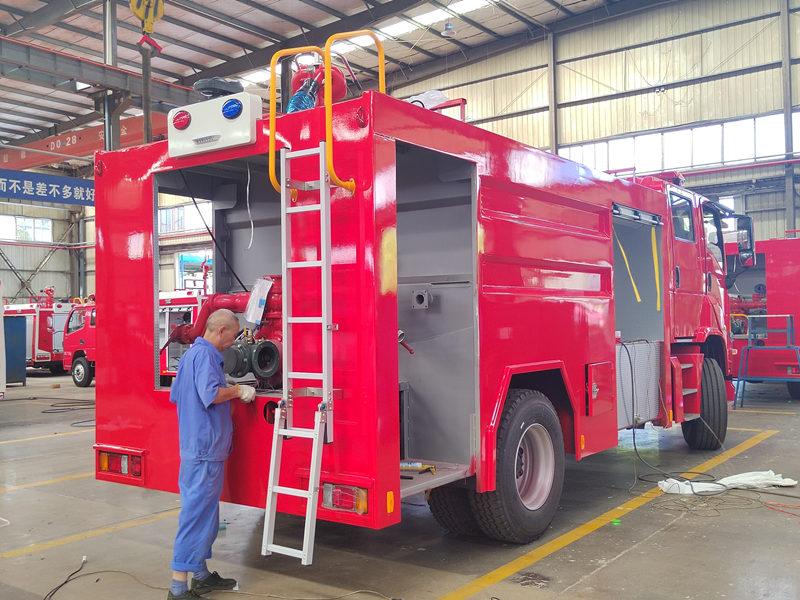

Skilled workers produce SINOTRUK SITRAK fire tanker truck according to technical drawing, weld water and foam tanks, install the Sandwich PTO, CB10/60 fire pump, PL48 fire monitor, pipeline, equipment room, pump room, lighting system, also full Aluminium alloy decoration.

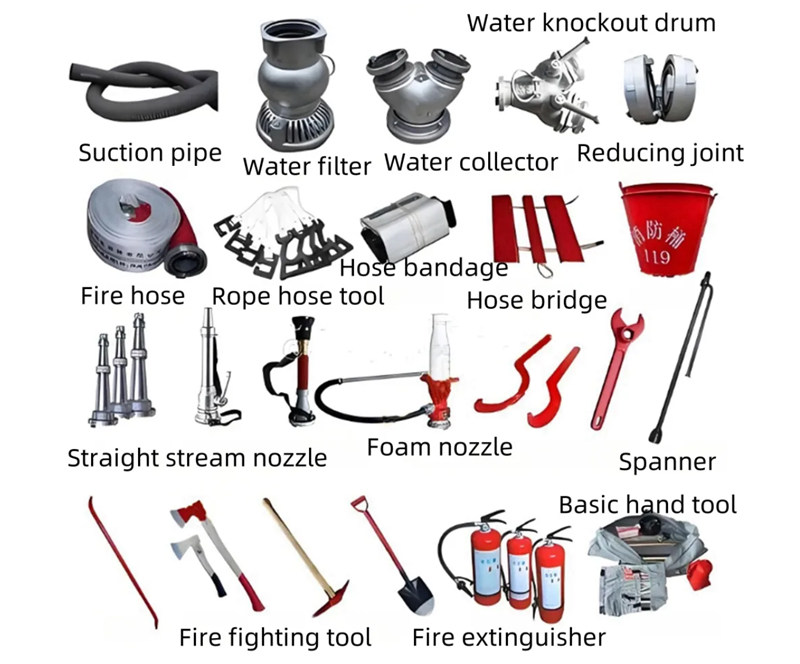

3. Prepare full fire fighting equipment:
Fire truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
