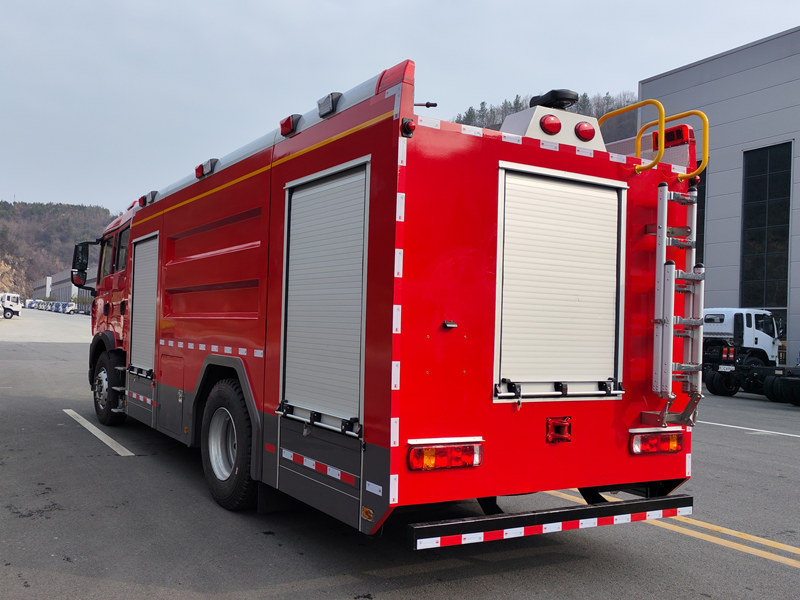

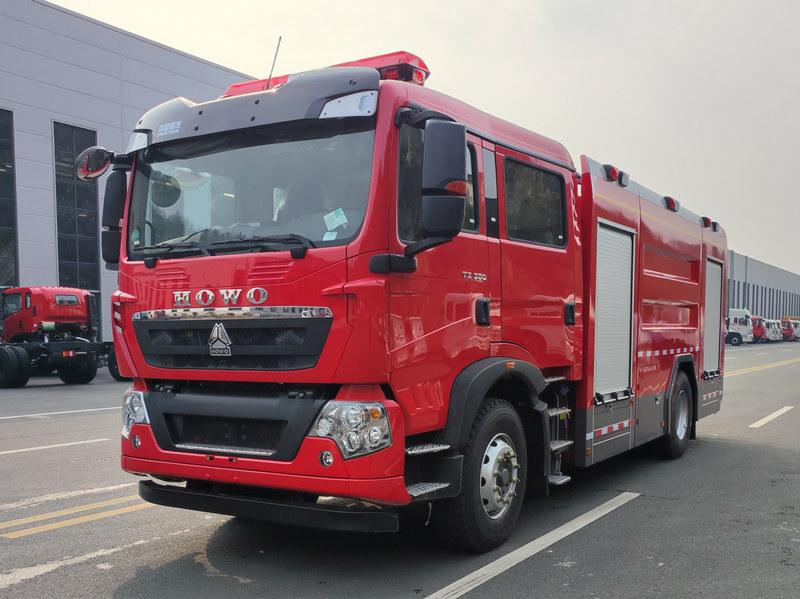

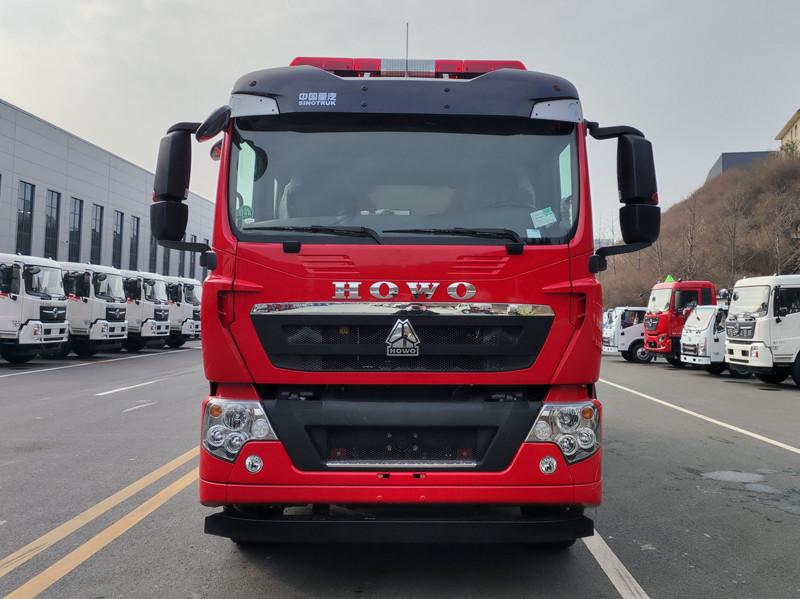

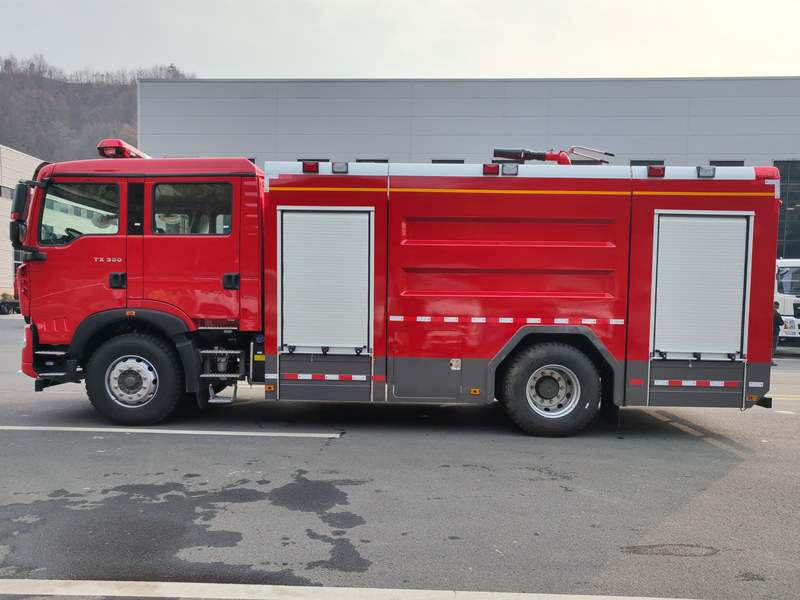

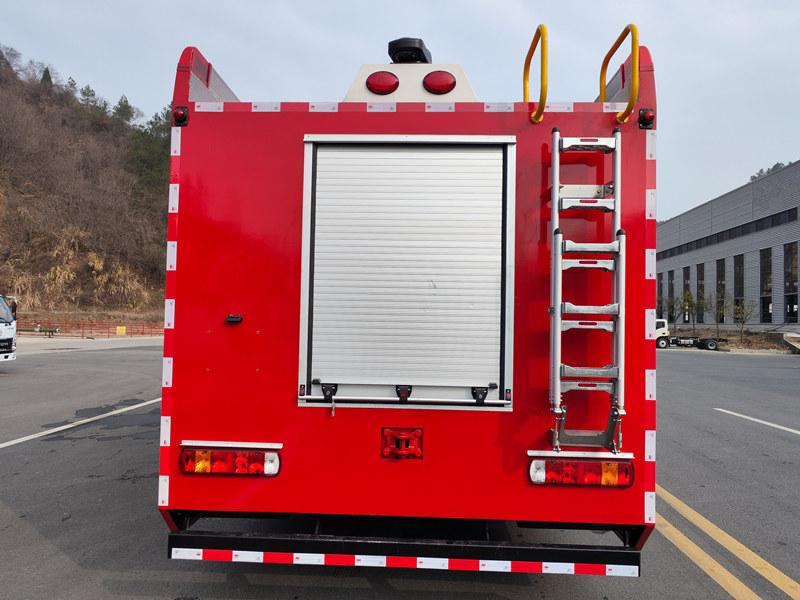

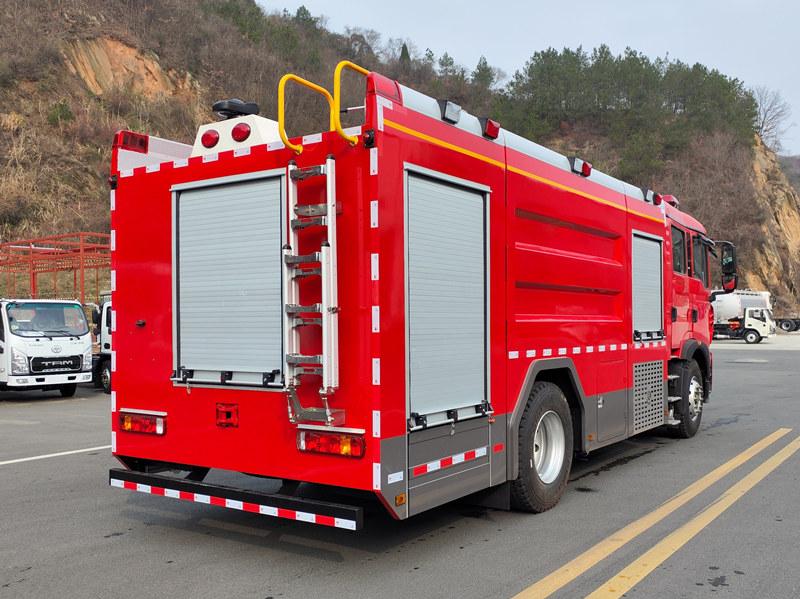

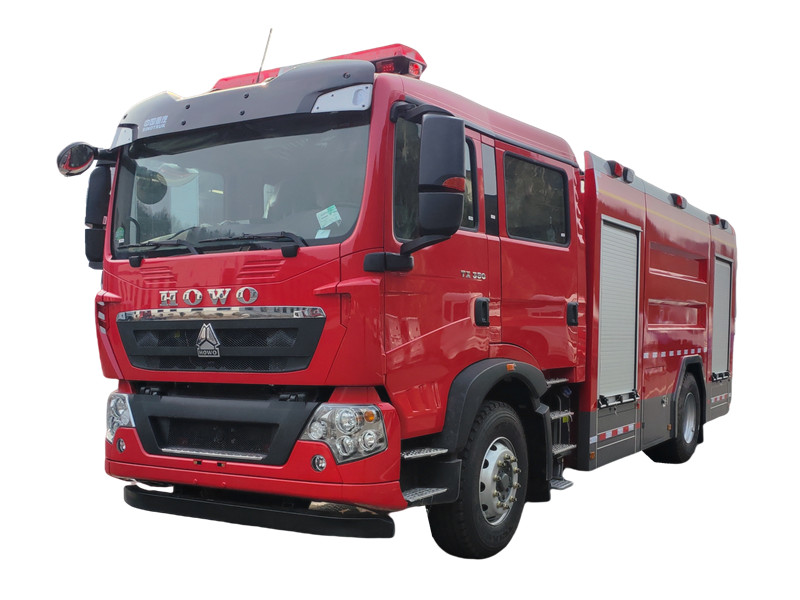

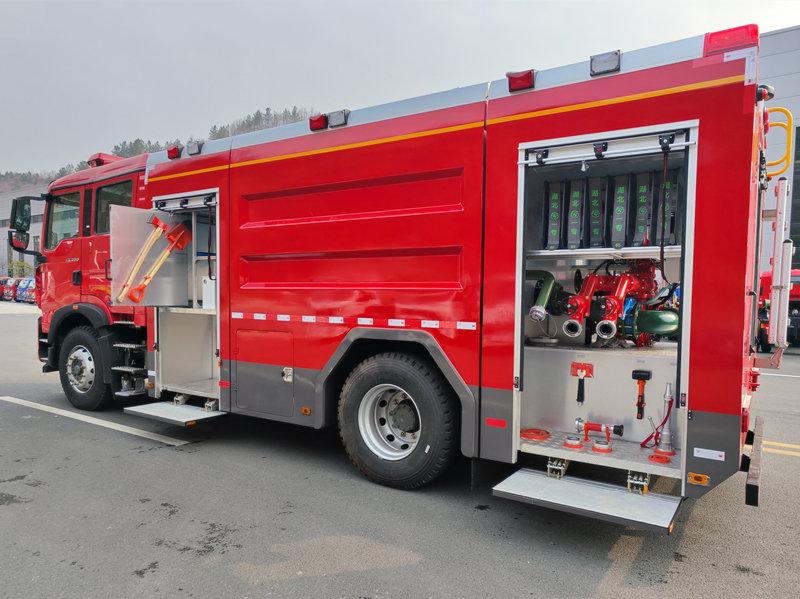

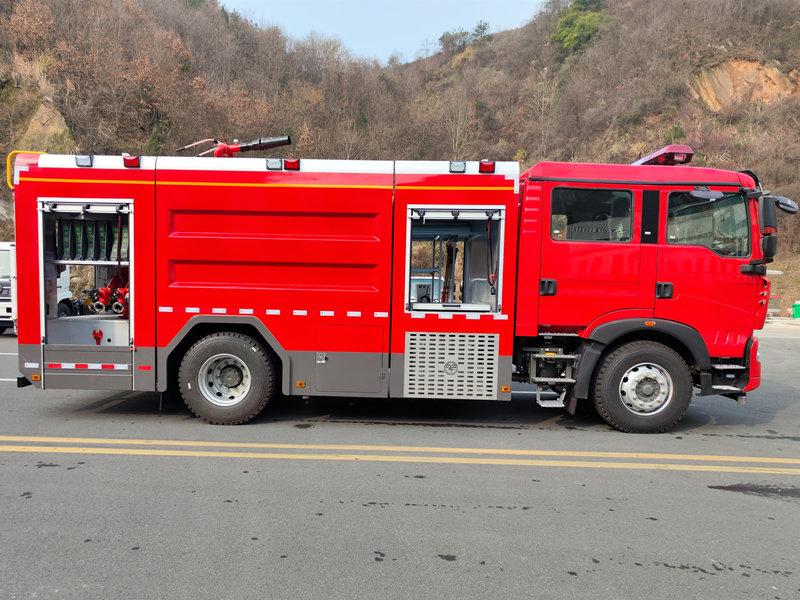

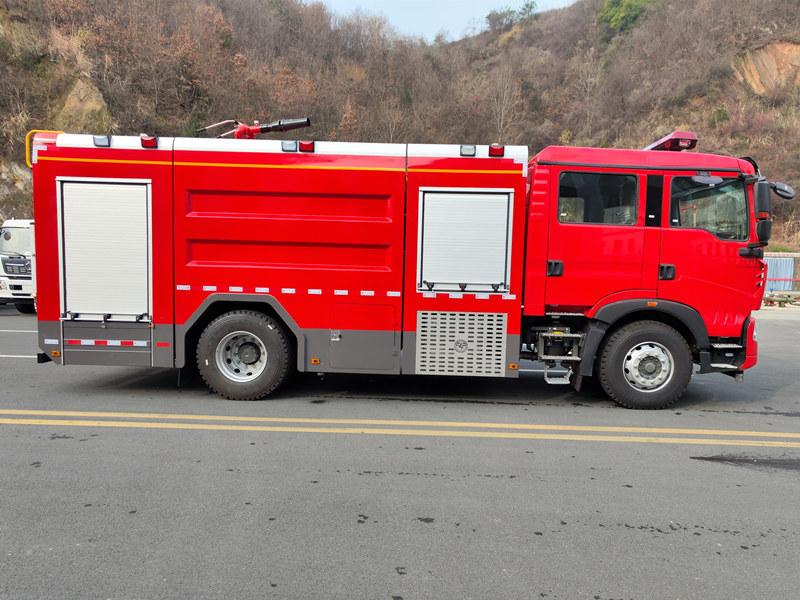

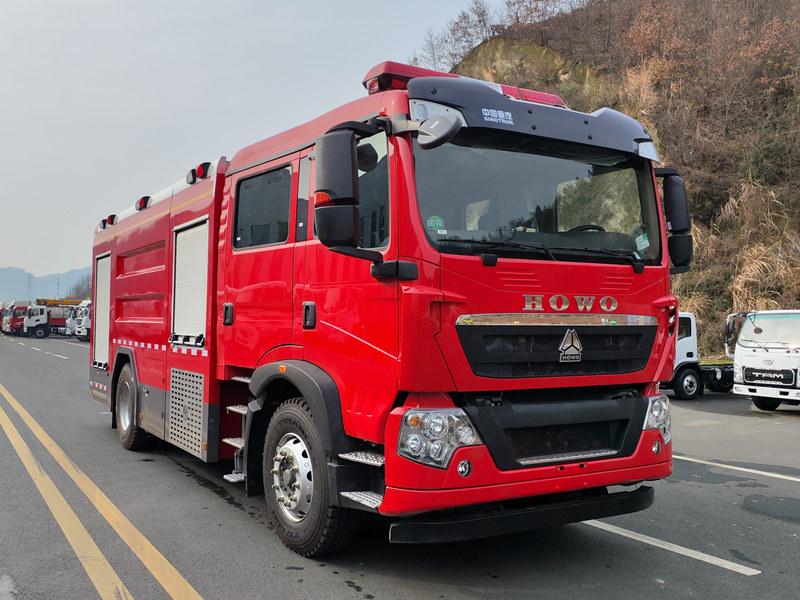

SINOTRUK HOWO 8000L Foam Fire Truck is a high-performance professional firefighting vehicle, built on the SINOTRUK HOWO ZZ5207TXFV471GF5 chassis. It is equipped with a CNHTC MC07H.35-60 diesel engine (350 HP/257 kW) and an 8m³ tank (6m³ carbon steel water tank + 2m³ stainless steel foam tank). The truck features a CB10/60 fire pump (60L/s) and a PL8/48 foam cannon, with a water jet range of ≥70 meters and a foam jet range of ≥60 meters. With overall dimensions of 8590×2550×3450 mm and a top speed of 100 km/h, it is specifically designed for oil and chemical fires, making it ideal for high-risk environments such as petrochemical plants, ports, and industrial zones. It serves as a highly efficient and reliable primary firefighting apparatus.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000L +2000LUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
4700 mmAxle drive:
4×2Engine Power:
350 HPEngine Model:
MC07H.35-60Fire Pump:
CB10/60, 60L/sFire Monitor:
PL8/48 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR 8000L Foam Fire Truck HOWO is a high-performance firefighting vehicle, built on the SINOTRUK HOWO ZZ5207TXFV471GF5 chassis, powered by a 350 HP diesel engine paired with an 8-speed manual transmission. Its 8000L large-capacity tank consists of a 6000L carbon steel water tank and a 2000L stainless steel foam tank. The truck is equipped with a CB10/60 fire pump and a PL8/48 foam cannon, delivering a water jet range exceeding 70 meters and a foam jet range of 60 meters. Combining powerful performance, large liquid capacity, and user-friendly operation, this HOWO tanker fire truck features an extended cab for enhanced comfort. Suitable for petrochemical plants, industrial sites, communities, and ports, it efficiently extinguishes oil-based and conventional fires, making it an ideal choice for both urban firefighting and industrial applications.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: SINOTRUK HOWO heavy duty fire chassis, 4x2, 4x4 and 6x4 model
MC07H.35 diesel engine with 350HP, displacement 7360 ml
MC11.40 model with 400HP, MC11.44 engine with 440HP for optional
2. Tank material: High quality carbon steel for water tank, stainless steel is optional
stainless steel foam tank, aluminum alloy or PP material for option
3. Tanker body: Customized tank capacity, with internal longitudinal and transverse anti-surge baffles, and a manhole on the top

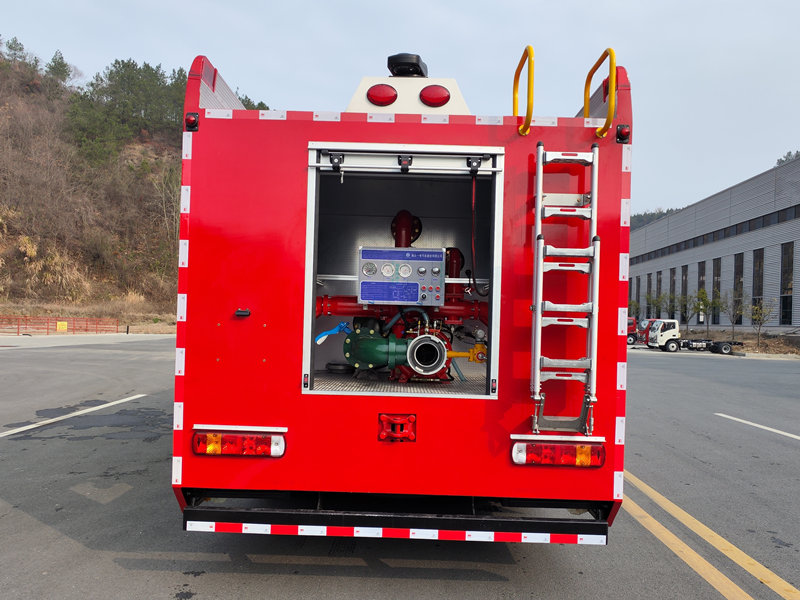

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, normal pressure pump
Optional CB10/40, CB10/80 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting and rescue apparatus equipped for convenient working, fire extinguishing and people rescue
A foam fire truck is a specialized firefighting vehicle designed to extinguish fires involving liquid fuels such as gasoline, diesel, alcohol, solvents, and flammable chemical liquids. Its core function is to mix foam concentrate with water to generate high-coverage foam, which smothers flames by cutting off oxygen and cooling the fire source. The vehicle typically consists of a chassis, a water tank (carbon steel), a foam tank (stainless steel), a fire pump, a foam proportioning system, a firefighting cannon, and onboard equipment. Its advantages include rapid suppression of liquid fuel fires, making it suitable for high-risk locations such as petrochemical plants, oil depots, refineries, chemical plants, and port terminals. With its large liquid capacity, long-range projection, and high-efficiency firefighting capabilities, the foam tanker fire truck is a crucial asset in modern firefighting systems.
» Ⅱ.Product Parameter for HOWO 8000L pumper tanker fire truck:
HOWO 8000L foam tanker fire truck specifications |
|||||
Chassis |
Brand |
SINOTRUK |
|||
Model |
HOWO |
||||
Gross vehicle weight (kg) |
19450 |
||||
Curb weight(kg) |
10800 |
||||
Wheelbase(mm) |
4700 mm |
||||
Dimensions(mm) |
8590*2550*3450 mm |
||||
Overhang (front/rear) (mm) |
1430/2050 mm |
||||
Wheel track (front/rear) (mm) |
1950/1860 mm |
||||
Approach/Departure angle(°) |
19/11° |
||||
Axle Load(kg) |
6450/13000 |
||||
Max. driving speed(km/h) |
10 km/h |
||||
Clutch |
Reinforced diaphragm clutch |
||||
Brakes |
Service brake: dual circuit compressed air brake |
||||
Steering Gear |
Power steering, hydraulic steering with power assistance |
||||
Tire |
Number |
6pcs with one spare tire |
|||
Specifications |
315/80R22.5 |
||||
Gear box |
Manual type, 8 Forwards & 2 Reverses |
||||
Cabin |
Four doors and 2+4 seats. With Air conditioner |
||||
Engine |
Brand |
SINOTRUK |
|||
Model |
MC07H.35-60 |
||||
Fuel type |
Diesel |
||||
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||||
Displacement(ml) |
7360 ml |
||||
Power(kw) |
257kw |
||||
Horsepower(HP) |
350 HP |
||||
Rated speed (rpm) |
2200 rpm |
||||
Max. Torque (N.m) |
1400 N.m |
||||
Tank & Fire Fighting System |
|||||
Water tank |
Volume (CBM) |
6 CBM |
|||
Tank Material |
Q235 Carbon steel |
||||
Foam tank |
Volume(CBM) |
2 CBM |
|||
Tank Material |
Stainelss steel |
||||
Proportion control system |
Foam vessel, proportioned equipment, water - entering pipe and liquid - out pipe etc |
||||
Fire pump |
Type |
Centrifugal pump |
|||
Model |
CB10/60 |
||||
Flow(L/s) |
60 |
||||
Pressure(Mpa) |
1 |
||||
Suction depth |
≥ 7 m |
||||
Water Suction Time |
≤50 s |
||||
Fire cannon |
Model |
PL8/48 |
|||
Flow(L/s) |
48 L/s |
||||
Water Range(m) |
≥70 m |
||||
Foam Range(m) |
≥60 m |
||||
Swing angle |
Horizontal |
360 ° |
|||
Tilt angle |
-30°~80° |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:

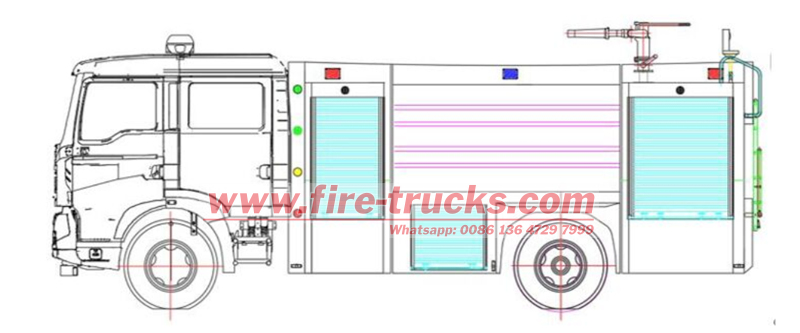

The exterior and tank capacity can be designed according to customer requirements. The overall dimensions can also be customized to reduce sea freight costs.
2. Skilled workers for production:

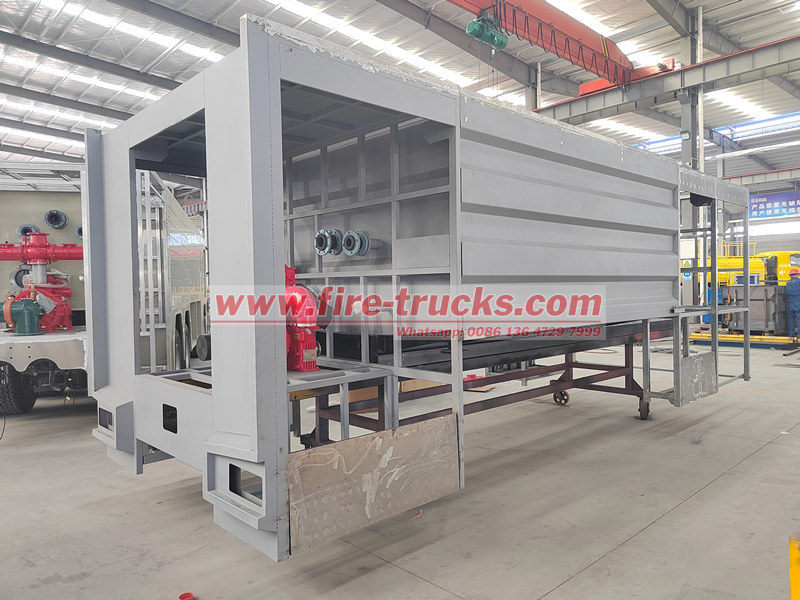

Workers make the tank, equipment compartments, and pump room according to production drawings, then install the PTO system, fire pump, fire monitor, and aluminum alloy interior fittings.

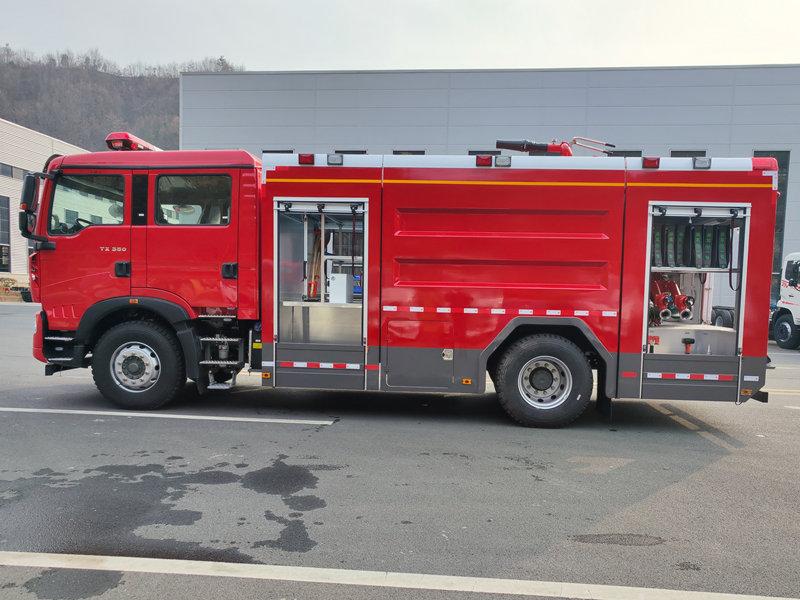

3. Prepare full fire fighting equipment:
Fire truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
