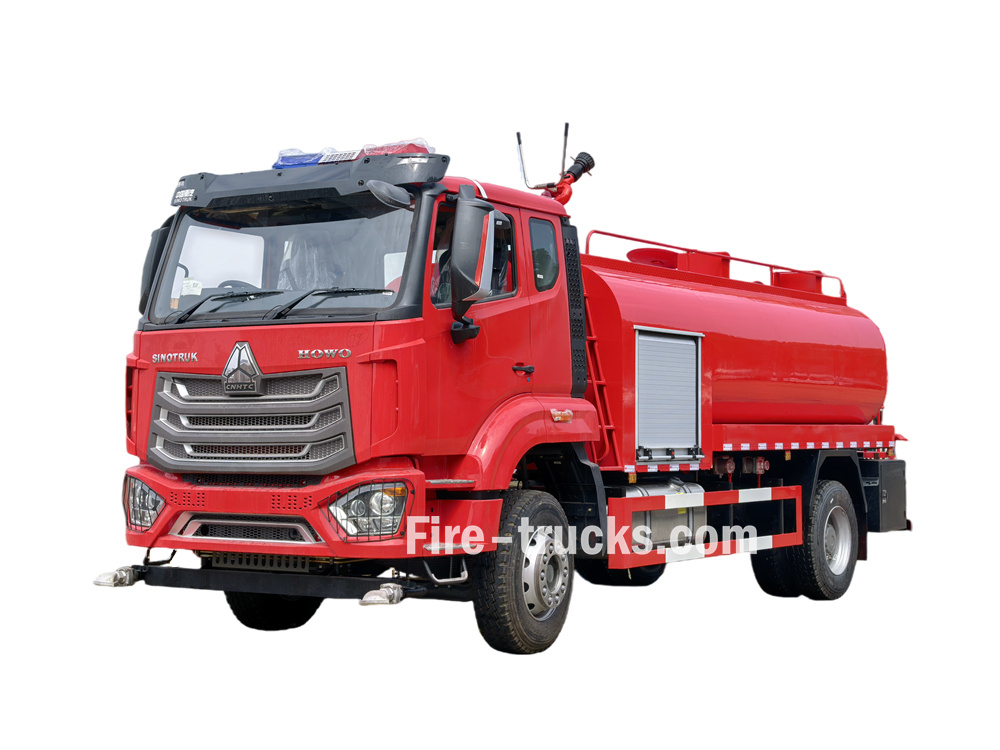

Howo 2000 gallon water tanker fire truck

Howo 2000 gallon water tanker fire truck

The Howo NX 290hp RHD fire sprinkler truck features a right-hand drive extended cab, a 7.5 cubic meter fire water tank made of carbon steel, a CB10/40-XZ fire pump at the front of the tank, a PS8/40W fire monitor on the top, a KDP80B(L)(E) diesel water pump unit on the left rear, front and rear spray nozzles, pump inlet and outlet valves, and combines firefighting and water spraying functions. The cab is equipped with a long row of warning lights, left and right turn indicators at the rear, a ladder, and storage boxes on both sides of the tank.

  • Truck Chassis:

    HOWO NX290
  • Tanker Capacity:

    7500L water tank
  • Engine Power:

    290HP/MC07.29-60
  • Fire Pump:

    CB10/40-XZ
  • Pump Flow:

    40L/s
  • Work Pressure:

    1.0MPa
  • Fire Monitor:

    PS8/40W
  • Monitor Flow:

    40L/s
  • Monitor Range:

    water ≥65m
Facebook Linkedin Youtube Twitter Pinterest

The Howo 2000 gallon water tanker fire truck uses a right-hand drive chassis from the Sinotruk NX series and is equipped with a powerful Sinotruk MC07.29-60 290hp engine. It combines firefighting and daily water spraying for dust suppression. The superstructure features a 7.5 cubic meter carbon steel water tank, equipped with a CB10/40-XZ fire pump and a PS8/40W fire monitor. It also includes front and rear sprayers and an independent diesel engine water pump unit, achieving multi-purpose functionality. It is an ideal choice for professional fire brigades, corporate fire stations, and municipal sanitation workers.



   ♦ HOWO NX RHD 7500L Fire Sprinkler Truck ♦

Howo 2000 gallon water tanker fire truck



Working Capacity

 Engine Model

 Wheelbase

 Superstructure

7500L water

MC07.29-60/ 290HP

 4500mm

★Water tank carbon steel

China famous CB10/40-XZ fire pump

 China famous PS8/40W Fire monitor

 2026 year brand new





»Ⅰ.Product Parameters



HOWO NX RHD 7500L fire sprinkler truck

Main specification

Truck brand

CS TRUCKS

Overall dimension(L*W*H)

8280x2500x3520mm

Cabin

HOWO NX290 cab, one and half row, with air conditioner, electronic windows, USB

GVW/Curb weight

18000/11750kg

Chassis

Chassis model

HOWO NX290

Drive model

4x2,right hand drive

Wheel Base

4500mm

Tyre size & number

10.00R20,6+11wheel

Transmission

SINOTRUK 8-speed, manual

Color

Red, standard.

Max speed

89 km/h

Engine

Engine type

Inline six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail

Engine model

SINOTRUK MC07.29-60

Horse power

290 HP/ 213kW

Displacement

6.87L

Max torque

1150N·m

Rated speed

2200rpm

Emission

EURO 6

WATER TANK AND FOAM TANK SPECIFICATION

Tank

Capacity

7500L water tank

Material

Carbon steel

Fire pump

Model

CB10/40-XZ

Rated pressure

1.0 MPa

Max allowable inlet pressure

0.4MPa

Flux

60L/s

Max suction height

7m

Rated speed

3135±50r/min

Fire monitor

Model

PS8/40W

Flow

40L/s

Rated working pressure

0.8MPa

Range

65m

Pitch rotation

- 30+70°

Horizontal rotation

0360°

Water pump set

Model

KDP80B(L)(E)

Power Model

KD173F(E)

Startup method

Manual (electric) start

Flow

45m³/h

Head

19m

Suction Lift

8m

Standard  configuration

An warning light installed on the top of the cab, rear indicator lights, laddermanhole, store boxes at side of tank

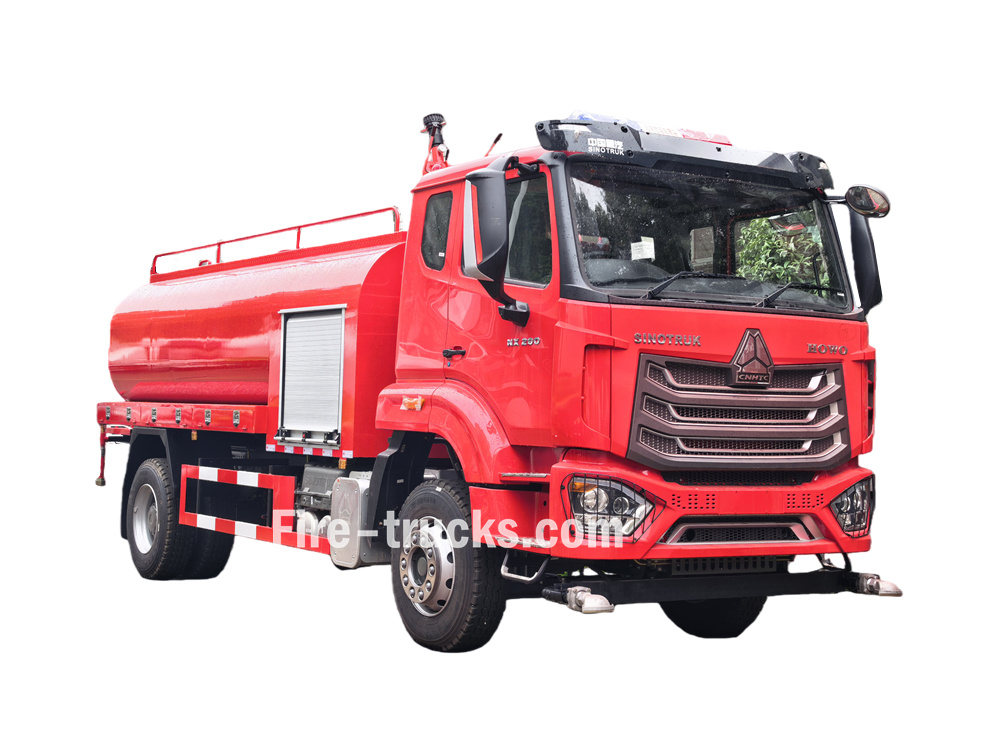

HOWO NX290 7.5cbm water sprinkler fire truck-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅱ.Key Features:



★ SINOTRUK 290HP powerful engine+ 8-speed gearbox, 100,000 Km without prblem.

★ HOWO NX RHD one and half cabin,  adapting the right-hand drive market.

★ China famous CB10/40 fire pump + diesel water pump set,super reliable

★ Tank capacity can be customized




» Ⅲ. Chassis system:

• Drive Type: 4×2

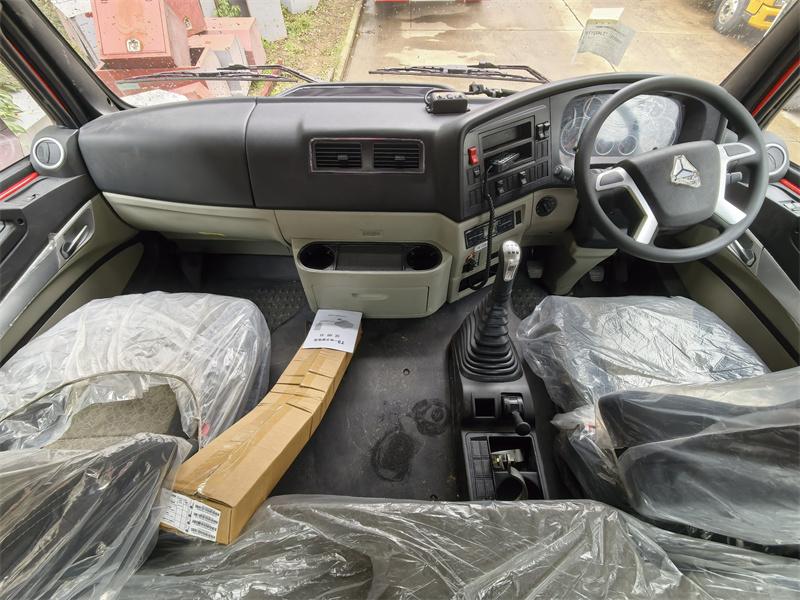

• Cab: Howo NX extended cab, right-hand drive, original air conditioning, hydraulic tilt, power windows, central locking



• Engine: Domestically renowned brand diesel engine, 290 horsepower, China VI/Euro VI emission standards



• Transmission: Sinotruk 8-speed transmission with PTO interface



• Wheelbase: 4500mm



• Tires: 10.00R20 steel radial tires

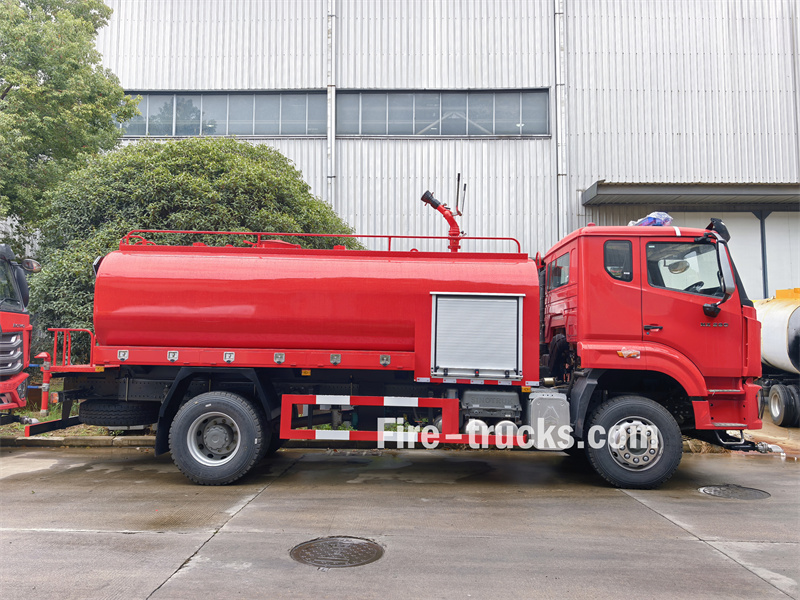

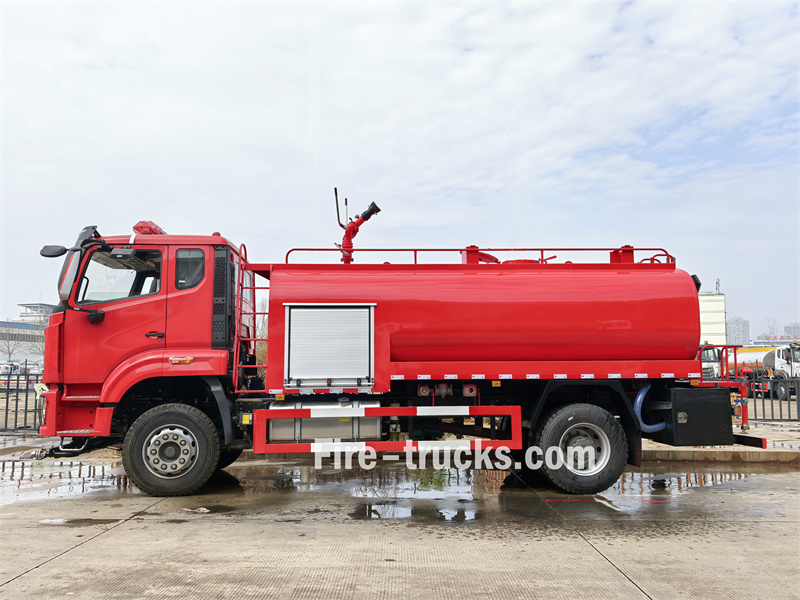

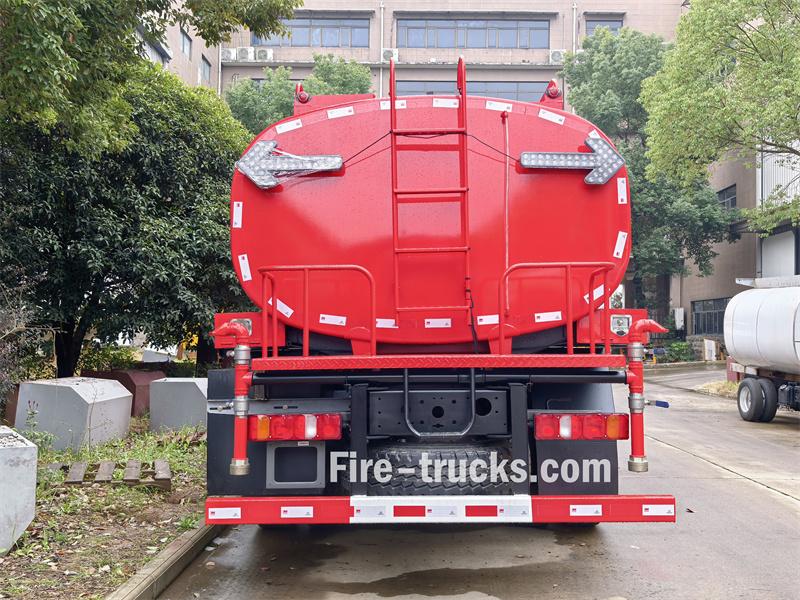

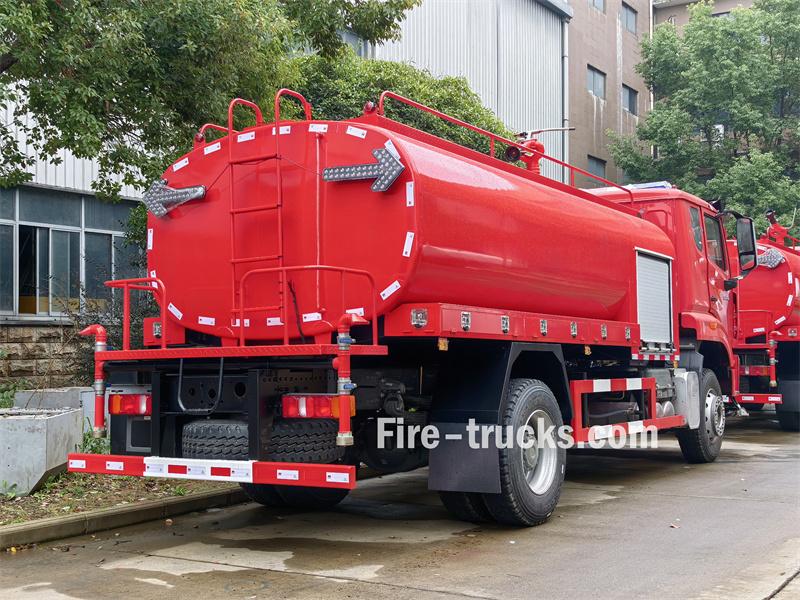

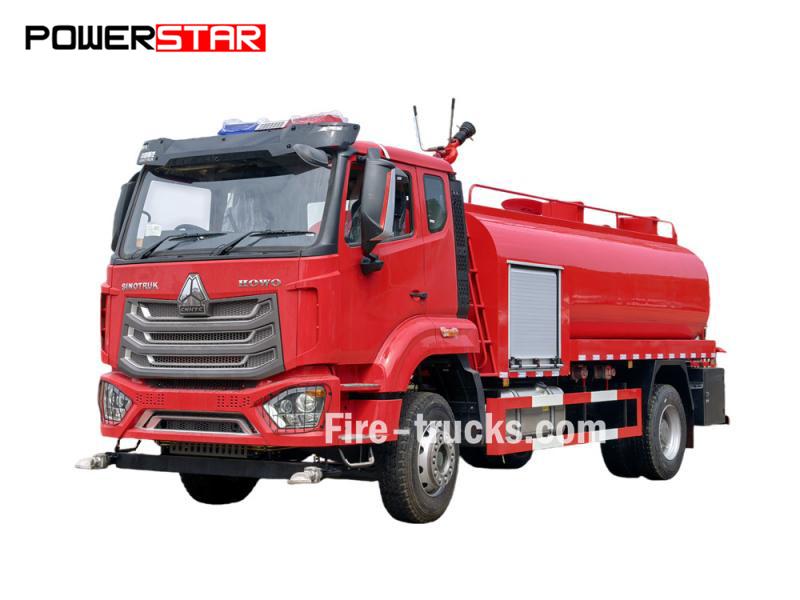

  • HOWO NX RHD 7500L fire sprinkler truck
  • HOWO NX RHD 7500L fire sprinkler truck
  • HOWO NX RHD 7500L fire sprinkler truck


» Upper Structure Fire Protection System:

• Tank Material: High-quality carbon steel (Q235B), 5mm thickness



• Tank Volume: 7.5 cubic meters



• Fire Pump:

   Model: Xiongzhen CB10/40 Vehicle-Mounted Fire Pump



   Type: Low-pressure centrifugal type, located at the front of the tank



   Rated Pressure: 1.0 MPa



   Rated Flow Rate: 40 L/s



   Priming Method: Water ring pump priming, with self-priming function

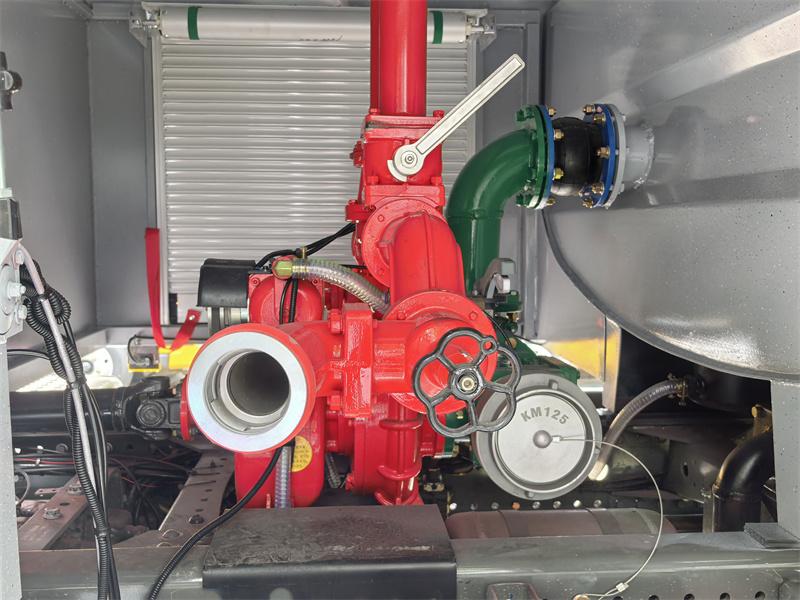

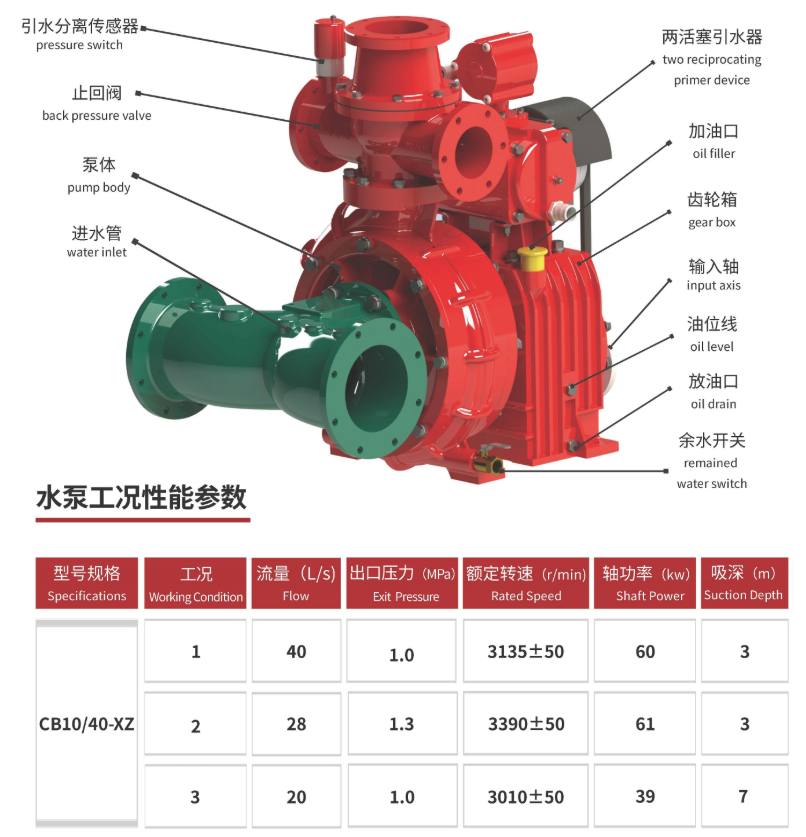

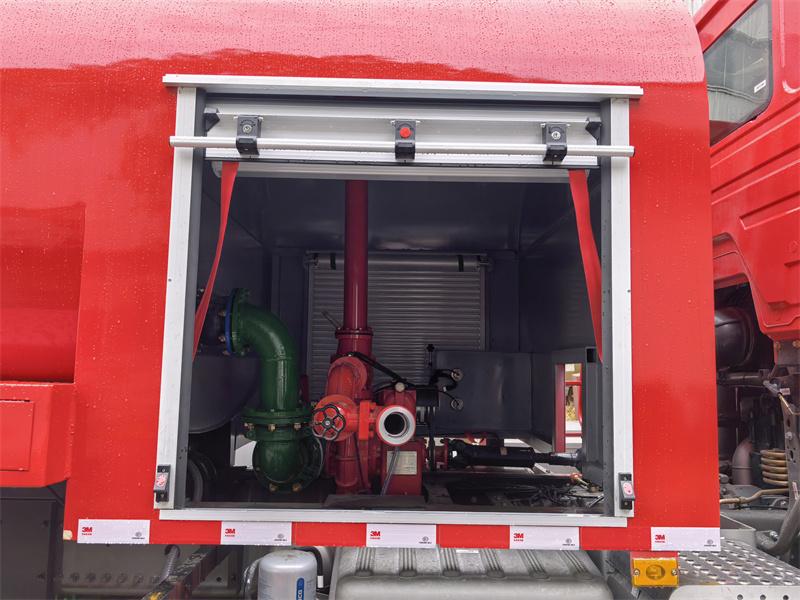

  • CB10/40-XZ fire pump
  • CB10/40-XZ fire pump
  • CB10/40-XZ fire pump

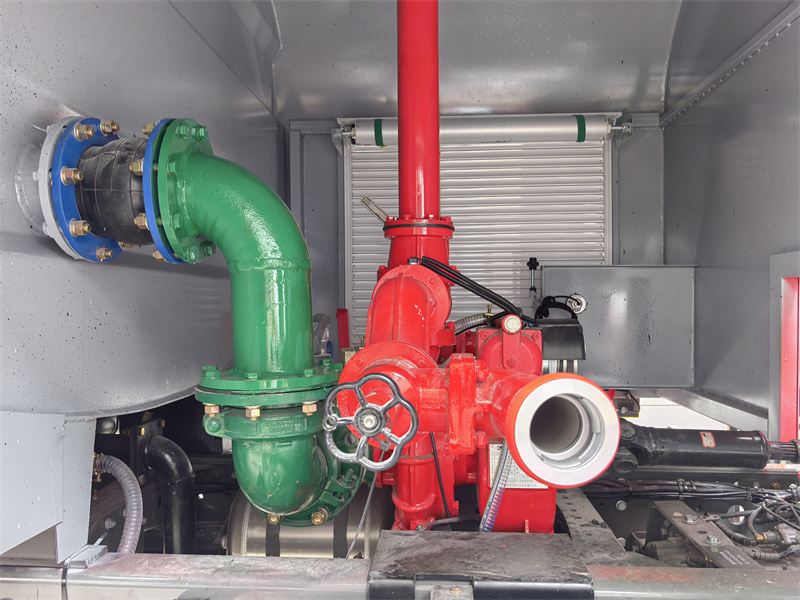

CB10/40-XZ fire pump

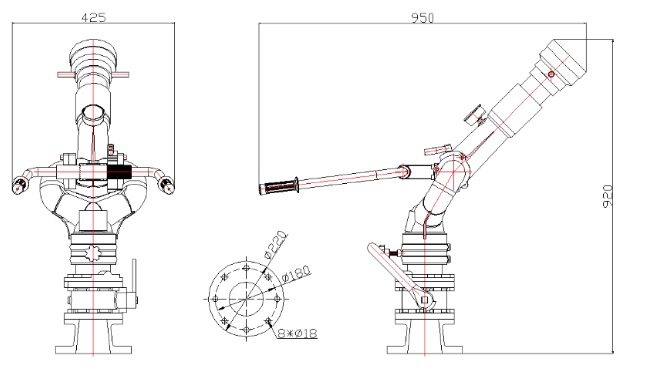

• Fire Monitor:

  Model: Chengdu Weister PS8/40W Manual Fire Monitor



  Location: Top of the tank



  Rated Flow Rate: 40 L/s



  Range: Water jet range ≥ 65 meters



  Rotation Angle: 360° horizontal rotation, pitch angle -30~+70° adjustable

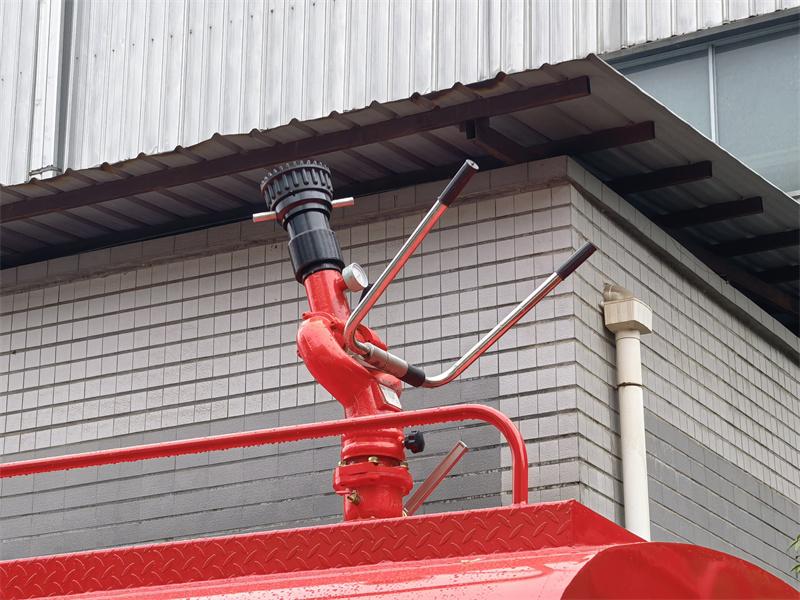

PS8/40W fire monitor

PS8/40W fire monitor

Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PS8/40W 40L/s

Water ≥65m

0.80MPa -30°~+70°
0~360° 22kg



» Auxiliary Firefighting and Water Supply System:

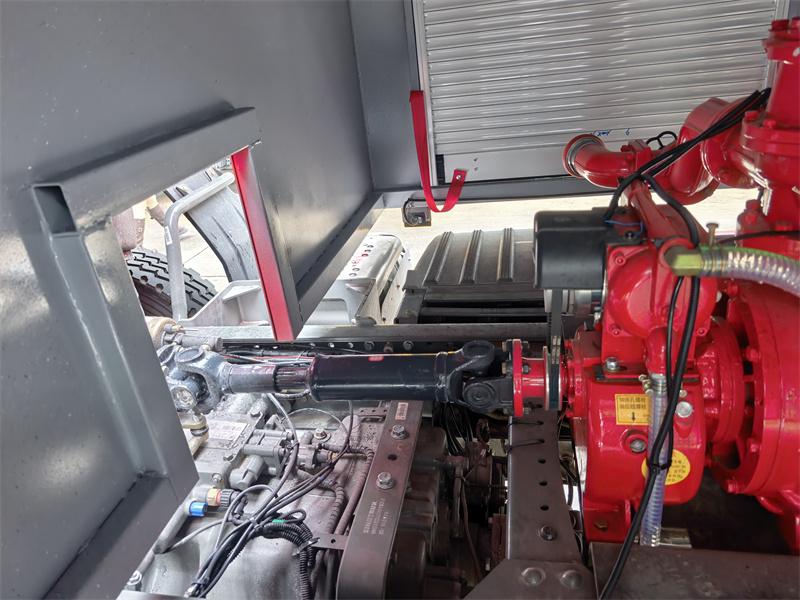

• Diesel Engine Water Pump Set:

o Model: KDP80B(L)(E)

o Location: Left rear of the vehicle



• Pump inlet/outlet valve: Located on the left side of the vehicle



• Function: Independently powered, flow rate 45m³/h, can be used as an auxiliary fire pump or power source for water spraying operations, enhancing the vehicle's versatility.

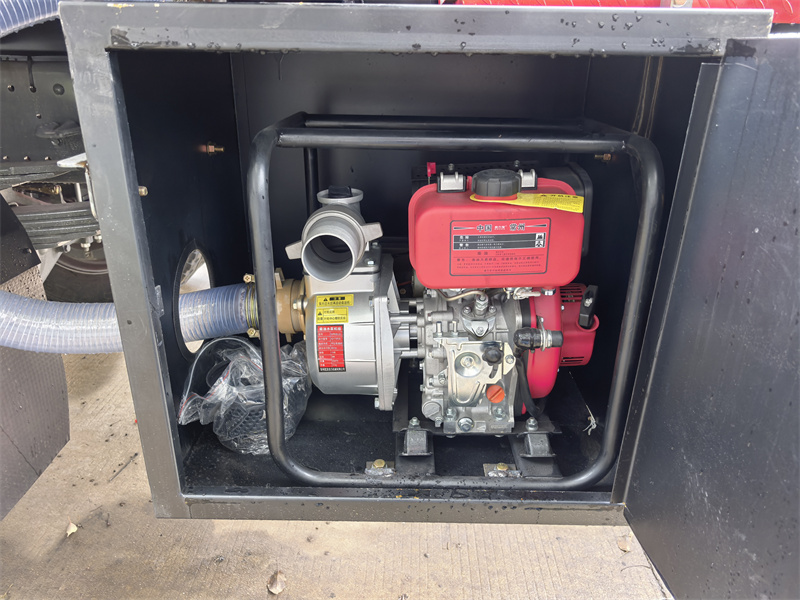

Diesel Engine Water Pump Unit

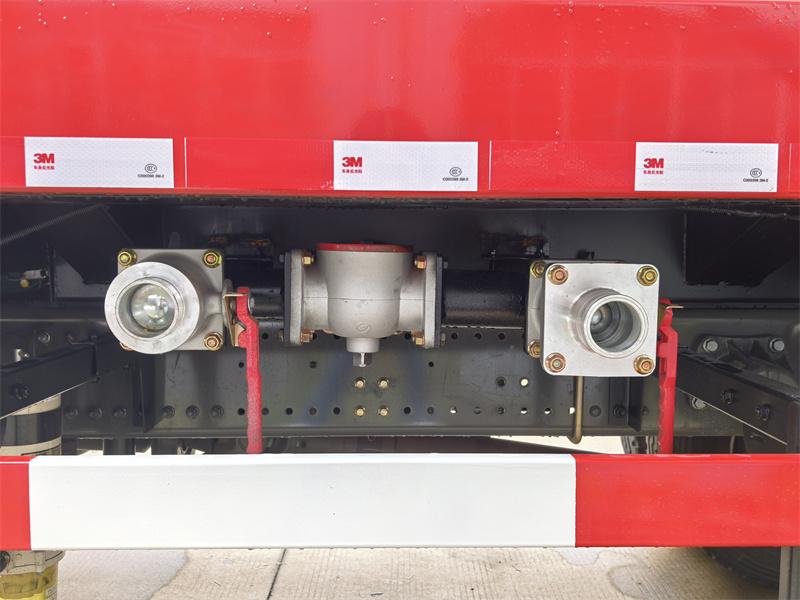

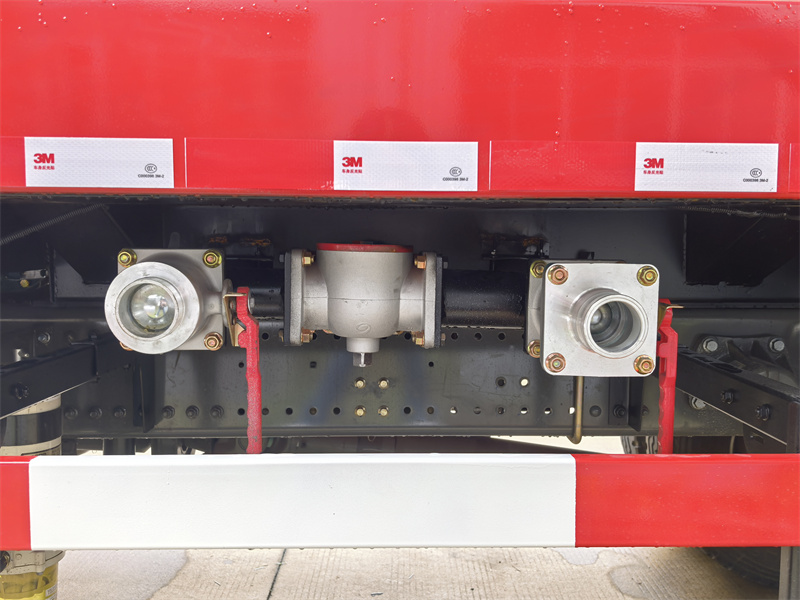

Pump inlet/outlet valve



» Sanitation Sprinkling Function:

While possessing powerful firefighting capabilities, this vehicle retains and enhances the functions of a conventional sprinkler truck, suitable for daily road maintenance:

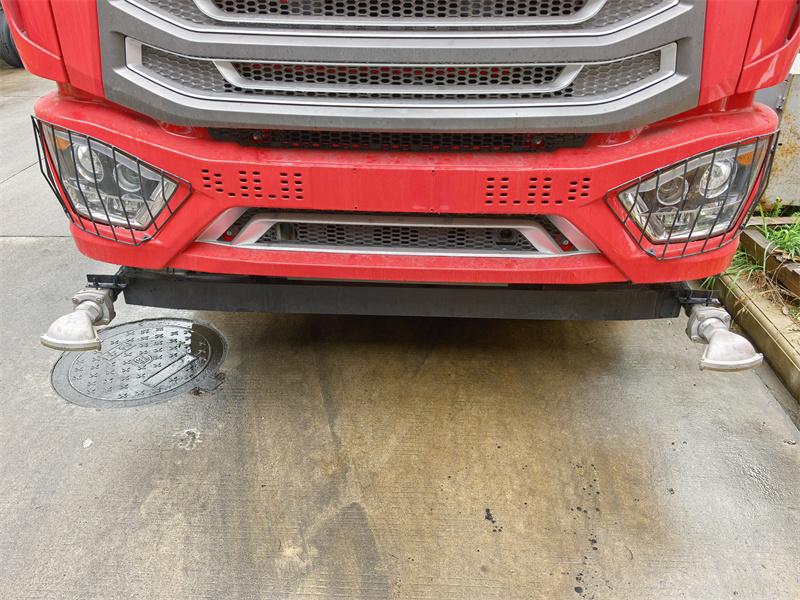

• Front Flushing: Front flushing nozzles are installed under the cab for washing the road surface (can spray water in both directions, in a columnar or mist pattern).

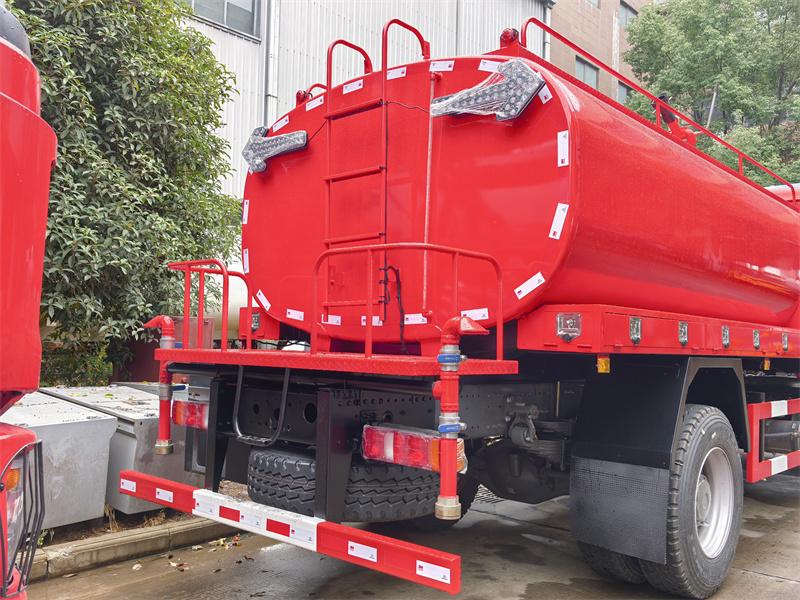

• Rear Sprinkling: Sprinkler nozzles are installed at the rear of the vehicle for dust suppression and cooling (spraying in a fan shape).



• Self-priming Function: Utilizing a fire pump or an independent diesel engine pump, water can be drawn from rivers, ponds, etc., into the tank.

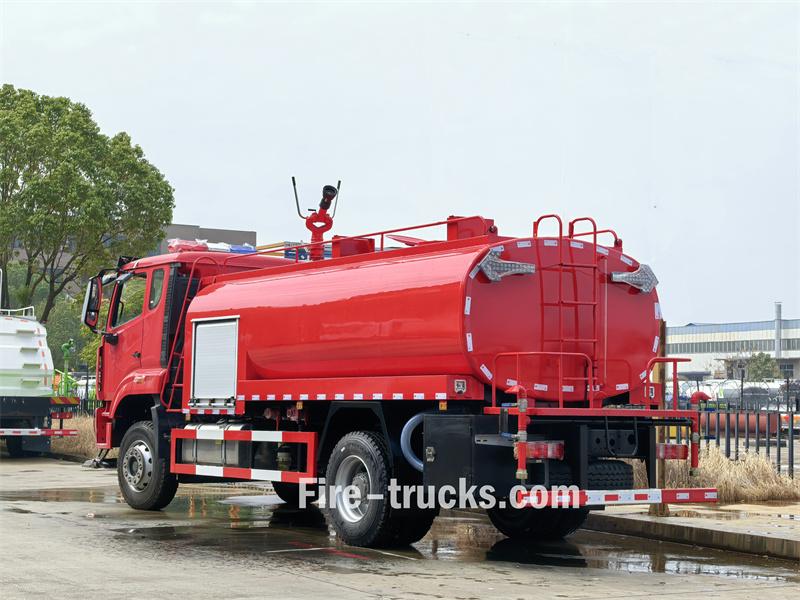

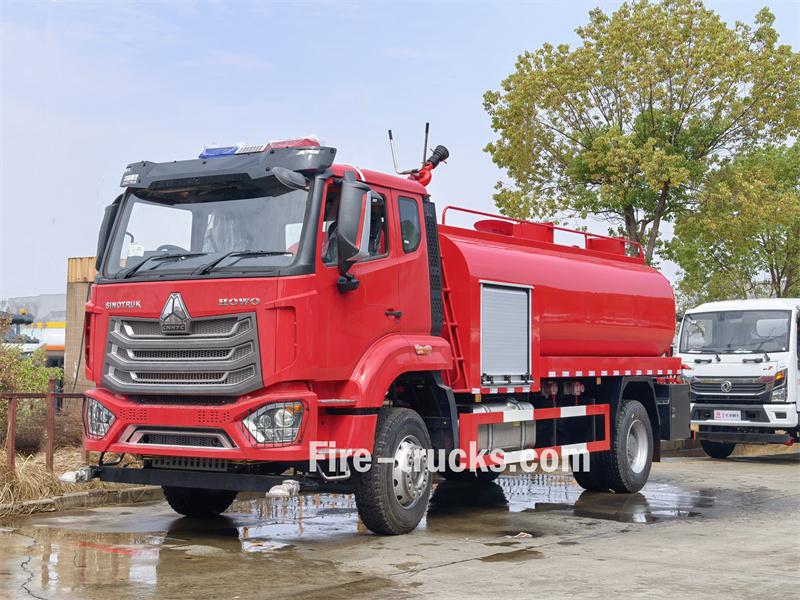

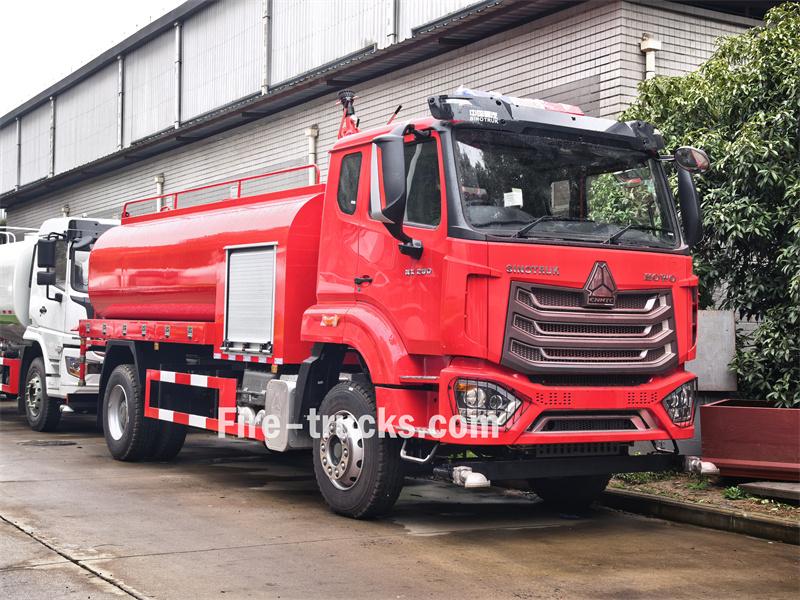

  • HOWO NX 7500 liters water fire rescue truck
  • HOWO NX 7500 liters water fire rescue truck
  • HOWO NX 7500 liters water fire rescue truck



» Application Scenarios:



• Firefighting: Urban building fire suppression, initial forest fire fighting, industrial area fire fighting.



• Municipal Sanitation: Road cleaning, green space irrigation, dust suppression, drought relief water transport.



• Rural Rescue: Rural fire fighting, farmland irrigation, temporary water supply.

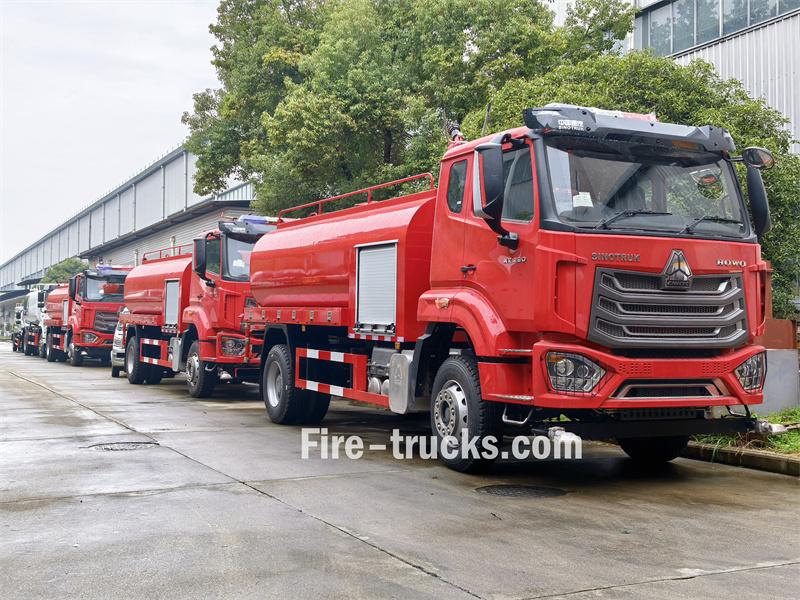

3 units HOWO 4X2 RHD fire water sprinkler truck
