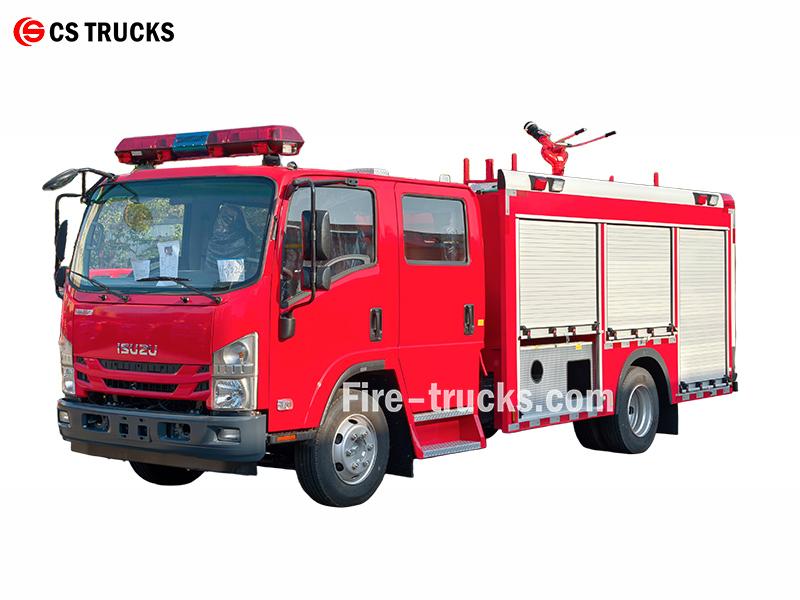

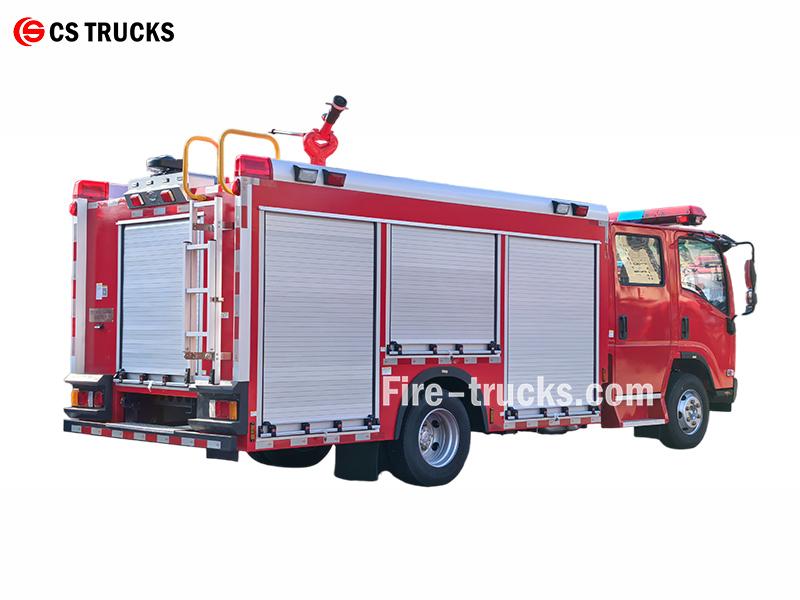

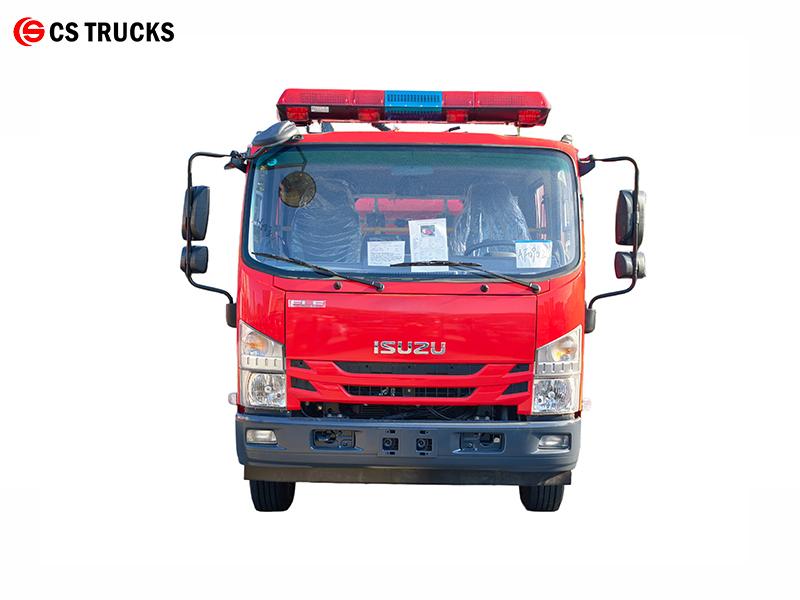

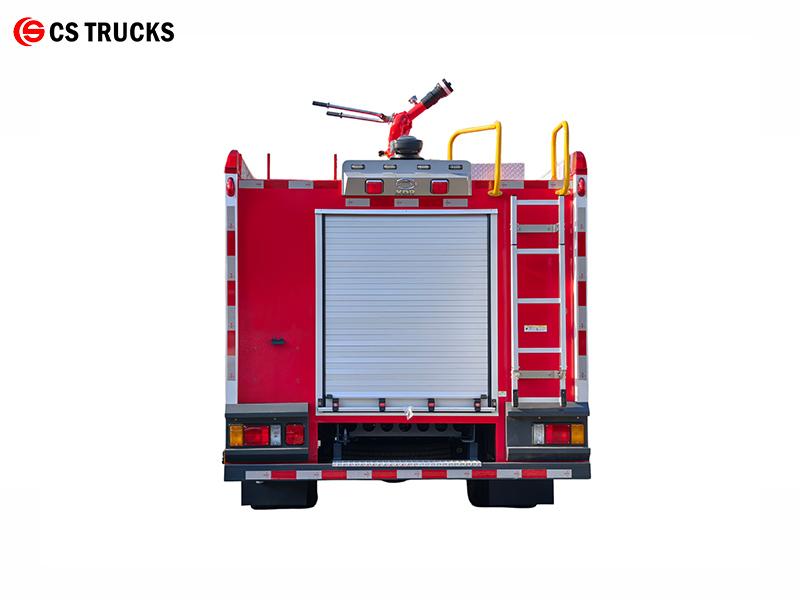

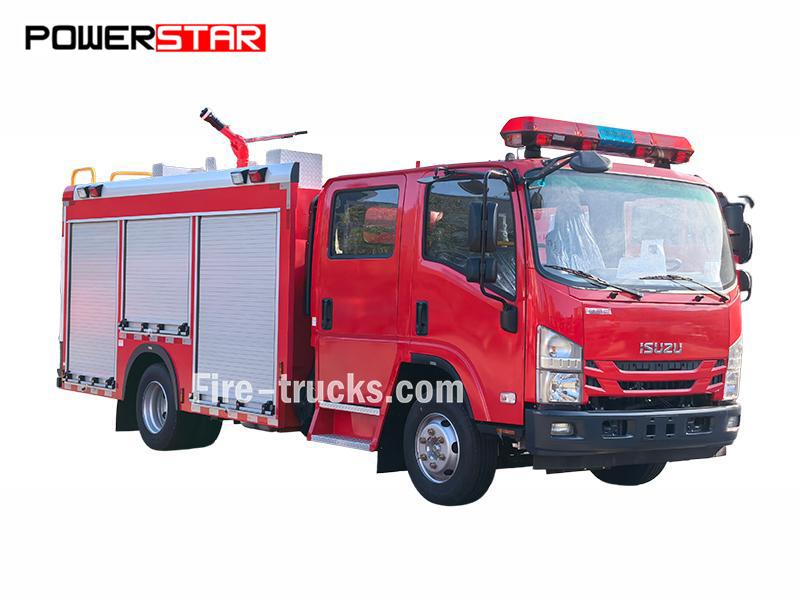

ISUZU NPR 190HP Water Pumper Fire Rescue Truck

ISUZU NPR 190HP Water Pumper Fire Rescue Truck

SUZU NPR 190HP water pumper rescue truck is built around a 4×2 ISUZU chassis and powered by a 4HK1-TCG61 diesel engine making 190 HP. Behind the cab sits a 4,000 liter water tank. The rear pump room contains a CB10/40 fire pump rated at 40 L/s at 1.0 MPa. On the roof, a PS8/40 monitor shoots water up to 60 meters, turns a full 360°, and tilts from -35° up to 70°. Side compartments hold fire hoses, suction lines, couplings, wrenches, a foam gun, and a basic tool kit—everything needed for initial attack.

  • Truck Chassis:

    ISUZU 4X2
  • Engine Power:

    189 HP / 4HK1-TCG61
  • Fire Pump:

    CB10/40-RS
  • Pump Flow:

    40L/s
  • Work Pressure:

    1MPa
  • Fire Monitor:

    PS8/40W
  • Monitor Flow:

    40L/s
  • Monitor Range:

    Water≥60m
Facebook Linkedin Youtube Twitter Pinterest

ISUZU NPR 190HP water pumper fire rescue truck (also known as fire truck water tanker, fire water tender truck, or fire fighting water truck) is built on a 4×2 ISUZU chassis with a 190 HP 4HK1-TCG61 engine. This ISUZU fire engine truck carries a 4,000L water tank, a CB10/40 fire pump (40L/s at 1.0MPa), and a PS8/40 roof monitor with 60m water range. Standard gear includes fire hoses, suction lines, couplings, wrenches, foam gun, and tool kit. This compact rig fits narrow city streets and handles industrial fire protection as well as municipal emergency duties.

♦ ISUZU NPR 189HP Water Pumper Fire Rescue Truck ♦

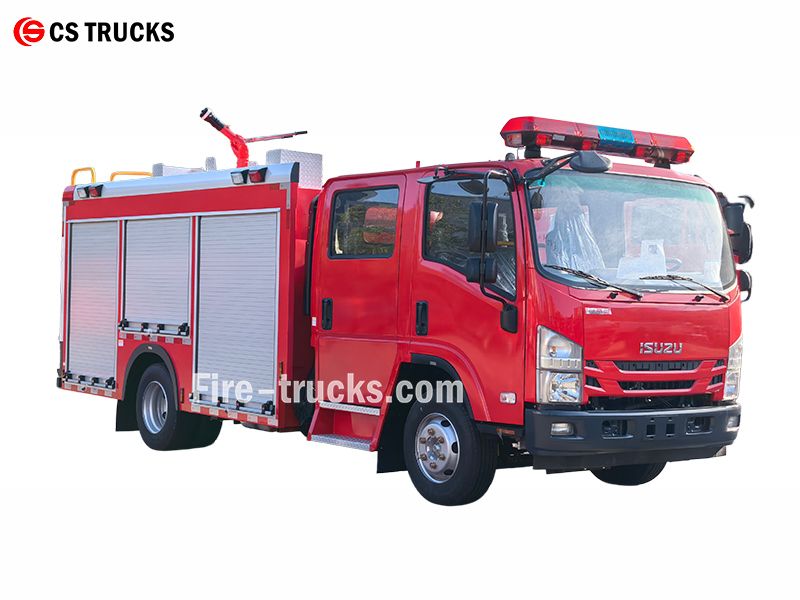

ISUZU NPR 189HP Water Pumper Fire Rescue Truck



Working Capacity

 Engine Model

 Wheelbase

 Superstructure

4000L water

190 HP/ 4HK1-TCG61

3815mm

★Water tank carbon steel

China famous CB10/40-RS fire pump

 China famous PS8/40W Fire monitor

2026 brand new

» Ⅰ. Main Features :

 4HK1-TCG61 diesel engine, 190 HP. Built for quick response in city fire and industrial rescue operations.

 PS8/40 roof monitor shoots water 60 meters. Swivels 360° and tilts from -35° up to 70°

Full set of fire gear: hoses, suction lines, couplings, wrenches, foam gun, and tool kit
  • ISUZU 4X2 fire engine truck
  • HOWO 4x2 fire water pump truck
  • isuzu 4x2 fire water tender

» Ⅱ.Product Parameter :

ISUZU NPR 189HP Water Pumper Fire Rescue Truck
General Work capacity 4000L water tank
Truck chassis ISUZU 4x2
Engine Power 190 HP/ 4HK1-TCG61
Fire pump CB10/40-RS
Fire Monitor PS8/40W
Maximum Speed 95 km/h
Overall Dimensions L*W*H 6980*2250*3100 mm
Gross Vehicle Weight 9900 kg
Curb Weight 5850 kg
Engine Engine Model 4HK1-TCG61
Fuel Type Diesel
Power 189 HP139KW
Emission Standard  Euro 6
Displacement 5193 ml
Engine Type 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
  Drive Type 4x2
Chassis Wheelbase 3815 mm
Tire 235/75R17.5 16PR
Tire No. 6 tires and 1 spare tire
Model CB10/40-RS
Flux 40L/s
Pressure  1MPa
Fire pump Max working pressure 1.251MPa
Max allowable inlet pressure 0.4MPa
Max suction height 3m
Rated speed 3916±50r/min
Speed ratio 1:1.4
Water diversion time 50s
Fire monitor Model  PS8/40
Flow 40L/s
Rated working pressure 0.8MPa
Max working pressure 1.2MPa
Range Water ≥60m
Pitch rotation - 35+70°
Horizontal rotation 0360°
 Standard  configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……
-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)


» Ⅲ.Chassis & Powertrain :

Chassis Model: ISUZU 4×2. Solid build with reliable load capacity. Well suited for urban fire fighting duties.

★ Weight & Dimensions: GVW 9,900 kg, curb weight 5,850 kg. Wheelbase 3,815 mm. Compact dimensions allow easy maneuvering on tight city streets and narrow lanes.

★ Engine: 4HK1-TCG61 diesel. 189 hp (139 kW), Euro VI. Delivers dependable power for pump operation and emergency response.

★ Transmission: Manual gearbox with smooth shifting. Power delivery remains consistent whether responding to a call or operating at the scene.

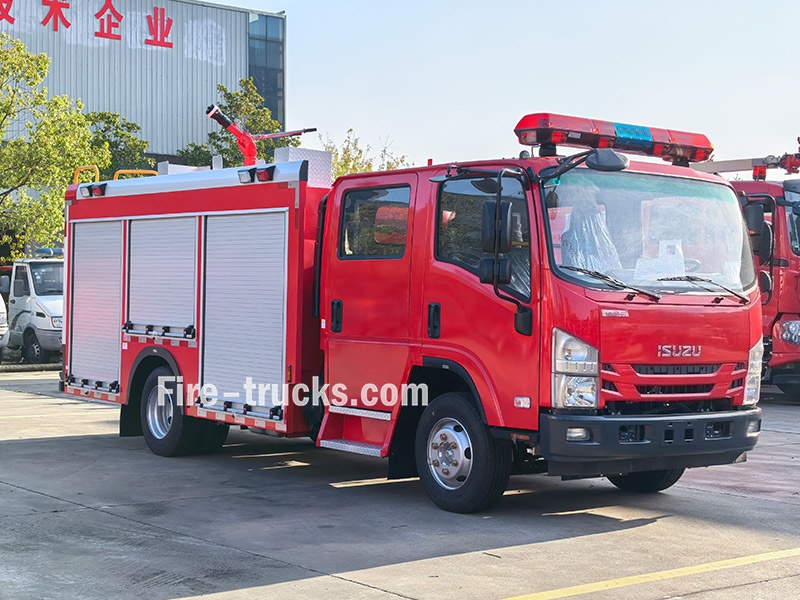

isuzu 4x2 fire truck water tank

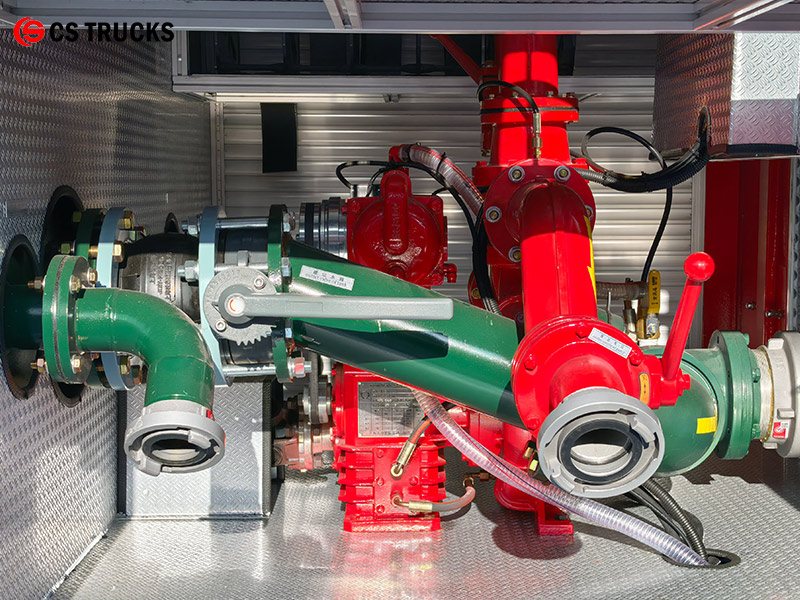

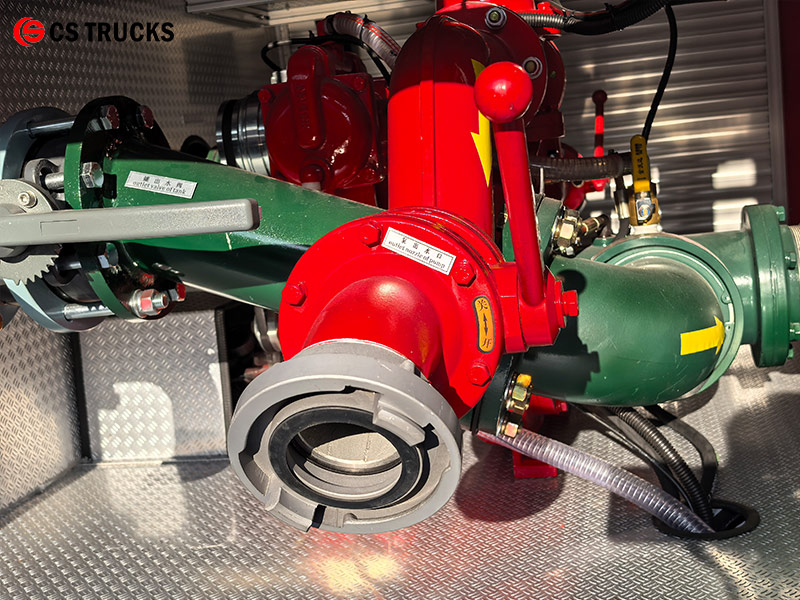

» .Fire Pump System :

Fire Pump:

A CB10/40-RS fire pump with a rated flow of 40L/s at 1.0MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses can deliver water or foam effectively over long distances for fire suppression.

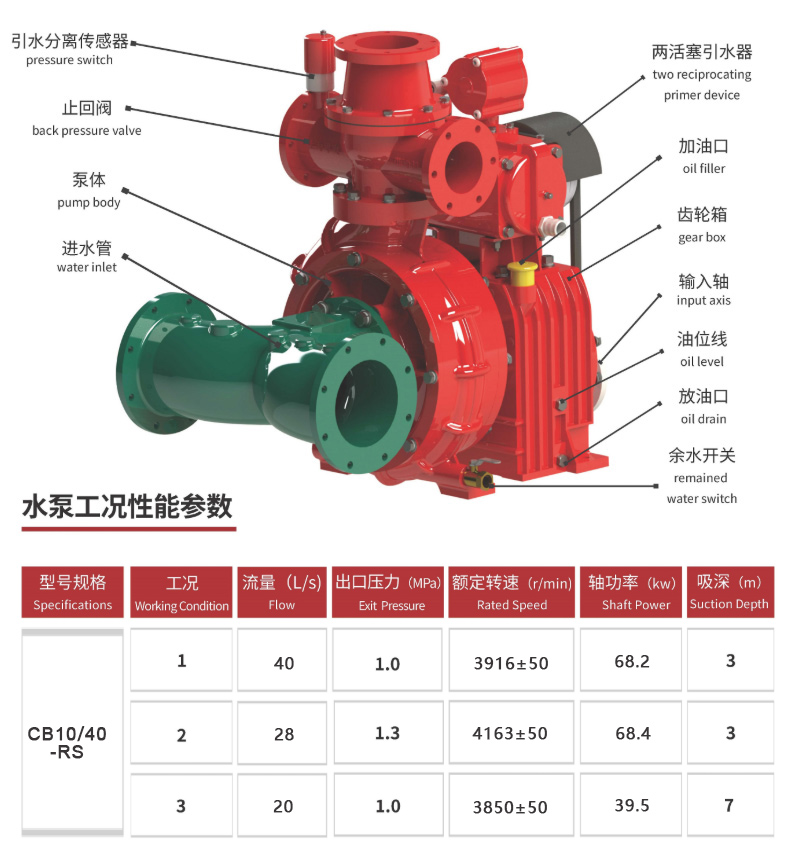

CB10/40-RS fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/40-RS

40L/s

1.0MPa

1.251MPa

0.4MPa

  • 3000L dry powder tank
  • howo dry powder fire truck nitrogen tank
  • howo dry powder fire truck powder manhole

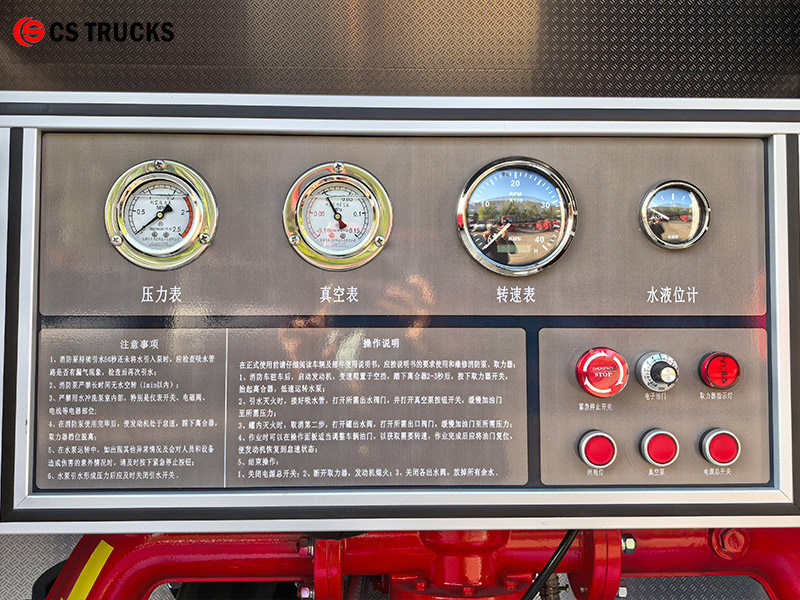

Control panel:

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, emergency stop, PTO control, main power switch, pump controls, and compartment lighting—all arranged for straightforward operation.

Control panel



» .Fire Monitor System :

The PS8/40W fire monitor is mounted on the cab roof. It delivers a flow rate of 40L/s with a water range of ≥60m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

PS8/30 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation
PS8/40 40L/s Water≥60m 0.80MPa -35°~+70°
0~360°



» .Firefighting Equipment: Equipment :

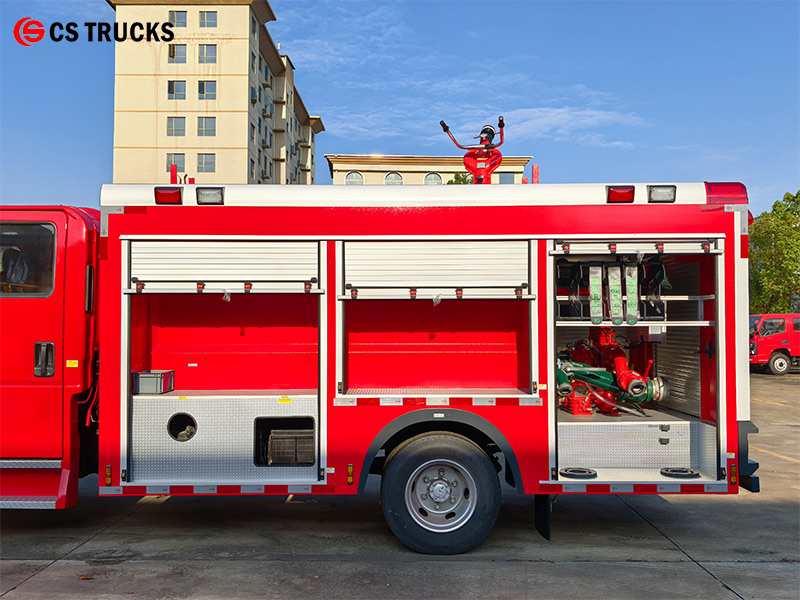

• Equipment Room: Located at the front of the vehicle's superstructure, this room is equipped with equipment racks and pull-out hanging shelves. The racks are logically designed to neatly store various firefighting equipment (fire suits, fire blankets, hose covers, fire bridges, fire extinguishers, etc.); the pull-out hanging shelves provide easy and quick access to commonly used equipment such as fire axes, picks, shovels, wrenches, hammers, and crowbars, improving rescue efficiency.

Equipment Room



 Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.



Firefighting Equipment



The ISUZU NPR 189HP water pumper rescue truck comes with a rear-mounted CB10/40 fire pump and a cab top PS8/40 monitor. The water tank holds 4,000 liters, all sitting on a sturdy 4×2 chassis powered by a 189 HP 4HK1-TCG61 engine. Standard gear includes fire hoses, suction lines, couplings, a foam gun, and a complete tool kit. Full specifications are listed below:

fire rescue equipment

fire rescue equipment



».Pre-shipment Test :



Before delivering the ISUZU 4000L water fire truck from our factory, we carried out a full inspection, including a water spray test for sealing, performance testing of the fire pump and monitor, and final checks on welding quality, paint finish, and all installed equipment.

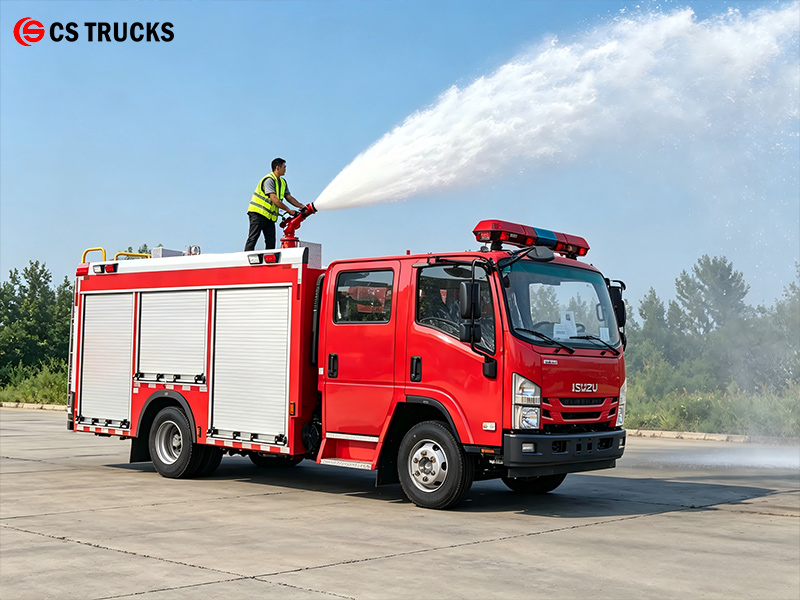

ISUZU 4000L Fire Fighting Water Tanker Truck

».Application Scenarios :

isuzu 4x2 water cannon fire fighting truck
