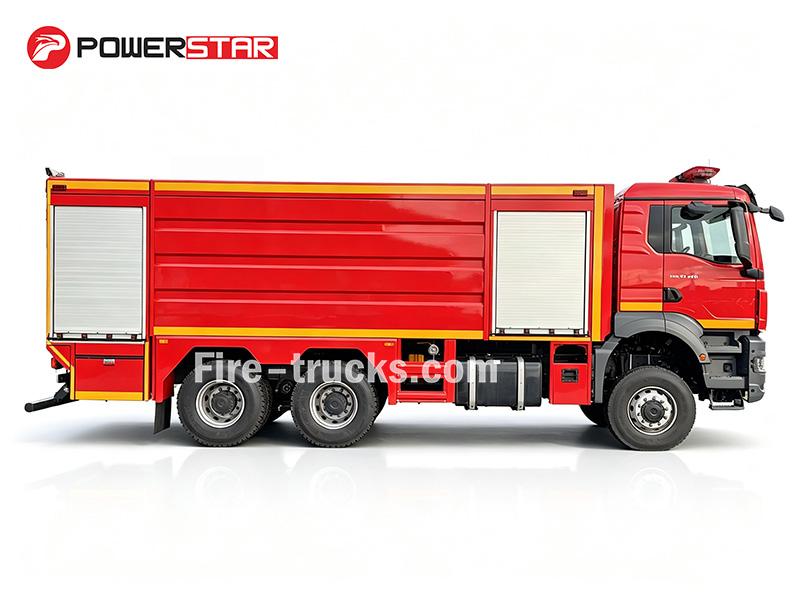

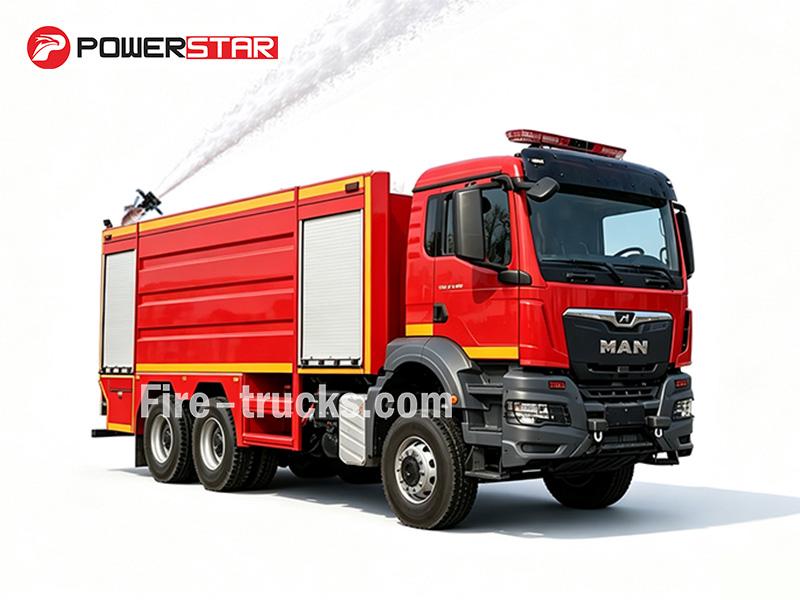

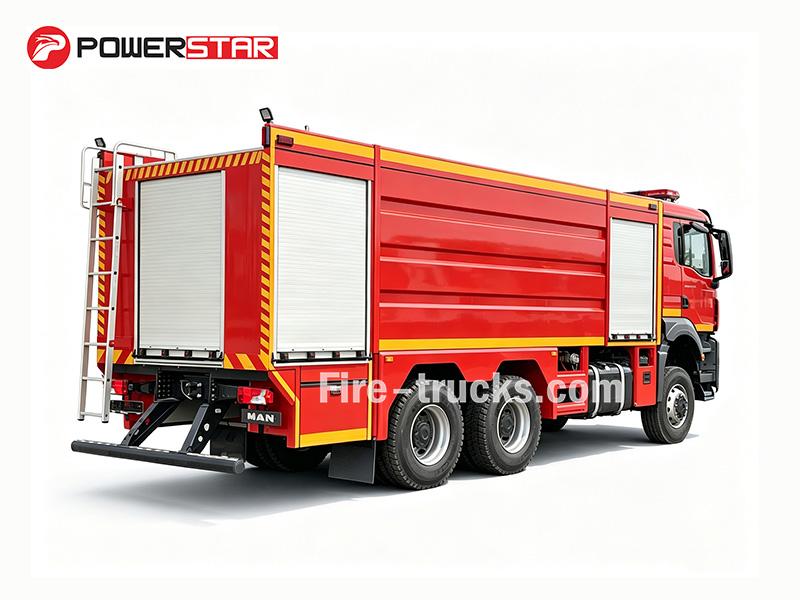

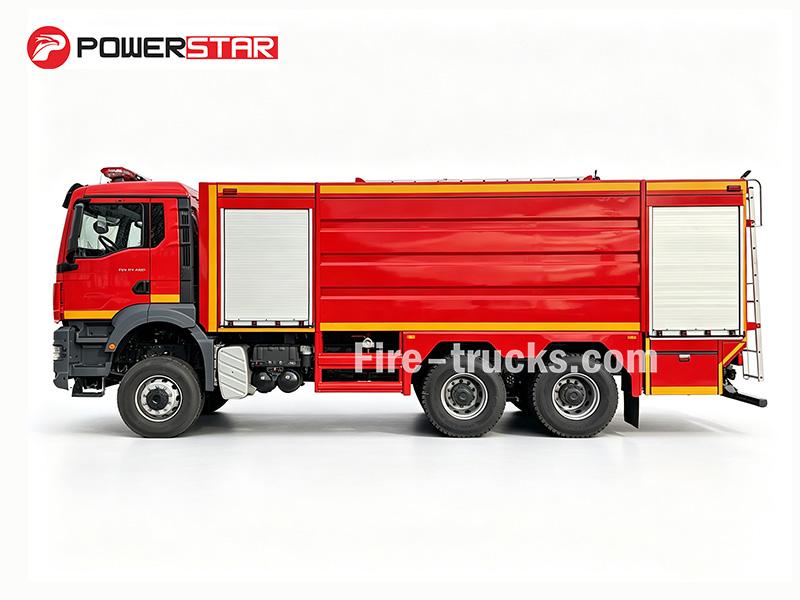

MAN TGS 33.400 BB CH Fire Fighting Vehicle

MAN TGS 33.400 BB CH Fire Fighting Vehicle

MAN 6×6 15,000L water fire truck is driven by a 400 HP D2066 LF06 engine with a 6×6 chassis built for off-road mobility and rough terrain. Water capacity is 15,000L. The CINAR 3000 N pump delivers 3,000 L/min at 10 bar and 250 L/min at 40 bar, while the rear-mounted CINAR monitor reaches 50m with water. Comes standard with hoses, suction line, fittings, and tool kit. Built for large-scale water supply, rural firefighting, and demanding operations where standard fire trucks cannot reach.

  • Truck Chassis:

    MAN TGS 33.400 6×6 BB CH
  • Tanker Capacity:

    15000L water
  • Engine Power:

    400 HP (294 kW) / D2066 LF06
  • Fire Pump:

    CINAR 3000 N
  • Pump Flow:

    3000 L/min @ 10 bar / 250 L/min @ 40 bar
  • Work Pressure:

    10 bar (normal) / 40 bar (high pressure)
  • Fire Monitor:

    CINAR manual monitor
  • Monitor Flow:

    2400 L/min
  • Monitor Range:

    Water ≥50 m
Facebook Linkedin Youtube Twitter Pinterest

This MAN 6×6 water fire apparatus is built around a 400 HP D2066 LF06 engine and a heavy-duty 6×6 chassis that conquers rough terrain and remote locations without hesitation. This MAN 15000L water rescue vehicle carries 15,000L of water for extended firefighting operations. A CINAR 3000 N pump delivers 3,000 L/min at 10 bar and 250 L/min at 40 bar, while the rear-mounted CINAR manual monitor throws water up to 50m. This MAN 6x6 heavy duty water fire truck comes with standard gear: hoses, suction line, couplings, and tool kit. Powerful engine, dual-pressure pump, and robust 6×6 capability make it a solid choice for large-scale water supply, rural firefighting, and demanding operations where standard fire trucks cannot reach.



 ♦  MAN TGM 33.400 BB CH Fire Fighting Vehicle ♦



MAN TGS 33.400 6x6 Durable Water Fire Fighting Vehicle for Construction Site Fire Mongolia



Working Capacity

 Engine Model

 Wheelbase

 Superstructure

15000L water

400 HP / D2066 LF06

3900 + 1400 mm

★  Water tank AISI 316L stainless steel, 15000L capacity, two layers of epoxy coating

★ CINAR 3000 N fire pump, 3000 L/min flow @ 10 bar / 250 L/min @ 40 bar

★ 6×6 all-wheel drive with 13R22.5 tires (10+1)

★ 80m hose reel with spray/straight stream dual nozzle



» Ⅰ.Main Features :

★ MAN D2066 LF06 engine rated at 400 HP for large-scale water fire suppression and remote area response

★ MAN TGS 33.400 6×6 chassis with 15000L water tank and CINAR 3000 N fire pump (3000 L/min at 10 bar / 250 L/min at 40 bar)

★ CINAR manual rear monitor with water range ≥50m for long-distance fire attack

★ 6×6 all-wheel drive with MAN TipMatic 12.28 OD automatic transmission for smooth operation on and off road

★ Full firefighting equipment, including hoses, suction lines, couplings, and basic tool kit for Class A fire fighting

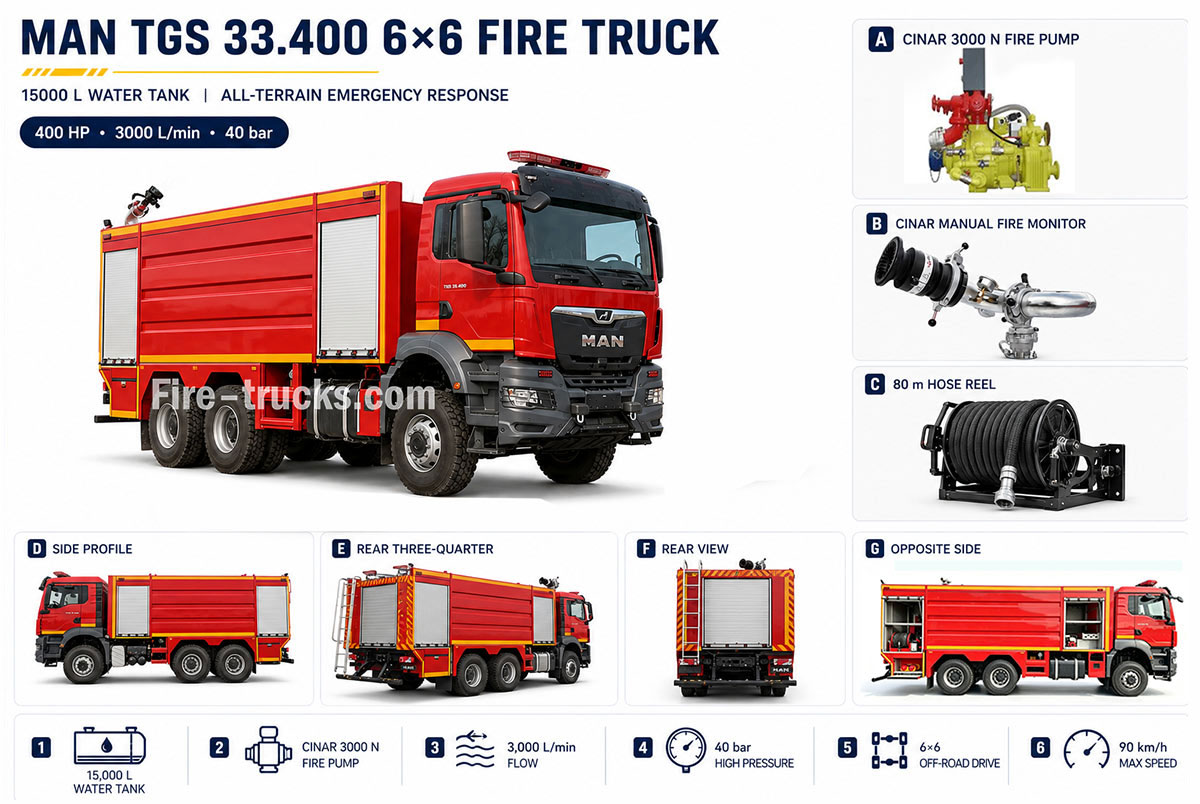

MAN TGS 33.400 15000L Large Capacity Water Fire Engine for Forest Fire Rescue Liberia

» Ⅱ.Product Parameter :



MAN TGS 33.400 BB CH Fire Fighting Vehicle
General Work capacity 15000L water
Truck chassis MAN TGS 33.400 6×6 BB CH
Engine Power 400 HP / MAN D2066 LF06
Fire pump CINAR 3000 N
Fire Monitor CINAR manual monitor
Maximum Speed 90 km/h
Overall Dimensions L*W*H 8094*2550*3224 mm
Gross Vehicle Weight 33000 kg
Front Axle Weight Rating 7500 kg
Rear Axle Weight Rating 11500 kg
Engine Engine Model MAN D2066 LF06
Fuel Type Diesel
Power 400 HP(294 kW)
Emission Standard  Euro II
Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Drive Type 6x6
Wheelbase 3900 + 1400 mm
Tire ront: 13R22.5; Rear: 13R22.5 (dual)
Tire No. 10 tires and 1 spare tire
Fuel Tank Capacity 400 L
Transmission MAN TipMatic 12.28 OD (Automatic)
Transfer Box MAN G252 with on-road / off-road ratio
Brake Type Drum brake with EBS + ABS
Suspension Front: parabolic leaf springs / Rear: parabolic leaf springs
Steering Left hand drive
Fire Pump Model CINAR 3000 N
Flux 3000 L/min
High Pressure  40 bar
Low Pressure  10 bar
Max Suction Height 7 m
Suction Inlet 1 × 4" STORZ coupling
Discharge Outlets 2 × 2" STORZ, 2 × 1.5" STORZ
Control Panel Pressure gauge, RPM gauge, vacuum switch, emergency stop, night illumination
Fire Monitor Model  CINAR manual monitor
Flow 2400 L/min
Rated working pressure Aluminum alloy
Range Water ≥50m
Pitch rotation - 45~+80°
Horizontal rotation 0~360°
Hose Reel Hose Length 80 m
Nozzle Spray / straight stream dual nozzle
Rewinding Manual, with pneumatic blowing system
Water Tank Capacity / Material 15000L / AISI 316L stainless steel (4mm), two layers of epoxy coating
Structure Modular tank with vertical & horizontal baffles
Manhole ≥450mm with mechanically lockable lid
Filling Inlets 2 × 2.5" side inlets with STORZ couplings
Drain Valve 2" ball valve
Level Indicator Digital water level indicator on control panel
Standard Configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

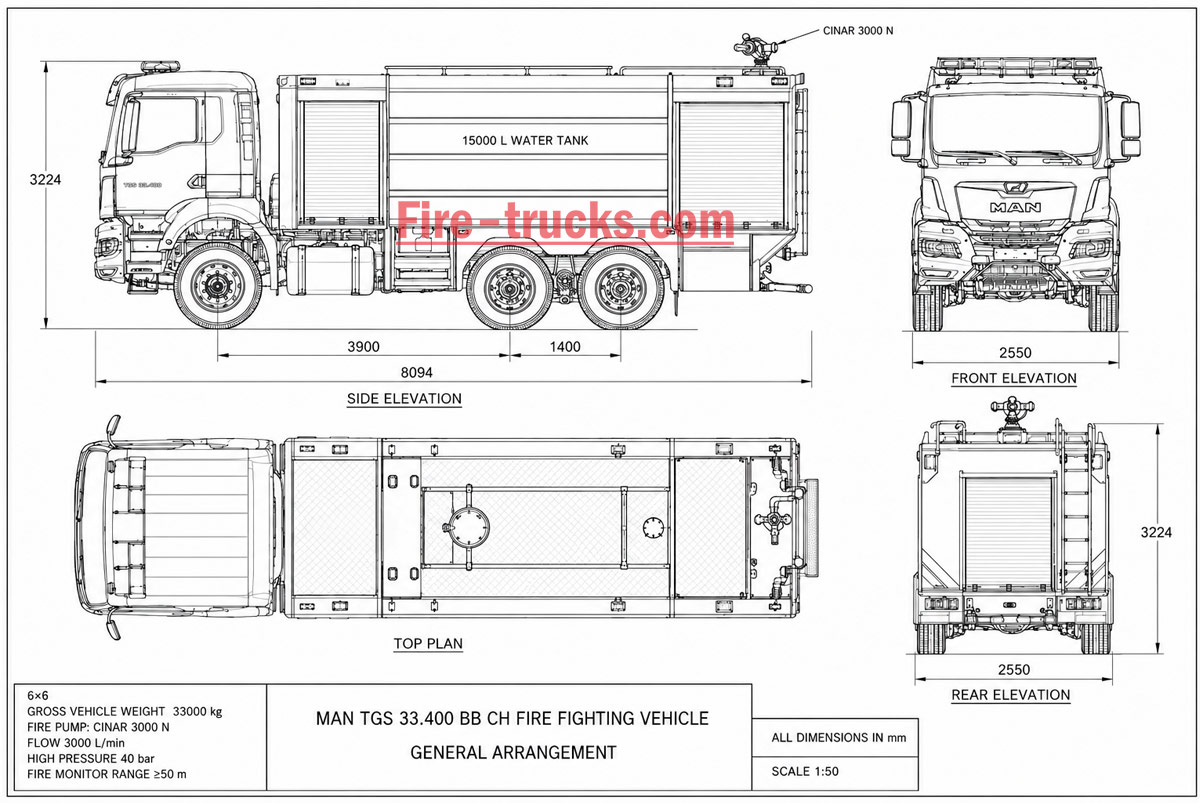

MAN TGS 33.400 6x6 Water Fire Truck CAD Drawing

» Ⅲ.Products Description :



MAN TGS 33.400 15000L Large Capacity Water Tender for Airport Crash Fire Rescue Philippines

1. Chassis & Powertrain



 Chassis: MAN TGS 33.400 6×6 BB CH, 3900 + 1400 mm wheelbase, engineered for off-road stability and rugged terrain mobility



 EngineD2066 LF06 turbo diesel, 400 HP (294 kW), strong low-end torque for rough terrain response and continuous pump drive



Transmission: MAN TipMatic 12.28 OD, 12-speed automatic, smooth shifting for both highway and off-road operations

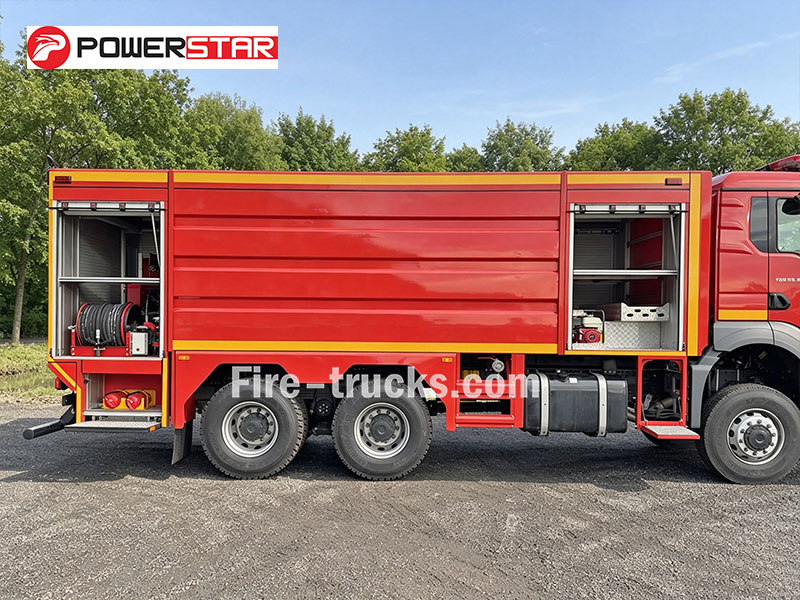

MAN TGS 33.400 6x6 Water Fire Truck for Forest Fire Fighting Philippines

2. Fire Suppression System



 Tank: 15000L water, AISI 316L stainless steel, epoxy-coated interior for corrosion resistance



 Pump: CINAR 3000 N, 3000 L/min @ 10 bar (low pressure) / 250 L/min @ 40 bar (high pressure), PTO-driven



Fire Monitor: CINAR manual rear monitor, water range ≥50m, 360° horizont



Hose Reel80m hose with spray/straight stream dual nozzle, manual rewinding with pneumatic blowing system

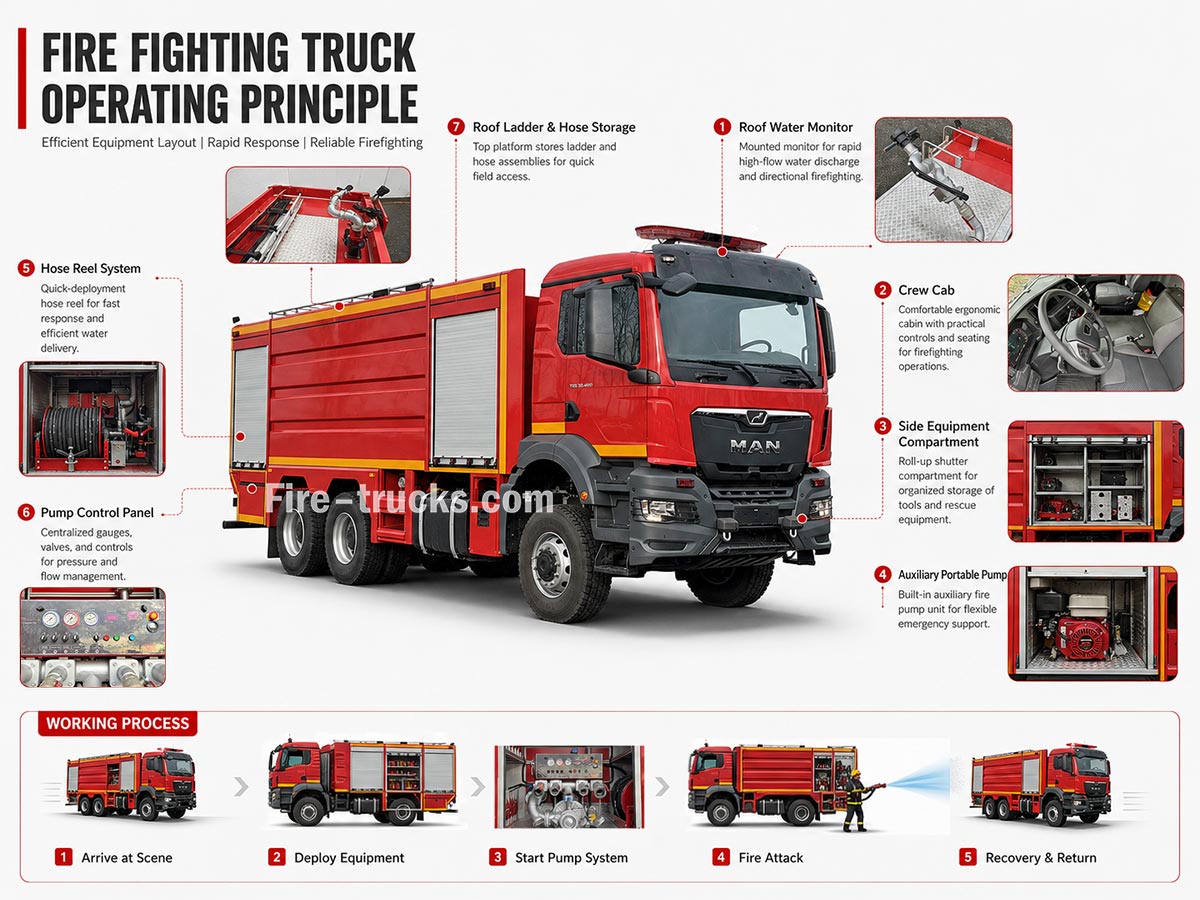

» .Fire Truck Working Principle

 Water Intake

DN150 large-diameter suction port with quick priming and high flow, draws from natural sources like ponds, rivers, or reservoirs when hydrants are not available.



 Hydrant Fill Connection

DN80 external water inlet for hydrant or auxiliary pump hookup, refills the 15,000L tank quickly in urban or municipal supply scenarios.



 Discharge Ports

DN65 and DN80 outlets on both sides support simultaneous hose connections, adjusting to different pressure and flow needs for faster water delivery.



 High-Pressure Attack

High-pressure outlet at 40 bar delivers water for long-range monitor operation or high-pressure hose lines, providing flexible attack options.



 Pump Operation

CINAR 3000 N dual-pressure pump delivers 3,000 L/min at 10 bar for large-volume supply or 250 L/min at 40 bar for high-pressure applications.

MAN TGS 33.400 6x6 Off Road Water Fire Engine for Mountain Fire Rescue Albania



» Ⅴ.Fire Pump System

Fire Pump:

The CINAR 3000 N fire pump, rated at 3,000 L/min with dual-pressure output at 10 bar and 40 bar, is installed in the rear pump room. Designed for reliable performance, it supports both standard hose lines and high-pressure operations, ensuring efficient water delivery across long distances.

MAN TGS 33.400 6x6 Water Fire Truck CINAR 3000 N fire pump

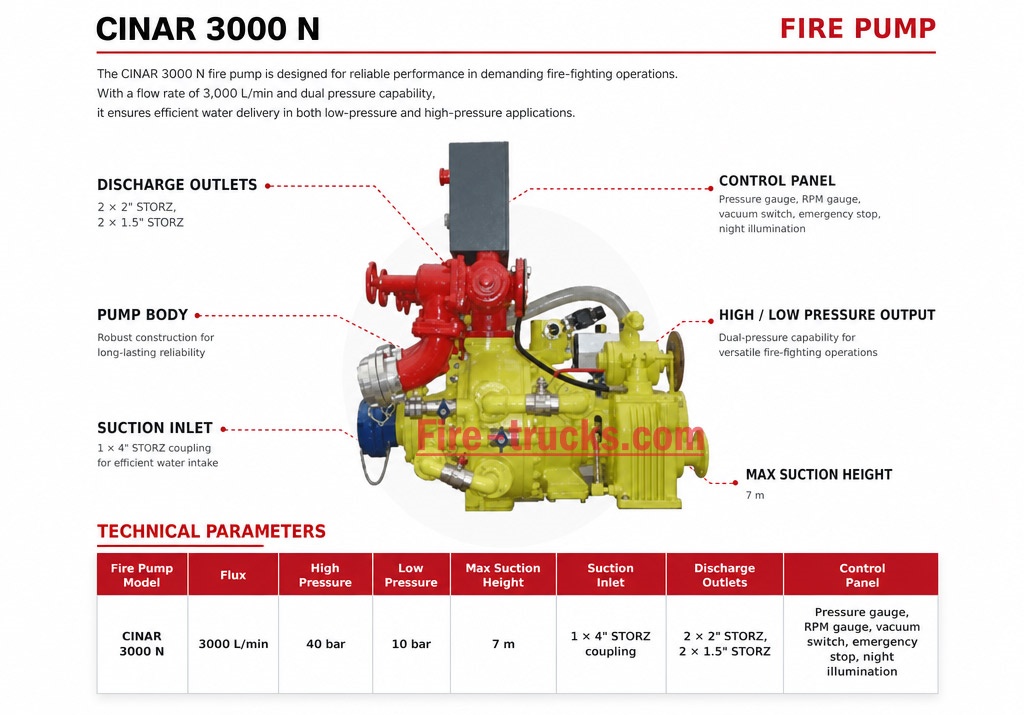

    MAN TGS 33.400 6x6 Water Fire Truck CINAR 3000 N fire pump Structure diagram
    » .Fire Monitor System :

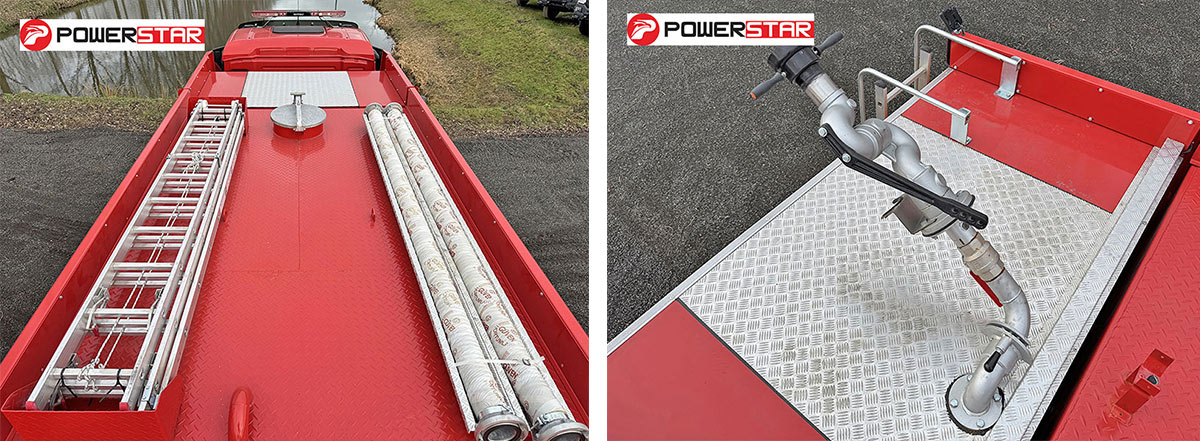

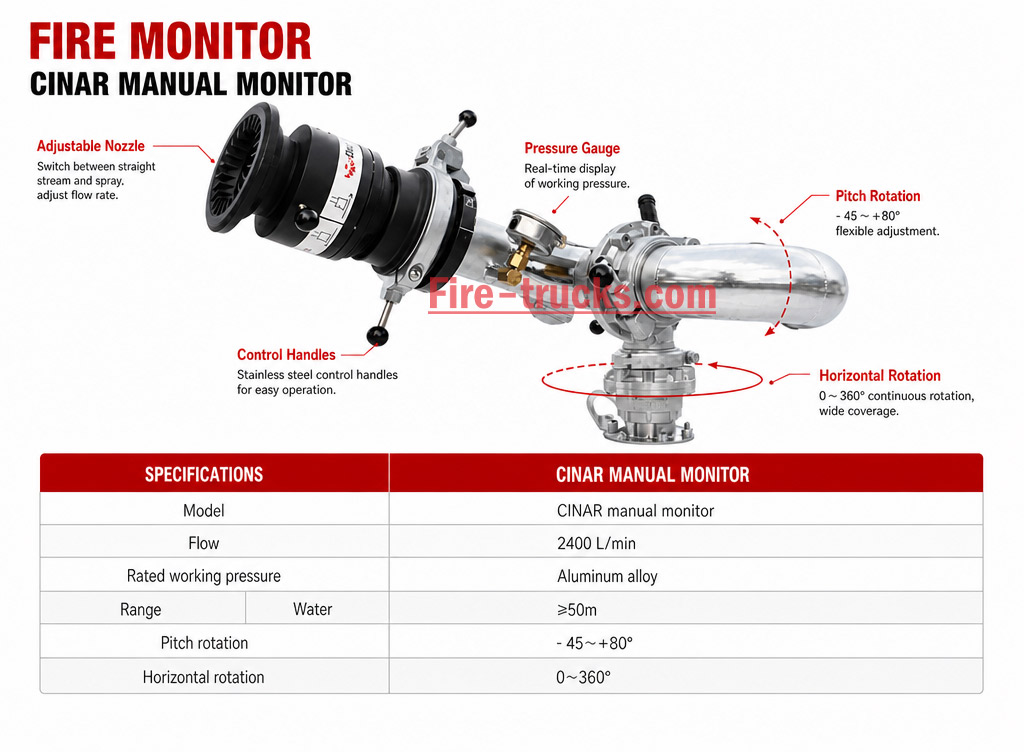

    Foam Monitor:

    The CINAR manual fire monitor delivers 2400 L/min with a water reach of ≥50 m. Both jet and spray patterns are available, allowing crews to adjust their attack based on fire conditions and distance.
    MAN TGS 33.400 6x6 Water Fire Truck CINAR manual fire monitor
    MAN TGS 33.400 6x6 Water Fire Truck CINAR manual fire monitor structure diagram


    MAN TGS 33.400 6x6 Water Fire Truck CINAR manual fire monitor



    » .Firefighting Equipment :

     Equipment Room

    Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and water guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

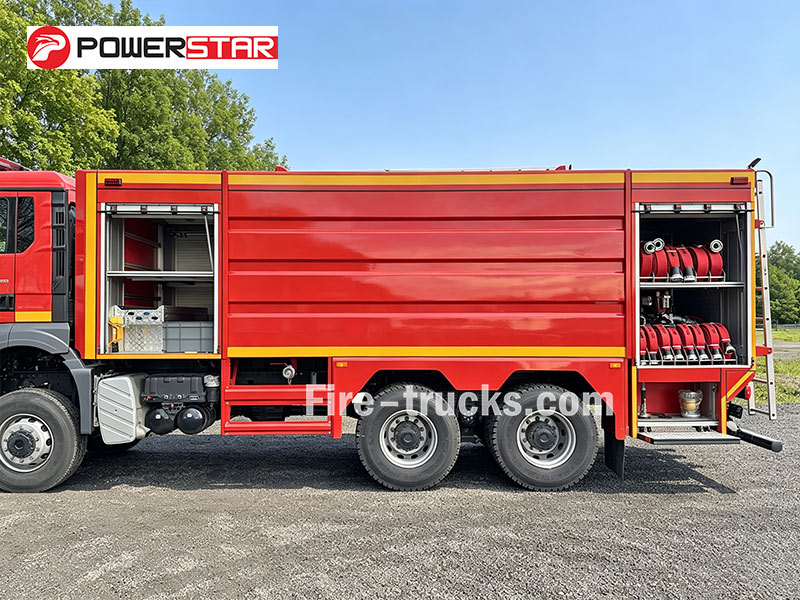

    MAN TGS 33.400 6x6 Heavy Chassis Water Fire Apparatus firefighting equipment

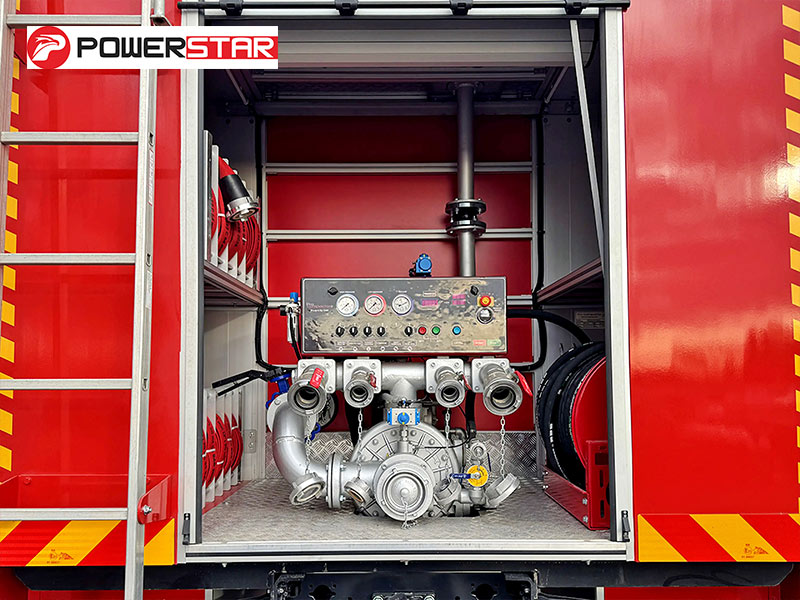

     Pump Room:



    Equipped with CINAR 3000 N fire pump, control panel, pressure gauge, vacuum gauge, and compartment lighting. Accessories include fire hoses, suction lines, collectors, strainers, fire nozzles, water guns, suction hose wrenches, and adapters.



    MAN TGS 33.400 6x6 Off Road Water Rescue Truck Pump Room



    » .Application Scenarios

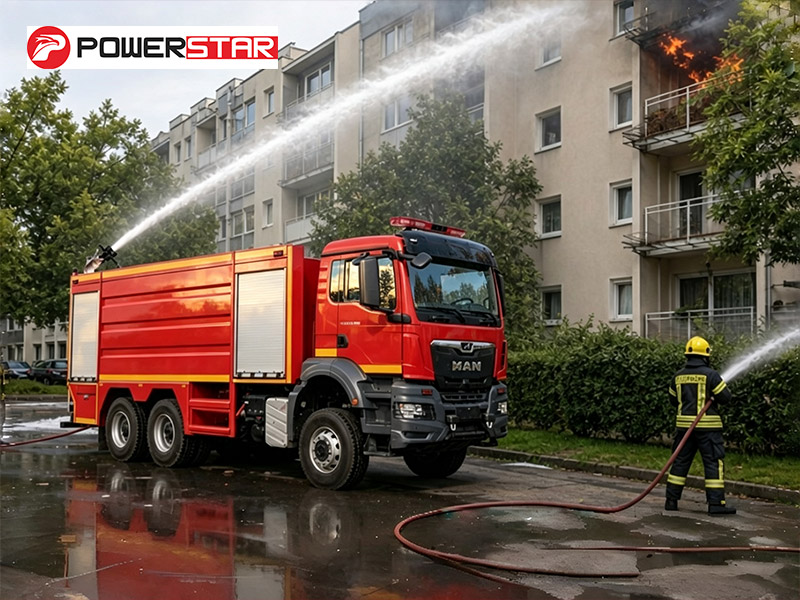

    MAN TGS 33.400 6x6 Water Fire Truck for Residential Area Fire Suppression Philippines

    MAN TGS 33.400 High Volume Water Fire Apparatus for Forest Fire Albania

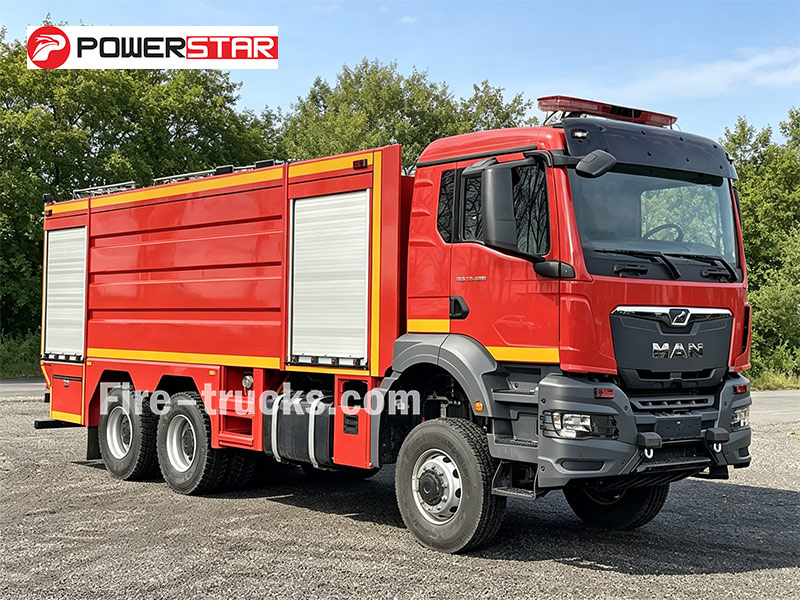

    • MAN TGS 33.400 400 HP 6 Cylinder Water Fire Engine for Grassland Fire Mongolia

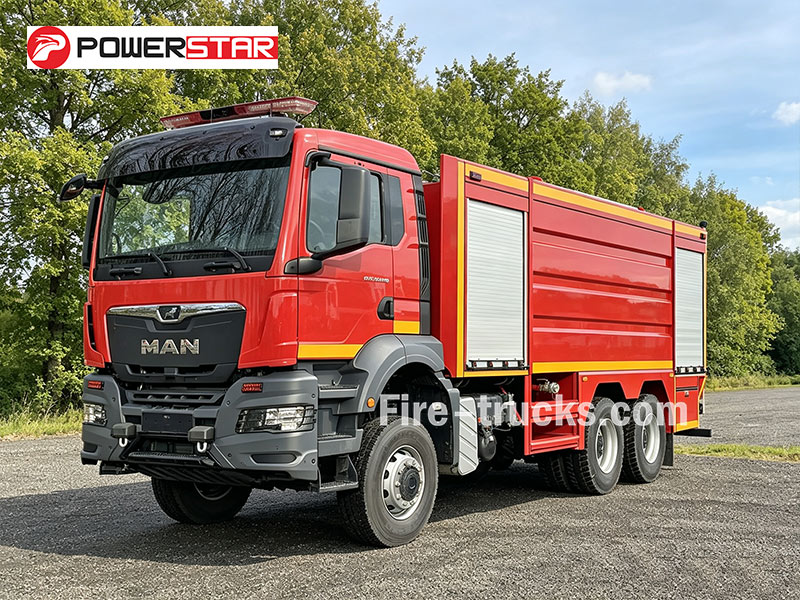

    • MAN TGS 33.400 3000L/min Water Fire Truck for Warehouse Fire Liberia

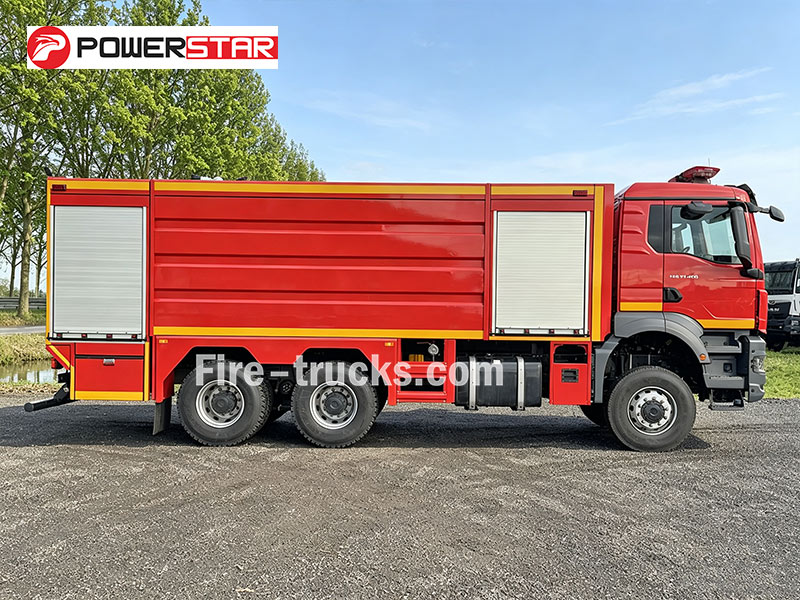

    • MAN TGS 33.400 40bar High Pressure Water Fire Pump Truck for High Rise Building Fire Mongolia

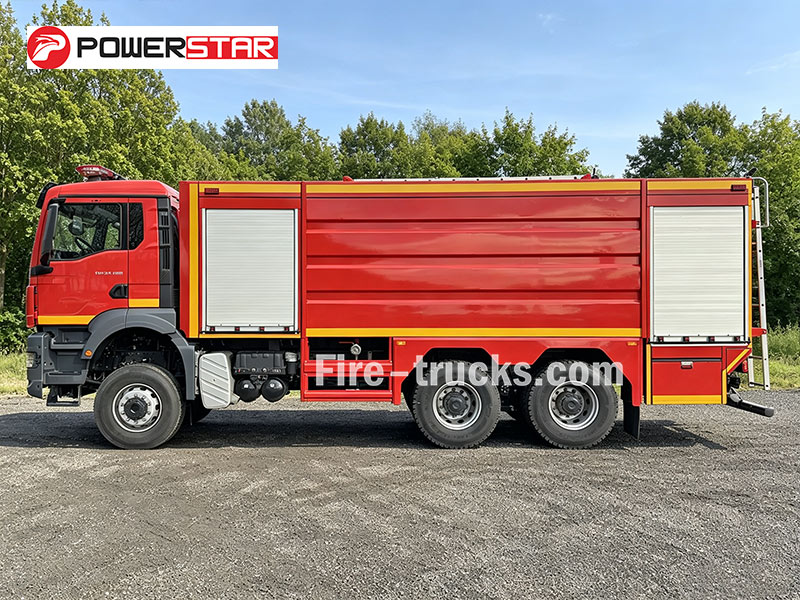

    • MAN TGS 33.400 40bar 10bar Dual Pressure Water Fire Fighting Vehicle for Grassland Wildfire Philippines Mongolia

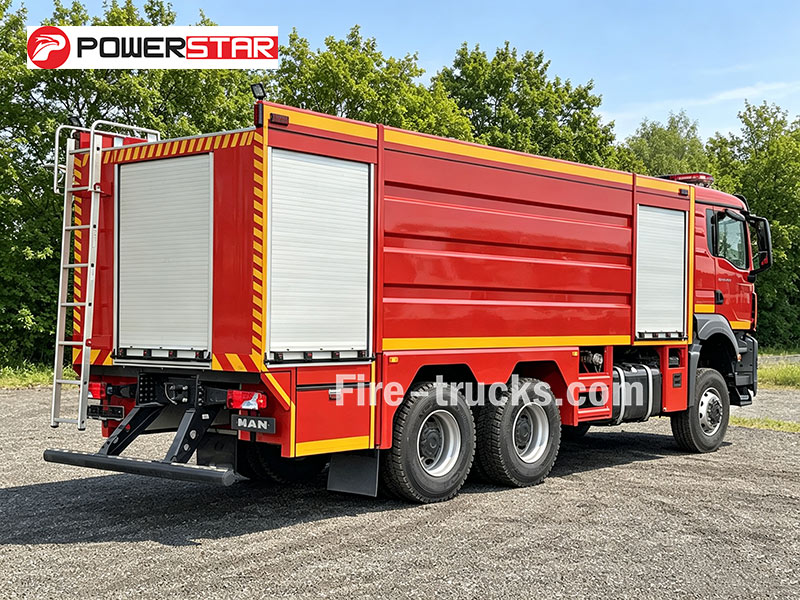

    • MAN TGS 33.400 80m Electric Water Hose Reel for Airport Crash Fire Rescue Cambodia Dubai Philippines

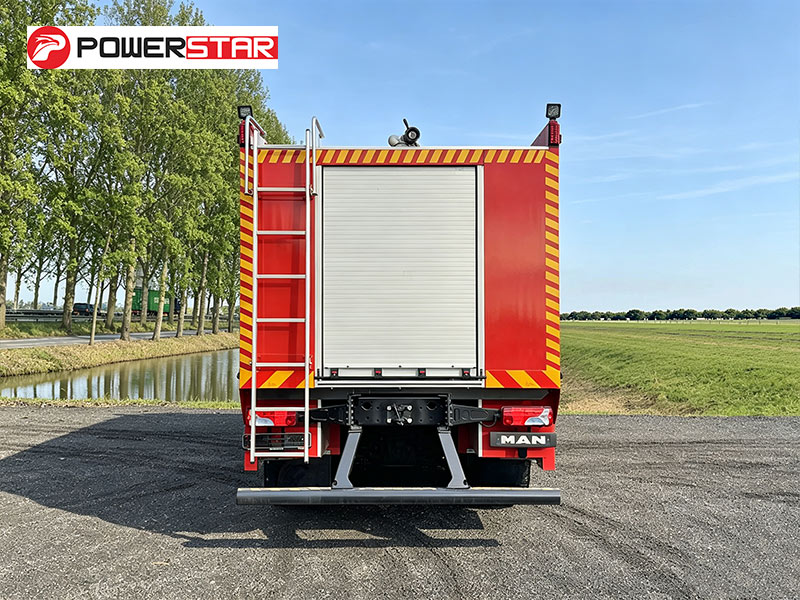

    • MAN TGS 33.400 Stainless Steel Water Fire Apparatus for Long Term Durability Mongolia
