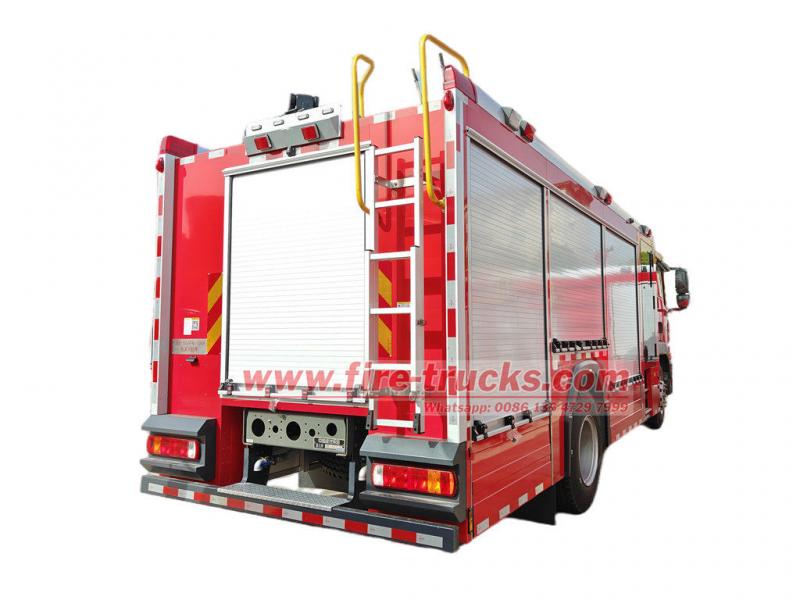

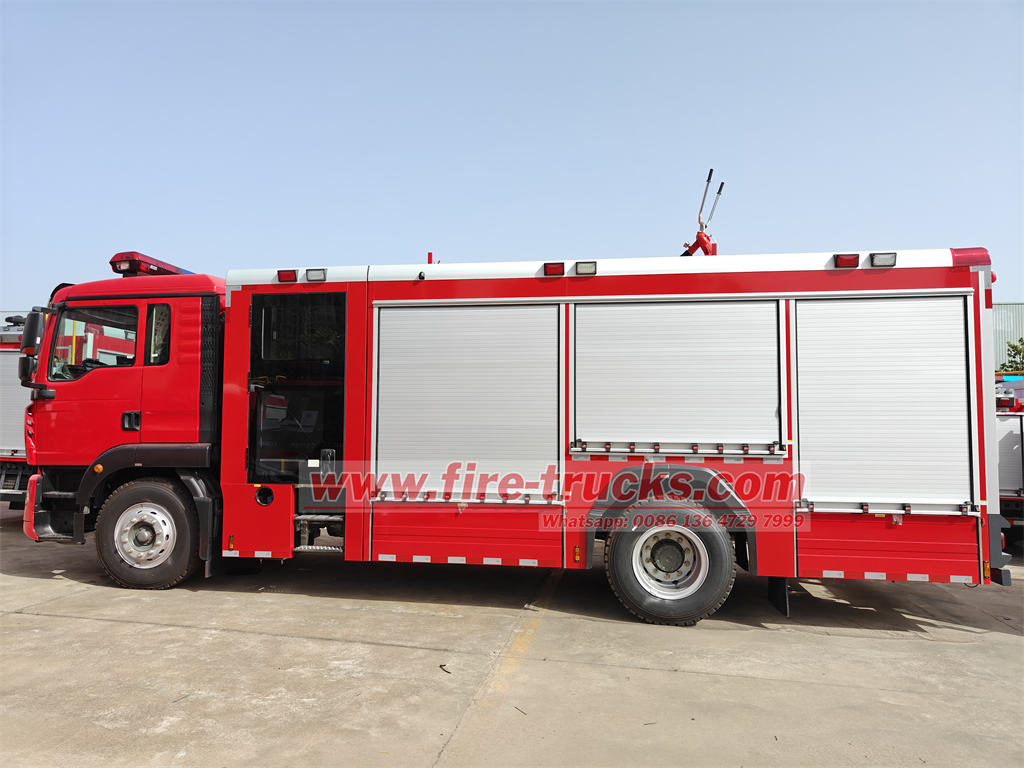

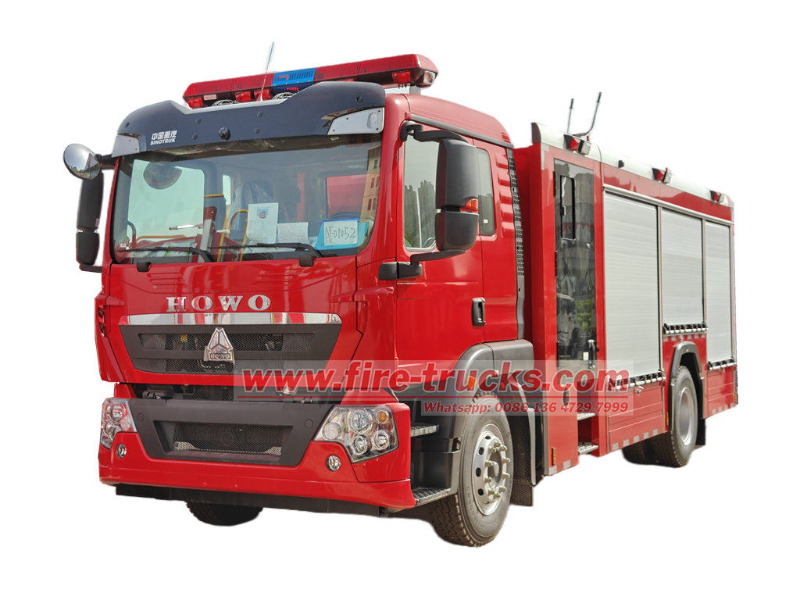

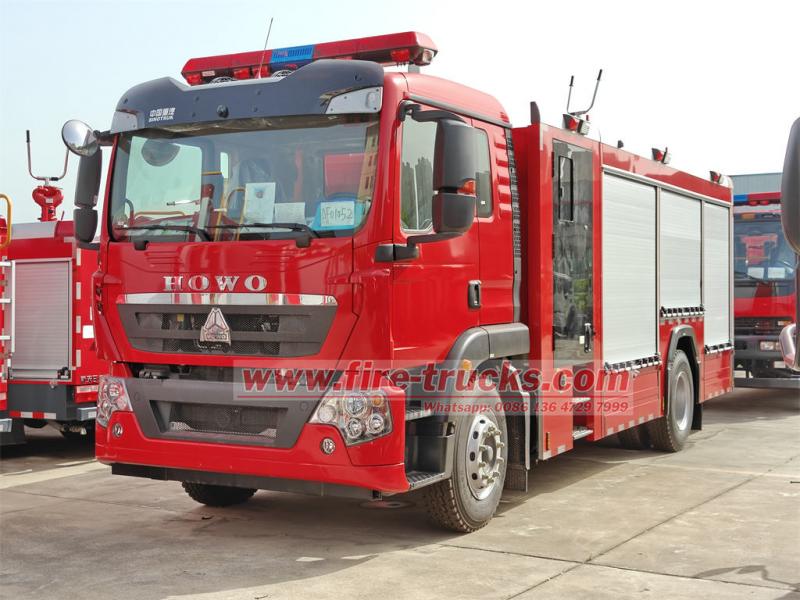

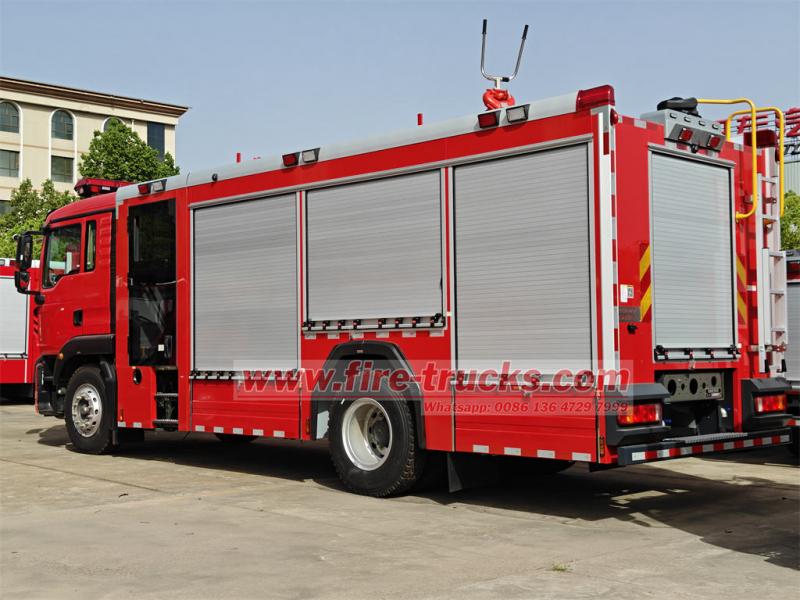

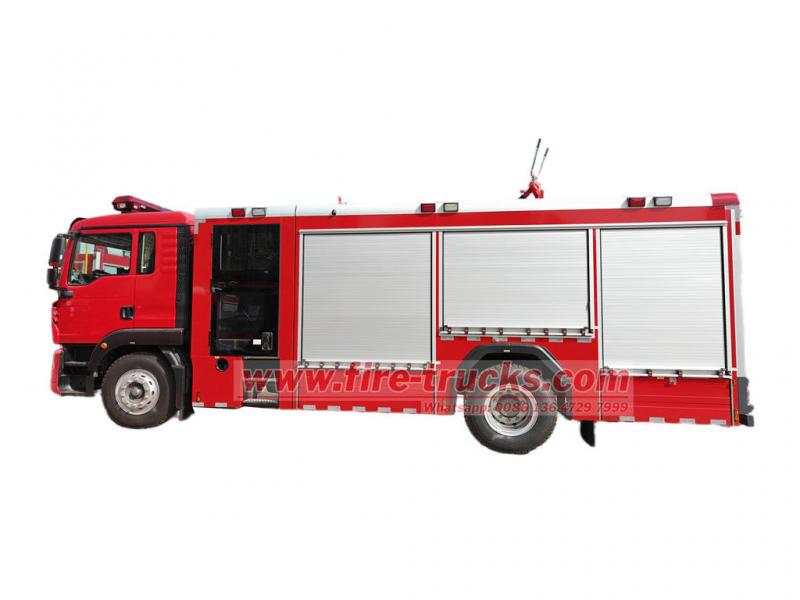

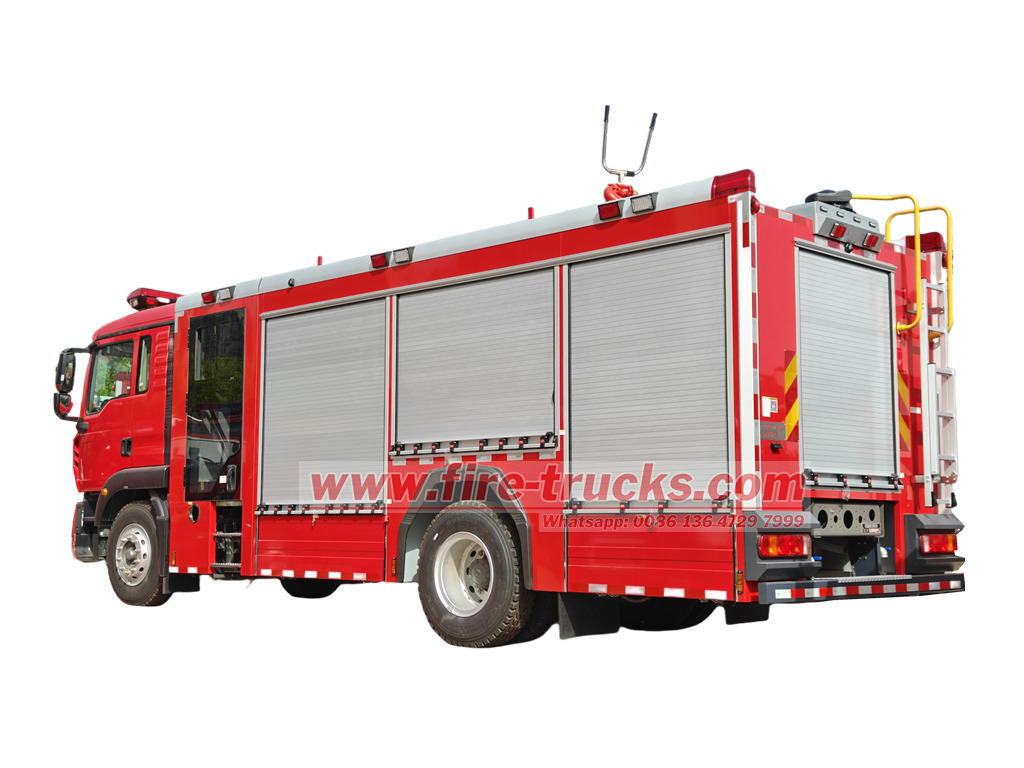

The HOWO Water/Foam Fire Truck is a professional heavy-duty firefighting vehicle built on a HOWO 4×2 chassis. Powered by a 290HP diesel engine with a top speed of 90km/h, it features a 5000L stainless steel water tank and 2000L foam tank. Equipped with a rear-mounted CB10/40 fire pump (40L/s flow rate) and PL8/32 fire monitor (65m water range/50m foam range), the truck offers a 2+4 crew cab with AC and a 4700mm wheelbase for optimal stability and maneuverability. Ideal for petrochemical plants, urban commercial areas, and industrial parks, it delivers rapid response, user-friendly operation, and low maintenance costs.
Truck Model:
PT5180GXFPMZZTanker Structure:
Stainless steel, weldedWork capacity :
5000L water +2000L foamWheelbase:
4700 mmAxle drive:
4×2, left hand driveEngine Power:
290 HPEngine Model:
WD615.87Fire Pump:
CB10/40Fire Monitor:
PL8/32Remark:
PP tank is optionalThe HOWO Water/Foam Fire Truck is a professional firefighting apparatus built on a SINOTRUK HOWO 4×2 heavy-duty chassis. With overall dimensions of 8600×2500×3650mm and a 4700mm wheelbase, the 17.45-ton GVW vehicle is powered by a WD615.87 turbocharged diesel engine delivering 290HP, paired with an HW19710 10-speed manual transmission for a top speed of 90km/h, ensuring rapid emergency response. The modified cab configuration provides 2+4 seating with independent crew compartments and climate control for operator comfort.
This HOWO heavy fire tanker truck features specialized superstructure components including 5000L water and 2000L foam tanks constructed from 304 stainless steel with internal baffle structures. The rear-mounted CB10/40 normal-pressure fire pump delivers 40L/s flow at 1.0MPa, achieving water priming within 50 seconds at 7m suction depth. The pump house contains one DN65 and one DN80 outlet on each side with pneumatic butterfly valves for quick operation. The PL8/32 fire monitor offers 360° horizontal and -30° to +70° vertical rotation, projecting water 65m and foam 50m to cover a standard soccer field-sized area. The aluminum alloy frame ensures structural strength while reducing weight.
In operational scenarios, this HOWO fire tender truck excels at petrochemical facilities, logistics warehouses, and urban fire stations. Its 5000L water capacity supports over 15 minutes of continuous operation, while the 2000L foam tank effectively combats fuel fires. Field exercises have demonstrated its rapid response, intuitive operation, and effective fire suppression capabilities, earning consistent praise from firefighters.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Specifications
HOWO Fire Tender Truck Specifications |
|
Product Name |
HOWO 7000 liters tanker fire truck |
Driving Type |
4x2, left hand drive |
Weights |
|
GVW (kg) |
17450 |
Curb weight (kg) |
10200 |
Dimensions |
|
Wheelbase (mm) |
4700 |
Overall Dimension (mm) |
8600×2500×3650 |
Engine |
|
Engine model |
WD615.87 |
Engine type |
4 stroke, water-cooled, inter-cooling, turbocharged, direct injection |
No. of cylinders |
6 cylinders in line |
Hose power (HP) |
290 |
Max. output power (kW) |
213 |
Displacement (L) |
9.726 |
Rated speed (rpm) |
2200 |
Max Torque(N*m) |
1160N.m |
Emission standard |
Euro 2 |
Drive Line |
|
Transmission |
HW19710,10 forwards,2 reverse gear, manual operation |
Steering |
ZF8118 power steering, hydraulic steering with power assistance |
Brake system |
Air brake |
Cab |
|
Cabin |
HOWO cabin with 2 seats, and additional separate crew cabin with 4 seats, with A/C |
Axle |
|
Front axle load (kg) |
6050 |
Rear axle load (kg) |
11400 |
Tire specification |
|
Tire specification |
10.00R20 standard tire, 6 tires+1 spare tire |
Tanker |
|
Water tank volume |
5000 liters |
Foma tank volume |
2000 liters |
Material |
Stainless steel |
Fire pump |
|
Model |
CB10/40 |
Type |
Normal pressure centrifugal pump |
Rated flow |
40L/s @1.0MPa |
Output pressure |
1.0 Mpa |
Max. suction depth |
7m |
Water priming time |
≤ 50s at maximum suction depth |
Fire monitor |
|
Model |
PL8/32 |
Rated flow (L/s) |
32 |
Rated pressure (Mpa) |
1.0 |
Depression/Elevation angle (°) |
-30°~70° |
Horizontal rotation angle (°) |
360° |
Range (m) |
Water: ≥65m; Foam:≥50m |

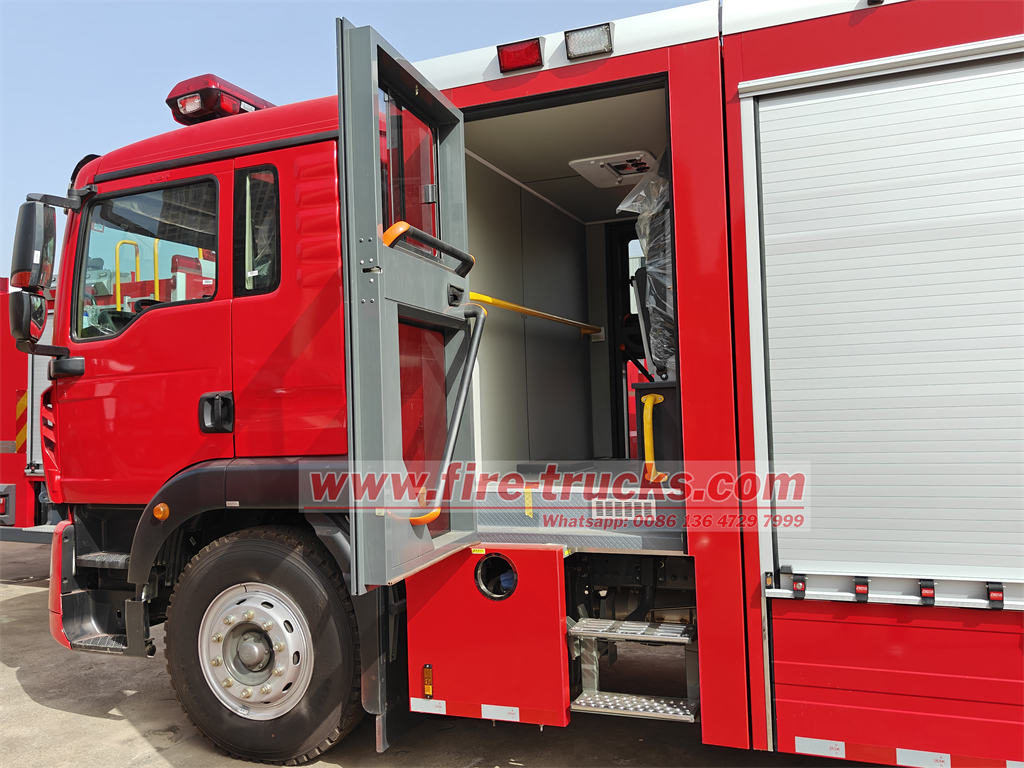

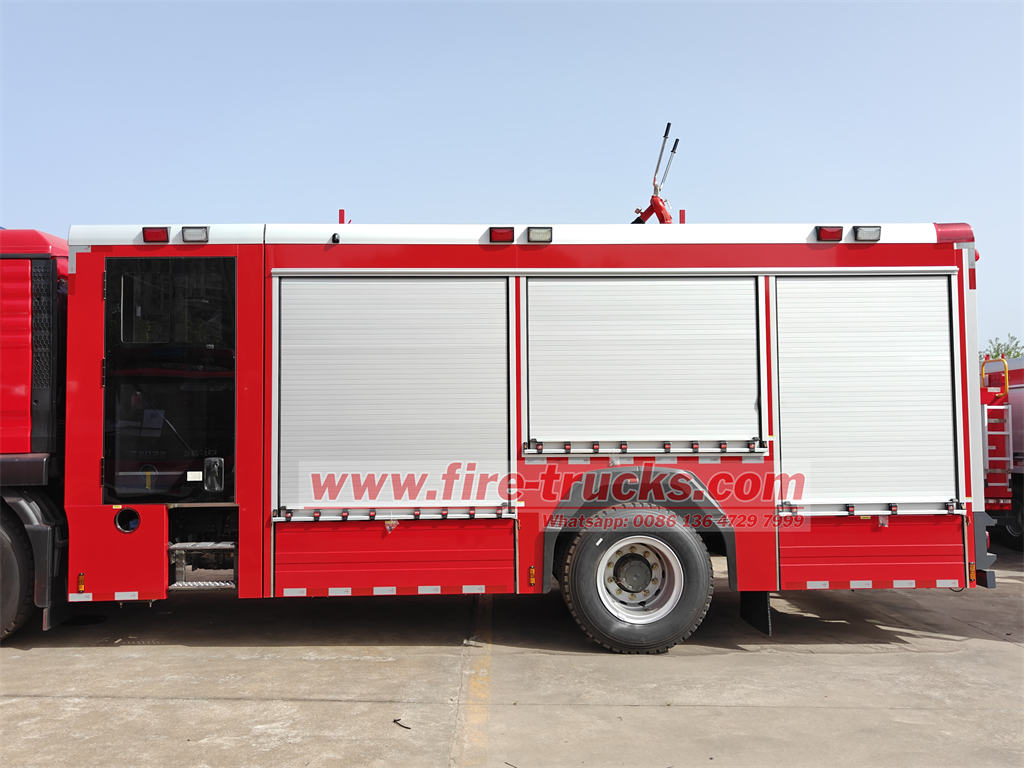

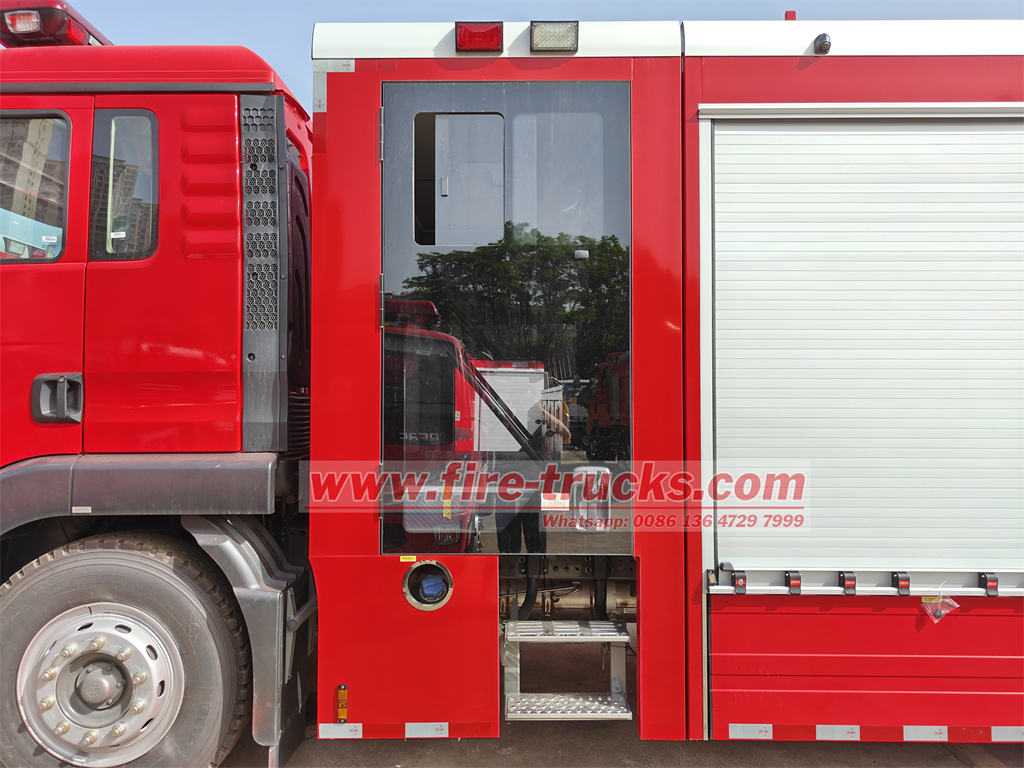

Advantages of HOWO Fire Truck's Independent Crew Compartment
1. Professional Functional Zoning

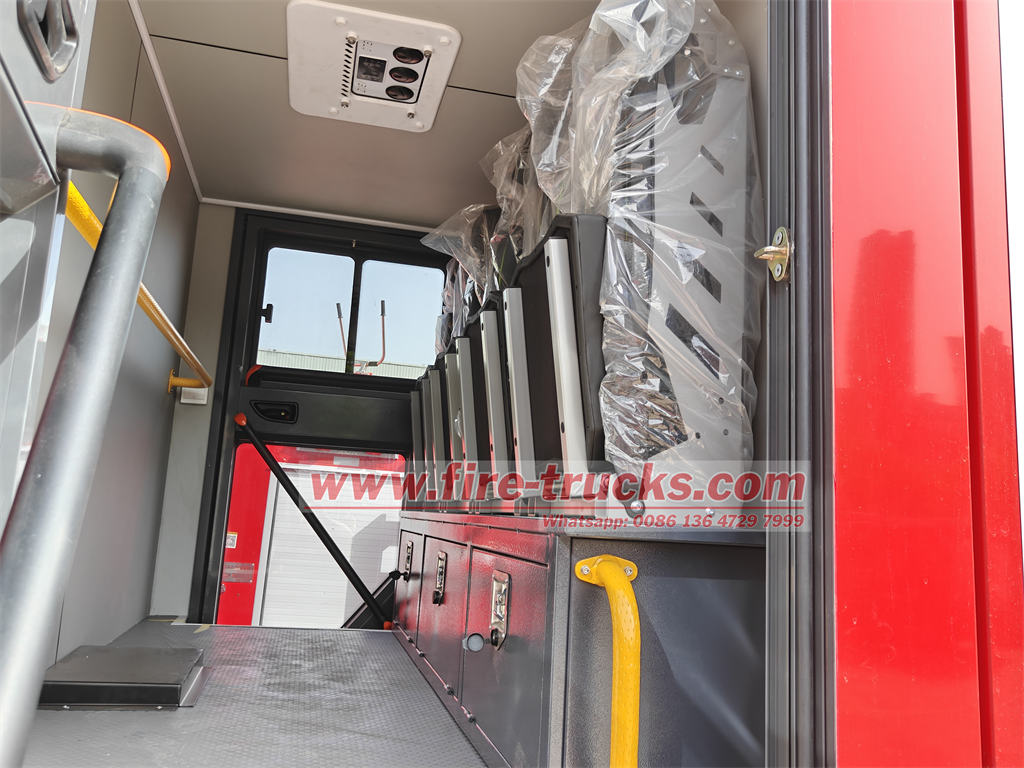

The independent crew compartment adopts an enclosed structure, creating clear functional separation from the driver's cab. While the driving area focuses on vehicle operation, the crew area is equipped with dedicated equipment racks and storage spaces for orderly arrangement of firefighting gear such as breathing apparatus and breaching tools. This design ensures driving safety while providing firefighters with ample equipment storage space.
2. Comfort-Optimized Riding Environment
The compartment features adjustable shock-absorbing seats with integrated safety belts, ensuring comfortable seating even when wearing full firefighting gear. The independent air conditioning system supports multi-zone temperature regulation to accommodate seasonal operational requirements. Well-designed legroom and armrests further enhance comfort during extended missions.
3. High-Safety Structure
Constructed with high-strength steel framework, the crew compartment demonstrates excellent impact resistance. Safety features include front energy-absorbing buffers, emergency breakout windows on side doors, and multi-point safety belt fasteners, ensuring crew safety during emergencies.
4. Combat-Optimized Spatial Design

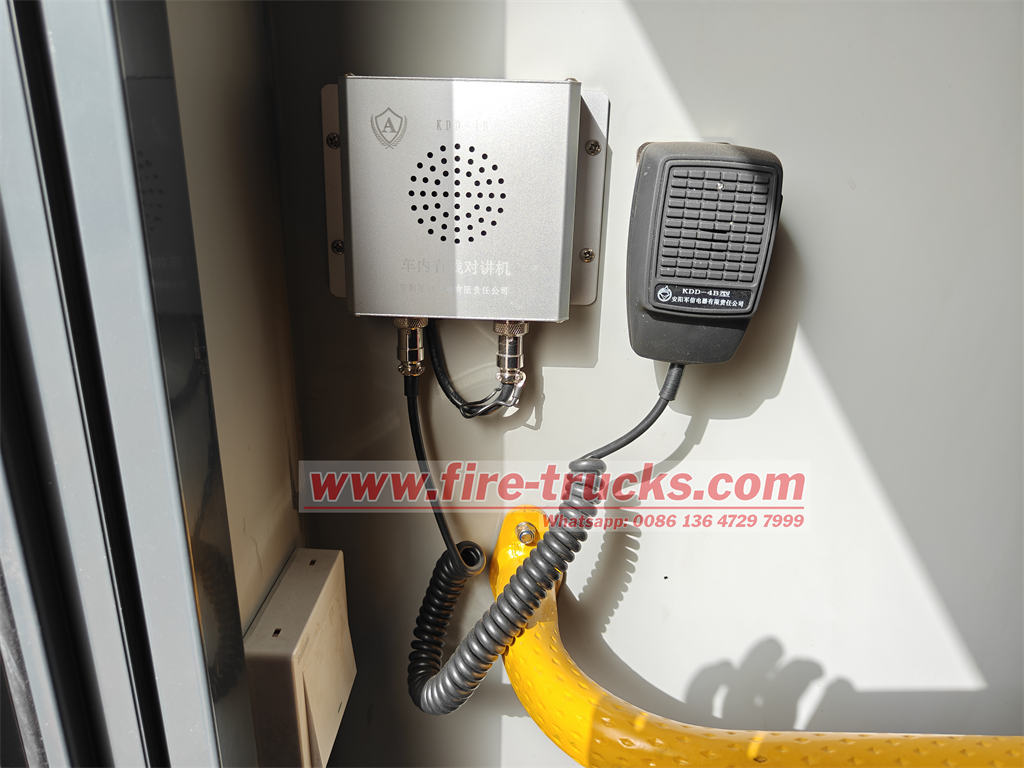

The compartment layout thoroughly considers operational needs, featuring dedicated mounting positions for communication devices and equipment securing devices. The optimized sound insulation ensures clear command transmission, while large side observation windows provide excellent visibility for early assessment of fire scenes. Carefully calculated seat spacing allows quick entry and exit for fully-equipped firefighters.
Product Details
