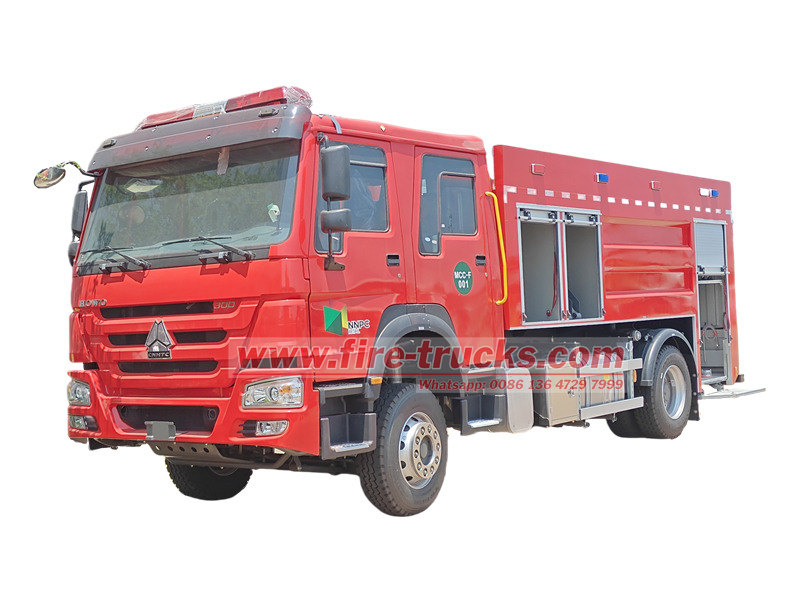

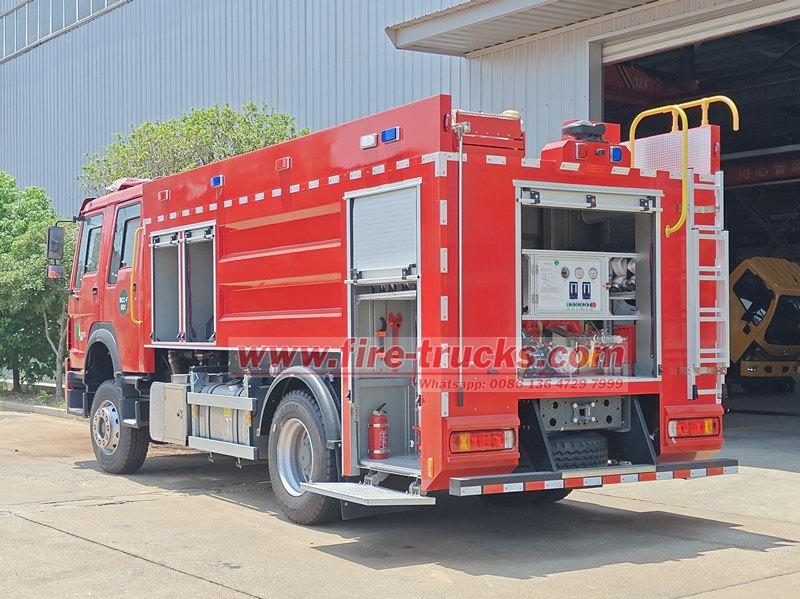

HOWO 8000L foam fire truck is a dual-function firefighting vehicle built on a HOWO chassis, equipped with a 300HP engine and a CB10/60 fire pump. With a total tank capacity of 8000L (6000L water tank + 2000L foam tank), it features a dual-purpose water/foam fire monitor with a range exceeding 60 meters, making it suitable for firefighting in petrochemical, urban, and industrial fire scenarios.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000L +2000LUpper Body material:
Carbon steel and Stainless steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
300 HPEngine Model:
D10.30-31Fire Pump:
CB10/60, 60L/sFire Monitor:
PL8/48 for water and foamRemark:

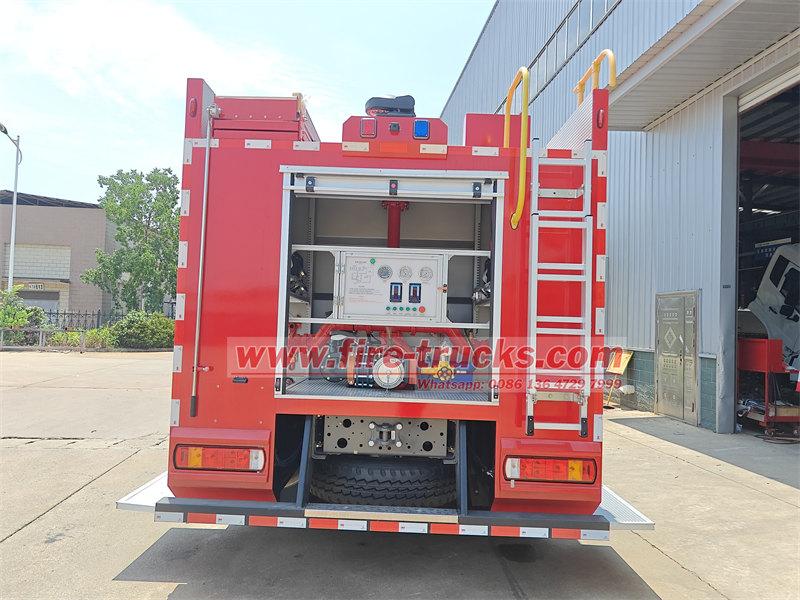

tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR water-foam fire truck is a high-performance firefighting apparatus designed to meet the needs of urban and suburban fire suppression. Modified on a Sinotruk HOWO chassis, it is equipped with a 6000L water tank and a 2000L foam tank. Both tanks are constructed from high-quality materials and treated with anti-corrosion coatings to ensure long-term durability. The HOWO foam tender fire truck is fitted with an efficient fire pump and monitor, delivering powerful water flow and spray pressure. The monitor can be adjusted to either a straight stream or a fog pattern, catering to various firefighting scenarios.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: SINOTRUK HOWO truck chassis, 4x2, 4x4, 6×4 and 6x6 model
D10.30 model with 300HP or 340HP and emission 9726cc
2. Tank material: 4mm thick carbon steel for water tank, stainless steel is optional
stainless steel for foam tank, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

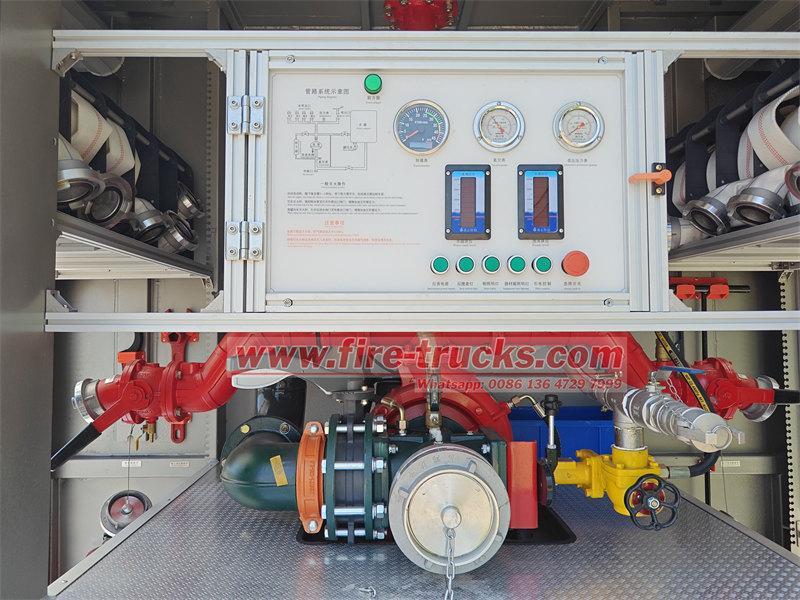

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 60m
Optional CB10/40, CB10/80 pump. American Darley fire pump for option
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system

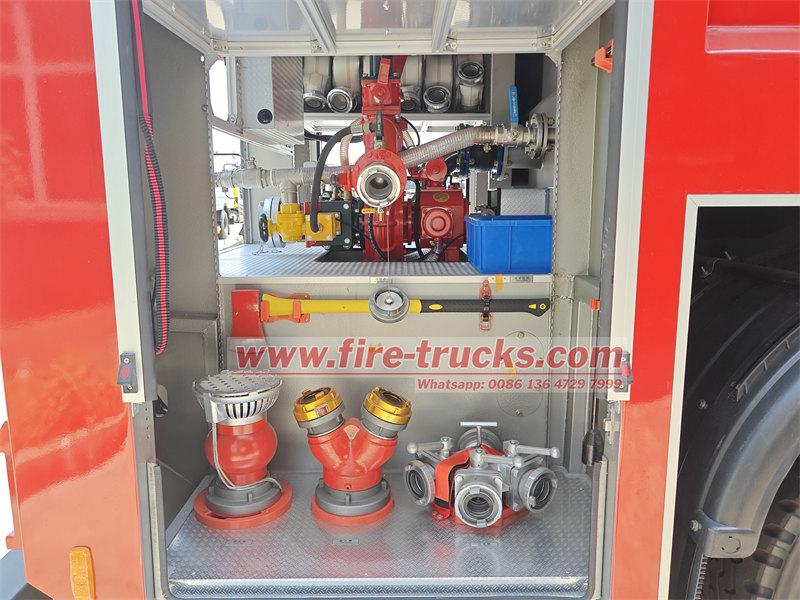

Full sets fire fighting and rescue tools are equipped for convenient working, fire extinguishing and people rescue
Foam fire truck, also known as a water-foam fire engine, multi-purpose fire truck, is primarily equipped with a fire pump, water tank, foam tank, foam mixing system, foam gun, monitor, and other firefighting equipment, enabling it to combat fires independently. It is particularly effective in extinguishing petroleum and oil-related fires and can also supply water and foam mixture to fire scenes. As an essential firefighting vehicle, it is widely used in petrochemical plants, oil terminals, airports, and urban professional fire brigades.
» Ⅱ.Product Parameter for HOWO 8000L foam fire engine truck:
Product Name |
HOWO water foam fire engine |
||||
Chassis |
Brand |
SINOTRUK |
|||
Model |
HOWO |
||||
Curb weight(kg) |
11500 |
||||
Wheelbase(mm) |
4600 mm |
||||
Dimensions(mm) |
8400*2500*3540 mm |
||||
Overhang (front/rear) (mm) |
1500/2305 mm |
||||
Wheel track (front/rear) (mm) |
2030/1830 mm |
||||
Approach/Departure angle (°) |
14/11° |
||||
Axle Load(kg) |
6000/10000 |
||||
Max. driving speed(km/h) |
110 km/h |
||||
Clutch |
Reinforced diaphragm clutch |
||||
Brakes |
Service brake: dual circuit compressed air brake |
||||
Steering Gear |
Power steering, hydraulic steering with power assistance |
||||
Tire |
Number |
10pcs with one spare tire |
|||
Specifications |
12.00R20 |
||||
Gear box |
HW10710, Manual type, 10 Forwards & 2 Reverses |
||||
Cabin |

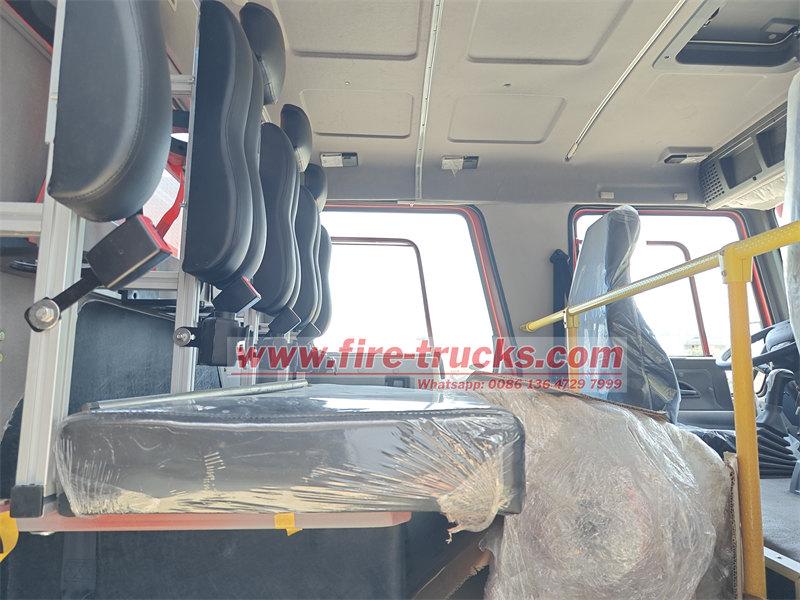

Four doors and it can hold 5 fire fighters and 1 driver. With Air conditioner |
||||
Engine |
Brand |
SINOTRUK |
|||
Model |
D10.30-31 |
||||
Fuel type |
Diesel |
||||
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||||
Displacement (ml) |
9726 ml |
||||
Power (kw) |
221kw |
||||
Rated speed (rpm) |
1900 rpm |
||||
Horsepower (HP) |
300 HP |
||||
Emission standard |
Euro 3 |
||||
Torque (N.m) |
1340 N.m |
||||
Superstructure |
|||||
Water tank |
Volume (L) |
6000 L |
|||
Tank Material |
Q235 Carbon steel |
||||
Foam tank |
Volume (L) |
2000 L |
|||
Tank Material |
Stainless steel |
||||
Proportion control system |
Foam vessel, proportioned equipment, water - entering pipe and liquid - out pipe etc |
||||
Fire pump |
Type |
Centrifugal pump |
|||
Model |
CB10/60 |
||||
Flow(L/s) |
60 |
||||
Pressure (Mpa) |
1 |
||||
Fire pump Suction depth |
≥ 7 m |
||||
Water Suction Time |
≤50 s |
||||
Fire cannon |
Model |
PL8/48 |
|||
Flow(L/s) |
48 L/s |
||||
Water Range(m) |
≥70 m |
||||
Foam Range(m) |
≥60 m |
||||
Swing angle |
Horizontal |
360 ° |
|||
Tilt angle |
-45°~70° |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam + dry powder tanker capacity, equipment room for fire fighting tools storage, also the whole truck size can be customized.
2. Skilled workers for production:

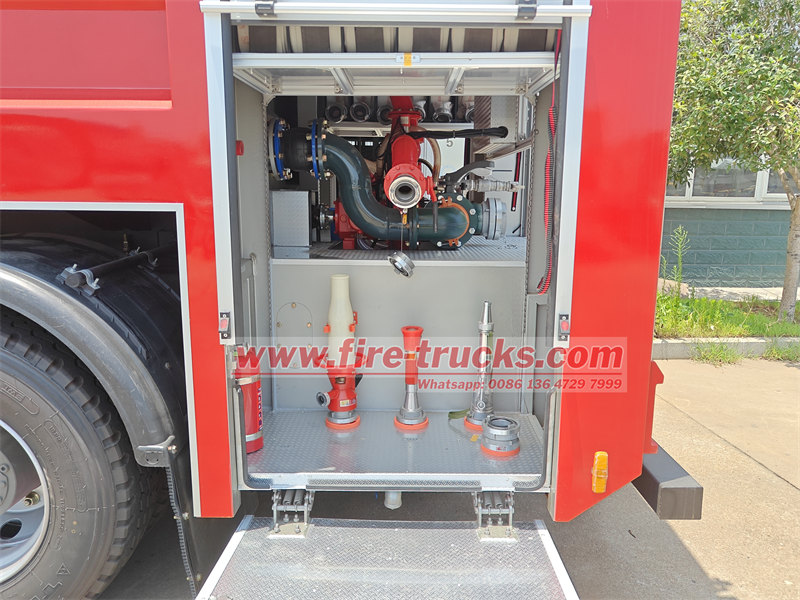

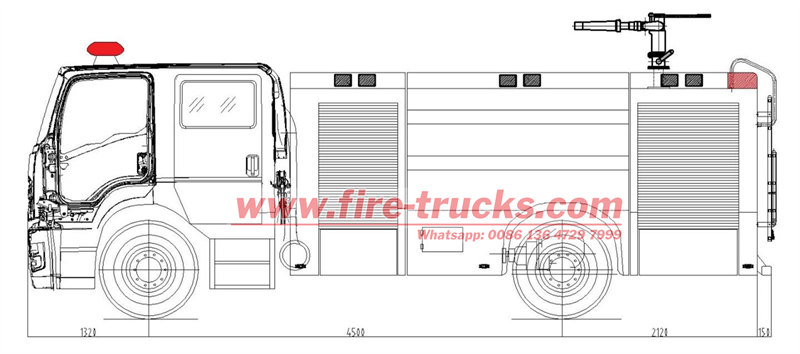

HOWO foam tanker fire truck technical drawing helps for producing guidance, skilled workers modify to double cabin, installed the Sandwich PTO, CB10/60 fire pump, PL8/48 fire monitor, water and foam tank, lighting system, also full Aluminium alloy decoration.

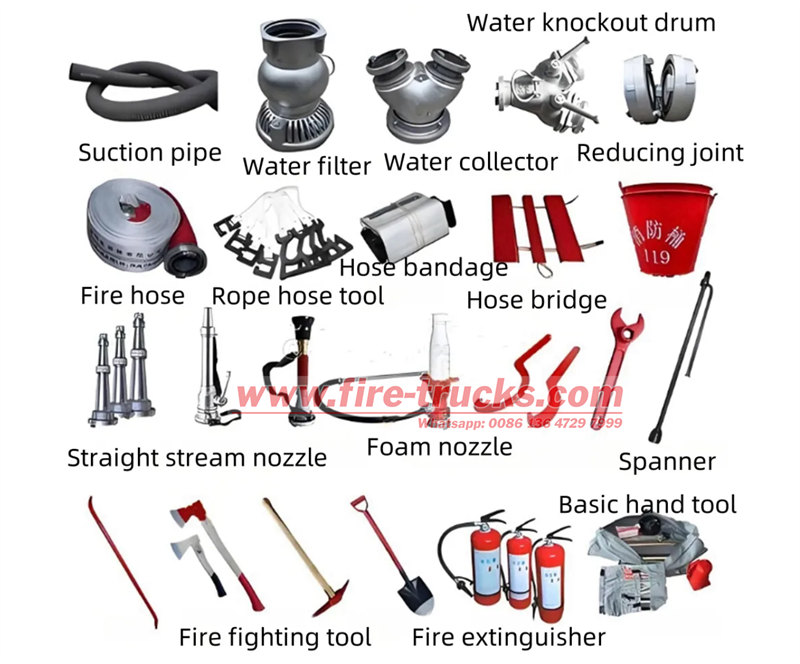

3. Prepare full fire fighting equipment:
Firefighting truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
