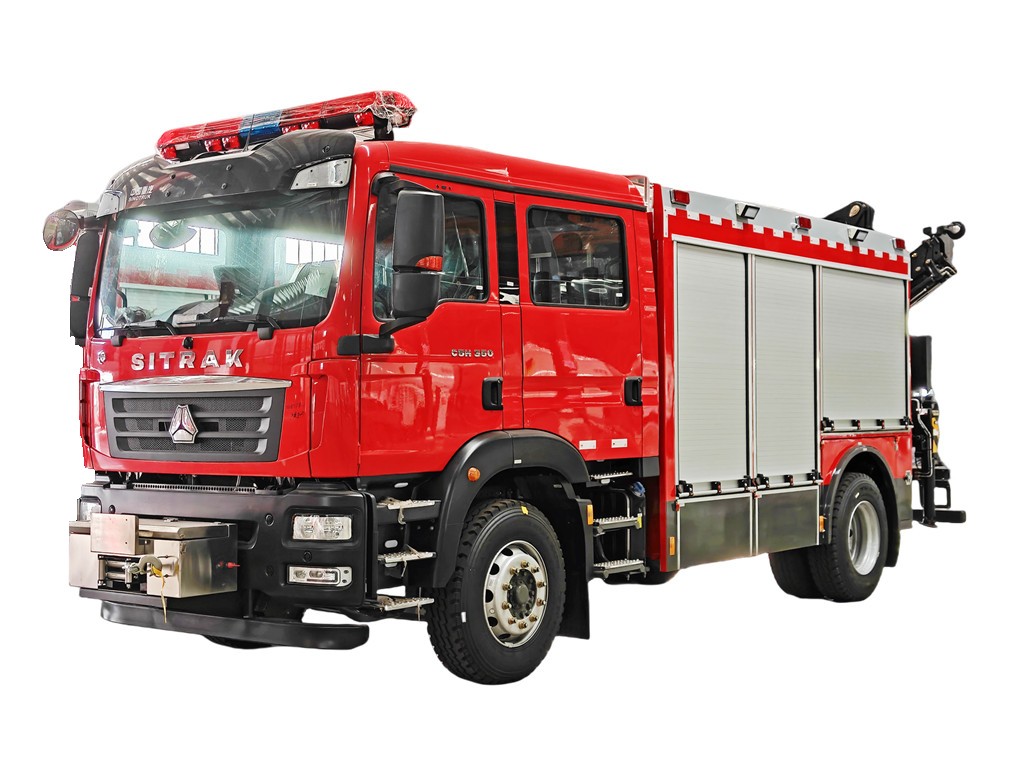

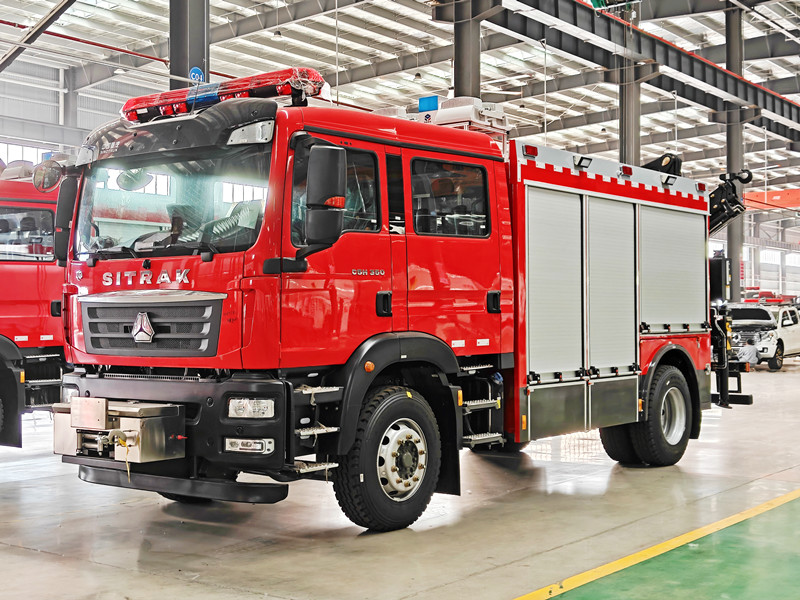

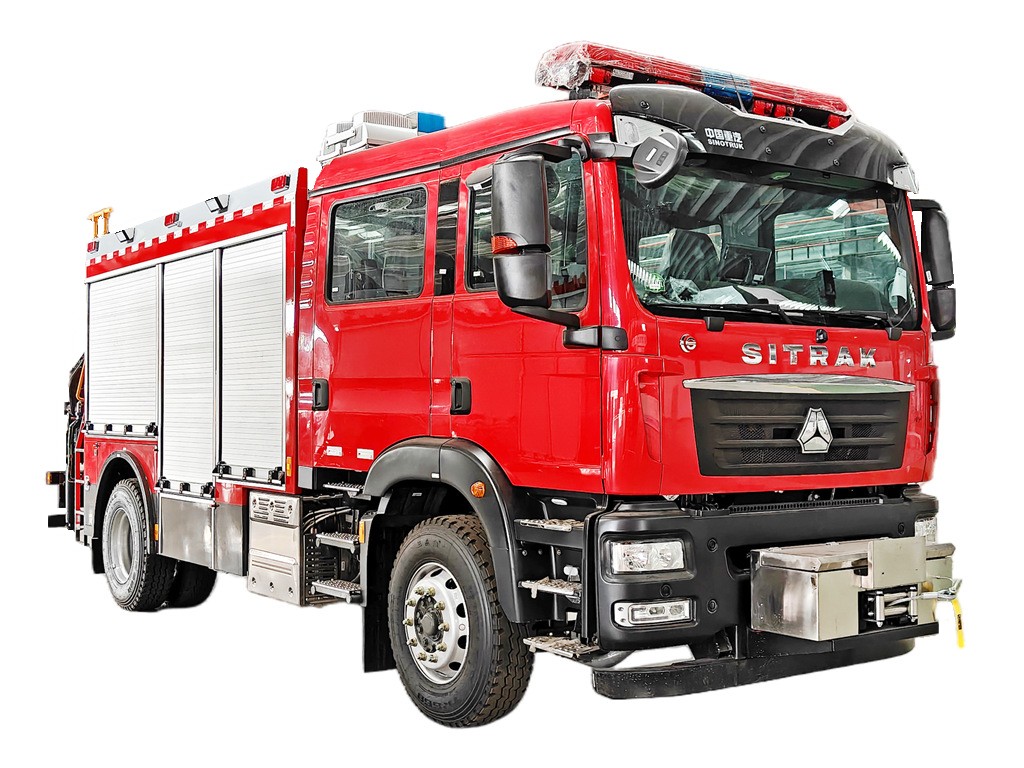

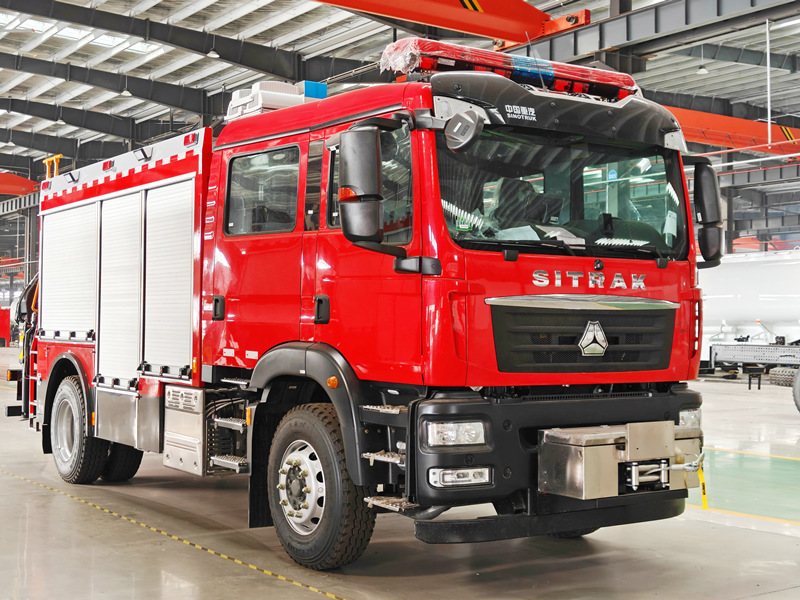

HOWO fire department rescue truck

Sinotruk HOWO 4×2 emergency rescue fire truck is a multifunctional special vehicle designed and produced for complex rescue work all over the world. HOWO fire department rescue truck adopts the chassis of SINOTRUK and combines the manufacturing process of German MAN technology, which has multiple functions such as efficient emergency rescue, firefighting, high altitude lighting and rescue.

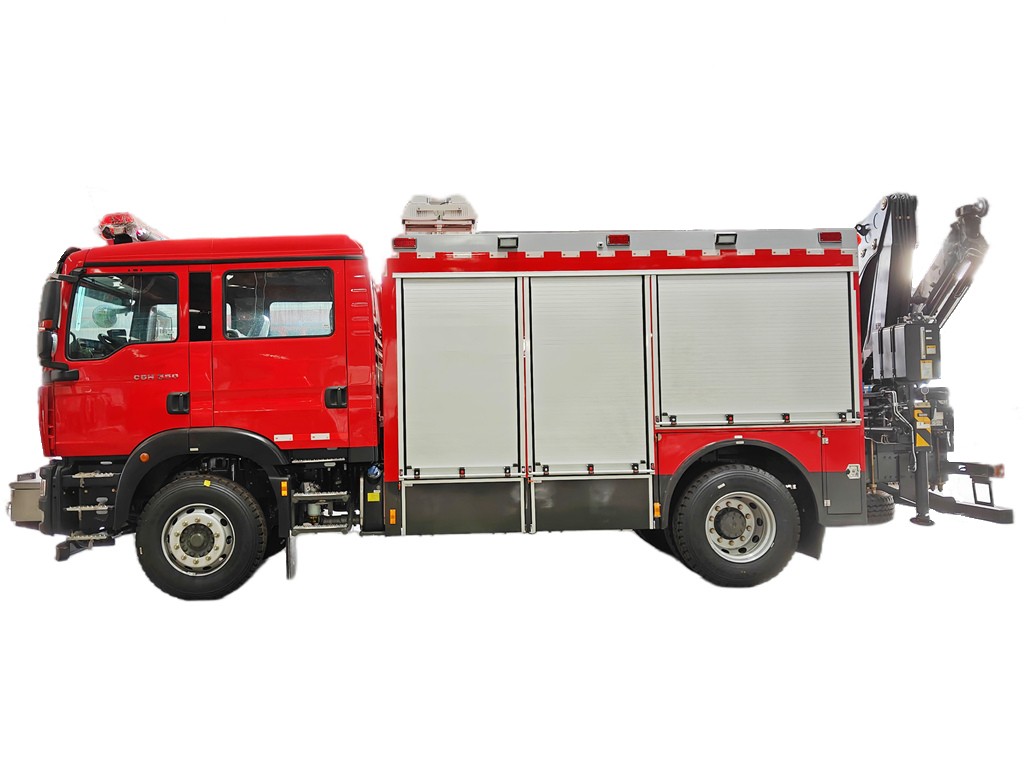

The HOWO 6 wheeler emergency rescue fire truck is built on the Sinotruk HOWO type II truck chassis, originally 4x2 driving model with wheelbase 4600 mm, the gross vehicle weight of the truck is 18 tons, Howo fire rescue vehicle can accommodate 6 passengers including the driver with 2 in the first row and 4 at the second row, and the rear 4 seats are SCBA type specially for air apparatus. Standard heavy type tubeless wheelers with 12.00R20 tires and 6+1 units, the mounted WP10.300E22 diesel engine with 220KW/300HP, and it has passed the Euro 3 emission standards to meet the requirement of Africa and Asia market. Fire truck mounted HOWO chassis is made of high-strength steel and aluminum alloy structure, with good stability and durability, and can maintain efficient maneuverability in complex terrain.

● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

HOWO fire rescue vehicle integrates customized special rescue equipment:

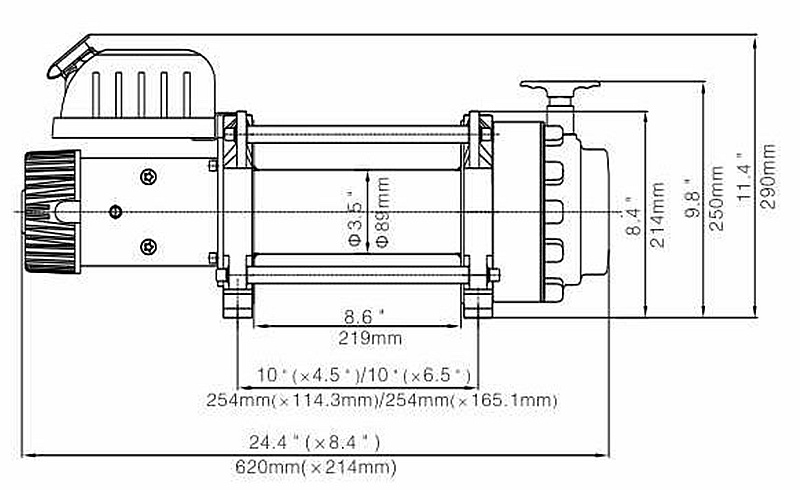

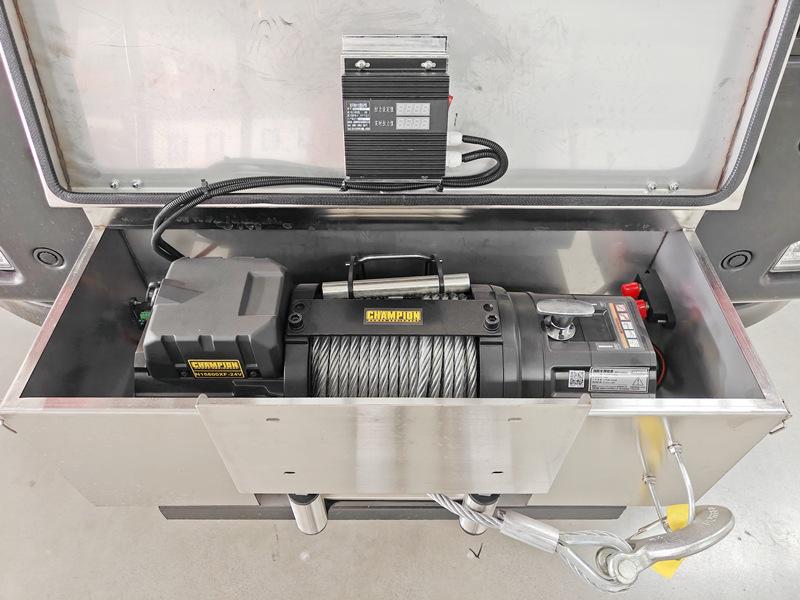

Traction System: The front of the HOWO fire rescue vehicle is equipped with an American Champion traction winch, model N16800XF with a maximum pulling force of 75kN, working angle up & down 8° and left & right 5°, as for steel rope which is 38m in length φ13mm diameter, which can cope with complex terrain such as muddy and sloping land. Details and advantages as below showing:

The HOWO firefighting truck front mounted towing winch can be powered by 12V or 24V DC, the reduction mechanism adopts a first-stage small-tooth difference star gear reduction and a first-stage planetary gear reduction, and the reduction ratio is 430:1. The internal teeth of the reducer are manufactured using a special formula high-pressure forming powder metallurgy technology, and the important force transmission parts are made of special materials and processing technology, which makes it have higher strength and load-bearing capacity. There are breakthrough improvements in many aspects such as clutch, brake and appearance design. The rated tension is 16800lbs.

Champion N16800XF towing winch products are strictly prohibited from being used for lifting or manning. Not allow work continuously for more than one minute under full load to avoid motor burnout. When the motor is overheated, please let the motor cool down before continuing the operation; It is recommended to use a movable pulley when the load exceeds 60% of the rated tension;

It has a clutch to realize manual rope release;
It has a reliable brake device;
It is driven by a series motor;
The specially designed small-tooth difference speed reduction mechanism is suitable for heavy-duty operations;
It has a beautiful appearance and is easy to install.

Lifting System:  Rear part of the HOWO emergency fire rescue vehicle is equipped with Top 1 Chinese brand XCMG hydraulic type folding boom SQZ105 with a maximum lifting capacity of 5 tons and supports full rotation operation, which is suitable for high-altitude rescue and material lifting.

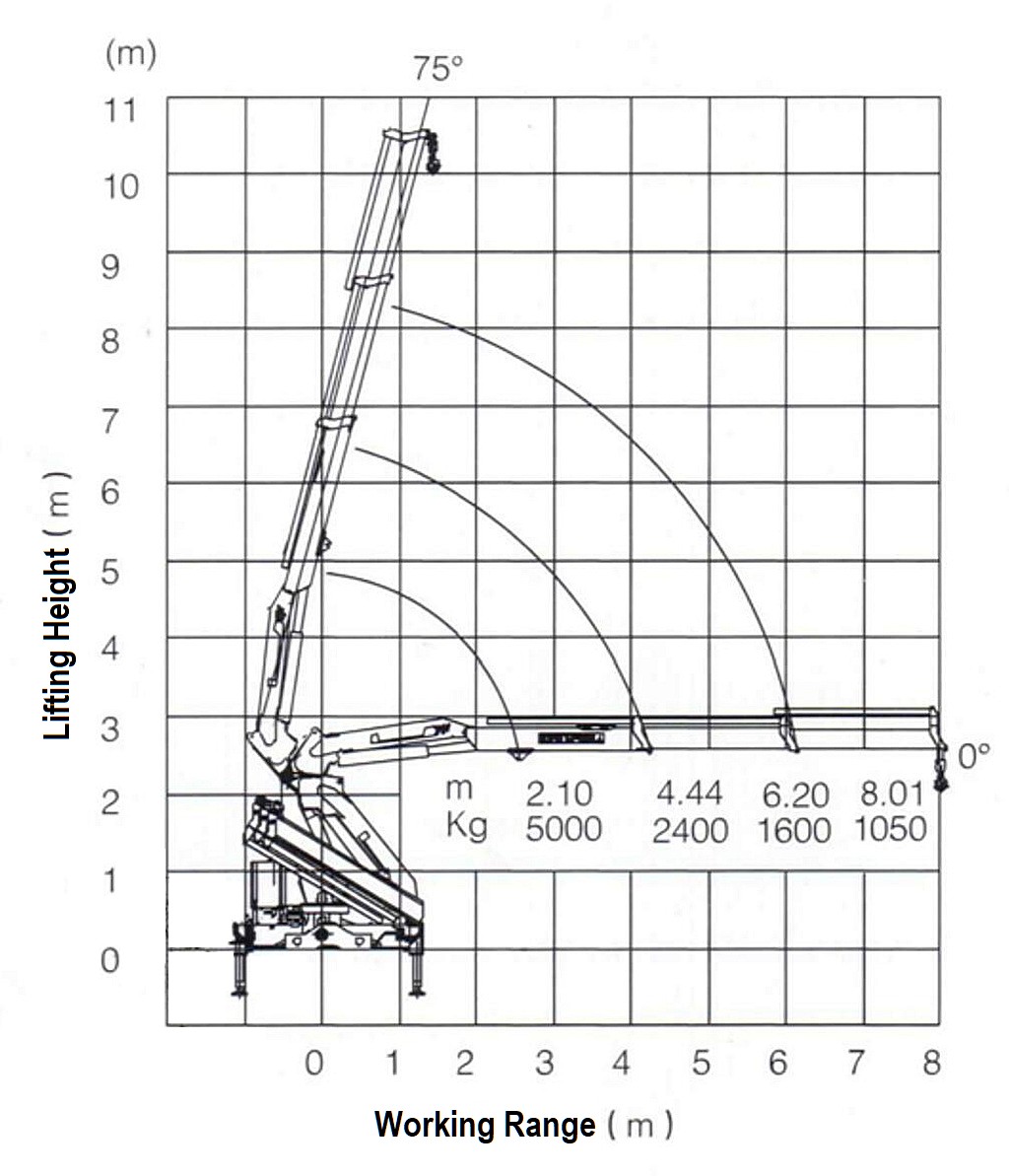

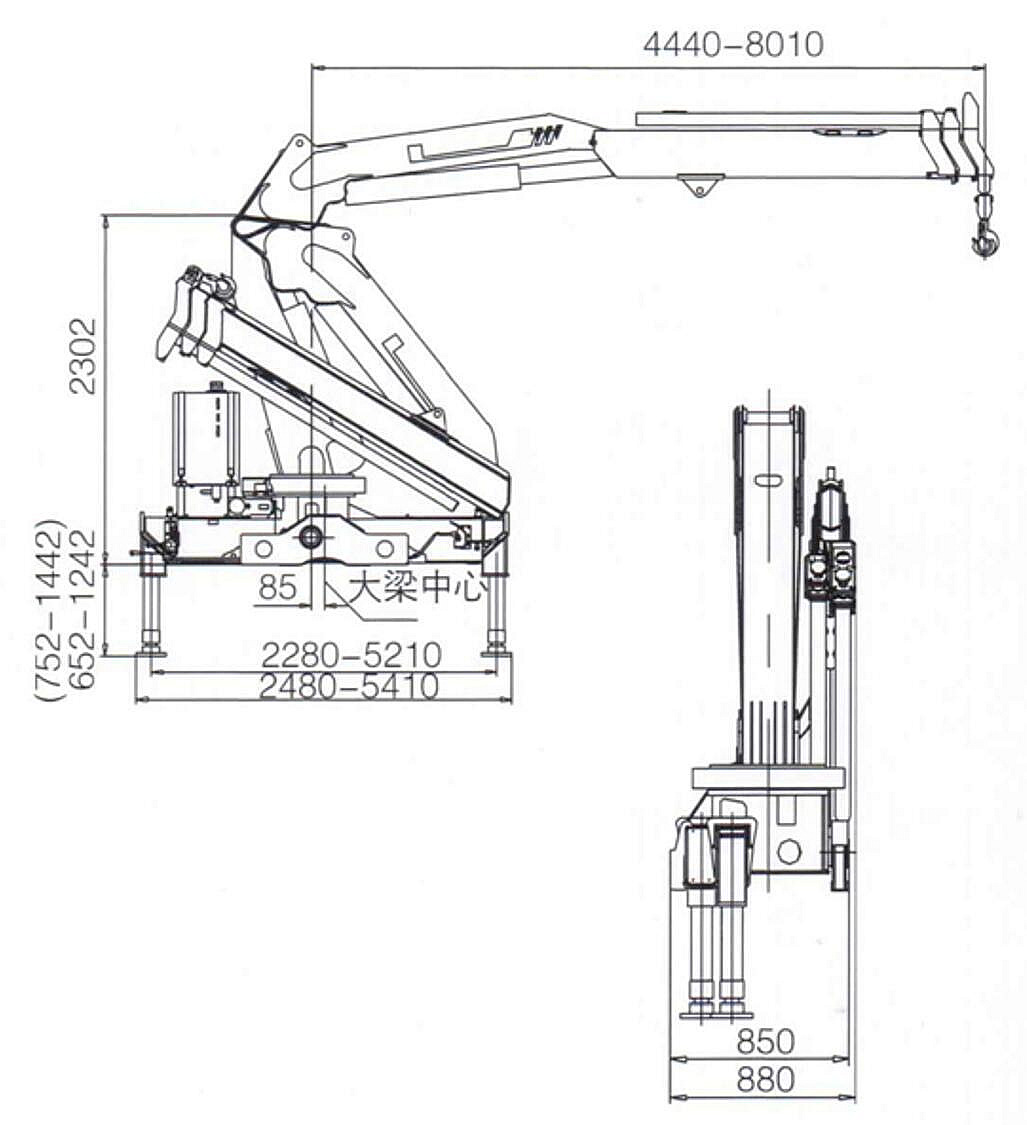

The new generation of small and light duty 5T knuckle type loader crane from XCMG, crane model SQZ105 with the maximum lift moment of 105 kN·m , maximum working range of 8.3m and rotation angle of 420°, the operation safety is improved greatly because it is equipped with alarm system. Nested stabilizer extensions reduce the installation space, and lower the weight, optimized design of whole unit structure make it beautiful and compact. widely used in transportation, civil engineering, electric power, fieldwork, airport, dock etc., it can be used to long-distance transfer goods too. After installing additional devices, it can also be used for bridge maintenance, aerial wiring and inspection work.

1. Warning system: while loader crane working, the caution light on the leg keep shining to remind the people and vehicle around. Avoid accident and ensure safety.

2. Stabilizer extension: single cavity nesting structure not only ensure the leg span but also reduced the installation space and crane weight.

3. Leveling mechanism of extension cylinder: this mechanism can carry out level regulation for extension cylinder, avoid the phenomenon of cylinder is not parallel to boom which arising from machining error of boom or structure distortion after long-term work, improve product external appearance and stress on the cylinder.

4. Large angle rack cylinder rotation: rack cylinder rotation, easy to repair and maintain, more economical and practical, rotation angle can reach to 420 °.

•

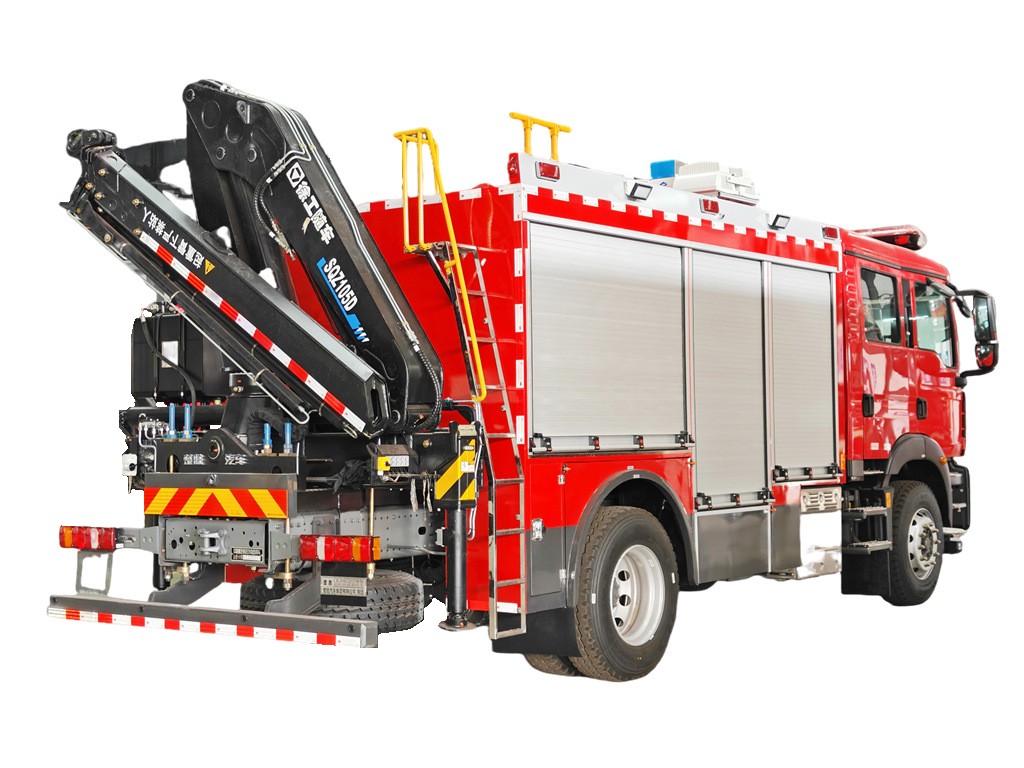

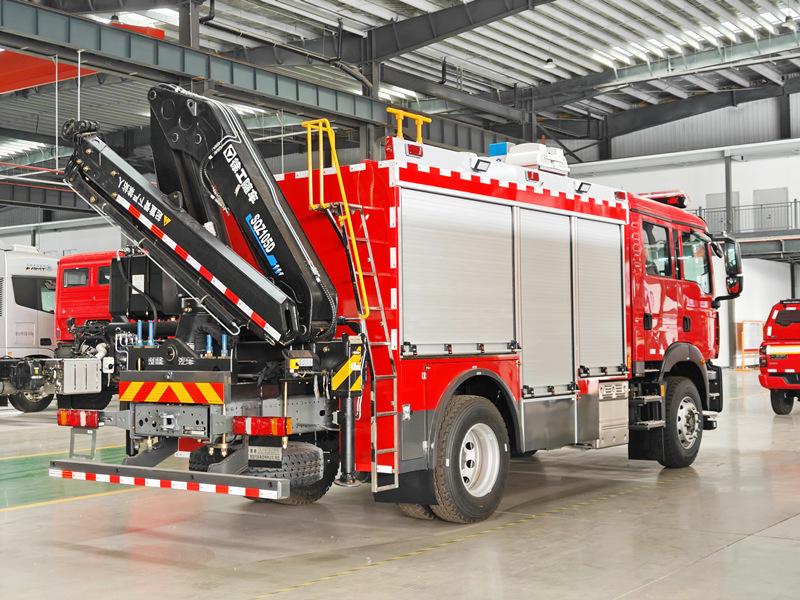

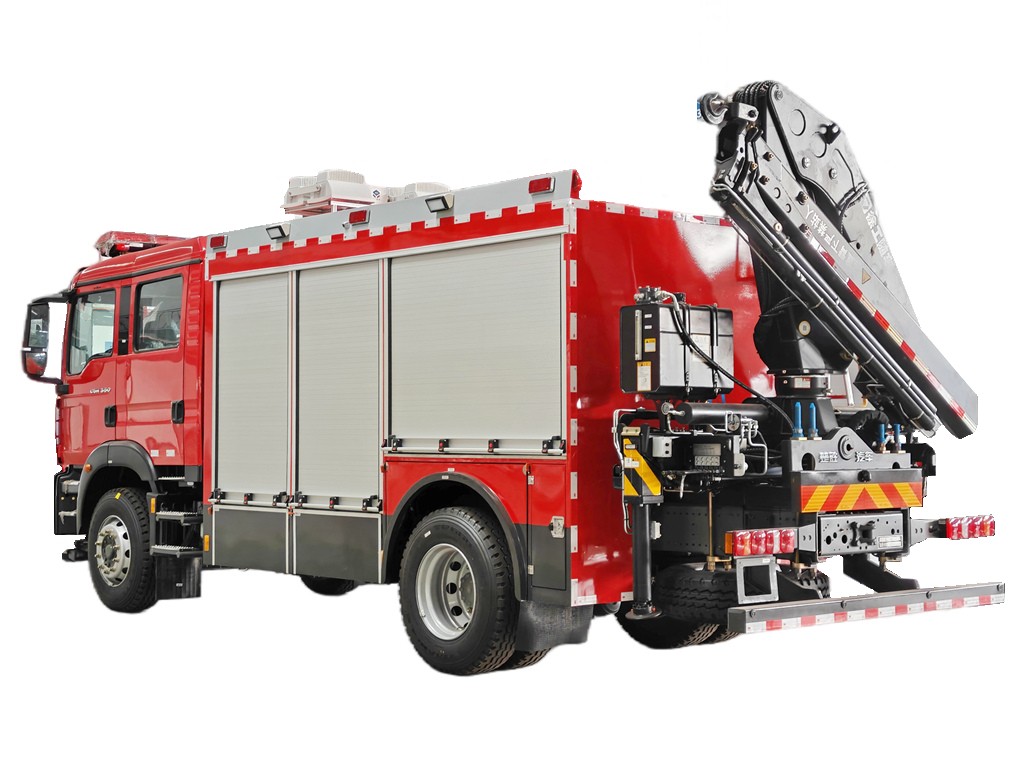

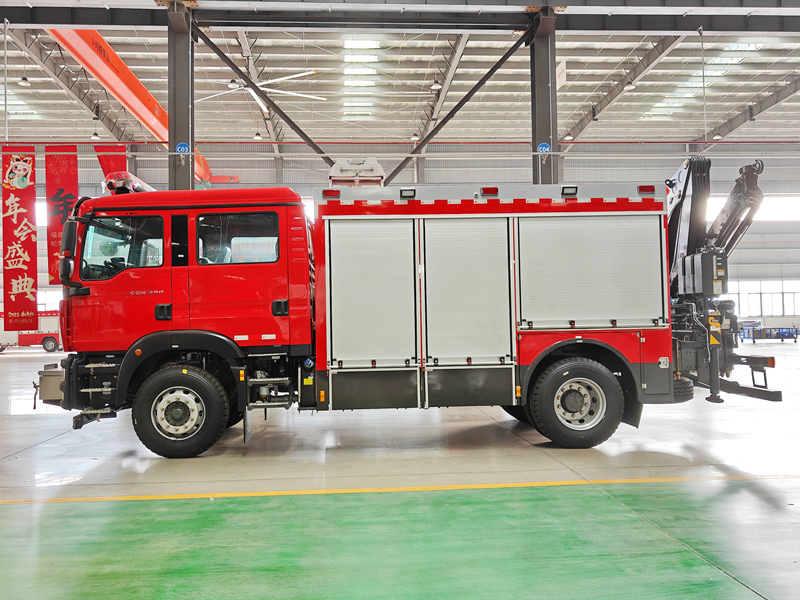

  HOWO heavy duty emergency rescue fire truck with crane
•

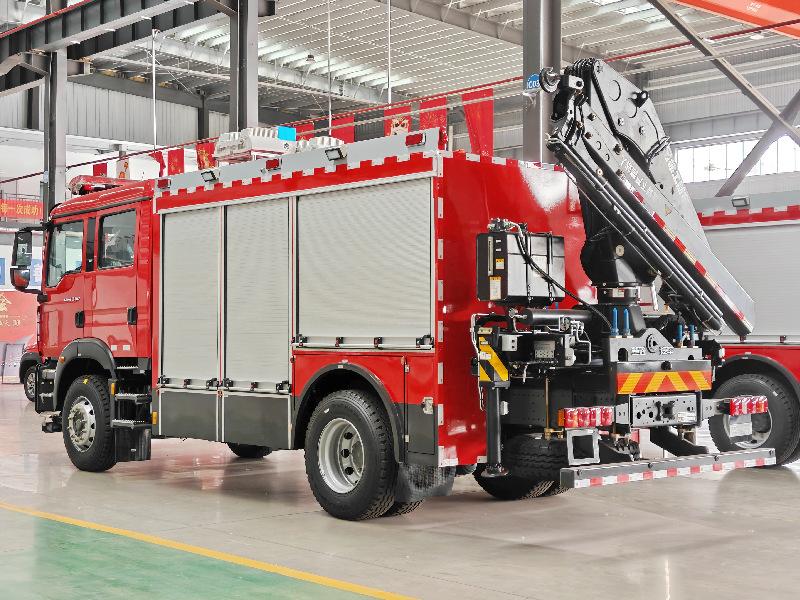

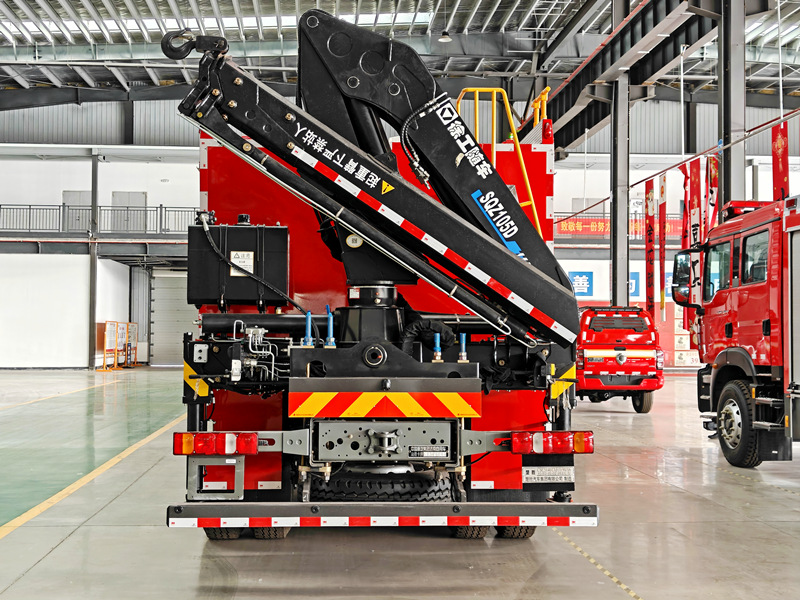

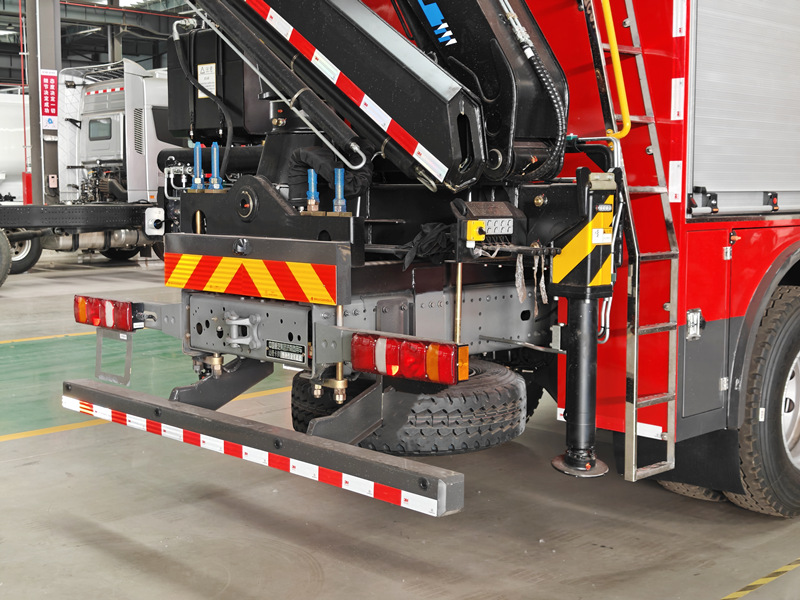

  HOWO rescue fire truck boom crane hydraulic legs
•

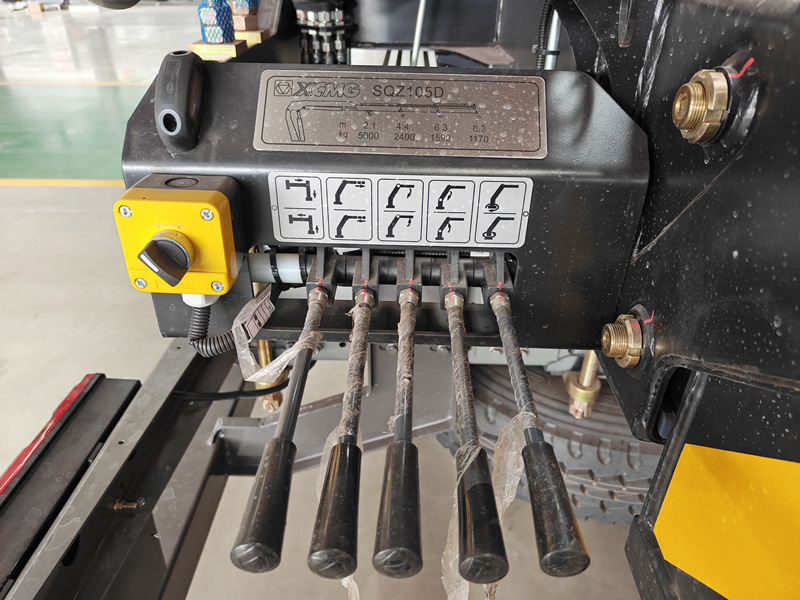

  HOWO fire rescue department truck control device

Lighting and Power System: Equipped with a lifting lighting set (power 4×1000W), the night operation range reaches 7.6 meters in height, and is equipped with a 10KW for 220V and 380V generator set HONDA SHT11500, which supports dual-mode power supply of city power and self-generation to ensure the continuous operation of rescue equipment.

Multifunctional storage and fire-fighting equipment: The Sinotruk HOWO 4x2 emergency rescue fire vehicle body is equipped with a modular equipment box to store tools such as demolition, detection, and protection; some models can be equipped with high-pressure water guns, foam fire extinguishing systems and automatic fire extinguishing devices, which have fire-fighting functions. Detailed of POWERSTAR fire fighting trucks as below showing:

The Sinotruk HOWO 4x2 emergency rescue fire fighting vehicle is widely used in urban rescue, natural disaster rescue and industrial accident handling, and is particularly good at complex environments such as mountains and waters. Howo fire engine high passability and stable hydraulic system can quickly respond to emergency tasks such as mudslides and earthquakes. In addition, the intelligent operating system supports precise control of equipment such as front mounted N16800FX towing winch and rear mounted XCMG SQZ105 model boom crane to improve rescue efficiency. Some models are also designed with helicopter landing gear to expand the ability of aerial collaborative rescue. Through modular design by POWERSTAR Engineer Department, users can select equipment according to their needs to achieve multiple usage and meet the diverse needs of fire brigades and professional rescue teams.
