The HOWO SITARK 4×2 heavy-duty rescue fire truck is a professional multi-functional emergency equipment built on SINOTRUK SITRAK chassis. Powered by a 350HP diesel engine, it features XCMG SQZ105D hydraulic crane (5-ton max lifting capacity) and American N16800XF electric winch (70KN traction force), integrated with 4KW lifting lighting system and 12KW generator set. The double-row cabin accommodates 6 crew members, with 4500mm wheelbase and 20-ton GVW, suitable for various rescue scenarios including traffic accidents and building collapses. With its reliable performance and professional configuration, the HOWO rescue fire truck has become essential equipment for modern fire rescue operations.
Truck Model:
PT5250TXFJYTanker Structure:
No tankWork capacity :
5 tonWheelbase:
4500 mmAxle drive:
4×2, left hand driveEngine Power:
350HPEngine Model:
MC07H.35Fire Pump:
OptionalFire Monitor:
OpionalRemark:
Equipped with lighting system, winch, generatorThe HOWO SITARK heavy-duty rescue fire truck is professional equipment developed for modern fire rescue needs, built on SITRAK 4×2 heavy-duty chassis. With overall dimensions of 8680×2500×3570mm, 4500mm wheelbase and 20-ton GVW, it perfectly balances road accessibility and equipment carrying capacity. Equipped with MC07H.35 diesel engine delivering 350HP coupled with 10-speed transmission, it reaches a top speed of 95km/h for quick response to various disaster sites. The double-row cabin accommodates 6 crew members with AC and hydraulic power steering for comfortable working environment.
Professional Rescue System

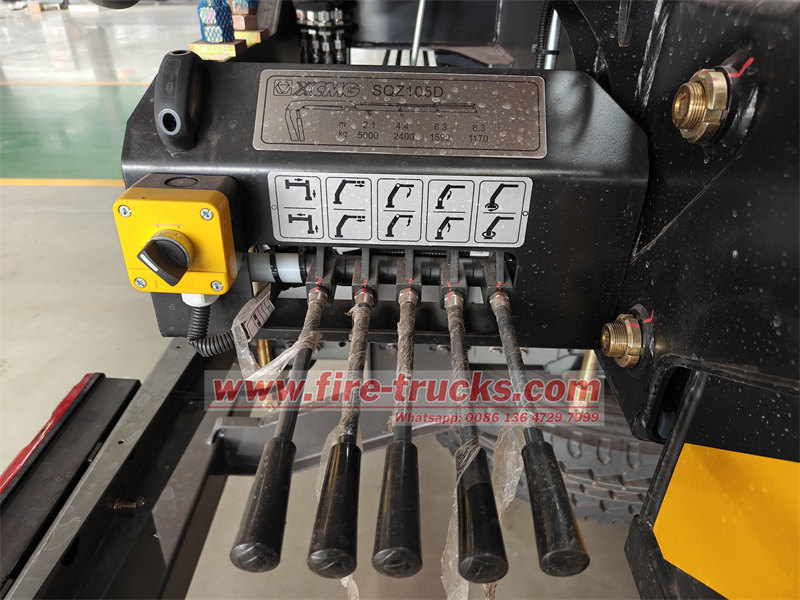

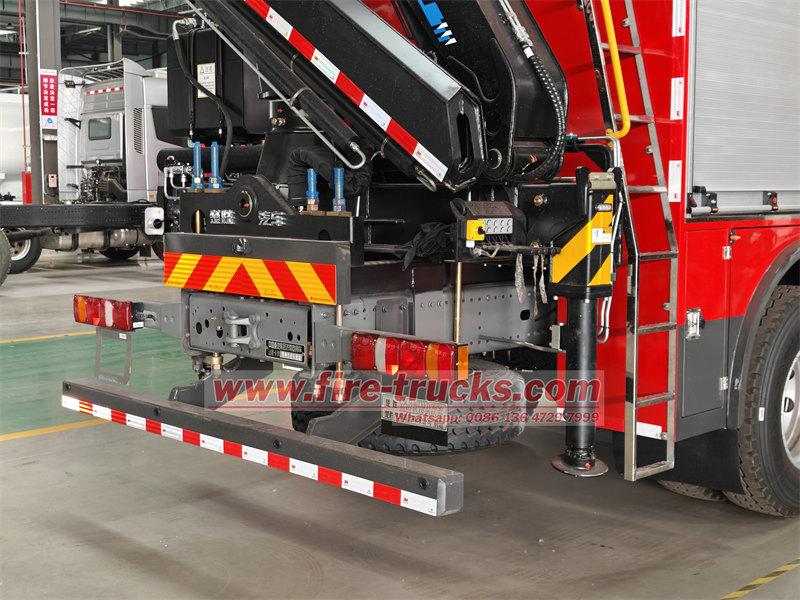

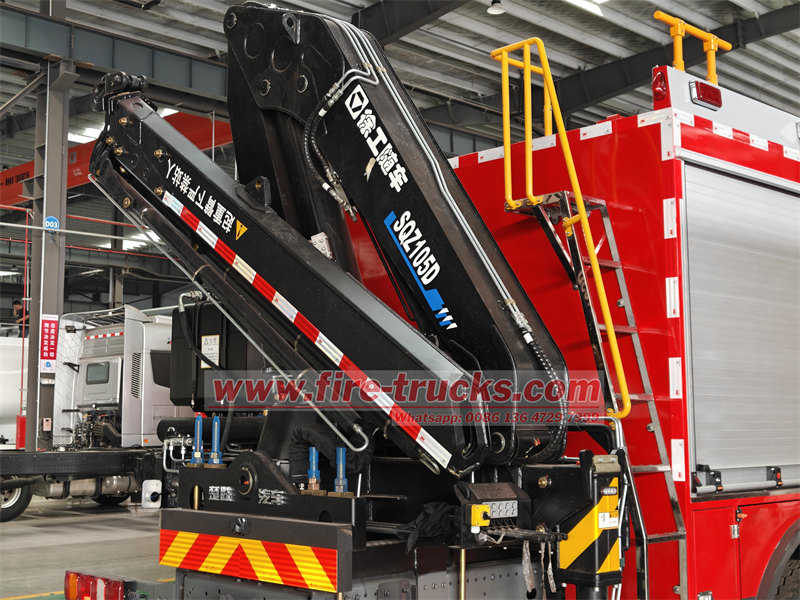

The HOWO rescue fire truck's rear-mounted XCMG SQZ105D hydraulic crane uses high-strength alloy steel with optimized structure design, achieving 8.3m maximum working radius while ensuring strength. The hydraulic system operates at 28MPa pressure with 25L/min flow for smooth movement. The crane features moment limiting system that triggers audio-visual alarm when approaching rated load. The 420° continuous rotation function eliminates dead angles of traditional 360° rotation, improving rescue flexibility.

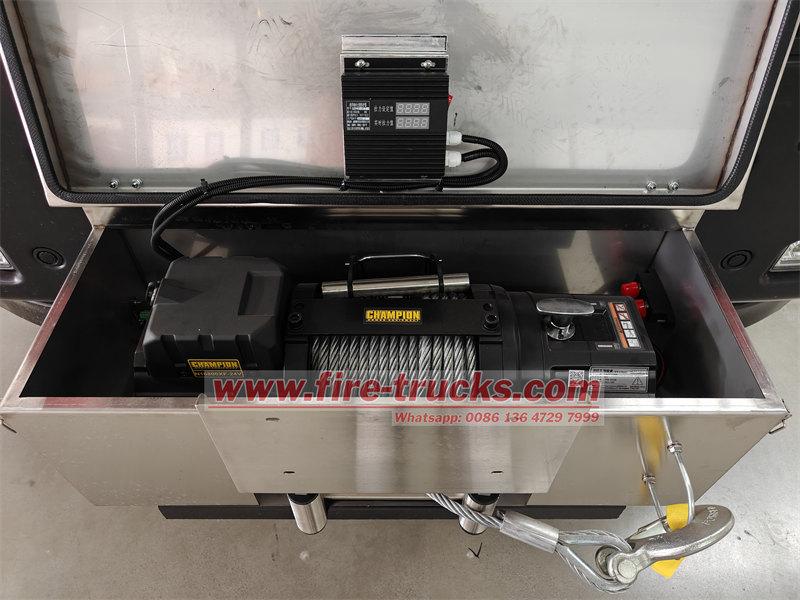

The front-mounted American N16800XF electric winch adopts precision gearbox with 70KN traction force (equivalent to pulling 7-ton objects). It comes with 10mm diameter high-strength galvanized steel cable (140KN breaking force) and 35.2m length to meet most rescue needs. The innovative automatic rope arrangement system ensures neat winding and prevents jamming during operation.
Lighting and Power System
The 4KW lifting lighting system uses high-strength aluminum material with 8mm thick lifting column for stable operation in harsh conditions. Four 1000W halogen lamps provide over 150m illumination distance with excellent light uniformity. This HOWO emergency rescue truck also features 12KW generator set offering 220V/380V dual-voltage output to power multiple rescue devices simultaneously.
Equipment Storage and Functional Zoning
The HOWO fire rescue truck divides into six functional zones: front winch operation area, central equipment storage area, rear crane operation area, top lighting area, right-side tool access area and left-side spare parts storage area. The modular equipment compartment includes:
1. Demolition tool set: hydraulic cutters, impact hammers etc.
2. Support stabilization set: various support blocks and jacks
3. Medical emergency set: integrated AED and trauma first-aid kits
4. Personal protection set: respirators, chemical suits etc.
Each storage unit features anti-vibration treatment and quick-locking devices to secure equipment during vehicle movement.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
Product Specifications
HOWO SITARK 4×2 Heavy Rescue Fire Truck Specifications |
||
Chassis model |
SINOTRUK SITARK |
|
Cab |
HOWO double row cab, with power steering. Electronic flameout, with a/c |
|
Driving Type |
4*2 Left hand driving |
|
Max Speed (km/h) |
95 |
|
Overall dimension(mm) |
8680×2500×3570mm |
|
GVW ( kg) |
20000 |
|
Curb weight ( kg) |
13550 |
|
Wheelbase(mm) |
4500 |
|
Tire |
295/80R22.5 (6+1) |
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
Steering |
Hydraulic steering with power assistance |
|
Gear box |
10-speed |
|
Bridge |
Front axle |
7T |
Rear axle |
13T |
|
Engine |
Model |
MC07H.35 |
Fuel Type |
Diesel fuel |
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
|
Displacement (ml) |
7360 ml |
|
Max output power |
350HP/257kW |
|
Rated speed (rpm) |
2200 rpm |
|
Braking system |
Service Brake |
Compressed air brake |
Park Brake |
Spring energy |
|
Auxiliary brake |
engine exhaust brake |
|
Upper-Body Specifications |
||
Crane |
Brand |
XCMG |
Model |
SQZ105D |
|
Lifting capacity |
5000kg |
|
Max. lifting moment |
10.5 T.M |
|
Max. working radius |
8.3 m |
|
Max. lifting height |
8 m |
|
Rotation angle |
420° |
|
Installation position |
Rear-mounted |
|
Hydraulic system pressure |
28 Mpa |
|
Hydraulic system flow |
25 L/min |
|

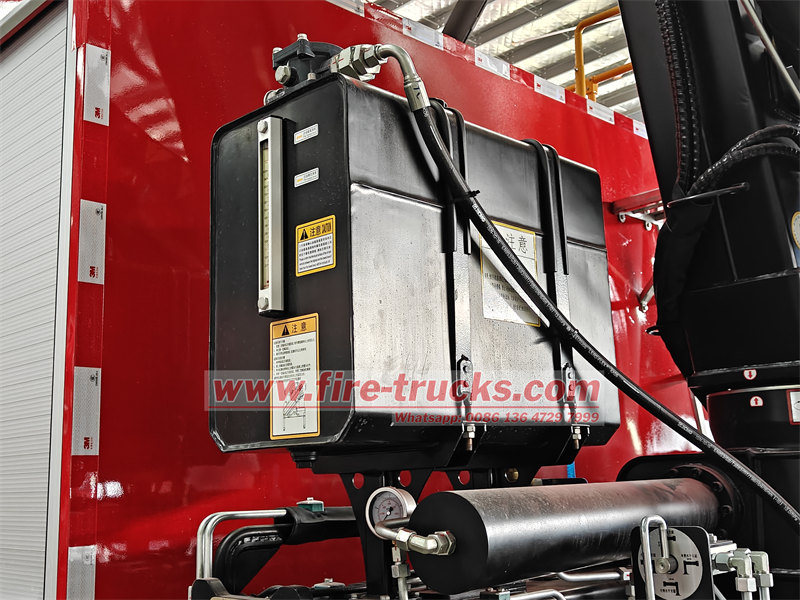

Hydraulic oil tank capacity |
75 L |
|
Traction winch |
Model |
N16800XF |
Max. traction force |
70KN |
|
Drive type |
Electric |
|
Steel rope diameter |
10mm |
|
Max. traction length |
35.2 m |
|
Installation position |
Front-mounted |
|
Lighting system |
Type |
Pneumatic lifting type |
Lighting power |
4×1000W (4KW) |
|
Lighting |
Halogen lamp |
|
Height from ground |
8.49 m |
|
Rotation angle |
Horizontal 360°, pitch angle total 406° |
|
Control method |
Can be controlled manually or remotely, with automatic reset function |
|
Generator |
Rated output power |
12 kW |
Rated frequency |
50 HZ |
|
Rated voltage |
220V/380V |
|
Starting method |
electric start/manual start |

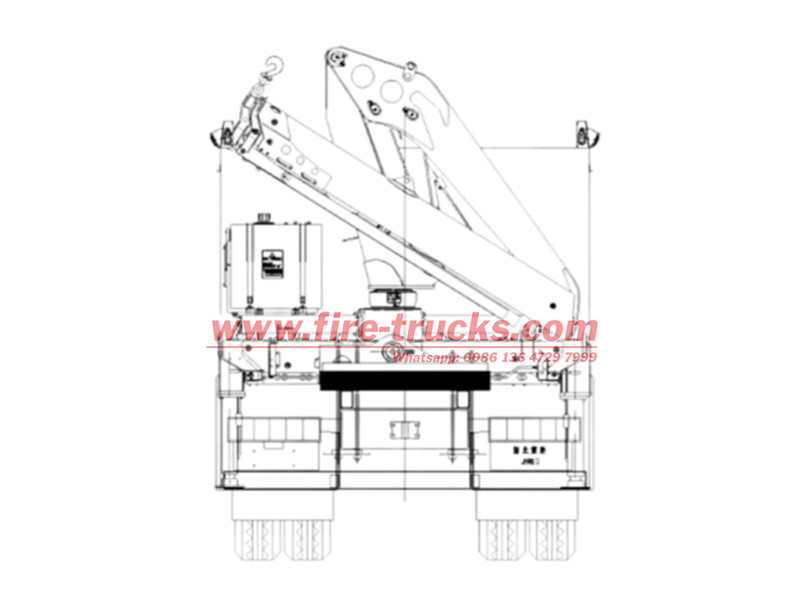

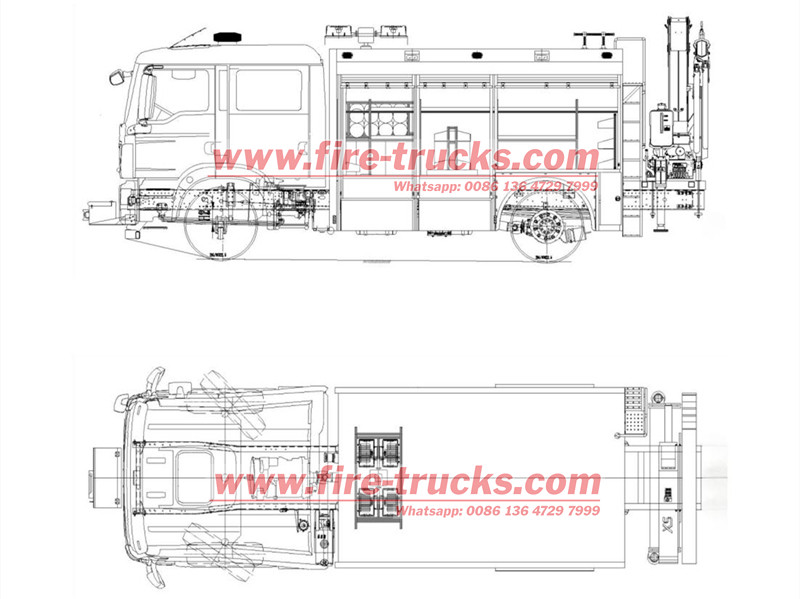

Product Drawing

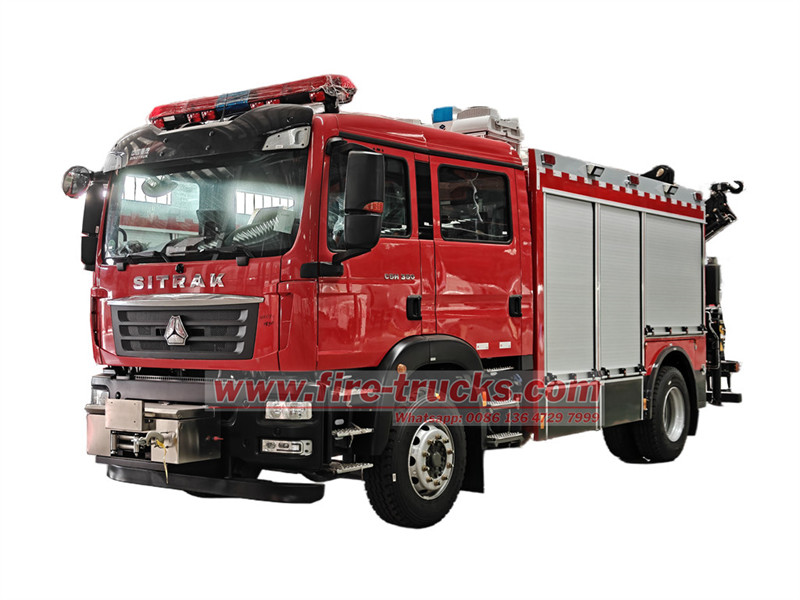

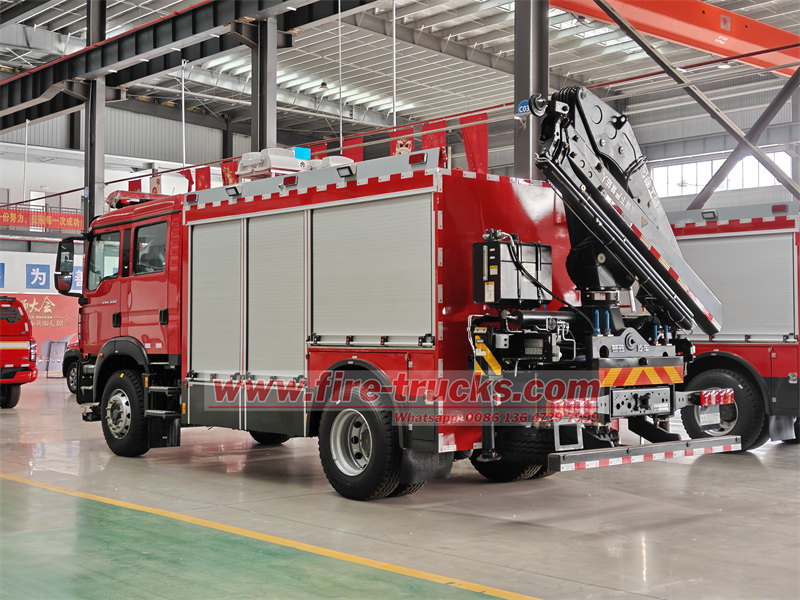

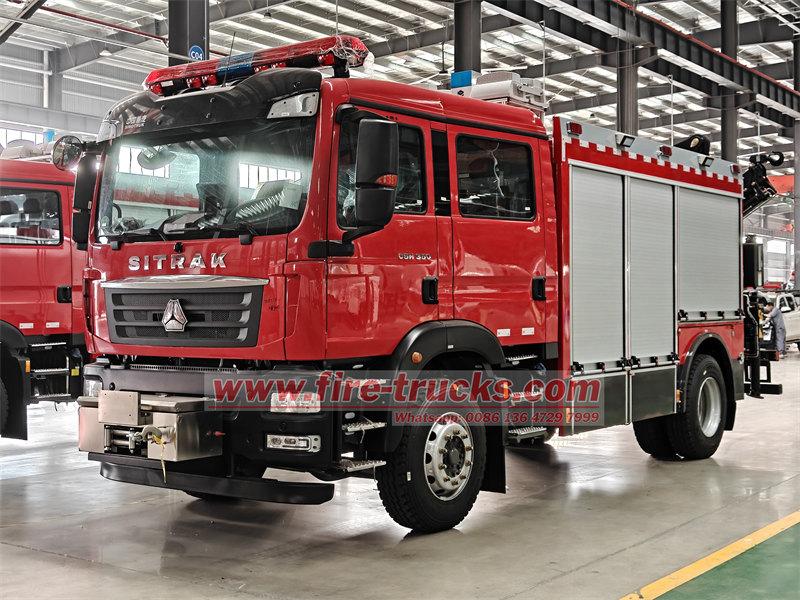

Product Pictures
