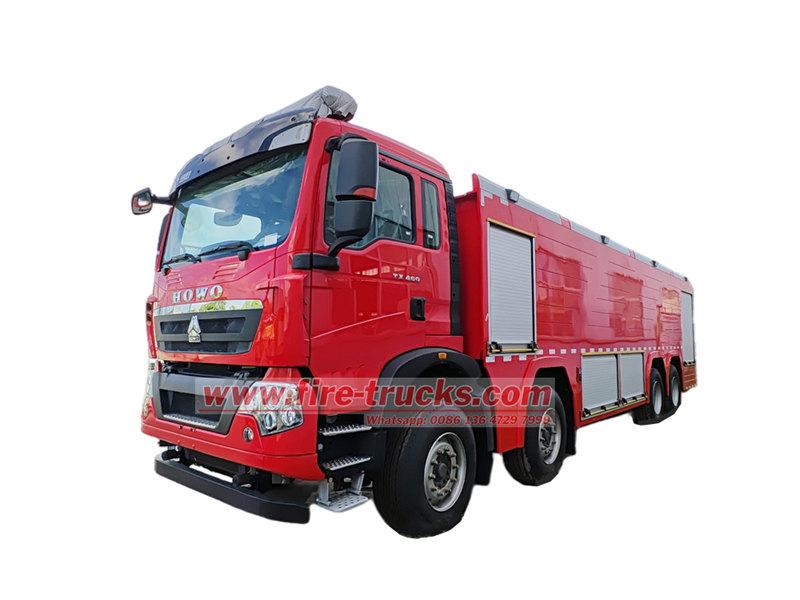

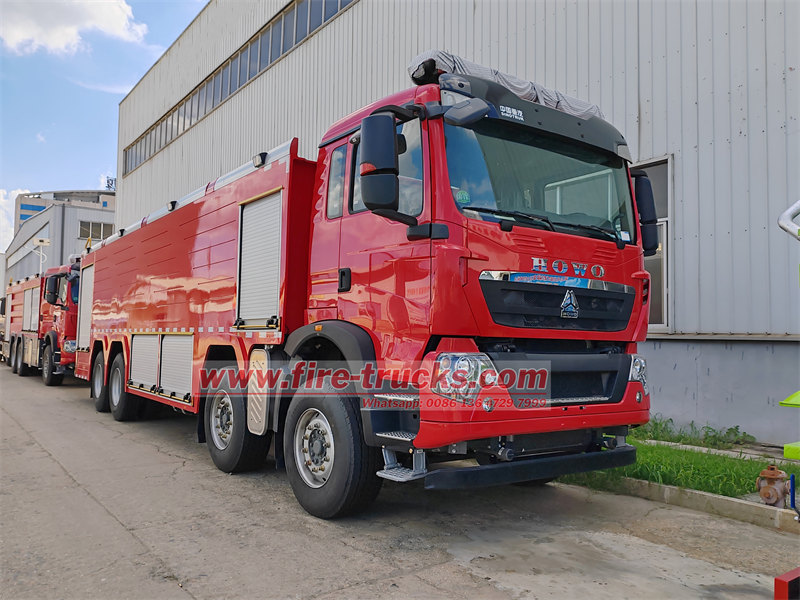

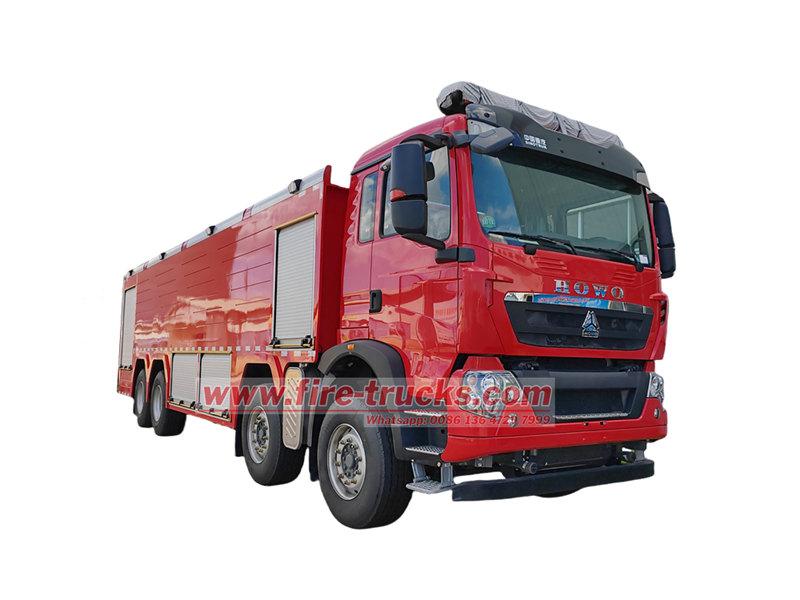

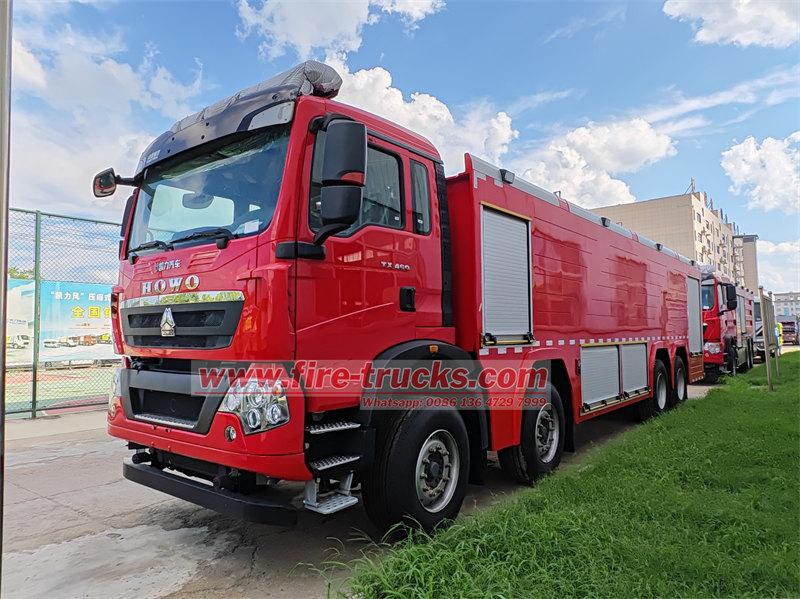

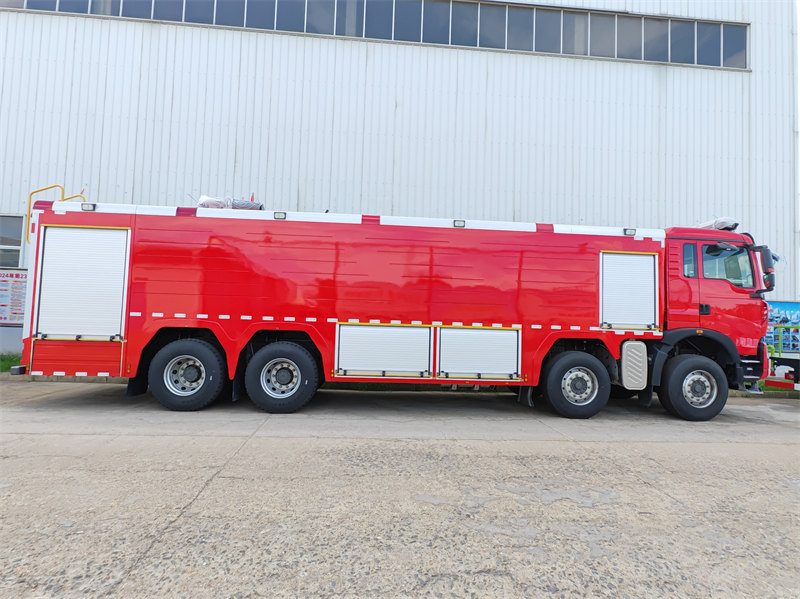

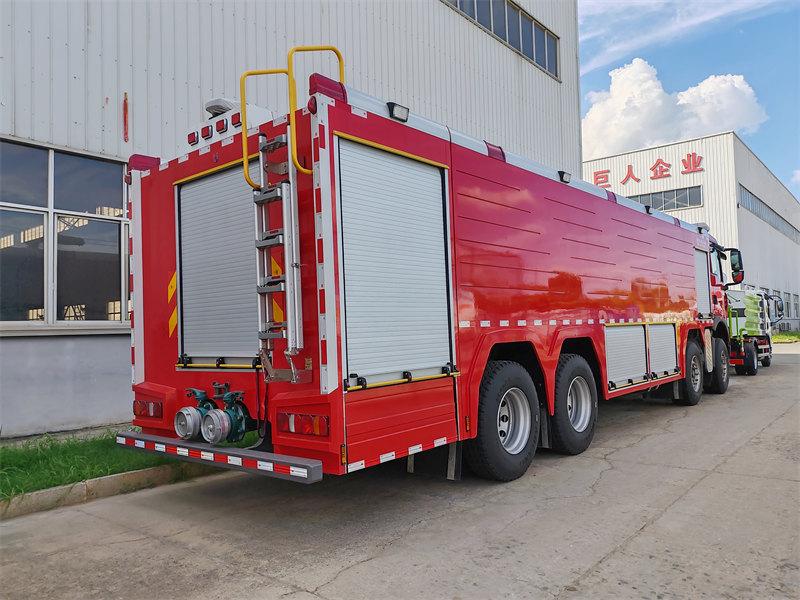

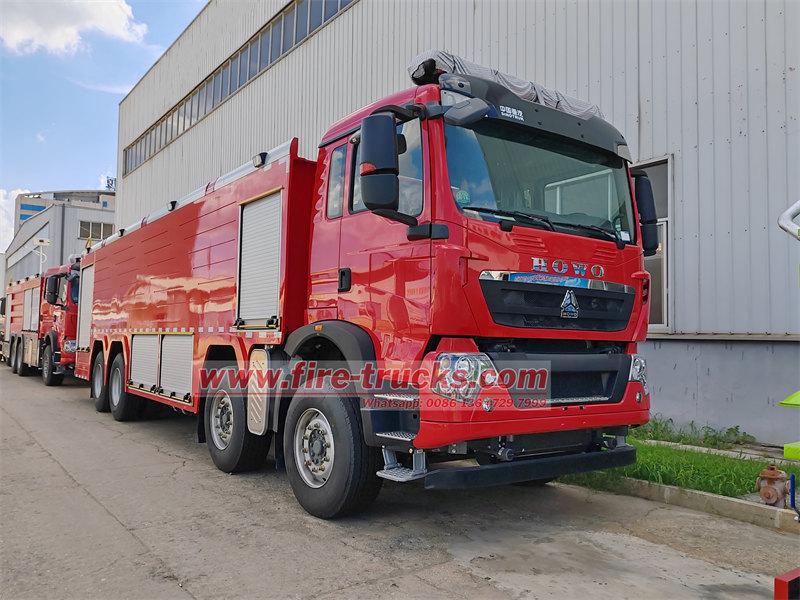

HOWO 8×4 foam fire truck is a large emergency rescue vehicle built on a SINOTRUK HOWO heavy-duty chassis, integrating a water tank, foam tank, fire pump, and various firefighting and rescue equipment. Powered by a 460 HP engine, it features a 20000L water tank and a 4000L foam tank, equipped with a high-flow fire monitor capable of jetting water or foam up to 75 meters. With powerful performance, excellent mobility, and comprehensive equipment, it efficiently tackles fire suppression tasks in urban and industrial areas.
Manufacturer Origin:
Powerstar TrucksWork capacity :
24000 litersUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
1950+4600+1400 mmAxle drive:
8×4Engine Power:
460 HPEngine Model:
MC11.46-50Fire Pump:
CB10/80, 80L/sFire Monitor:
PL8/64 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD drive is optionalHOWO 8×4 foam fire truck is a large emergency rescue vehicle built on the HOWO 8×4 drive heavy-duty ZZ5447TXFV chassis. Customized for the Philippine market, it is equipped with a 460 HP MC11 Series Euro V engine. Its core strength lies in its exceptional liquid-carrying capacity, simultaneously storing 20 cubic meters of water and 4 cubic meters of foam. Integrated with a CB10/80 normal-pressure fire pump and a PL8/64 fire monitor with a range exceeding 75 meters, it provides an efficient and reliable mobile firefighting platform to address severe local fire scenarios.

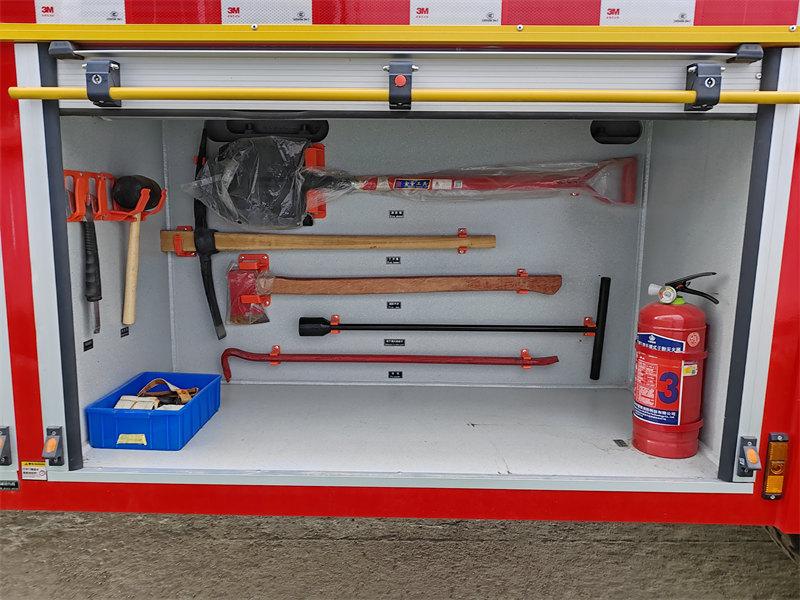

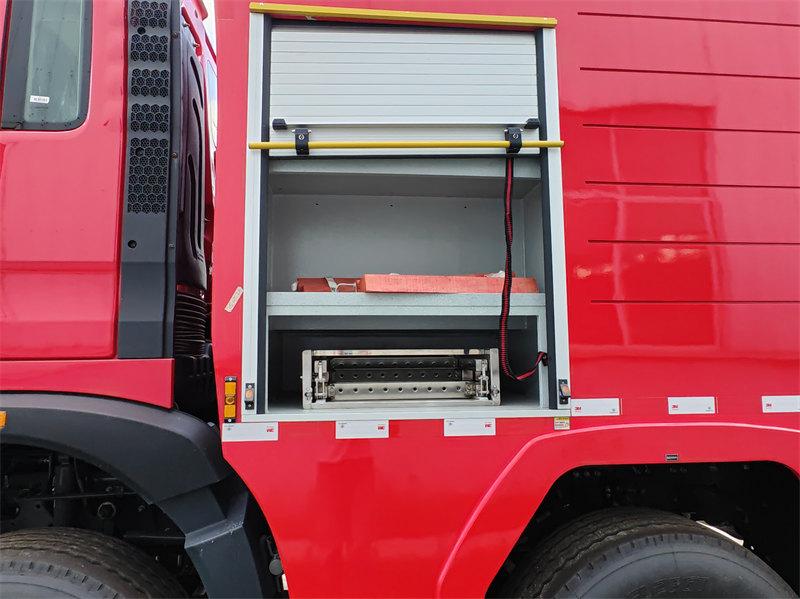

This HOWO tanker fire truck has a reasonable structure, high mobility, and excellent performance. Its semi-enclosed equipment compartment carries 21 types of professional rescue and breaching tools, complemented by comprehensive lighting and warning systems, ensuring firefighters can quickly arrive at the scene and commence operations. It is ideally suited for fire suppression tasks in major cities, industrial zones, and hazardous material sites across the Philippines, making it a versatile and highly capable mainstay firefighting asset.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
★ Built on SINOTRUK HOWO heavy-duty chassis, with perfect performance
★ SINOTRUK engine & gearbox, super powerful, no overhaul within 100,000 km
★ Large water tank and Foam tank capacity, can be customized as required
★ Easy operation and easy maintenance
★ Equipped with various types of fire equipment

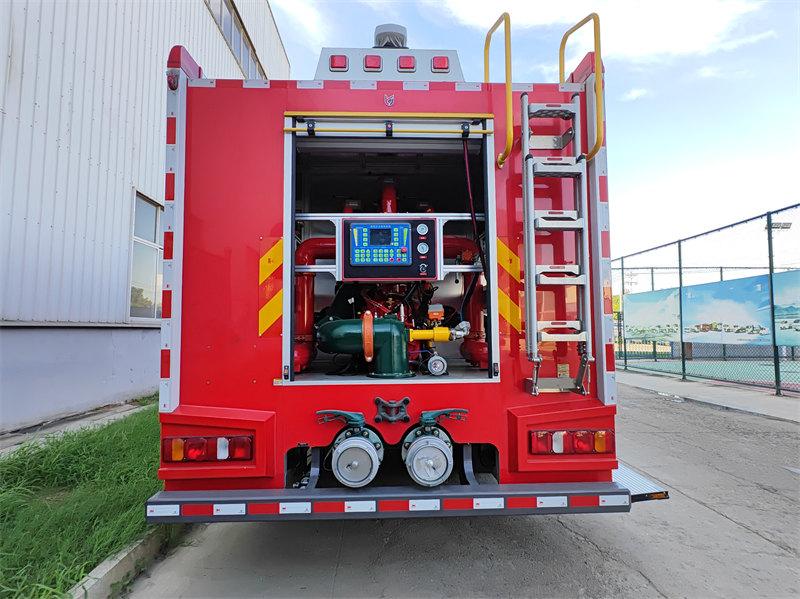

HOWO Heavy-Duty Water&Foam Fire Truck, also known as the HOWO firefighting vehicle, HOWO fire engine or HOWO fire rescue vehicle, is a specialized operation vehicle designed for fire suppression. It integrates water tanks, foam tanks, fire pumps, and rescue equipment, and can be modified on HOWO 4×2, 6×4, and 8×4 chassis. The vehicle usually consists of a cab, water/foam tanks, an equipment compartment, a rear-mounted fire pump, and a roof-top fire monitor. Characterized by high tank capacity, powerful performance, and efficient firefighting capabilities, it is widely used for extinguishing major fires in urban areas, industrial zones, and hazardous material sites.
» Ⅱ.Product Parameter for HOWO 8×4 fire pumper truck:
Vehicle description |
||
Overall dimension |
11990×2550×3560(mm) |
|
GVW |
42450kg |
|
Curb weight |
17200kg |
|
Chassis brand |
Heavy Duty Truck |
|
Traction type |
8*4 left/right hand drive |
|
Chassis description |
||
Chassis model |
ZZ5447TXFV |
|
Cab |
Structure: flat-head, single row. |
|
Wheelbase |
1950+4600+1400mm |
|
Tire specification |
385/65R22.5 |
|
Tire quantity |
12 |
|
Engine |
Engine model |
MC11.46-50 |
Emission level |
Euro 5 |
|
Displacement |
10518ml |
|
Output |
341 kW |
|
Horse power |
460 HP |
|
Rated speed |
1900 rpm |
|
Max. torque |
2200 rpm |
|
Gear box |
Model |
HW15710L |
Number of gears |
10 forward gears& 2 reverse |
|
Brake system |
Type |
Drum |
Service brake |
Dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting on rear wheel |
|
Auxiliary brake |
WEVB |
|
Axle |
Front |
9.5T+9.5T |
Rear |
16T+16T |
|
Suspension |
Front |
7- Leaf spring with shock absorber |
Rear |
9+6-Leaf spring |
|
Fuel tanker |
Type |
Steel fuel tanker |
Capacity |
400L |
|
Up-parts description |
||
Tanker capacity |
Water tanker |
20cbm |
Foam tanker |
4cbm |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/80, normal pressure pump |
Flow |
80L/s |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Fire monitor |
Model |
PL8/64 |
Flow |
64L/S |
|
Pressure |
0.8Mpa |
|
Range |
Water≥75m; Foam≥70m |
|
Rotation angle |
Horizontal 360° |
|
Other configuration |

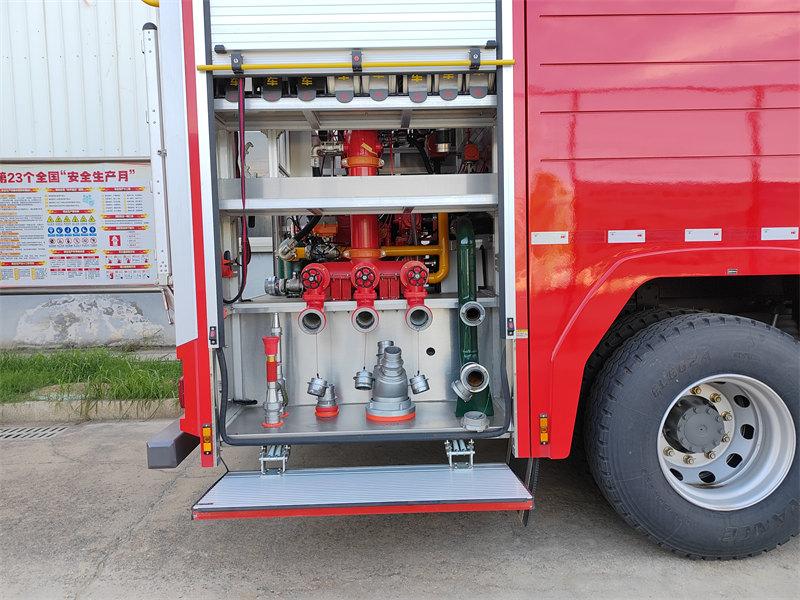

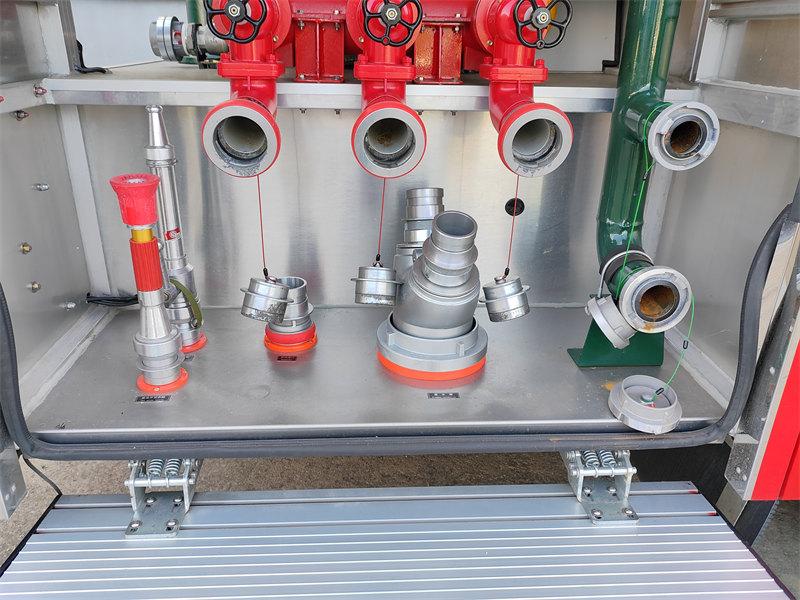

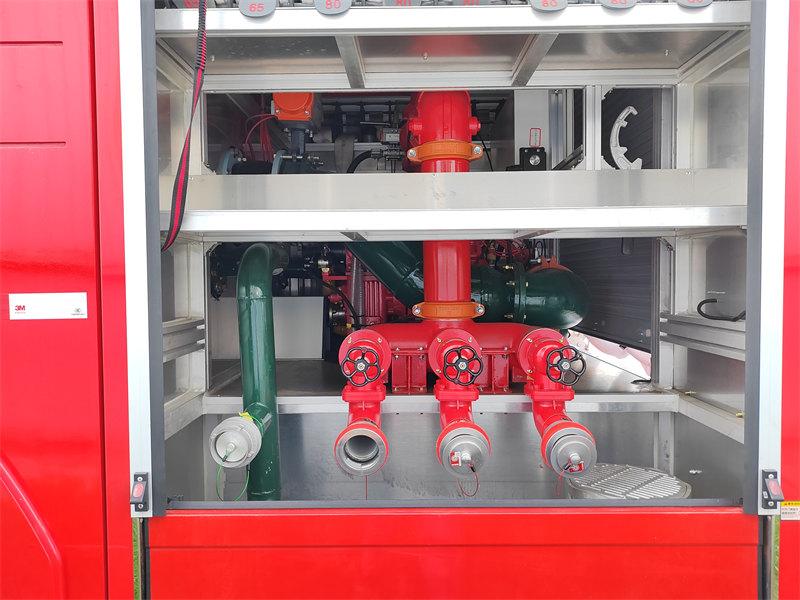

Equipped with sandwich PTO, pipeline system; |
» Ⅲ. Product Advantages:
★ Reliable chassis
Based on SINOTRUK HOWO 8×4 fire chassis
SINOTRUK 460HP diese engine, with High Reliability, Powerful Performance, and Low Fuel Consumption
Equipped with SINOTRUK HOWO series transmission, delivering high performance and reliable quality.

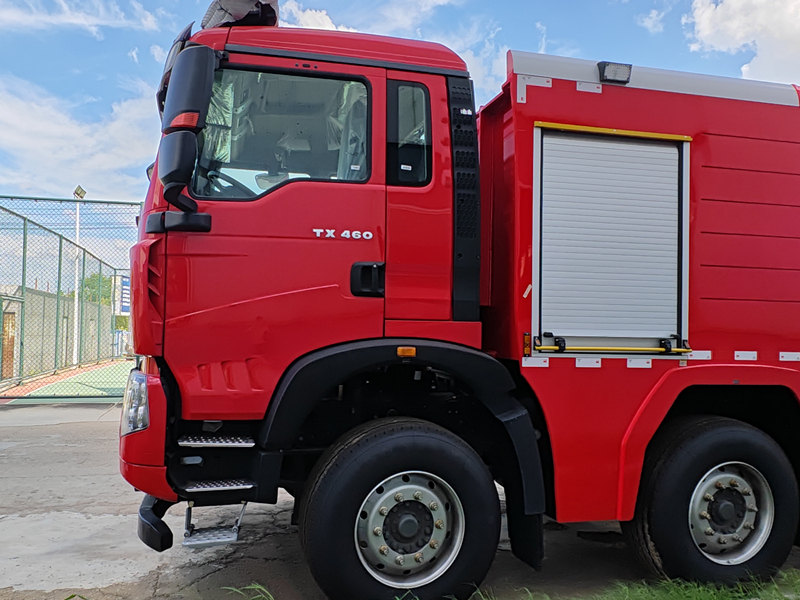

★ Comfortable cabin
High Comfort
The well-designed instrument and door switches, optimized four-point suspension cab, air seat with lumbar support, and slatted bunk design provide users with a premium international heavy-duty truck driving experience.
Spacious Interior
Ample storage space allows for convenient placement of various toolboxes and supplies.
Enhanced Safety
The vehicle’s body stiffness and strength meet international standards, complying with the European ECE R29 cab safety regulation.

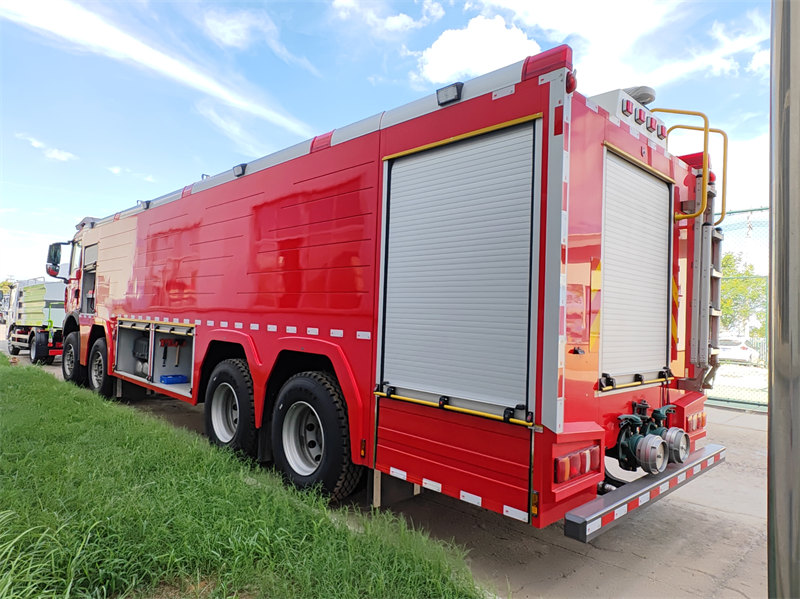

★ Large-Capacity Tanks
The tanks have an effective volume of 24 cubic meters, ensuring sufficient water and foam liquid supply for prolonged and high-intensity firefighting operations. Fabricated from premium steel plates and treated with rigorous anti-corrosion coatings internally, the tank's service life is significantly extended.

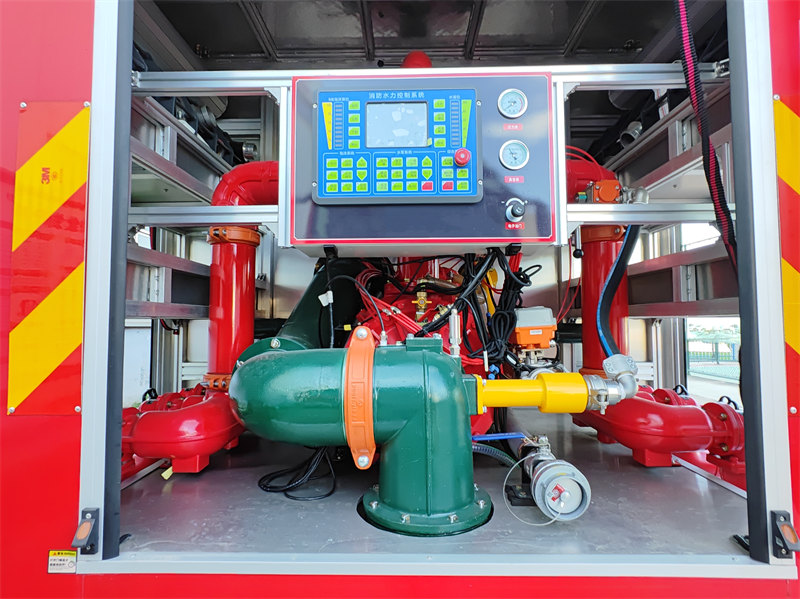

★ High-End Fire Pump and Fire Monitor
Equipped with China top brand XIONGZHEN CB10/80-XZ fire pump, delivers exceptional performance, providing powerful water pressure and high flow rates.
Paired with the PL8/64 fire monitor, it achieves an effective range of over 75 meters, enabling precise long-range firefighting capabilities.

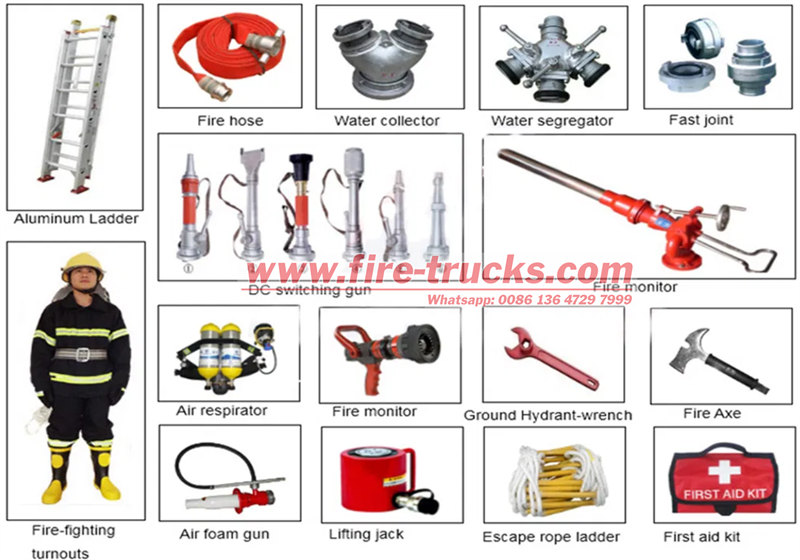

» Ⅳ. Fire Equipment:
