The POWERSTAR pickup fire water tanker is modified on an ISUZU 4WD pickup chassis. The vehicle consists of two main parts: the firefighter crew cabin and the body. The crew cabin is the original double-row design, accommodating up to 5 people. The body section includes a water tank and a pump room, with a water-carrying capacity of 1,500 liters. It is equipped with a 50/110 centrifugal water pump, capable of supplying water over a maximum distance of 2,000 meters. This vehicle is highly mobile, fast, easy to maneuver, comfortable to drive, and has strong off-road performance. It is widely applicable for patrols in hilly, mountainous, low-lying, river valley, and forest areas, enabling timely detection of fires and extinguishing small-scale fires.
Manufacturer Origin:
Powerstar TrucksWork capacity :
1500 LUpper Body material:
Carbon steelProduction time:
30 daysWheelbase:
3406 mmAxle drive:
4×4Engine Power:
149 HPEngine Model:
Isuzu 4KH1CT6S1Fire Pump:
65QZ(F)-50/110NFire Monitor:
OptionalRemark:
stainless steel tanker is optionalThe POWERSTAR pickup water tender is modified on an ISUZU 4WD double-row pickup chassis. The tank has a total capacity of 1.5 cubic meters and is made of high-quality carbon steel, constructed using encased-tank production technology and automatic continuous welding processes. The interior of the tank is treated with anti-corrosion and anti-rust coatings and includes baffle plates. It is equipped with a 50/110 centrifugal water pump, rear sprinklers, water spray guns, suction hoses, water intake filters, and spray hoses. The standout features of this ISUZU pickup water fire truck are its high mobility, speed, excellent handling, comfortable driving experience, and strong off-road capability. It is widely used for patrols in hilly, mountainous, low-lying, river valley, and forest areas to detect fires early and extinguish small-scale blazes.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU pickup truck chassis, 4x2, 4x4 is available
4KH1 diesel engine with 149HP and displacement 2999cc
CE18 gasoline engine with 230HP and displacement 1765cc.
2. Tank material: Carbon steel water tank
stainless steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized capacity with anti-corrosion inside
4. Water Pump: 50/110 centrifugal water pump, flow rate 50m3/h, working distance over 1500m
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped fire monitor
The 4WD pickup water fire truck is also known as a pickup water tender, 4WD pickup fire tender truck, or pickup fire tanker. It can draw water from sources such as fire reservoirs and rivers to supply or drain water at operational sites, with a maximum supply range of 1,500 meters. In addition to meeting the demands of long-distance water supply, drainage, and firefighting at emergency scenes, it can also be used for rescue operations, flood control and drainage, and supplying drinking water in drought-stricken areas. It is lightweight, flexible, easy to operate, and capable of rapid water intake and discharge.
» Ⅱ.Product Parameter for ISUZU 4WD pickup fire tanker:
Vehicle description |
||
Overall dimension |
5850*1900*2250mm |
|
GVW |
4300kg |
|
Curb weight |
2800kg |
|
Chassis brand |
ISUZU |
|
Traction type |
4*4, left hand drive |
|
Chassis description |
||
Chassis model |
ISUZU pickup |
|
Cab |
Double row, 2+ 3 seats with AC |
|
Wheelbase |
3406 mm |
|
Tire specification |
265/60R18 |
|
Tire quantity |
4+1 units |
|
Engine |
Engine model |
4KH1CT6S1 |
Emission standard |
Euro 6 |
|
Power |
110KW/149HP |
|
Displacement |
2999ml |
|
Max. torque |
375 N.m |
|
Speed @ max. torque |
1600-2800 rpm |
|
Gear box |
Number of gears |
5, manual |
Brake system |
Full air brake, power steering, spring brake, exhaust brake |
|
Wheel track |
Front |
1570 mm |
Rear |
1570 mm |
|
Suspension |
Front |
890 mm |
Rear |
1260 mm |
|
Upper-body description |
||
Water Tanker |
Capacity |
1500 liters |
Material |
Carbon steel |
|
Water pump |
Model |
65QZ(F)-50/110N |
Flow |
50 m3/h |
|
Effective water delivery distance |
1500~2000 m |
|
Water gun jetting range |
45 m |
» Ⅲ.Factory Testing:

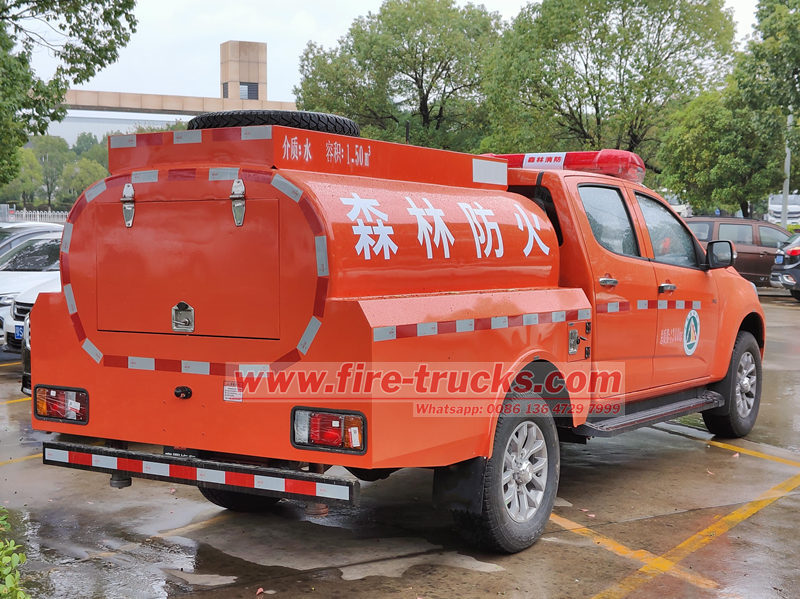

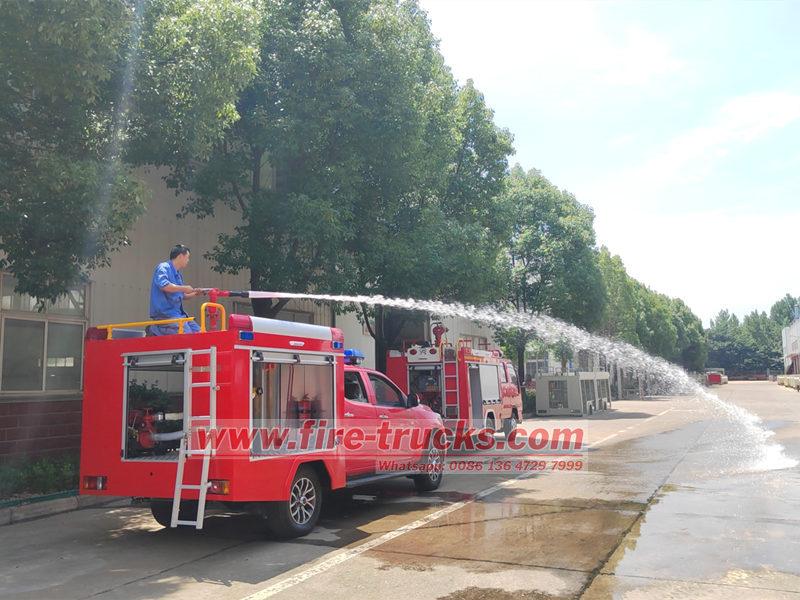

ISUZU pickup fire fighting truck testing at POWERSTAR factory

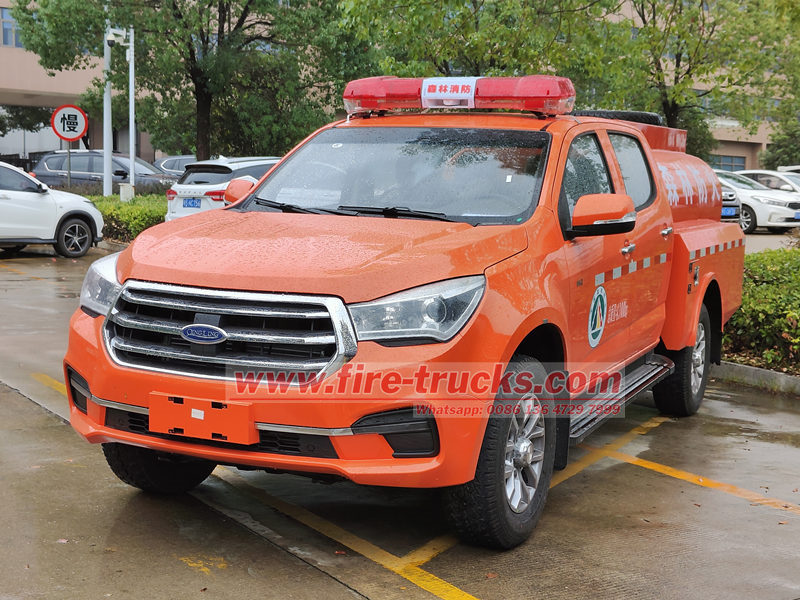

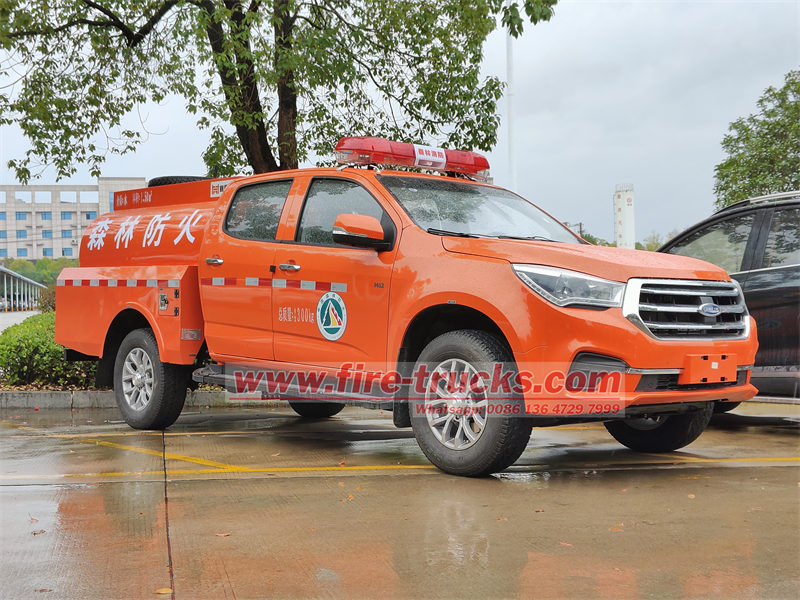

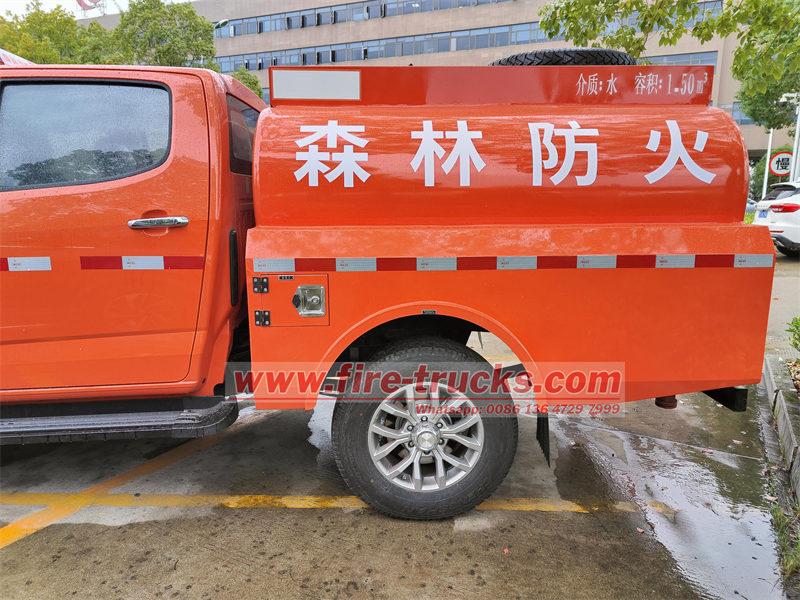

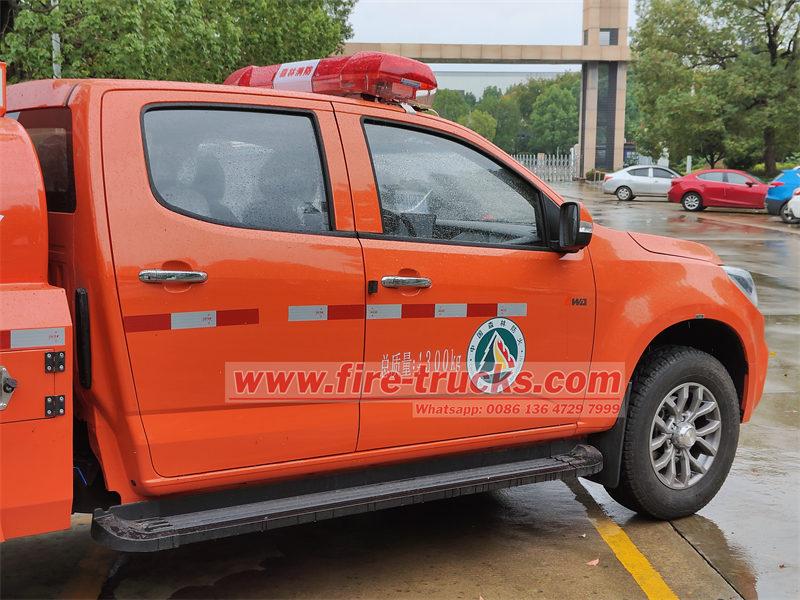

ISUZU 4WD pickup fire tanker ready for delivery

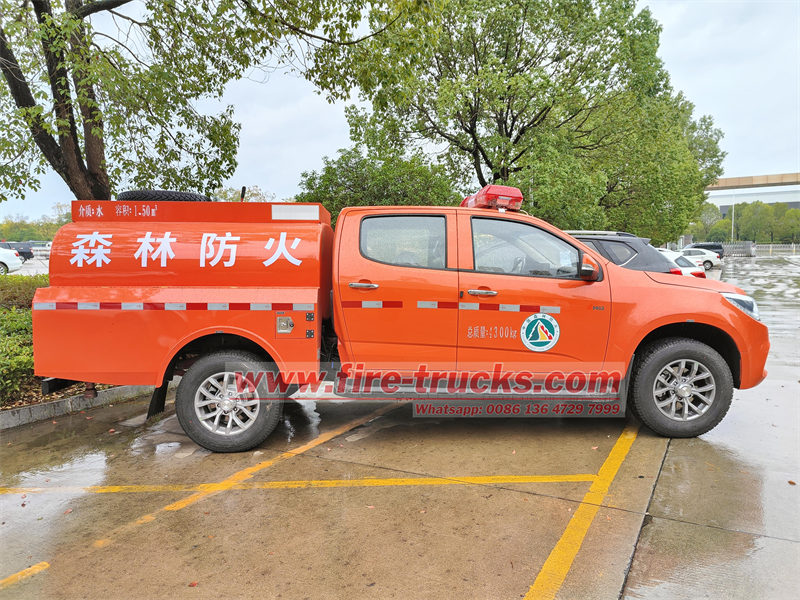

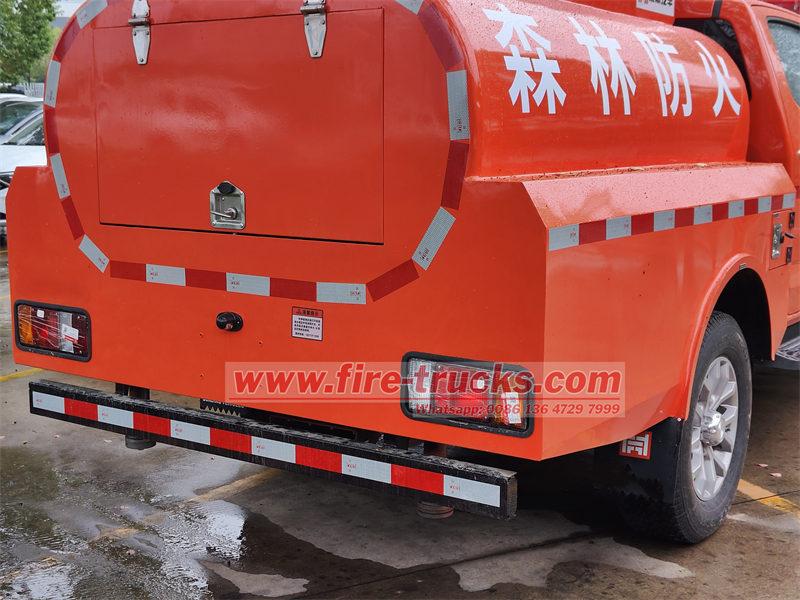

ISUZU 4WD off-road pickup fire tanker truck ready for delivery
