2025 New ISUZU 4x4 Pickup Small Fire Truck has redefined the boundaries of firefighting equipment with its compact body and powerful functions. It is not only a fire extinguishing machine, but also a synonym for "fast, accurate and stable" in the modern emergency response system. In the future, with the advancement of technology and the upgrading of demand, this model will continue to evolve and become a versatile guard for safety.
Truck Model:
PST5035GXFTanker Structure:
Aluminum Alloy materialWork capacity :
35mWheelbase:
3365 mmAxle drive:
4x4Engine Power:
143 HPEngine Model:
Isuzu 4KH1CT6H1Fire Pump:

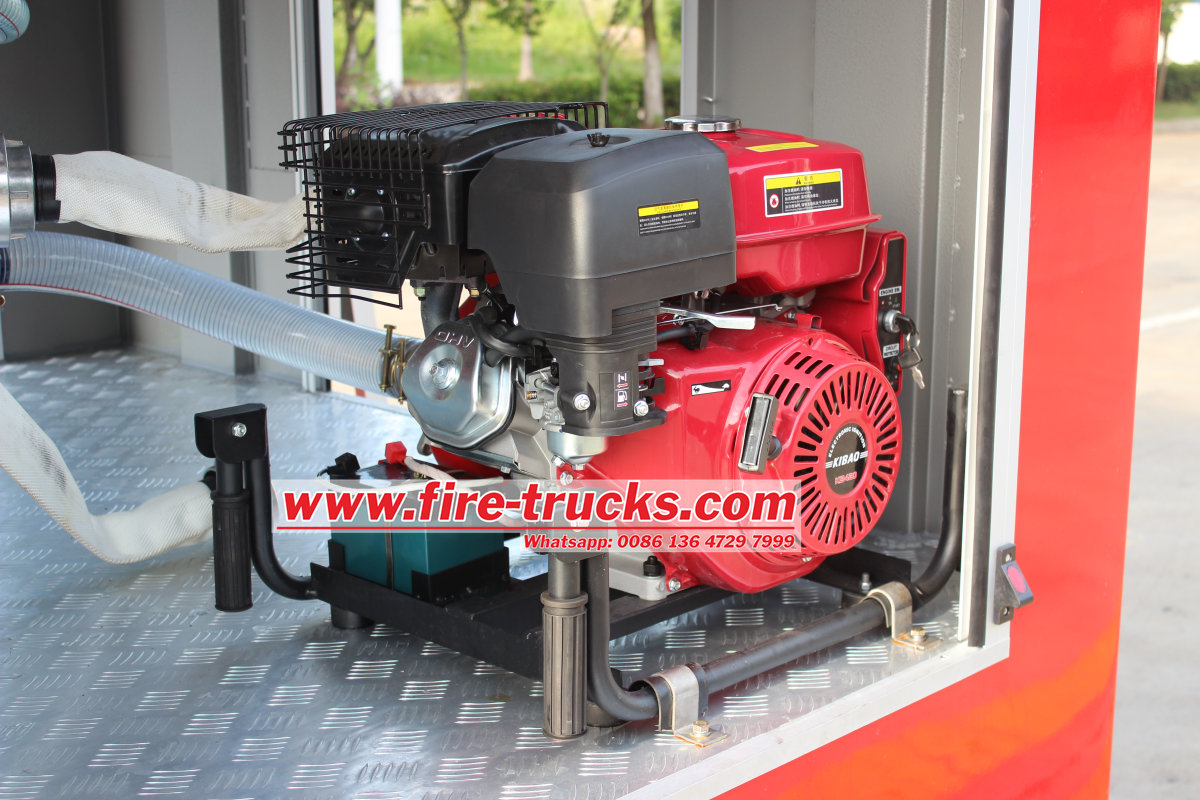

CB10/30Fire Monitor:

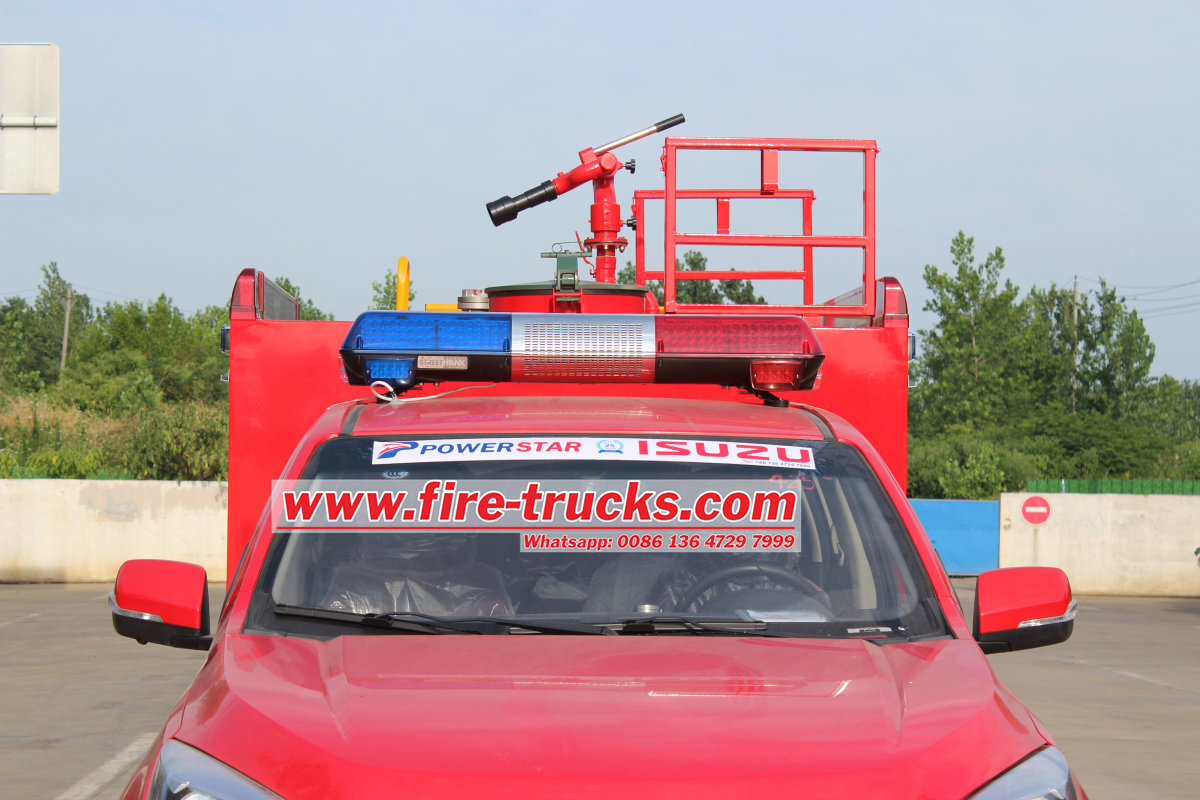

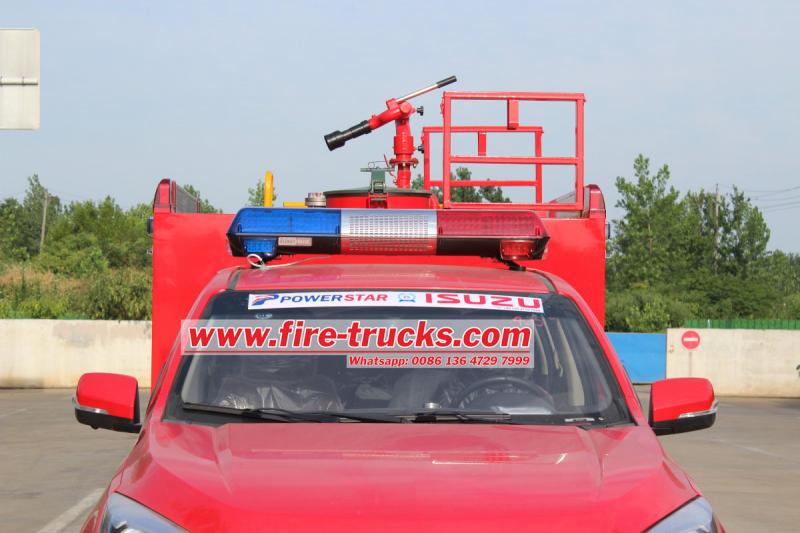

PL24, flow rate 24L/SRemark:
customized as Rapid interntion vehicles

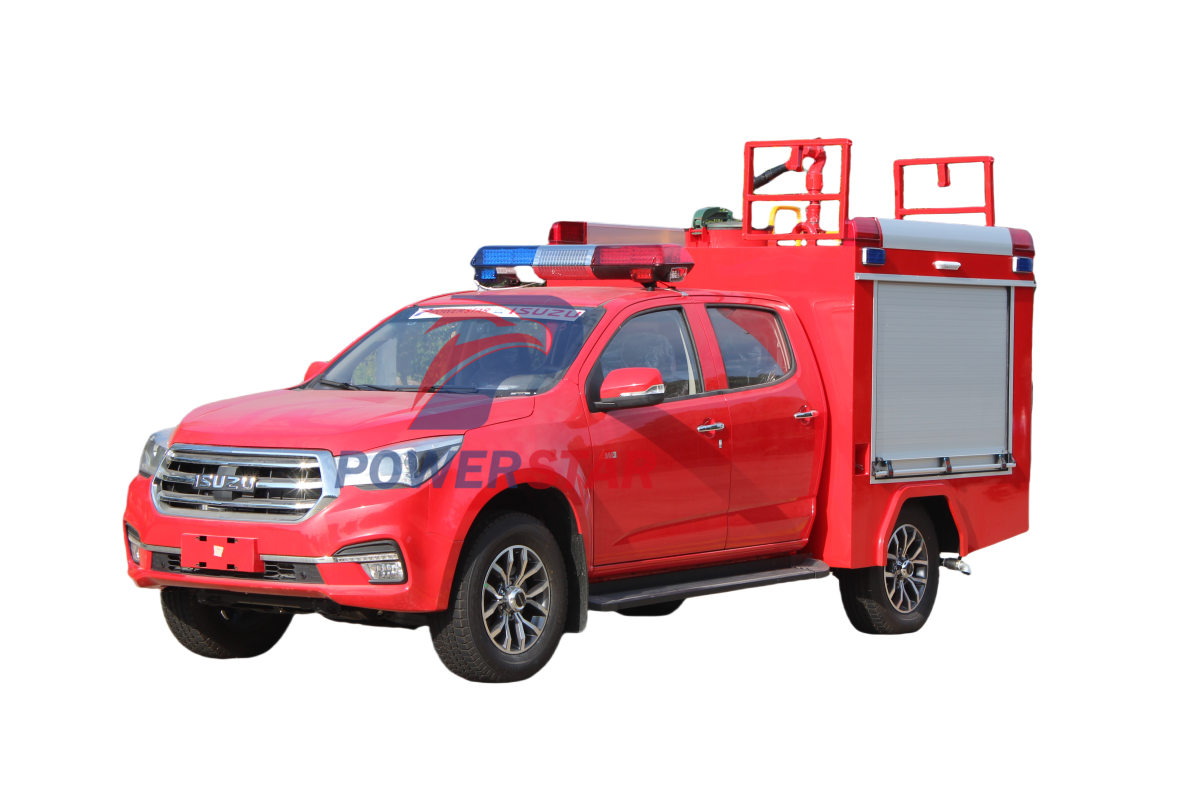

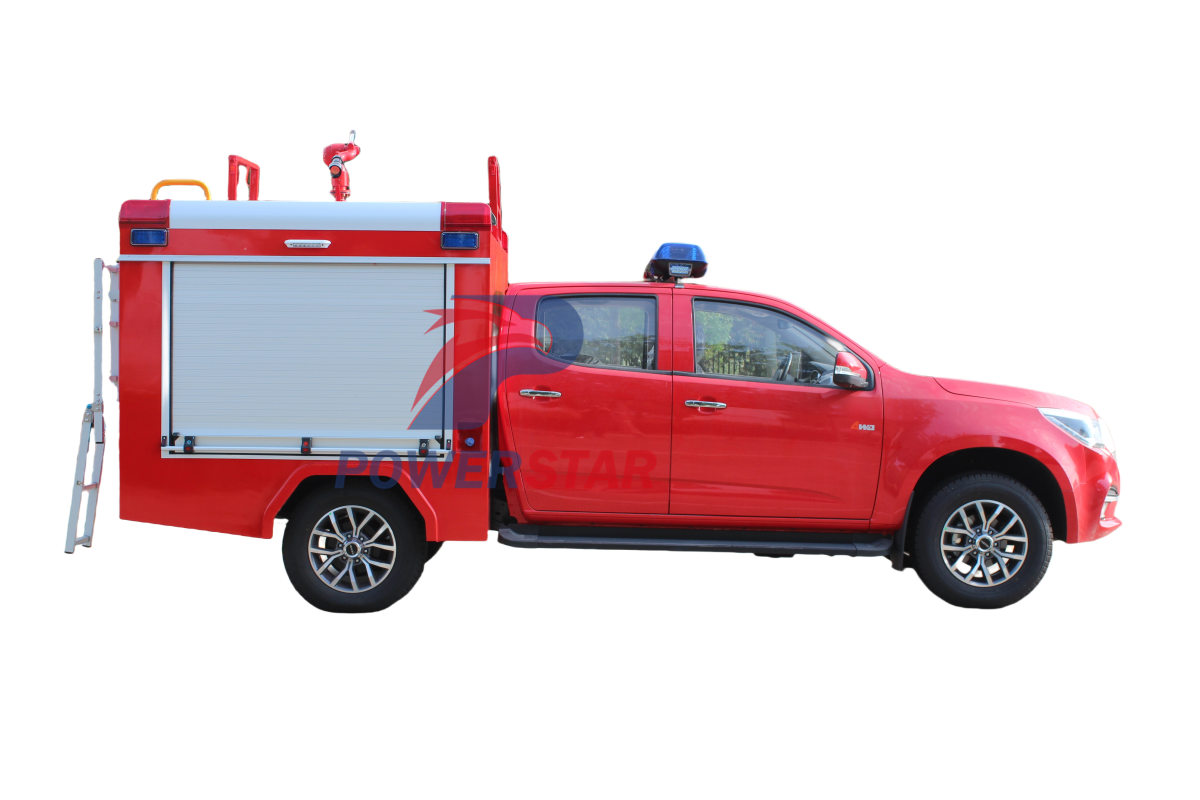

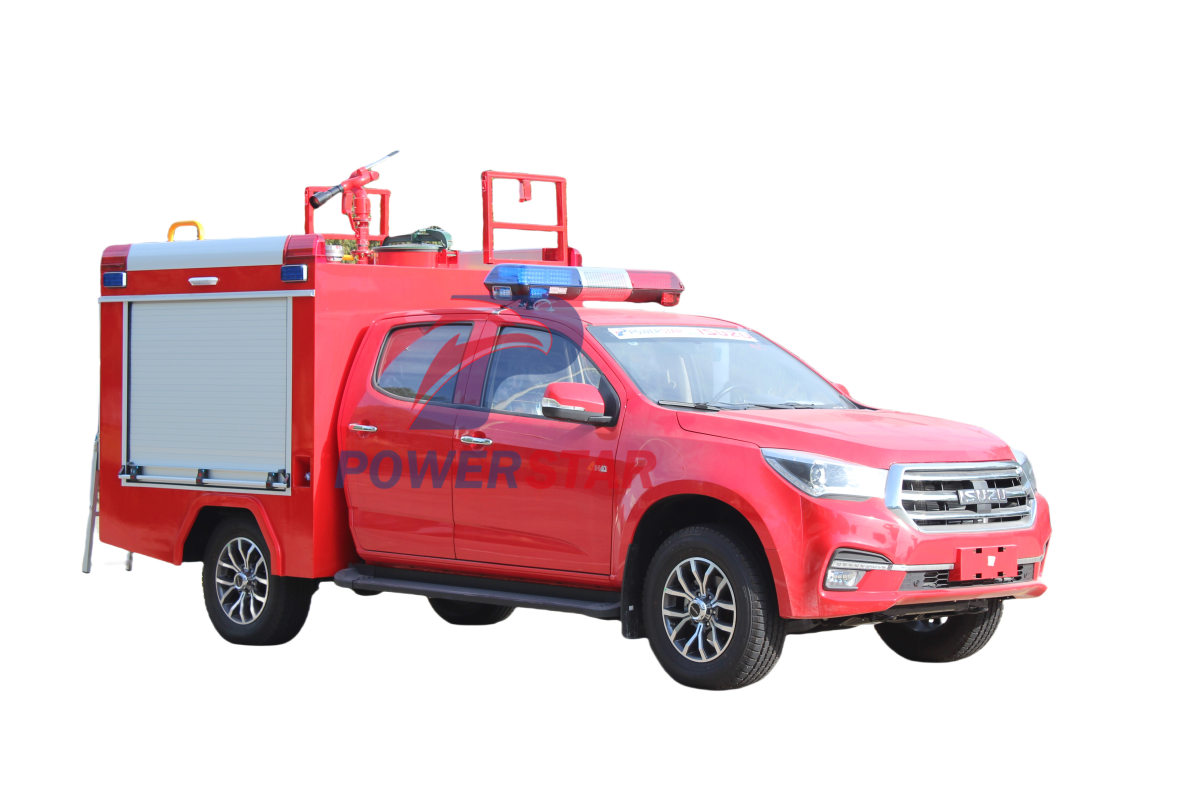

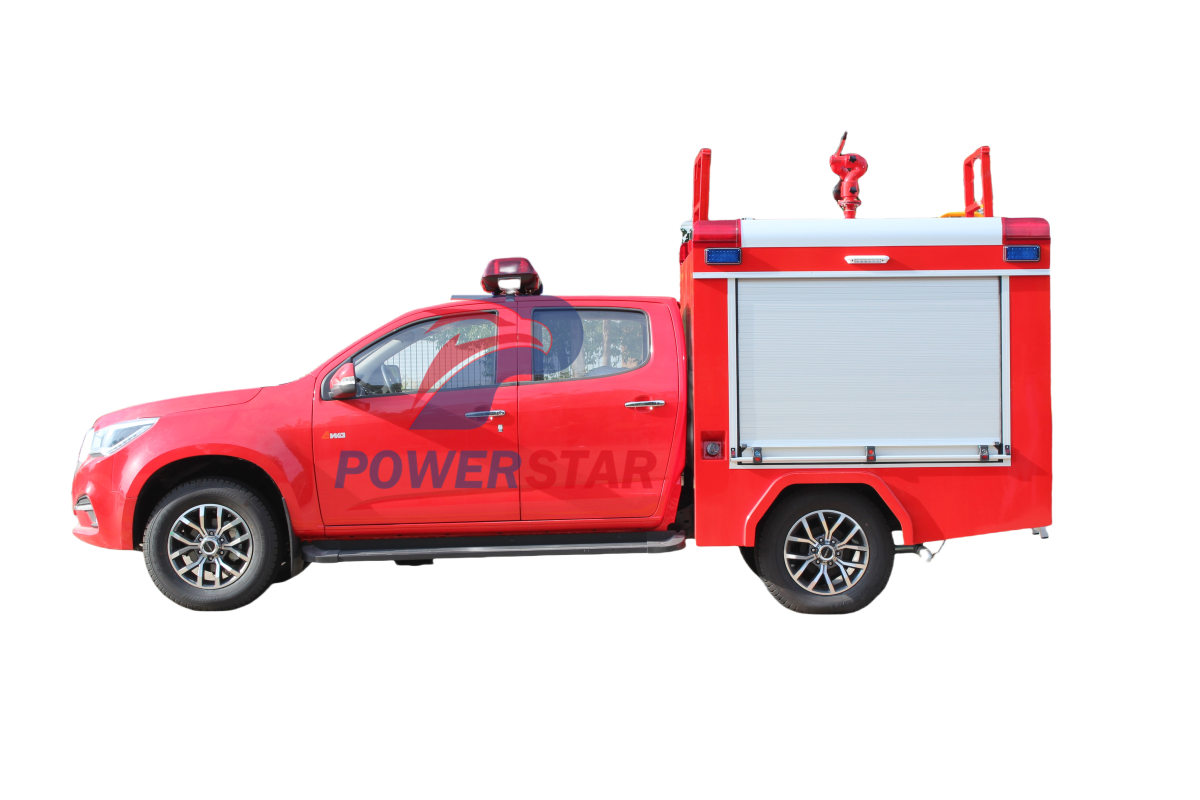

ISUZU 4x4 Pickup Small Fire Truck, also named Isuzu off road pick up fire engine or Isuzu pickup fire tender.: A miniature fire truck for flexible rescue
1. Definition and alias: An all-around fighter among miniature fire trucks
ISUZU 4x4 Pickup Small Fire Truck is a small fire truck modified based on the Isuzu four-wheel drive pickup chassis. It is both maneuverable and functional and is often called a "mini fire truck", "light emergency vehicle" or "mobile rescue platform". Its core design concept is to condense the functions of a traditional fire truck into a compact body while retaining the off-road capability of the four-wheel drive system, suitable for complex terrain and narrow spaces.
● China best 4x4 pick-up fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
In terms of composition, the model includes five core modules:
Power system: Equipped with a high-efficiency diesel engine, matched with a four-wheel drive transmission device to ensure stable output under rugged road conditions;
Water storage and spraying device: Equipped with a lightweight water tank (usually with a capacity of 1000-4000L), a high-pressure fire pump and an adjustable nozzle, supporting dual fire extinguishing modes of water column and foam;
Rescue tool cabin: Integrated emergency equipment such as demolition tools, medical kits, and lighting equipment;
Intelligent control system: Fire scene monitoring, water source scheduling and remote communication are realized through the on-board terminal;
Safety protection structure: The body is made of high-temperature resistant materials, and the cockpit is equipped with a roll cage and air filtration system.
2. Application scenarios: full coverage from cities to wilderness
The flexibility of the ISUZU 4x4 small fire truck makes it stand out in a variety of scenarios:
Narrow urban areas: old neighborhoods, underground parking lots and other places that are difficult for large fire trucks to enter, can quickly reach and control the initial fire;
Industrial parks: For high-risk areas such as chemical plants and warehouses, carry out fixed-point inspections and sudden leak treatment;
Forests and wilderness: Four-wheel drive capabilities support complex terrains such as mountains and mud, used to extinguish mountain fires or perform wilderness rescue missions;
Communities and campuses: As the core equipment of micro fire stations, it provides daily fire prevention publicity and emergency response services.
| 1. Chassis | |
| 1.1 | Chassis:Original ISUZU 4X4 Pick-up chassis for fire truck application |
| 1.2 |
Engine: 2.1 Engine power: 105Kw 143hp 2.2 Engine model: ISUZU 4KH1 2.3 Number of cylinders: 4 2.4 Emission Standard: China 6 (Euro 6) 2.5 Transmission (type): 5-speed automatic 2.7 Torque (Nm): 672 2.7 Fuel tank capacity (L): 70 2.8 Fuel type: diesel |
| 1.3 | Drive Manner:4×4 |
| 1.4 | Max. Speed(km/h):175 |
| 1.5 |
Cabin: 5.1 Structure:4 doors, original double row cabin 5.2 Seats:2＋3 |
| 1.6 | Wheelbase(mm): 3685 |
| 1.7 | Number of wheels: 4 |
| 1.8 | 5907*2083*1954 |
| 1.9 | Standard configuration: ABS/EBD/EBA/ASR/ESP, 360-degree panoramic image, reversing radar, keyless start system, keyless entry function, tire pressure alarm, uphill assistance, steep slope descent, electric adjustment of the main and passenger seats, Dual airbags, electric windows, electric adjustment of rear-view mirrors, up and down adjustment of steering wheel, large 8-inch center console color screen, driving computer display, Bluetooth/car phone. In addition, a winch is installed at the front of the vehicle and a rear trailer hook is installed at the rear of the vehicle. |
| 1.10 | Max. Weight: 2475kg |
| 2. Rear Superstructure | |
| 2.1 | Structure: The carriage adopts high-strength PP-C composite material welding structure, which is modified on the basis of the original car body. |
| 2.2 |

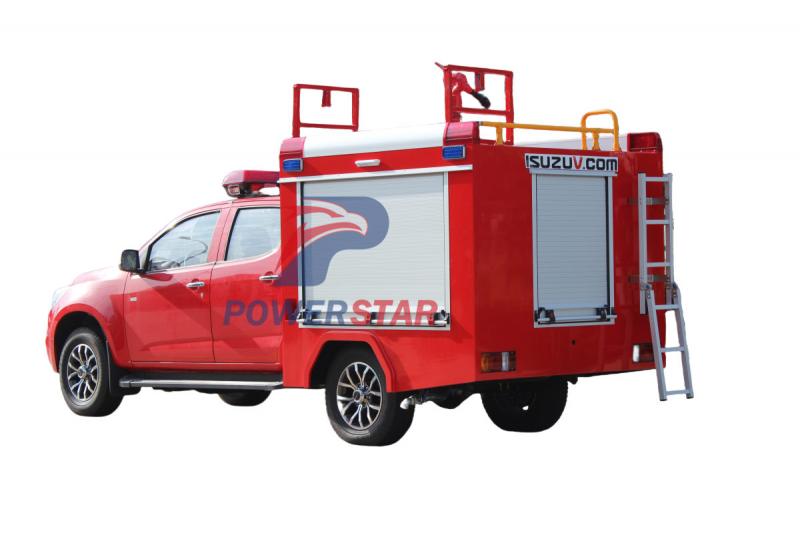

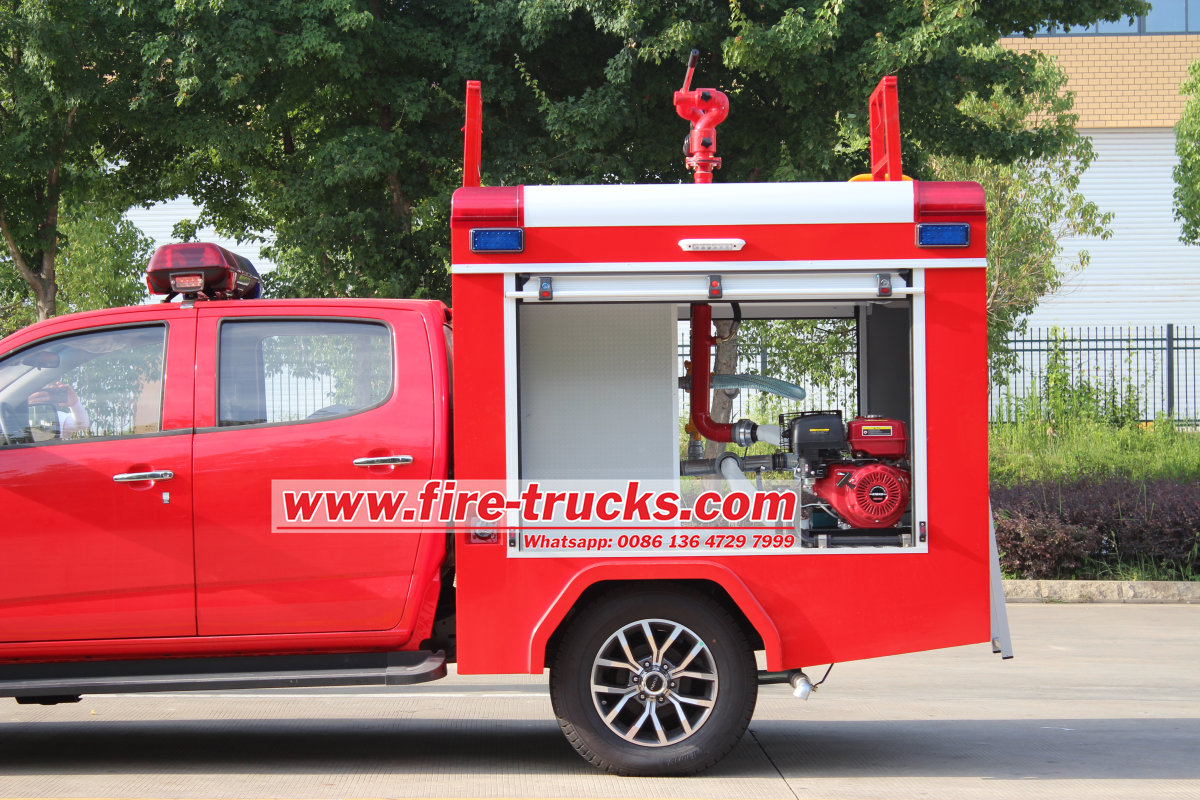

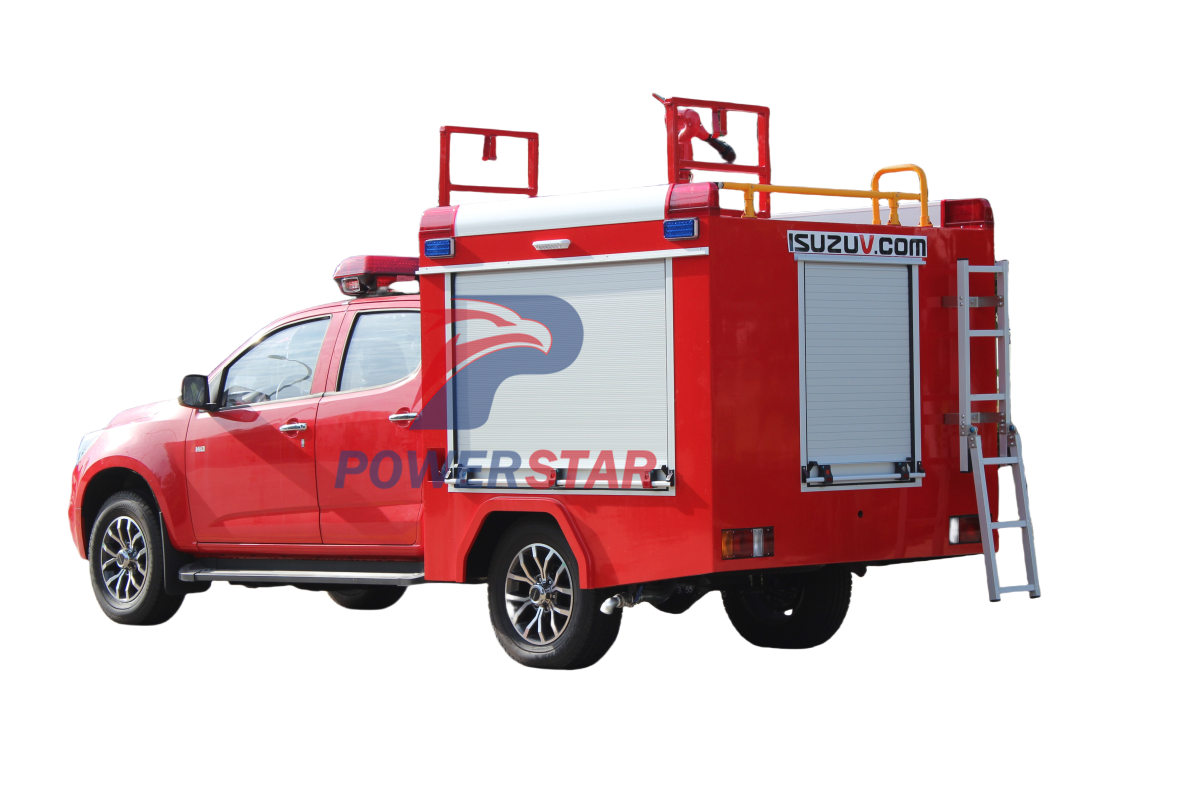

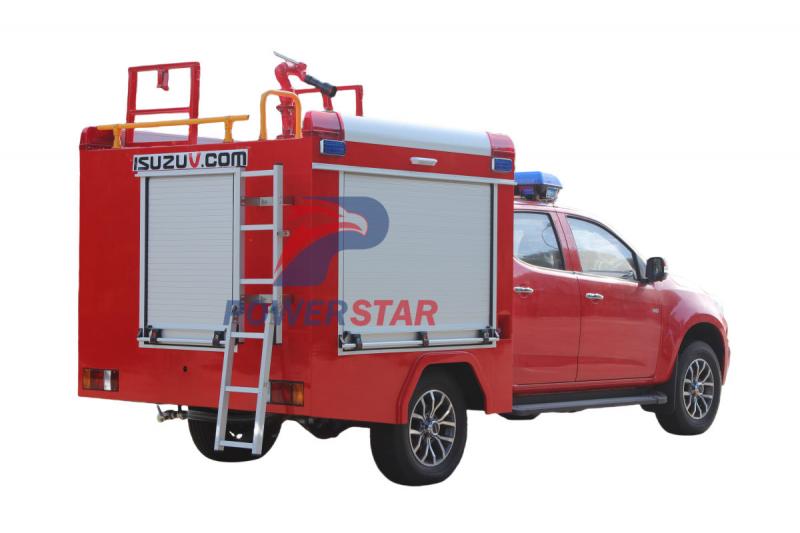

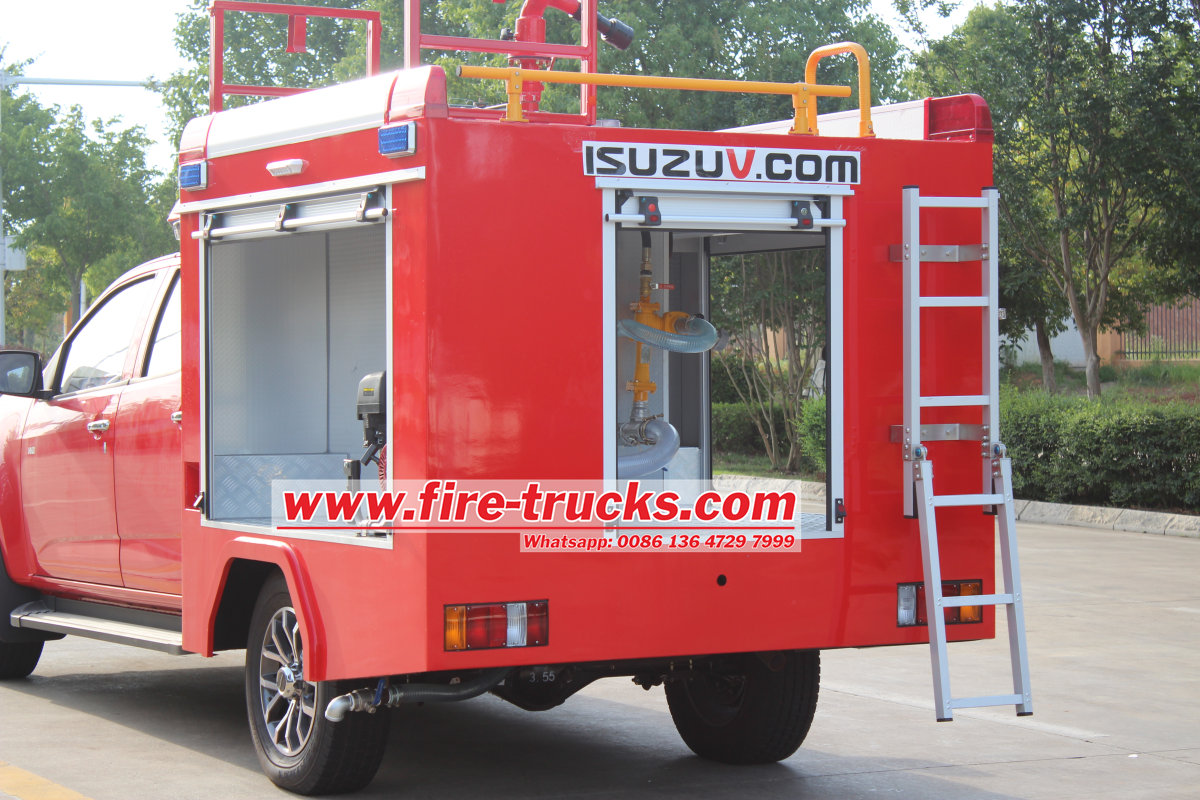

Equipment door: (1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light high-quality aluminum alloy, which is flexible to open and close, good in sealing, low noise, beautiful in appearance, light and reliable. All rolling doors can be opened with one key . (2) The rear equipment box door adopts gas spring up and down door |

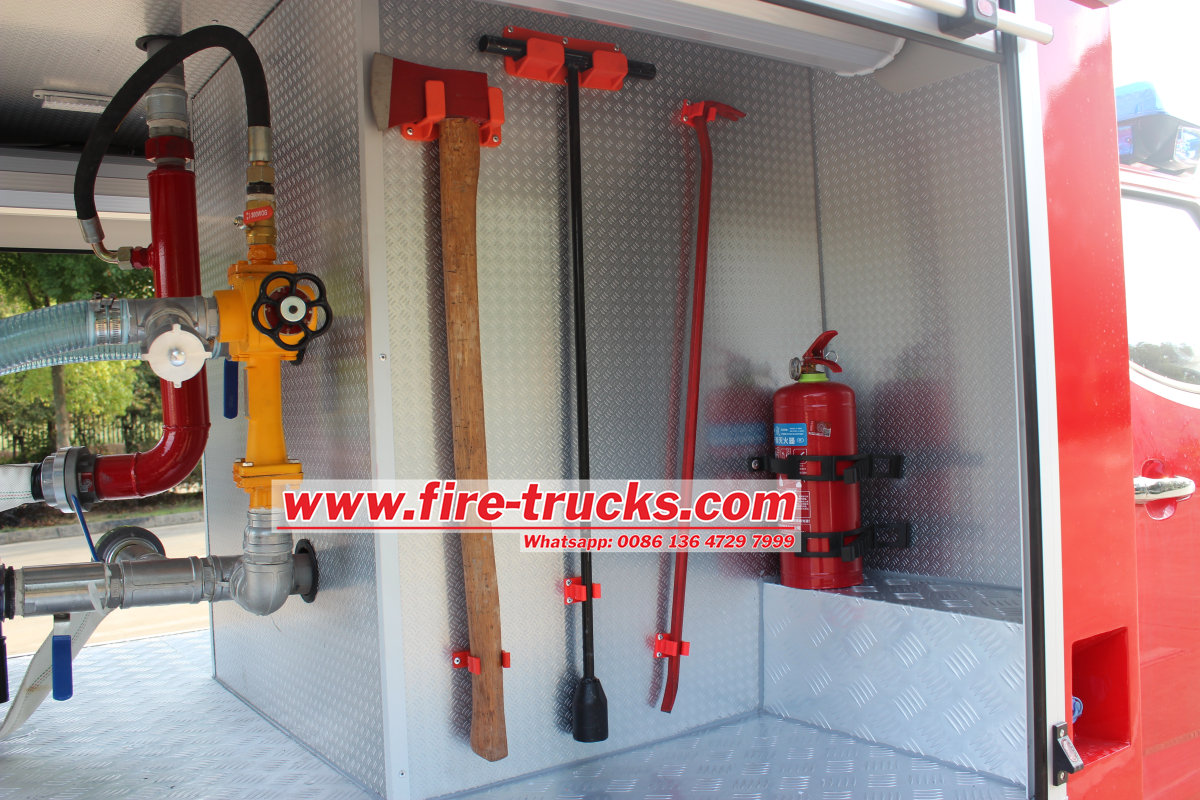

| 2.3 | Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment. |
| 2.4 |
Equipment Layout Principle: ★ Design equipment integration according to battle organization and battle deployment; ★ Design various equipment brackets according to ergonomic principles; ★ Place the equipment according to the logical relationship and frequency of use; ★ Stand on the ground or pedals, take and place fire fighting equipment in 2 actions. |
| 3. Front Winch | |
| 3.1 |
Brand: Champion Model: K8000XF Rated tension: 3629Kg |
| 3.2 | Traction wire: ∮8X29M |
| 4. Electrical system | |
| 4.1 |
Install 6 off-road lights on the front of the vehicle |

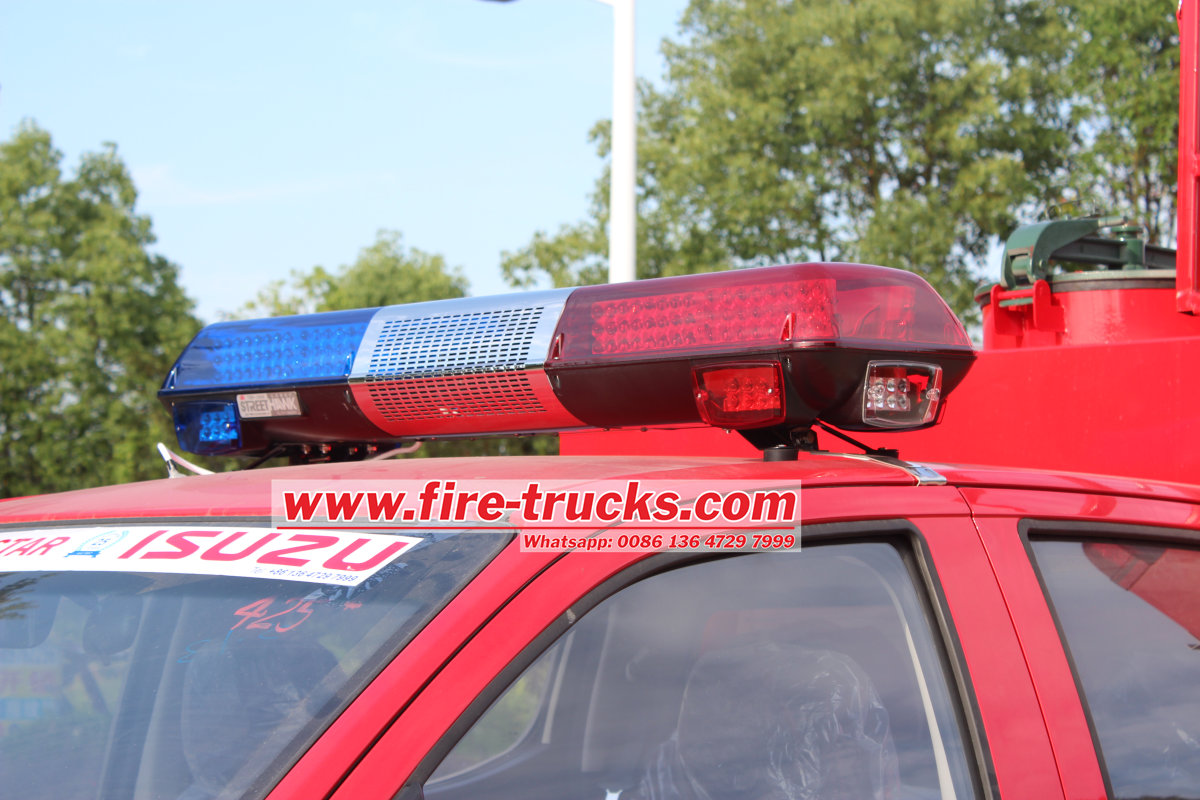

| 4.2 | The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab. |
| 4.3 | Two flashing lights are provided on the upper part of each side of the carriage. |
| 4.4 | There are two lights at the back of the equipment box. |
| 5.On-board equipment | |
| 5.1 | 5 sets of special warning tapes |
| 5.2 | On-board tool box 1 set |
| 6.Documents | |
| 1 | Vehicle Operation and Maintenance Manual |
| 2 | Vehicle Certificate |
III. Derivative models: unlimited possibilities for multi-functional expansion
Based on its modular design, this model can be derived into a variety of special vehicles:
Anti-epidemic disinfection vehicle: replace the water tank with a disinfectant tank, equipped with an atomizing spray system, suitable for large-scale disinfection in public health events;
Emergency lighting vehicle: add a high-power lighting tower and generator for night rescue or disaster site power supply;
Material transport vehicle: transform the cargo box into a closed storage space to transport emergency materials to remote disaster areas;
Unmanned patrol vehicle: integrate automatic driving technology to achieve unmanned fire monitoring in dangerous areas.
Fourth, Future Trends: Parallel development of intelligence and greening
New energy power: As electrification technology matures, future models may adopt hybrid or pure electric drive to reduce carbon emissions and improve endurance; AI empowerment: Analyze the fire spread path through artificial intelligence, optimize the fire extinguishing strategy, and use drones to coordinate and realize three-dimensional fire scene monitoring; Lightweight materials: The application of materials such as carbon fiber and aluminum alloy will further reduce the weight of the vehicle body, improve load efficiency and maneuverability; Global adaptation: Develop customized versions according to the regulations and environmental requirements of different regions, such as antifreeze design in extremely cold areas or cooling system in desert areas. Conclusion: A model of miniaturization and specialization
Isuzu 4x4 pickup small fire truck Rapid response in complex terrain
With its non-load-bearing body design and full-time four-wheel drive system, the ISUZU 4x4 Pickup can easily cope with complex terrains such as mountains, mud, and snow25. For example, in a forest fire, its high ground clearance and electronically controlled transfer case can pass through fallen trees and rugged roads to quickly approach the fire source. The vehicle's standard high-temperature protection device and roll cage design can resist the impact of splashes from the fire scene and ensure the safety of firefighters.
Flexible rescue in narrow spaces of Isuzu 4x4 pickup small fire truck
For small areas such as old urban blocks and underground parking lots, the ISUZU 4x4 Pickup's compact body and short wheelbase have significant advantages. Its cargo box can be converted into a lightweight water storage tank (capacity 1000-4000L) and a high-pressure pump system to support the rapid laying of hoses and accurate extinguishing of initial fires. At the same time, the modular design with integrated demolition tools and medical kits can cope with emergency demolition and rescue after traffic accidents or building collapse.
