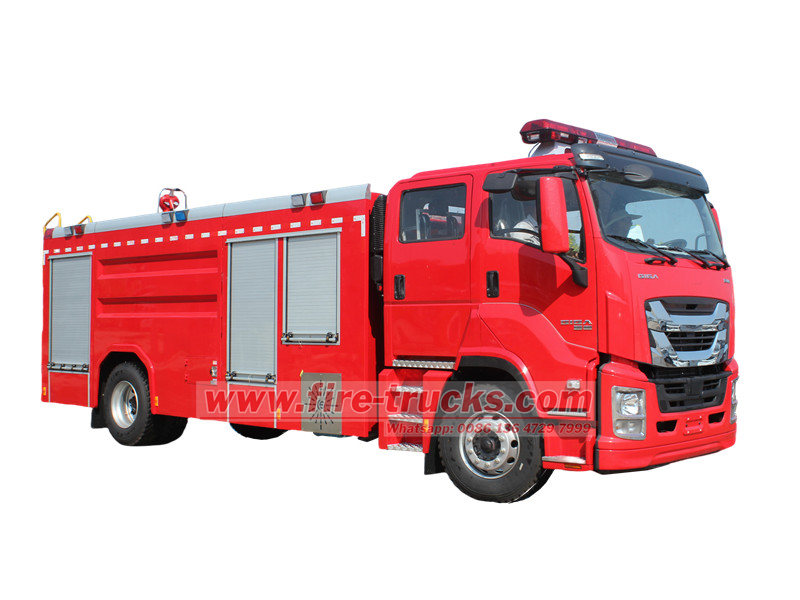

ISUZU 6000L Water Fire Truck is built on an ISUZU GIGA chassis, featuring a 4x2 drive system and a 4500mm wheelbase. It is powered by a 240-horsepower 6HK1-TCG61 engine paired with a FAST 8-speed transmission, ensuring strong load-bearing capacity and maneuverability. The vehicle is equipped with a 6000L stainless steel water tank, featuring a 4mm-thick tank wall, standard inlet/outlet ports, and manhole for durability and practicality. The firefighting system includes a rear-mounted CB10/40 normal-pressure fire pump with a flow rate of 40L/s, along with a PS40 manual fire monitor capable of a range exceeding 65 meters. The monitor supports 360° horizontal rotation and -30° to 70° vertical adjustment, enabling rapid fire response. With a compact design and a top speed of 95 km/h, the truck's cab accommodates five personnel, making it suitable for urban and industrial firefighting operations, combining efficiency and reliability.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000LUpper Body material:
Stainless steelProduction time:
60 daysWheelbase:
4500 mmAxle drive:
4×2Engine Power:
240 HPEngine Model:
Isuzu 6HK1-TCG61Fire Pump:
CB10/40, 40L/sFire Monitor:
PS48 for waterRemark:

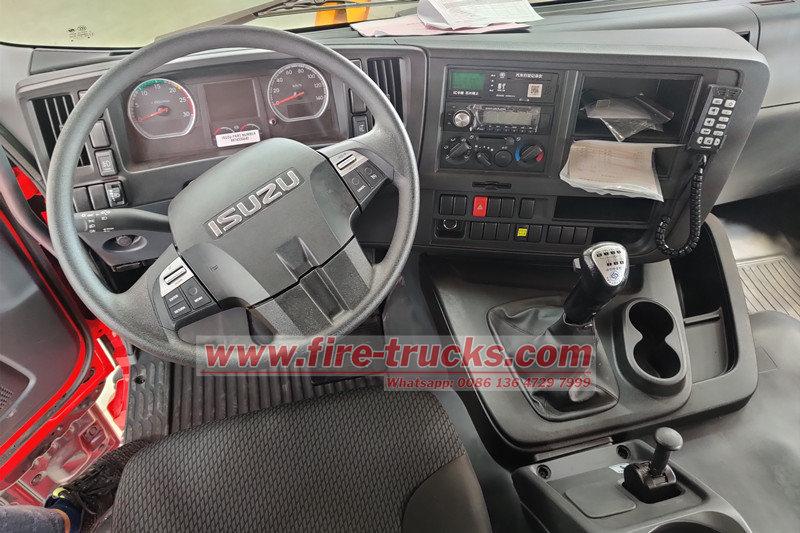

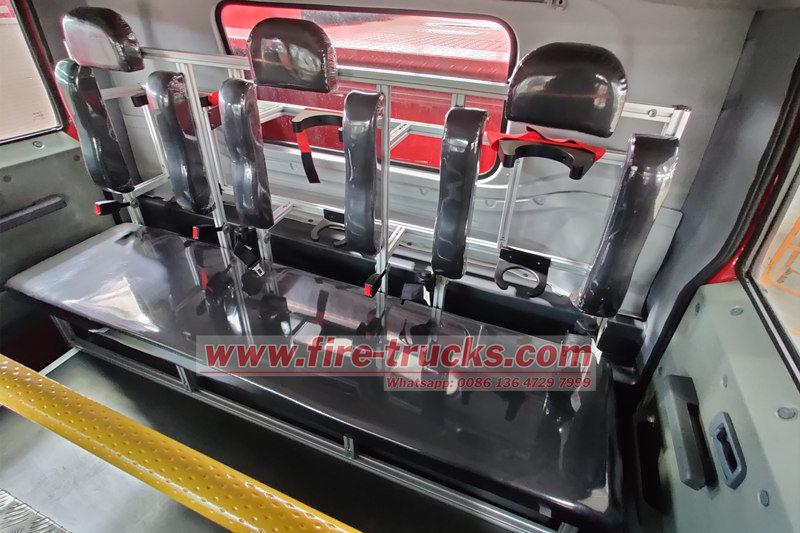

tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR 6000L Water Fire Tender is modified based on the ISUZU GIGA QL1180EQFRY chassis, equipped with a 6HK1-TCG61 engine and a FAST 8-speed transmission. It features the new ISUZU VC61-class cab with heating/cooling air conditioning, power steering, central locking, power windows, a multifunctional steering wheel, and a multifunctional LCD instrument panel. The ISUZU GIGA fire tanker truck consists of two main sections: the firefighter crew compartment and the body. The crew compartment is a double-row design, seating 2+3 personnel. The front of the body houses the equipment compartment, the middle section contains the water tank, and the rear section is the pump room. The water tank is made of stainless steel with a capacity of 6000kg. It is equipped with a CB10/40 normal-pressure fire pump, rated at 40L/s, and a top-mounted PS40W fire monitor with a range of 65m and 360° rotation capability. This vehicle is characterized by its high power-to-weight ratio, comprehensive performance, and centralized, user-friendly controls.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU GIGA truck chassis, 4x2, 6x4 and 8x4 model
6HK1 model with 240HP and 7790 ml displacement
6UZ1 model with 350HP or 380HP, 6WG1 420HP or 460HP.
2. Tank material: 4mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/40 centrifugal fire pump, normal pressure, flow rate 60L/s
Optional CB10/60, CB10/80 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
Water tank fire truck (also known as water fire tender, fire tanker truck) is a fire rescue vehicle primarily equipped with an onboard fire pump and a water tank, using water as the main extinguishing agent. It has the capability to carry a large volume of water, enabling rapid response to fires and other emergencies by providing firefighters with the necessary water supply. Typically composed of a chassis, body, water tank, pump system, water discharge devices, and auxiliary equipment, the water tender fire truck is used for firefighting operations, emergency rescue, fire containment, supplying water to other fire trucks, and providing emergency water distribution.
» Ⅱ.Product Parameter for ISUZU GIGA 6000L water tender fire truck:
Items |
Descriptions |
Parameters |
Basic Information |
Drive Type |
4x2, LHD |
Transmission |
Manual |
|
Chassis Brand |
ISUZU |
|
Overall Dimensions (mm) |
8140*2550*3470 |
|
Water Tank Capacity (L) |
6000 |
|
Wheelbase (mm) |
4500 |
|
Gross Weight (kg) |
18000 |
|
Curb Weight (kg) |
10850 |
|
Tire |
Tire Model |
295/80R22.5 |
No. of Tires |
6+1 |
|
Engine |
Model |
|
Number of cylinders |
6 |
|
Power |
177KW(240HP) |
|
Emission standard |
Euro 6 |
|
Displacement (ml) |
7790 |
|
Rated speed (rpm) |
2400 |
|
Max. torque (N.m) |
760 |
|
Other Items |
Maximum Speed (km/h) |
95 |
No. of Passengers |
2+3 |
|
Approach/departure angle |
20°/10° |
|
Minimum turning radius |
≤19m |
|
Tank |
Water Tank Capacity (L) |
6000 |
Material |
Stainless steel |
|
Thickness(mm) |
4 |
|
Configuration |
Manhole, overflow port, discharge outlet, water inlet, water outlet |
|

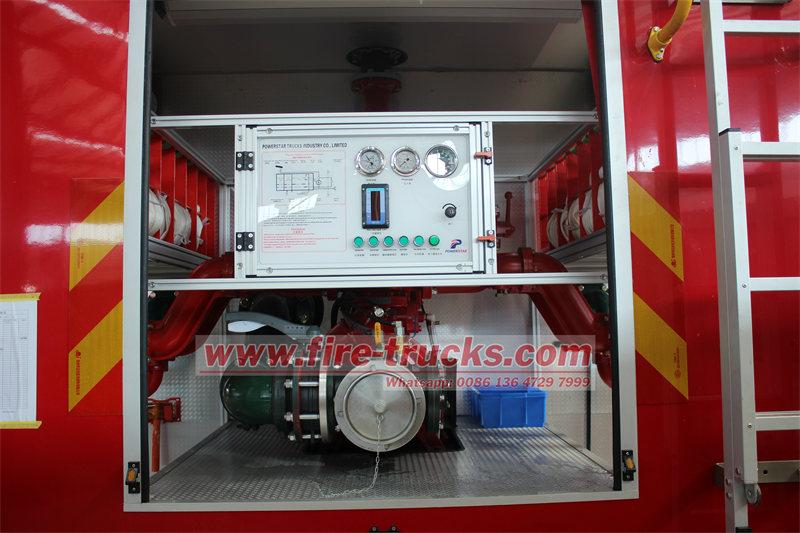

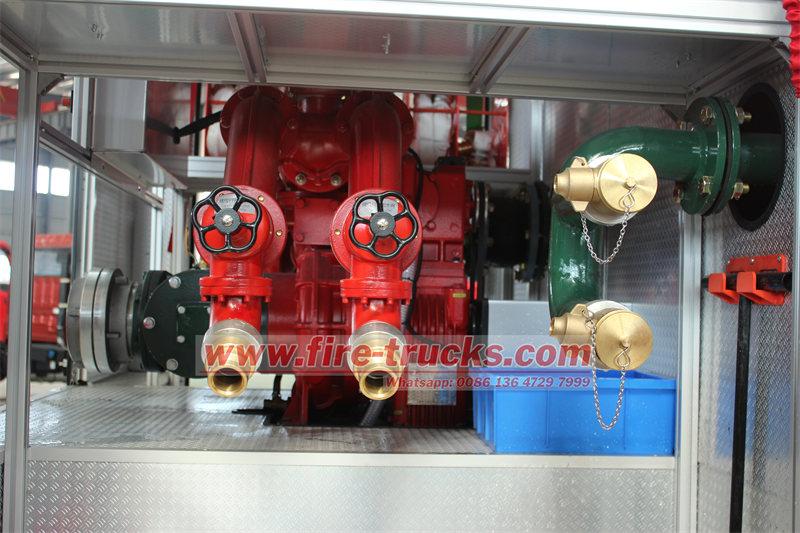

Fire Pump |
Model |
CB10/40 |
Type |
Normal pressure pump |
|
Flow(L/s) |
40 |
|
Working Pressure (MPa) |
1.0 |
|
Water suction time (s) |
≤50s |
|
Position |
Rear-mounted |
|

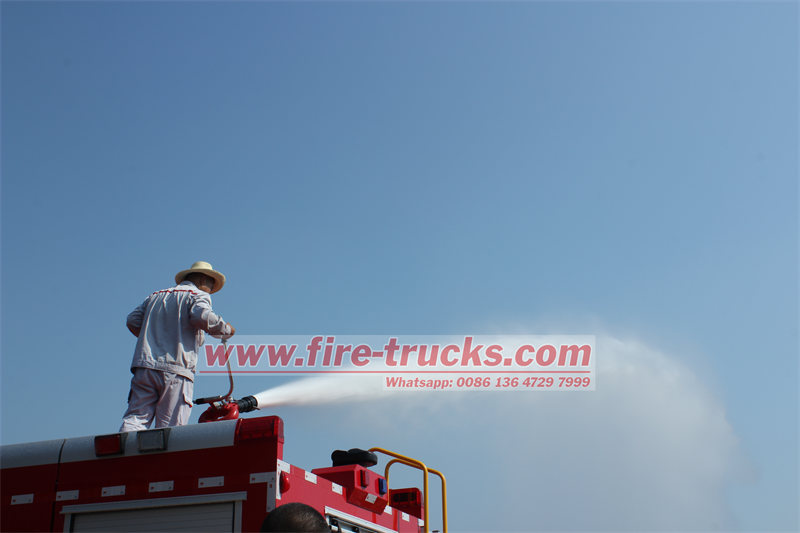

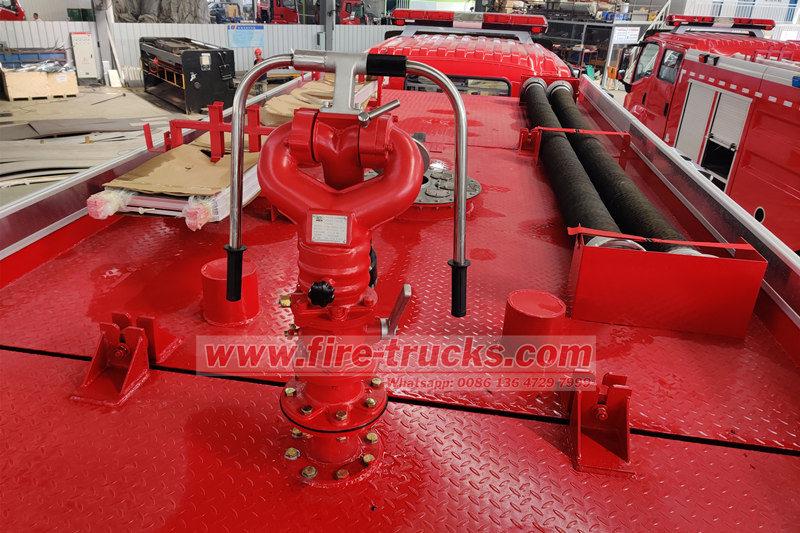

Fire Monitor |
Model |
PS40 |
Rated Pressure (MPa) |
0.8 |
|
Flow(L/s) |
40 |
|
Range (m) |
≥65 |
|
Working Angle(°) |
360(horizontal),-30~70(elevation) |
|
Operation Mode |
Manual |
|
Power Takeoff |
Type |
Sandwich and full power |
Operation Mode |
Dominated by solenoid valve |
|
Cooling Mode |
Mandatory and adjustable water cooling |
|
Lubrication Mode |
Splash oil lubricating |
» Ⅲ.Factory Testing:

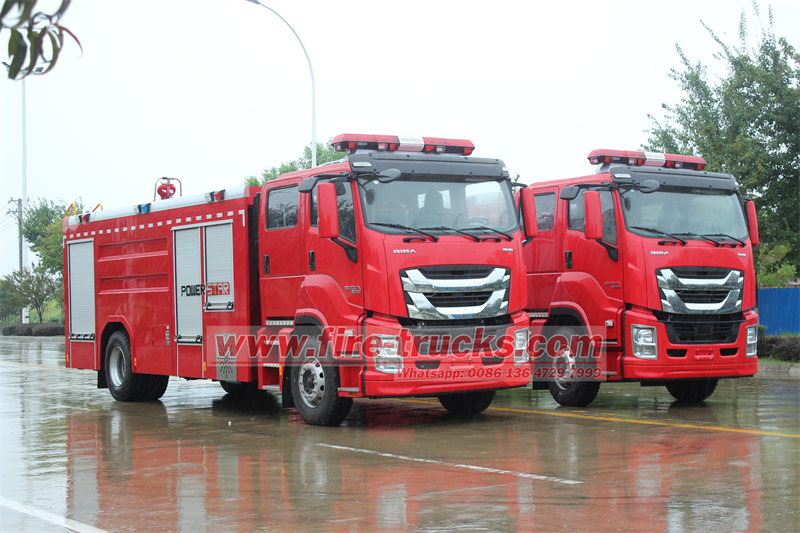

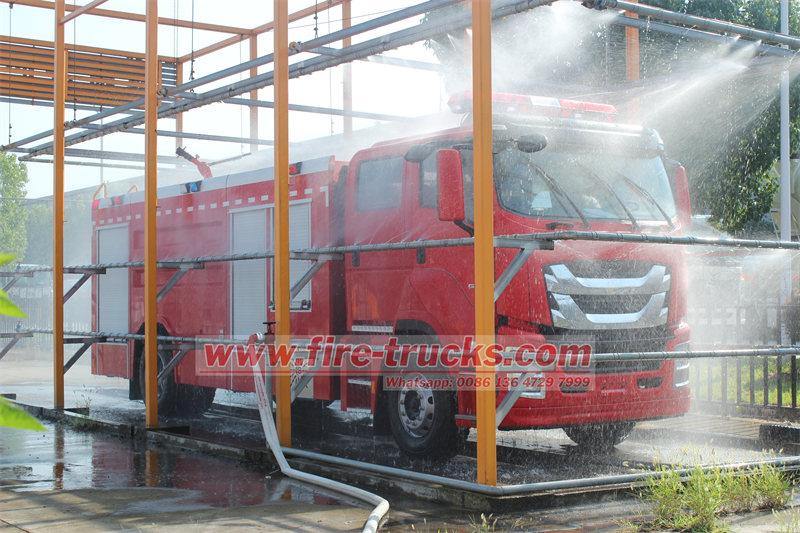

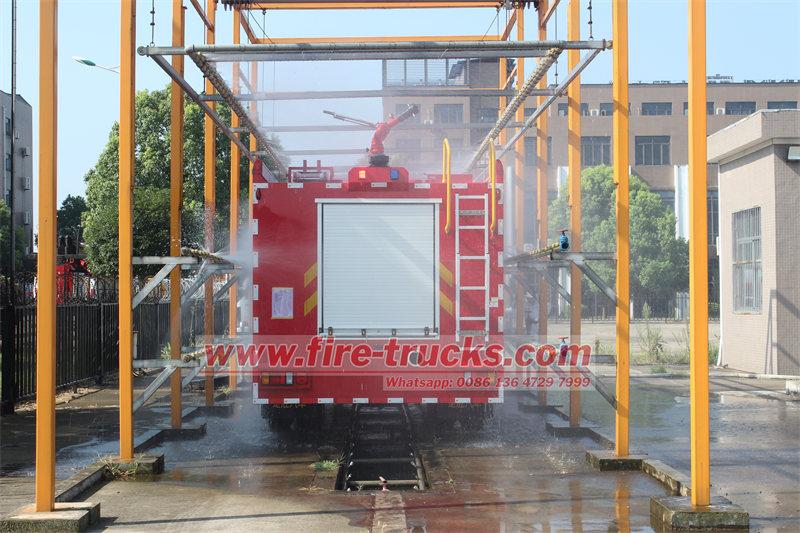

Rain test for ISUZU GIGA water tender fire truck at POWERSTAR factory

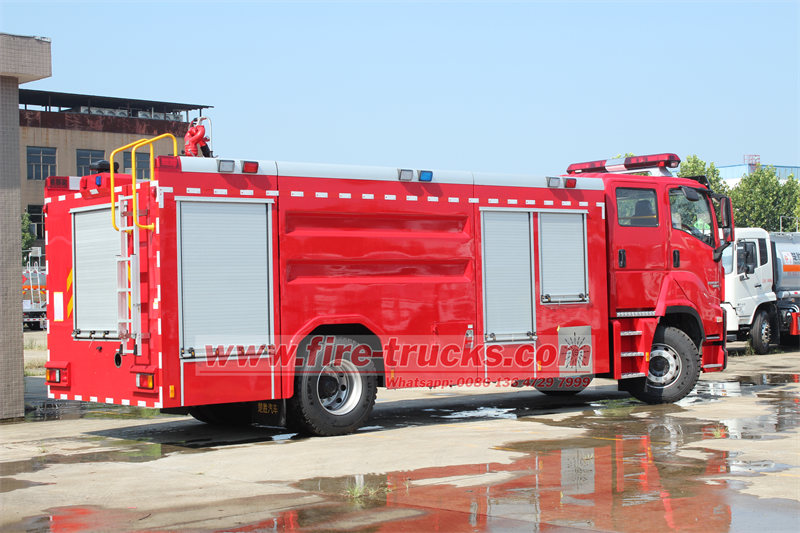

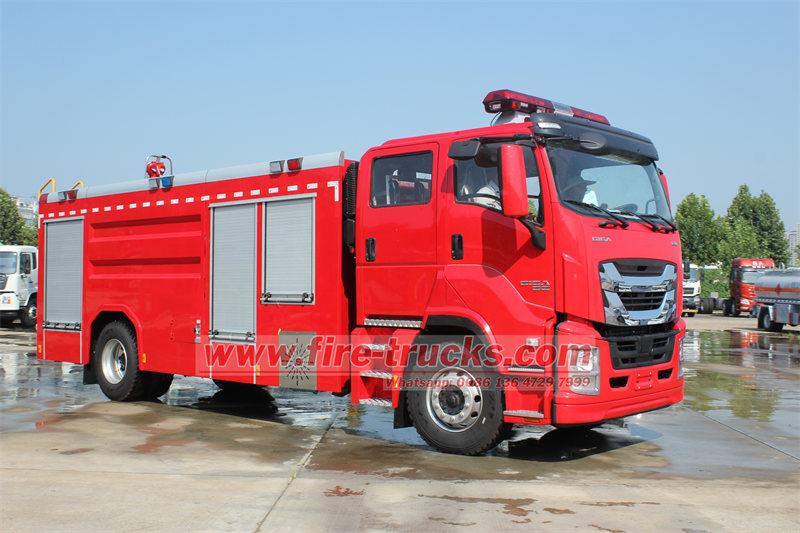

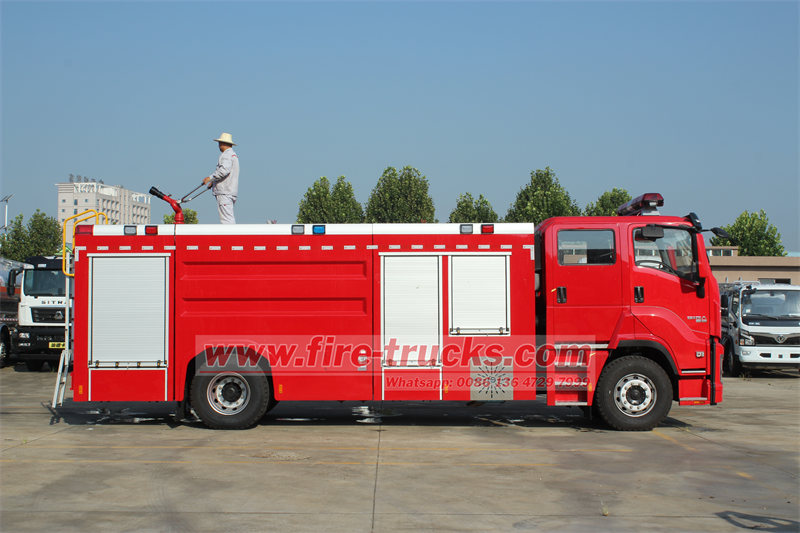

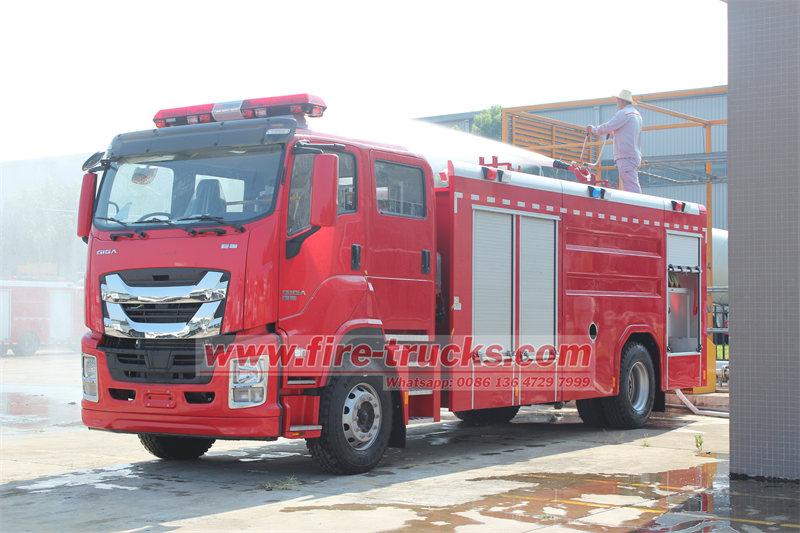

Isuzu GIGA water tanker fire truck testing before shipment
Isuzu GIGA fire tanker trucks ready for delivery
