ISUZU GIGA fire truck is equipped with an ISUZU 6UZ1-TCG61 engine and features an 8,000L water tank, a CB10/40 vehicle-mounted pump, and a PS8/48 fire monitor, ensuring rapid response to fires. Its well-designed structure, with the water pump, pipelines, and tank made of 304 stainless steel, offers flexible operation and advantages of high-efficiency firefighting and strong reliability.
Manufacturer Origin:
Powerstar TrucksWork capacity :
8000LUpper Body material:
Stainless steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
380 HPEngine Model:
Isuzu 6UZ1-TCG61Fire Pump:
CB10/40, 40L/sFire Monitor:
PS8/40 for water and foamRemark:

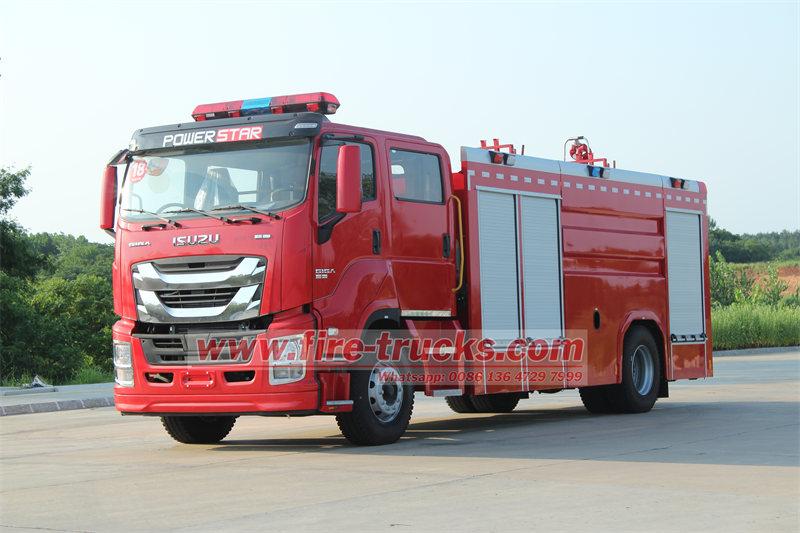

tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR 8000L water fire tender is built on an ISUZU GIGA 4×2 chassis and powered by an ISUZU 6UZ1-TCG61 engine. The cab adopts a flat-head, four-door design, accommodating up to six firefighters. The 8,000L water tank is constructed from 304 stainless steel, ensuring sufficient fire-extinguishing medium storage. Equipped with a CB10/40 vehicle-mounted fire pump and a PS8/48 fire monitor, it guarantees a swift response to emergencies. The rational structure, along with the 304 stainless steel water pump and pipelines, ensures flexible operation, high-efficiency firefighting, and reliable performance. The ISUZU GIGA water firefighting truck boasts a well-arranged configuration and comprehensive firefighting equipment, enabling rapid and effective responses to various fire scenarios. Its structural design ensures operational flexibility and safety, while the selected materials and technical parameters guarantee durability and dependable performance, making it a trustworthy firefighting apparatus.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU GIGA heavy-duty truck chassis, 4x2, 6x4 and 8x4 model
6UZ1 model with 350HP or 380HP and displacement 9839cc
6WG1 model with 420HP, 460HP or 520HP with displacement 15681cc.
2. Tank material: stainless steel water tank, 4mm thickness
carbon steel, aluminum alloy or PP tank can be customized
3. Tanker body: Foam tank and dry powder tank is optional
4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working pressure 1.0Mpa

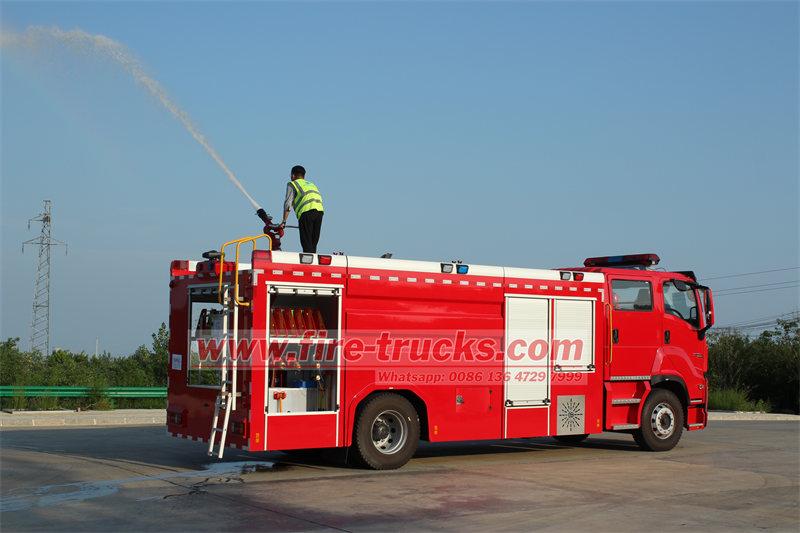

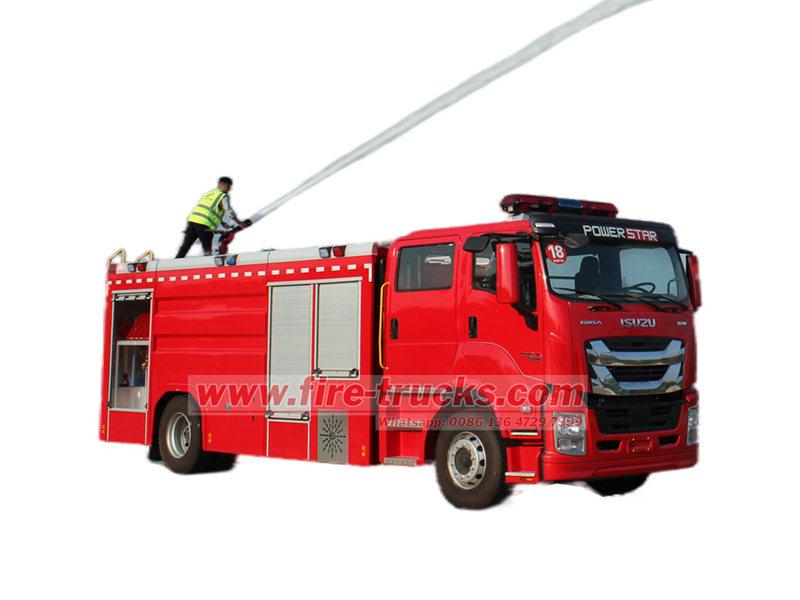

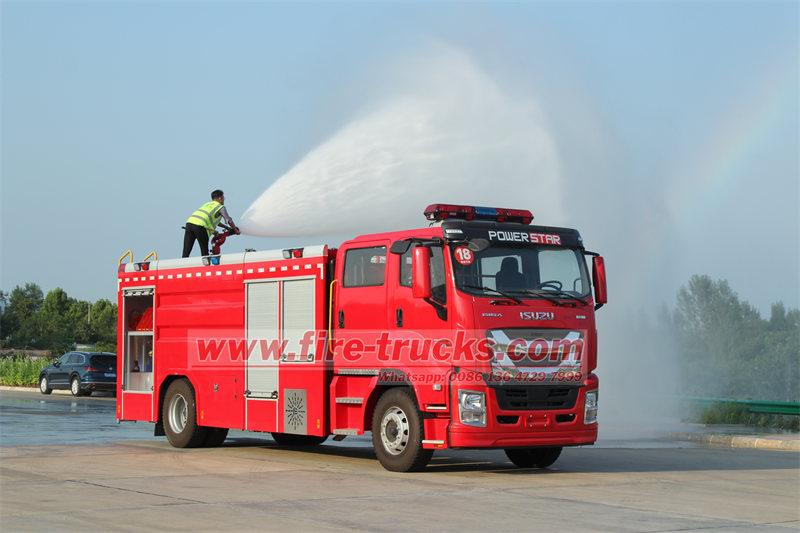

PS8/40W fire monitor, 360° rotation, water range is up to 65m
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
Fire Truck (also known as Fire Engine, Fire Tender or Firefighting Vehicle) is specialized equipment used for fire extinguishing and emergency rescue operations. It is mainly categorized into water tank fire trucks, foam fire trucks, dry powder/foam dual-purpose fire trucks, and rescue fire trucks. As a professional fire truck manufacturer, POWERSTAR provides customers with a variety of high-performance fire trucks, including ISUZU fire trucks, HOWO fire trucks, FAW fire trucks, and SHACMAN fire trucks, meeting diverse customer needs. Leveraging advanced technology and strict quality control, POWERSTAR ensures each fire truck delivers outstanding performance in firefighting and rescue missions, safeguarding public safety.
» Ⅱ.Product Parameter for ISUZU GIGA 8000L tanker fire truck:
SPECIFICATION |
|
Vehicle model |
Water Tender Fire Truck |
Chassis brand |
ISUZU |
Chassis model |
GIGA |
Traction system |
4*2 |
GVW (kg) |
18000 |
Curb weight(kg) |
9600 |
Rated Load(kg) |
8400 |
Overall dimensions (mm) |
8850*2500*3550 |
Wheelbase (mm) |
4600 |
Allowable passengers in cab |
2+4 |
Steering wheel |
LHD |
Row |
Double rows |
Max speed(km/h) |
100 |
Electric system |
24Volts |
ENGINE |
|
Engine model |
6UZ1-TCG61 |
Engine Power (HP) |
380 |
Emission standard |
Euro 6 |
Displacement (ml) |
9839 |
Engine type |
6 Cylinder, water cooling, direct Injection turbocharged, inter cooling |
Gearbox Model |
FAST |
Number of gears |
12-speed front gears and 2 reverse gears, synchronized |
Air conditioner |
Heating and cooling |
Tires |
295/80R22.5, 6tires + 1spare |
TANKER CAPACITY |
|
Water tanker |
8000L |
Foam tanker |
Optional |
Standard configuration |
DN430 manhole with fast locking/opening, automatic pressure relieving device. |
FIRE PUMP |
|
Type |
Normal pressure fire pump |
Model |
CB10/40 |
Pressure |
1.0 Mpa |
Flow Rate |
40 L/S |
Max Suction Depth |
≥7m |
Max Suction Time |
≤50S |
FIRE MONITOR |
|
Model |
PS8/40W |
Rated working pressure |
0.8 Mpa |
Max. working pressure |
1.0 Mpa |
Rotary Angle |
360°horizontal rotation |
Elevation Angle |
≥+80° |
Depression Angle |
≤-30° |
Flow Rate |
40L/S |
Range distances |
Water ≥65m |
» Ⅲ.Product Details & Advantages:
1. ISUZU GIGA Truck

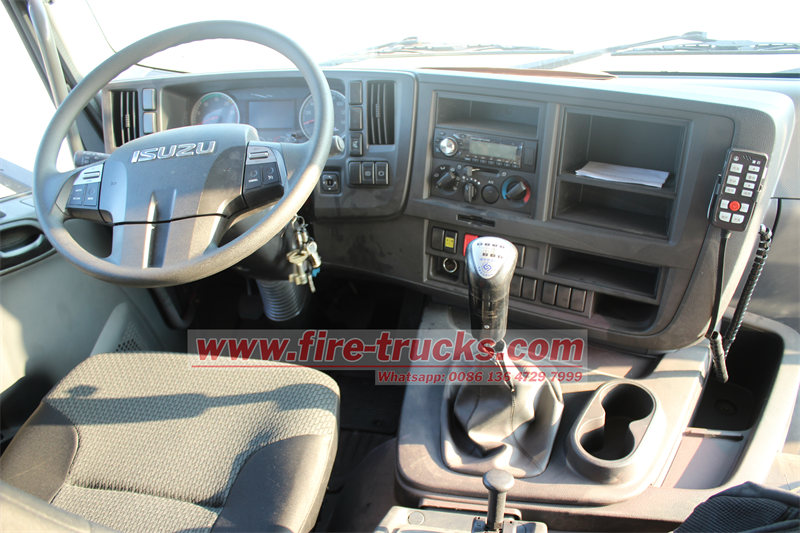

ISUZU GIGA VC66 cabin, with A/C, power assisted, central lock, power window and doors, multifunctional steel wheel, Multifunctional LCD instrument panel, ect

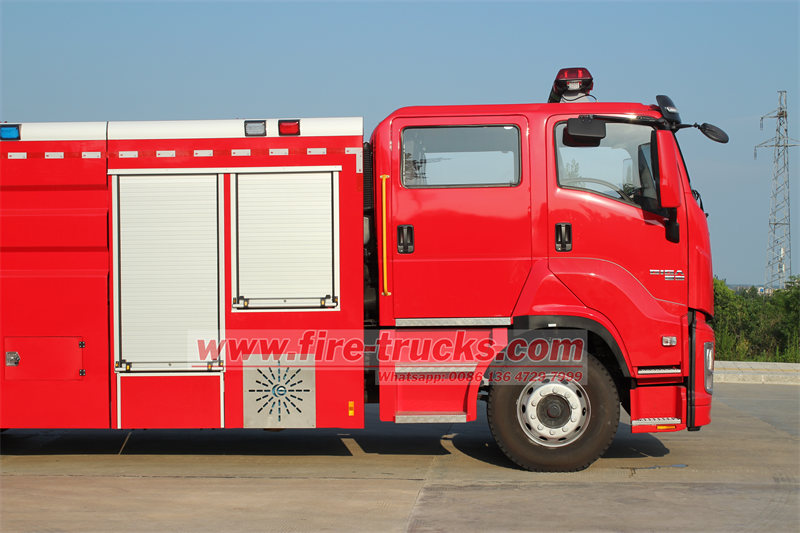

2. Modify double cabin
Skilled engineer design and worker modify ISUZU GIGA truck cabin, double row with front 2 seats and rear 4 seats

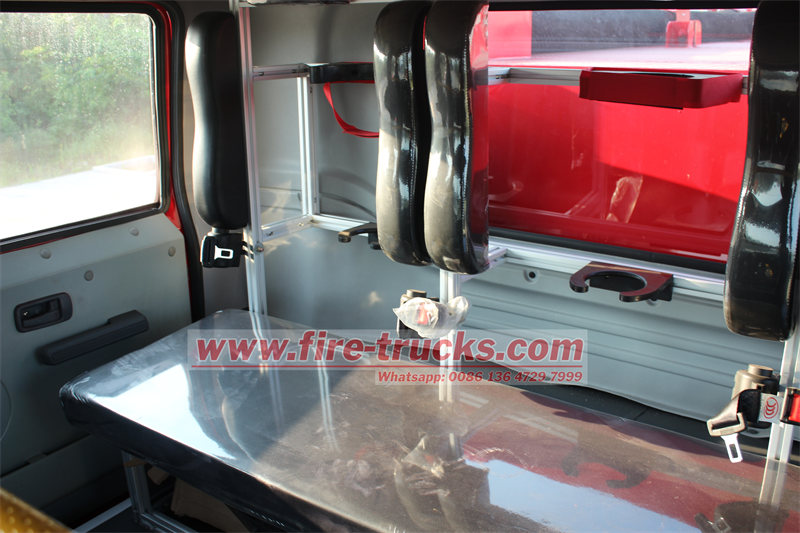

3. Rear SCBA seat
The rear row features a 4-person seating configuration, with all seats equipped with seat belts. The rear seats are detachable and include brackets for breathing apparatus.

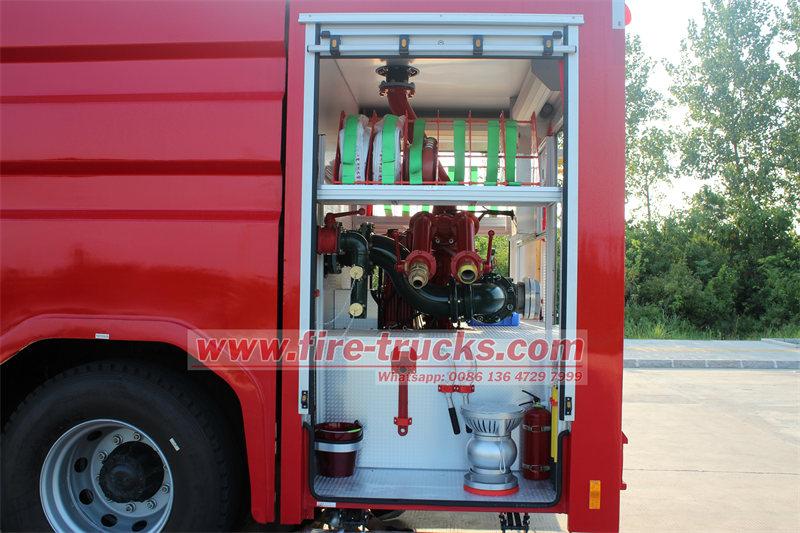

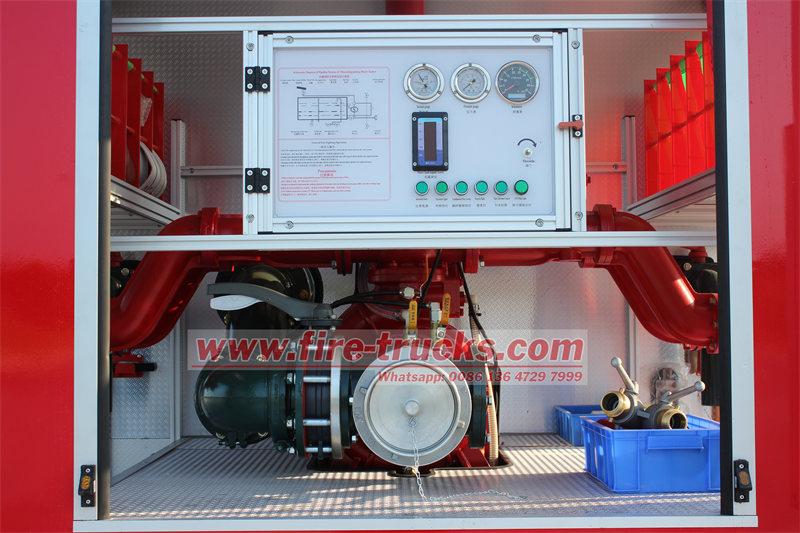

4. Pump room with control panel
Pump room at the rear of the vehicle, with aluminum alloy roller shutters on both sides and the rear. With interior lighting, storage space for commonly used equipment.

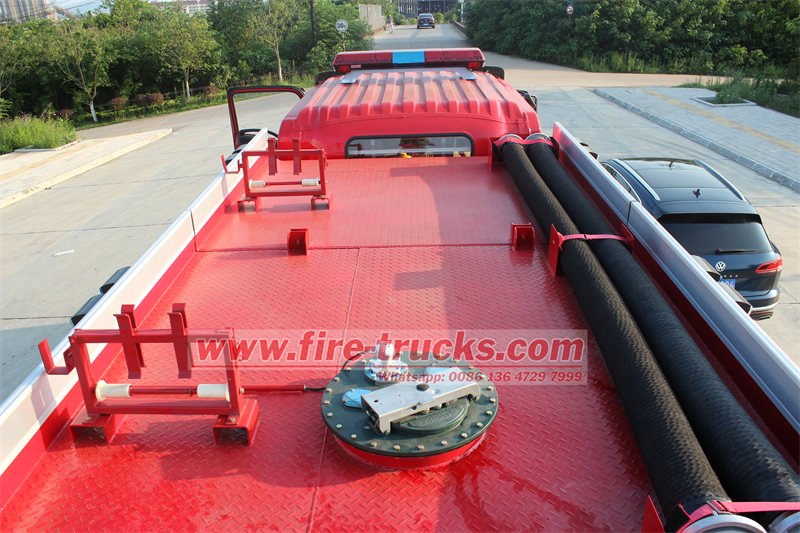

5. Top view of Fire Tender
DN500 manhole cover with locking device, 2 units 4m DN125 pipeline, 6-10m aluminium ladder, fire monitor for water, rear searching light

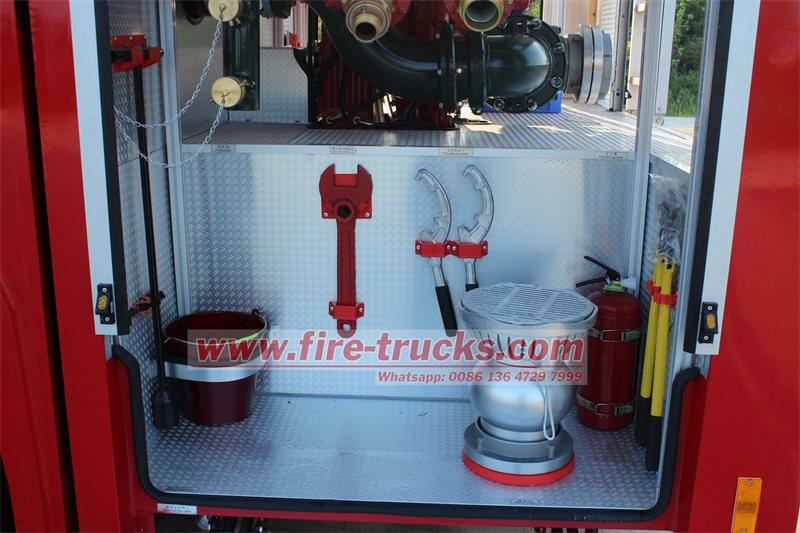

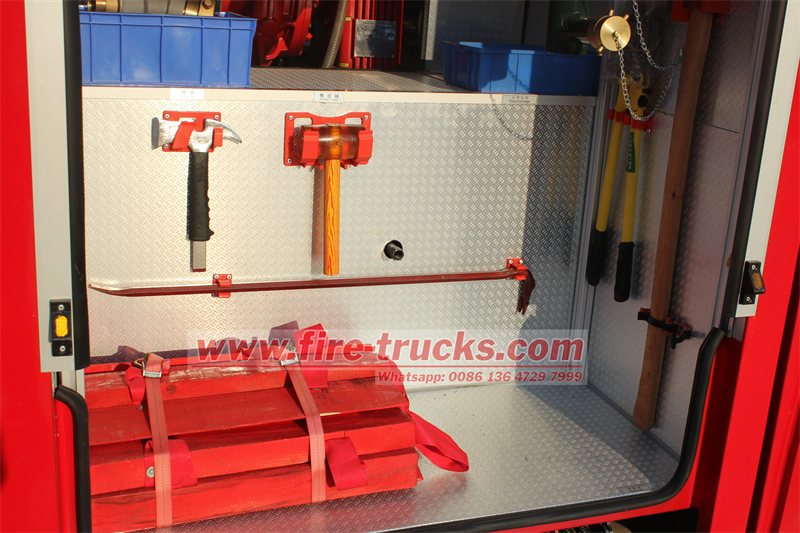

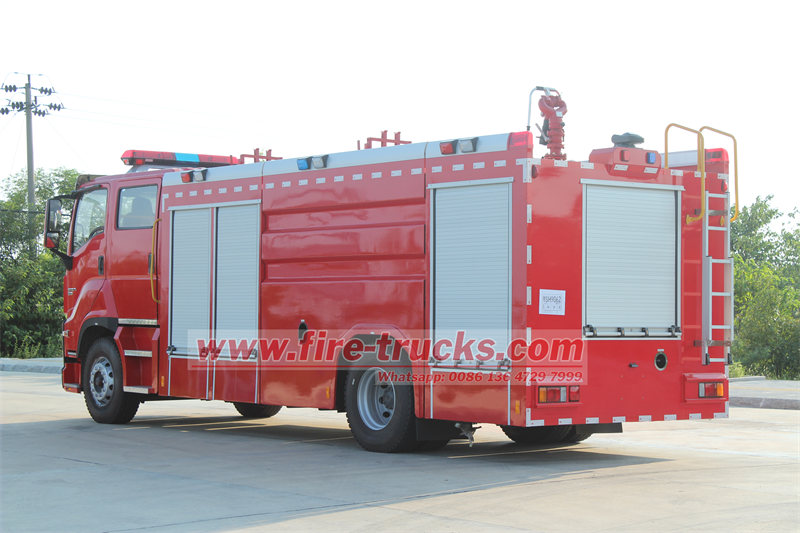

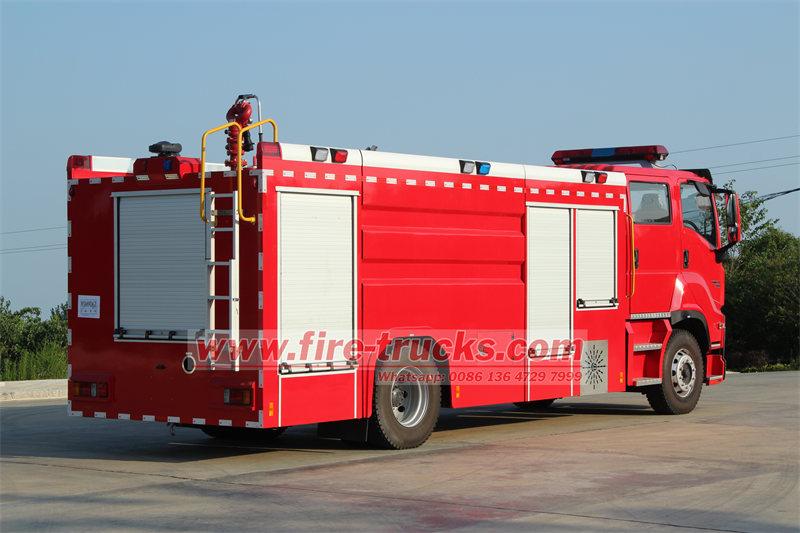

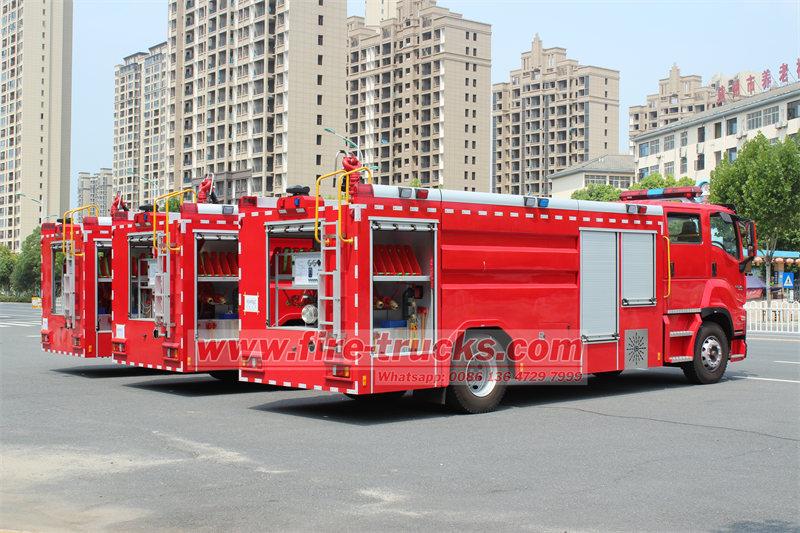

6. Fire truck tanker body with full sets fire fighting tools
R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
