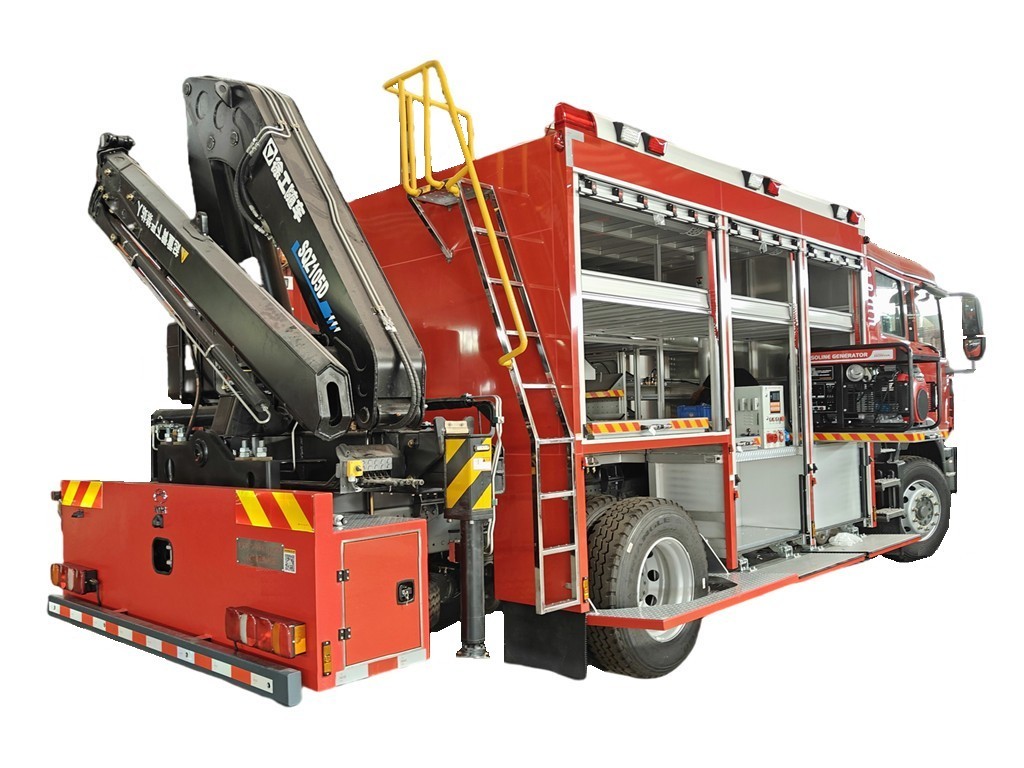

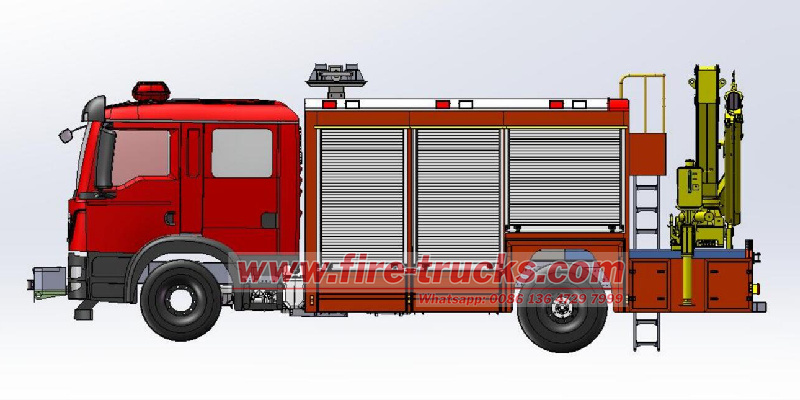

Brand newly designed and export HOWO Emergency Heavy Rescue Fire Truck is a specialized customized emergency rescue firefighting vehicle suitable for fire extinguishing and people rescue. Rescue fire engine modified on a Sinotruk HOWO 4×2 chassis. Originally double cabin to be equipped with 2+4 seats, and rear row are all equipped with SCBA seats suitable for air apparatus storage and convenient usage. Full Aluminum Alloy structure design fire tanker body, convenient for fire tools storage and daily usage, also can guarantee long life service and never rust. Each side with Aluminum alloy for safety lock and open. At rear part equipped with Top One Chinese brand XCMG boom crane with loading capacity 5000kgs.
Manufacturer Origin:
Powerstar TrucksWork capacity :
5000 KGsUpper Body material:
Stainless Steel and Aluminum AlloyProduction time:
65 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
350 HPEngine Model:
HOWO MC07H.35-60Fire Pump:
NULLFire Monitor:
NULLRemark:
Rear mounted XCMG crane, optional HIAB and Palfinger craneHeavy duty POWERSTAR PT5180TXF emergency rescue fire truck is based on the sinotruk HOWO truck chassis. The original double-row cab of the Howo quick attach fire truck provides a spacious and comfortable driving space for rescue personnel. The American CHAMPION N16800XF electric traction winch in the front of fire truck can tow heavy objects or vehicles to help rescue in complex environments. The high-power Japanese SHT15000HA generator set can build various emergency rescue equipment and equipment on demand to meet various power needs on site. The lifting lighting system 4x1000W equipped on the roof can provide sufficient lighting at night or in low-light environments to ensure the smooth progress of rescue work. The automatic charging and inflating device can ensure that the vehicle is available 24 hours a day in an emergency. The on-board crane XCMG SQZ105 type equipped at the rear of the fire fighting vehicle can lift and move heavy objects, providing strong support for rescue work. This allows the emergency rescue fire truck to play an important role at various disaster sites, such as earthquakes, floods, traffic accidents, etc., effectively rescuing trapped people and reducing disaster losses.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: Sinotruk HOWO-duty truck chassis, 4x2 with LHD
Original double cabin with 2+4 seats, rear with SCBA seats
MAN technology HOWO MC07H.35-60 diesel engine, 350HP and 7.36L displacement
Disc brake with ABS for safety driving
2. Tank material: Aluminum alloy structure frame with stainless steel cover
Long life service and never rust
3. Tanker body: Customized Aluminum alloy frame body for tools storage and usage
4. Rear Crane: XCMG brand SQZ105D boom crane, hydraulic control
Loading capacity 5000kg, working height 10.5m, working pressure 28Mpa
5. Towing Winch: American brand CHAMPION, model N16800XF-24V, front mounted
Curb weight 110kg, Size 705x266x318mm
Maximum tractive force 75.3KN, winch rope length 35.6m
6. Lifting Light: Top mounted lifting lighting device with working height 8.06m
Power 4*1000W with 4 light
Working direction: horizontal 360° and vertical 370°
7. Generator: Japanese brand SHT15000HA gasoline generator
Rated Power 12.5kW, Rated Frequency 50HZ, Rated Voltage 220V/380V
8. Towing Winch: American brand CHAMPION, model N16800XF-24V
Curb weight 110kg, Size 705x266x318mm
Maximum tractive force 75.3KN, winch rope length 35.6m
Sinotruk HOWO rescue fire engine equipment maintenance truck is mainly used for mobile maintenance, emergency rescue and on-site equipment maintenance. The HOWO fire truck is equipped with a National VI standard diesel engine MC07H.35-60 with 350HP and 7360cc, matched with HOWO 10-speed gearbox, with a wheelbase of 4600mm and a total mass of 18 tons. In terms of safety, it is equipped with ABS anti-lock and ASR anti-skid systems as standard. The application scenarios cover the fields of municipal pipeline repair, power communication emergency, natural disaster relief, etc., and it also has the attributes of a mobile repair workshop. The one vehicle with multiple functions design significantly improves the comprehensive repair efficiency in complex environments.
» Ⅱ.Product Parameter for HOWO emergence rescue fire truck:
HOWO emergency rescue fire vehice |
|||
Main Parametr |
Driving type |
4*2 |
|
cab |
four doors Left hand drive (seat 6 persons) |
||
air condition |
Equipped |
||

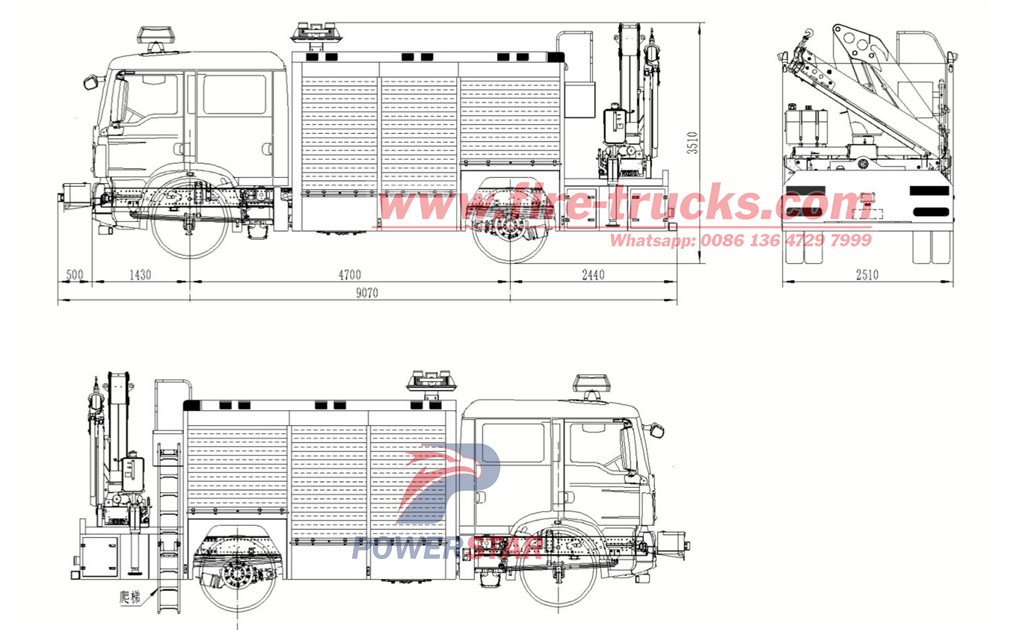

Overall Dimension(mm) |
9100*2500*3530 |
||
Gross Weight(kg) |
26550 |
||
Max Speed(km/h) |
102 |
||
SINOTRUK HOWO Chassis parameter |
|||
Chassis Model |
ZZ1183 |
||
Engine |
Model |
HOWO |
|
|
Power(kw) |
257 |
|
|
Displacement(ml) |
7360 |
|
|
manufacturer |
China National heavy duty truck group Corp ., Ltd |
|
|
Fuel Type |
Diesel |
|
|
Tire Size |
12.00R20 |
|
|
Number of Tires |
6 |
|
|
Wheelbase(mm) |
4600 / 4700 |
|
|
Number of Axles |
2 |
|
Technical special function for emergency rescue fire truck |
|||
Tank |
Material: high quality stainless steel plate, anti-rust treatment. |
||
|
Water Tank |
NULL |
|
|
Foam tank |
NULL |
|
PTO |
Use sandwich PTO, splashing-type lubricate, can put out fire when driving. |
||
Carriage |
Carriage is made of high quality stell and Aluminum embossed sheet |
||
Pump room |
or on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. |
||
Equipment box |
Equipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. |
||
Rolling shutter door |
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. |
||
color |
The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. |
||
Technical requirement |
1.the fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle. |
» Ⅲ.Product Details & Advantages:

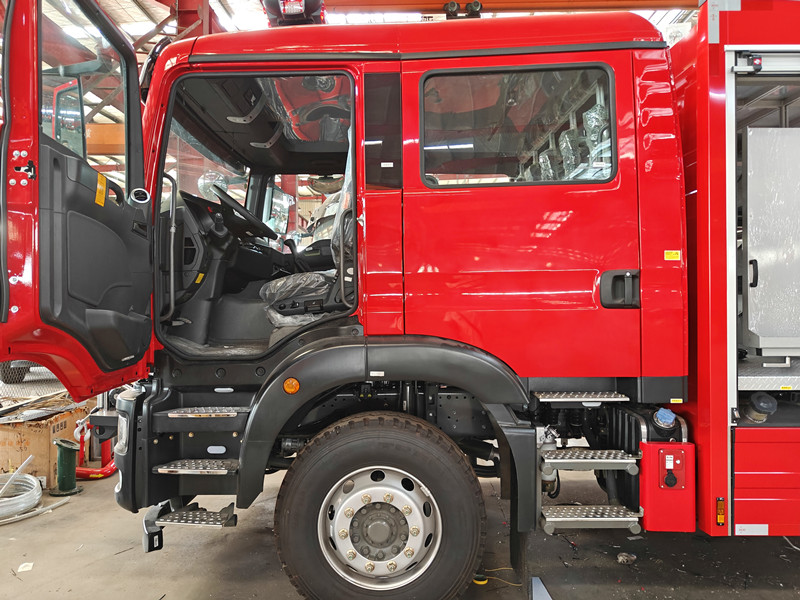

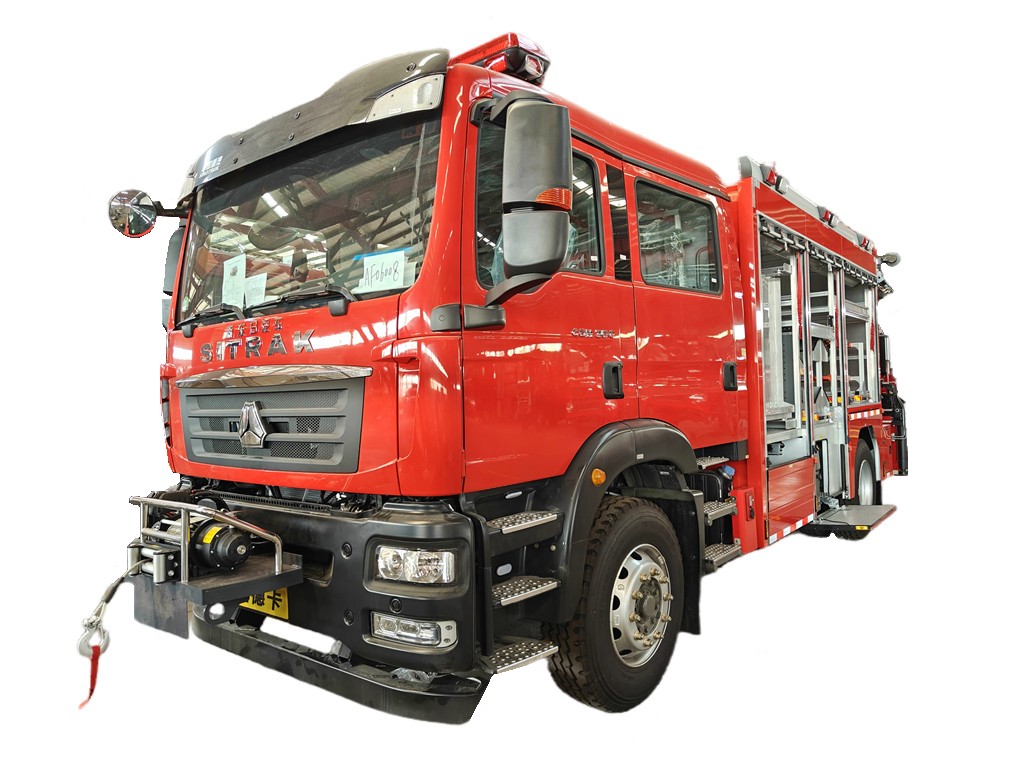

1. HOWO heavy duty emergency fire truck Chassis
China famous brand SINOTRUK HOWO truck chassis, original double cabin with air conditional, ABS, Siren controller, air suspension seat, etc.

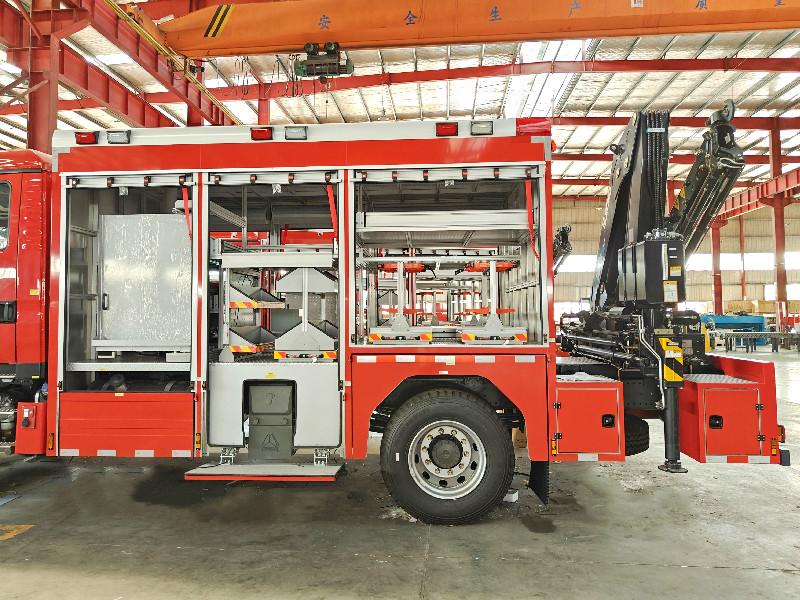

2. Fire truck body left view
Modified fire tanker body with aluminum alloy structure frame, convenient for fire rescue tools storage and usage.

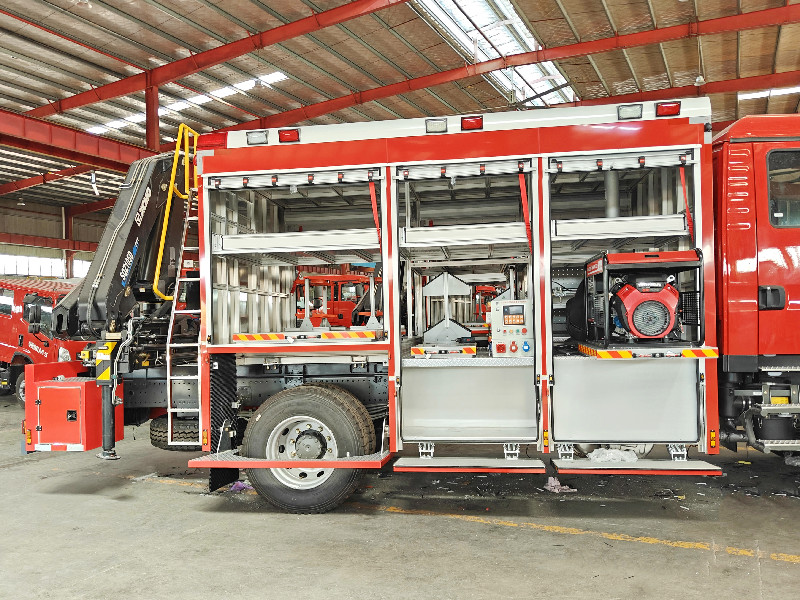

3. Fire truck body right view
POWERSTAR fire tanker body with aluminum alloy structure frame, matched with generator and lifting lighting device.

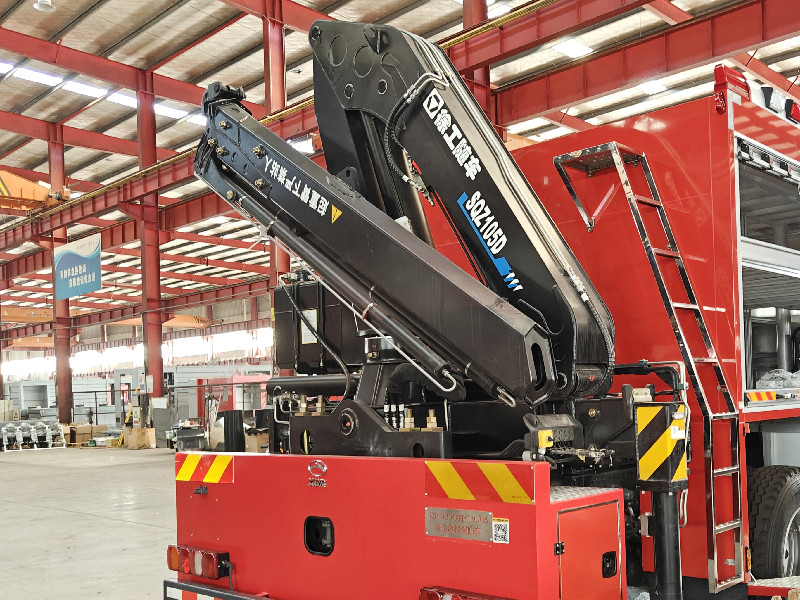

4. Rear mounted XCMG SQZ105D boom crane
Rear mounted folding arm boom crane, heavy loading type, reliable and durable service, heavy loading type.
Brand: XCMG
Model: SQZ105D
Drive type: Hydraulic
Maximum lifting torque: 10.7 T.m
Maximum working range: 8.3 m
Slewing angle: 420°
Installation position: at the rear of the vehicle
Maximum rated lifting mass: 5000 Kg
Maximum lifting height: 10.5 m
Rated pressure of hydraulic system: 28 MPa
Hydraulic system flow: 25 L/min
Hydraulic oil tank capacity: 75 L

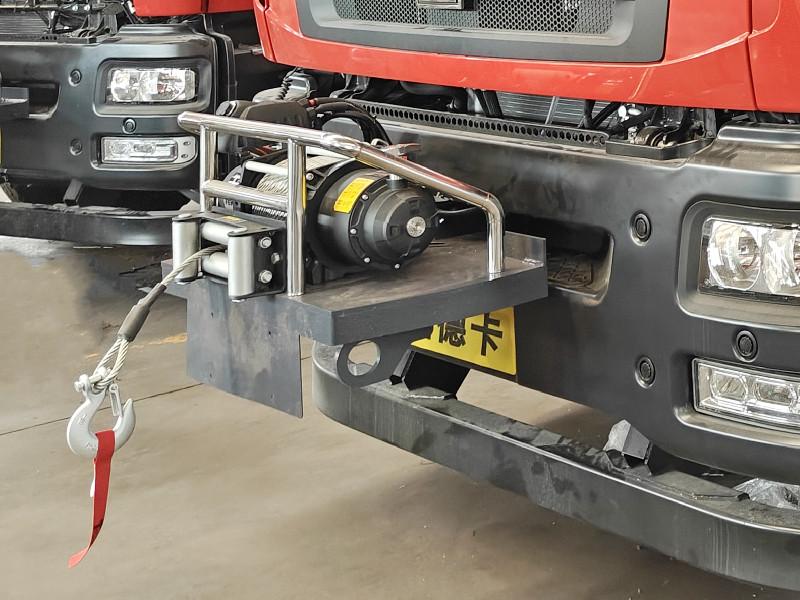

5. Fire truck mounted towing winch
Front mounted type towing winch on special customized platform, electric control model, reasonable steel rope, auto working.
Brand: Champion (American brand)
Model: N16800XF-24V
Manufacturer: Champion Power Equipment Company
Drive type: DC (electric)
Maximum traction: 75.3KN single rope traction
Maximum traction length: 35.6 m
Weight: 110 kg
Dimensions: 705mmx266mmx318mm
Installation position: located in the front of the HOWO emergency rescue fire truck
6. Rescue fire truck top mounted light assembly
Top mounted high altitude lighting assembly, which can lifting up and falling down, one button convenient control.
Installation: Top of the car, pneumatic lifting type
Light power: 4×1000W (4kW)
Lighting: Halogen lamp
Maximum lifting height: 8.06m (from the ground)
Rotation angle: 360° horizontal, 370° pitch
Control mode: Manual and remote control available,
With automatic reset function

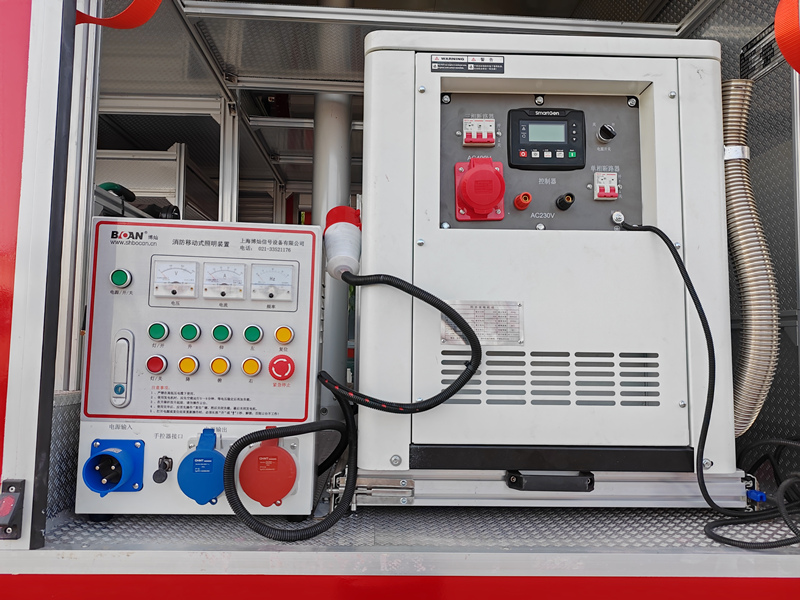

7. Rescue fire truck gasoline generator
Generator assembly equipped, gasoline type, powerful and reliable, Japanese ISUZU technology.
Product name: Gasoline generator set
Product model: SHT15000HA/12.5KVA
Manufacturer: Japan Sawato Electric Co., Ltd.
Rated output power: 12.5kW
Rated frequency: 50HZ
Rated voltage: 220V/380V
Starting method: electric start/pull rope start
Match with corresponding conversion plug
