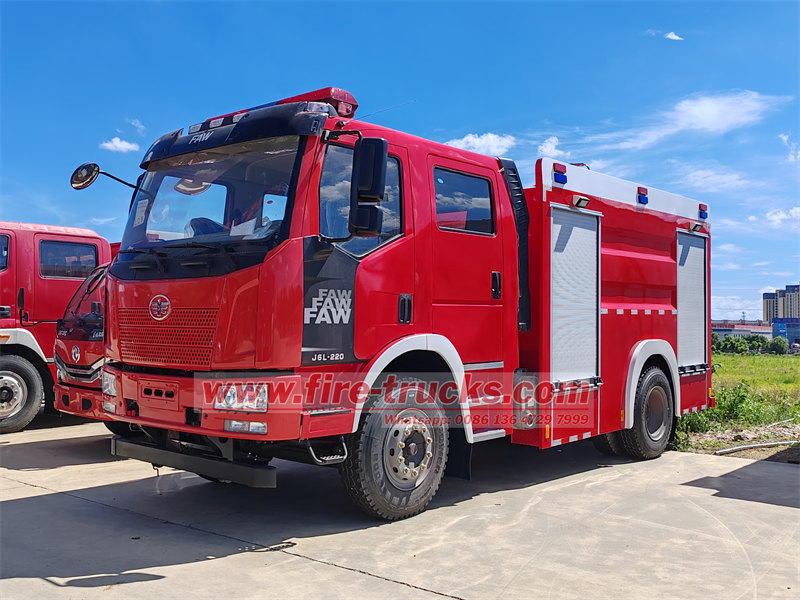

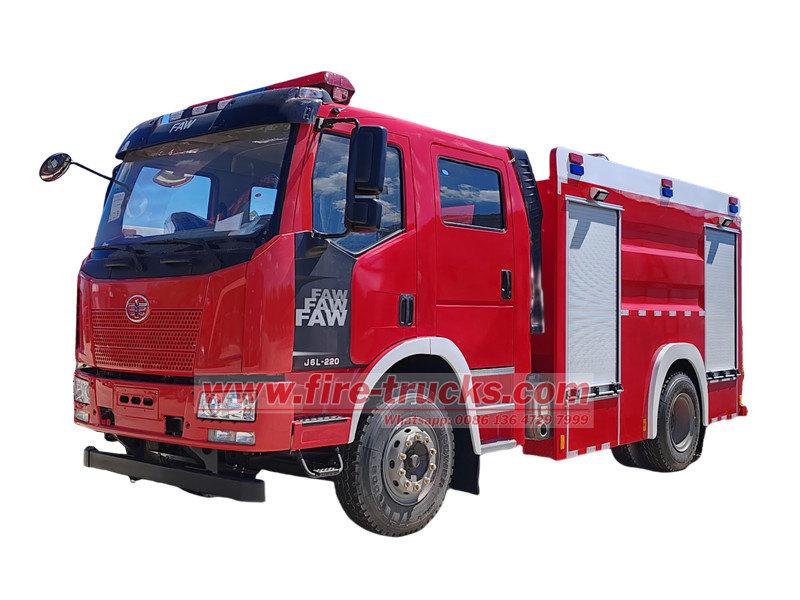

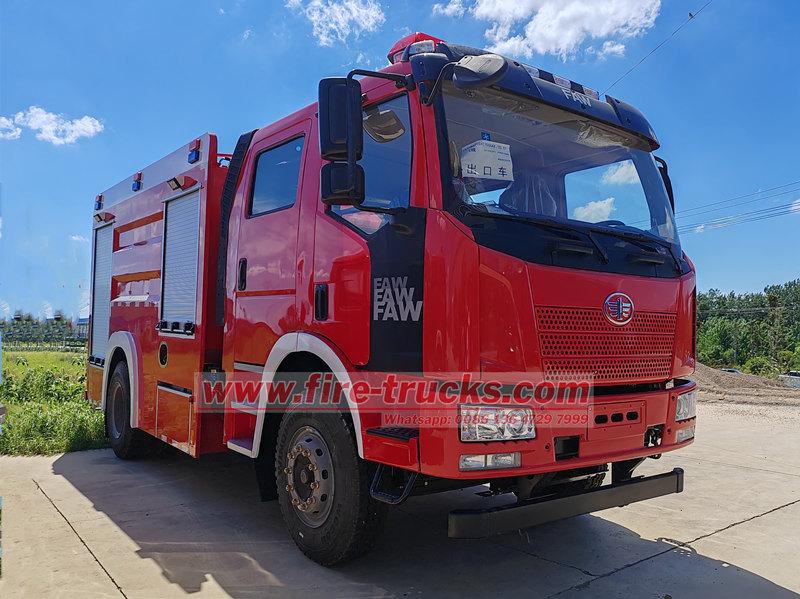

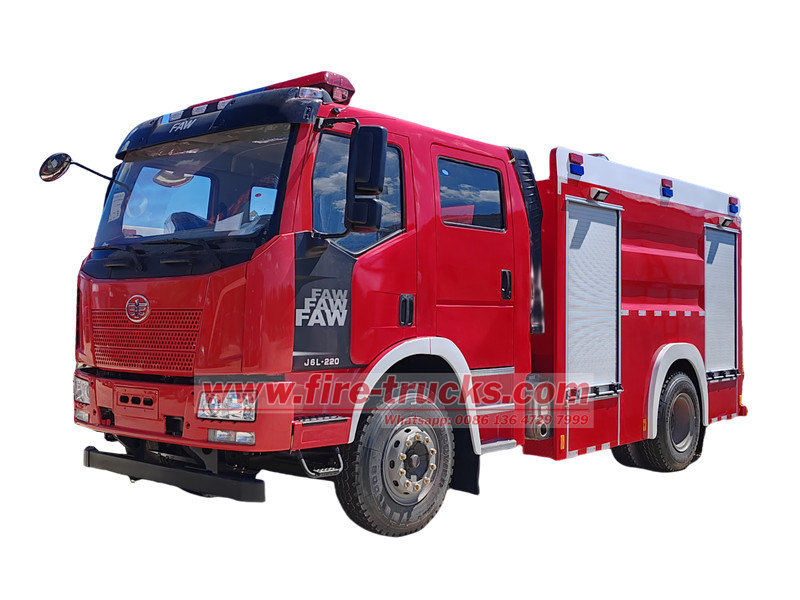

The FAW Water Foam Fire Truck is a specialized firefighting vehicle suitable for multiple departments, modified on a FAW 4×2 chassis. It is primarily equipped with fire pumps, water tanks, foam mixing systems, and other firefighting gear. By utilizing foam to extensively cover and isolate combustibles from oxygen, it effectively extinguishes fires. With a wide range of applications, it performs exceptionally well in combating oil-based fires, such as petroleum fires, and can also handle general material fires.
Manufacturer Origin:
Powerstar TrucksWork capacity :
4000L +1000LUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
220 HPEngine Model:
CA6DH1-22E5Fire Pump:
CB10/30, 30L/sFire Monitor:
PL8/32 for water and foamRemark:
4×4, RHD, PP tank is optionalThe POWERSTAR FAW Foam Tender Fire Truck is a specialized emergency response vehicle modified on a FAW 4×2 medium-duty chassis. Its core function is to extinguish fires by spraying an air-foam mixture to isolate burning materials from oxygen. It is particularly suitable for oil fires, petrochemical facilities, ports, docks, and similar scenarios.
The FAW Foam Tanker Fire Truck mainly consists of a crew compartment, carriage, tank, fire pump, foam proportioning system, dual-purpose foam-water cannon, and other additional equipment. In terms of appearance and structure, the FAW Foam Fire Engine features a unique design. Its cannon nozzle is slender and elongated, allowing for more precise foam projection onto fire points. The tank structure includes two separate compartments, with two tank openings on top for storing different firefighting agents—water and foam liquid. This design makes it a dual-purpose water-foam fire truck, enhancing its firefighting capabilities.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: FAW medium-duty truck chassis, 4x2 and 4×4 is optional
FAW CA6DH1 diesel engine, 6-cylinder, 220HP and 5.7L displacement
FAST 10-speed gearbox, 10 forwards and 2 reverses
2. Tank material: carbon steel water tank with 4mm thickness, stainless steel is optional
stainless steel foam tank, 4mm thick, PP tank is optional
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire pump: CB10/30 centrifugal fire pump, flow rate 30L/s, working distance over 60m
Optional CB10/40, CB10/60 pump. America Darley fire pump is optional
5. Fire monitor: Dual-purpose water-foam fire monitor, PL8/32 model, with flow 32 L/s
Water range up to 60m, foam range up to 48m
Horizontal rotation 360°, pitch angle -45°~+70°
Fire Engine, aslo known as Fire Truck, Firefighting Truck, Fire Tender, Pumper Tender, Fire Rescue Truck, is a specially designed emergency vehicle used for firefighting, rescue operations, and disaster response. It is typically equipped with a fire pump, water tank, fire-extinguishing agents (such as water, foam, dry chemical powder, etc.), aerial ladders, rescue tools, and other firefighting equipment. The primary functions of a fire truck include fire suppression, emergency rescue, victim assistance, and responding to various types of sudden disasters.
» Ⅱ.Product Parameter for FAW 5000L foam fire tanker truck:
Product name |
FAW 5000L water foam fire tender |
|||
Chassis |
Brand |
FAW |
||
Model |
CA3180P6 |
|||
Curb weight(kg) |
10800 |
|||
Wheelbase(mm) |
4600 mm |
|||
Dimensions(mm) |
8300*2530*3500 mm |
|||
Overhang (front/rear) (mm) |
1500/2260 mm |
|||
Wheel track (front/rear) (mm) |
2050/1878 mm |
|||
Approach/Departure angle(°) |
18/11° |
|||
Axle Load(kg) |
6500/11500 |
|||
Max. driving speed(km/h) |
95 km/h |
|||
Clutch |
Reinforced diaphragm clutch |
|||
Brakes |
Service brake: dual circuit compressed air brake |
|||
Steering Gear |
Power steering, hydraulic steering with power assistance |
|||
Tire |
Number |
6 pcs with one spare tire |
||
Specifications |
10.00R20 |
|||
Gear box |
FAST, Manual type, 10 Forwards & 2 Reverses |
|||
Cabin |
Four doors and it can hold 5 fire fighters and 1 driver. With Air conditioner |
|||
Engine |
Brand |
FAW |
||
Model |
CA6DH1-22E5 |
|||
Fuel type |
Diesel |
|||
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||
Displacement(ml) |
5700 ml |
|||
Power(kw) |
165 kw |
|||
Horsepower (HP) |
220 HP |
|||
Emission standard |
Euro 5 |
|||
Rated speed (rpm) |
2500 rpm |
|||
Torque(N.m) |
850 N.m |
|||
Upper-body & Fire Fighting System |
||||
Water tank |
Volume (L) |
4000 L |
||
Tank Material |
Q235 Carbon steel |
|||
Foam tank |
Volume (L) |
1000 L |
||
Tank Material |
Stainless steel |
|||
Proportion control system |
Foam proportioner, water - entering pipe and liquid - out pipe etc |
|||
Fire pump |
Type |
Centrifugal pump |
||
Model |
CB10/30 |
|||
Flow (L/s) |
30 |
|||
Pressure (Mpa) |
1.0 |
|||
Suction depth |
≥ 7 m |
|||
Water suction time |
≤45 s |
|||
Fire monitor |
Model |
PL8/32 |
||
Flow(L/s) |
32 L/s |
|||
Water Range(m) |
≥60 m |
|||
Foam Range(m) |
≥48 m |
|||
Rotation angle |
Horizontal |
360 ° |
||
Tilt angle |
-45°~+70° |
» Ⅲ.Product Details & Advantages:

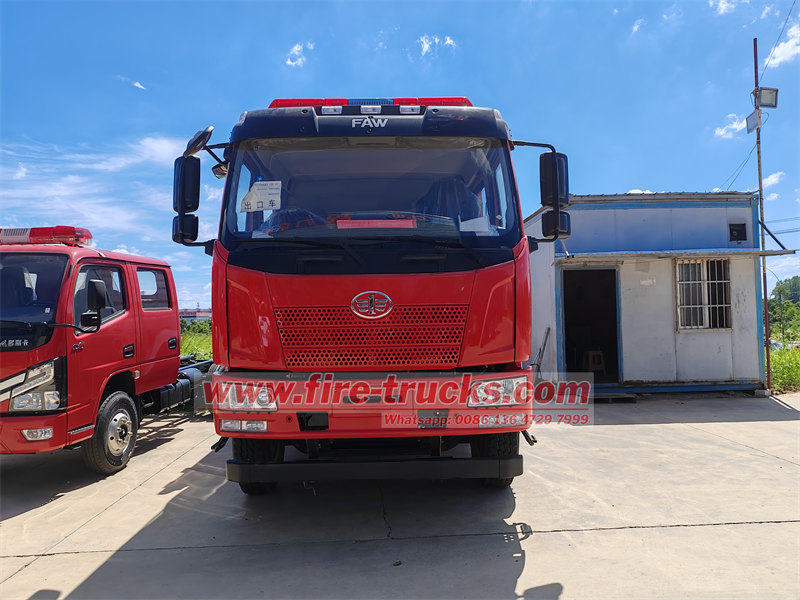

1. FAW J6L Medium-duty Chassis

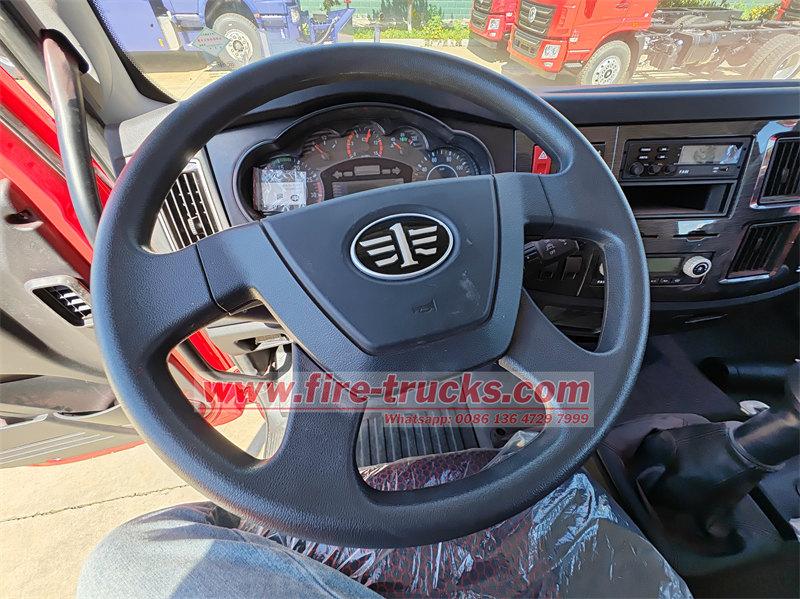

China famous brand FAW truck chassis, FAW diesel engine, J6L cabin with air conditional, ABS, Siren controller, air suspension seat, etc.

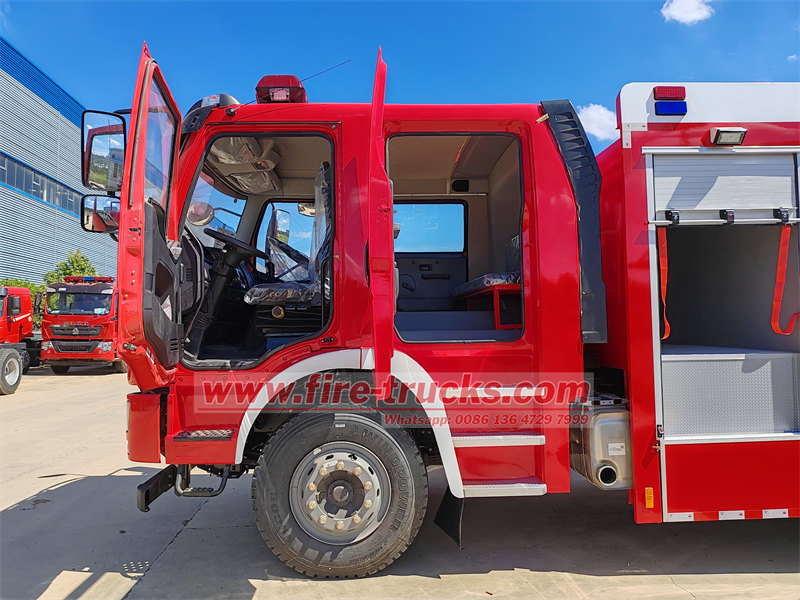

2. Modified double cabin

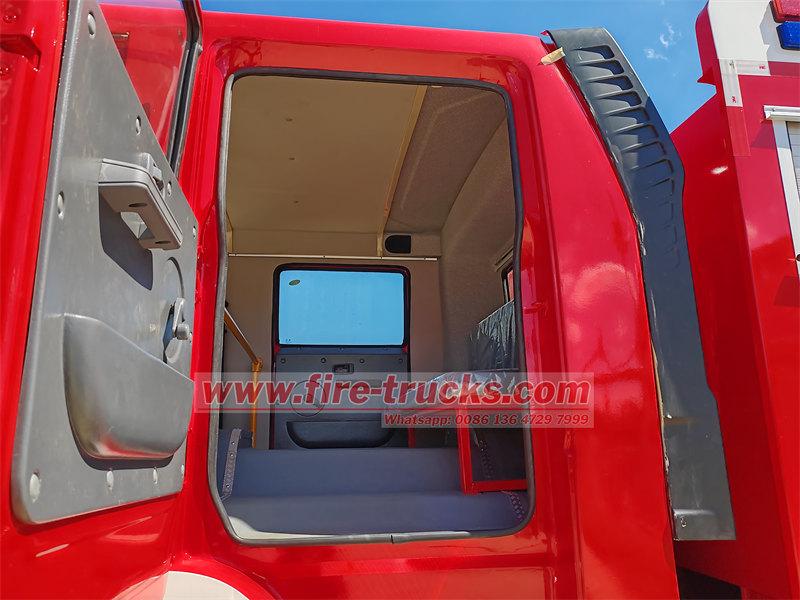

Modified rear crew cab, can accommodate 4 firefighters, with BAS

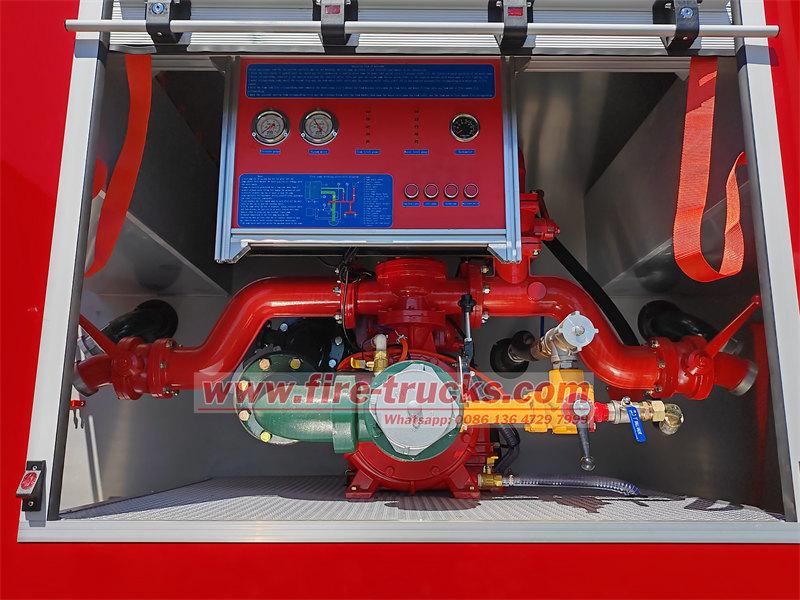

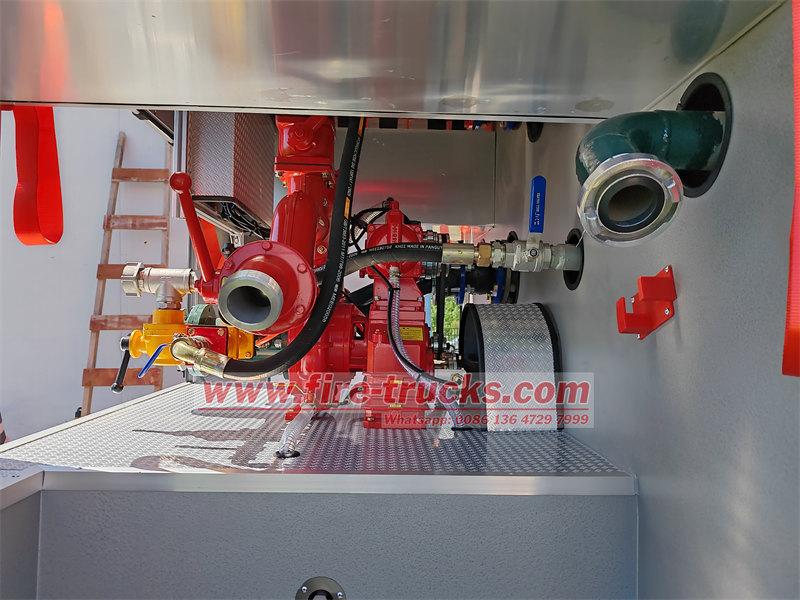

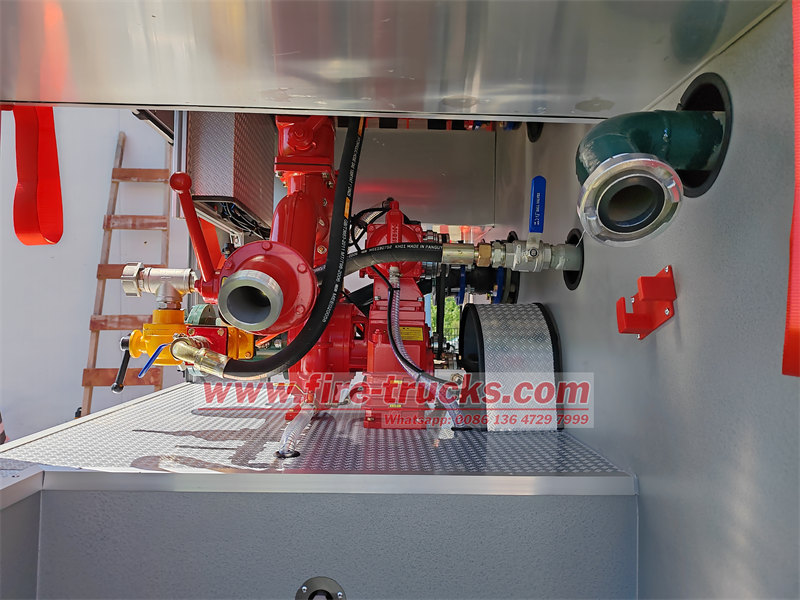

3. Pump room with control panel

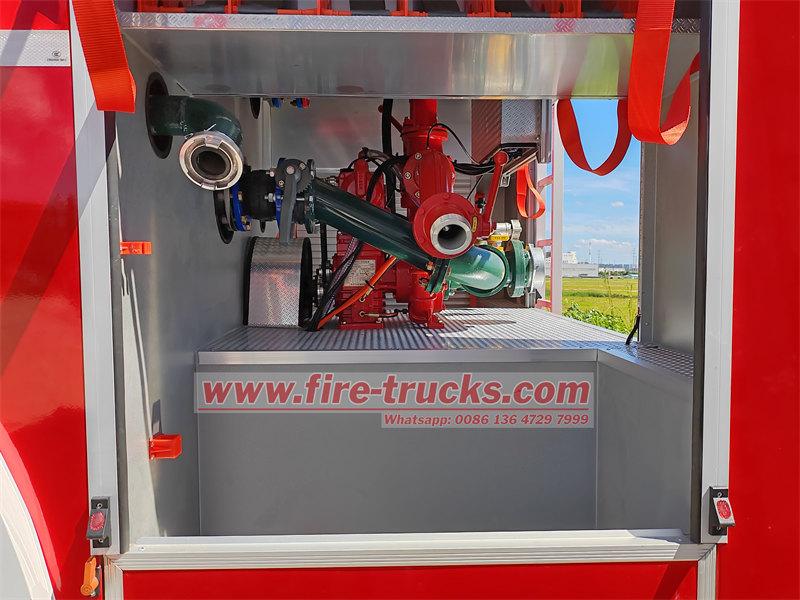

Rear mounted pump, control panel with various gauges, indicator lights, liquid level meters, pressure gauges, vacuum meters and other devices.

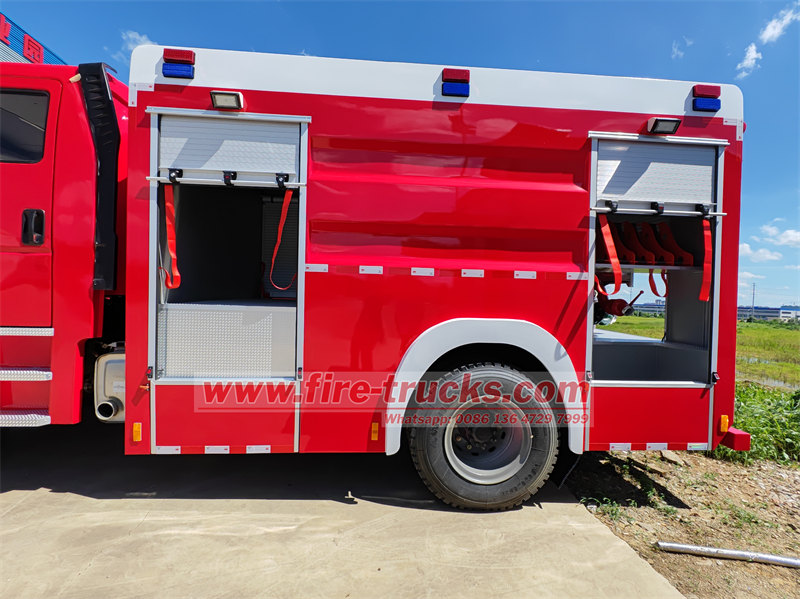

4. Equipment compartment
External framework constructed with premium carbon steel plates and an internal structure built with high-strength aluminum alloy profiles. The interior panels are made of patterned aluminum sheets with anodized surface treatment, ensuring robust durability.

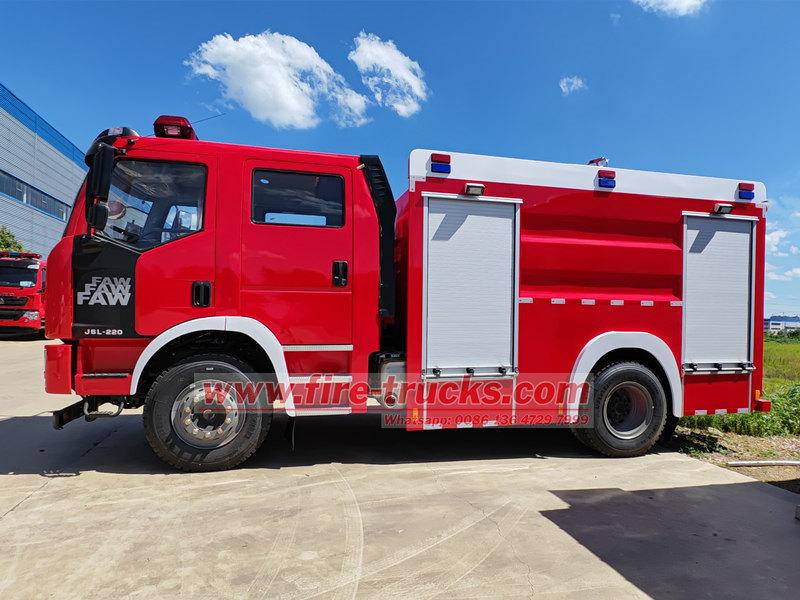

5. Fire truck tanker body with full sets fire fighting tools
R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
