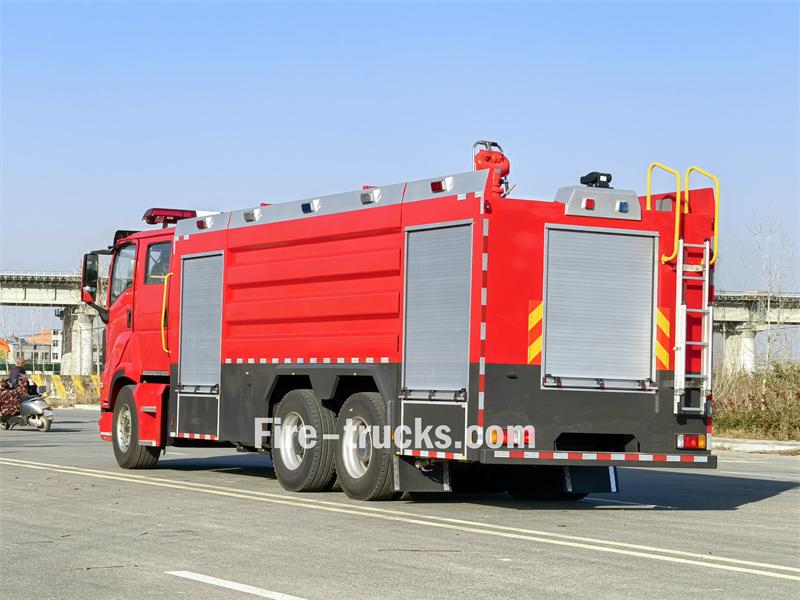

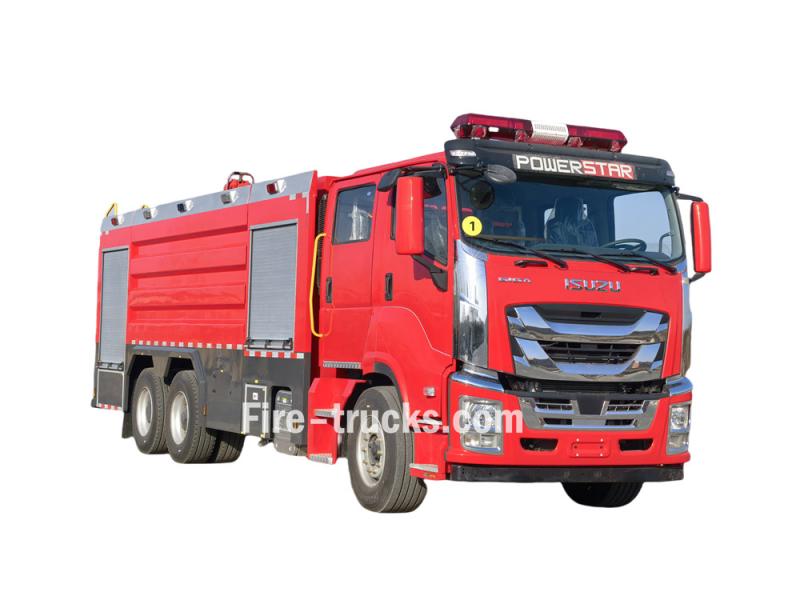

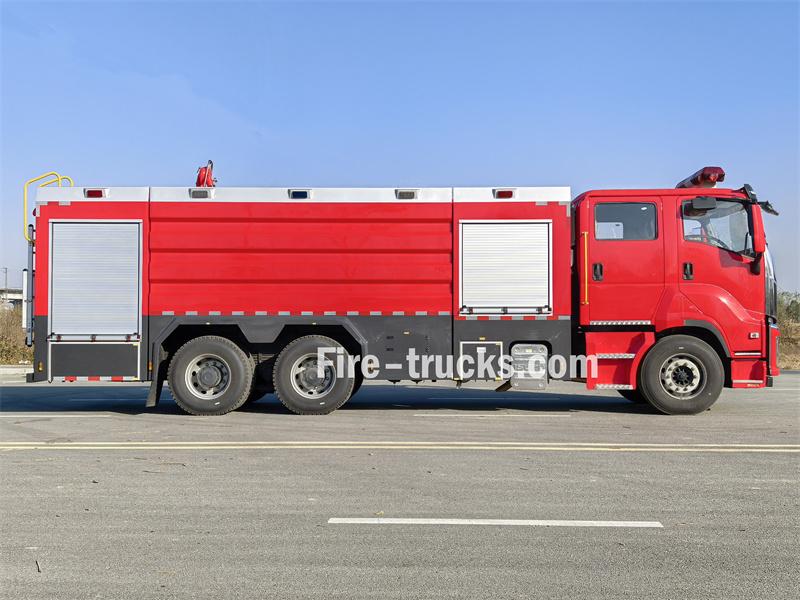

Africa isuzu 10 cbm industrial fire tender

Africa isuzu 10 cbm industrial fire tender

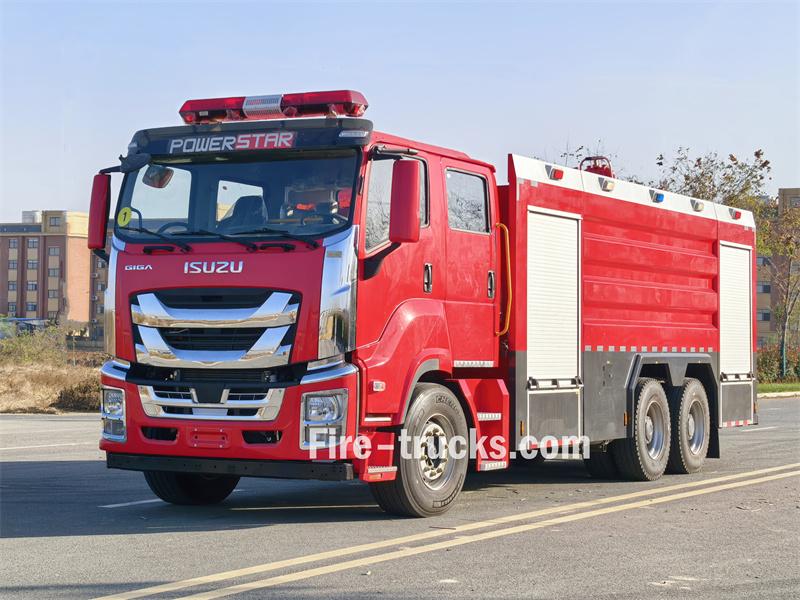

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a gross vehicle weight of 35 tons and a wheelbase of 4800+1370mm. It is equipped with an Isuzu 6WG1-TCG62 520hp engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8000L carbon steel water tank and a 2000L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/140-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/64 fire monitor is located on the roof.

  • Truck Chassis:

    ISUZU GIGA , 6X4
  • Tanker Capacity:

    8000L water +2000L foam
  • Engine Power:

    520 HP/ 6WG1-TCG62
  • Fire Pump:

    China CB10/140-XZ
  • Pump Flow:

    140L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    China PL8/64
  • Monitor Flow:

    64 L/s
  • Monitor Range:

    Water≥75 m,Foam≥70m
Facebook Linkedin Youtube Twitter Pinterest

Built on the Isuzu GIGA 6X4 heavy-duty chassis, the 35-ton Africa Isuzu 10 CBM Industrial Fire Tender is a mainstay firefighting vehicle integrating powerful performance, efficient liquid transport, and multi-functional operation. Equipped with a 520-horsepower Isuzu engine and a Fast 12-speed transmission, it delivers robust power. Its core features include an 8cbm water tank and a 2cbm foam tank, integrated with a CB10/140 high-flow fire pump and a PL8/64 fire monitor. Coupled with comprehensive firefighting equipment, the vehicle boasts strong firefighting capabilities and high fire extinguishing efficiency. Specifically designed for extinguishing large-scale petrochemical and other special fires, it is a mainstay of modern firefighting forces.



   ♦ Africa Isuzu 10cbm Industrial Fire Tender ♦

Senegal Isuzu GIGA heavy rescue fire truck



Working Capacity

 Engine Model

 Wheelbase

 Superstructure

8000L water+2000L foam

 6WG1/ 520HP

 4800+1370mm

★Water tank carbon steel

★Foam tank 304 stainless Steel,

China famous CB10/140-XZ fire pump

 China famous PL8/64 Fire monitor

2025 year brand new



»Ⅰ. Main Features :



★ Isuzu 520HP powerful engine, 100,000 Km without prblem.

★ Isuzu GIGA 6x4 crew cabin,  Europen design

★ China famous CB10/140 fire pump, super reliable

★ Tank capacity can be customized

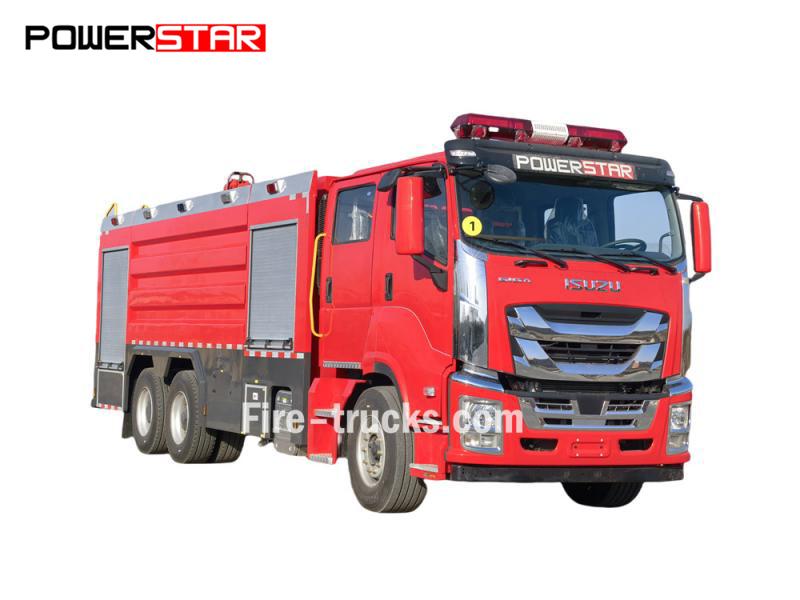

  • Isuzu GIGA 6X4 10000L foam water fire truck
  • Isuzu GIGA 6x4 10000L foam fire fighting truck

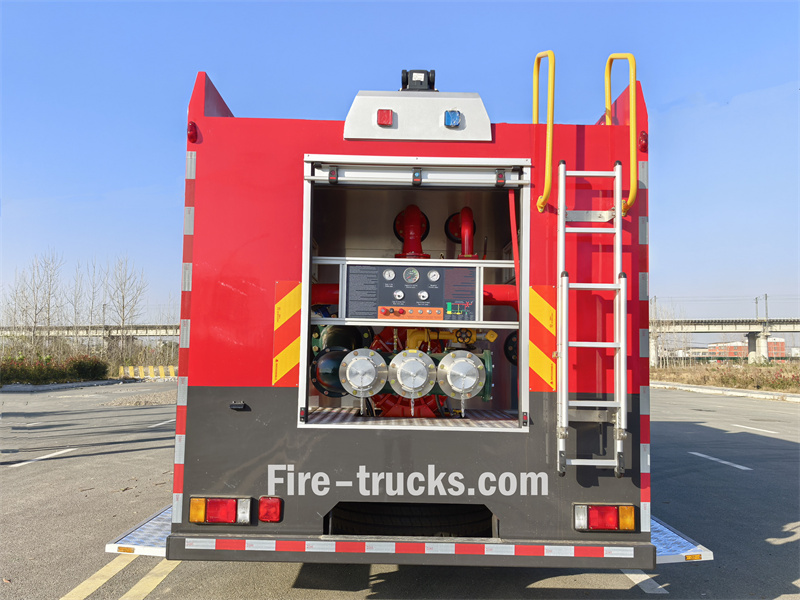

  • Isuzu GIGA 10cbm foam fire engine

 » Ⅱ.Product Parameter :

ISUZU GIGA 6X4 10000L foam water fire truck

General

Work capacity

8000L water tank,2000L foam tank

Truck chassis

Isuzu GIGA 6X4

Engine Power

520 HP/ Isuzu 6WG1-TCG62

Fire pump

CB10/140-XZ

Chassis

Drive Type

4X2

Transmission

FAST 12-shift, manual

Wheelbase

 4800+1370mm

Tire

385/65R22.5 /  315/80R22.5,10+1wheel





Fire pump

Model

CB10/140-XZ

Pressure

1MPa

Max working pressure

1.430MPa

Max allowable inlet pressure

0.4MPa

Flux

140L/s

Max suction height

7m

Rated speed

2600±50r/min

Speed ratio

1:1.09

Water diversion time

50s

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/64

Flow

64L/s

Rated working pressure

0.8MPa

Max working pressure

1.2MPa

Range

Water

75m

Foam

70m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

Suction tube

125*2m,4pic

 Standard  configuration

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……


-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)




Chassis:

1. Brand and Model: Isuzu GIGA 6X4 heavy-duty chassis, reliable quality and strong load-bearing capacity.



2. Gross Vehicle Weight: 35 tons, 9-ton front axle, 26-ton rear axle, 4800mm + 1370mm wheelbase, classified as a heavy-duty fire truck.



3. Engine: Equipped with an Isuzu 6WG1-TCG62 diesel engine, maximum power 520 hp/382 kW, 2256 N.m torque, providing strong power.



4. Transmission: Matched with a Fast 12-speed manual transmission, offering multiple gear selections to adapt to various working conditions and achieve good power output and fuel economy.



Africa isuzu 10 cbm industrial fire vehicle



» Ⅲ. Fire Pump system :

Fire Pump:

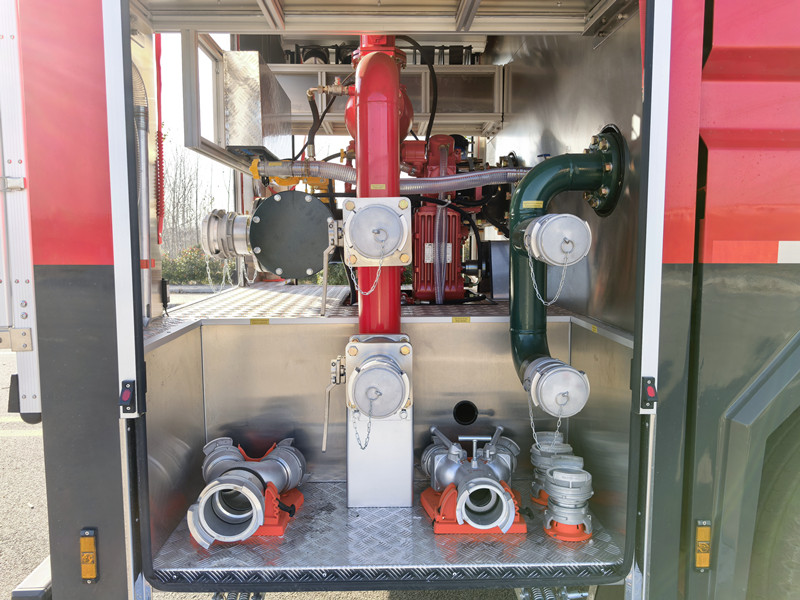

A CB10/140-XZ fire pump with a rated flow of 100L/s@1MPa is installed in the pump room at the rear of the vehicle. This fire pump is reliable and can provide strong water pressure, ensuring that fire hoses can spray water or foam at high pressure over long distances for fire extinguishing.



CB10/140-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/140-XZ

140L/s

1.0MPa

1.430MPa

0.4MPa

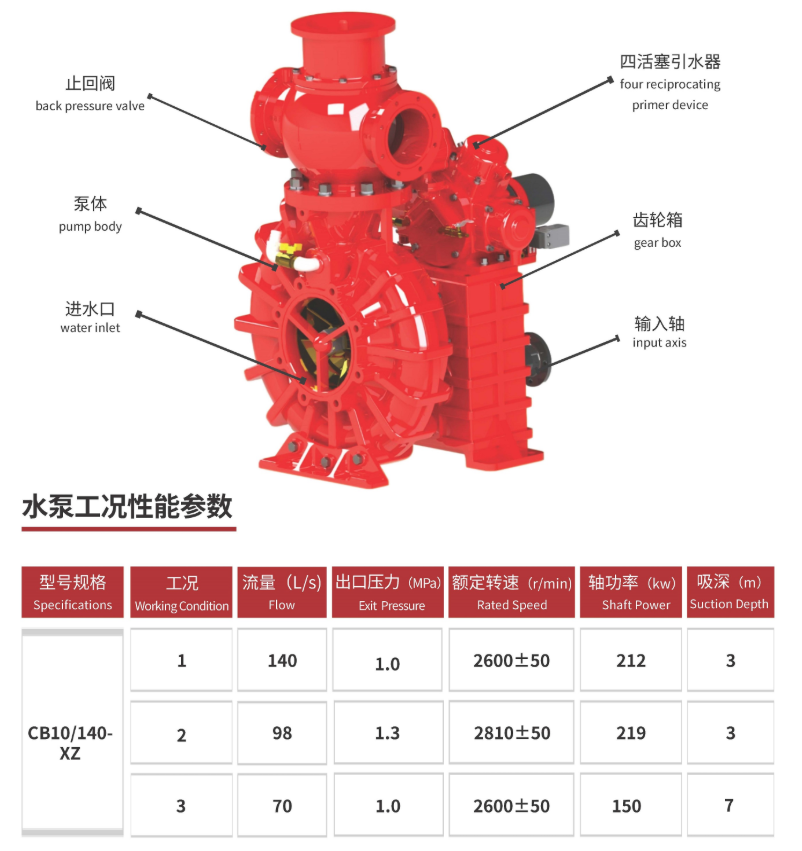

  • CB10/140-XZ fire pump
  • CB10/140-XZ fire pump
  • CB10/140-XZ fire pump

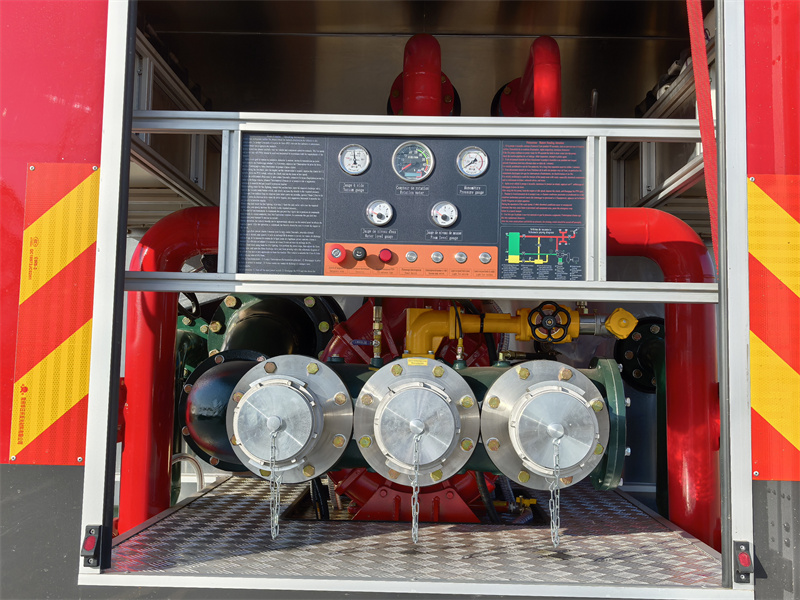

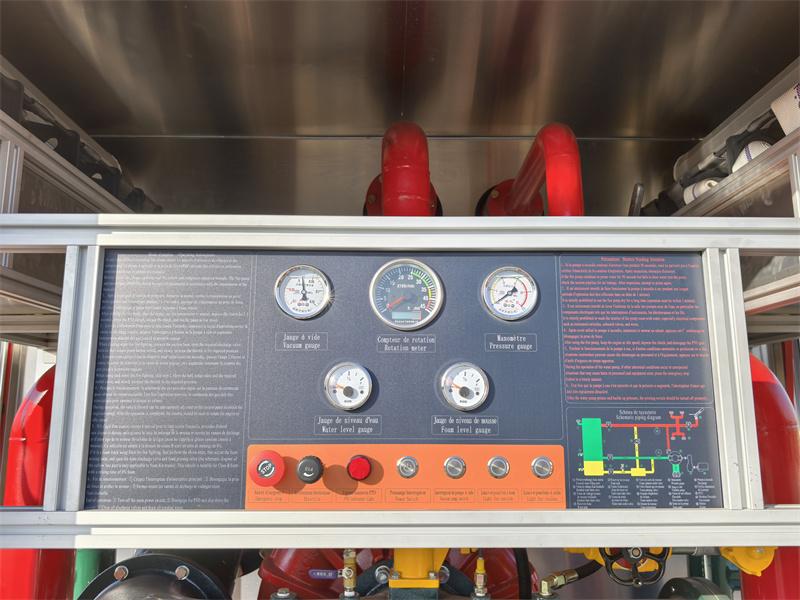

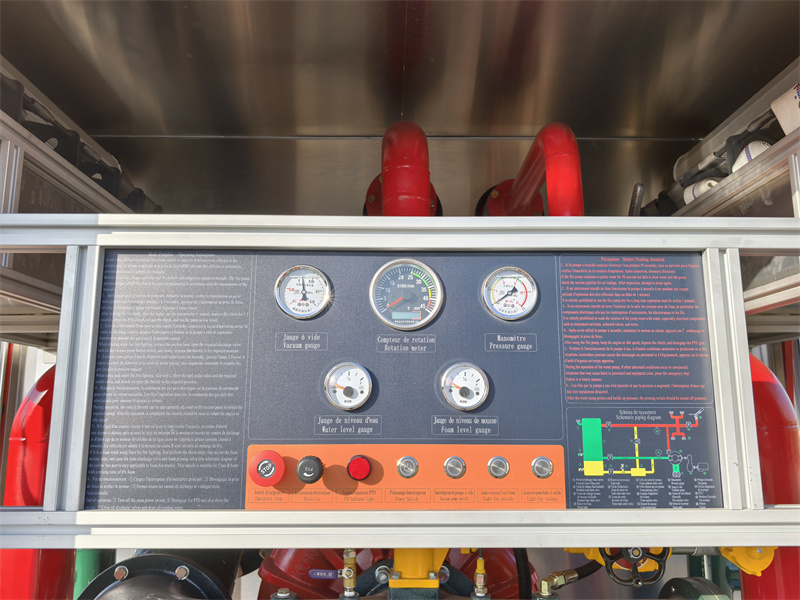

Control panel: Includes operating instructions, precautions, tank piping diagram, vacuum gauge, tachometer, pressure gauge, water level gauge, foam level gauge, emergency stop, electronic throttle, PTO, main power, vacuum pump switch, external lights, equipment room lights, and other buttons.





Control panel



» . Fire Monitor system :

Fire Monitor:

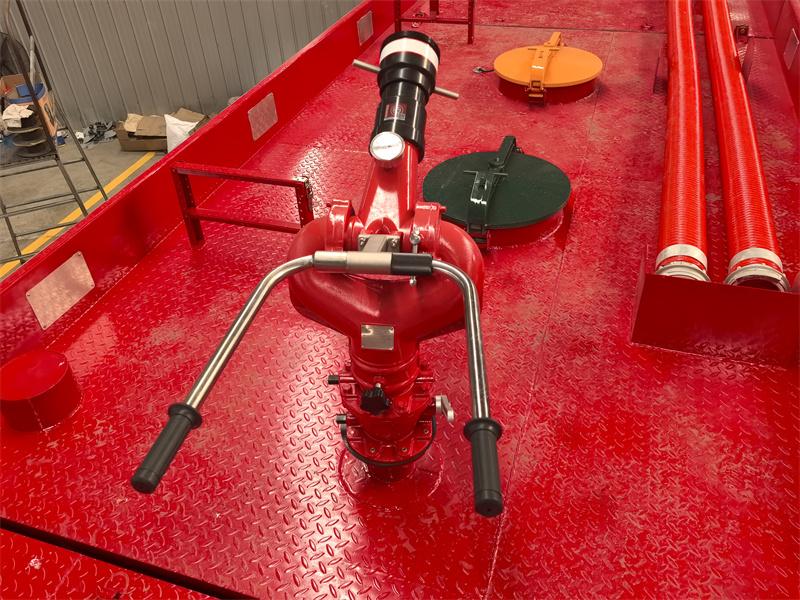

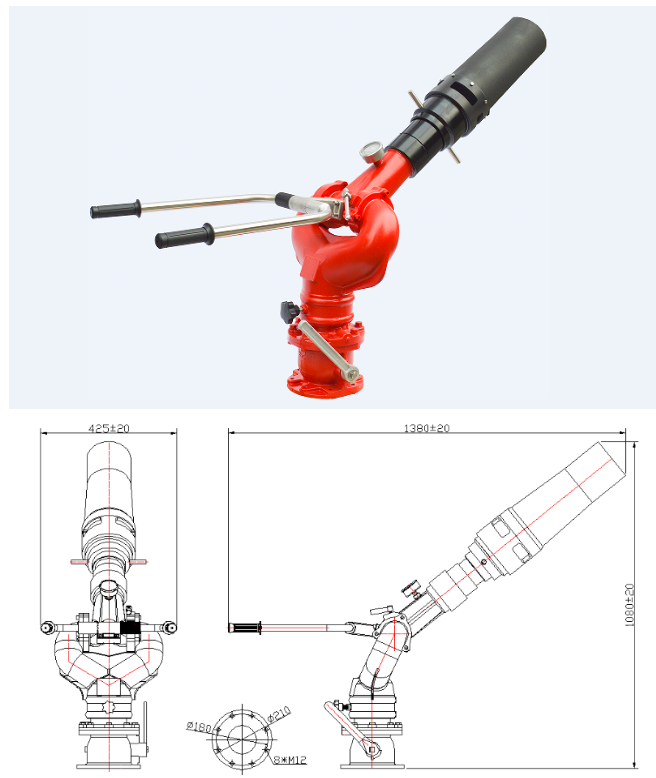

The PL8/64 type fire monitor is mounted on the roof of the vehicle. It has a flow rate of up to 64L/s and a long range (water ≥75m, foam ≥70m). It can perform various spray modes such as direct current and spray pattern.



PL8/64 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/64 64L/s

Water ≥75m,

foam ≥70m

0.80MPa -45°~+70°
0~360° 27kg

PL8/64 Fire Monitor


» .Firefighting Equipment:

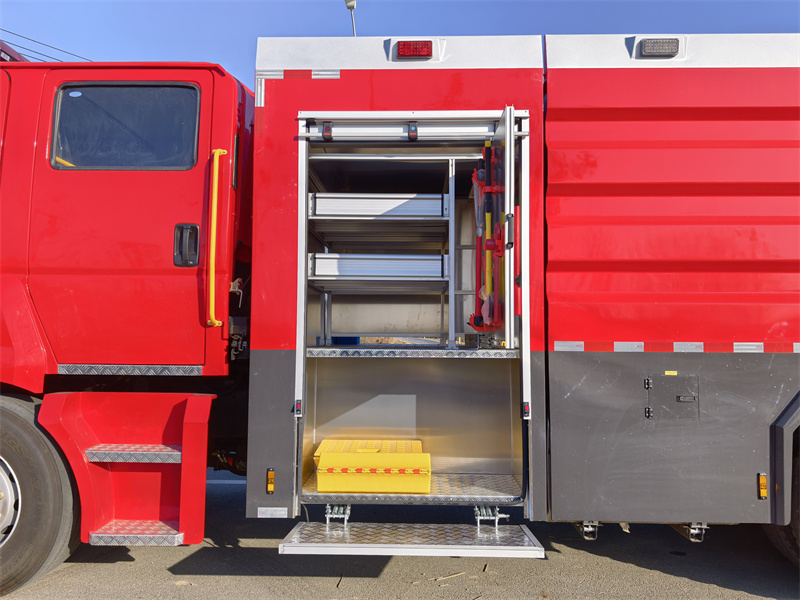

• Equipment Room: Located at the front of the vehicle's superstructure, this room is equipped with equipment racks and pull-out hanging shelves. The racks are logically designed to neatly store various firefighting equipment (fire suits, fire blankets, hose covers, fire bridges, fire extinguishers, etc.); the pull-out hanging shelves provide easy and quick access to commonly used equipment such as fire axes, picks, shovels, wrenches, hammers, and crowbars, improving rescue efficiency.



Equipment Room

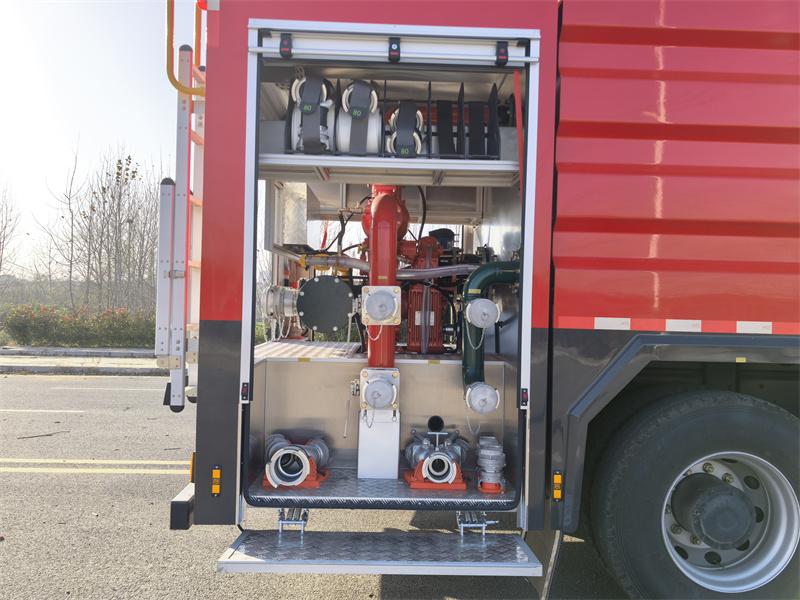

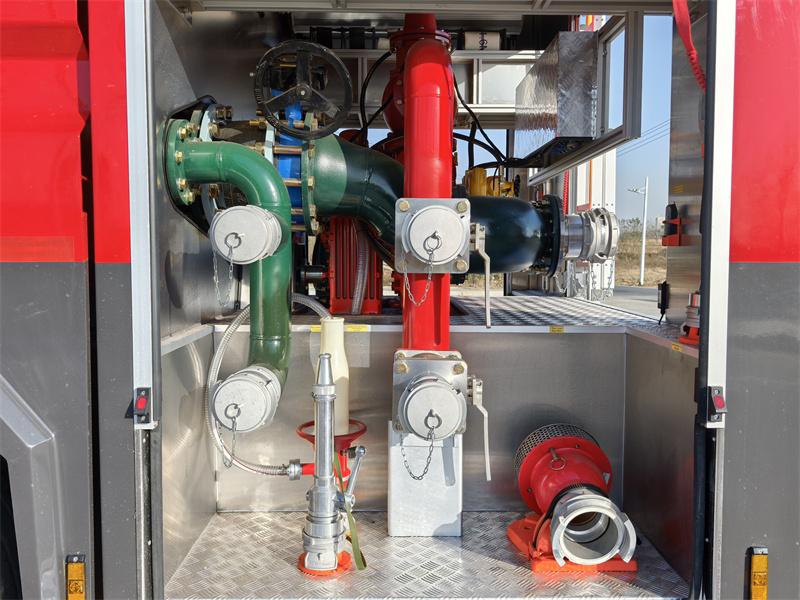

 Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.

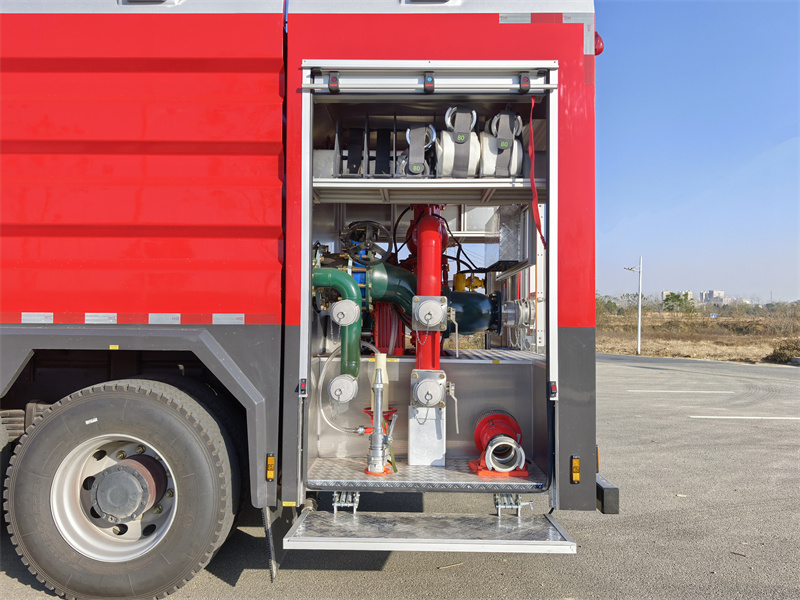

Firefighting Equipment



» .Technical Design:



 POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

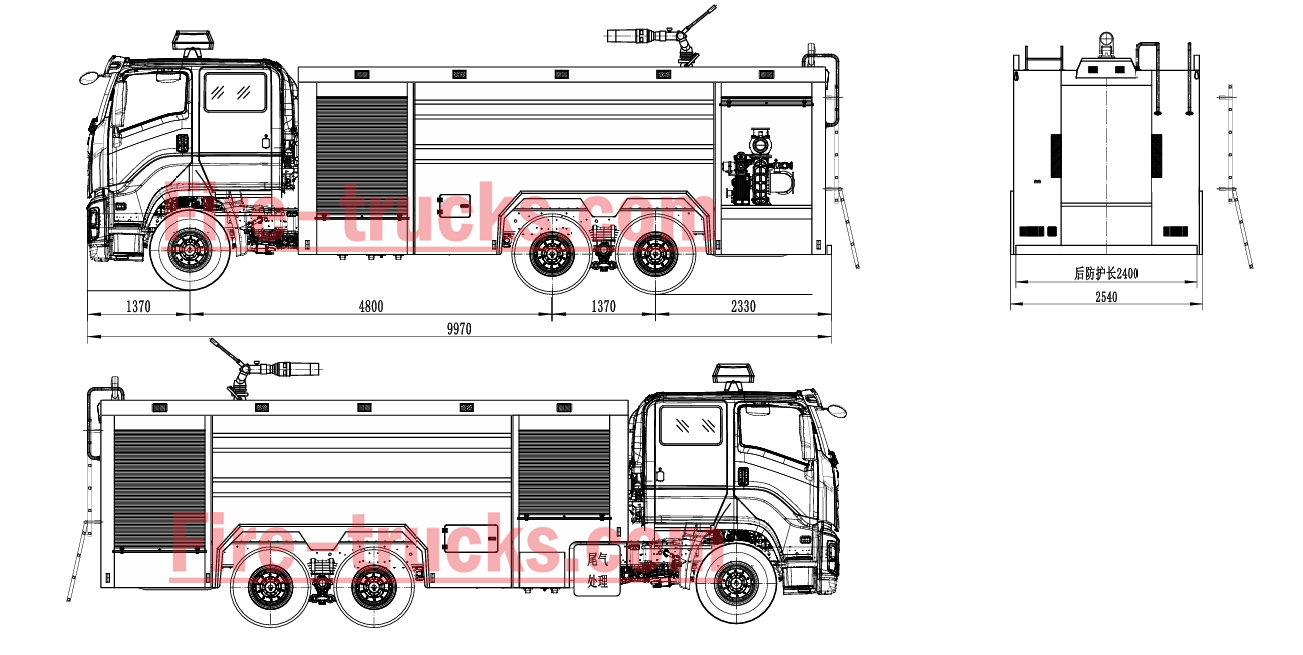

ISUZU GIGA 6x4 10000L foam water fire truck technical drawing



» .Preshippment Test:

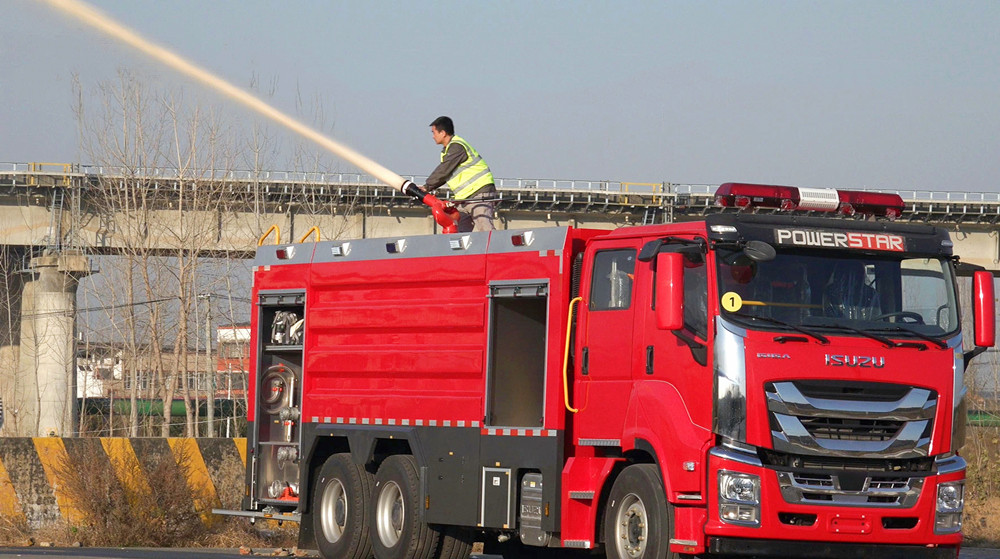

Before delivering the Isuzu GIGA 6X4 520hp 10cbm foam fire truck from our factory, we conducted a factory inspection of the fire truck, including rainwater testing, performance testing of the fire pump and fire monitor, and a final inspection of the welding process, paint, and other aspects.

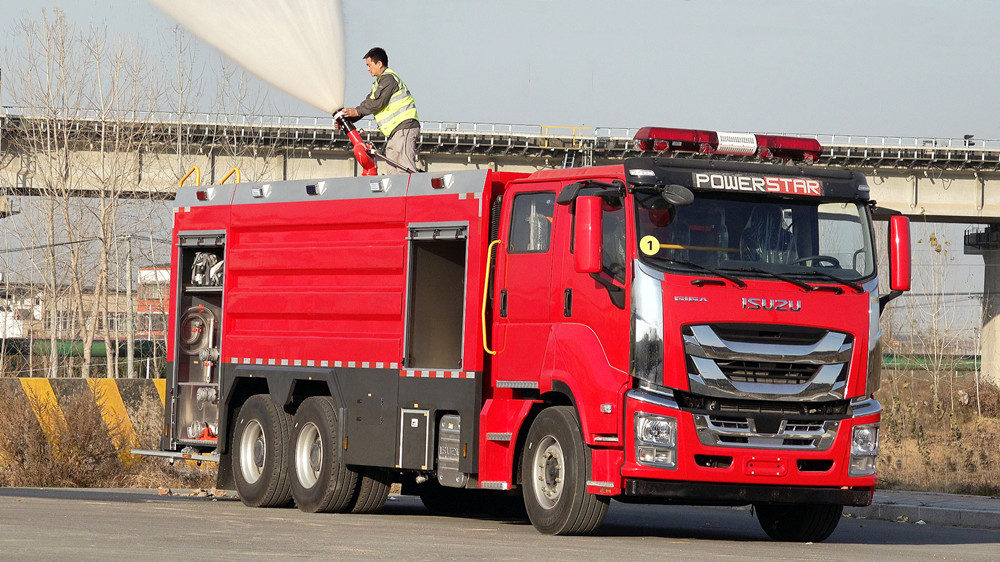

Isuzu 6WG1 engine 10cbm foam fire truck

Isuzu 6WG1 engine 10cbm foam fire truck



» . Application scenarios:



 In the African market, the Isuzu GIGA 6X4 10cbm foam fire rescue truck plays a vital role. Its 520-horsepower engine and robust chassis enable it to withstand the diverse high temperatures and complex road conditions of Africa. The large 10-ton fluid capacity reduces reliance on water replenishment, and the powerful firefighting system comprised of the CB10/140 fire pump, PL8/64 fire monitor, and other firefighting equipment efficiently extinguishes frequent fires in industrial areas, oil depots, and large venues, providing a solid guarantee for fire safety in Africa.



Africa Isuzu GIGA 6x4 10cbm foam fire truck

Africa Isuzu GIGA 6x4 10cbm foam fire truck

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related Products

Isuzu GIGA VC66 foam tanker firefighting truck
5 CBM Pumper Tanker Fire Truck Isuzu

ISUZU GIGA VC66 heavy duty water foam tanker Fire Engine is a professional pumper firefighting vehicle, equipped with 6UZ1-TCG61 diesel engine with 380HP and 9839cc emission.Matched working with a CB10/60 fire pump and a PL8/48 fire monitor on top, with efficiently working distance for water 65 meters and foam 55m. The POWERSTAR foam pumper fire truck is particularly suited for combating complex fires in petrochemical plants, community, ports, and similar environments

Details
Foton Auman 6x4 12000L Foam Fire Engine Truck Export to Africa
Foton Auman 12000L Fire truck For Oil Field

The Foton Auman 12000L fire truck is powered by a Foton ISGE3-380 engine and built on a 6×4 chassis. The front compartment features aluminum alloy anti-slip treadplate walls for storing fire hoses, suction tubes, and basic tools. The middle section carries a 10,000L carbon steel water tank and a 2,000L foam tank. The rear pump room houses the CB10/80-LC fire pump (140L/s flow, 1MPa pressure), control panel, and accessories including filters, couplings, and foam guns. A PL8/64 fire monitor is mounted on the cab roof, offering 360° rotation and water/foam range up to 75m and 70m respectively.

Details
HOWO TX600 8X4 Foam Pump Fire Fighting Truck
HOWO 8x4 Industrial Heavy Fire Tender

The HOWO 8×4 industrial fire tender runs on an MC11.46-61 engine rated at 463 HP, paired with a heavy-duty 8×4 chassis. Up front, the equipment compartment has aluminum treadplate walls and houses fire hoses, suction tubes, and basic rescue tools. The main body carries a 20,000L water tank and a 5,000L foam tank, both made of carbon steel. At the rear, the pump room holds a CB10/100 fire pump (100L/s at 1.0MPa), control panel, and accessories like filters, couplings, and foam nozzles. A PL8/80 roof-mounted monitor provides 360° rotation and a range of ≥45m.

Details

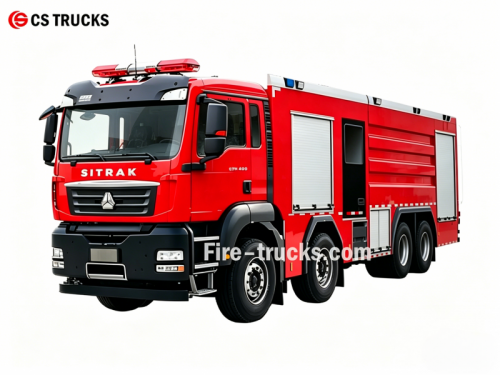

HOWO SITRAK 6600 Gallons Water Rescue Fire Truck
