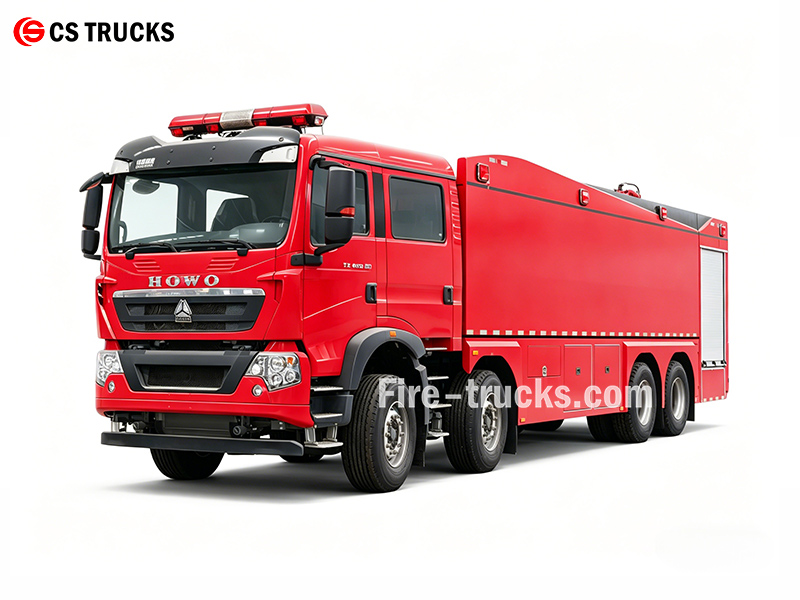

TOGO HOWO TX 25,000L Heavy Water Fire Trucks

TOGO HOWO TX 25,000L Heavy Water Fire Trucks

The HOWO 8×4 25000L heavy water fire truck is built on a SINOTRUK HOWO 8×4 chassis with a 1950+4600+1400 mm wheelbase. It is powered by an MC11.46-61 engine rated at 460 HP and paired with a manual transmission. The vehicle carries a 25000L water tank. A CB10/100-TB fire pump (100 L/s at 1.0 MPa) and a roof mounted PS8/80W monitor (80 L/s, water range ≥85 m) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, water gun, and basic tool kit.

  • Truck Chassis:

    SINOTRUK HOWO 8×4
  • Tanker Capacity:

    25000L water
  • Engine Power:

    460 HP (338 kW) / MC11.46-61
  • Fire Pump:

    CB10/100-TB
  • Pump Flow:

    100 L/s @ 1.0 MPa
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    PS8/80W
  • Monitor Flow:

    80 L/s
  • Monitor Range:

    Water ≥85 m
Facebook Linkedin Youtube Twitter Pinterest

,,The HOWO 8×4 25000L heavy water fire truck (also called water tanker tender, fire fighting water pump truck, wildland water tender) is built for firefighting and emergency response in industrial facilities, power plants, and municipal settings. This HOWO 460 HP water fire truck features a 25000 liter water tank, a CB10/100-TB fire pump (100 L/s at 1.0 MPa), and a roof mounted PS8/80W fire monitor with 85 meter water range.



The truck carries a full set of standard firefighting equipment, including hoses, suction tubes, couplings, and a water gun. This water fire truck works well for Class A fires involving wood, paper, textiles, and rubber. It suits firefighting tasks at factories, warehouses, refineries, airports, and chemical plants.



 ♦ TOGO HOWO TX 25,000L Heavy Water Fire Trucks ♦



TOGO HOWO TX 25,000L Heavy Water Fire Trucks

Working Capacity

 Engine Model

 Wheelbase

 Superstructure

25000L water

460 HP / MC11.46-61

1950+4600+1400 mm

★ Water tank carbon steel, 25000L capacity

★ CB10/100-TB fire pump, 100 L/s flow at 1.0 MPa

★ PS8/80W roof monitor, 80 L/s flow with water range ≥85 m

 2026 year brand new

» Ⅰ. Main Features :

★ MC11.46-61 engine rated at 460 HP for water fire suppression and industrial emergency response

★ HOWO 8×4 chassis with 25000L water tank and CB10/100-TB fire pump (100 L/s at 1.0 MPa)

★ Roof mounted PS8/80W monitor with 80 L/s flow and water range ≥85 m for long distance fire attack

★ Complete standard equipment including hoses, suction tubes, couplings, and water gun for Class A fire fighting

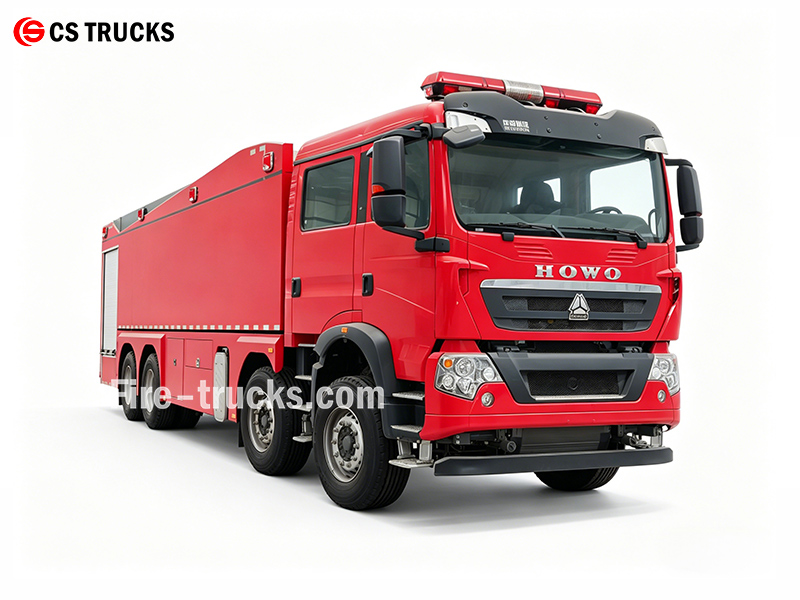

  • Guatemala HOWO 8×4 460 HP 25000L water fire truck

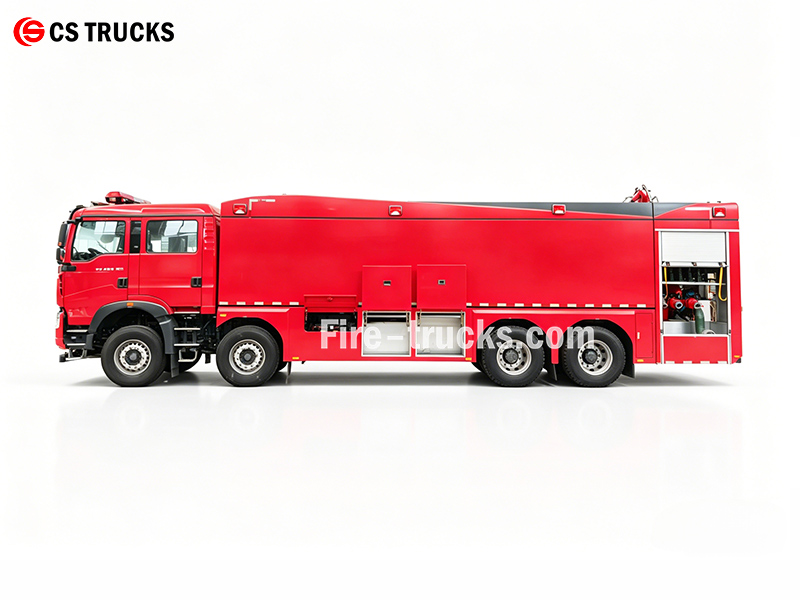

  • HOWO heavy duty water fire engine 8×4 chassis

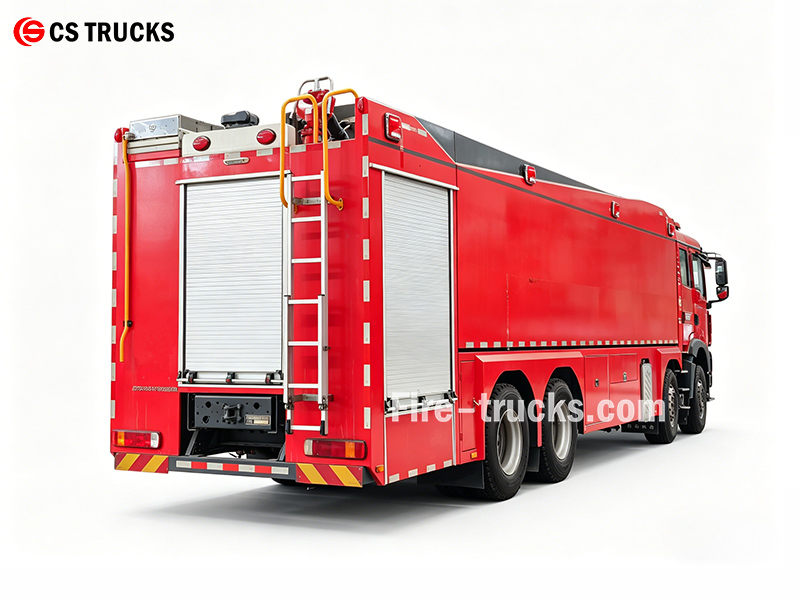

  • HOWO 25000L water tender for fire fighting

» Ⅱ.Product Parameter :


TOGO HOWO TX 25,000L Heavy Water Fire Trucks
General Work capacity 25000L water tank
Truck chassis SINOTRUK HOWO 8X4
Engine Power 460 HP (338KW) / MC11.46-61
Fire pump CB10/100-TB
Fire Monitor PS8/80W
Maximum Speed 95 km/h
Overall Dimensions L*W*H 12000*2540*3750 mm
Gross Vehicle Weight 42680 kg
Curb Weight 17030 kg
Engine Engine Model MC11.46-61
Fuel Type Diesel
Power 460 HP(338KW)
Emission Standard Euro 6
Displacement 10518 ml
Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Drive Type 8x4
Chassis Wheelbase 1950+4600+1400 mm
Tire 385/65R22.5 18PR
Tire No. 12 tires and 1 spare tire
Model CB10/100-TB
Flux 100L/s
Pressure 1MPa
Fire Pump Max working pressure 1.251MPa
Max allowable inlet pressure 0.4MPa
Max suction height 3m
Rated speed 3916±50r/min
Speed ratio 1:1.4
Water diversion time ≤50s
Fire Monitor Model PS8/80W
Flow 80L/s
Rated working pressure 0.8MPa
Max working pressure 1.2MPa
Range Water ≥85m
Pitch rotation - 35~+70°
Horizontal rotation 0~360°
Standard  configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

» Ⅲ.Products Description :

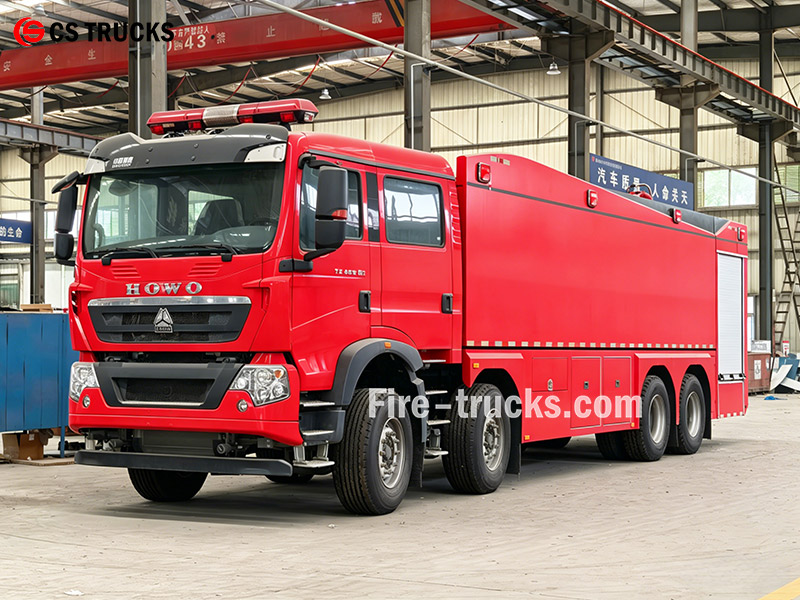

HOWO 8×4 water pumper fire truck 460 HP

1. Chassis & Powertrain

 HOWO 8×4 chassis with 1950+4600+1400 mm wheelbase, built for heavy loads and stable handling on industrial roads and rough terrain.



  MC11.46-61 diesel engine, 460 hp output with high torque, reliable for quick response, continuous pump operation, and large water volume discharge.



  25000L water tank, carbon steel construction with internal baffles to reduce water surge on rough roads.

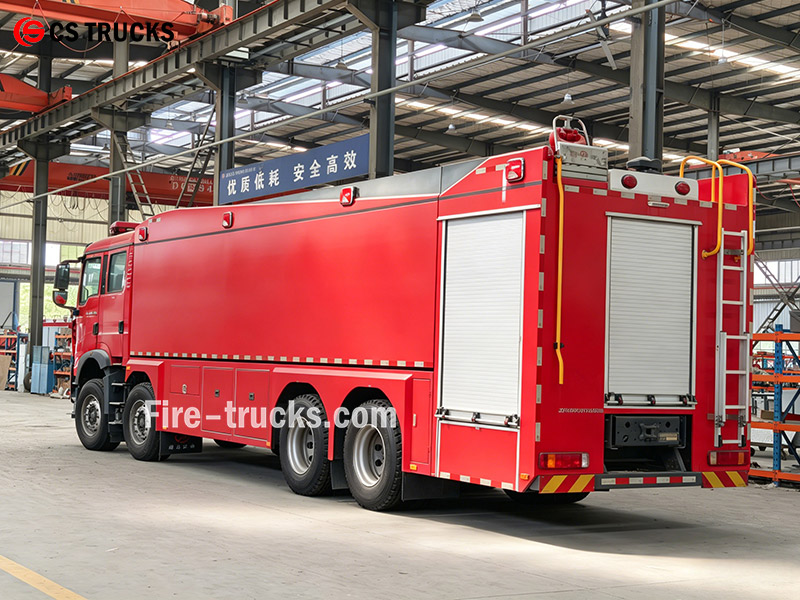

HOWO 8×4 wildland water fire truck for sale

2.Fire Suppression System

CB10/100-TB fire pump, 100 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.



PS8/80W roof monitor, 80 L/s flow, water range ≥85 m, horizontal 360° rotation, pitch -35° to +70°.

» .Fire Pump System

Fire Pump:

A CB10/100-TB fire pump with a rated flow of 100 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water effectively over long distances for fire suppression.

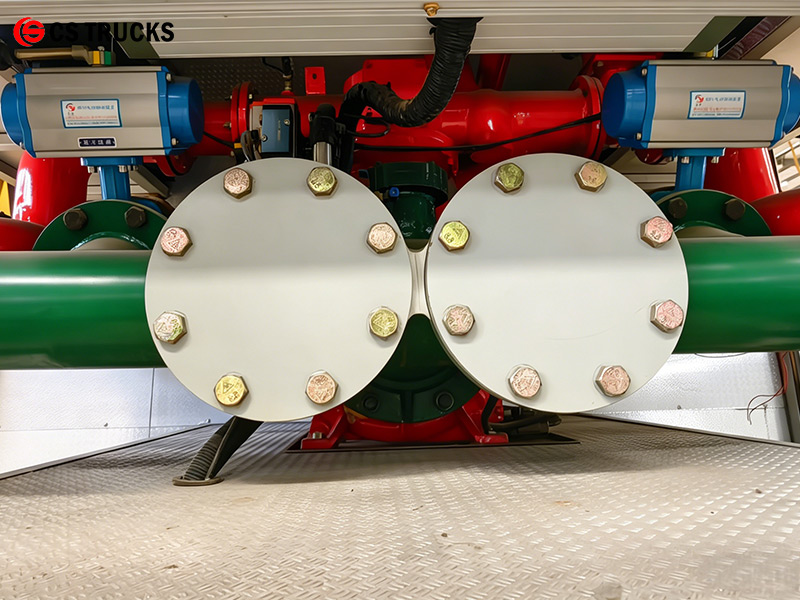

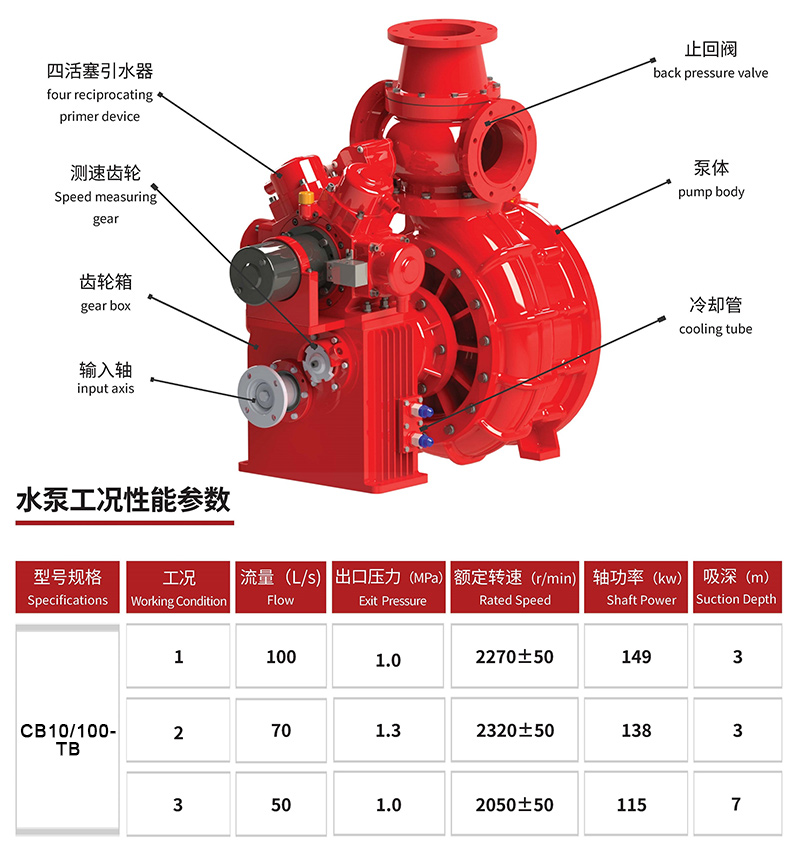

CB10/100-TB fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/100-TB

100 L/s

1.0MPa

1.251 MPa

0.4MPa

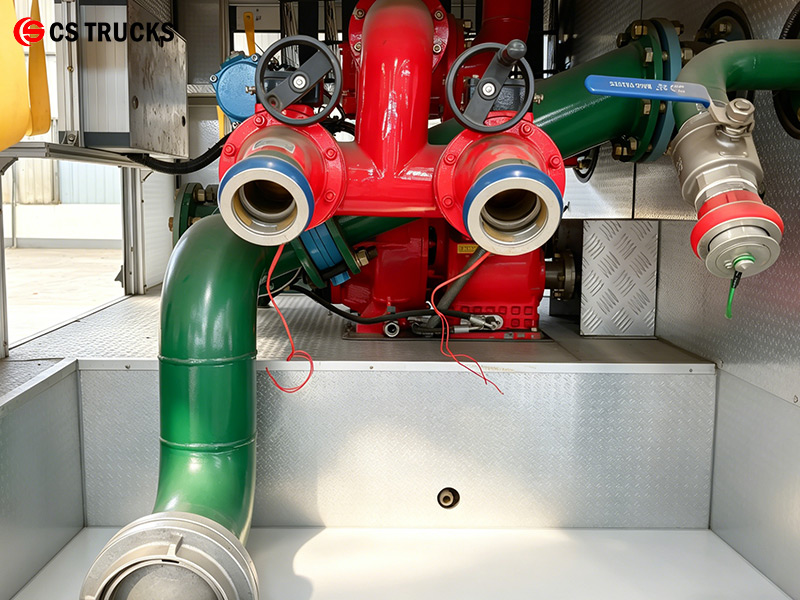

  • CB10/100-TB fire pump

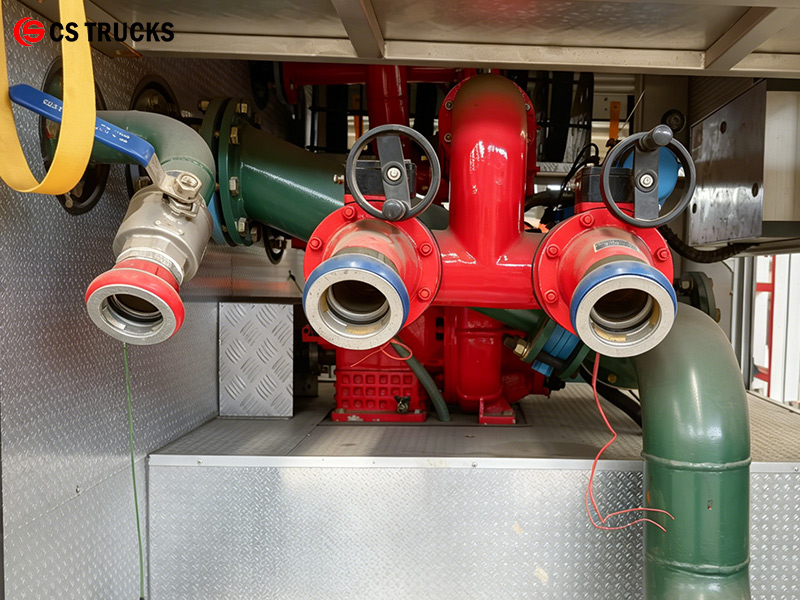

  • CB10/100-TB fire pump
  • CB10/100-TB fire pump


» .Fire Monitor System :

The PS8/80W fire monitor is mounted on the cab roof. It delivers a flow rate of 80 L/s with a water range of ≥85 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

PS8/80W fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation
PS8/80W 80 L/s Water ≥85 m 0.8 MPa -30°~+90°
0~360°



» .Firefighting Equipment :

Equipment Room:

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

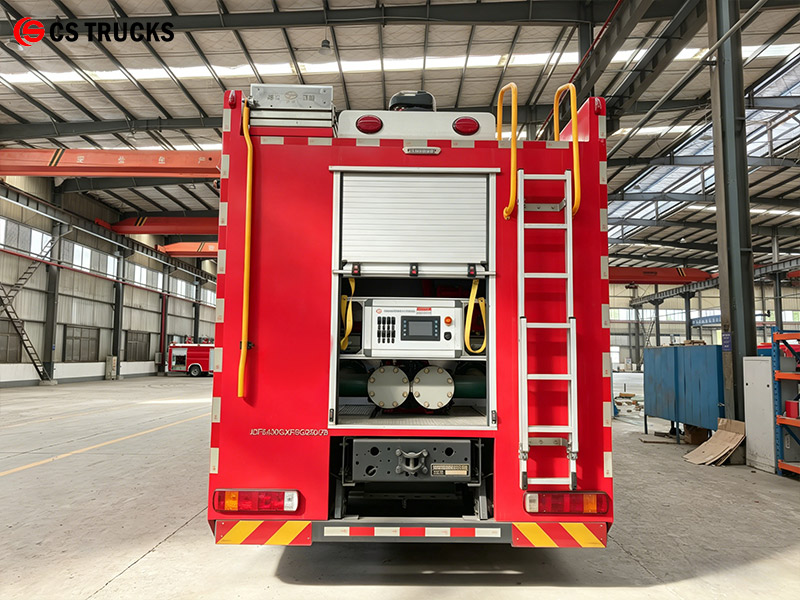

HOWO 25000L industrial water fire tender Equipment Room

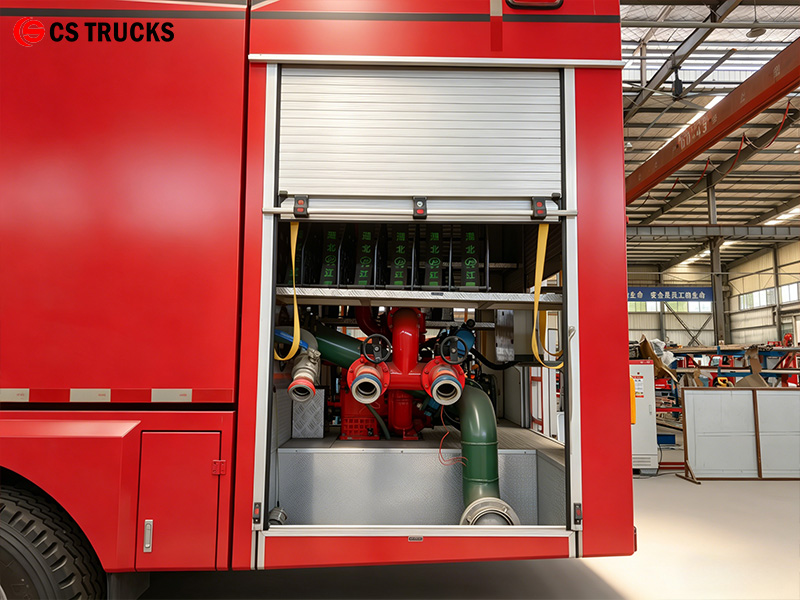

Pump Room: Equipped with CB10/100-TB fire pump, control panel, pressure gauge, vacuum gauge, and lighting system. Accessories include fire hoses, suction hoses, collectors, strainers, fire nozzles, water guns, suction hose wrenches, and reducers.



HOWO 25000L municipal water fire truck Firefighting Equipment



The HOWO 8×4 25000L heavy water fire truck comes with a rear-mounted CB10/100-TB fire pump and a cab top PS8/80W monitor. The water tank holds 25,000 liters, sitting on a sturdy HOWO 8×4 chassis powered by a 460 HP MC11.46-61 engine. Standard gear includes fire hoses, suction tubes, couplings, a water gun, and a complete tool kit. Full specifications are listed below:

HOWO 25000L water fire engine fire rescue equipment

fire rescue equipment



» .Application scenarios

HOWO 8x4 460 HP water fire engine for municipal use

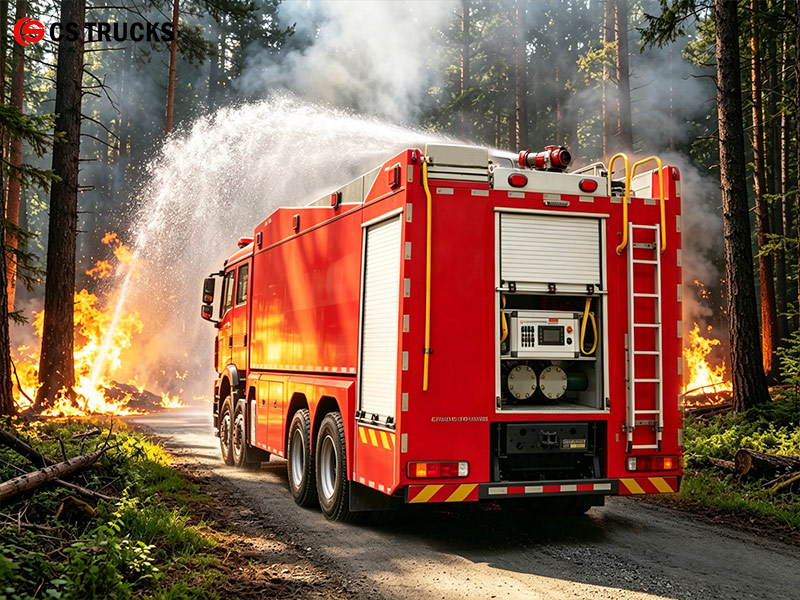

HOWO 8×4 460HP wildland water fire tender truck
