HOWO SITRAK 6600 Gallons Water Rescue Fire Truck

HOWO SITRAK 6600 Gallons Water Rescue Fire Truck

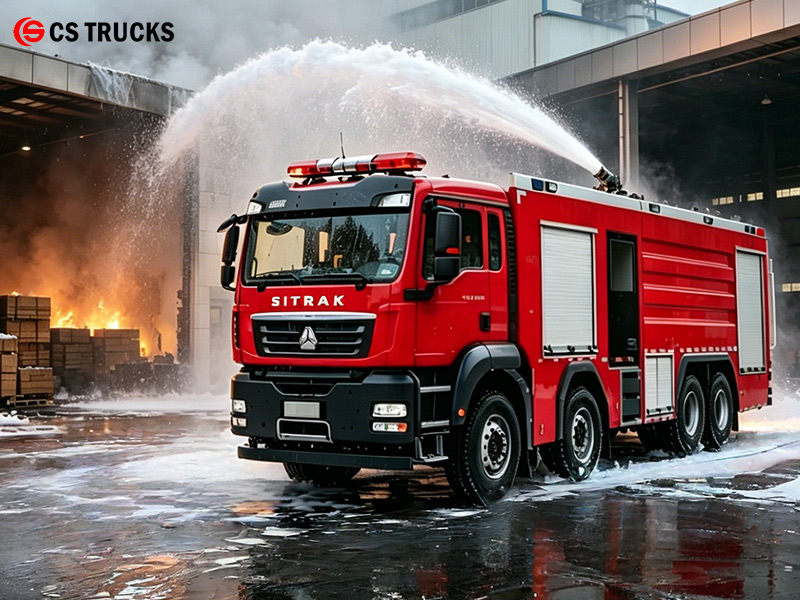

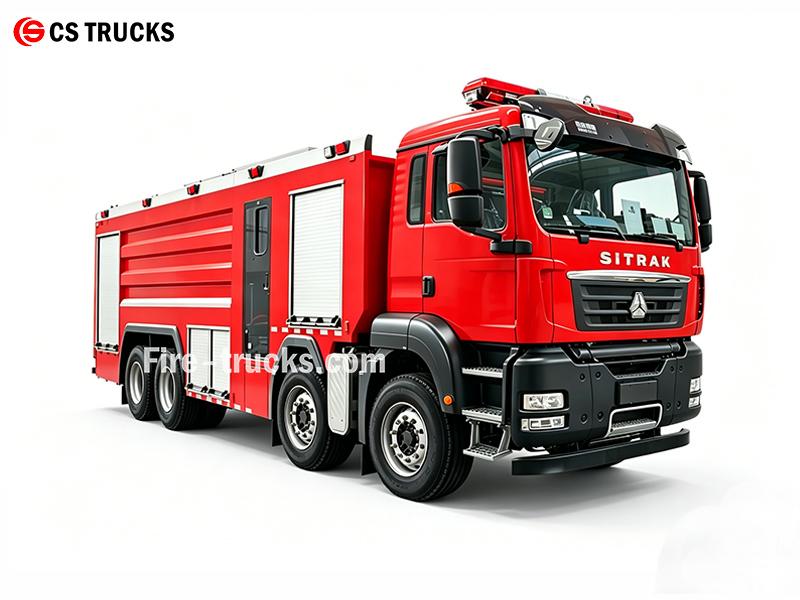

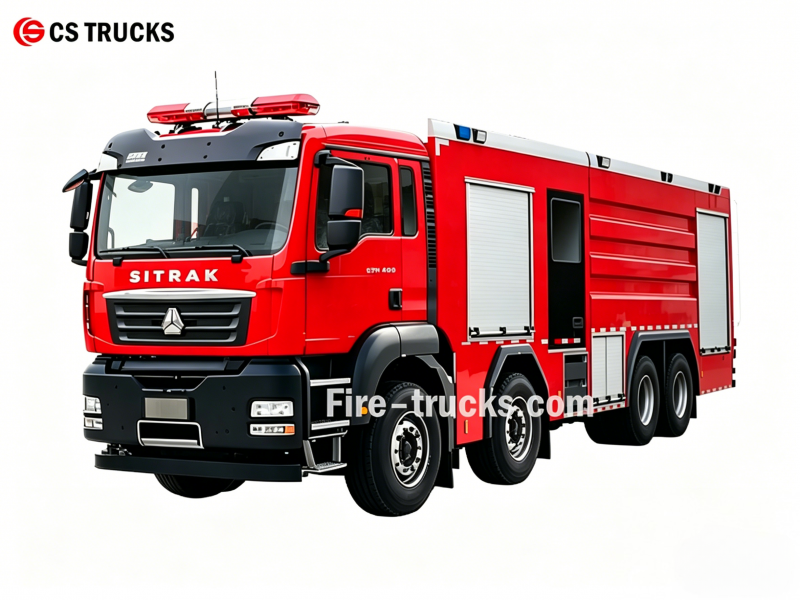

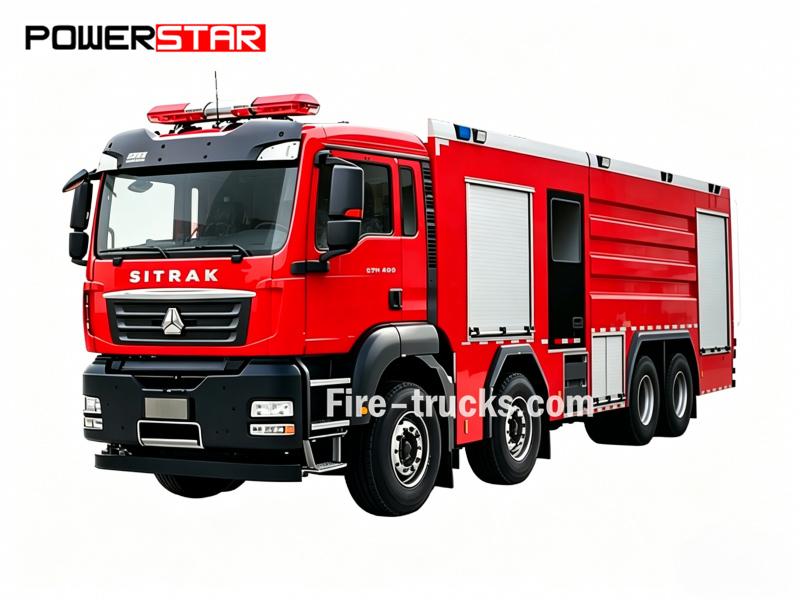

The SITRAK 8×4 18500L foam fire truck is built on a SITRAK ZZ5446V516MF1 8×4 chassis with a 1950+4600+1400 mm wheelbase. It is powered by an MC11.46-61 engine rated at 460 HP and paired with a manual transmission. The vehicle carries a 12000L water tank and a 6500L foam tank. A Hill CB10/150-8FC fire pump (150 L/s at 1.0 MPa) and a roof mounted Akron PLKD10/100B-5178 monitor (100 L/s, water ≥90 m, foam ≥85 m) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, foam gun, and basic tool kit.

  • Truck Chassis:

    HOWO SITRAK 8×4
  • Tanker Capacity:

    12000L water + 6500L foam
  • Engine Power:

    460 HP / MC11.46-61
  • Fire Pump:

    Hill CB10/150-8FC
  • Pump Flow:

    150L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    Akron PLKD10/100B-5178
  • Monitor Flow:

    100L/s
  • Monitor Range:

    Water ≥90 m, Foam ≥85 m
Facebook Linkedin Youtube Twitter Pinterest

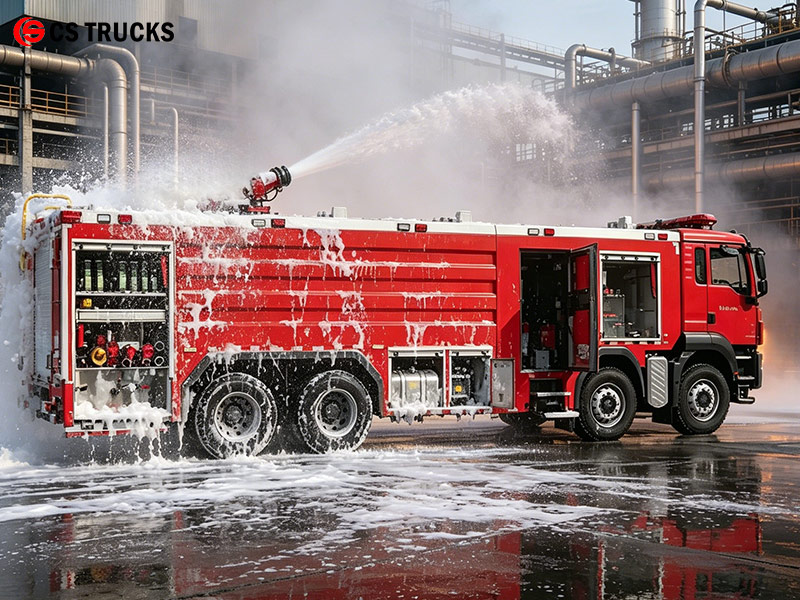

The SITRAK 8×4 18500L foam fire truck is built for firefighting and emergency response in petrochemical plants, oil depots, and industrial facilities. This SITRAK 460 HP foam water truck's main components are a 12000 liter water tank, a 6500 liter foam tank, a Hill CB10/150-8FC fire pump (150 L/s at 1.0 MPa), and a roof mounted Akron PLKD10/100B-5178 fire monitor with 90 meter water range and 85 meter foam range.



The truck carries a full set of standard firefighting equipment, including hoses, suction tubes, couplings, and a foam gun. This foam fire truck works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at petrochemical plants, oil depots, chemical warehouses, tank farms, and airports.

 ♦ HOWO SITRAK 6600 Gallons Water Rescue Fire Truck ♦



Guatemala SITRAK 8×4 460 HP 18500L Foam Fire Truck

Working Capacity

 Engine Model

 Wheelbase

 Superstructure

2000L water + 6500L foam

460 HP / MC11.46-61

1950+4600+1400 mm

★ Water tank and foam tank stainless steel, total 18500L capacity

★ Hill CB10/150-8FC fire pump, 150 L/s flow at 1.0 MPa

★ Akron PLKD10/100B-5178 roof monitor, 100 L/s flow

★ 2026 year brand new

» Ⅰ. Main Features :

★ MC11.46-61 engine rated at 460 HP for foam fire suppression and industrial emergency response

★ SITRAK 8×4 chassis with 12000L water tank, 6500L foam tank, and Hill CB10/150-8FC fire pump (150 L/s at 1.0 MPa)

★ Roof mounted Akron PLKD10/100B-5178 monitor with 100 L/s flow, water range ≥90 m, and foam range ≥85 m for long distance fire attack

★ 6 person independent crew cab with SCBA brackets, electric folding step, and complete standard equipment including hoses, suction tubes, foam gun for Class B fire fighting

  • SITRAK 8×4 460 HP 12000L Water Foam Fire Truck
  • SITRAK 8×4 18500L Chemical Plant Foam Fire Truck
  • SITRAK 8×4 460 HP Oil Depot Foam Fire Truck

» Ⅱ.Product Parameter :

HOWO SITRAK 6600 Gallons Water Rescue Fire Truck
General Work capacity 12000L water + 6500L foam
Truck chassis SITRAK 8×4
Engine Power 460 HP / MC11.46-61 (341 kW)
Fire pump Hill CB10/150-8FC
Fire Monitor Akron PLKD10/100B-5178
Maximum Speed 90 km/h
Overall Dimensions L*W*H 11850×2540×3510 mm
Gross Vehicle Weight 37220 kg
Curb Weight 18120 kg
Engine Engine Model MC11.46-61
Fuel Type Diesel
Power 460 HP(341KW)
Emission Standard  Euro VI
Displacement 10518 ml
Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Drive Type 8x4
Wheelbase 1950+4600+1400 mm
Tire 235/75R17.5 16PR
Tire No. 12 tires and 1 spare tire
Fire Pump Model Hill CB10/150-8FC
Flux 150 L/s@1.0 MPa
Pressure  1.0MPa
Max working pressure 1.251MPa
Max allowable inlet pressure 0.4MPa
Max suction height 7m
Water diversion time ≤80s
Vacuum pump type ESP electric sliding vane vacuum pump
Installation  Rear mounted
Fire Monitor Model  Akron PLKD10/100B-5178
Flow 100 L/s
Rated working pressure 1.0MPa
Range Water ≥60m
Foam ≥85 m
Rotation angle Horizontal 360°, pitch -30°~90°
Control  Wireless remote control
Foam Proportioner Model Hill SmartATP 125
Mixing ratio  1-10%
Max mixing flow 120 L/s
Structure Fully automatic negative pressure circulating pump type
 Standard  Configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……


» Ⅲ.Products Description :



SITRAK 8×4 18500L Petrochemical Foam Fire Truck

1. Chassis & Powertrain

♦ SITRAK ZZ5446V516MF1 8×4 chassis with 1950+4600+1400 mm wheelbase, built for heavy loads and stable handling on industrial roads and rough terrain.



♦ MC11.46-61 diesel engine, 460 hp output with high torque, reliable for quick response, continuous pump operation, and large foam volume discharge.



SITRAK 8×4 460 HP Industrial Foam Fire Truck

2.Fire Suppression System

♦ Hill CB10/150-8FC fire pump, 150 L/s flow at 1.0 MPa, PTO driven, 7m suction height, ≤80s priming time.



♦ Akron PLKD10/100B-5178 roof monitor, 100 L/s flow, water range ≥90 m, foam range ≥85 m, wireless remote control, horizontal 360° rotation, pitch -30° to +90°.



♦ Hill SmartATP 125 foam proportioner, fully automatic, mixing ratio 1-10%, max mixing flow 120 L/s.

» Ⅳ.Fire Pump System :

Fire Pump:

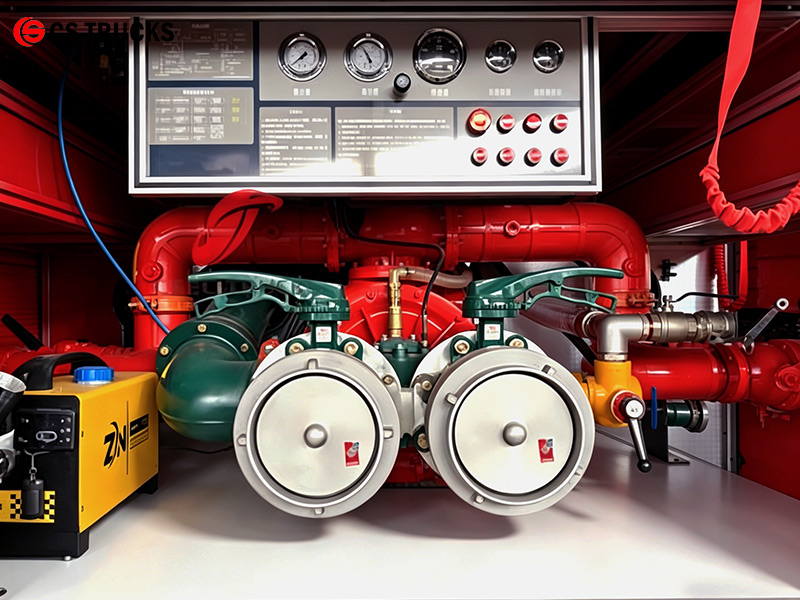

A Hill CB10/150-8FC fire pump with a rated flow of 150 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

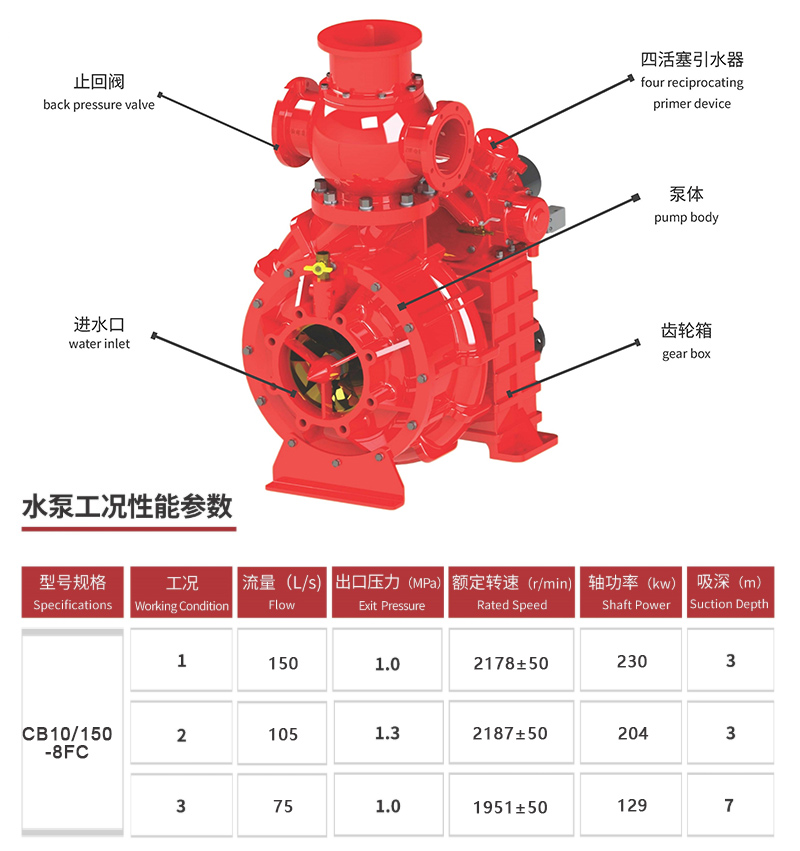

CB10/150 fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/150-8FC

150 L/s

1.0MPa

1.082MPa

0.4MPa

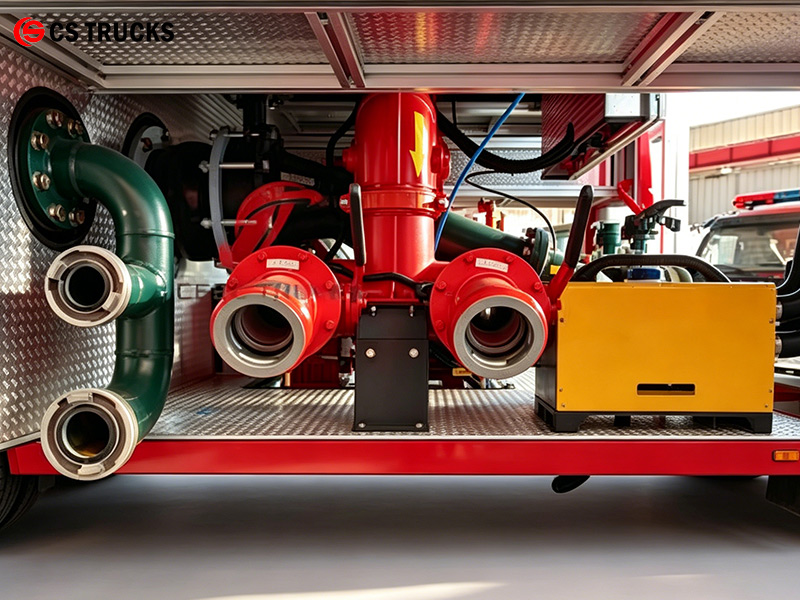

  • CB10/150 fire pump

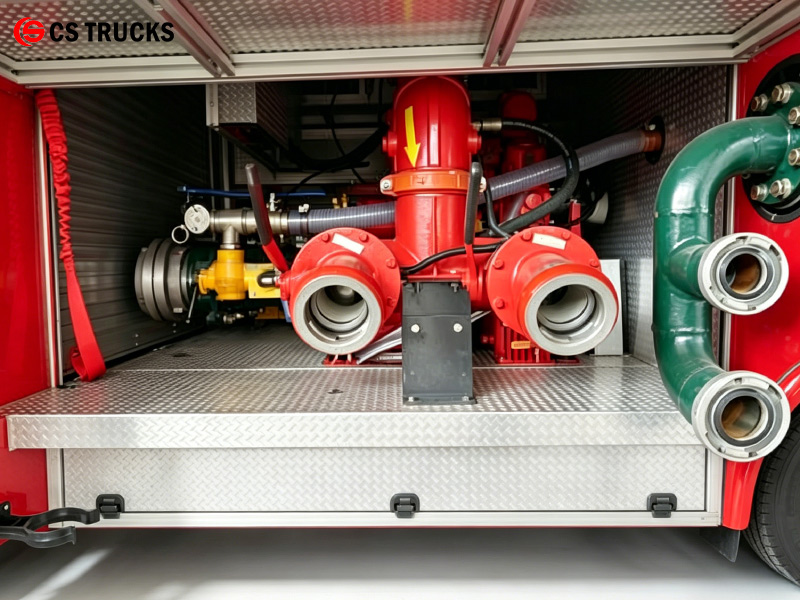

  • CB10/150 fire pump
  • CB10/150 fire pump


» Ⅴ.Fire Monitor System :

The Akron PLKD10/100B-5178 fire monitor is mounted on the cab roof. It delivers a flow rate of 100 L/s with a water range of ≥90 m and a foam range of ≥85 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations. Wireless remote control allows safe operation from a distance.

Akron PLKD10/100B-5178 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation
PLKD10/100B-5178 100 L/s Water ≥90m Foam ≥85m 1.0MPa -30°~+90°
0~360°



» Ⅵ.Firefighting Equipment :

• Equipment Room:

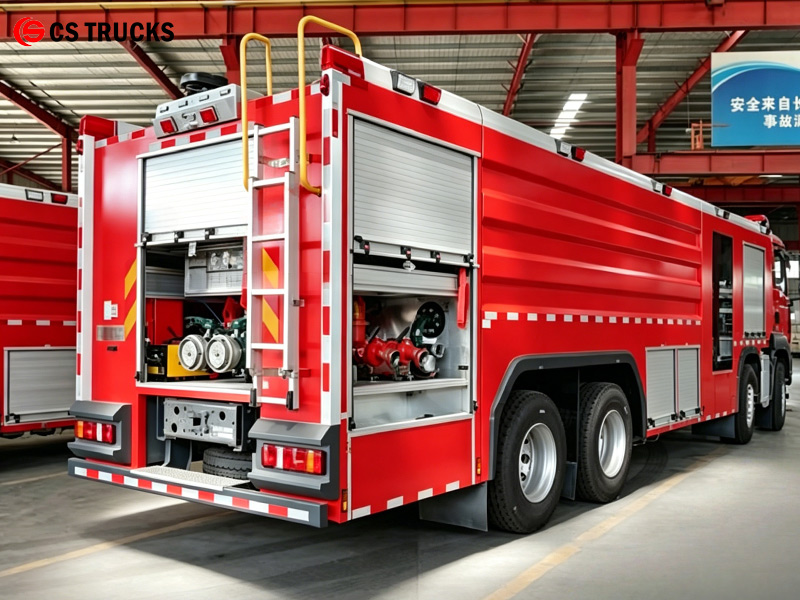

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

Equipment Room

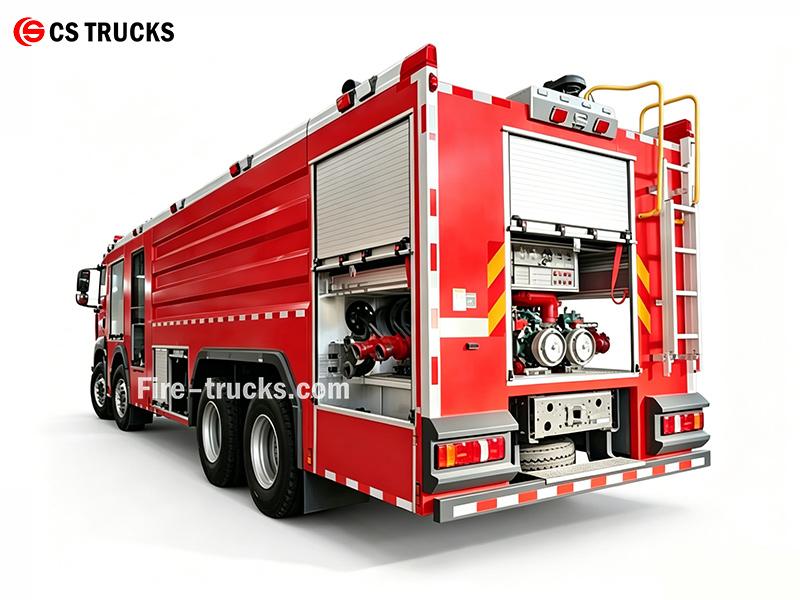

• Pump Room: Equipped with Hill CB10/150-8FC fire pump, control panel, pressure gauge, vacuum gauge, foam proportioner controls, and lighting system. Accessories include fire hoses, suction hoses, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and reducers.

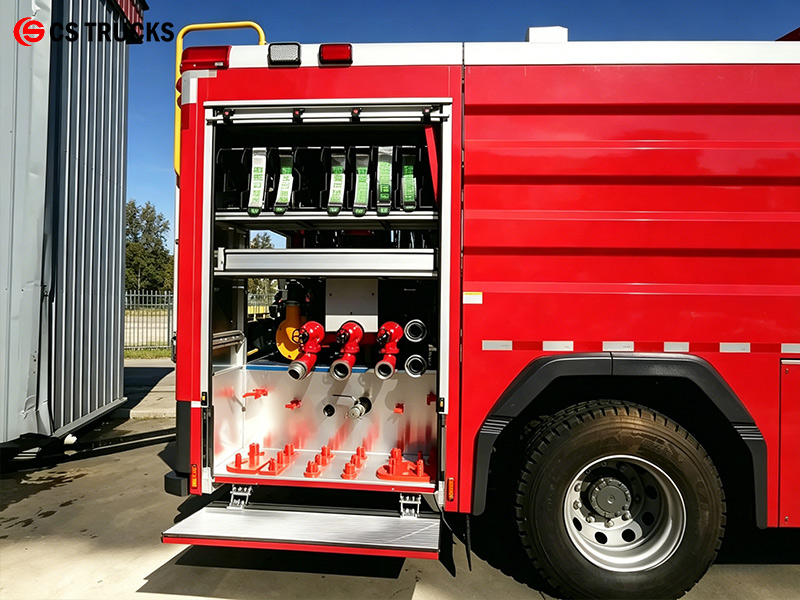

Firefighting Equipment

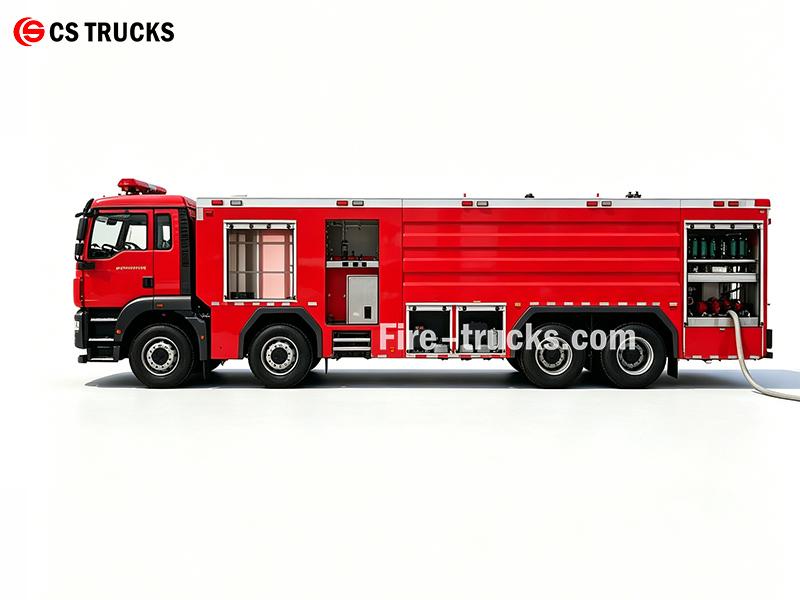

The SITRAK 8×4 18500L foam fire truck comes with a rear-mounted Hill CB10/150-8FC fire pump and a cab top Akron PLKD10/100B-5178 monitor. The water tank holds 12,000 liters and the foam tank holds 6,500 liters, all sitting on a sturdy SITRAK ZZ5446V516MF1 8×4 chassis powered by a 460 HP MC11.46-61 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. A 6 person independent crew cab with SCBA brackets and electric folding step is also included. Full specifications are listed below:

fire rescue equipment

fire rescue equipment



» Ⅶ.Application scenarios :

SITRAK 8×4 6500L 460 HP Foam Pumper Truck



SITRAK 8×4 6500L Wildland Foam Fire Truck
