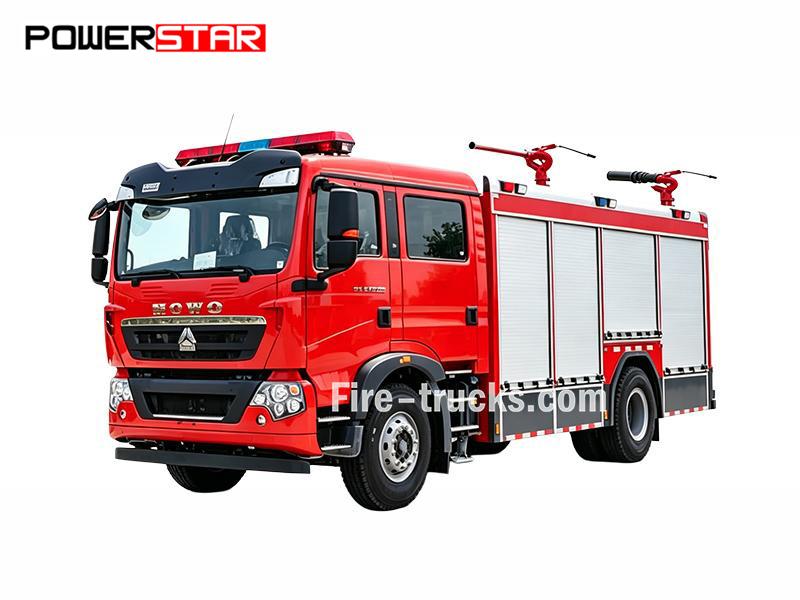

HOWO TX 4 Tons Dry Powder Emergency Fire Fighting Truck

HOWO TX 4 Tons Dry Powder Emergency Fire Fighting Truck

The HOWO TX 4 ton dry powder emergency fire truck is powered by a 350 HP MC07H.35-60 engine on a 4×2 chassis. It features 2000kg dry powder and 2000kg foam/water tanks, a CB10/60 fire pump (60 L/s), a PF5-15/30 dry powder cannon (30-35kg/s, range ≥35m), and a PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m). This triple agent truck handles Class A, B, and C fires, making it a versatile choice for industrial fire protection, chemical plants, and oil depots.

  • Truck Chassis:

    SINOTRUK HOWO 4x2
  • Tanker Capacity:

    4000kg total
  • Engine Power:

    350 HP (257 kW) / MC07H.35-60
  • Fire Pump:

    CB10/60
  • Pump Flow:

    60 L/s
  • Work Pressure:

    1.0 MPa
  • Fire Monitor:

    PL8/48 (foam/water) / PF5-15/30 (dry powder)
  • Monitor Flow:

    48 L/s (PL8/48) / 30-35 kg/s (PF5-15/30)
  • Monitor Range:

    Water ≥70 m , Foam ≥60 m, Dry powder ≥35 m
Facebook Linkedin Youtube Twitter Pinterest

The HOWO TX 4 ton dry powder emergency fire truck is built on a 4×2 chassis with a 350HP MC07H.35-60 engine. This HOWO triple agent fire fighting truck features a 2000kg dry powder tank, a 2000kg foam/water tank, a CB10/60 pump (60 L/s), a PF5-15/30 dry powder cannon (30-35kg/s, range ≥35m), and a PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m). Standard gear includes roll-up aluminum doors, LED lights, and fold-down steps—a solid choice for chemical plant fires, oil depot protection, and industrial emergency response.



HOWO TX 4 ton multi purpose emergency fire truck Philippines Dubai

 ♦ HOWO TX 4 Tons Dry Powder Fire Fighting Truck  ♦



Main Items

Technical Parameters for HOWO Emergency Rescue Fire Truck

Equipment box

Material

Oxidized aluminum frame & cover; baffle & profile structure

Roller Shutter

3 per side, lockable, with linked LED strips

Roof Guard

Integrated aluminum extrusion; exterior flashing lights, interior LED strips

Fold-down Step

Aluminum extrusion, anti-slip, load ≥150kg, double locking

Rear Ladder

Aluminum ladder on the right side for roof access

Mast Lighting System

Generator

≥15 kVA, 50Hz, 220V/380V, electric start, gasoline, V-twin

Mast

Aluminum alloy, max height ≥8 m

Lighting

4×500W LED

Rotation

Horizontal ≥420°, tilt ≥420°

Control

Panel + wired (5m) + wireless (≥50m), one-key auto-reset

Position Front of the equipment box



»Ⅰ. Main Features :

★ MC07H.35-60 engine, 350 HP for triple agent fire suppression and industrial emergency response

★ HOWO 4×2 chassis with 2000kg dry powder tank, 2000kg foam/water tank, and CB10/60 fire pump (60 L/s)

★ PF5-15/30 dry powder cannon (30-35kg/s, range ≥35m) for rapid knock-down of Class B and C fires

★ PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m) for Class A and B fire fighting

★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class A, B & C fire fighting

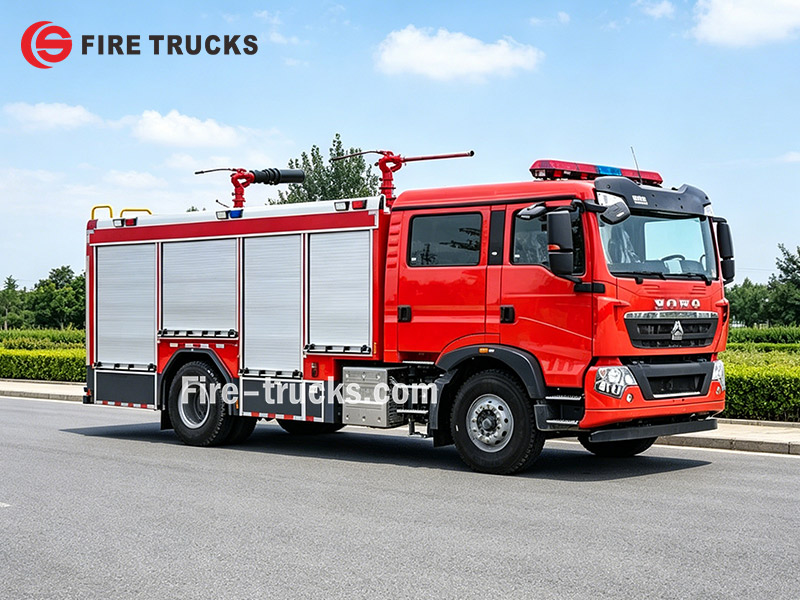

  • HOWO TX 4x2 fire truck for petrochemical plant fire Liberia

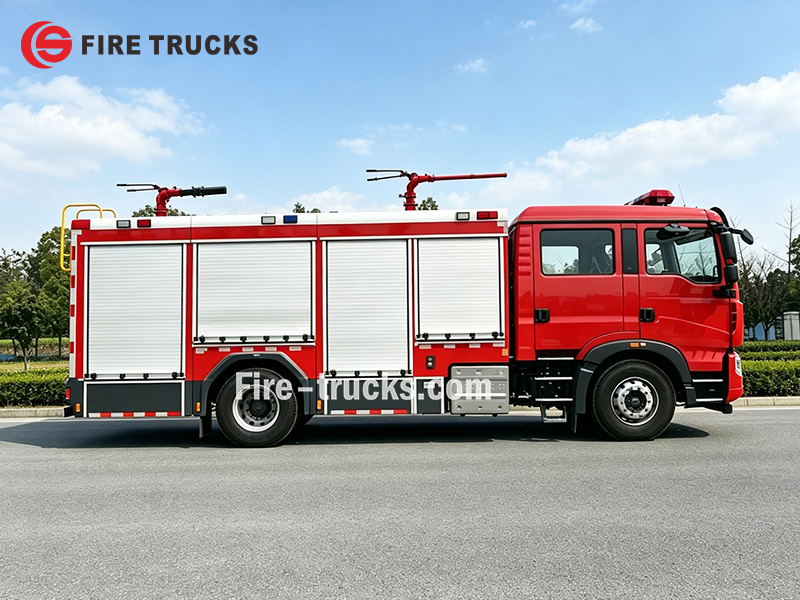

  • HOWO TX 350HP multi agent fire fighting vehicle for oil refinery Liberia
  • HOWO 4x2 dry powder water fire fighting vehicle for warehouse Philippines Dubai

» Ⅱ.Product Parameter :

HOWO TX 4 Tons Dry Powder Emergency Fire Fighting Truck
General Work Capacity 2000 kg dry powder + 2000 kg foam/water
Truck Chassis SINOTRUK HOWO 4X2
Engine Power 350 HP/ MC07H.35-60
Fire Pump CB10/60
Dry Powder Monitor PF5-15/30
Foam/Water Monitor PL8/48
Maximum Speed 95 km/h
Overall Dimensions L*W*H 8630*2540*3680 mm
Gross Vehicle Weight 18000 kg
Engine Engine Model MC07H.35-60
Fuel Type Diesel
Power 350 HP(257KW)
Emission Standard  Euro 6
Displacement 7360 ml
Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Drive Type 4x2
Wheelbase 4700 mm
Tire 235/75R17.5 16PR
Tire No. 6 tires and 1 spare tire
Fire Pump Model CB10/60
Flux 60L/s
Pressure  1MPa
Max working pressure 1.251MPa
Max allowable inlet pressure 0.4MPa
Max suction height 3m
Rated speed 3916±50r/min
Speed ratio 1:1.4
Water diversion time ≤50s
Dry Powder Monitor Model  PF5-15/30
Rated working pressure 0.5MPa
Max working pressure 1.5MPa
Dry powder cannon output 3okg/s≤E≤35kg/s
Range Dry powder ≥35m
Foam/Water Monitor Model  PL8/48
Flow 48L/s
Rated working pressure 0.8MPa
Max working pressure 1.2MPa
Range Water ≥70m
Foam ≥60m
Pitch rotation - 35~+70°
Horizontal rotation 0~360°
Standard  configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

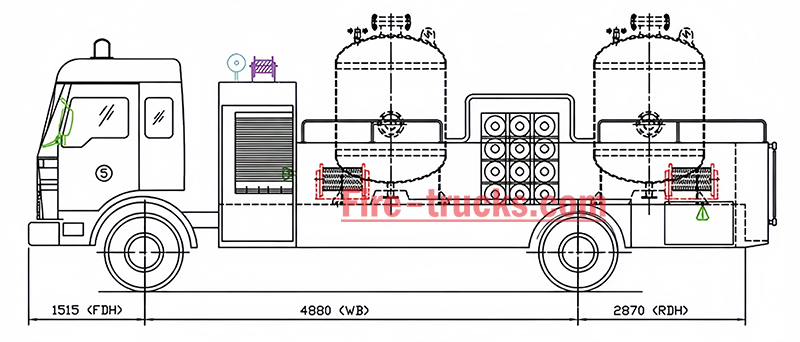

HOWO 4X2 Dry Powder Fire Truck Structural Diagram

» Ⅲ.Dry Powder System :

★ 2000kg dry powder tank with PF5-15/30 dry powder cannon, 30-35kg/s discharge rate, range ≥35m for rapid fire knock-down

★ Working pressure 0.5MPa to 1.5MPa, suitable for Class B (flammable liquids) and Class C (gas) fires

★ Dry powder system operates independently from water/foam system, allowing instant switching between dry powder, foam, or water modes

★ Compact tank design with easy refill access, durable construction for long service life in demanding industrial fire fighting operations

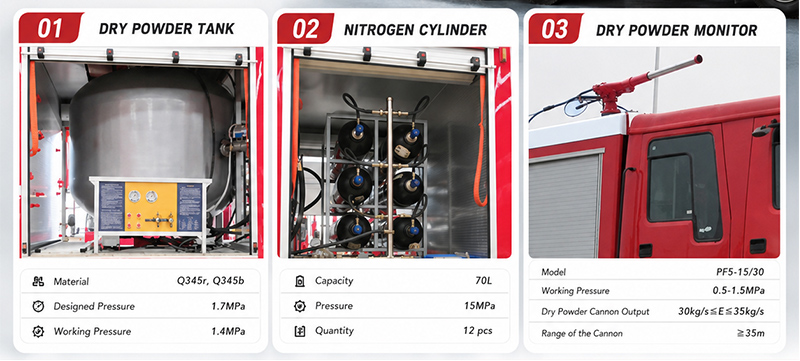

HOWO 4x2 350HP dry powder foam water fire truck 2026
Model : PF5-15/30
Rated working pressure: 0.5MPa
Max working pressure: 1.5MPa
Dry powder cannon output: 3okg/s≤E≤35kg/s
Range: ≥35m

» .Foam Monitor System :

The PL8/48 fire monitor is mounted on the superstructure. It delivers a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations on Class A and Class B fires.

PL8/48 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation
PL8/48 48L/s Water≥70m Foam ≥60 m 0.8MPa -35°~+70°
0~360°



» Ⅴ.Fire Pump System :

Fire Pump:

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump delivers steady water pressure for both the PL8/48 foam/water monitor and the dry powder system, ensuring effective fire suppression for Class A, B, and C fires.

CB10/60-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/60

60L/s

1.0MPa

1.251 MPa

0.4MPa

  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump

Control panel:

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, ladder controls, and compartment lighting. All controls are clearly marked for straightforward operation.

» Ⅵ.Fire Fighting Equipment :

 Equipment Room

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

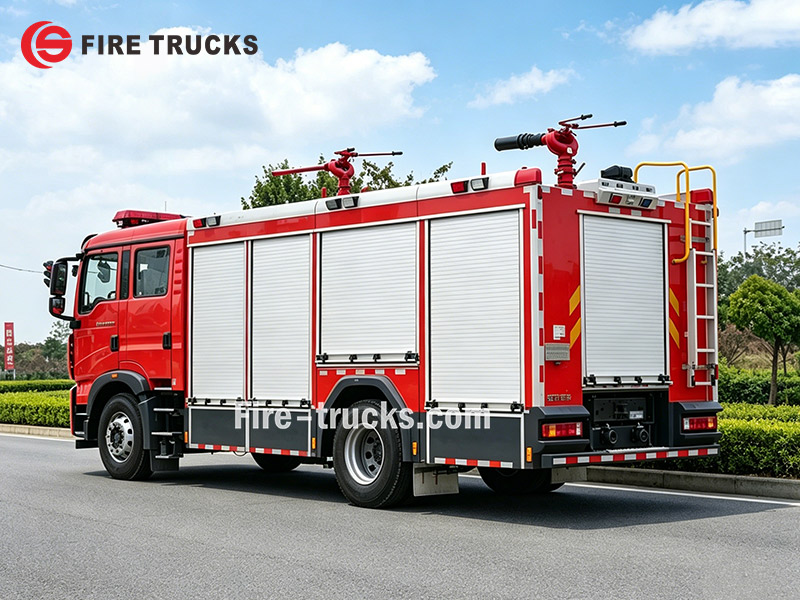

foam fire tender equipment Room

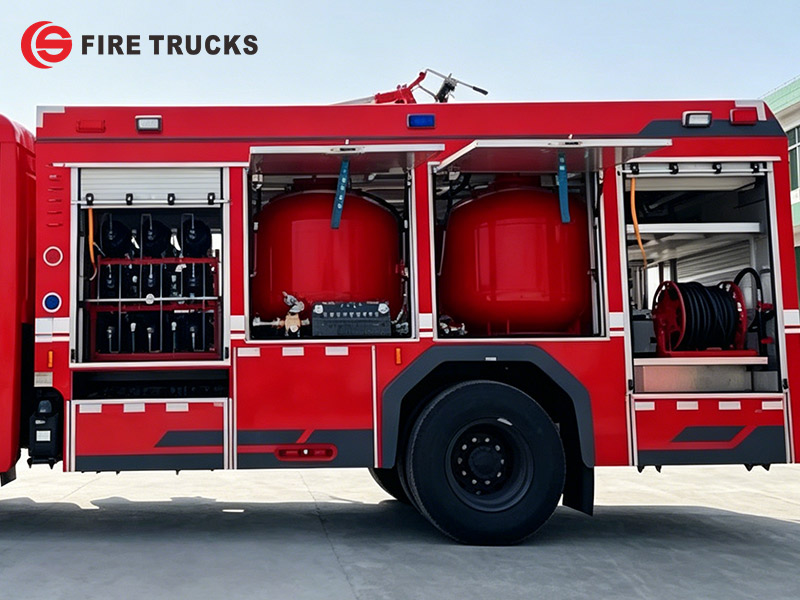

Nitrogen Cylinder for Dry Powder Fire Truck



The HOWO TX 4 ton dry powder emergency fire truck comes with a rear-mounted CB10/60 fire pump, a PF5-15/30 dry powder cannon, and a PL8/48 foam/water monitor. The dry powder tank holds 2,000 kg, and the foam/water tank holds 2,000 kg, sitting on a sturdy HOWO 4×2 chassis powered by a 350 HP MC07H.35-60 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Full specifications are listed below:

fire rescue equipment

fire rescue equipment



» .Application Scenarios :

HOWO 4x2 350HP dry powder foam water fire truck Philippines Dubai



HOWO 4x2 dry powder fire fighting vehicle for gas plant Philippines Dubai
