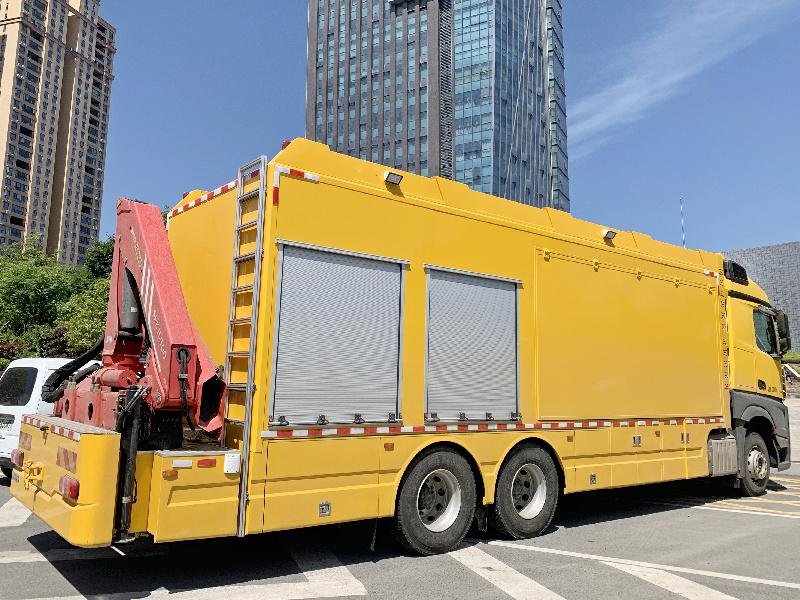

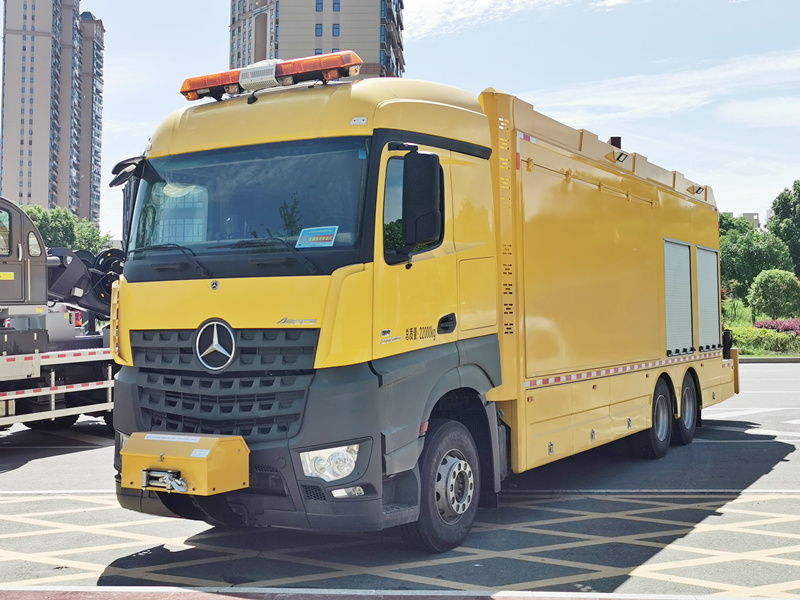

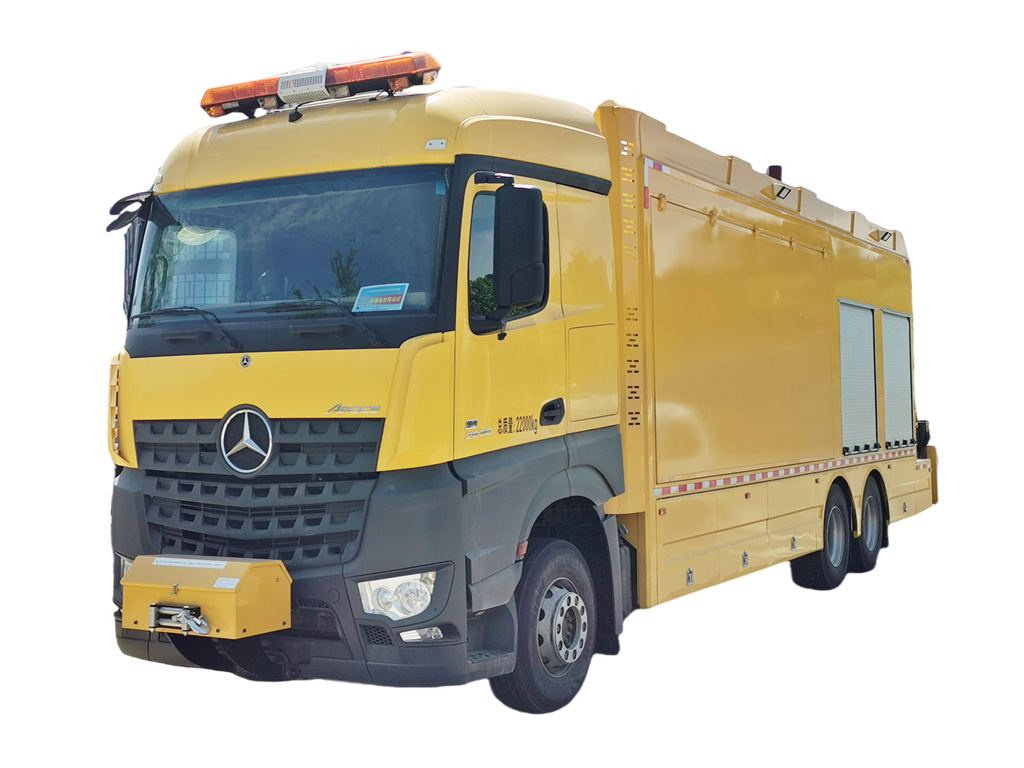

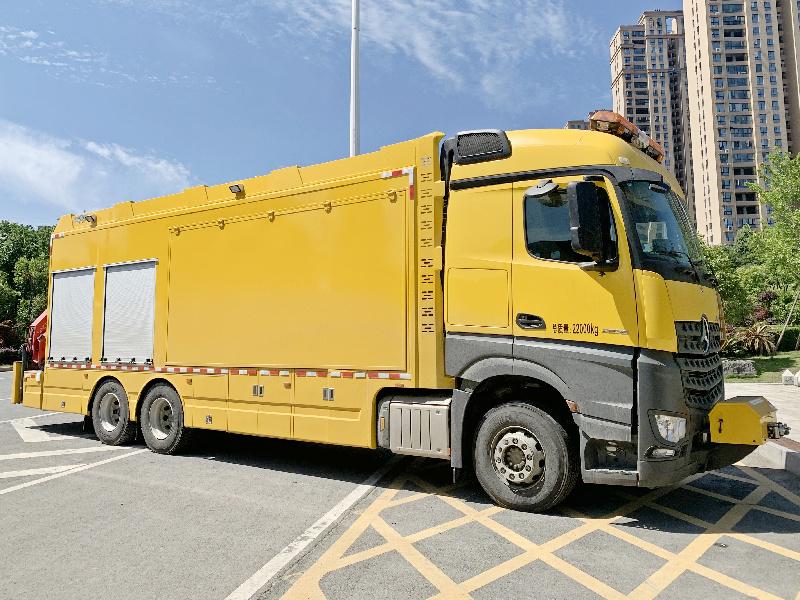

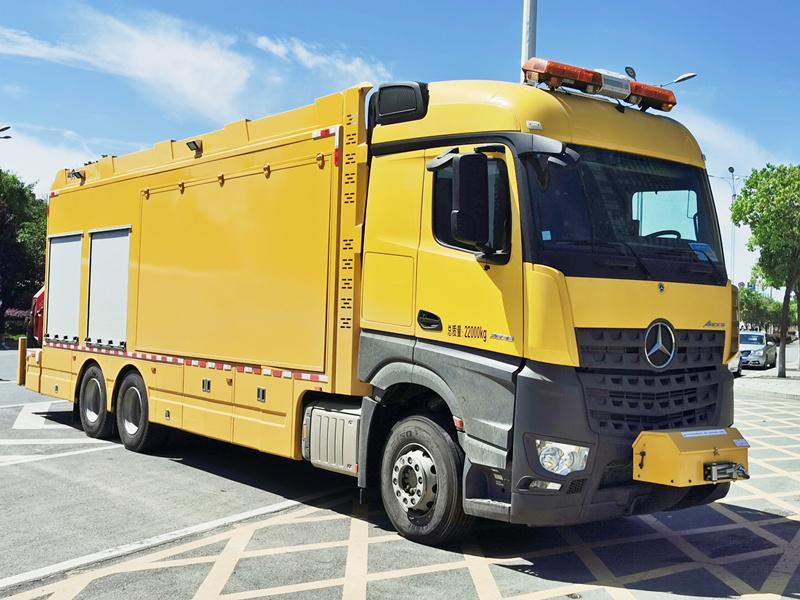

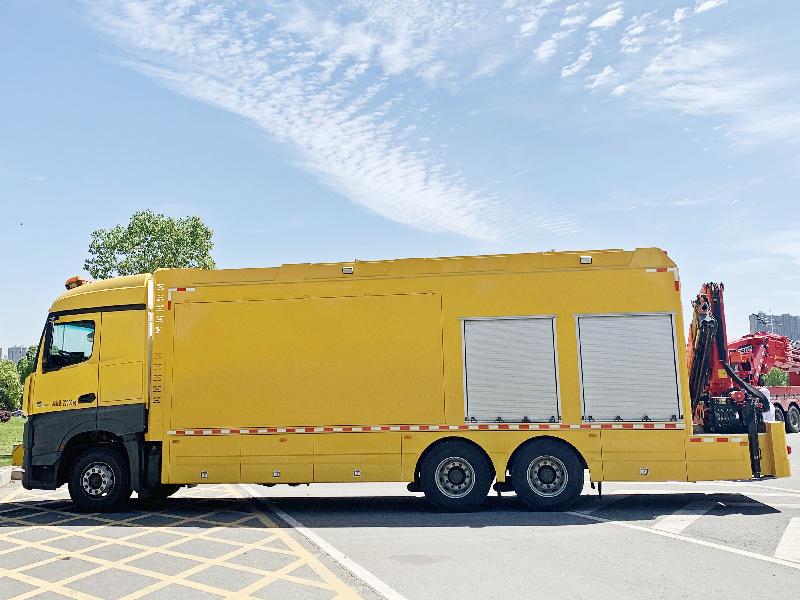

Benz 16T rescue fire fighting truck

Benz 16T rescue fire fighting truck

The Mercedes-Benz 6x4 fire truck is a heavy-duty special fire truck produced by Mercedes-Benz truck chassis. The benz heavy duty fire pumper with drive form provides stronger traction and load-bearing capacity, suitable for dealing with complex terrain or scenes requiring large-capacity fire equipment. Equipped with benz diesel engine OM470LA.6-59 with engine power 266kw and mounted with folding arm boom crane, which is an ideal rescue truck for emergency requirement.

  • Truck Model:

    PT5260GXF
  • Tanker Structure:

    8000L, SS306 Material
  • Work capacity :

    SPK15500 crane 6.2tons
  • Wheelbase:

    4500+1350 mm
  • Axle drive:

    6X4, LHD
  • Engine Power:

    266KW
  • Engine Model:

    OM470LA.6-59
  • Fire Pump:

    CB10/80, Flow rate 80L/s
  • Fire Monitor:

    PS80, 80L/S
  • Remark:

    Mercedes Benz Actros 6x4 chassis
Facebook Linkedin Youtube Twitter Pinterest

Mercedes-Benz 6x4 fire truck is a high-performance special vehicle that combines the powerful power of the Mercedes-Benz Arocs truck chassis and the professional design of firefighting equipment. Mercedes Benz heavy duty fire fighting truck is suitable for firefighting and rescue tasks in complex environments. Its core advantages lie in driving performance, load capacity and brand technology guarantee. which is an important equipment for fire departments to deal with fire extinguisher and large disasters.

The Benz Arocs fire pumpers usually modified based on the chassis of Mercedes-Benz's Arocs series heavy trucks 6x4 series, with high load-bearing capacity, reliability and durability. Equipped with OM470LA.6-59 model diesel engine, engine power can be 266KW / 361.76PS and emission 10677cc. 4500+1350mm wheelbase, 6x4 driving model with front 2 tires and rear 8 tires, all tubless tire model 315/80R22.5, also including one spare tire, truck mounted with full sets fire rescue equipment, also rear part mounted with Palfinger brand SPK15500 model 6.2 tons folding boom crane, which can be used for heavy lifting and transportation. Also in the front of the Benz fire engine equipped with 8tons towing winch, with 22m cable for rescue job.



Technical Specifications for Mercedes Benz Arocs fire fighting truck:

Best Mercedes-Benz Arocs 16T Heavy Duty fire truck for export to Philippines, benz new model Left Hand Drive model 6x4 chassis. Benz Arocs Fire Fighting Truck (also called 16T Fire fighting trucks, Mercedes-Benz City fire rescue vehicle, 10 wheels Water foam Fire truck, 6x4 Industrial fire fighting trucks, benz rescue fire trucks, Mercedes-Benz Fire Pumperis apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance. We POWERSTAR can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on, all based on original Germany Mercedes Benz truck chassis. All POWERSTAR produced fire trucks with huge fire equipment and you can put fire-fighting immediately.





BENZ RESCUE FIRE PUMPER TECHNICAL SPECIFICATION
Chassis Chassis brand / Mercedes Benz
Model / Arocs
Drive type / 6x4 left hand drive
Cabin / Single row, 2+1 seats
Overall dimension(L*W*H) mm 10550*2510*3700
Total mass kg 16350
Rated Loading capacity kg 22000
Wheel Base mm 4500+1350
Front /rear suspension mm 1500/2540
Approach/departure angle (°) 15/11
Spring No. / 3/2
Tyre No. pcs 10, (front 2, rear 4)
Type & Size of Tyre / 3315/80R22.5
Axle No. / 3
Steering wheel / left hand drive
Gear box / Benz Powershift,12 speed forward with 2 reverse, manual, with ABS
Engine Engine model / OM470LA.6-59
Engine brand / Mercedes Benz
Engine type / 6 cylinders in line
Maximum power HP/kw 361/266
Fuel type / diesel
Displacement ml 10677
Emission Standard / Euro VI
Tanker Water tanker / 8000Liter, carbon steel
Foam tanker / NULL
8000 litres water tank for fire extinguisher

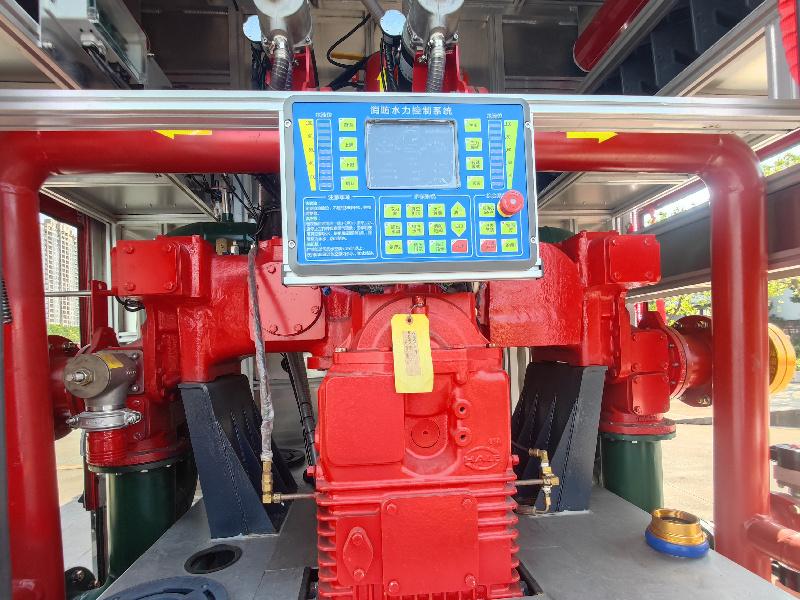

Fire pump Model / CB10/80,Normal pressure pump
Pressure Mpa ≥1.0
Max suction height m 7
Flux L/S 80
Rated speed r/min 3240
Time of drawing water (s) s ≤35
Input diameter mm 125
Outlet diameter mm 2xΦ85
Fire monitor Model / PS80
Fire fighting nozzle range Water (m) ≥80
Foam (m) NULL
Flux L/S 80
Rated Working pressure Mpa 1





Advanced features for Mercedes Benz 2636 Arocs heavy duty fire pumper:

Mercedes Benz Arocs 2636 heavy duty fire extinguisher truck, equipped with 266KW diesel engine, with single crew cabin, large POWERSTAR lightweight design composed of laser-cut aluminum sheets and sandwich plates, Auxiliary frame integrated into the floor sandwich and therefore very low loading heights. Large electrical shutters, Deep compartments behind the axle with later-ally pivot able flaps, CBA devices, diverse equipment and generator on COMFORT pullouts, which made Mercedes-Benz 16T heavy duty rescue fire truck world famous.

1 Material: 100% customized to be standard carbon steel welding model, or all made of high-strength aluminum alloy profiles.

2 Structure: The frame of the carriage is all-aluminum alloy frame welded structure, and the outer skin is made of bonded aluminum alloy plates.

3 Roof guard: Made of aluminum alloy as a whole, with strobe warning lights and exterior lights installed outside, and LED roof lights inside.

4 Ladder frame: A set of multifunctional ladder frame is set on the top.

5 Rear ladder: An aluminum alloy safety ladder leading to the roof is set on the right side of the rear.



  • Original Germany Mercedes Benz Arocs 2636 truck chassis

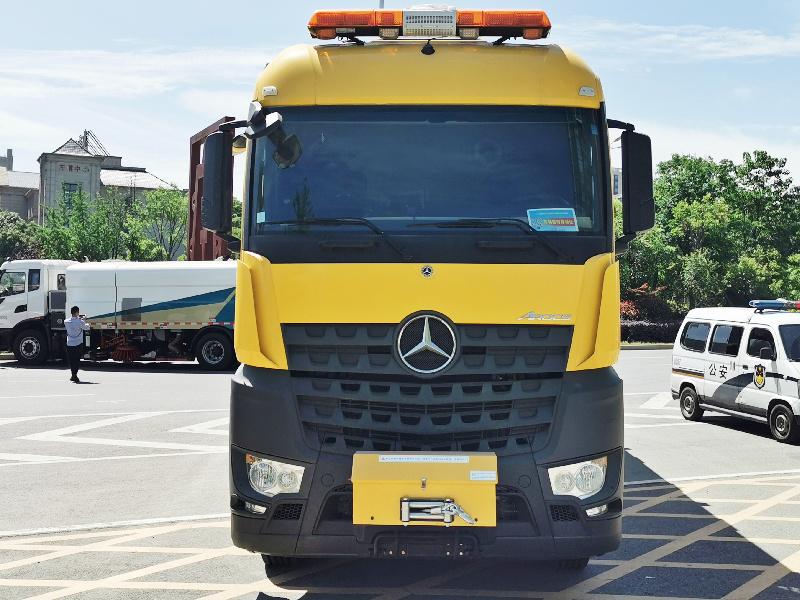

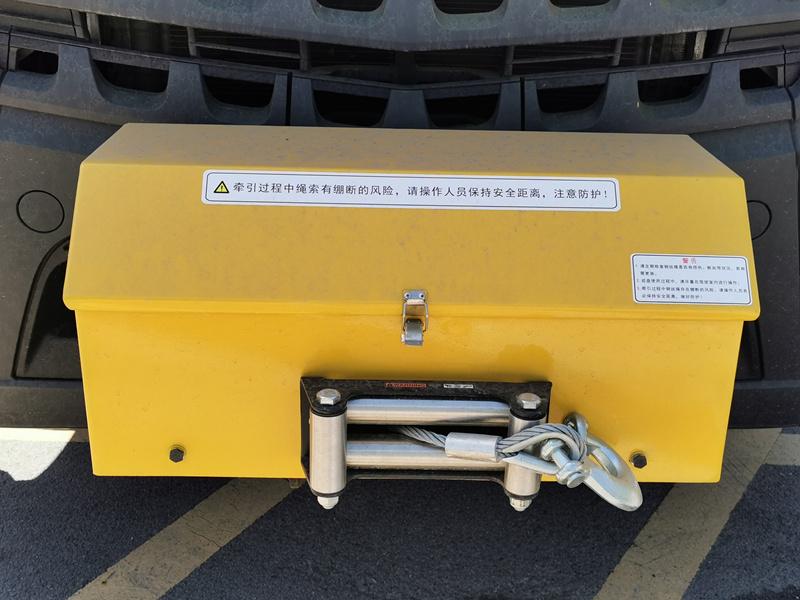

  • Front mounted with electric towing winch with cable

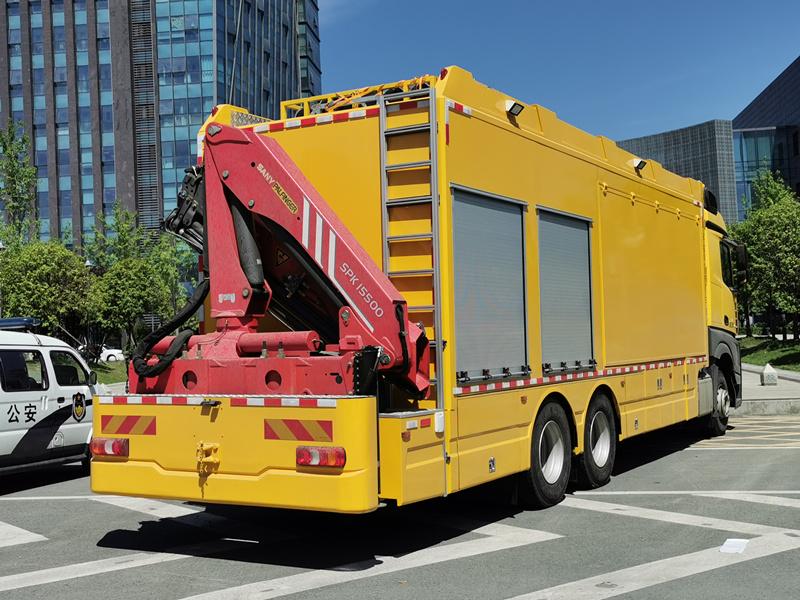

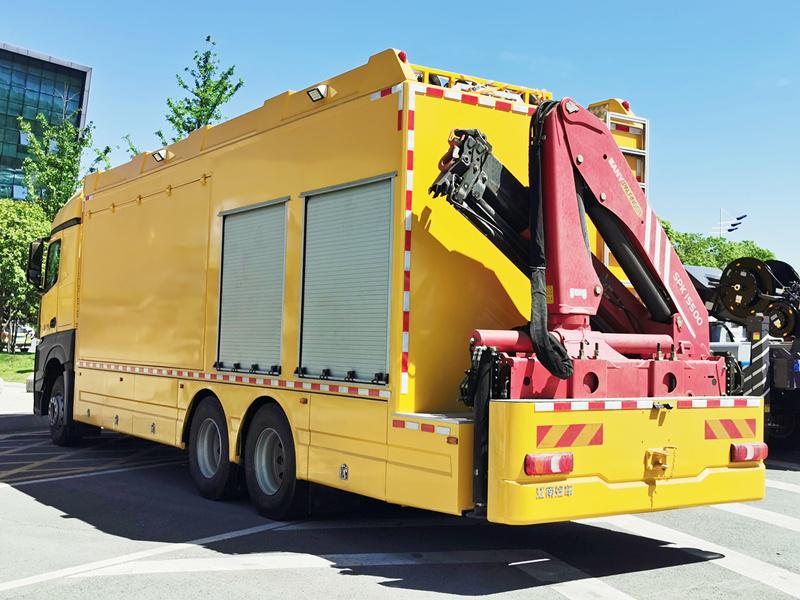

  • Rear mounted with Palfinger SPK15500 folding arm boom crane

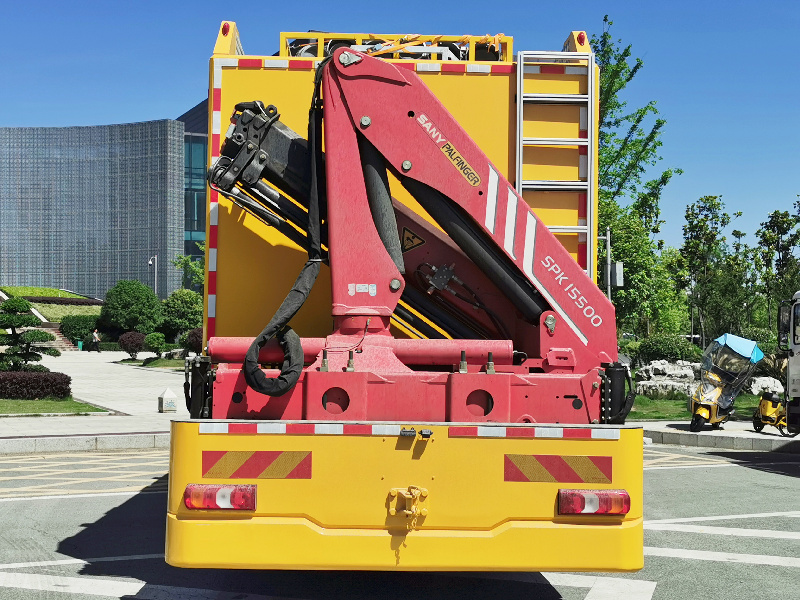

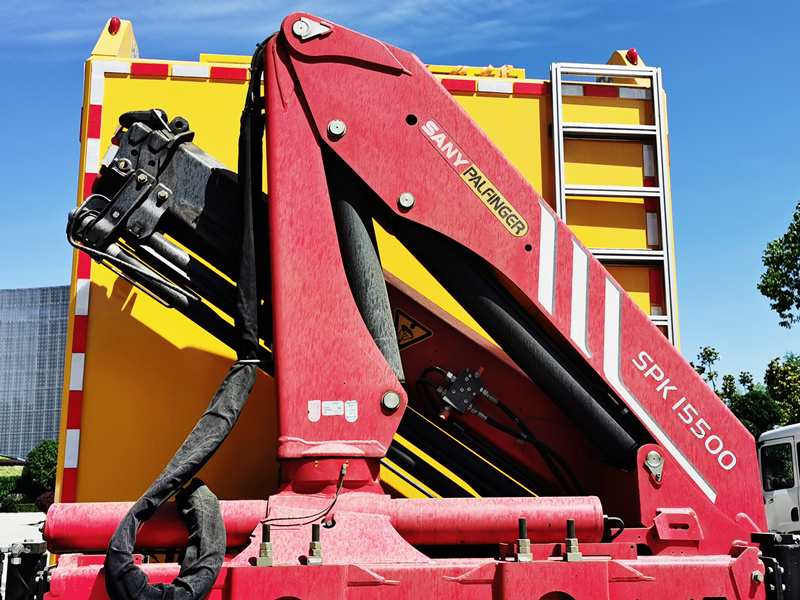

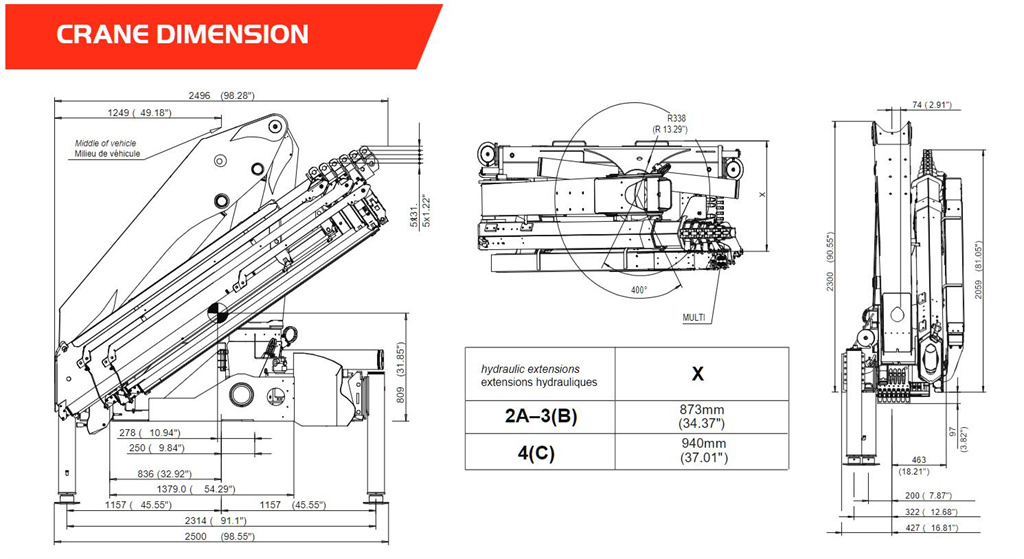

Palfinger SPK15500 folding boom crane for Benz Arocs fire truck:

Mercedes Benz AROCS rescue fire truck equipped with palfinger SPK15500 model folding arm type boom crane, the load holding valves for safe crane operations. High speed boom extension and retraction with return oil utilization. Optimized lifting performance with the use of high tensile steel and hexagonal boom design. Lightweight yet robust construction according to European Standards (EN 12999). Professional installation solutions and technical supports. And below show details specification of the SPK15500 knuckle boom crane:

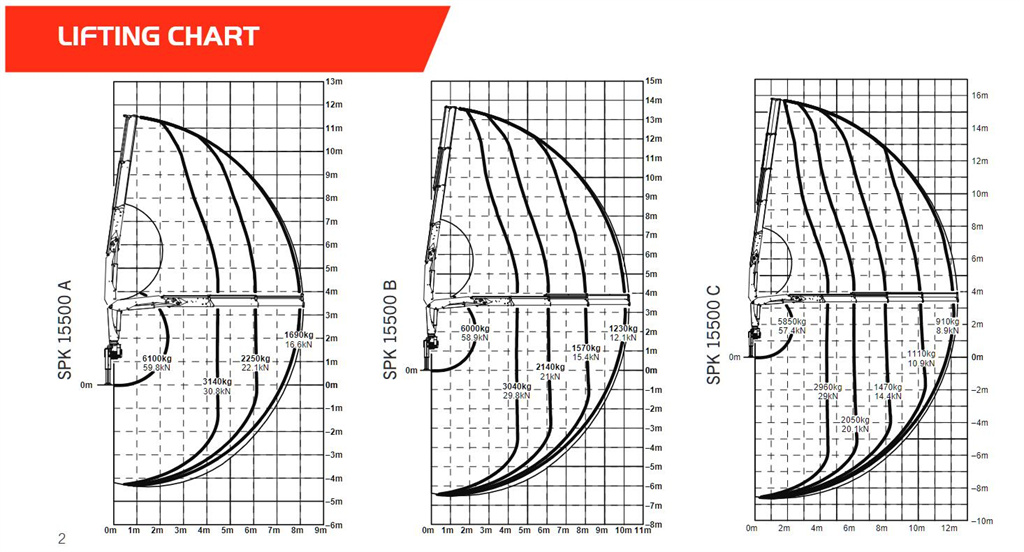

Max. lifting moment [mt] 14.6

Max. lifting capacity [kg] 6200

Max. hydraulic outreach [m] 14.5

Max. hydraulic outreach lifting capacity [kg] 650

Max. number of extension boom 5 (D)

Slewing angle [°] 420

Slewing moment [mt] 1.8

Max. stabilizer spread [mm] 5600

Std. stabilizer spread [mm] 5600

Fitting space required [mm] 810

Width folded [mm] 2500

Max. operating pressure [bar] 300

Recommended pump capacity [l/min] 40 - 60

Dead weight standard crane [kg] 1619



Palfinger SPK15500 boom crane features for installed on Mercedes Benz Arocs 2636 rescue fire fighting truck:

Ergonomic Crane Control:Eronomically arranged operating levers for all crane functions. Functional design for better comfort during crane operation. Straightforward service and maintenance
Load Holding Valve: Holds the cylinder in position, Standard fittings on all cylinder, Strategic positioned to protect from damage
High speed extension: Increase extension and retraction speed of the boom system. Crane works faster with return oil utilization. Time saving during crane operation
Hydraulic Overload Safety Device: Prevents the crane from overloading. Overload protection system with emergency cut-off function. Stops all movements of the crane that increases load
