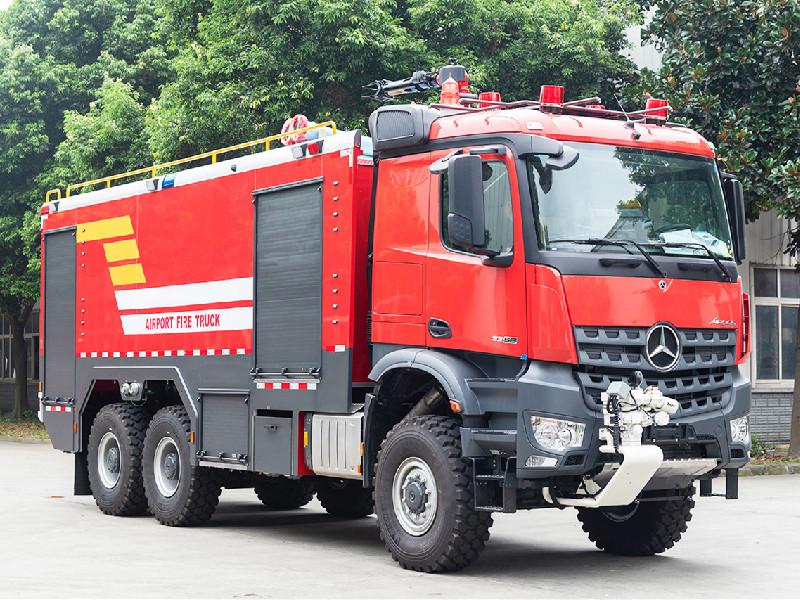

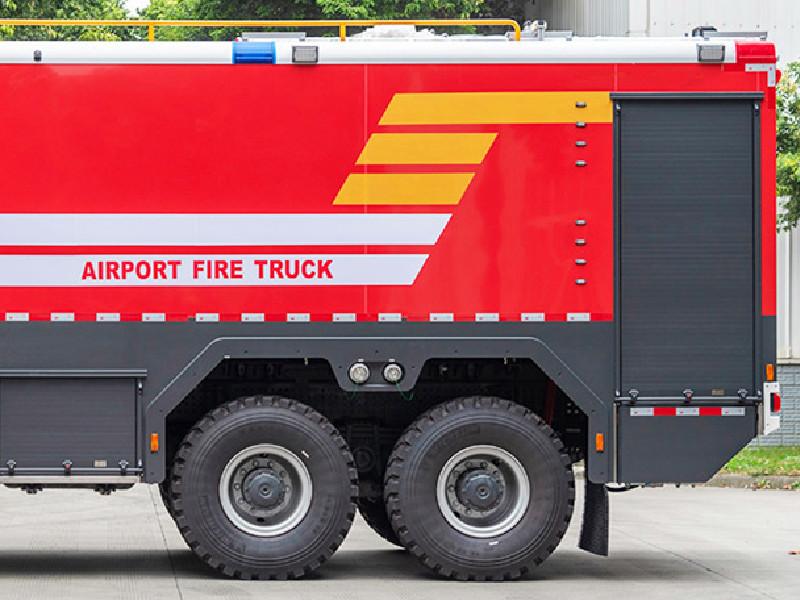

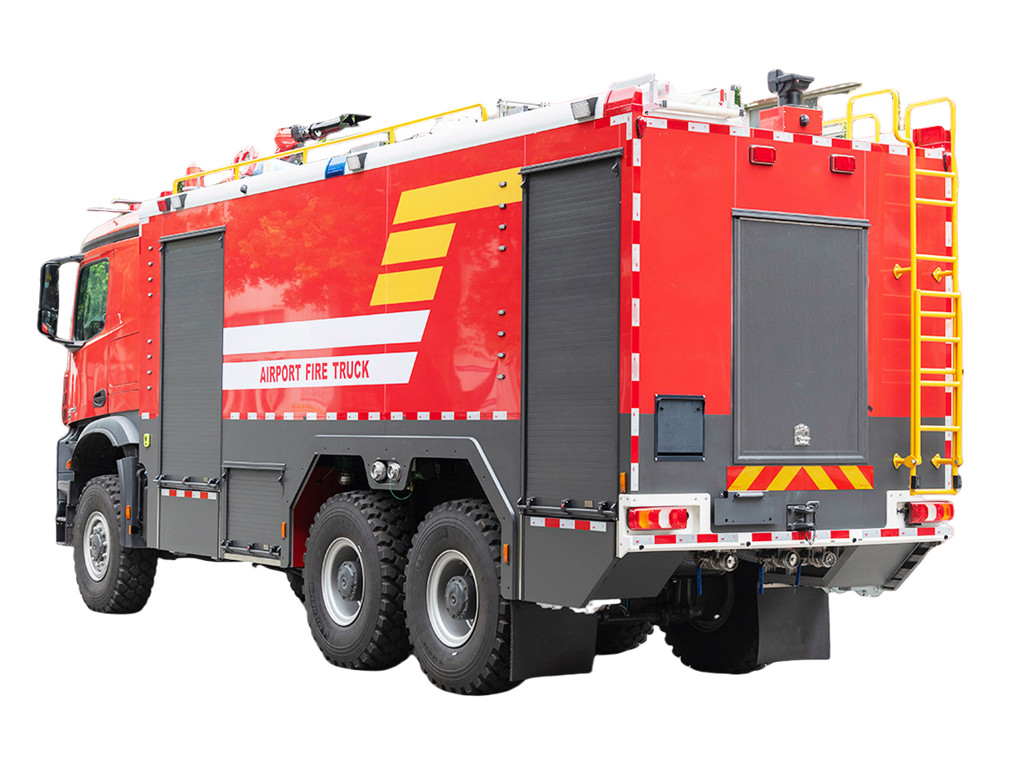

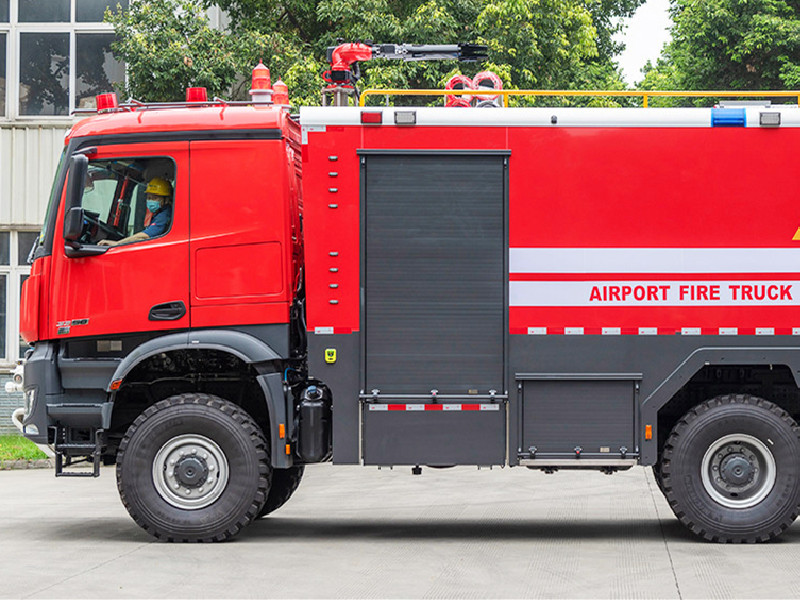

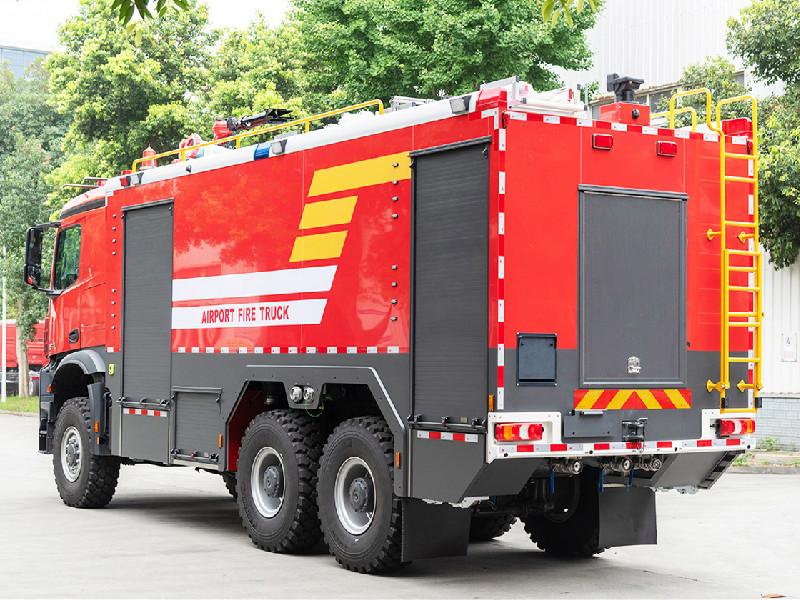

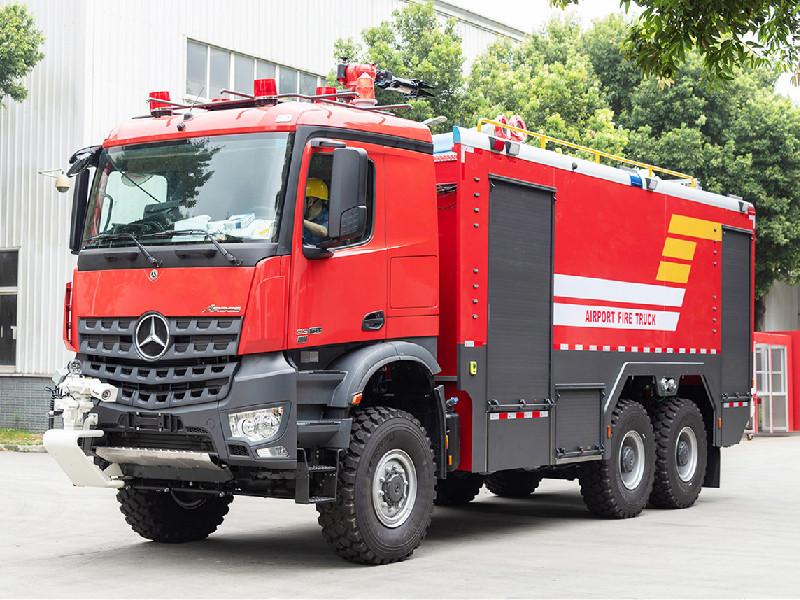

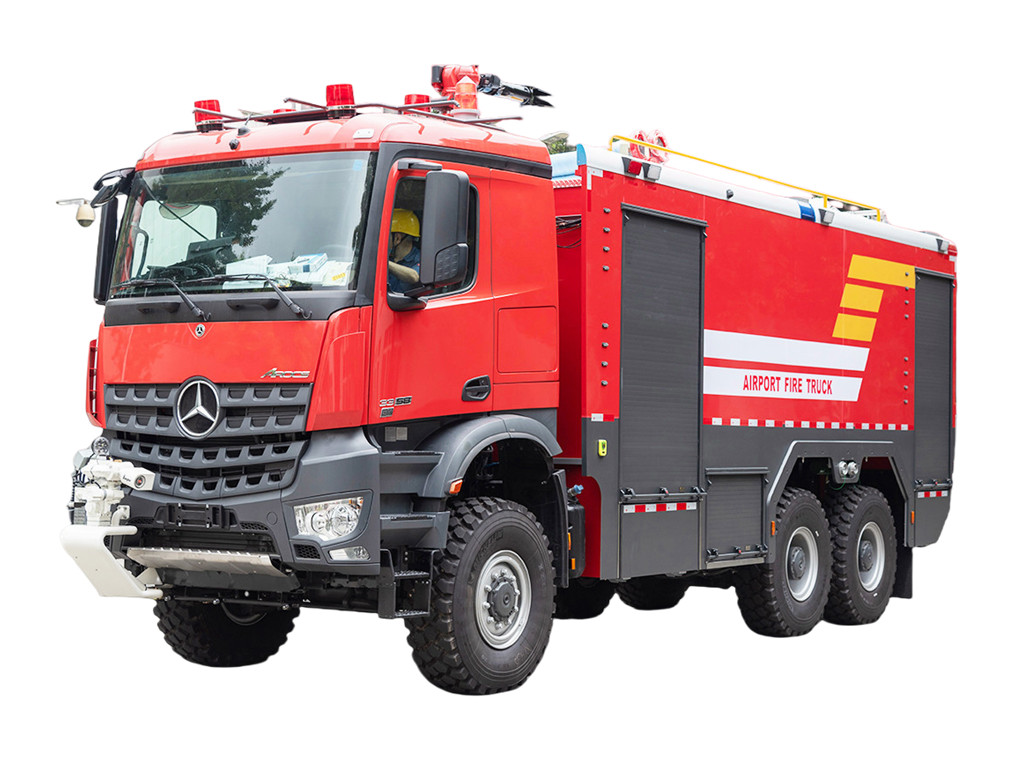

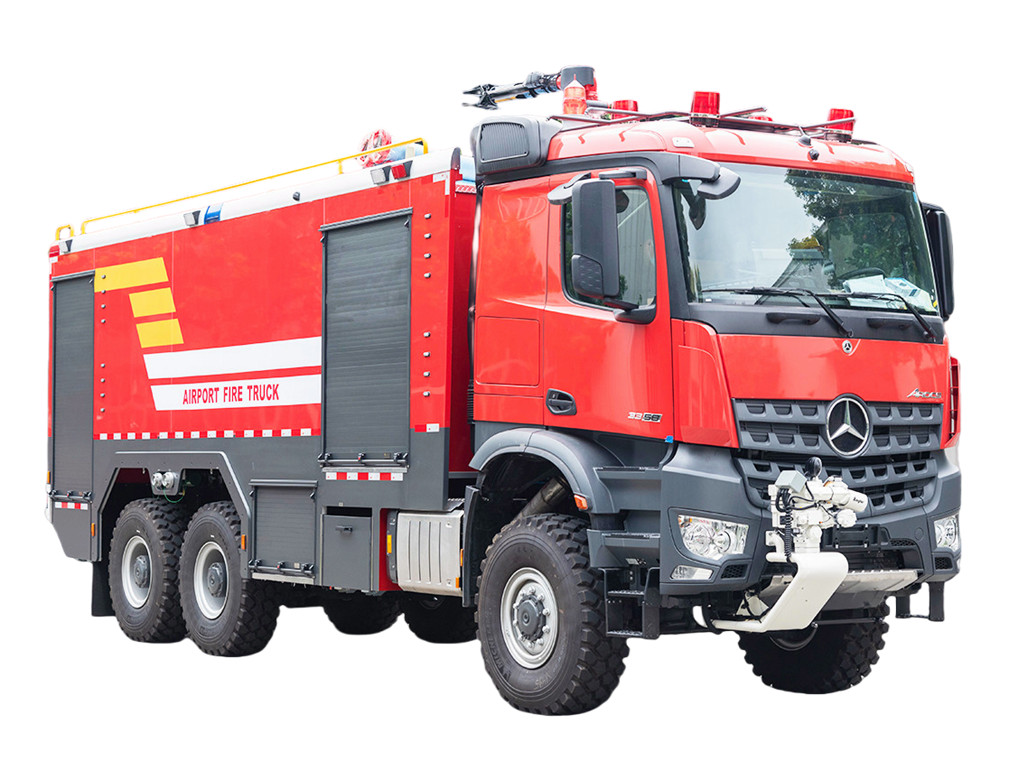

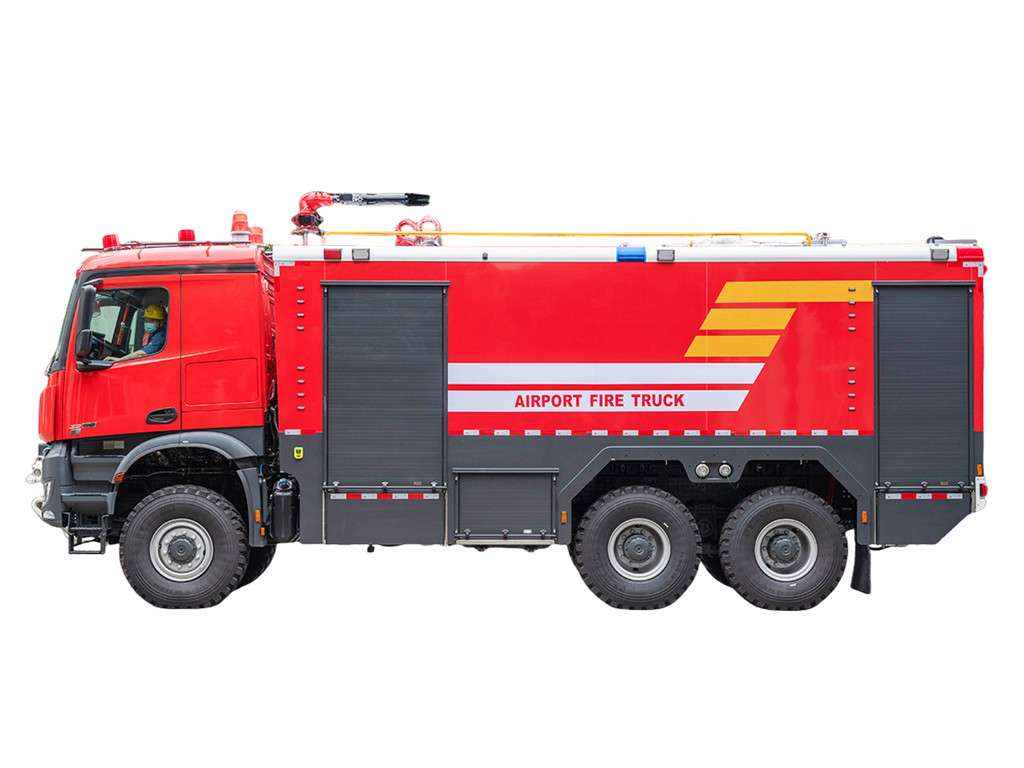

Mercedes Benz 6 wheeler 6x6 offroad ARFF fire fighting truck is a special fire-fighting vehicle for the airport. It has strong power and excellent road passing ability, also can arrive safely and quickly for fire-fighting and rescue. Benz heavy duty Airport Fire Truck is special customzied and designed for complex airport fire scenarios. The POWERSTAR ARFF difference means innovative fire suppression technology, unmatched chassis performance, advanced safety systems, smart design and unsurpassed reliability and durability. In an airport emergency there is no room for error, so every PT model ARFF fire truck is built to help you respond with maximum confidence.
Truck Model:
PT5280GXFTanker Structure:
Stainless Steel or PP materialWork capacity :
11 tonsWheelbase:
4450+1450 mmAxle drive:
6×6 offroadEngine Power:
425KW / 580HPEngine Model:
Benz OM473Fire Pump:
CB10/100Fire Monitor:
PL8/80Remark:
10000Liters Water and 1000Liters Foam
Newly designed and export Mercedes-Benz 6x6 all wheel drive ARFF airport fire truck is a special fire truck model built on the high-performance chassis of the Mercedes-Benz Arocs series 3358E6, designed for rapid response and complex firefighting and rescue scenarios at airports. The Mercedes-Benz Arocs 3353 6x6 chassis is the core of this model. Mercedes BENZ 6x6 ARFF airport fire truck is equipped with the latest generation OM473 inline six-cylinder diesel engine with a maximum output power of 426kw / 580hp at rated speed 1600rpm, the peak torque is 2,800 Nm and standard emission is 15569cc. It is matched with an efficient transmission system to ensure that the Benz ARFF fire engine can still accelerate quickly when fully loaded, the 0-80km/h acceleration time is less than 40 seconds and a maximum speed of 105km/h. The offroad drive system gives it excellent off-road capabilities, enabling it to cross complex terrain such as airport lawns and gullies, ensuring that it arrives at the accident site in the shortest time.
This model Mercedes BENZ 6x6 ARFF airport firefighting truck is equipped with a large-capacity fire extinguishing agent storage system, which can carry 10000 liters of water and 1000 liters of foam liquid as fire extinguishing agent, based on the tanker material standard be Stainless Steel #304, which covering various fire types such as fuel and polymer materials. The fire pump CB10/100 model flow rate is up to 100L/s, the main top mounted fire cannon model is PL8/80 which has a range of 85 meters, the front cabin mounted turret has a range of 40 meters with remote control device, and an integrated thermal imaging camera supports the spraying of fire extinguishing agents while moving, significantly improving the efficiency of firefighting.
Benz 6x6 offroad 6 wheeler ARFF airport fire engine adopts an integrated electronic control system, which is special designed and produced based on POWERSTAR R&D department, specially service for fire trucks, which integrates the water/foam fire pump, optional puncture arm and 4x4 offroad, 6x6 offroad, 8x8 offroad truck chassis driving system, realizes the centralized display of multi system status and one button convenient operation, and reduces the complexity of firefighters' operations. In terms of safety, all Benz ARFF fire trucks are equipped with an electronic braking system (EBS) and a vehicle anti-roll system (ESC). Through dynamic calibration, it optimizes the braking distance and body stability to ensure safety during high-speed driving and emergency steering. The cab adopts newly design with a wide field of view, mounted with SCBA seats for air apparatus storage and usage, and the whole ARFF fire vehicle system can be started with one click to enter a combat readiness state.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Mercedes Benz offroad 6x6 ARFF airport firefighting truck mainly serves large and medium-sized airports, both service for the airport road and field firefighting, also can be designed and used for emergency rescue in the surrounding areas of airports. All ARFF fire trucks from POWERSTAR have advanced features to meet all airport fire extinguishing requirement all over the requirement. Through lightweight aluminum alloy upper body, low center of gravity layout and modular design, it is superior to traditional models in key indicators such as acceleration and obstacle crossing ability, becoming a representative of high-end airport firefighting equipment.
|
Mercedes Benz 6x6 ARFF airport fire truck technical parameter description |
||
|
Overall dimension |
9800×2500×4000 mm |
|
|
GVW |
28000kg |
|
|
Curb weight |
16800kg |
|
|
Rated payload |
11000 kg |
|
|
Chassis brand |
Mercedes Benz |
|
|
Traction type |
6*6 left hand drive |
|
|
BENZ 6x6 offroad Truck Chassis description |
||
|
Chassis model |
3358E6 |
|
|
Cab |
Structure: flat-head, single row cabin with sleeper. |
|
|
Wheelbase |
4450+1450 mm |
|
|
Tire specification |
315/80R22.5 |
|
|
Tire quantity |
6+1 |
|
|
Engine |
Engine model |
OM473 |
|
Emission standard |
Euro 6 |
|
|
Displacement/output |
15569 ml |
|
|
Output |
425 kw |
|
|
Horse power |
580 hp |
|
|
Max. torqued |
2800 N.m |
|
|
Rated speed |
1600 rpm |
|
|
Gear box |
Model |
FAST 12 shift |
|
Number of gears |
12 forward gears & 2 reverse |
|
|
Brake system with ABS |
Type |
Drum |
|
Service brake |
Dual-circuit compressed air brake |
|
|
Park brake |
Power spring brake acting on rear wheel |
|
|
Auxiliary brake |
WEVB |
|
|
Fuel tanker |
Type |
Aluminium Alloy fuel tanker |
|
Capacity |
400 L |
|
|
Dry Powder fire truck body Superstructure description |
||
|
Tank capacity |
Water tanker |
10000 liters, stainless steel |
|
Foam tanker |
1000 liters, stainless steel |
|
|
Tank configuration |
1 set manhole with quick lock and open device; |
|
|
Fire pump |
Model |
CB10/100, normal pressure pump |
|
Flow |
100L/s |
|
|
Pressure |
1.0Mpa |
|
|
Suction depth |
7m |
|
|
Fire monitor |
Model |
PL8/80 |
|
Rated pressure |
0.8Mpa |
|
|
Rated flow |
80L/S |
|
|
Range |
Water≥85m; Foam≥80m |
|
|
Rotation angle |
Horizontal: 360° |
|
|
Other configuration |
Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump room; Equipped with flip pedal and electric system. Equipped with factory standard fire-fighting equipment. Equipped with full sets dry powder equipment for fire extinguishing |
|
