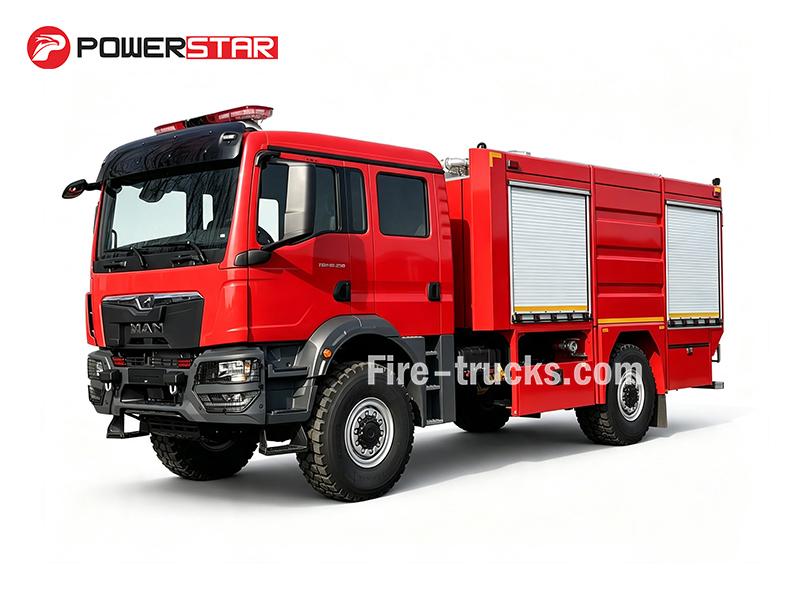

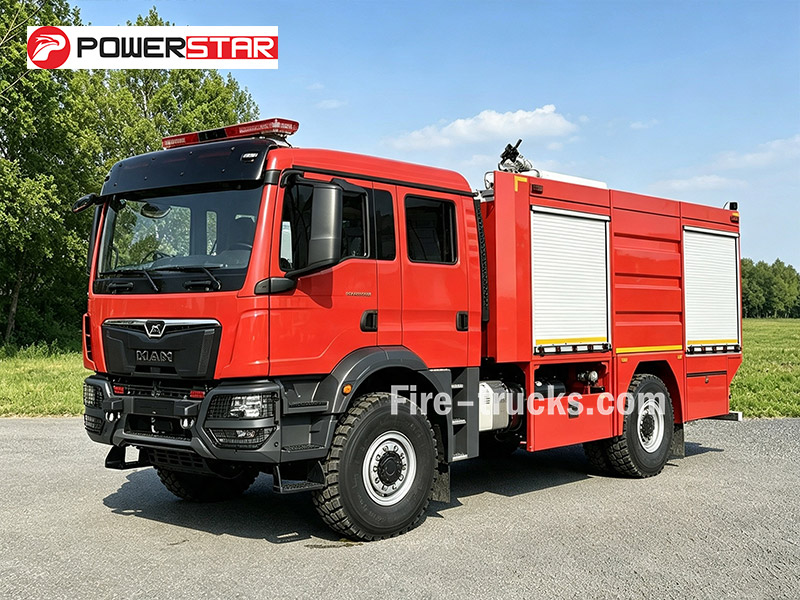

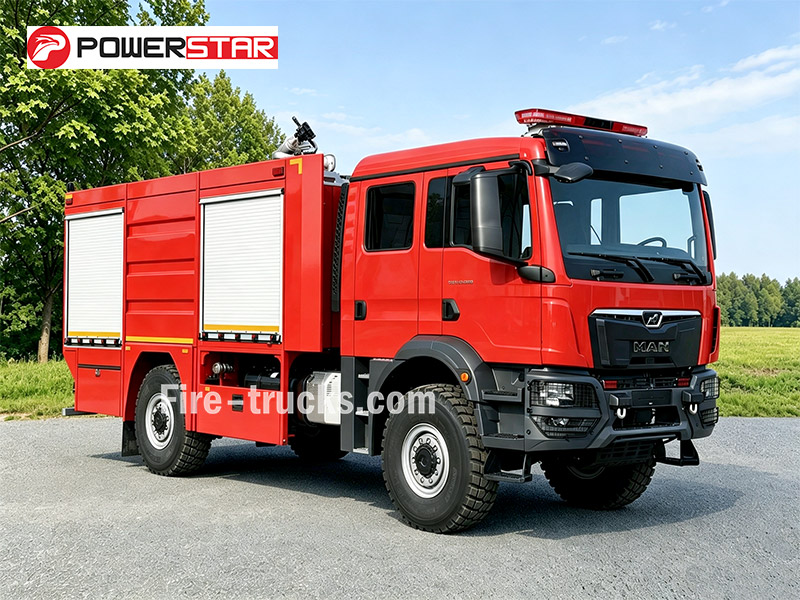

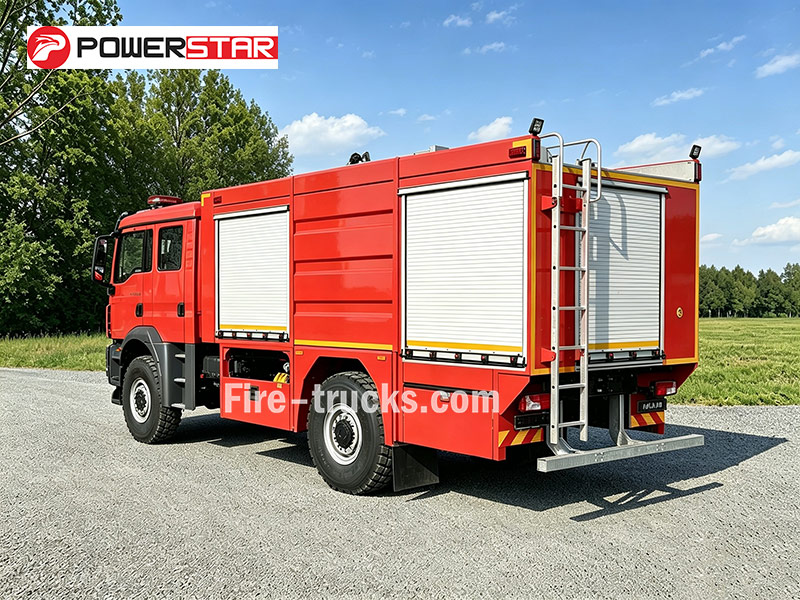

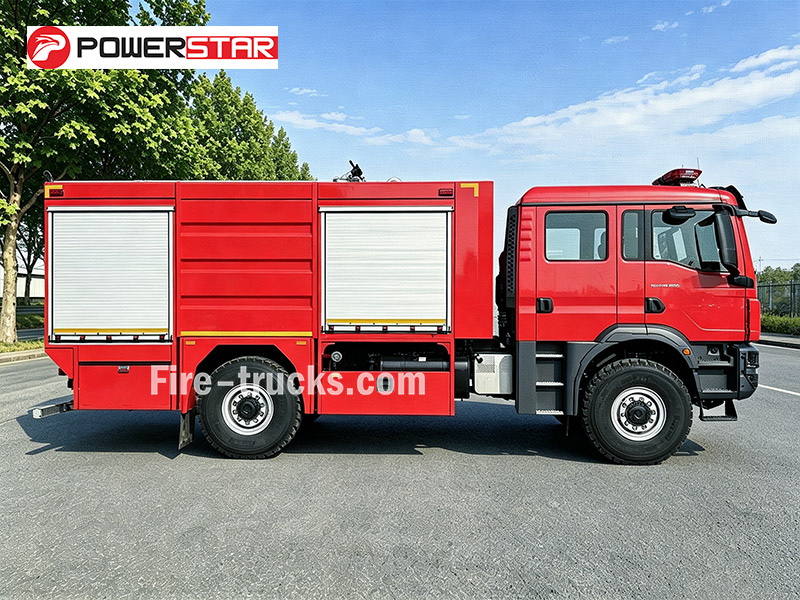

MAN 5,000L 4×4 foam fire truck runs on a 250 HP D0836LFL89 engine with a 4×4 chassis that handles rough terrain with ease. Total capacity is 5,000L—4,500L water and 500L foam. The CINAR 3000 N pump puts out 3,000 L/min at 10 bar, and the CINAR 2400 LPM front monitor delivers a 50m water reach. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and coastal areas where seawater compatibility matters.
Truck Chassis:
MAN TGM 18.250 4×4 BB CHTanker Capacity:
4500L water + 500L foam (5000L total)Engine Power:
250 HP (184 kW) / D0836LFL89Fire Pump:
CINAR 3000 NPump Flow:
3000 L/min @ 10 barFire Monitor:
INAR 2400 LPMMonitor Flow:
2400 L/minMonitor Range:
Water ≥50 m, Foam ≥42 mThis MAN 4×4 foam fire truck is built around a 250 HP D0836LFL89 diesel engine and a rugged 4×4 chassis that handles rough terrain, unpaved roads, and remote job sites with confidence. This MAN 5000L foam water fire rescue vehicle carries 5,000L total—4,500L water and 500L foam. A CINAR 3000 N pump delivers 3,000 L/min at 10 bar, and the front-mounted CINAR 2400 LPM monitor throws water up to 50m. This MAN 4x4 heavy duty foam fire truck comes with standard gear: hoses, suction line, couplings, foam gun, and tool kit. Robust 4×4 capability and high-flow pump make it a solid option for industrial fire response, rural operations, and coastal areas where seawater compatibility is required.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
4500L water + 500L foam |
250 HP / D0836LFL89 |
4500 mm |
★ Tank carbon steel, 5000L capacity ★ CINAR 3000 N fire pump, 3000 L/min flow @ 10 bar ★ CINAR 2400 LPM front monitor, 32 L/s flow; water ≥50 m, foam ≥42 m ★ 7 storage lockers with aluminum roller shutters, one-key universal lock system |
» Ⅰ.Main Features :
❶ 250 HP MAN D0836LFL89 diesel engine delivers strong low-end torque for off-road response and sustained pump operation in remote fireground conditions.
❷ 4×4 MAN foam fire truck is equipped with a 4500L water tank and a 500L foam tank, paired with a CINAR 3000 N pump rated at 3000 L/min and 10 bar for rapid initial fire attack.

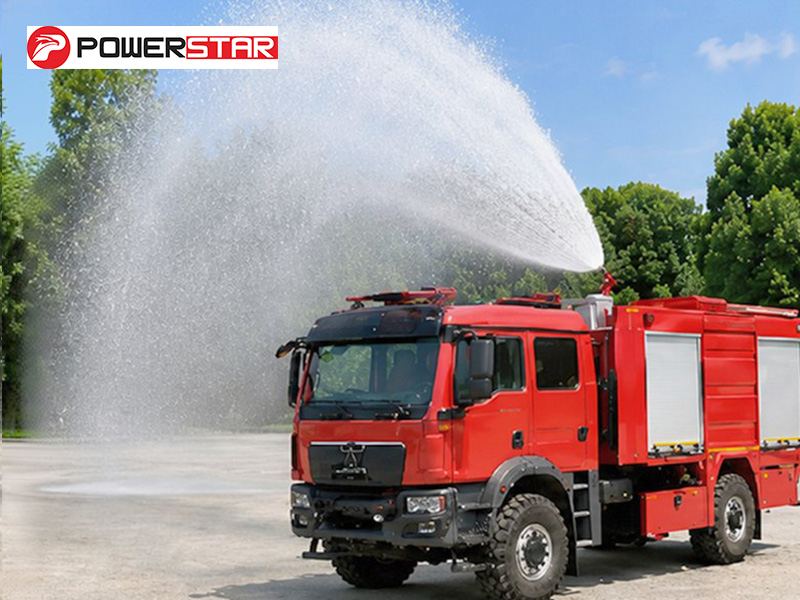

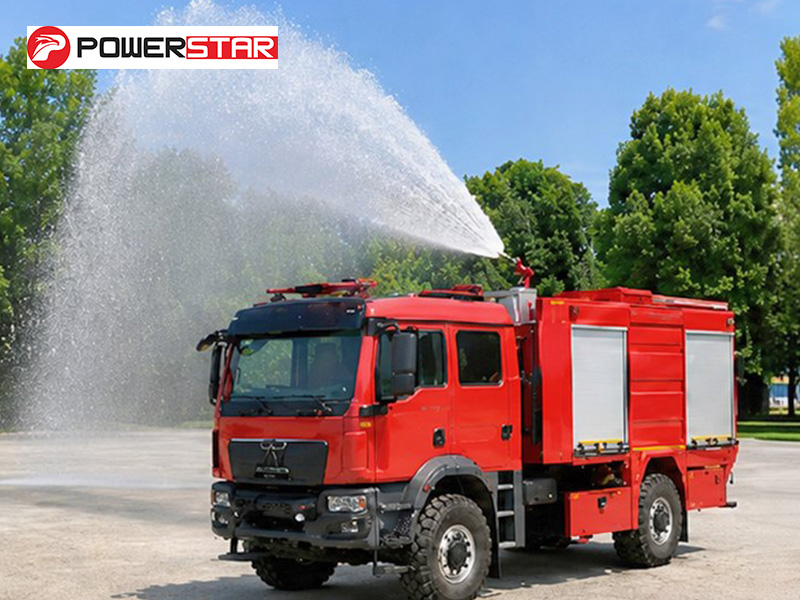

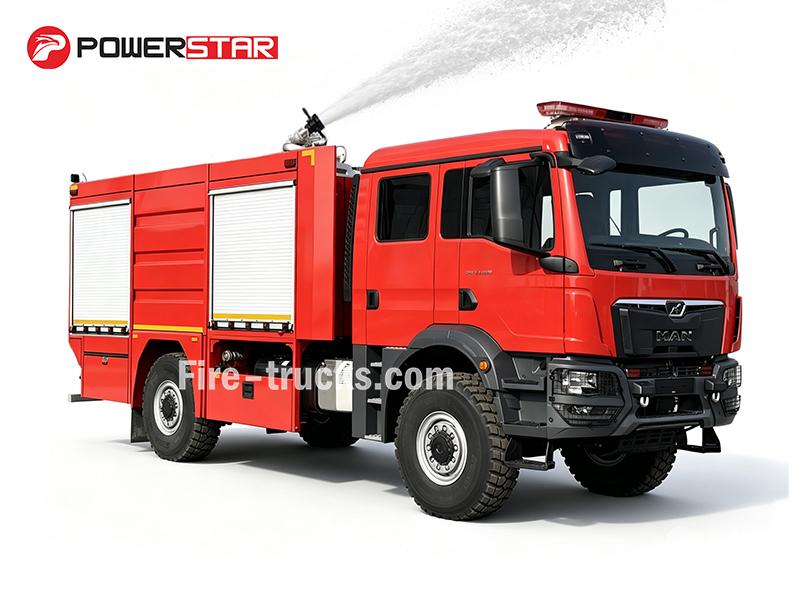

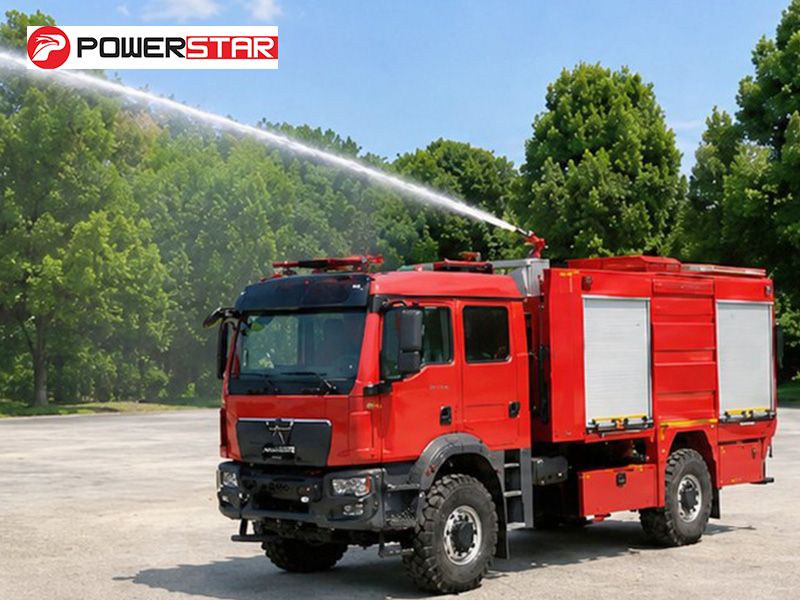

❸ CINAR 2400 LPM front monitor delivers a water range of 50m, allowing crews to engage fires from a safe distance while the 4×4 chassis maintains stability on uneven or unpaved terrain.
❹ With a 4500 mm wheelbase and 14.00R20 tires, this rugged 4×4 fire apparatus navigates rough roads, muddy tracks, and remote industrial sites that conventional fire trucks cannot access.
❺ Standard equipment includes hoses, suction line, couplings, foam gun, and tool kit, ready for immediate deployment. Its robust 4×4 capability and high-flow pump make it a practical solution for industrial fire response, rural operations, and coastal areas where seawater compatibility is required.
» Ⅱ.Product Parameter :
| MAN TGM 4X4 AMT Fire Fighter Online Distributor | |||
| General | Work capacity | 4500L water+500L foam | |
| Truck chassis | TGM 18.250 4x4 BB CH | ||
| Engine Power | 250 HP/ D0836LFL89 | ||
| Fire pump | CINAR 3000 N | ||
| Fire Monitor | CINAR 2400 LPM | ||
| Maximum Speed | 105 km/h | ||

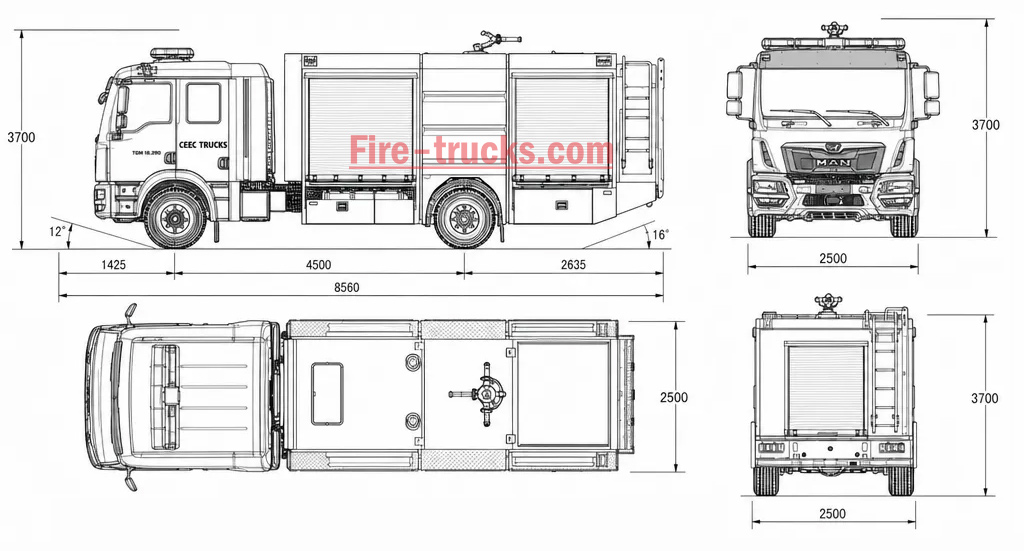

| Overall Dimensions L*W*H | 8560*2500*3700 mm | ||
| Gross Vehicle Weight | 18000 kg | ||
| Curb Weight | 10350 kg | ||
| Engine | Engine Model | D0836LFL89 | |
| Fuel Type | Diesel | ||
| Power | 250 HP(184KW) | ||
| Emission Standard | Euro 5 | ||
| Displacement | 6871 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x4 | |
| Steering | Left hand drive | ||
| Wheelbase | 4500 mm | ||
| Suspension | Spring | ||
| Tire | 14.00R20 | ||
| Tire No. | 6 tires and 1 spare tire | ||

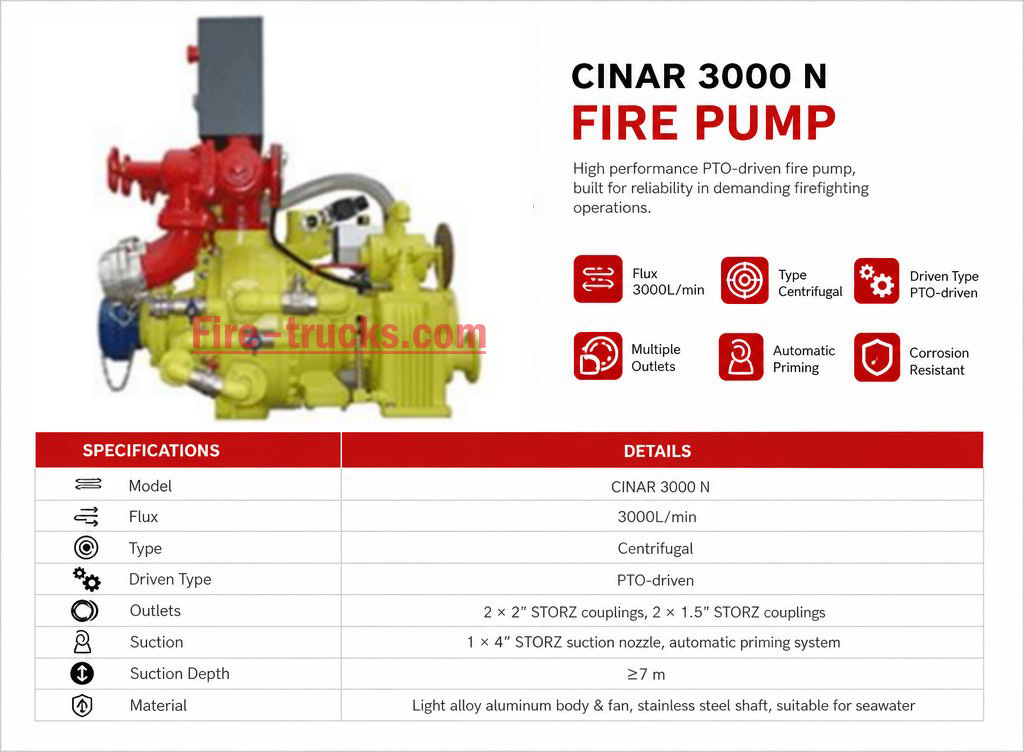

| Fire Pump | Model | CINAR 3000 N | |
| Flux | 3000L/min | ||
| Type | Centrifugal | ||
| Driven Type | PTO-driven | ||
| Outlets | 2 × 2" STORZ couplings, 2 × 1.5" STORZ couplings | ||
| Suction | 1 × 4" STORZ suction nozzle, automatic priming system | ||
| Suction Depth | ≥7 m | ||
| Material | Light alloy aluminum body & fan, stainless steel shaft, suitable for seawater | ||

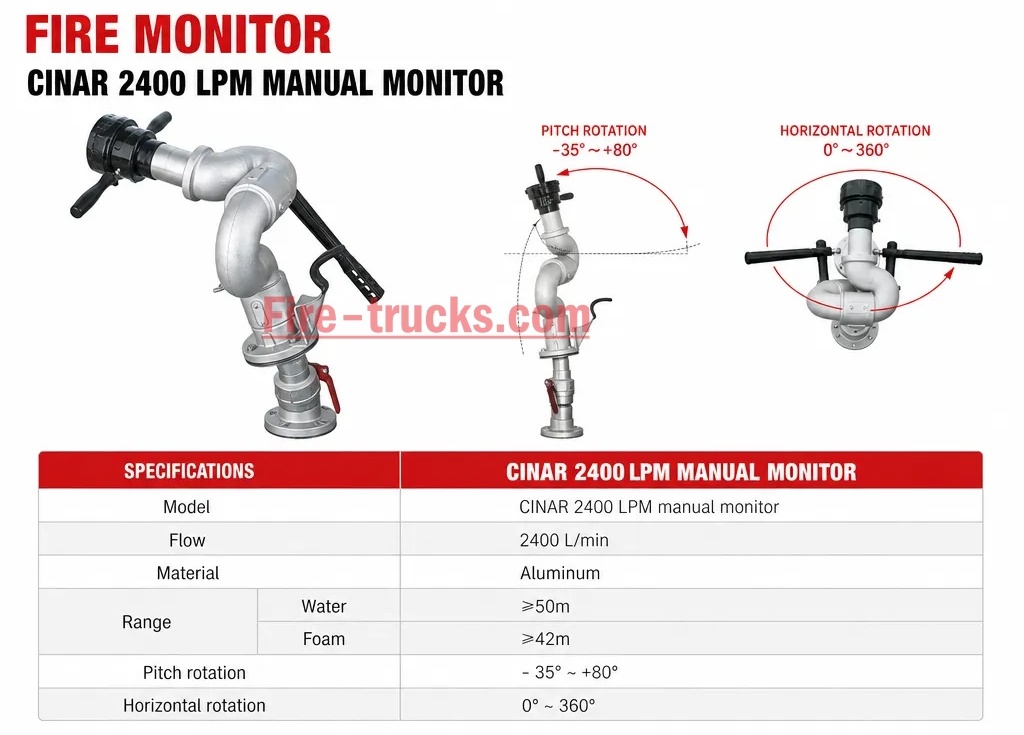

| Fire Monitor | Model | CINAR 2400 LPM manual monitor | |
| Flow | 2400 L/min | ||
| Material | Aluminum | ||
| Range | Water | ≥50m | |
| Foam | ≥42m | ||
| Pitch rotation | - 35~+80° | ||
| Horizontal rotation | 0~360° | ||
| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||


1. Chassis & Powertrain
♦ Chassis: MAN TGM 18.250 4×4 BB CH, 4500 mm wheelbase, engineered for off-road stability and rugged terrain mobility
♦ Engine: D0836LFL89 turbo diesel, 250 HP (184 kW), strong low-end torque for rough terrain response and continuous pump drive
♦ Transmission: Automatic transmission, Powermatic 08.13 OD, smooth shifting for both highway and off-road operations

2. Fire Suppression System
♦ Tank: 4500L water + 500L foam (5000L total), AISI 316L stainless steel, epoxy-coated interior for corrosion resistance
♦ Pump: CINAR 3000 N, 3000 L/min @ 10 bar, PTO-driven, seawater compatible, 7m suction lift

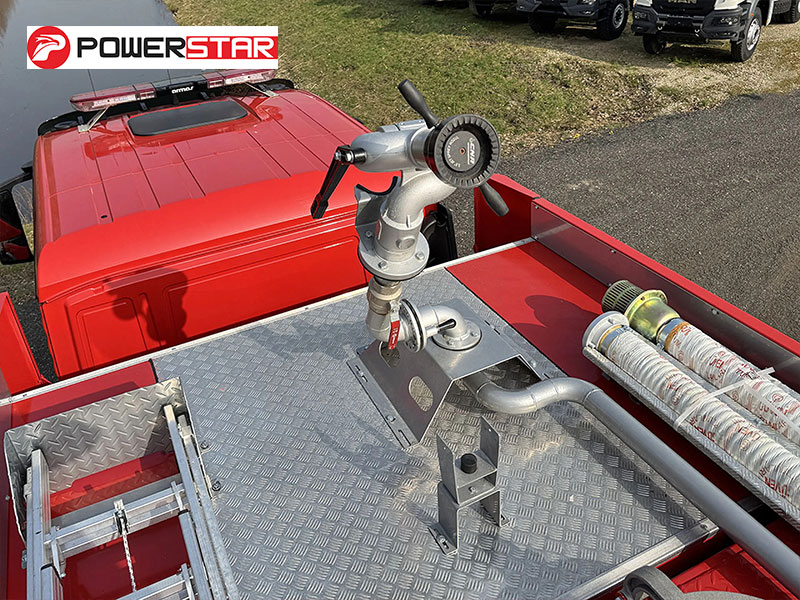

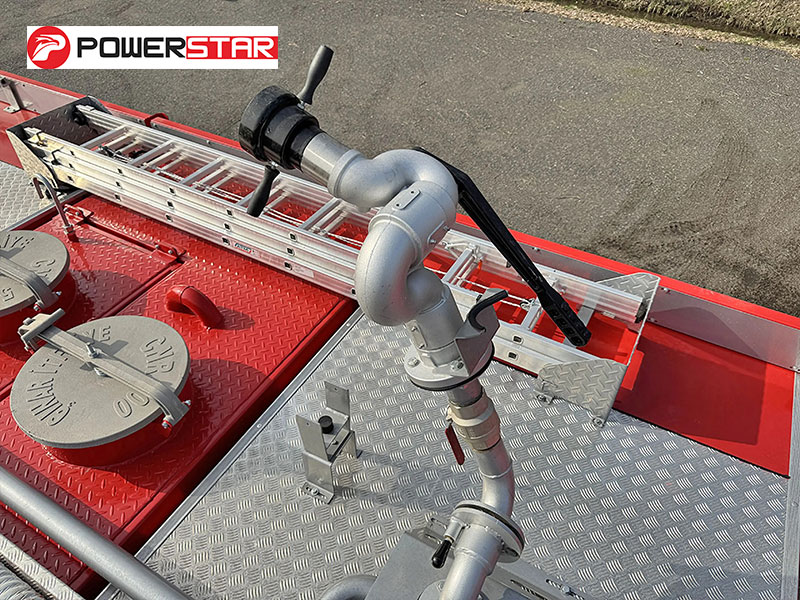

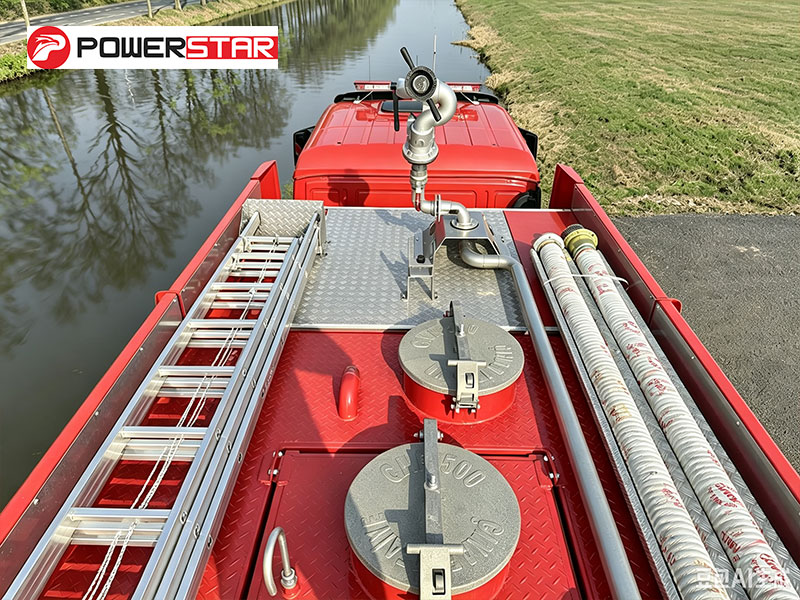

♦ Fire Monitor: CINAR 2400 LPM front monitor, water range ≥50m, 360° horizontal rotation, -45° to +80° vertical pitch
♦ Hose Reel: 1" × 60m unbreakable hose with jetting/spraying nozzle, manual rewinding

» Ⅳ.Fire Pump System :
Fire Pump:
The CINAR 3000 N fire pump, rated at 3,000 L/min and 10 bar, is installed in the rear pump room. Designed for dependable service, it delivers high-volume flow to support both hose lines and the front monitor, ensuring efficient water or foam delivery across long distances.
» Ⅵ.Firefighting Equipment :

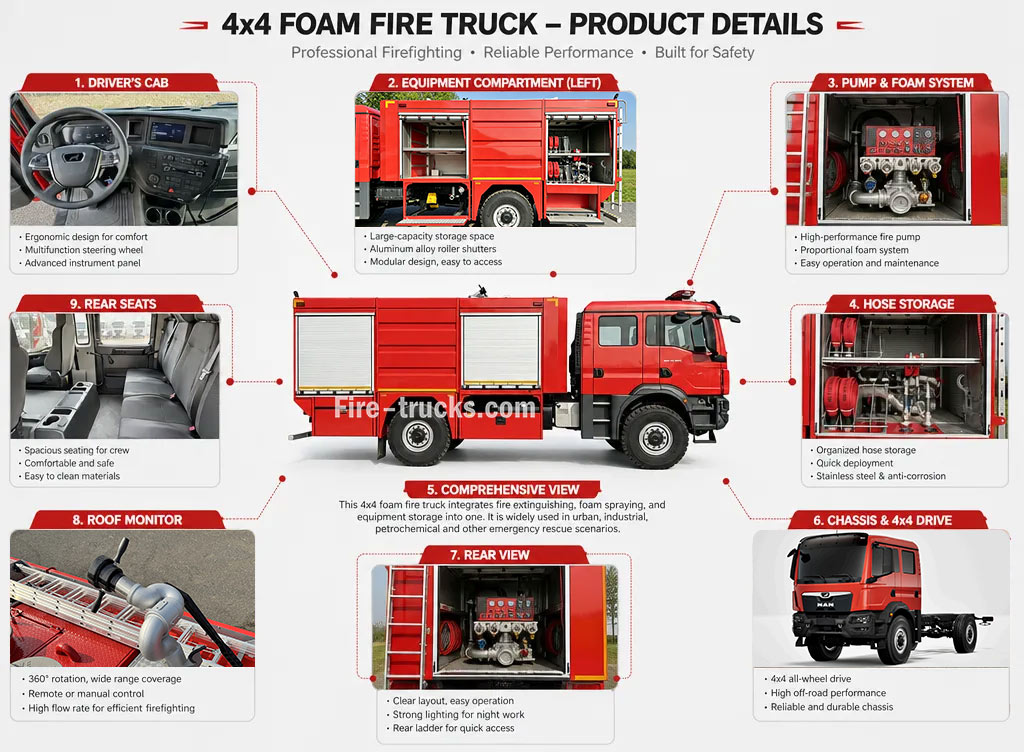

• Equipment Room

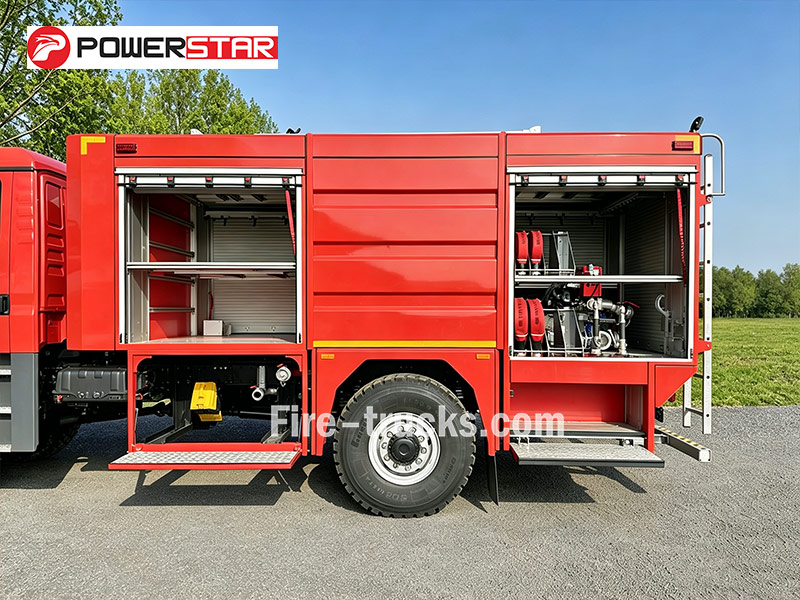

Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and foam guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

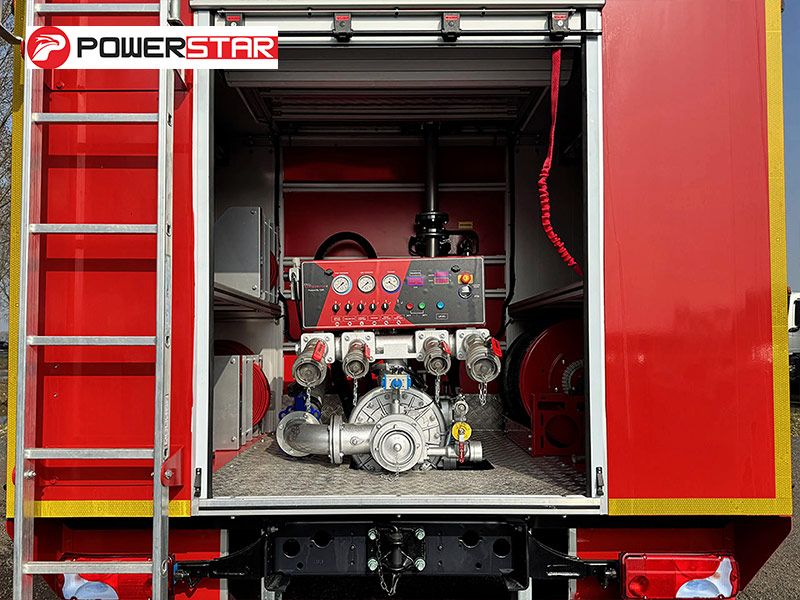

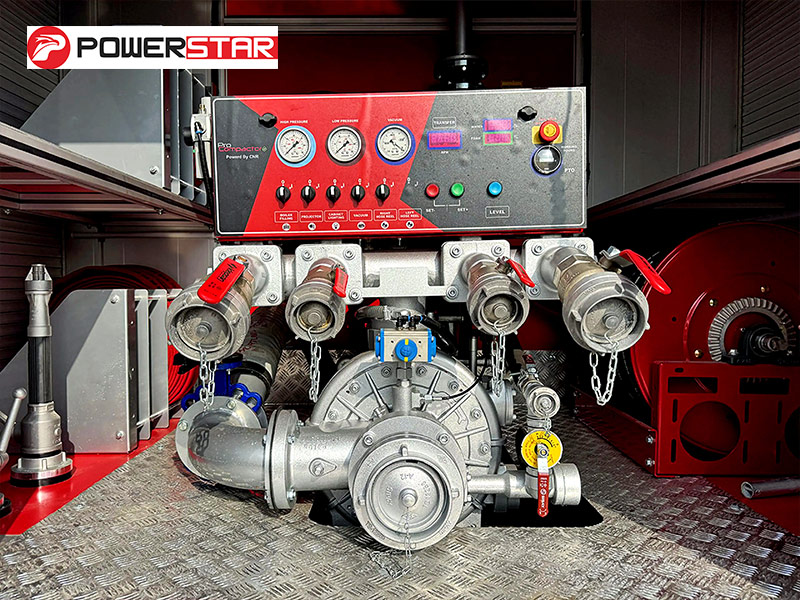

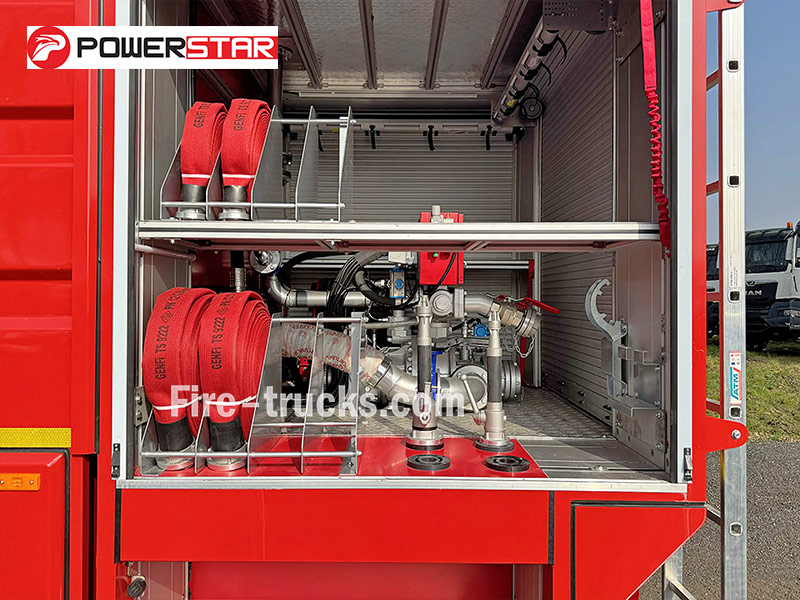

• Pump Room: Equipped with CINAR 3000 N fire pump, control panel, pressure gauge, vacuum gauge, and compartment lighting. Accessories include fire hoses, suction lines, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and adapters.

The MAN 4×4 foam fire truck comes with a rear-mounted CINAR 3000 N pump and a front-mounted CINAR 2400 LPM monitor. Total fluid capacity is 5,000 liters—4,500L water and 500L foam. The vehicle sits on a rugged 4×4 chassis and is powered by a 250 HP MAN D0836LFL89 diesel engine. Standard delivery includes hoses, suction line, fittings, foam gun, and a basic tool kit. Full specs are listed below:
