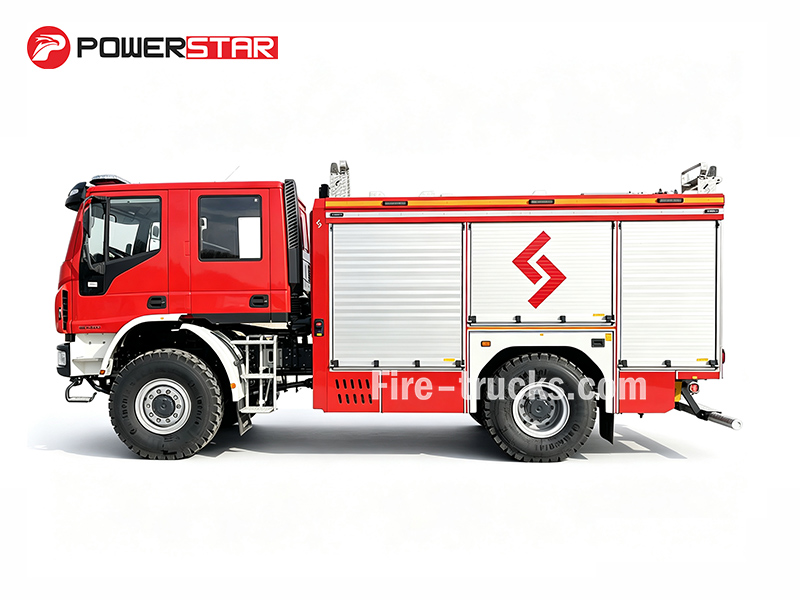

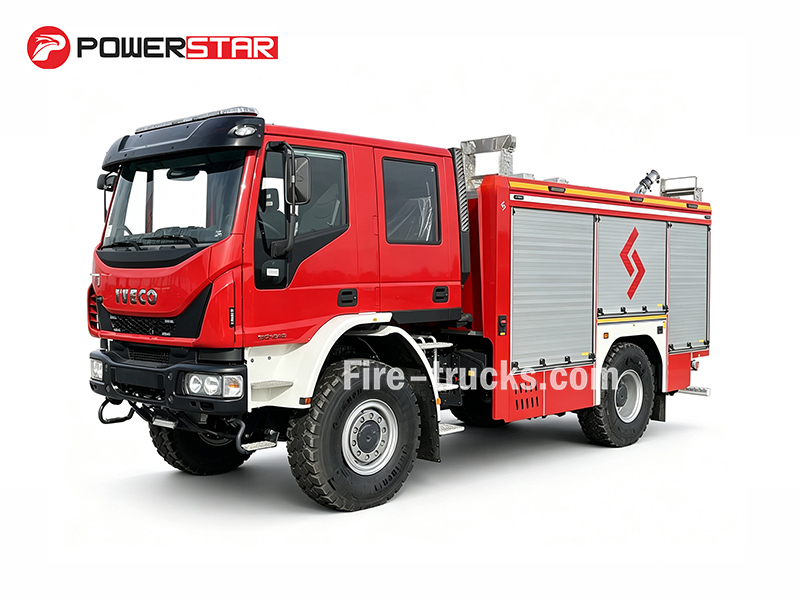

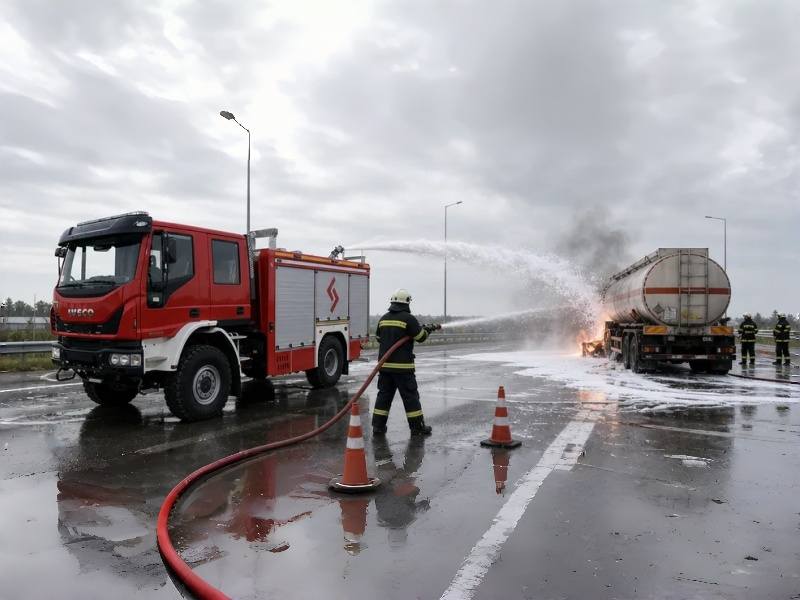

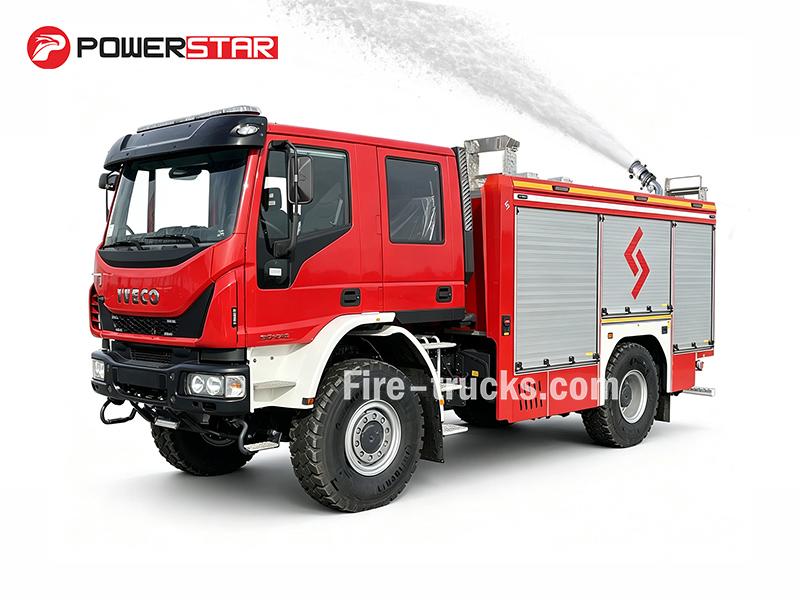

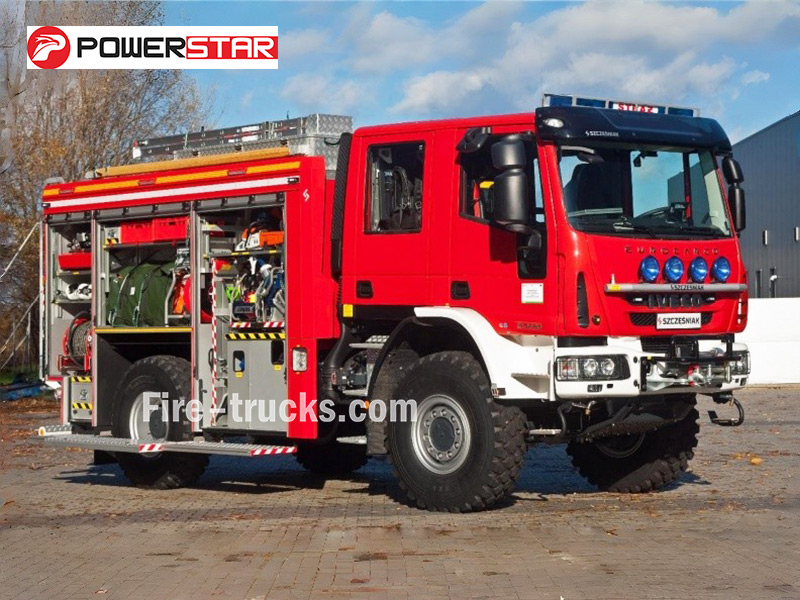

IVECO 3850L 4×4 foam fire truck is driven by a 240 HP TECTOR F4EE681B engine with a 4×4 chassis that handles rough terrain with confidence. Total capacity is 3,850L—3,500L water and 350L foam. The Godiva P2 2010 pump delivers 2,000 L/min at 10 bar and 250 L/min at 40 bar, while the roof-mounted Szczesniak monitor reaches 60m with water and 55m with foam. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and demanding fireground operations.
Truck Chassis:
IVECO ML 150E24WS 4×4Tanker Capacity:
3500L water + 350L foam (3850L total)Engine Power:
240 HP (177 kW) / IVECO TECTOR F4EE681BFire Pump:
Godiva P2 2010Pump Flow:
2000 L/minWork Pressure:
10 bar (low pressure) / 250 L/min @ 40 bar (high pressure)Fire Monitor:
Szczesniak roof monitorMonitor Flow:
1600–2400 L/minMonitor Range:
Water ≥60 m, Foam ≥55 m。This IVECO 4×4 foam fire truck is built around a 240 HP TECTOR F4EE681B engine and a rugged 4×4 chassis that handles rough terrain, industrial sites, and remote areas with ease. This IVECO 3850L foam water fire rescue vehicle carries 3,850L total—3,500L water and 350L foam. A Godiva P2 2010 pump delivers 2,000 L/min at 10 bar and 250 L/min at 40 bar, and the roof-mounted Szczesniak monitor throws water up to 60m and foam up to 55m. This IVECO 4x4 heavy duty foam fire truck comes with standard gear: hoses, suction line, couplings, foam gun, and tool kit. Powerful engine, dual-pressure pump, and robust 4×4 capability make it a solid choice for industrial fire response, rural operations, and challenging terrain where standard fire trucks cannot reach.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
3500L water + 350L foam |
240 HP / TECTOR F4EE681B |
4150 mm |
★ Tank carbon steel, 3850L capacity ★ Godiva P2 2010 fire pump, 2000 L/min flow @10 bar / 250 L/min @40 bar ★ Szczesniak roof monitor, water ≥60 m, foam ≥55 m ★ 2026 new model |
» Ⅰ.Main Features :
★ IVECO TECTOR F4EE681B engine rated at 240 HP for foam fire suppression and rough terrain response
★ IVECO ML 150E24WS 4×4 chassis with 3500L water tank and 350L foam tank for dual-agent suppression (3850L total)
★ Godiva P2 2010 fire pump (2000 L/min at 10 bar / 250 L/min at 40 bar) + Szczesniak roof monitor (water ≥60m, foam ≥55m) for fire suppression
★ Full firefighting equipment, including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
| Advanced IVECO 4x4 Fire Pump Vehicles | |||
| General | Work Capacity | 3500L water + 350L foam | |
| Truck Chassis | IVECO ML 150E24WS 4×4 | ||
| Engine Power | 240 HP/ IVECO TECTOR F4EE681B | ||
| Fire Pump | Godiva P2 2010 | ||
| Fire Monitor | Szczesniak roof monitor | ||
| Maximum Speed | 90 km/h | ||

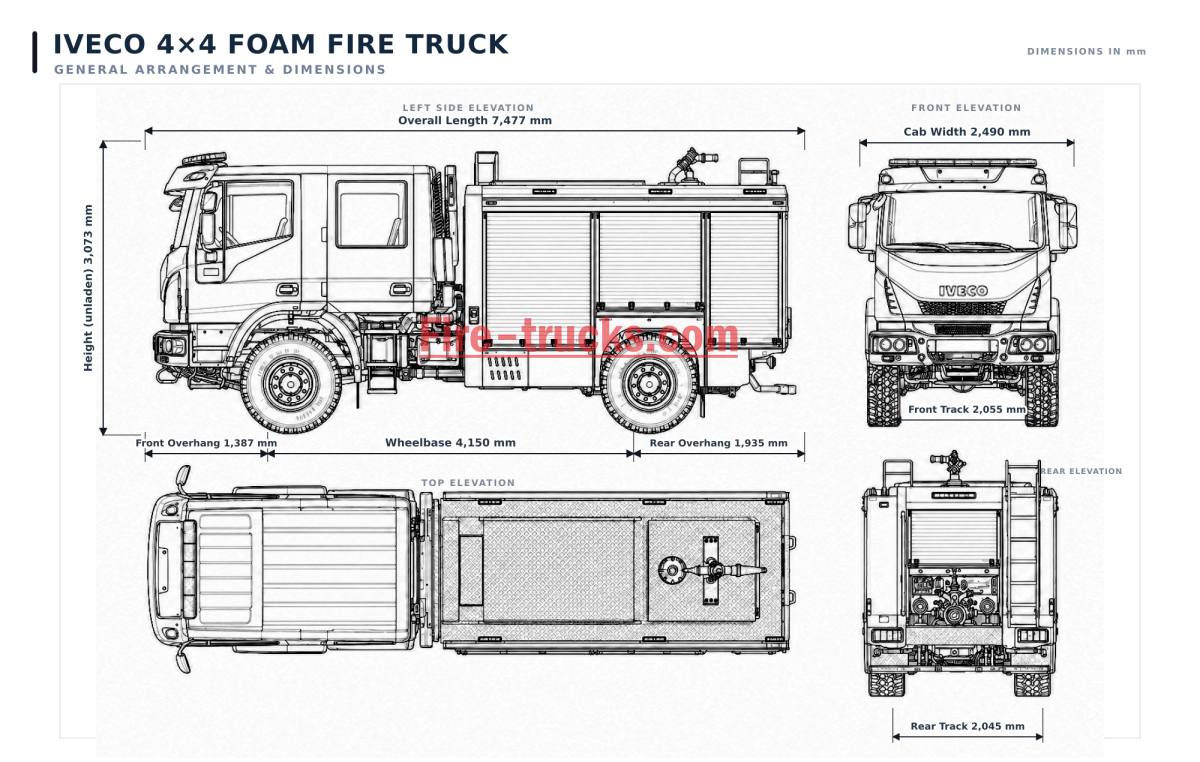

| Overall Dimensions L*W*H | 7477 *2490*3073 mm | ||
| Gross Vehicle Weight | 15000 kg | ||
| Curb Weight | 9270 kg | ||
| Front Axle Weight | 5700 kg | ||
| Rear Axle Weight | 10000 kg | ||
| Engine | Engine Model | IVECO TECTOR F4EE681B | |
| Fuel Type | Diesel | ||
| Power | 240 HP(177KW) | ||
| Emission Standard | Euro III | ||
| Displacement | 5880 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x4 | |
| Wheelbase | 4150 mm | ||
| Tire | 14.00R20 | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Fuel Tank Capacity | 115 L | ||
| Transmission | ZF 6ASTRONIC 800 (Automatic) | ||
| Brake Type | Drum brake | ||
| Cabin | Crew cab, 6 persons (1+1+4) | ||
| Fire Pump | Model | Godiva P2 2010 | |
| Flux | Godiva P2 2010 | ||
| Pressure | 2000 L/min | ||
| Low Pressure | 10 bar | ||
| High Pressure | 40 bar | ||
| Max Suction Height | 7.5m | ||
| Water Diversion Time | ≤30 s | ||
| Fire Monitor | Model | Szczesniak roof monitor | |
| Flow | 1600–2400 L/min | ||
| Rated Working pressure | 8–10 bar | ||
| Range | Water | ≥60m | |
| Foam | ≥55m | ||
| Pitch Rotation | - 50~+80° | ||
| Horizontal Rotation | 0~360° | ||
| Foam System | Foam Proportioner | Manual pump-type proportioner | |
| Mixing Ratio | 3% – 6% manually selectable | ||
| Max Flow Rate | 2000 L/min | ||
| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||


1. Chassis & Powertrain
♦ Chassis: IVECO ML 150E24WS 4×4, 4150 mm wheelbase, engineered for off-road stability and rugged terrain mobility
♦ Engine: TECTOR F4EE681B turbo diesel, 240 HP (177 kW), strong low-end torque for rough terrain response and continuous pump drive
♦ Transmission: ZF 6ASTRONIC 800, 6-speed automatic, smooth shifting for both highway and off-road operations

2. Fire Suppression System
♦ Tank: 3500L water + 350L foam (3850L total), AISI 316L stainless steel, corrosion-resistant construction
♦ Pump: Godiva P2 2010, 2000 L/min @ 10 bar (low pressure) / 250 L/min @ 40 bar (high pressure), PTO-driven

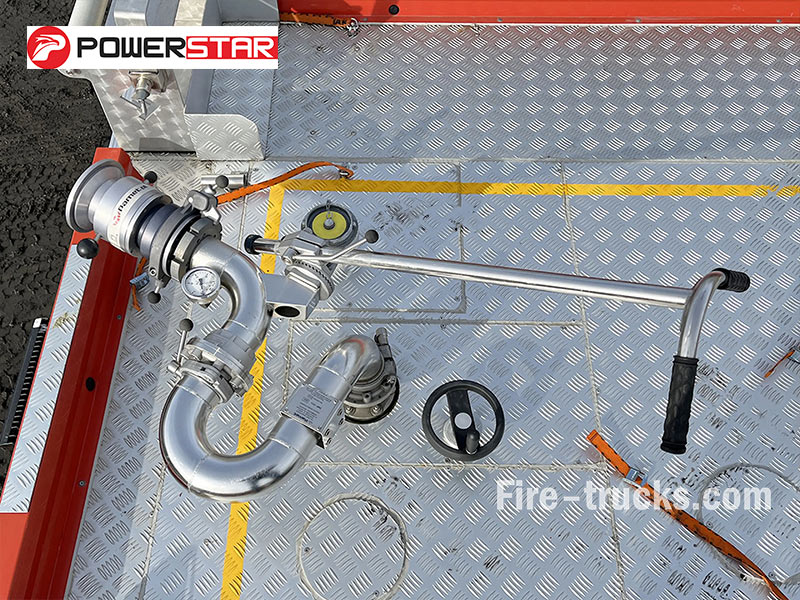

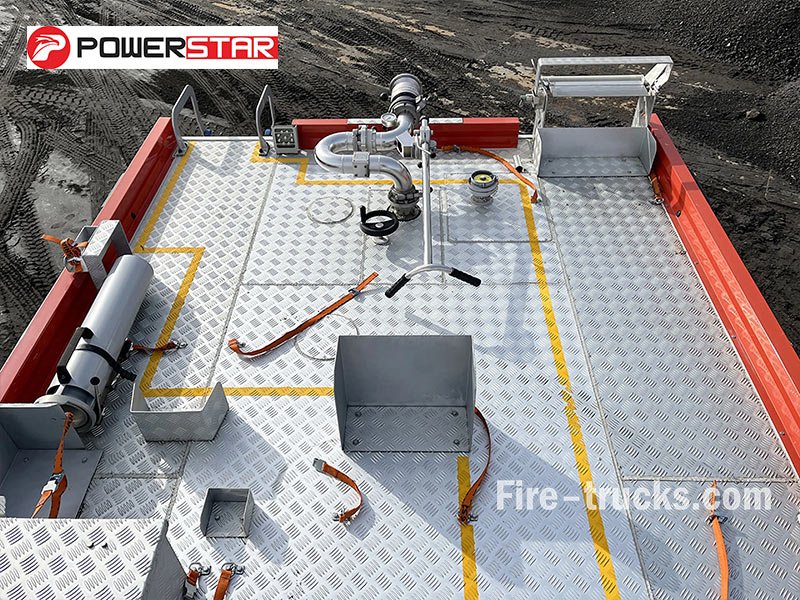

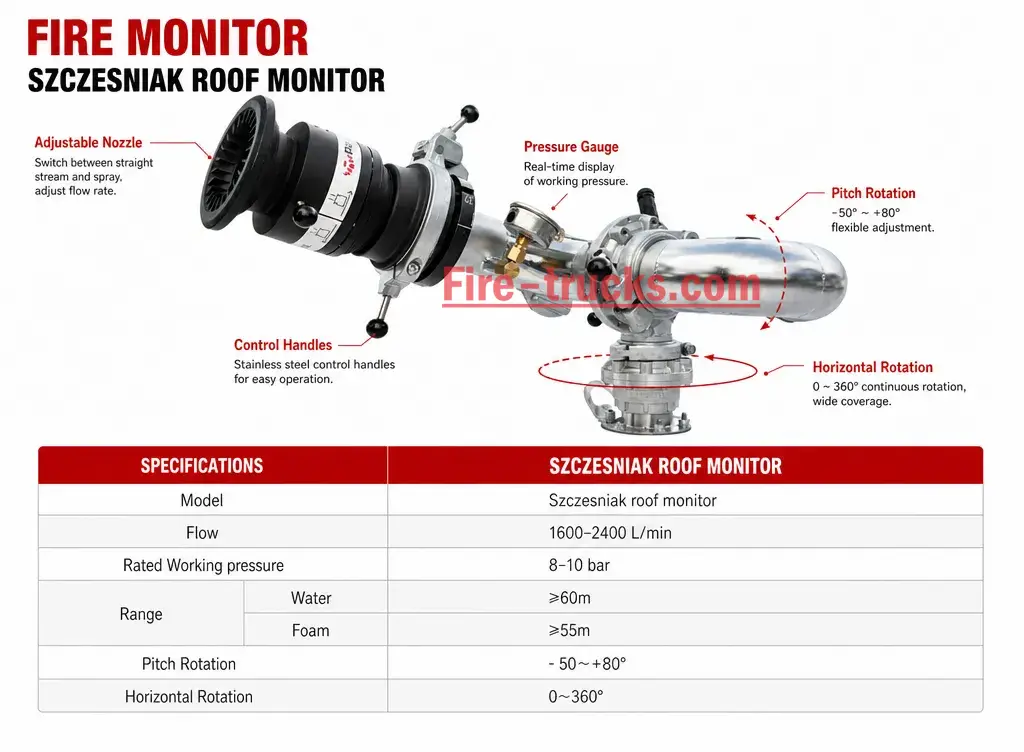

♦ Fire Monitor: Szczesniak roof monitor, water range ≥60m, foam range ≥55m, 360° horizontal rotation, -50° to +80° vertical pitch
♦ Hose Reel: 40m x DN19 high-pressure hose with electric drive and manual override
» Ⅳ.Fire Pump System :

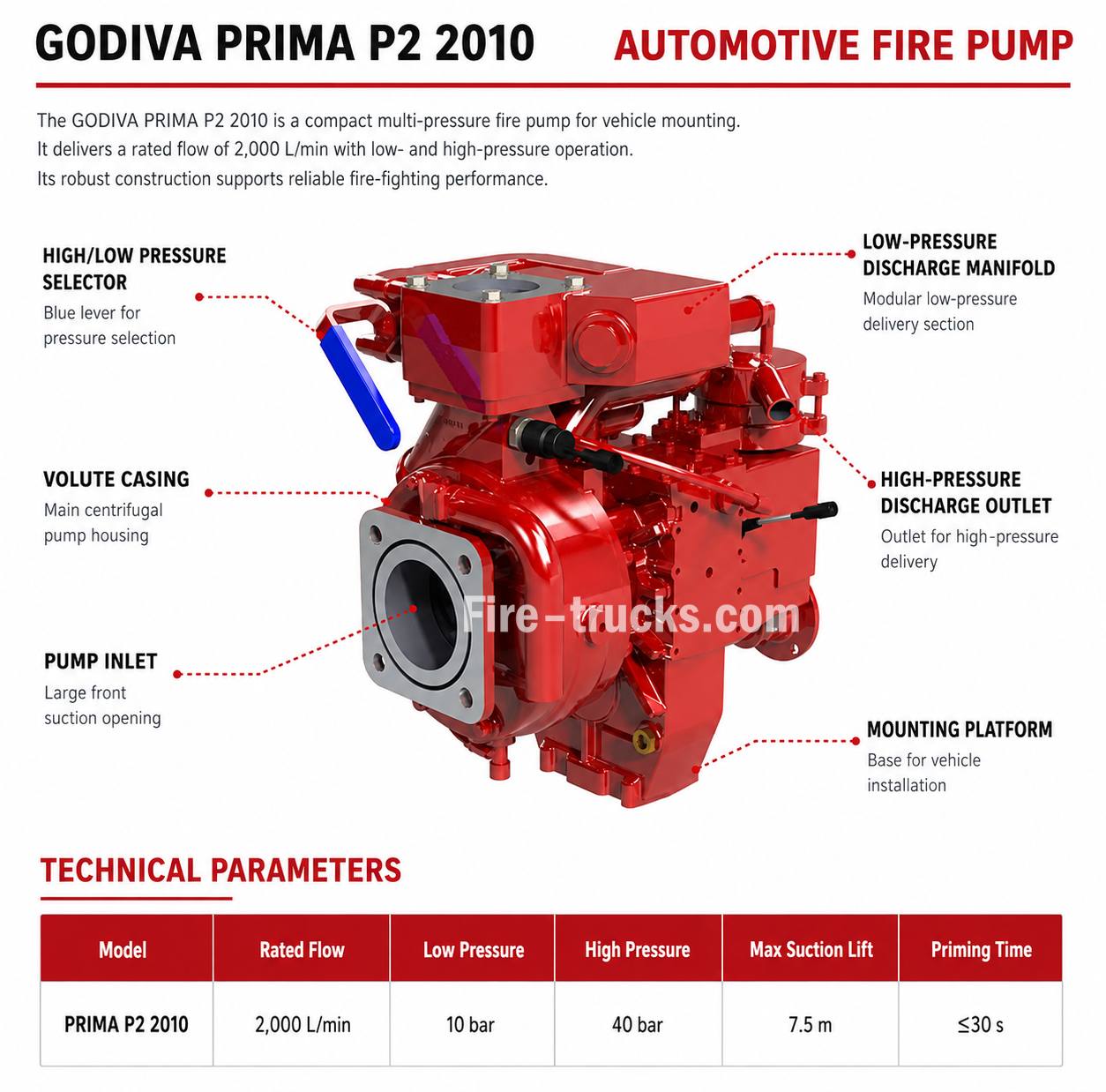

Fire Pump:
The Godiva P2 2010 fire pump, rated at 2,000 L/min with dual-pressure output at 10 bar and 40 bar, is installed in the rear pump room. Designed for reliable performance, it supports both standard hose lines and high-pressure operations, ensuring efficient water or foam delivery across long distances.

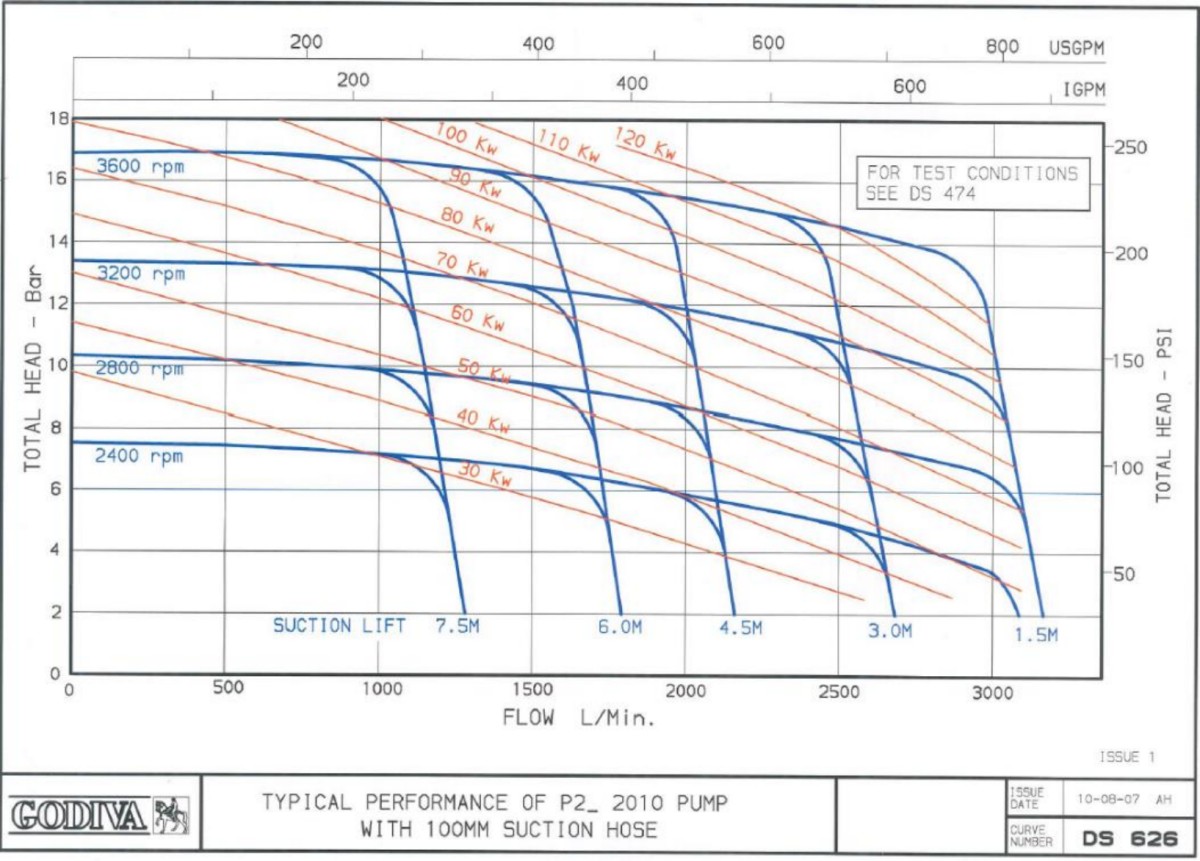

Fire Pump Performance:

» Ⅵ.Firefighting Equipment :

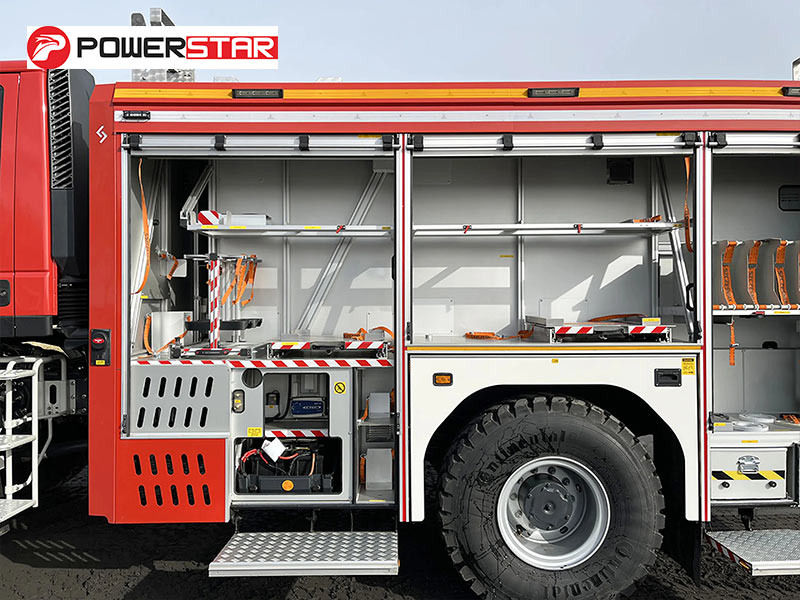

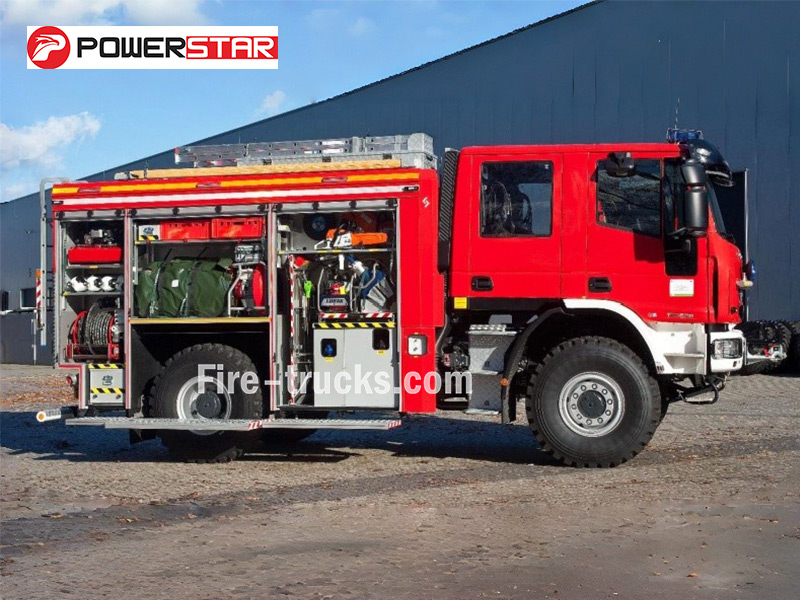

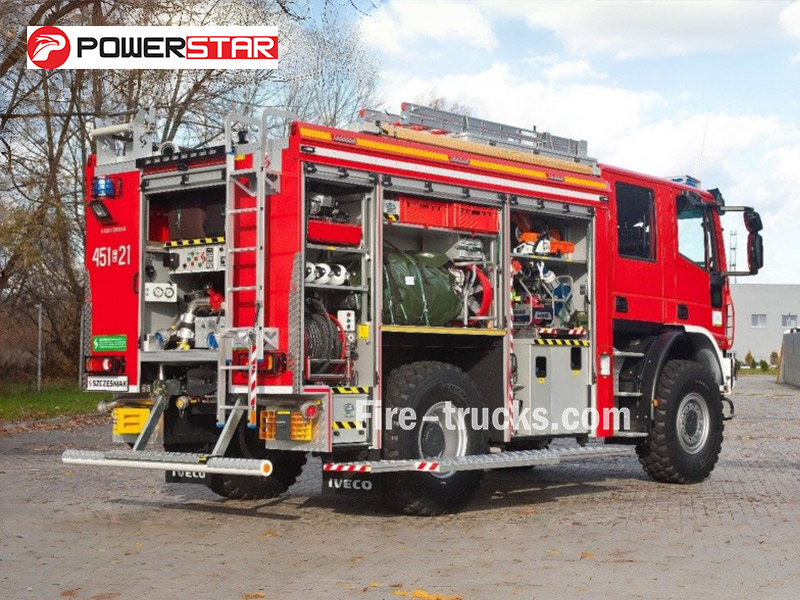

• Equipment Room
Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and foam guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

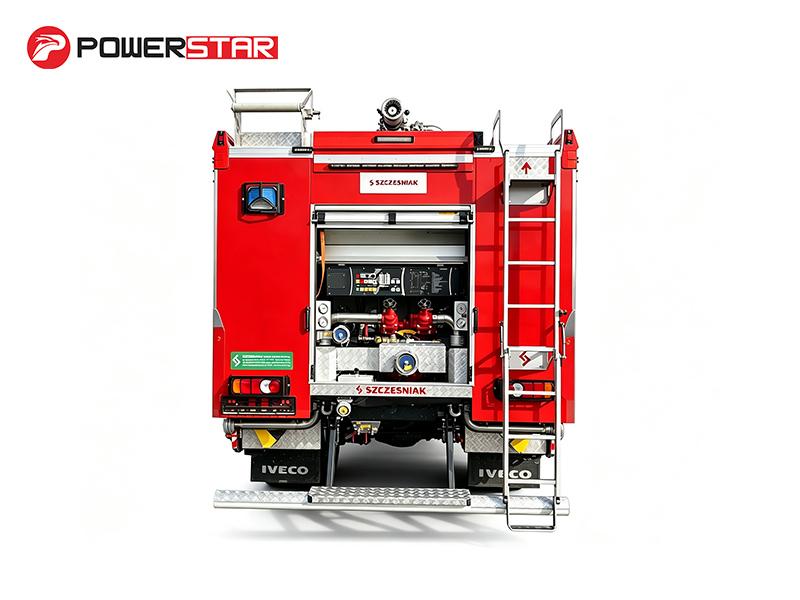

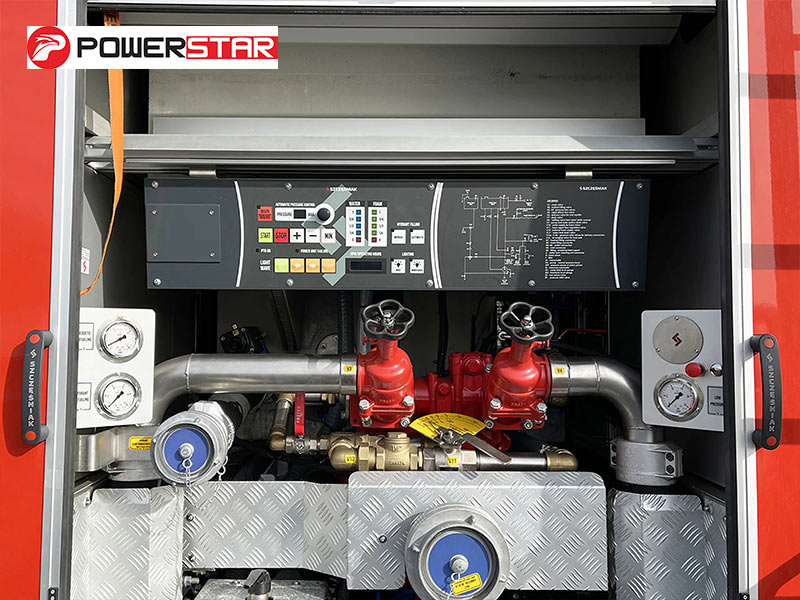

• Pump Room: Equipped with Godiva P2 2010 fire pump, control panel, pressure gauge, vacuum gauge, and compartment lighting. Accessories include fire hoses, suction lines, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and adapters.

The IVECO ML 150E24WS 4×4 foam fire truck comes with a rear-mounted Godiva P2 2010 pump and a roof-mounted Szczesniak monitor. Total fluid capacity is 3,850 liters—3,500L water and 350L foam. The vehicle sits on a rugged 4×4 chassis and is powered by a 240 HP IVECO TECTOR F4EE681B diesel engine with a 6-speed automatic transmission. Standard delivery includes hoses, suction line, fittings, foam gun, and a basic tool kit. Full specs are listed below:
