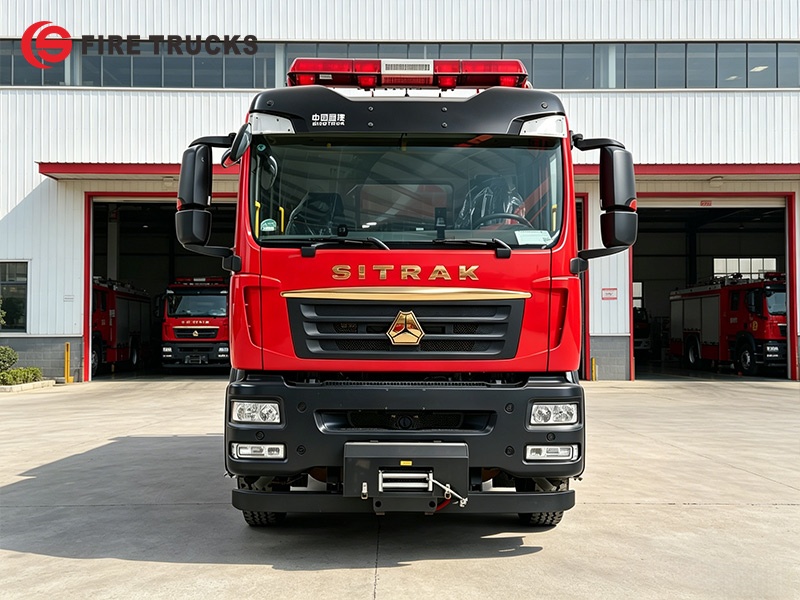

Dubai HOWO SITRAK Emergency Lighting Rescue Fire Truck

Dubai HOWO SITRAK Emergency Lighting Rescue Fire Truck

The SITRAK 4x2 350HP foam water rescue truck with night lighting is powered by a 350 HP MC07H.35-61 engine on a 4×2 chassis. It features a 7000 kg front winch, a 4500L water tank, a 1600L foam tank, a CB10/60 pump (60 L/s), and a PLDK8/48 monitor (48 L/s, water ≥70m, foam ≥60m). An 8m mast with 2×1000W LED lights and a 15kVA generator supports night operations.

  • Truck Chassis:

    SINOTRUK HOWO 4x2
  • Tanker Capacity:

    4500L water + 1600L foam (6100L total)
  • Engine Power:

    350 HP (257 kW) / MC07H.35-61
  • Fire Pump:

    CB10/60
  • Pump Flow:

    60 L/s
  • Work Pressure:

    1.0 MPa
  • Fire Monitor:

    PLDK8/48
  • Monitor Flow:

    48 L/s
  • Monitor Range:

    Water ≥70 m , Foam ≥60 m
  • Remark:

    8m mast lighting (2×1000W LED)
Facebook Linkedin Youtube Twitter Pinterest

The Dubai SITRAK foam water rescue truck with night lighting is built on a 4×2 chassis with a 350HP MC07H.35-61 engine. This emergency lighting rescue fire truck features a 7000 kg front winch, a 4500L water tank, and a 1600L foam tank. A CB10/60 pump (60 L/s) and a PLDK8/48 monitor (48 L/s, water ≥70m, foam ≥60m) handle fire suppression. Standard gear includes roll-up aluminum doors, LED lights, fold-down steps, and an 8m mast lighting system with 2×1000W LED—a solid choice for night rescue and industrial fire fighting.



Dubai HOWO SITRAK 4x2 350HP 4500L 1600L foam water rescue fire truck

 ♦ HOWO SITRAK Emergency Lighting Rescue Fire Truck ♦



Main Items

Technical Parameters for SITRAK Emergency Lighting Rescue Fire Truck

Winch System

Drive Type

Electric control

Max Tension

≥7000 kg

Wire Rope Dia.

≥11.5 mm

Wire Rope Length

≥36 m

Installation

Front of vehicle, with 4 pads

Equipment box

Material

Oxidized aluminum frame & cover; baffle & profile structure

Roller Shutter

3 per side, lockable, with linked LED strips

Roof Guard

Integrated aluminum extrusion; exterior flashing lights, interior LED strips

Fold-down Step

Aluminum extrusion, anti-slip, load ≥150kg, double locking

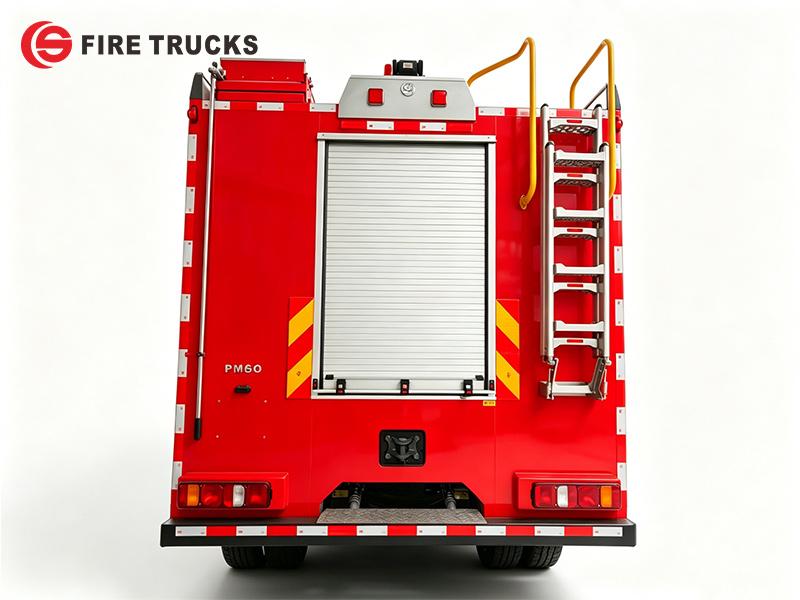

Rear Ladder

Aluminum ladder on the right side for roof access

Mast Lighting System

Generator

≥15 kVA, 50Hz, 220V/380V, electric start, gasoline, V-twin

Mast

Aluminum alloy, max height ≥8 m

Lighting

4×500W LED

Rotation

Horizontal ≥420°, tilt ≥420°

Control

Panel + wired (5m) + wireless (≥50m), one-key auto-reset

Position Front of the equipment box
Decontamination System
Main Equipment Mobile high-pressure cleaner, hot water decontamination unit, flow rate ≥10 L/min
System Components Each includes one set of: public decontamination tent, manual diaphragm suction pump, electric inflator/air pump, decontamination sewage pump, mobile high-pressure cleaner, high-pressure hot water cleaner, warm air generator (with temperature control), decontamination solution mixing tank, water storage bag, contamination collection bag, oil protective cover, absorbent pad, toxic substance sealing barrel

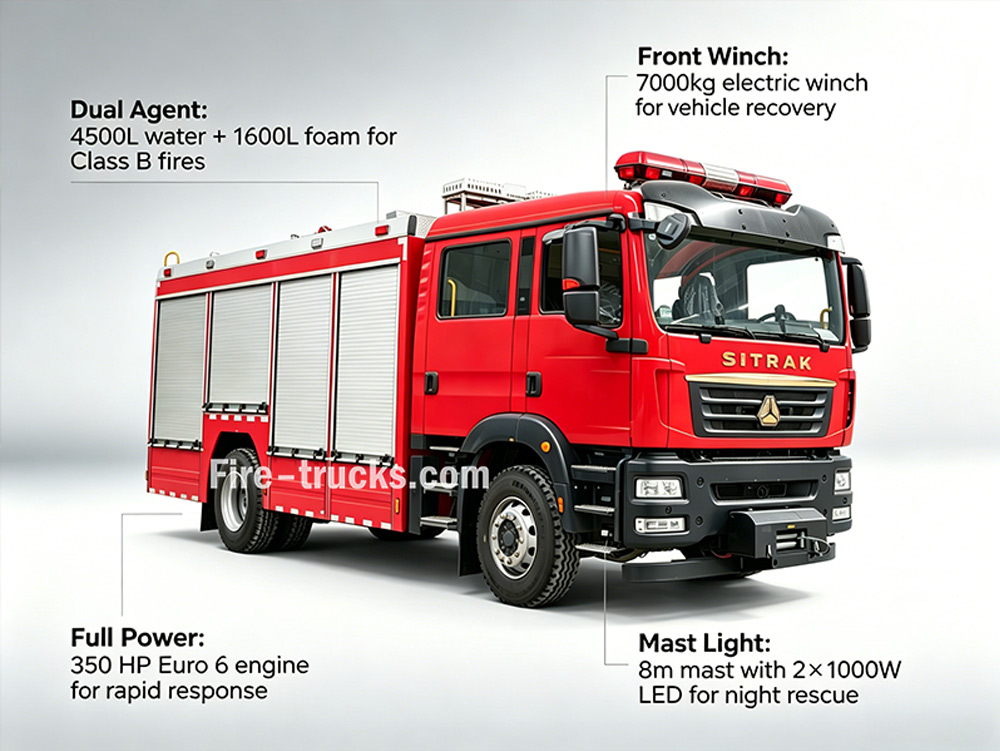

»Ⅰ. Main Features :

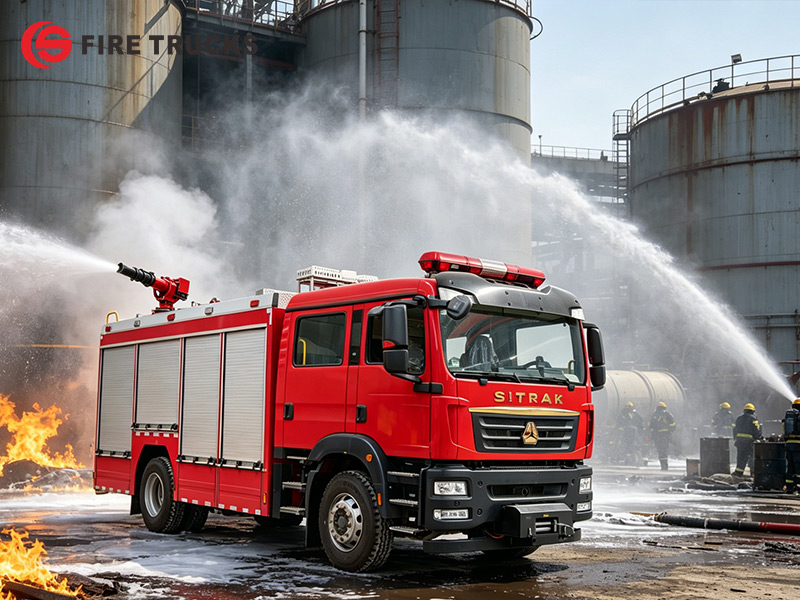

★ MC07H.35-61 engine, 350 HP for night rescue and industrial fire fighting operations

★ SITRAK 4×2 chassis with front winch (7000 kg), 4500L water tank, and 1600L foam tank for dual-agent suppression

★ CB10/60 fire pump (60 L/s) + PLDK8/48 monitor (48 L/s, water ≥70m, foam ≥60m) for fire suppression

★ 8m mast lighting system with 2×1000W LED + 15kVA generator for night operations

★ Full firefighting equipment, including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting

  • SITRAK HOWO 4X2 foam fire rescue emergency lighting rescue fire truck Albania
  • HOWO SITRAK 4x2 foam water fire truck with night lighting Philippines
  • SITRAK HOWO Dubai 350HP foam water rescue fire truck for night operation

» Ⅱ.Product Parameter :

Dubai HOWO SITRAK Emergency Lighting Rescue Fire Truck
General Work capacity 4500L water + 1600L foam
Truck chassis SINOTRUK SITRAK 4x2
Engine Power 350 HP(257 kW) / MC07H.35-61
Fire pump CB10/60
Fire Monitor PLDK8/48
Maximum Speed 100 km/h
Overall Dimensions L*W*H 9200*2520*3600 mm
Gross Vehicle Weight 20100 kg
Curb Weight 6480 kg
Engine Engine Model MC07H.35-60
Fuel Type Diesel
Power 350 HP(257KW)
Emission Standard  Euro 6
Displacement 7360 ml
Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Drive Type 4x2
Wheelbase 4700 mm
Tire 315/80R22.5
Tire No. 6 tires and 1 spare tire
Fire Pump Model CB10/60
Flux 60L/s
Pressure  1MPa
Max working pressure 1.251MPa
Max allowable inlet pressure 0.4MPa
Max suction height 3m
Rated speed 3916±50r/min
Speed ratio 1:1.4
Water diversion time ≤50s
Fire Monitor Model  PLDK8/48
Flow 48L/s
Rated working pressure 0.8MPa
Max working pressure 1.2MPa
Range Water ≥70m
Foam ≥60m
Pitch rotation - 35~+70°
Horizontal rotation 0~360°
Standard  Configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

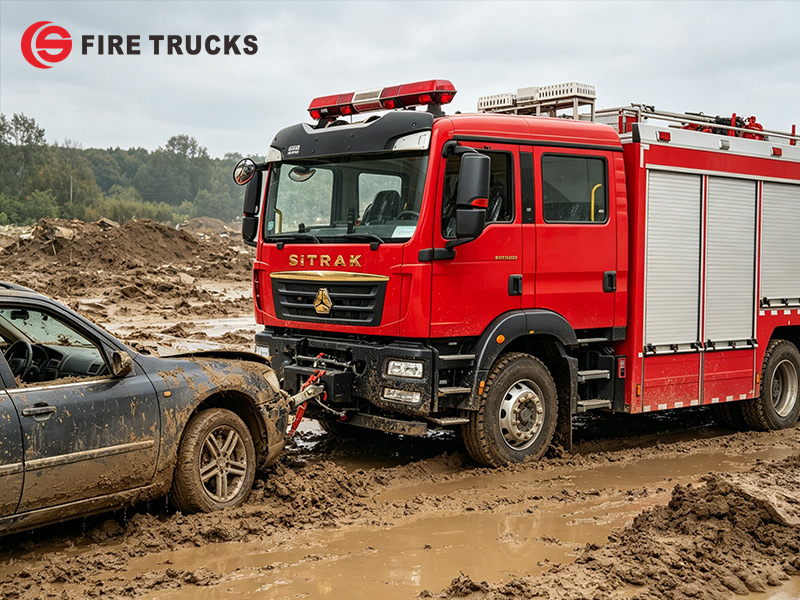

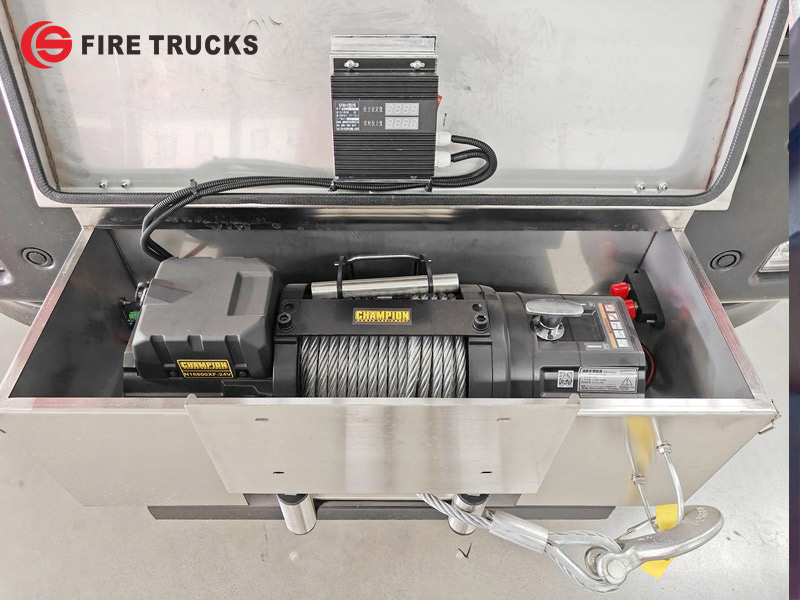

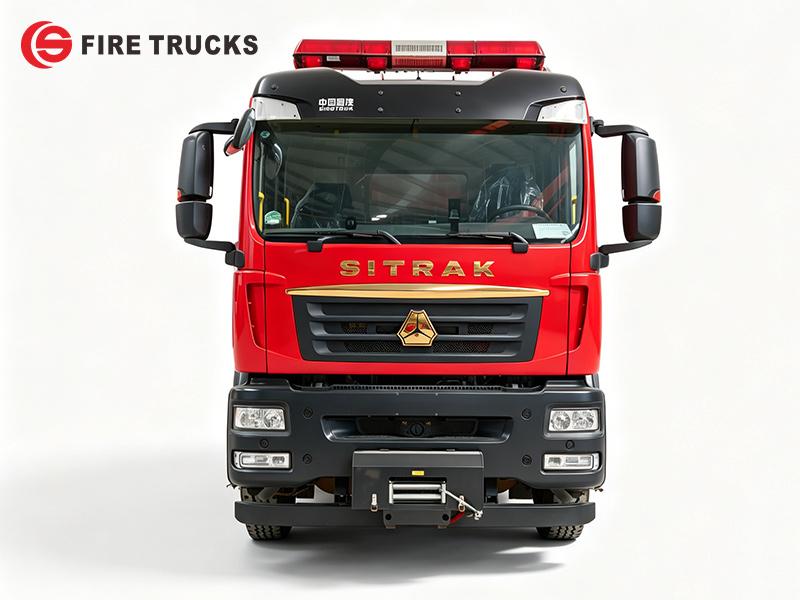

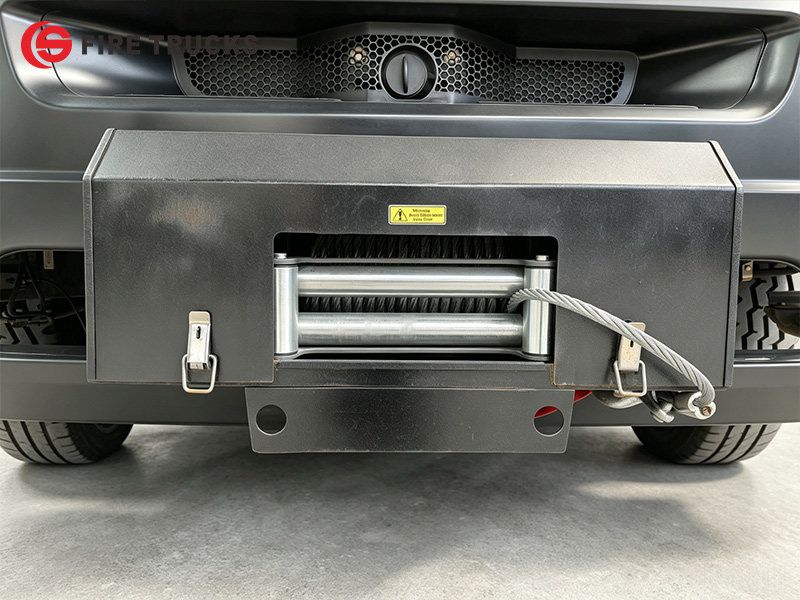

» Ⅲ.Front Towing Winch System :

★ Front-mounted towing winch with 75 kN max pull, 38m × φ13mm wire rope, 8° vertical angle and 5° horizontal angle for complex terrain

★ 12V/24V DC power, 430:1 dual-stage planetary gear reduction (spur gear + planetary), high-strength powder metallurgy gears for heavy-duty reliability

★ Series-wound motor drive with reliable braking system and manual rope release via clutch—easy operation and safe control

★ Compact design with strong load capacity, simple installation, and durable construction for demanding rescue operations
howo 4x2 foam fire rescue tender Liberia
Towing Capacity: 16800lbs (7938 kgs)
Motor: 5.4kW/7.1hp(12v);6.0kW/7.9hp(24v)
Reduction Ratio: 430:1
Steel Rope Size: Φ15/32"*87'(Φ12mm*26.5m)
Roller Size: Φ3.5"*8.6"(Φ89mm*219mm)
Overall Dimension: 24.4"*8.4"*11.4"(620mm*214mm*290mm)
Installation Dimension: 10"*4.5"(254mm*114.3mm)
Kure Weight: 147.7Ibs(67kgs)
  • HOWO SITRAK 4x2 emergency lighting foam fire fighting vehicle Philippines
  • HOWO 4x2 fire rescue truck for sale Philippines
  • SITRAK HOWO 4X2 foam water rescue pumper truck Philippines Philippines

» .Mast Lighting System :

HOWO SITRAK roll-up aluminum door fire rescue truck Togo

8m telescopic mast with maximum extended height of 8 meters, constructed from high-strength aluminum alloy for lightweight durability and stable elevation.



Equipped with 2×1000W LED lamps, delivering powerful 360° illumination for night rescue and emergency scene lighting.



▶ Continuous rotation with horizontal angle ≥420° and tilt angle ≥420° allows flexible positioning; mast can be raised, lowered, and rotated smoothly with electric control.

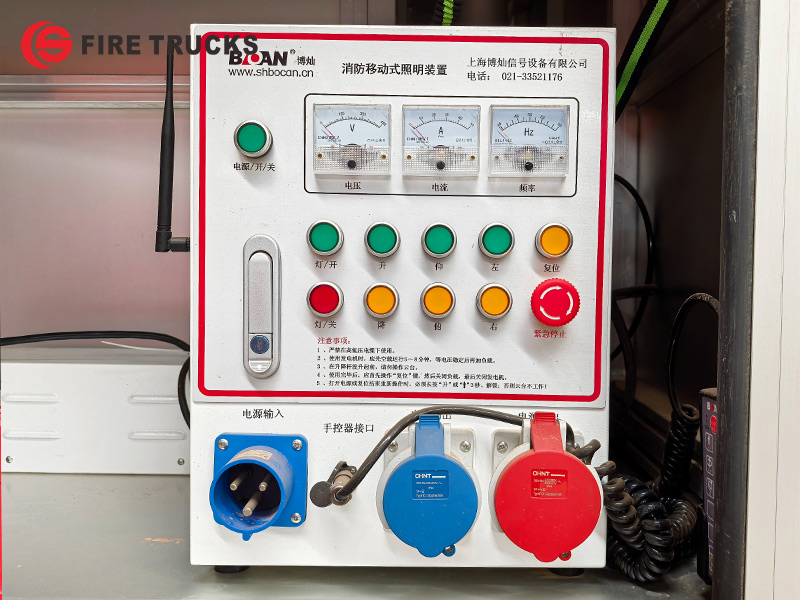

▶ Powered by a 15kVA gasoline generator (220V/380V, 50Hz), supporting both panel and wireless remote control (≥50m range) with one-key auto-reset function.



» .Product Details :

» Ⅵ.Fire Pump System :

Fire Pump:

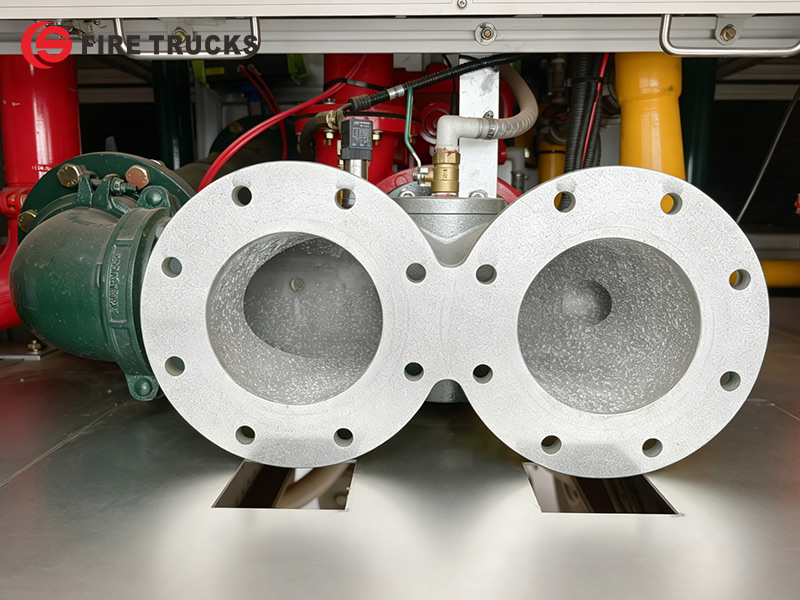

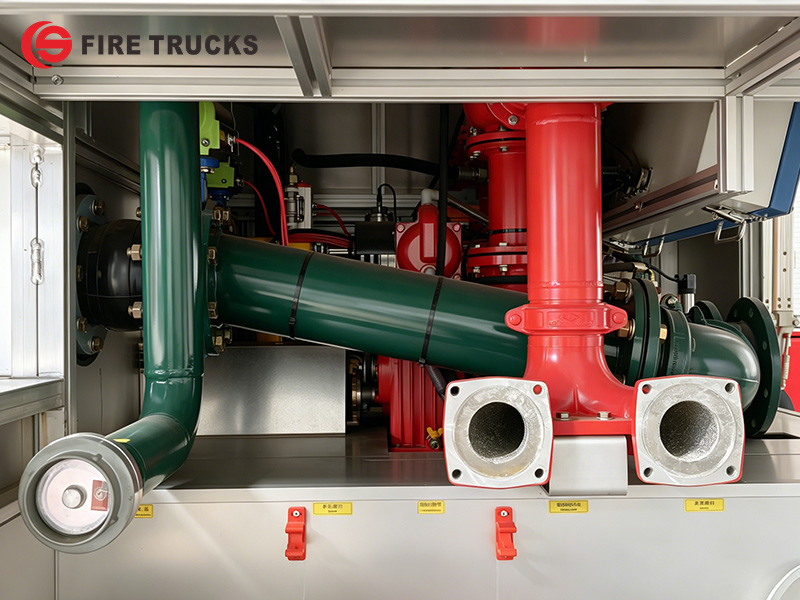

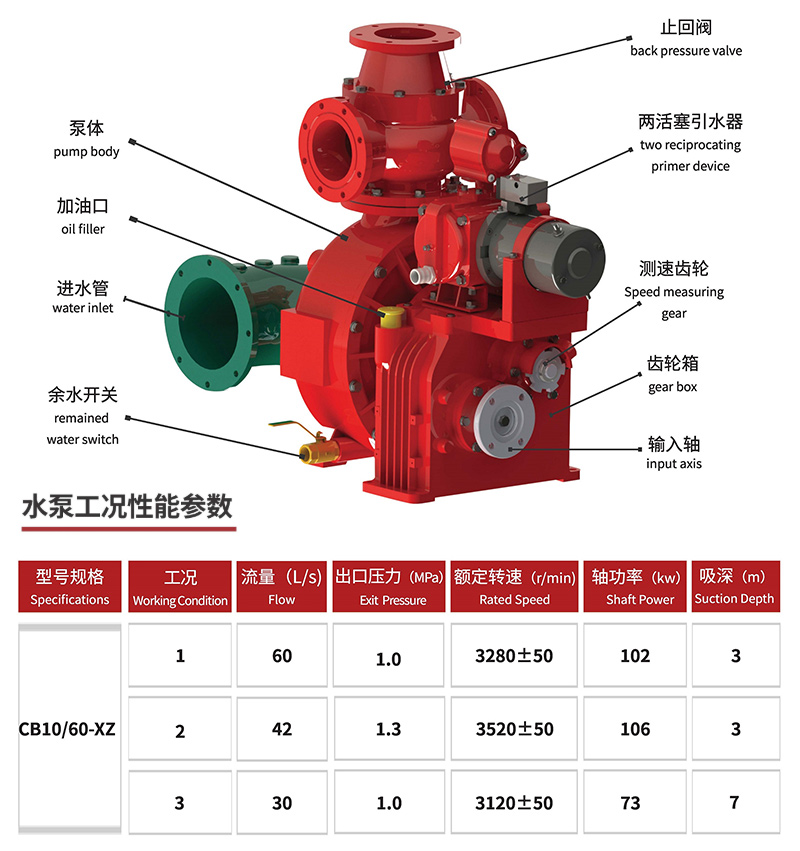

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

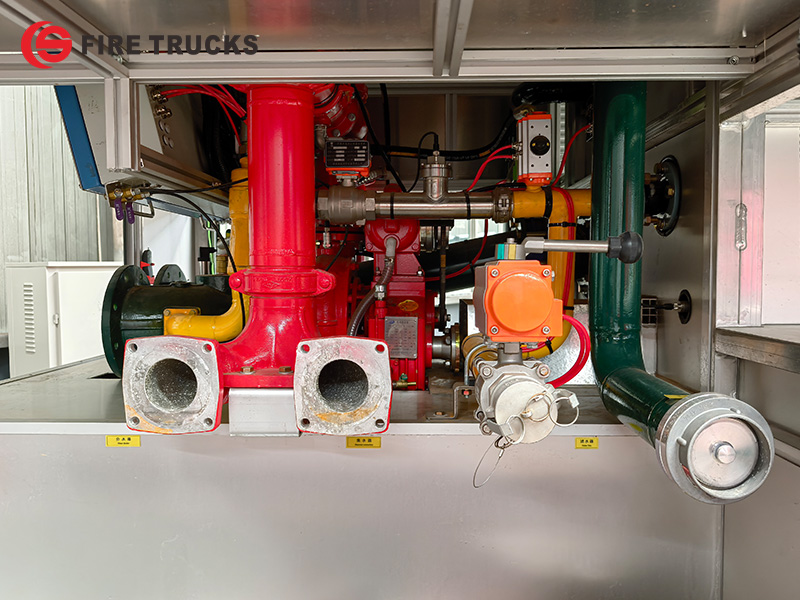

CB10/60-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/60

60L/s

1.0MPa

1.251 MPa

0.4MPa

  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump

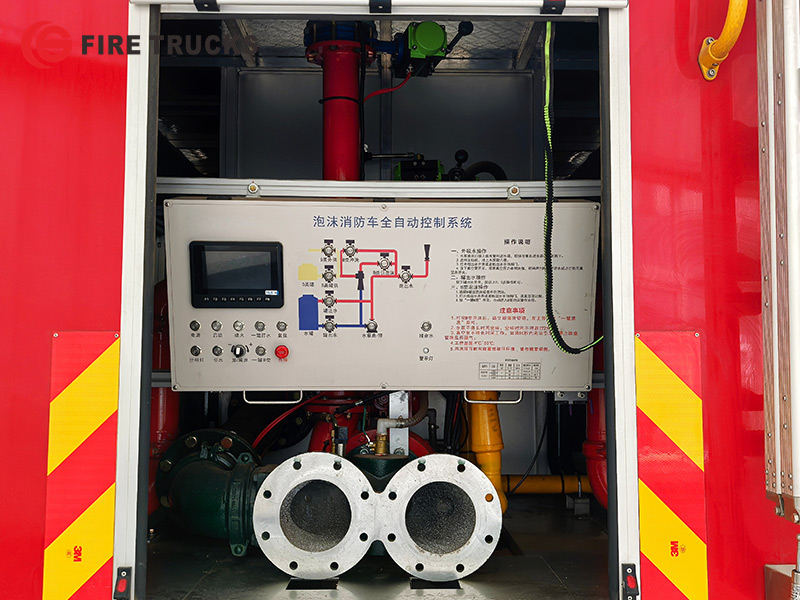

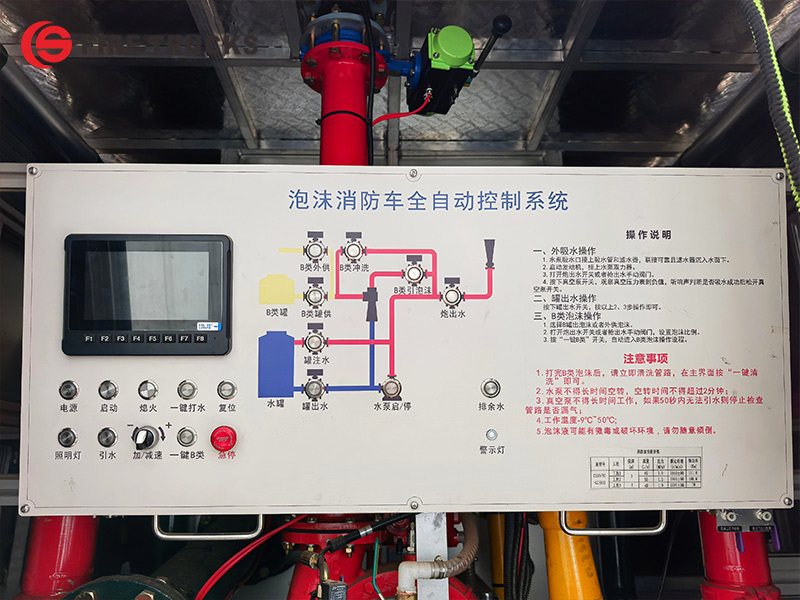

Control panel:

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, ladder controls, and compartment lighting. All controls are clearly marked for straightforward operation.

foam fire truck control panel



» .Fire Monitor System :

The PLDK8/48 fire monitor is mounted on the front of the superstructure. It delivers a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

PLDK8/48 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation
PLDK8/48 48L/s Water≥70m Foam ≥60 m 1.0MPa -35°~+70°
0~360°



».Firefighting Equipment :

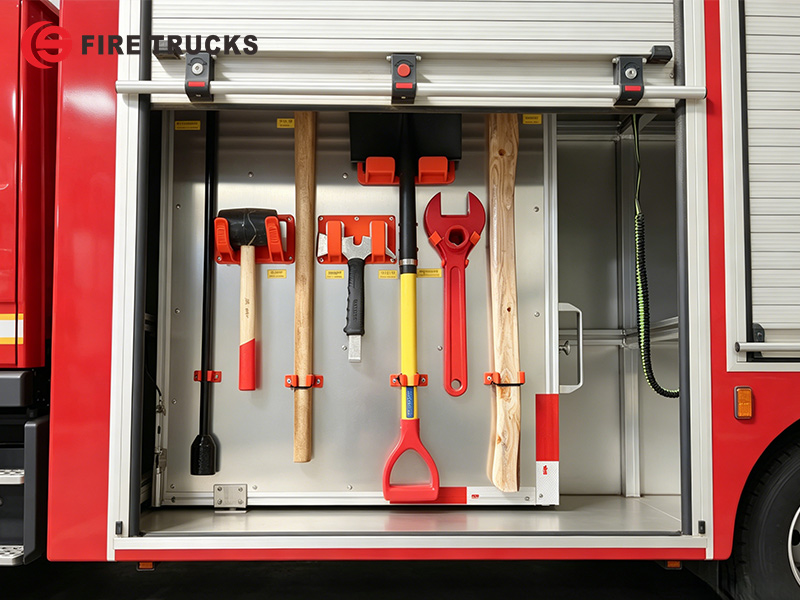

 Equipment Room

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

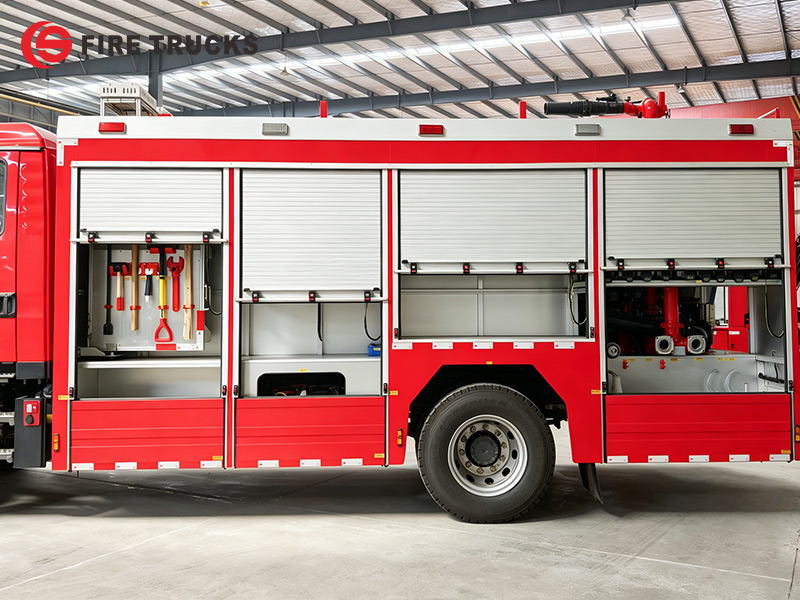

foam fire tender equipment Room



 Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.



Foam fire fighting vehicle firefighting equipment



The Dubai HOWO SITRAK emergency lighting rescue fire truck comes with a rear-mounted CB10/60 fire pump and a superstructure front mounted PLDK8/48 monitor. The water tank holds 4,500 liters, and the foam tank holds 1,600 liters, sitting on a sturdy SITRAK 4×2 chassis powered by a 350 HP MC07H.35-61 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Full specifications are listed below:

fire rescue equipment

fire rescue equipment



».Application scenarios :
