HOWO TX 460HP Model fire rescue truck

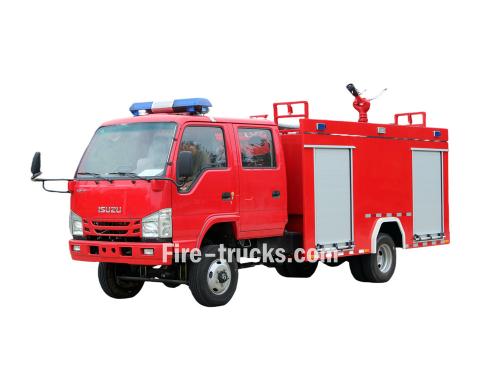

This Isuzu 3cbm water tanker fire truck is based on an Isuzu 100P 4x4 double-cab chassis with a 3360mm wheelbase. It is equipped with an Isuzu 4KB1-TCG60 engine and an MSB 5-speed gearbox. The front of the superstructure houses the equipment compartment, the middle section contains a 300L carbon steel water tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PS8/30W fire monitor is mounted on the roof.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a wheelbase of 4600mm+1370mm. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8500L carbon steel water tank and a 1500L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/48 fire monitor is located on the roof.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a wheelbase of 4600mm+1370mm. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8500L carbon steel water tank and a 1500L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/48 fire monitor is located on the roof.

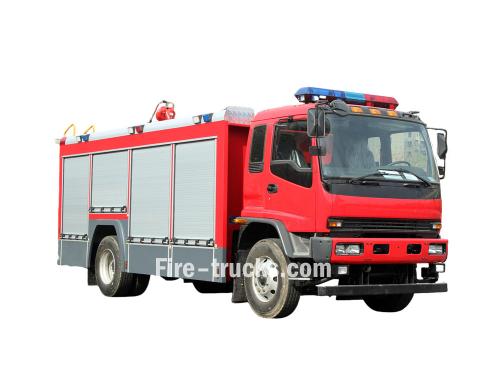

The Isuzu FVR 6 cubic meter foam fire truck uses an Isuzu FVR chassis with a 4500mm wheelbase. It is equipped with an Isuzu 6HK1-TCL engine, a Fast 8-speed transmission, a 5-ton carbon steel water tank (with anti-corrosion treatment), a 1-ton 304 stainless steel foam tank, a Shanghai Xiongzhen CB10/40 low-pressure fire pump (rear-mounted pump room), a Chengdu West PL32 fire monitor, and a 30-meter medium-pressure hose reel in the pump house.

The Isuzu GIGA 4.5 CBM foam fire truck uses the Isuzu GIGA 4x2 Class II fire truck chassis, with a 4600mm wheelbase, an Isuzu 6UZ1-TCG50 engine, and a FAST 12-speed gearbox. The front of the superstructure houses the equipment compartment, with a 4 cubic meter carbon steel water tank and a 500L stainless steel foam tank in the middle. The rear houses the pump room, equipped with a CB10/60-RS fire pump, control panel, fire hoses, and a PL8/48 fire monitor mounted on the roof.

The Howo TX 4x2 7.5 cubic meter foam fire truck uses the Howo TX chassis with a 4700mm wheelbase. It is equipped with a Weichai WP4.6NQ240E62 engine and a Sinotruk HW95508STCL gearbox. The front of the superstructure is an equipment box for storing auxiliary firefighting equipment. The middle section contains a 5.5 cubic meter carbon steel water tank and a 2 cubic meter stainless steel foam tank. The rear pump room is equipped with a CB10/40-LC(BS) fire pump, control panel, firefighting equipment, PL8/32 fire monitor on the tank top, and two European standard manholes.

The Sinotruk 6 CBM CAFS fire rescue truck is modified from the Sinotruk C5H chassis, with a 4700mm wheelbase. It is equipped with a Sinotruk MC07H.35-60 engine, a Fast 8-speed gearbox, and features a 5 cubic meter water tank, a 350KG type A foam tank, and a 550KG type B foam tank. The vehicle is equipped with a high-performance fire pump, fire monitor, and CAFS system, and is easy to operate. This vehicle can be used for comprehensive emergency rescue functions such as fire fighting, reconnaissance, demolition, rescue, lighting, and protection.

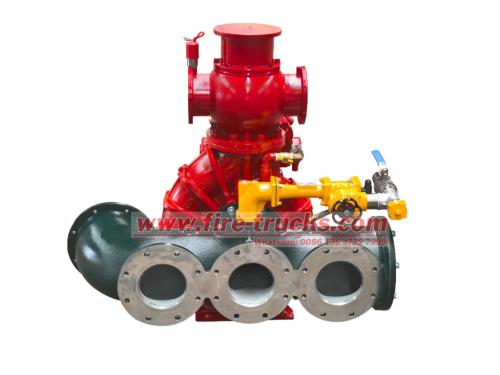

The CB10 30 fire pump adopts a single-stage centrifugal pump structure with a two-piston priming device. The priming device is activated by the pump's rotation and automatically disengages once the required pressure is reached. The product operates stably and is reliable in quality, with various inlet and outlet pipe options available.
