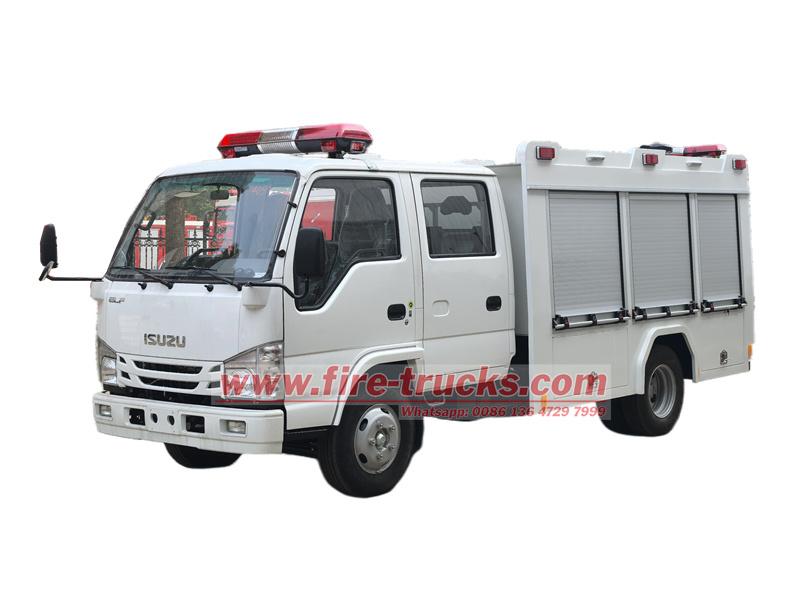

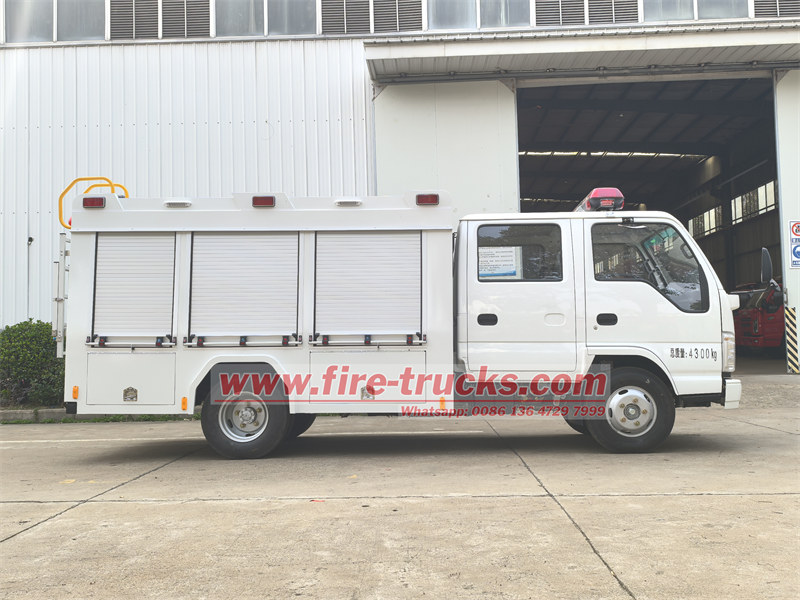

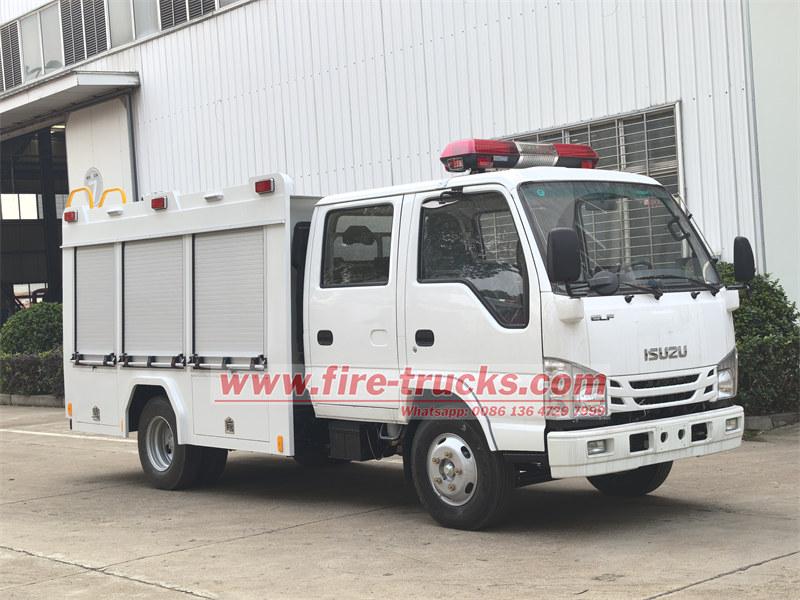

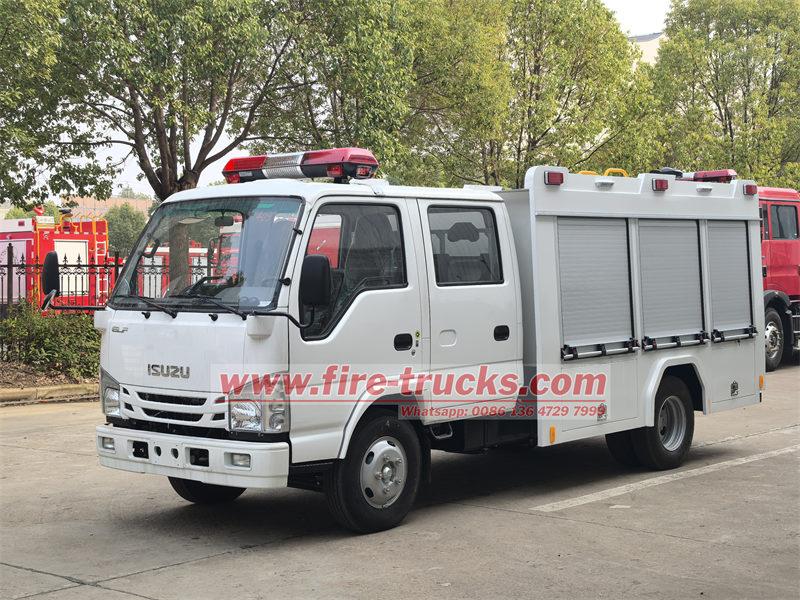

The ISUZU Light Rescue Fire Truck is built on the QL1040BUH chassis, powered by a 4KH1CN6LB diesel engine (88kW/2999ml) with a top speed of 100 km/h. The vehicle measures 5,995 mm in length and has a GVW of 4,300 kg. Its double-row cab accommodates five personnel. The modular body is equipped with a multifunctional equipment compartment for storing rescue gear such as demolition tools, detection devices, and protective equipment. The roof integrates an alarm siren and strobe lights. Suitable for firefighting, road maintenance, and other emergency scenarios, it comes standard with ABS and an air conditioning system, balancing safety and operational comfort.
Truck Model:
PT5040TXFQCTanker Structure:
No tankWork capacity :
375 kgWheelbase:
3360 mmAxle drive:
4×2, left hand driveEngine Power:
120 HPEngine Model:
4KH1CN6LBFire Pump:
No pumpFire Monitor:
No monitorRemark:

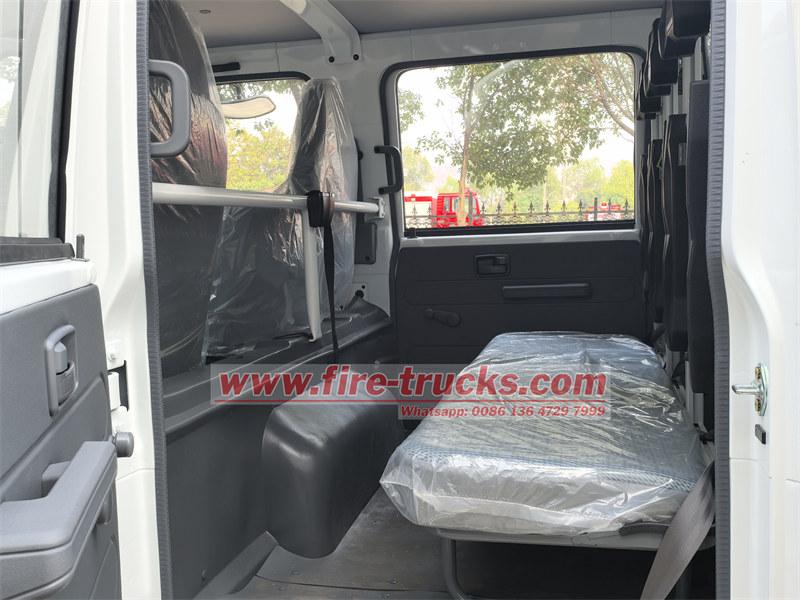

4×4 is optionalThe ISUZU NKR Light Rescue Fire Truck, modified from the QL1040BUH cargo chassis, is a professional emergency response vehicle combining mobility, functionality, and reliability. With compact dimensions of 5,995 × 1,990 × 2,650 mm, its design ensures urban maneuverability and operational flexibility. The GVW is 4,300 kg, and it is powered by a 4KH1CN6LB diesel engine delivering 88 kW and 2,999 ml displacement, achieving a top speed of 100 km/h. The double-row cab seats five rescue personnel (2+3 layout), while the 3,360 mm wheelbase and 3/3+2 leaf spring suspension enhance driving stability, making it ideal for rapid response to emergencies.

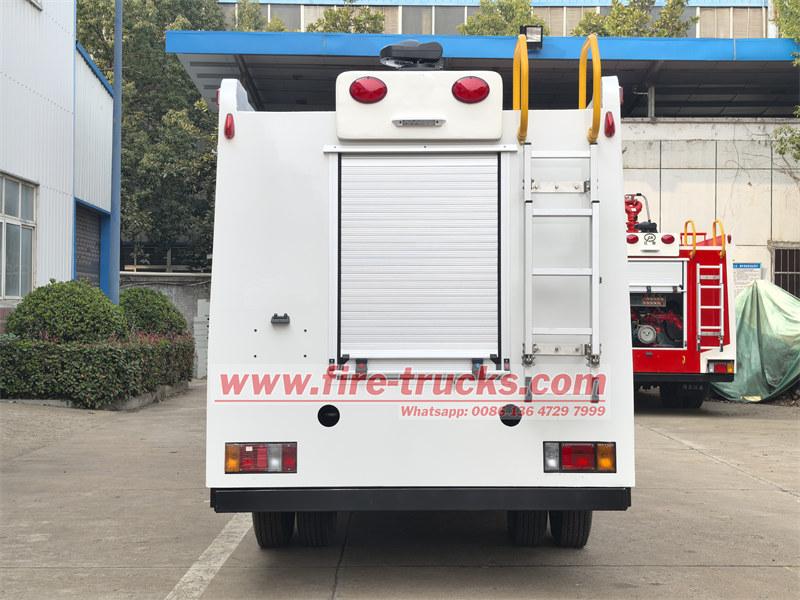

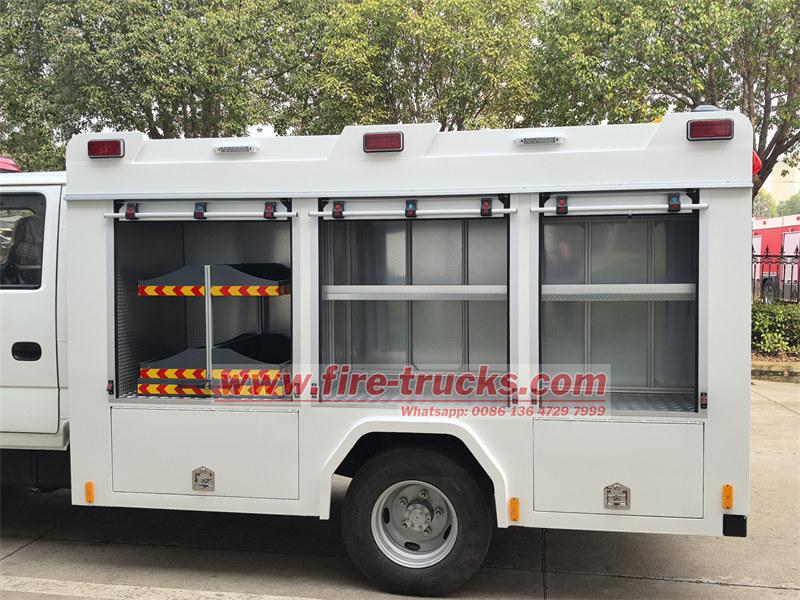

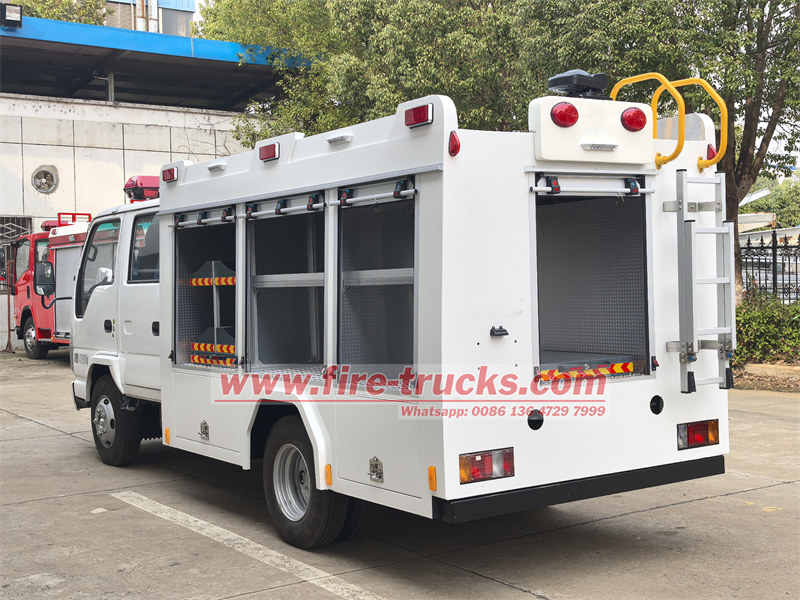

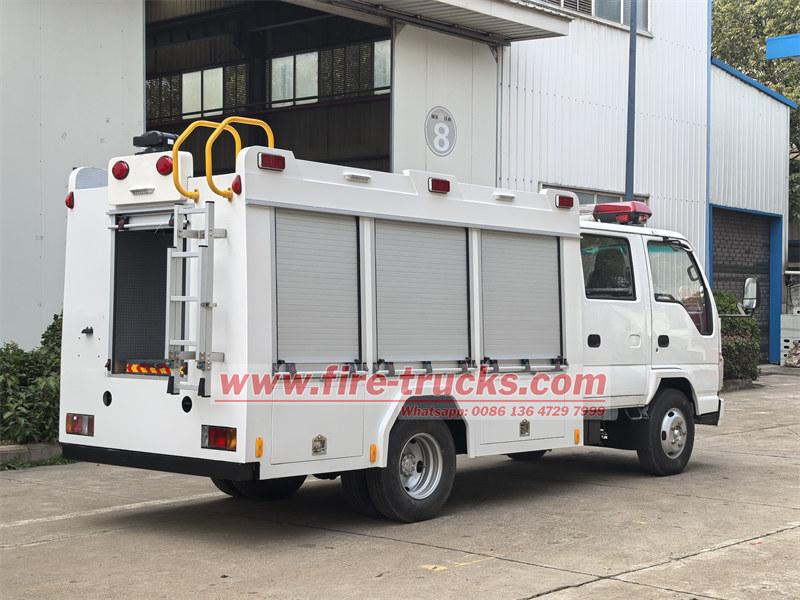

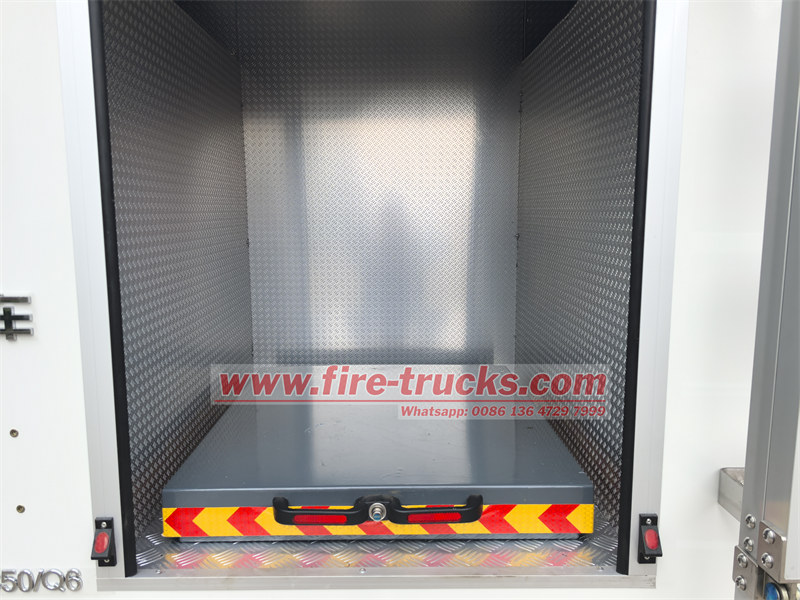

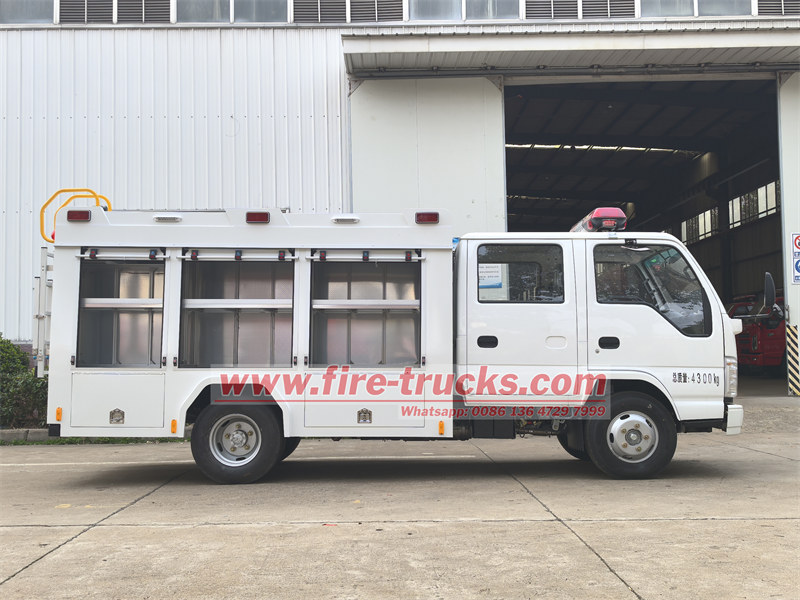

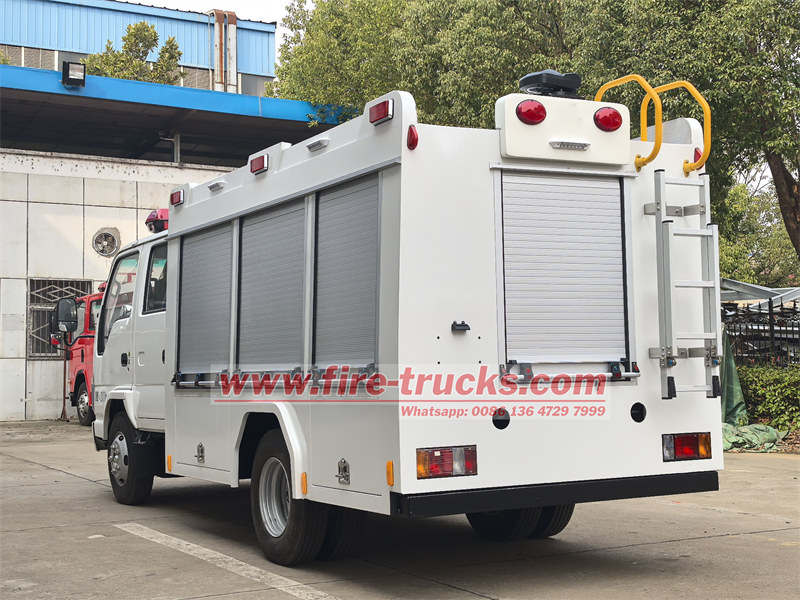

The core advantage of this ISUZU light rescue fire vehicle lies in its modular superstructure. The body features a high-strength integrated welded frame divided into three zones: the cab, crew compartment, and multifunctional equipment storage. The storage compartment is equipped with roll-up anti-theft doors and an optimized layout for categorized storage of demolition tools, detection instruments, personal protective gear, and life-saving equipment. The roof integrates a 100W alarm siren and a light bar with strobes, while red-and-blue warning lights and four spotlights are mounted on both sides. Combined with reflective markings, these features significantly improve visibility at night. Notably, the vehicle comes standard with ABS and an air conditioning system, ensuring braking safety on challenging roads and enhancing crew comfort.
Thanks to its versatility, the ISUZU Emergency Fire Truck has become the preferred choice for fire departments, road authorities, and industrial enterprises. With a 24° approach angle and 16° departure angle, it handles diverse terrains, enabling rapid deployment to traffic accidents, hazardous material leaks, or natural disaster sites. Optional equipment includes lifting lighting systems, decontamination devices, and communication tools, meeting diverse needs such as rescue operations, environmental monitoring, and evacuation management. The 7.00R16LT 8PR high-load tires and front/rear axle load distribution of 1,700/2,600 kg ensure stability under heavy loads, making it particularly suitable for prolonged missions involving hydraulic spreaders, toxic gas detectors, and other heavy-duty equipment.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
Vehicle Parameters |
|
Model |
ISUZU5040TXFQC |
Overall Dimensions(L×W×H) |
5995×1990×2650(mm) |
Passenger Capacity |
2+3 |
Weight Parameters |
GVW:4300kg ; Curb weight: 3925 kg |
Approach/Departure Angle: |
24°/16° |
Max Driving Speed |
100km/h |
Front/Rear Overhang |
1015/1620(mm) |
Chassis Parameters |
|
Chassis Model |
QL1040BUH |
Engine Model |
4KH1CN6LB |
Engine Power/Displacement |
88kw/2999ml |
Number of Axles/Wheelbase |
2 axles / 3360mm |
Axle Load (Front/Rear) |
1700/2600 kg |
Leaf Spring Configuration |
3/3+2 |
Number of Tires |
6个 |
Tire Specification |
7.00R16LT 8PR |
Front Track |
1377 mm |
Rear Track |
1425 mm |
Special Equipment |
|
Upper-body Configuration |
|
|
|
Remarks |
Equipped with air conditioning and ABS. |
